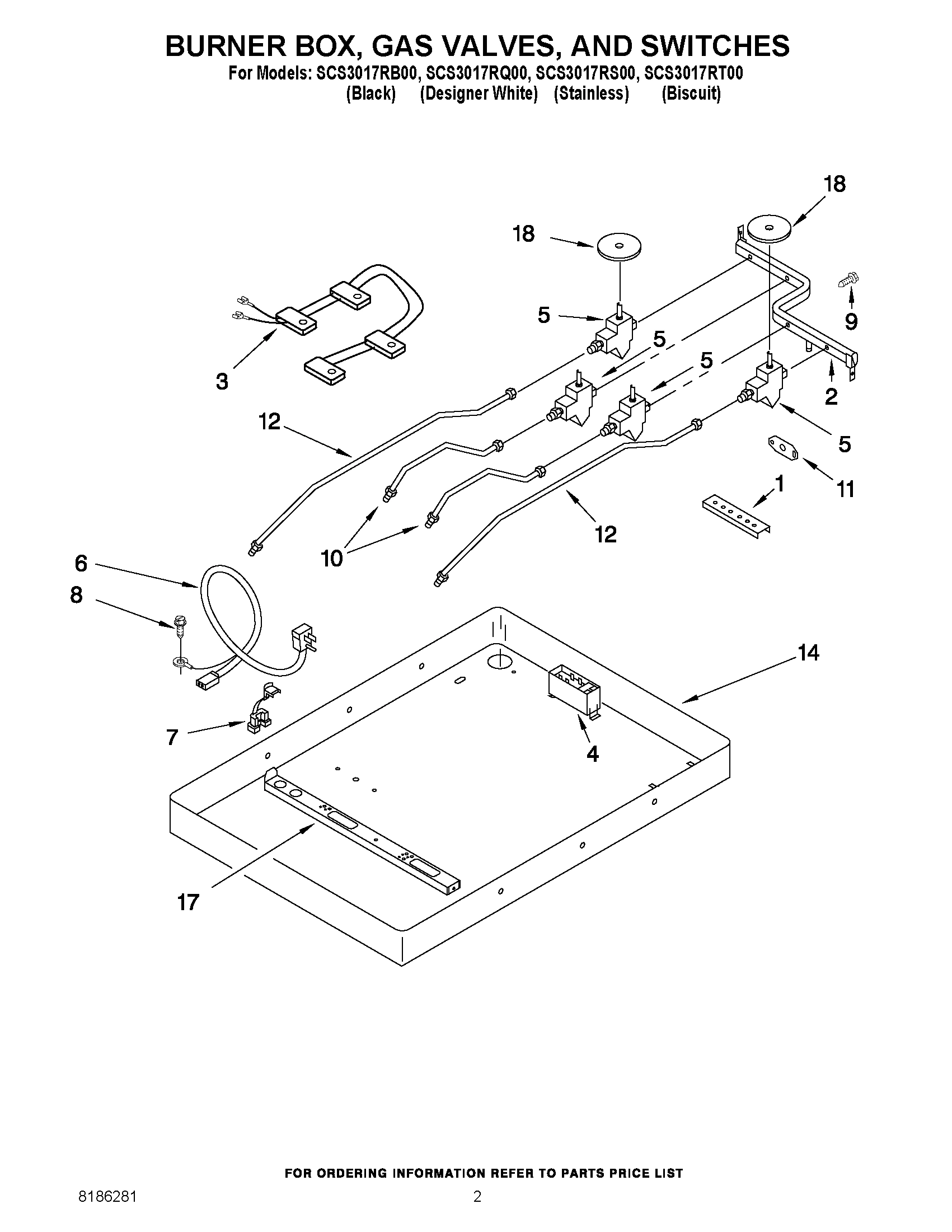

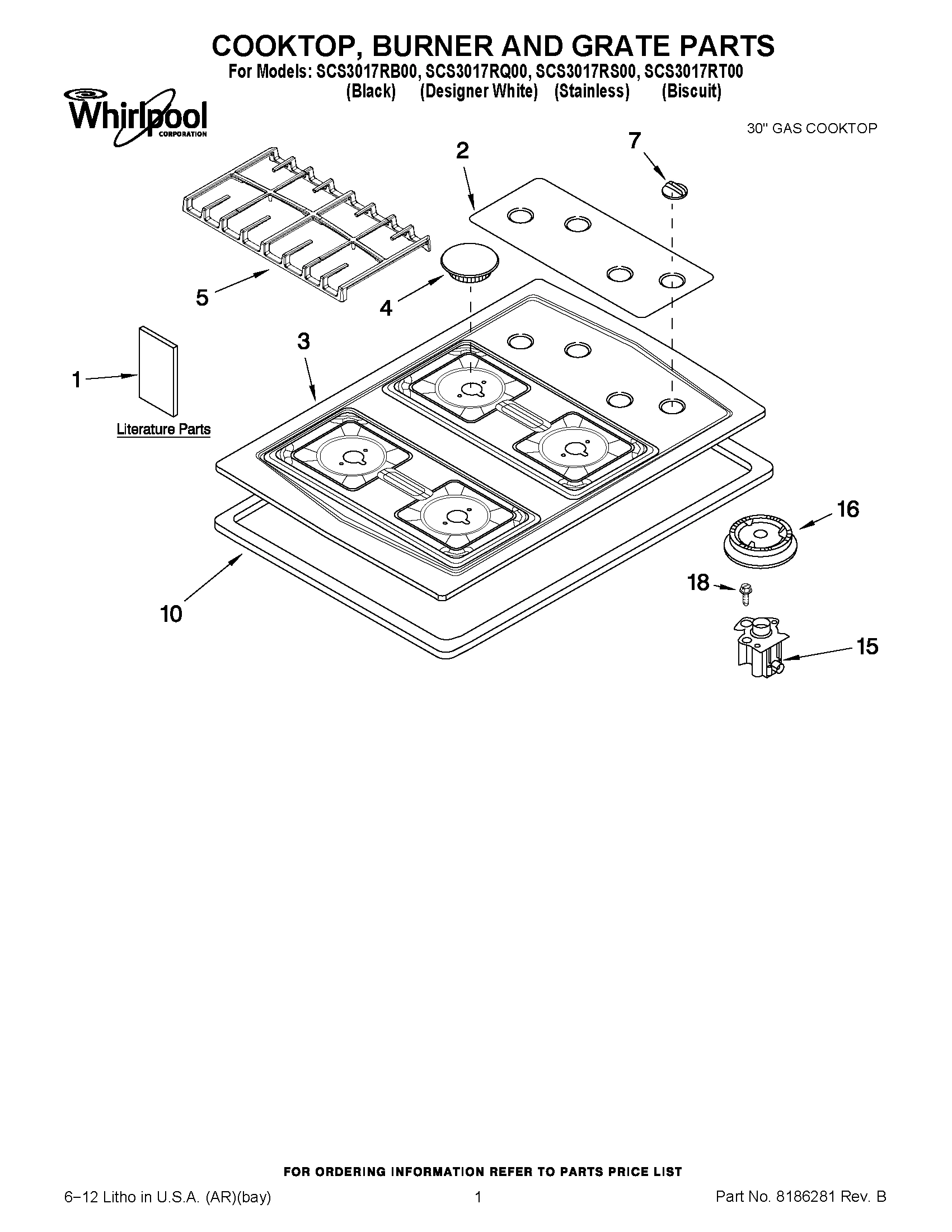

Model Whirlpool SCS3017RB00 30`` GAS COOKTOP – Common Parts & Diagrams

2
Panel, Control (White)
Panel, Control (White) WPL 8286503 Contact Us For Availability
View on Model
4
Cap, Burner 9.5K (1) Espresso
Cap, Burner 9.5K (1) Espresso WPL 8286154EP Contact Us For Availability
View on Model
5
Valve, Burner (Auxi (White))
Valve, Burner (Auxi (White)) WPL 8286559 Contact Us For Availability
View on Model
5
Valve, Burner (Rapid (Purple))
Valve, Burner (Rapid (Purple)) WPL 8286560 Contact Us For Availability
View on Model
5
GRATE LEFT HAND (BLACK)
GRATE LEFT HAND (BLACK) WPL 8285886BL Contact Us For Availability
View on Model
5
GRATE LEFT HAND (CUMBERLAND GRAY)
GRATE LEFT HAND (CUMBERLAND GRAY) WPL 8285886CG Contact Us For Availability
View on Model
5
GRATE LEFT HAND (ESPRESSO)
GRATE LEFT HAND (ESPRESSO) WPL 8285886EP Contact Us For Availability
View on Model
5
GRATE RIGHT HAND (BLACK)
GRATE RIGHT HAND (BLACK) WPL 8285888BL Contact Us For Availability
View on Model
5
GRATE RIGHT HAND (CUMBERLAND GRAY)
GRATE RIGHT HAND (CUMBERLAND GRAY) WPL 8285888CG Contact Us For Availability
View on Model
5
GRATE RIGHT HAND (ESPRESSO)
GRATE RIGHT HAND (ESPRESSO) WPL 8285888EP Contact Us For Availability
View on Model
9
Bolt, Gas Valve
Bolt, Gas Valve WPL 3186217 Contact Us For Availability
View on Model
10
Tubing, Burner RR & RF
Tubing, Burner RR & RF WPL 3191318 Contact Us For Availability
View on Model
10
Seal, Foam
Seal, Foam WPL 3193090 Contact Us For Availability
View on Model
14
Screw
Screw WPL 3179776 Contact Us For Availability
View on Model
15
Holder, Orifice (Includes 13 & 14) (Auxi)
Holder, Orifice (Includes 13 & 14) (Auxi) WPL 8286513 Contact Us For Availability
View on Model
NI
HARDWARE MOUNTING KIT (INCLUDES REGULATOR)
HARDWARE MOUNTING KIT (INCLUDES REGULATOR) WPL 4455918 Contact Us For Availability
View on Model
