Model Whirlpool SCS3004LW0 COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool SCS3004LW0 COOKTOP

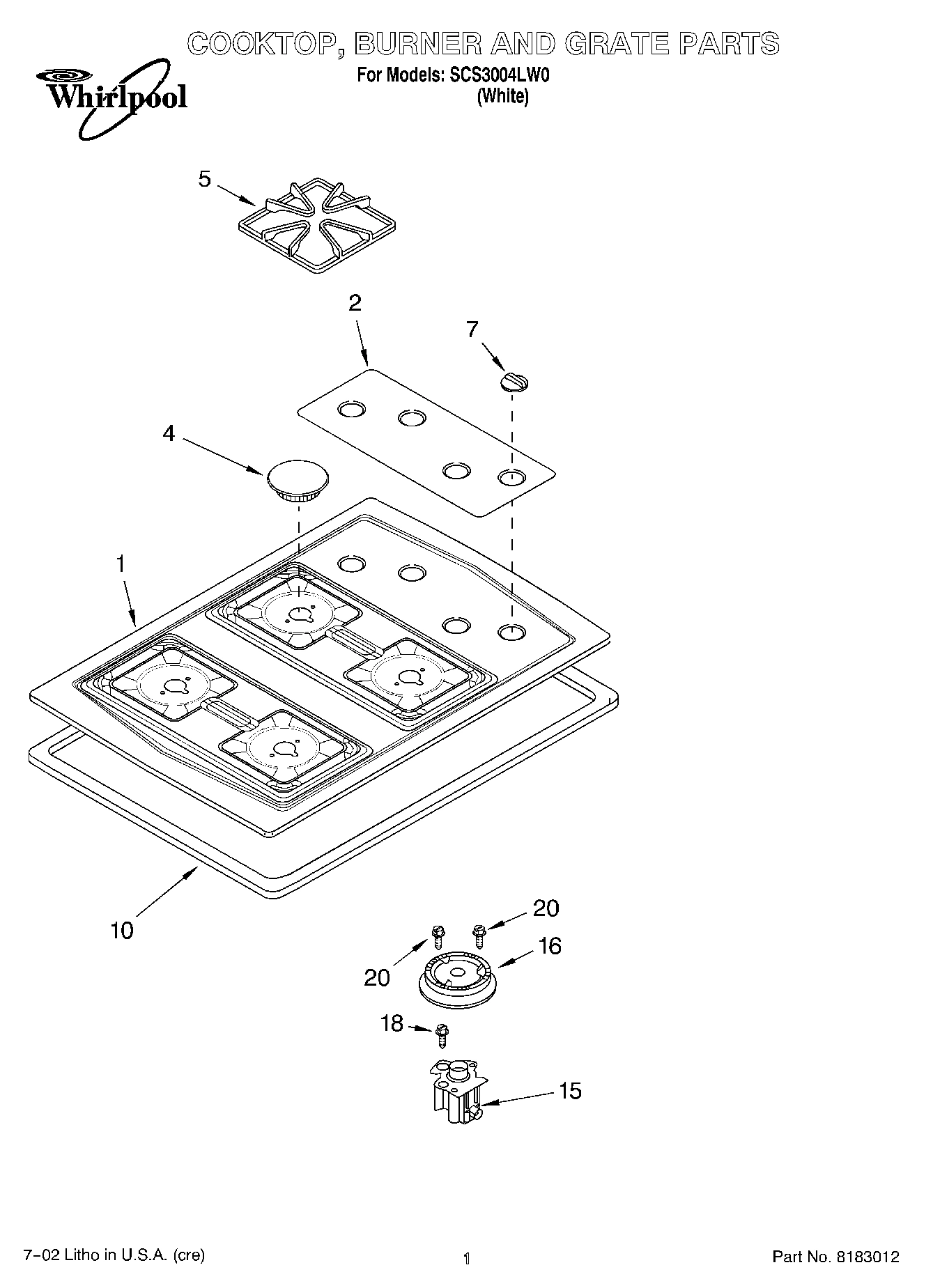

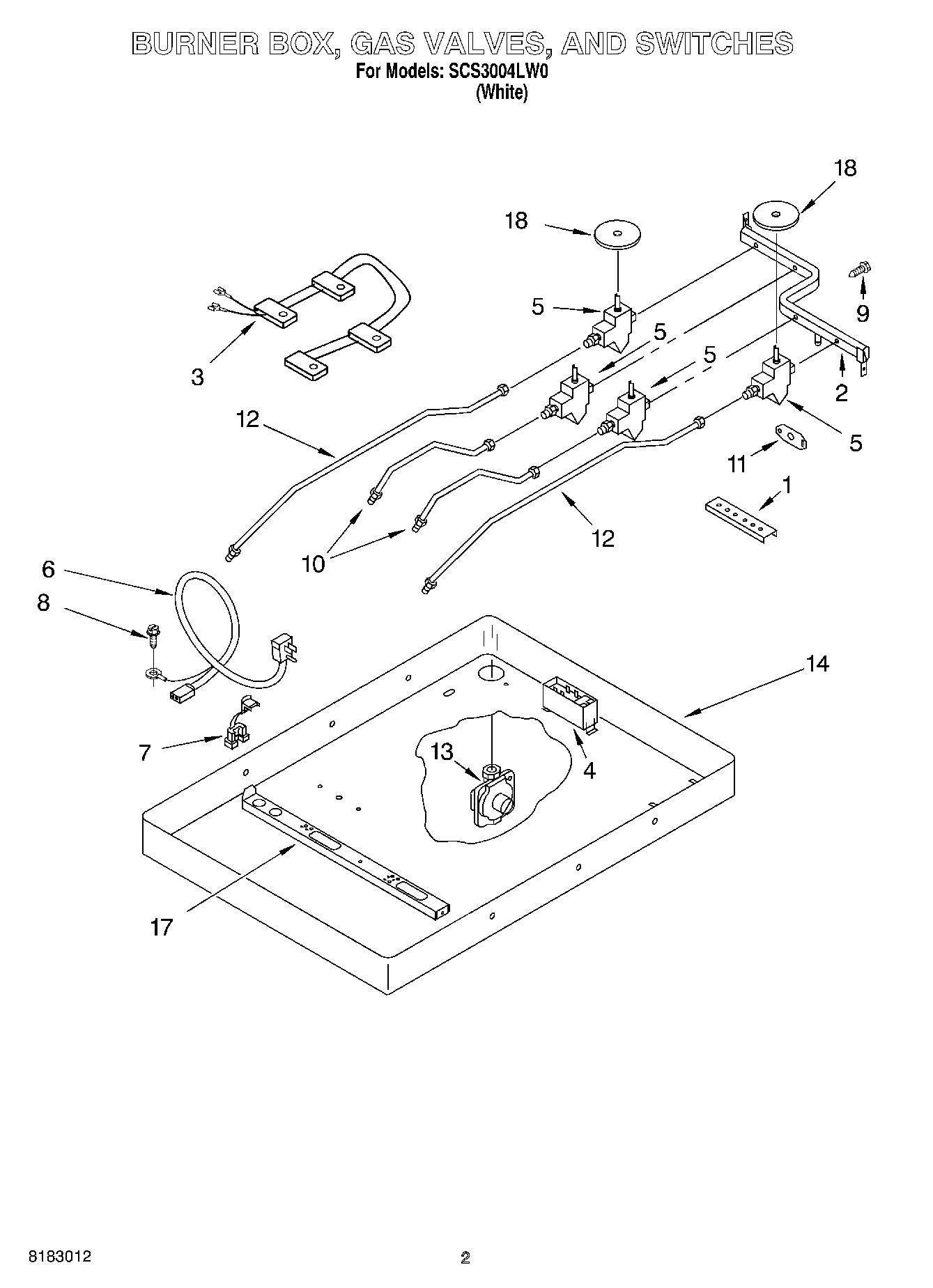

02 - BURNER BOX, GAS VALVES, AND SWITCHES

Print

• This Diagram
• All Diagrams

WP3192741 Whirlpool LP Conversion Kit In Stock WPL WP3192741 View Details $21.74

View on Model

1

WP3191243 Whirlpool Cooktop Assembly Backorder WPL WP3191243 View Details $222.64

View on Model

2

Panel, Control WPL 8285090 Contact Us For Availability

View on Model

3

WP3191334 Whirlpool Wire Harness Backorder WPL WP3191334 View Details $140.62

View on Model

4

WP3191898 Whirlpool Surface Burner Cap Black Backorder WPL WP3191898 View Details $42.16

View on Model

4

WP3191901 Whirlpool Burner Cap Backorder WPL WP3191901 View Details $54.85

View on Model

5

WPW10268483 Whirlpool Grate Kit In Stock WPL WPW10268483 View Details $80.83

View on Model

5

Valve, Burner (Small (1)) WPL 3191292 Contact Us For Availability

View on Model

5

Valve, Burner (Large (3)) WPL 3191293 Contact Us For Availability

View on Model

7

Knob, Control (4) WPL 8285068 Contact Us For Availability

View on Model

8

WP3177991 Whirlpool Screw Backorder WPL WP3177991 View Details $2.51

View on Model

9

Bolt (Gas Valve) WPL 3185829 Contact Us For Availability

View on Model

10

Tubing, Burner RR & RF WPL 3191318 Contact Us For Availability

View on Model

10

Seal, Foam WPL 3193090 Contact Us For Availability

View on Model

11

3192491 Whirlpool Support Bracket Backorder WPL 3192491 View Details $6.00

View on Model

12

3191320 Whirlpool Oven Gas Tubing Backorder WPL 3191320 View Details $44.58

View on Model

13

Regulator, Pressure WPL 3177120 Contact Us For Availability

View on Model

14

4456780 Whirlpool Oven Burner Box Backorder WPL 4456780 View Details $155.79

View on Model

15

814513 Whirlpool Top Burner In Stock WPL 814513 View Details $83.51

View on Model

15

Holder, Orifice (Includes 13 & 14) (RF 6K) WPL 9754182 Contact Us For Availability

View on Model

16

WP4455979 Whirlpool Range Small Burner Head Backorder WPL WP4455979 View Details $34.15

View on Model

16

WP4455980 Whirlpool Burner Head In Stock WPL WP4455980 View Details $37.44

View on Model

17

W10203756 Whirlpool Support Backorder WPL W10203756 View Details $6.37

View on Model

18

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 View Details $28.80

View on Model

18

WP4449809 Whirlpool Screw In Stock WPL WP4449809 View Details $2.51

View on Model

20

WP3368921 Whirlpool Screw In Stock WPL WP3368921 View Details $1.52

View on Model

20

Harness, Wire Ignitor (15``) WPL 3192229 Contact Us For Availability

View on Model

20

Harness, Wire Ignitor (28``) WPL 3192230 Contact Us For Availability

View on Model

×
