Model Whirlpool SCG20200A GAS RANGE – Common Parts & Diagrams

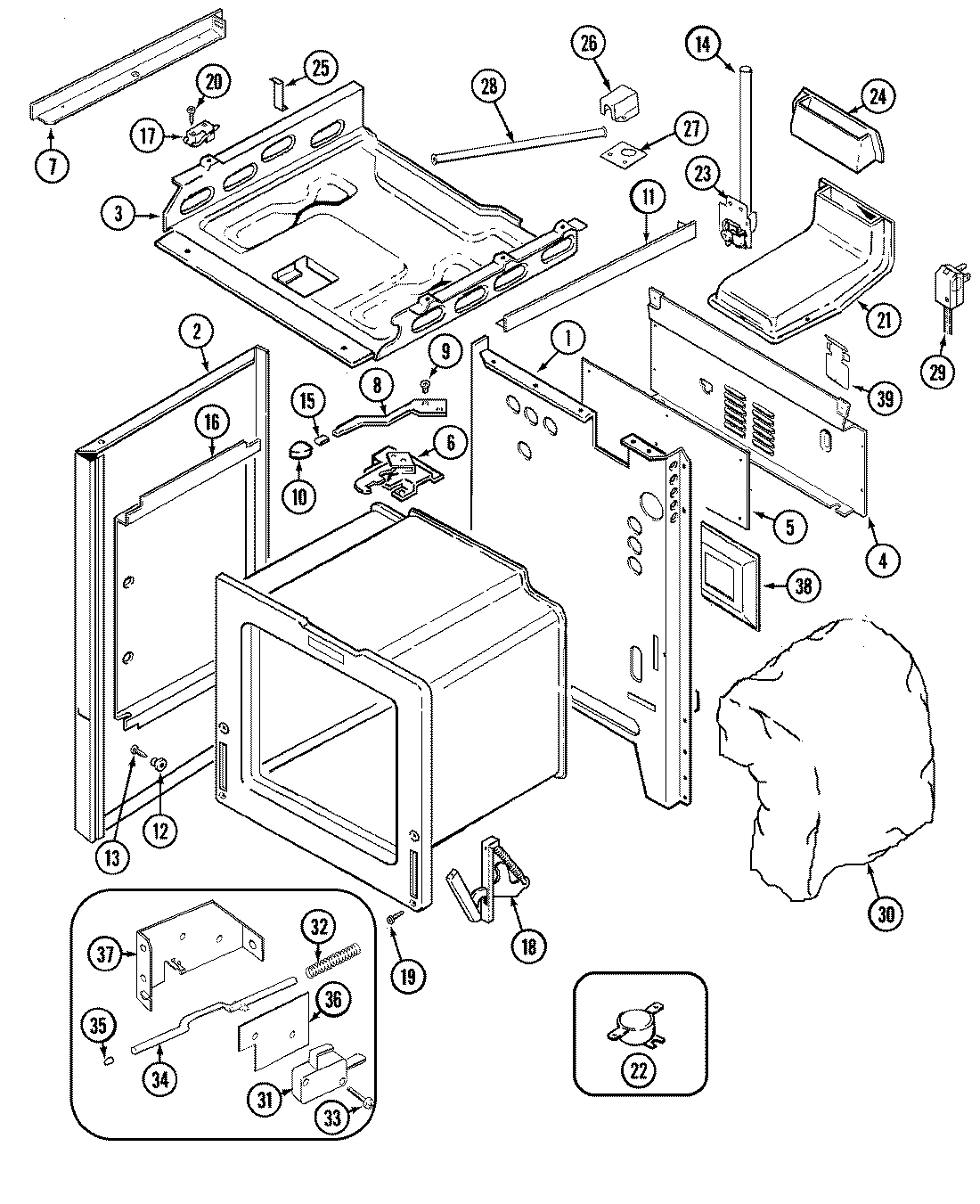

01 - BODY

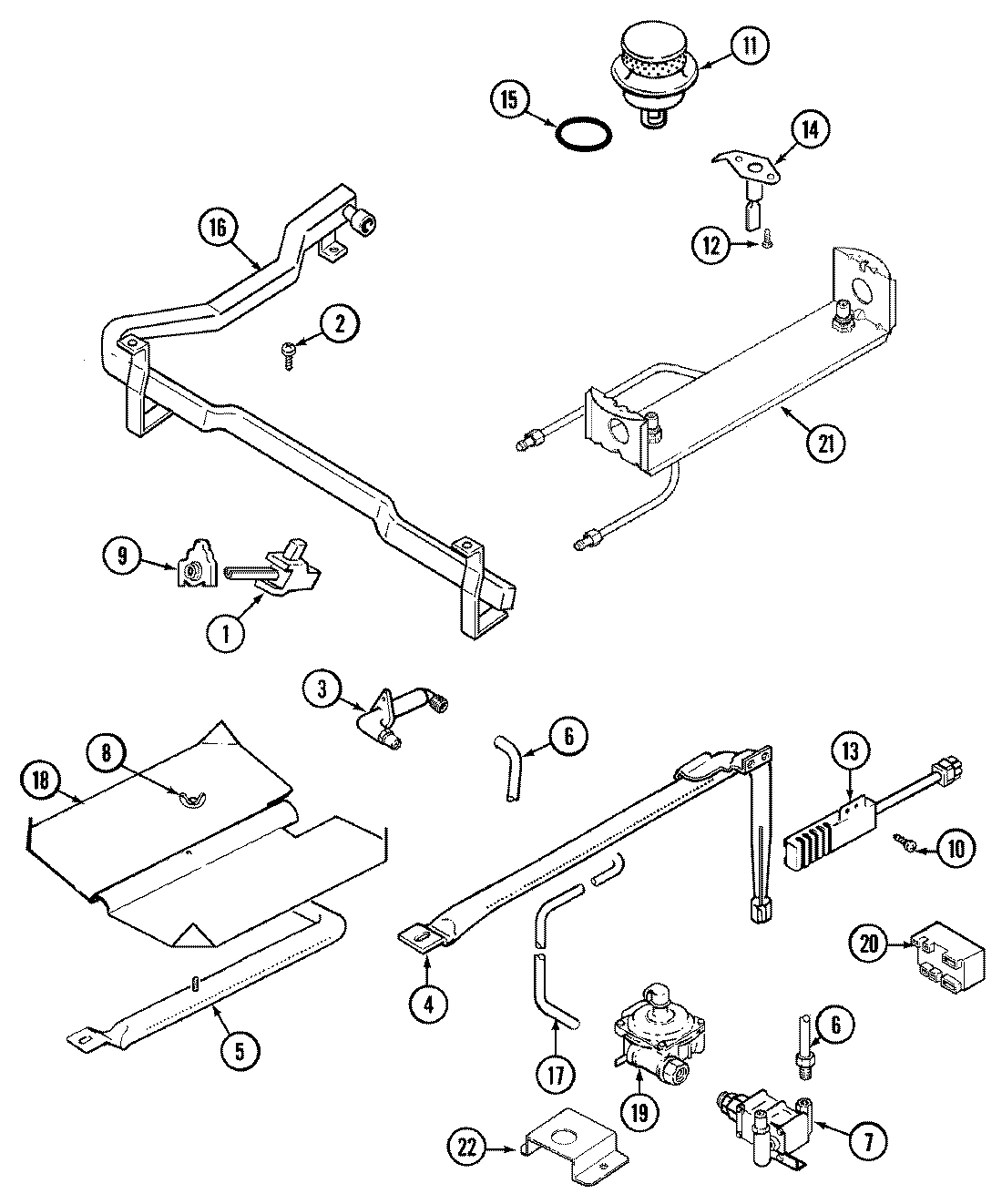

03 - GAS CONTROLS

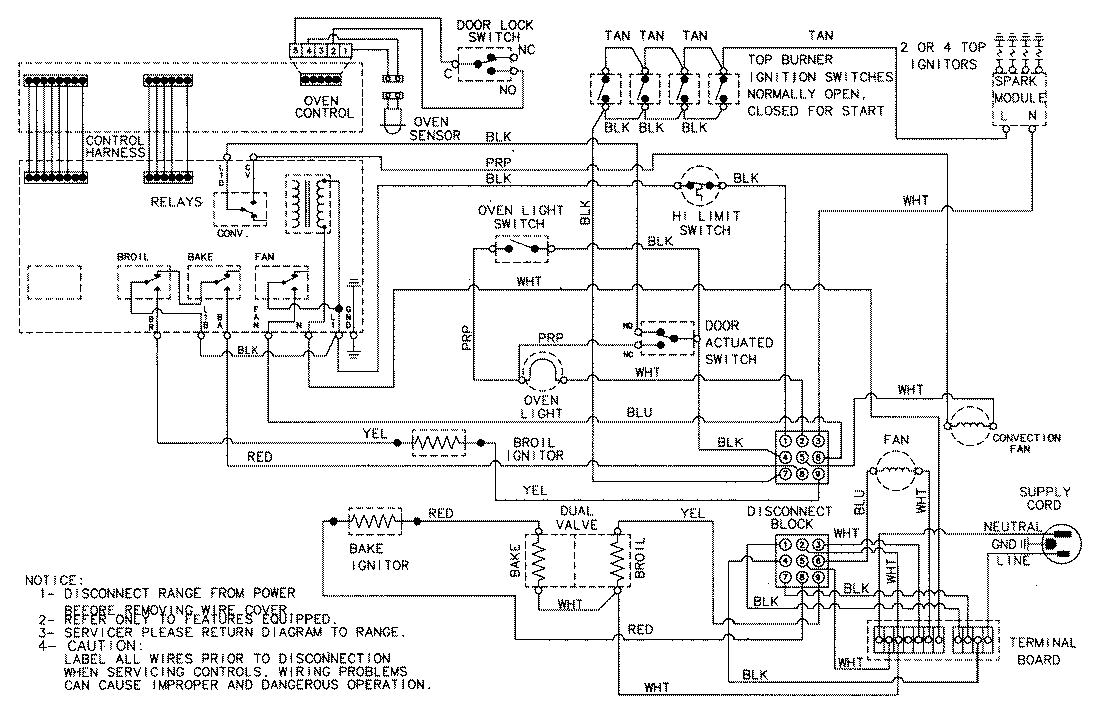

06 - WIRING INFORMATION

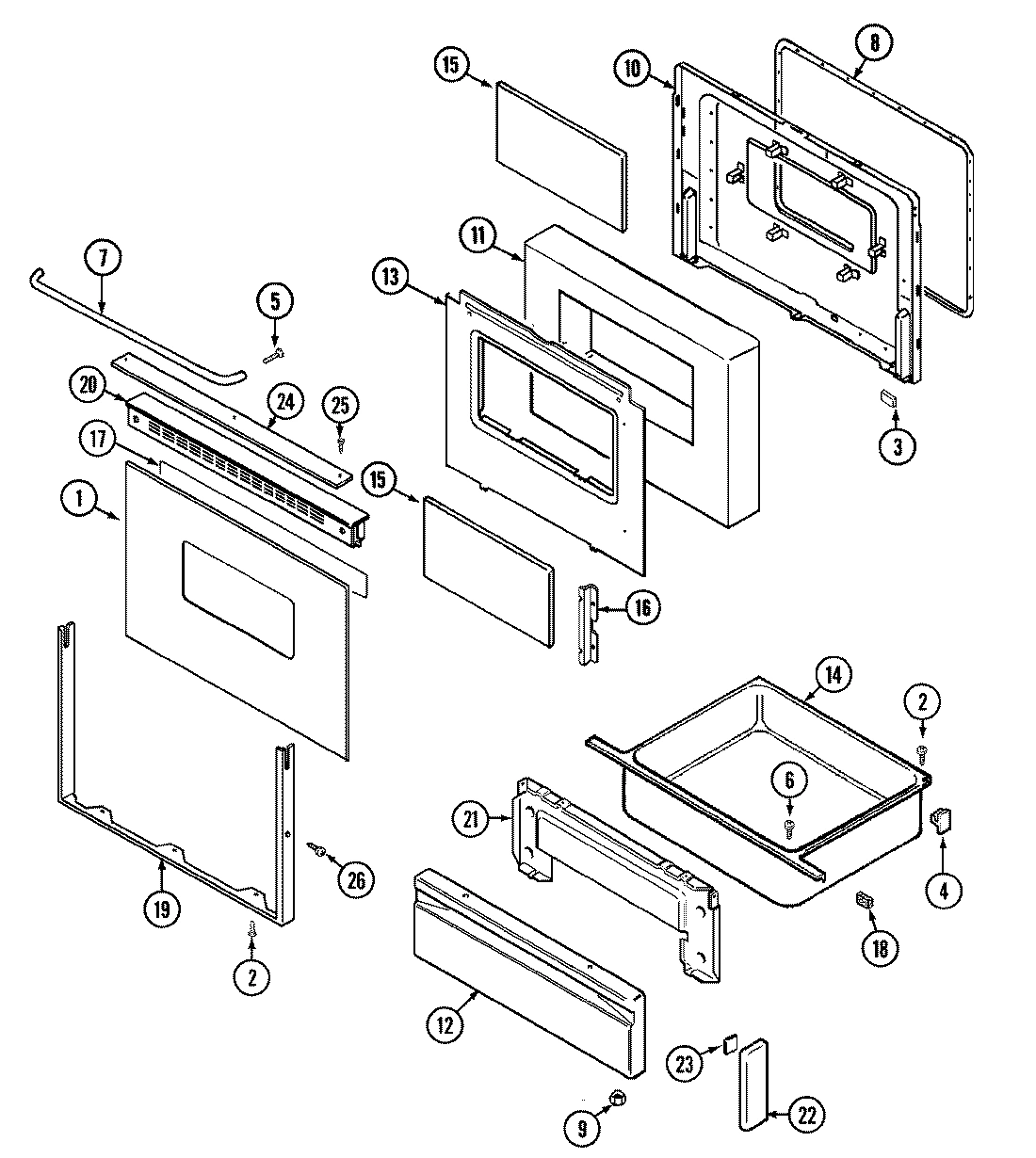

02 - DOOR/DRAWER

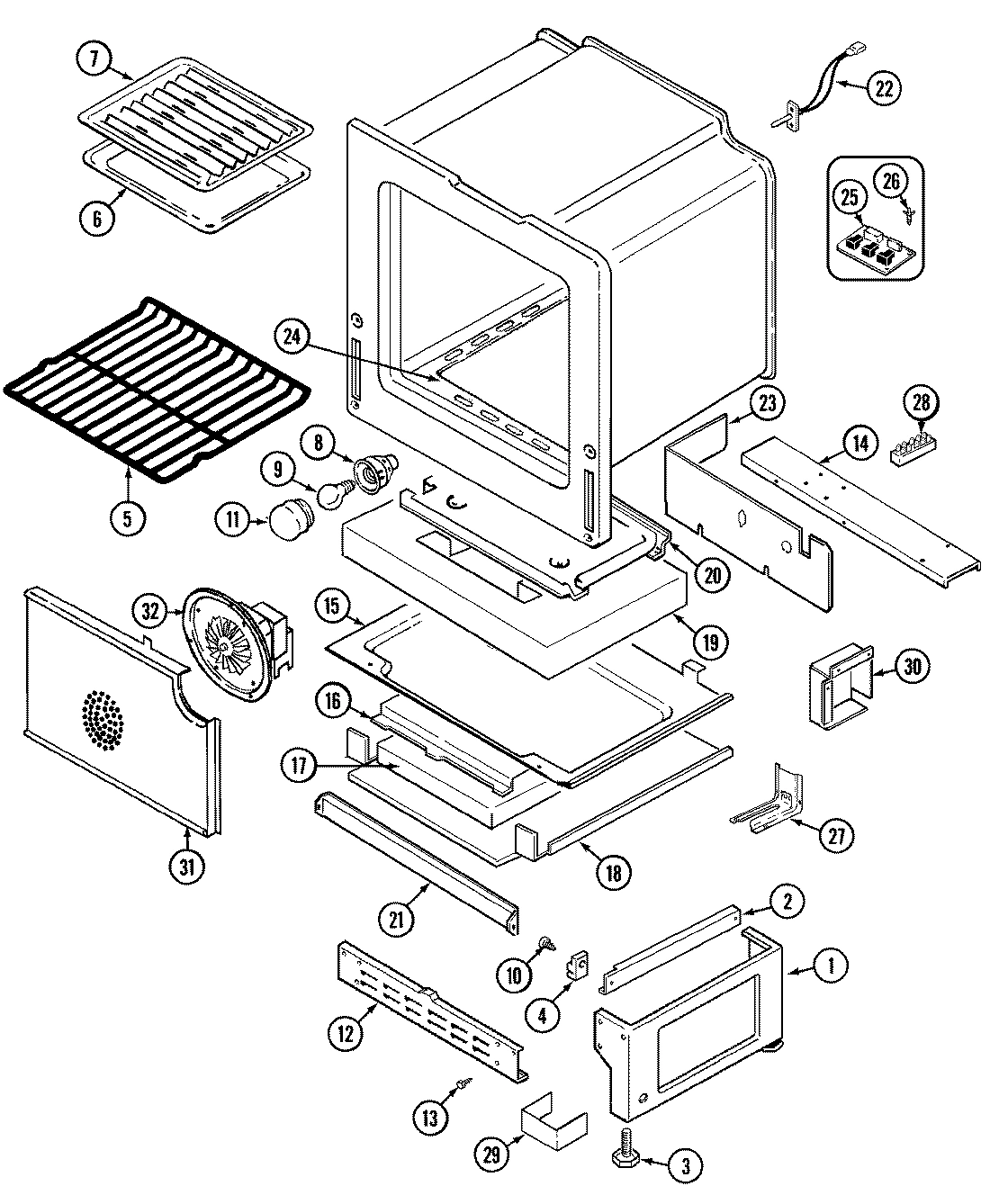

04 - OVEN/BASE

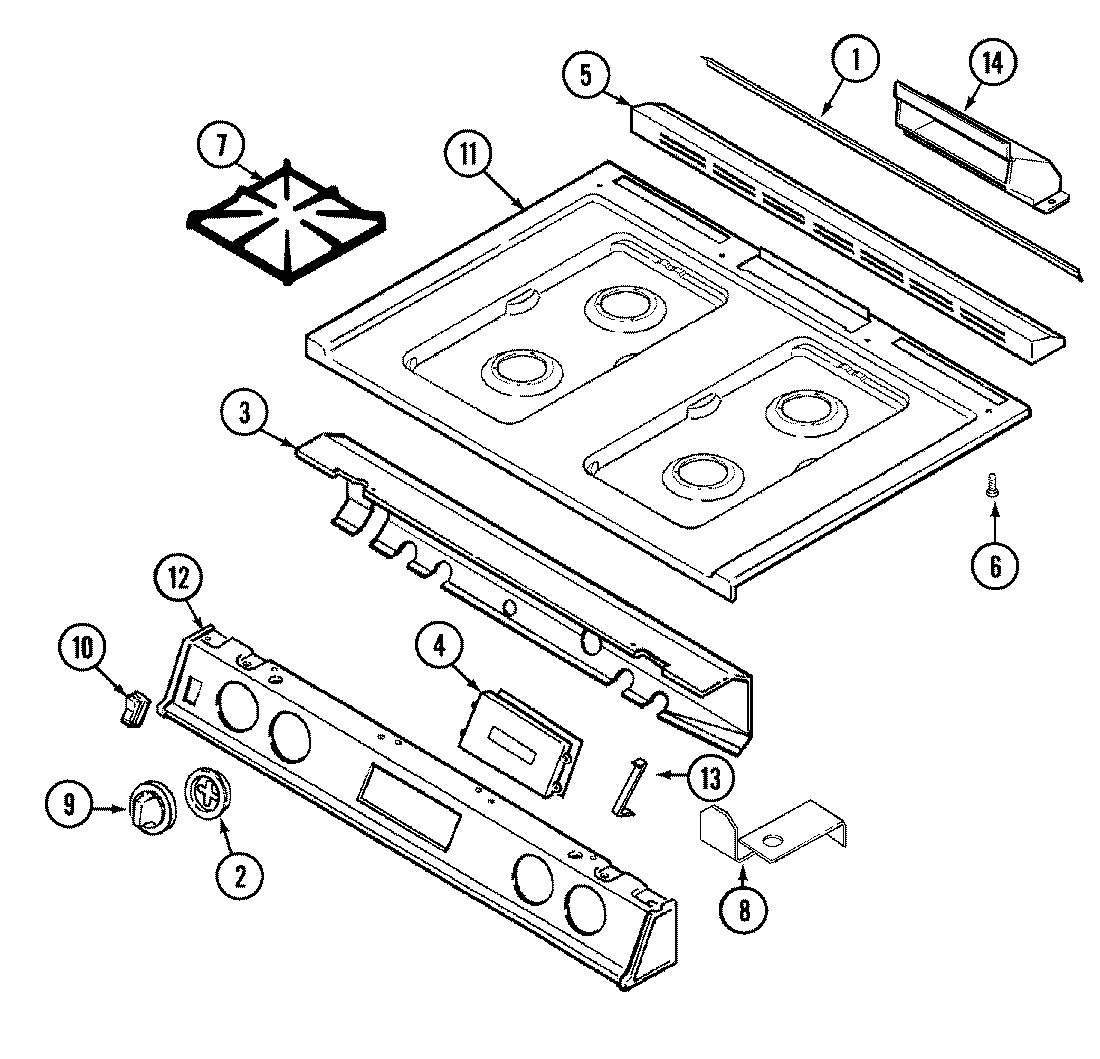

05 - TOP ASSEMBLY
Common parts from model Whirlpool SCG20200A GAS RANGE
1
VALVE, TOP BURNER WPL 7502P25160 Contact Us For Availability
1
GLASS, DOOR (ALM) WPL 74002056 Contact Us For Availability
1
PEDESTAL, SIDES WPL 4020W01580 Contact Us For Availability
1
GASKET WPL 7201P06160 Contact Us For Availability
2
PANEL, SIDE (RT-ALM) WPL 74001577 Contact Us For Availability
2
SCREW, VALVE WPL 7101P04460 Contact Us For Availability
2
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
2
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
2
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
2
BEZEL, KNOB (ALM) WPL 74002054 Contact Us For Availability
3
BOX, BURNER WPL 74002357 Contact Us For Availability
3
PLATE, FITTING WPL 3605F18645 Contact Us For Availability
3
FITTING, BROIL BURNER WPL 7507P08860 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
LEG, LEVELING WPL 7101P31660 Contact Us For Availability
3
COVER, MANIFOLD (REAR) WPL 74002588 Contact Us For Availability
4
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
4
COVER, MAIN WIRE WPL 74002597 Contact Us For Availability
4
BURNER, BAKE WPL 3403D04345 Contact Us For Availability
4
SUPPORT, BURNER WPL 3807F44645 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
4
CLOCK (ALM) WPL 74002952 Contact Us For Availability
5
COVER, CONVECT WIRE WPL 74002598 Contact Us For Availability
5
BURNER, BROIL WPL 3403D02445 Contact Us For Availability
5
SCREW WPL 7101P32660 Contact Us For Availability
5
WASHER (1``) WPL 74001521 Contact Us For Availability
5
COVER, VENT TRIM WPL 4825D00159 Contact Us For Availability
6
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
6
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
6
LATCH, DOOR WPL 74001069 Contact Us For Availability
6
INSULATION, DOOR LATCH WPL 74001084 Contact Us For Availability
6
LATCH ASSY. WPL 8002P02760 Contact Us For Availability
6
TUBING, BROIL FITTING (3/8``) WPL 74002592 Contact Us For Availability
6
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
7
SHIELD, HEAT (LT) WPL 3604F21351 Contact Us For Availability
7
VALVE, OVEN WPL 7501P09760 Contact Us For Availability
7
HANDLE (ALM) WPL 74002060 Contact Us For Availability
7
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
GRATE (TAUPE) WPL 71003116 Contact Us For Availability
7
GRATE, BURNER (BRN) WPL 74001768 Contact Us For Availability
8
LEVER, LATCH (BRN) WPL 74003006 Contact Us For Availability
8
LEVER, LATCH WPL 8009P02860 Contact Us For Availability
8
NUT, WING WPL 7103P03060 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
8
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
8
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
8
BRACKET, TOP WPL 3801F31851 Contact Us For Availability
8
SCREW WPL 7101P07460 Contact Us For Availability
9
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
9
SWITCH, IGNITER WPL 7403P27960 Contact Us For Availability
9
NUT, LOCK WPL 7103P13960 Contact Us For Availability
9
BULB-OVEN WPL 7407P10360 Contact Us For Availability
9
KNOB, VALVE (ALM) WPL 74002051 Contact Us For Availability
10
HANDLE, LATCH (ALM) WPL 7701P15160 Contact Us For Availability
10
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
10
SCREW WPL 7101P32860 Contact Us For Availability
10
LINING, DOOR WPL 2402W20919 Contact Us For Availability
10
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
10
NUT, SNAP WPL 7103P13660 Contact Us For Availability
10
LINING, DOOR WPL 74003244 Contact Us For Availability
10
SWITCH, ROCKER (ALM) WPL 7403P35860 Contact Us For Availability
11
SHIELD, HEAT (RT) WPL 3604F21451 Contact Us For Availability
11
SEALED BURNER ASSY. (BRN) WPL 3412D01808 Contact Us For Availability
11
SEALED BURNER ASSY. (TAUPE) WPL 74003521 Contact Us For Availability
11
BURNER, SEALED (TAUPE) WPL 74003966 Contact Us For Availability
11
INSULATION, DOOR WPL 74001842 Contact Us For Availability
11
COVER, BULB WPL 7724P04760 Contact Us For Availability
11
TOP, MAIN (ALM) WPL 74001559 Contact Us For Availability
12
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
12
SCREW WPL 7101P29060 Contact Us For Availability
12
PANEL, DRAWER (ALM) WPL 74001478 Contact Us For Availability
12
PANEL, DRAWER (ALM) WPL 74003522 Contact Us For Availability
12
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
12
PANEL, MANIFOLD (ALM) WPL 74002958 Contact Us For Availability
13
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
13
IGNITER, OVEN WPL 7432P07660 Contact Us For Availability
13
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
13
SCREW WPL 7101P34660 Contact Us For Availability
13
BRACKET, CLOCK WPL 74003191 Contact Us For Availability
14
TUBE, AIR DUCT WPL 8026P02160 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
14
DRAWER, STORAGE WPL 71003042 Contact Us For Availability
14
SUPPORT, VALVE/REGULATOR WPL 74002593 Contact Us For Availability
14
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
14
BAFFLE,VENT COVER WPL 3601F22145 Contact Us For Availability
15
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
15
GASKET, BURNER WPL 7201P05060 Contact Us For Availability
15
GLASS, INNER WPL 74001841 Contact Us For Availability
15
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
15
WIRE/TERMINAL KIT WPL 12001323 Contact Us For Availability
15
HARNESS, SENSOR & LOCK WPL 5170P22860 Contact Us For Availability
15
HARNESS, CONTROL/RELAY WPL 74001575 Contact Us For Availability
16
RETAINER, INSULATION (SIDE) WPL 74002599 Contact Us For Availability
16
NUT, LOXIT (3/8``) WPL 7103P13060 Contact Us For Availability
16
PIPE, MANIFOLD WPL 7513P12160 Contact Us For Availability
16
RETAINER, GLASS WPL 74001844 Contact Us For Availability
16
SHIELD, HEAT WPL 3604F20451 Contact Us For Availability
16
MANUAL, USE & CARE (FRCH) WPL 16008701 Contact Us For Availability
16
MANUAL, USE & CARE WPL 74002759 Contact Us For Availability
17
INSULATOR, DOOR LOCK SWITCH WPL 7003P06360 Contact Us For Availability
17
SWITCH, DOOR LATCH WPL 7403P36160 Contact Us For Availability
17
3/8`` NUT & FERRULE WPL 1555258K Contact Us For Availability
17
TUBING, REGULATOR/PIPE (3/8``) WPL 3414F10344 Contact Us For Availability
17
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
17
INSULATION, DRAWER & SHIELD WPL 7002P14060 Contact Us For Availability
17
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
18
HINGE WPL 7106P05660 Contact Us For Availability
18
BAFFLE, BROIL BURNER WPL 3601F21747 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
18
SHIELD, DRAWER WPL 3604F20551 Contact Us For Availability
19
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
19
REGULATOR, PRESSURE WPL 7510P06760 Contact Us For Availability
19
FRAME, DOOR (ALM) WPL 7706P31160 Contact Us For Availability
19
INSULATION, OVEN BOTTOM WPL 4804F01460 Contact Us For Availability
20
BRACKET, SPARK MODULE WPL 3801F34145 Contact Us For Availability
20
MODULE, SPARK WPL 7431P02760 Contact Us For Availability
20
TRIM, TOP (ALM) WPL 74002064 Contact Us For Availability
20
PAN, BAKE BURNER WPL 74001651 Contact Us For Availability
21
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
21
VENT BOX ASSY. WPL 4006W12245 Contact Us For Availability
21
ORIFICE FITTING ASSEMBLY WPL 5187D03660 Contact Us For Availability
21
ORIFICE FITTING ASSEMBLY WPL 5187D03760 Contact Us For Availability
21
LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability
21
LINING, DRAWER----NA WPL 74001464 Contact Us For Availability
21
BAFFLE, OVEN FRONT WPL 74001219 Contact Us For Availability
22
SWITCH, HI LIMIT WPL 7403P24960 Contact Us For Availability
22
BRACKET, REGULATOR WPL 8020P00760 Contact Us For Availability
22
END CAP, DRAWER (ALM) WPL 7744P09160 Contact Us For Availability
23
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
23
FAN ASSY. WPL 7427P01360 Contact Us For Availability
23
HARNESS, LOOSE/BURNER BOX WPL 5125A31260 Contact Us For Availability
23
WIRES, IGNITER (4 OR) WPL 5140D03860 Contact Us For Availability
23
HARNESS, SPARK (4-OR) WPL 71003540 Contact Us For Availability
23
TAPE WPL 8270P09860 Contact Us For Availability
23
COVER, VALVE WPL 4005F42951 Contact Us For Availability
24
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K WPL W10124350 Contact Us For Availability
24
EXTENSION, VENT BOX WPL 74002333 Contact Us For Availability
24
INSERT, DOOR TRIM (ALM) WPL 7728P09560 Contact Us For Availability
24
BAFFLE, OVEN BOTTOM WPL 3601F23945 Contact Us For Availability
24
BOTTOM, OVEN ASSY. WPL 5504M00419 Contact Us For Availability
25
BRACKET, MAIN TOP WPL 3801F32551 Contact Us For Availability
25
SCREW, TRIM (ALM) WPL 7101P37060 Contact Us For Availability
25
BOARD, RELAY WPL 74002594 Contact Us For Availability
26
BOX, AIR TUBE WPL 4006F14851 Contact Us For Availability
26
SCREW (1/2``-ALM) WPL 7101P37460 Contact Us For Availability
26
SUPPORT, RELAY BOARD WPL 8004P02060 Contact Us For Availability
27
BOTTOM, AIR TUBE BOX WPL 4011F24251 Contact Us For Availability
27
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
27
SCREW WPL 7101P34460 Contact Us For Availability
28
SCREW (ZINC) WPL 7101P04160 Contact Us For Availability
28
TUBE, AIR WPL 7506P12460 Contact Us For Availability
28
BLOCK, TERMINAL WPL 7401P03760 Contact Us For Availability
29
CORD, POWER WPL 7402P04360 Contact Us For Availability
29
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
30
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
30
INSULATION, TOP WPL 7002P16160 Contact Us For Availability
30
INSULATION, BACK WPL 74001159 Contact Us For Availability
30
INSULATION, OVEN WRAP WPL 74003037 Contact Us For Availability
30
SUPPORT, SPARK MODULE WPL 3807F47351 Contact Us For Availability
31
SWITCH WPL 74001802 Contact Us For Availability
31
COVER, CONVECT FAN WPL 74002943 Contact Us For Availability
32
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
32
FAN ASSY. (CONVECT) WPL 74002596 Contact Us For Availability
32
FAN ASSY. (CONVECT) WPL 74003815 Contact Us For Availability
33
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
34
ROD, WPL 74001630 Contact Us For Availability
35
WPL 74001631 WPL 74001631 Contact Us For Availability
36
WPL 74001872 WPL 74001872 Contact Us For Availability
37
WPL 74001632 WPL 74001632 Contact Us For Availability
38
WPL 4006F13351 WPL 4006F13351 Contact Us For Availability
39
WPL 4005F44845 WPL 4005F44845 Contact Us For Availability
NI
WIRING INFORMATION WPL 15002228 Contact Us For Availability
× ![]()
Login and Registration Form
