Model Whirlpool SCE4340W ELECTRIC RANGE – Common Parts &amp; Diagrams

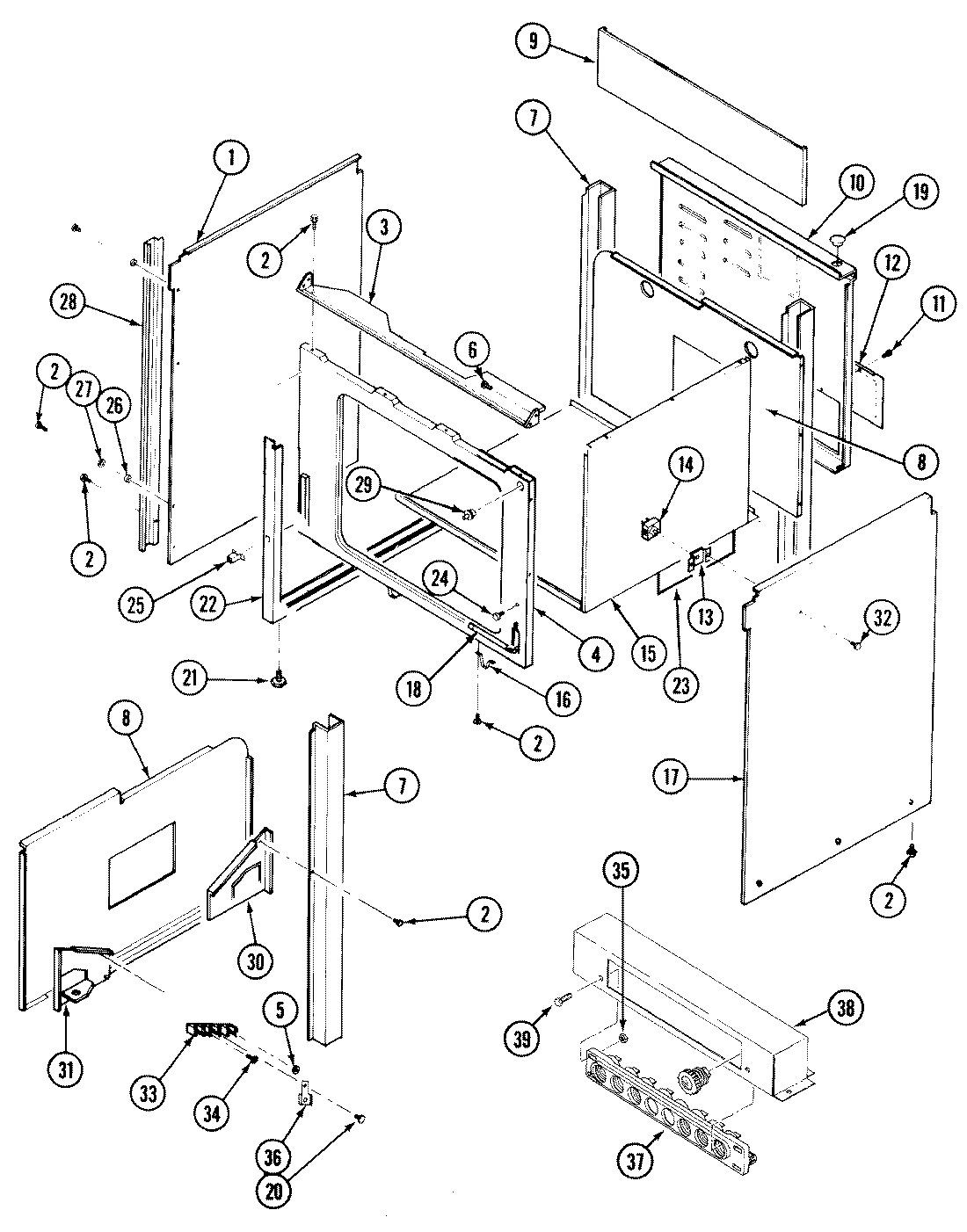

1

WASHER, ALUM WPL 71001403 Contact Us For Availability

1

OVEN WELD ASSY. WPL 71001490 Contact Us For Availability

1

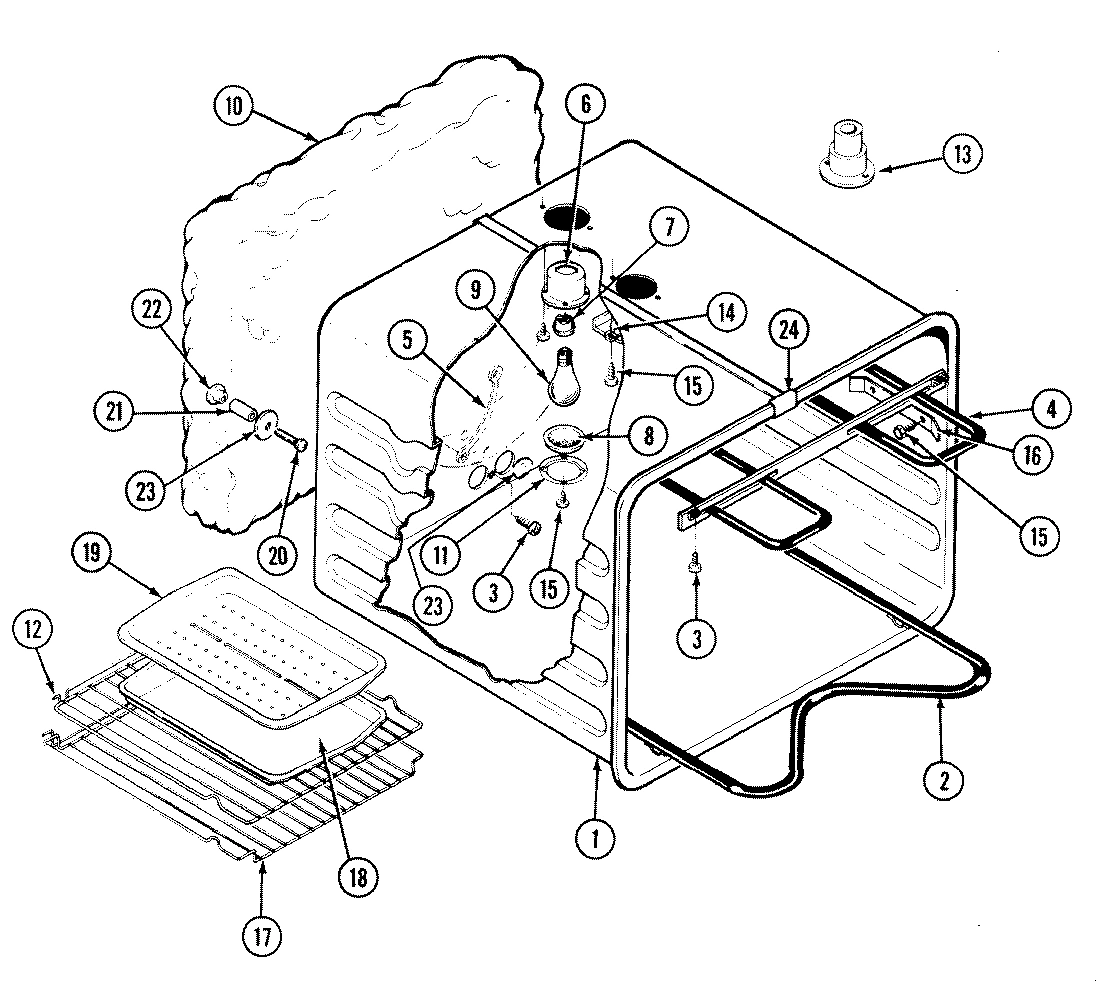

LINER WPL 712584 Contact Us For Availability

1

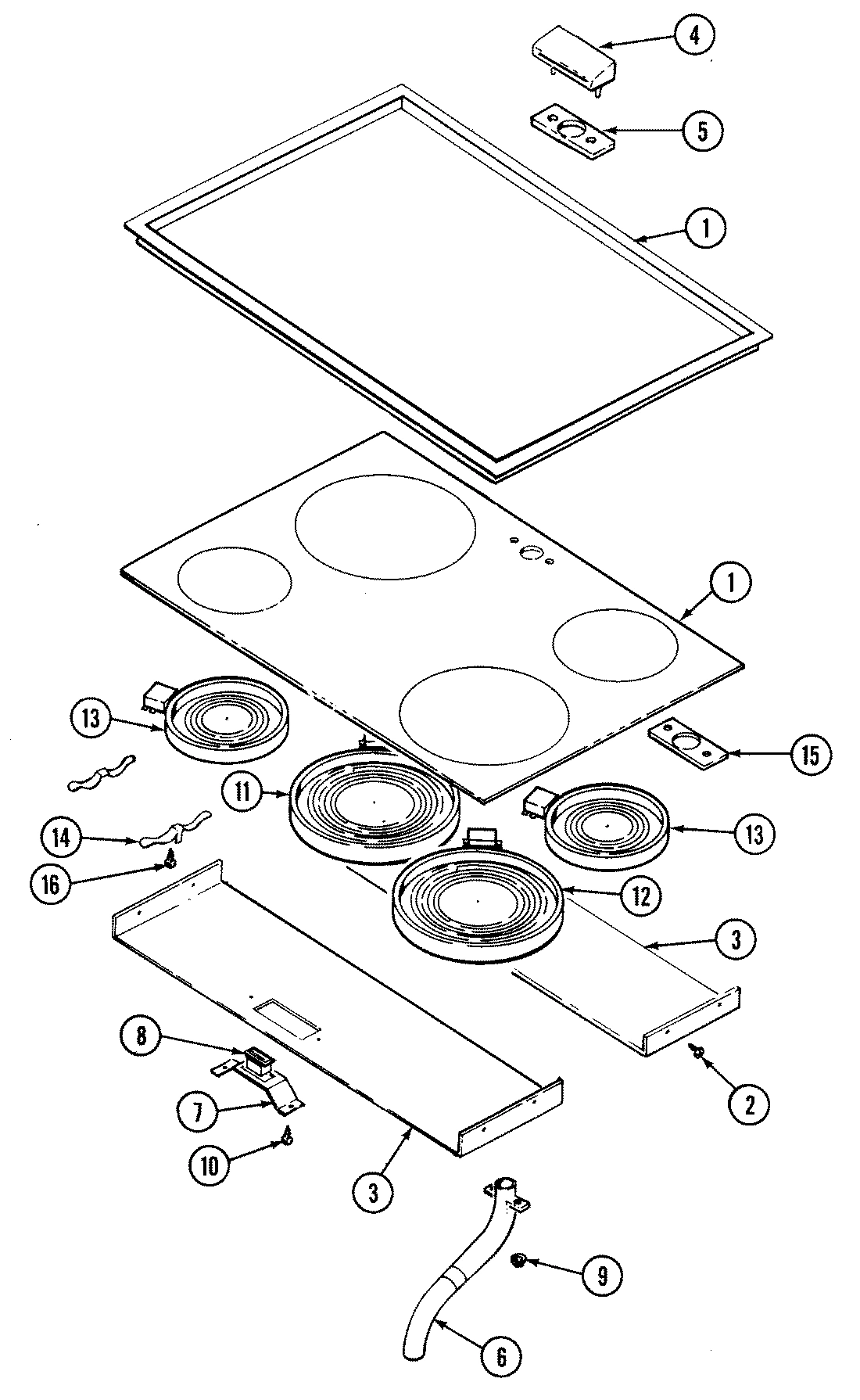

TOP ASSY (WHITE) WPL 04100831 Contact Us For Availability

1

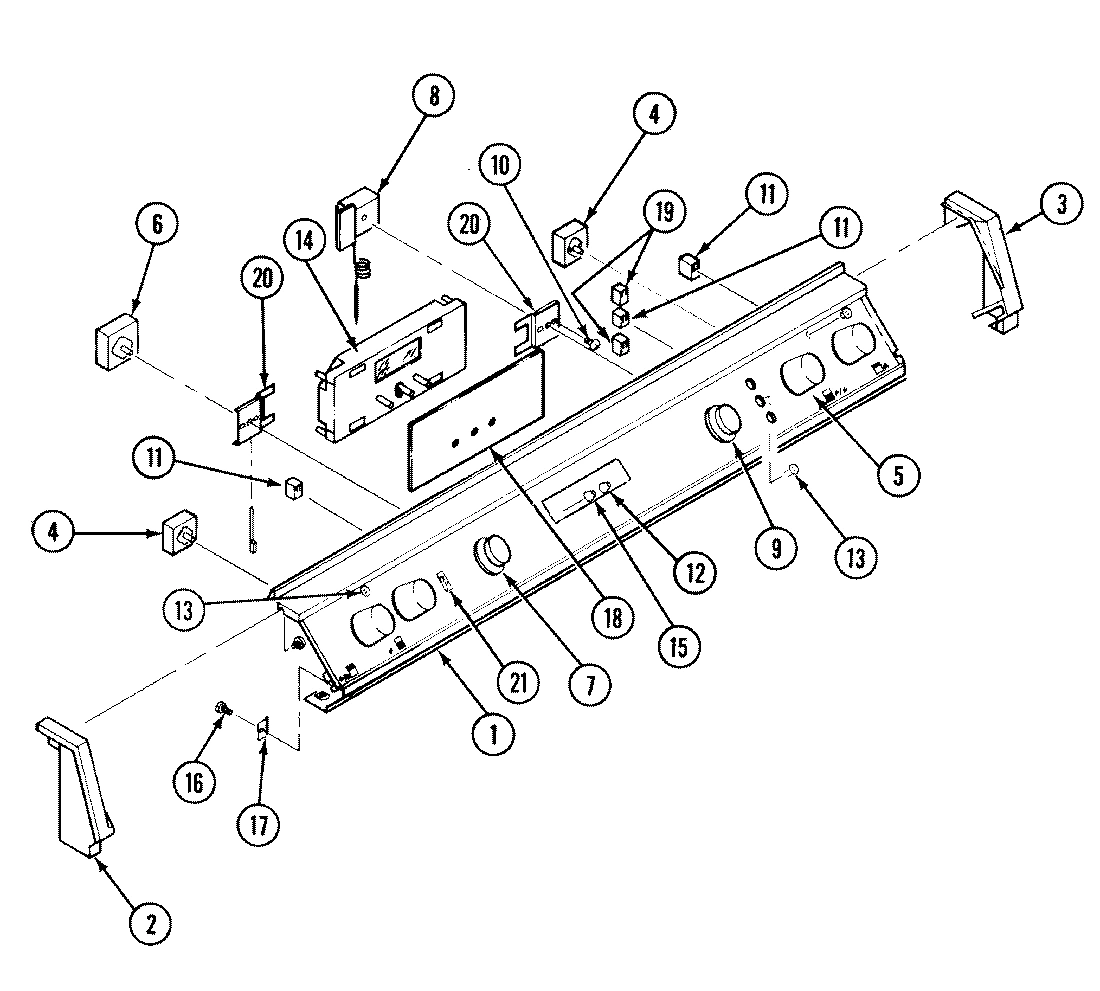

CONTROL PANEL (WHITE) WPL 04100455 Contact Us For Availability

1

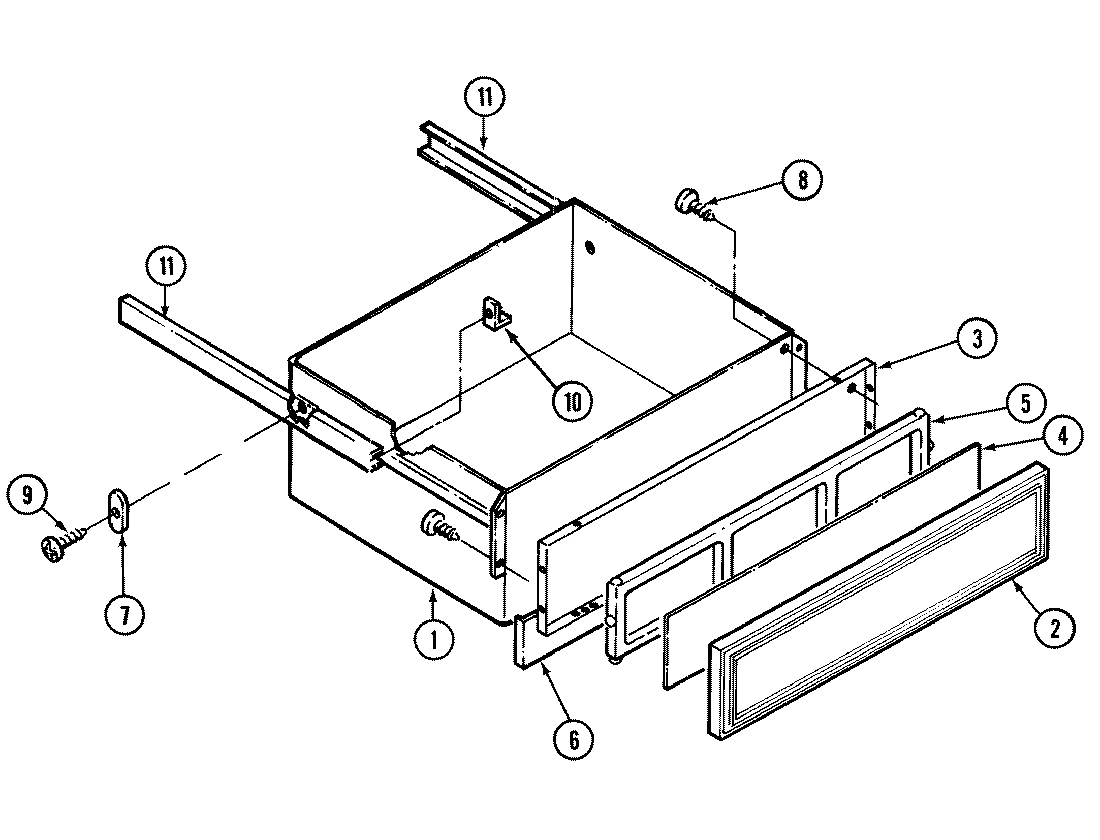

DRAWER WPL 712608 Contact Us For Availability

1

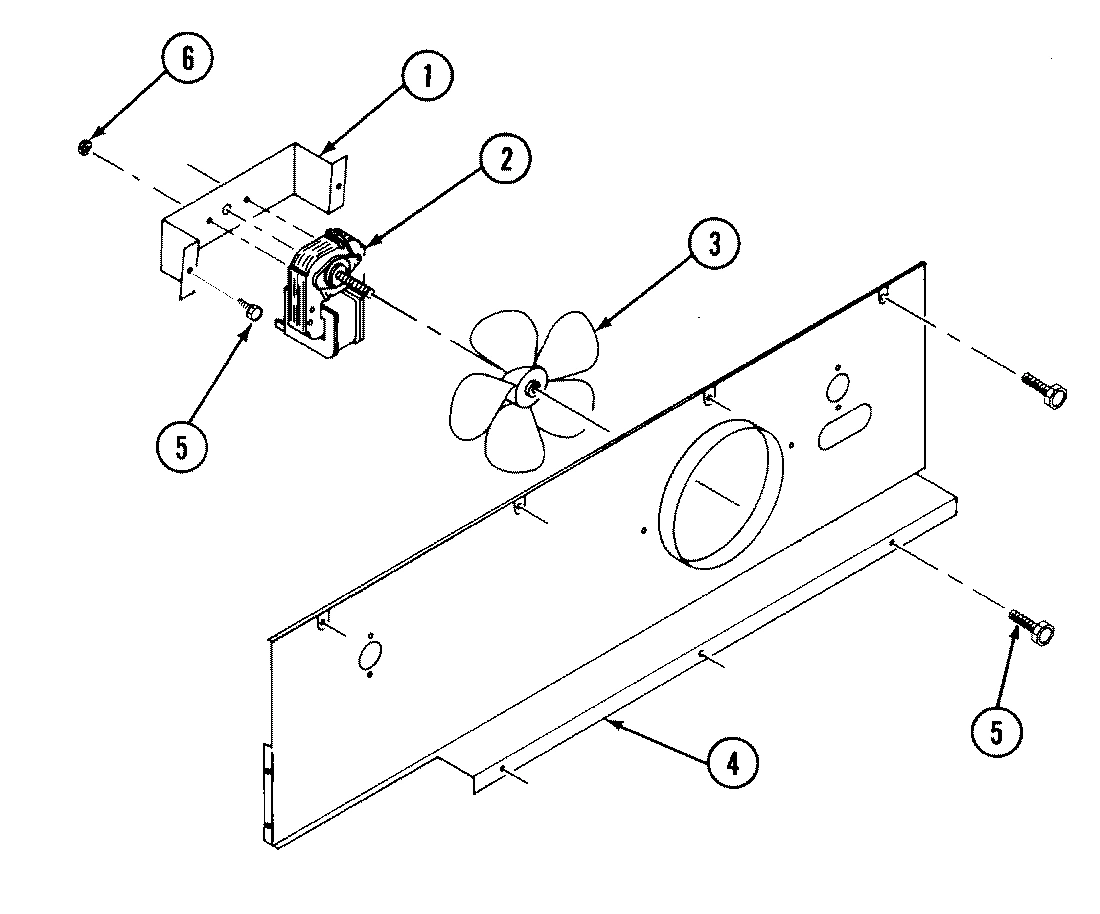

BRACKET, MOUNTING MOTOR WPL Y702542 Contact Us For Availability

1

PANEL, INNER (LT) WPL 704302 Contact Us For Availability

1

PANEL, SIDE (LT) WPL Y702301 Contact Us For Availability

1

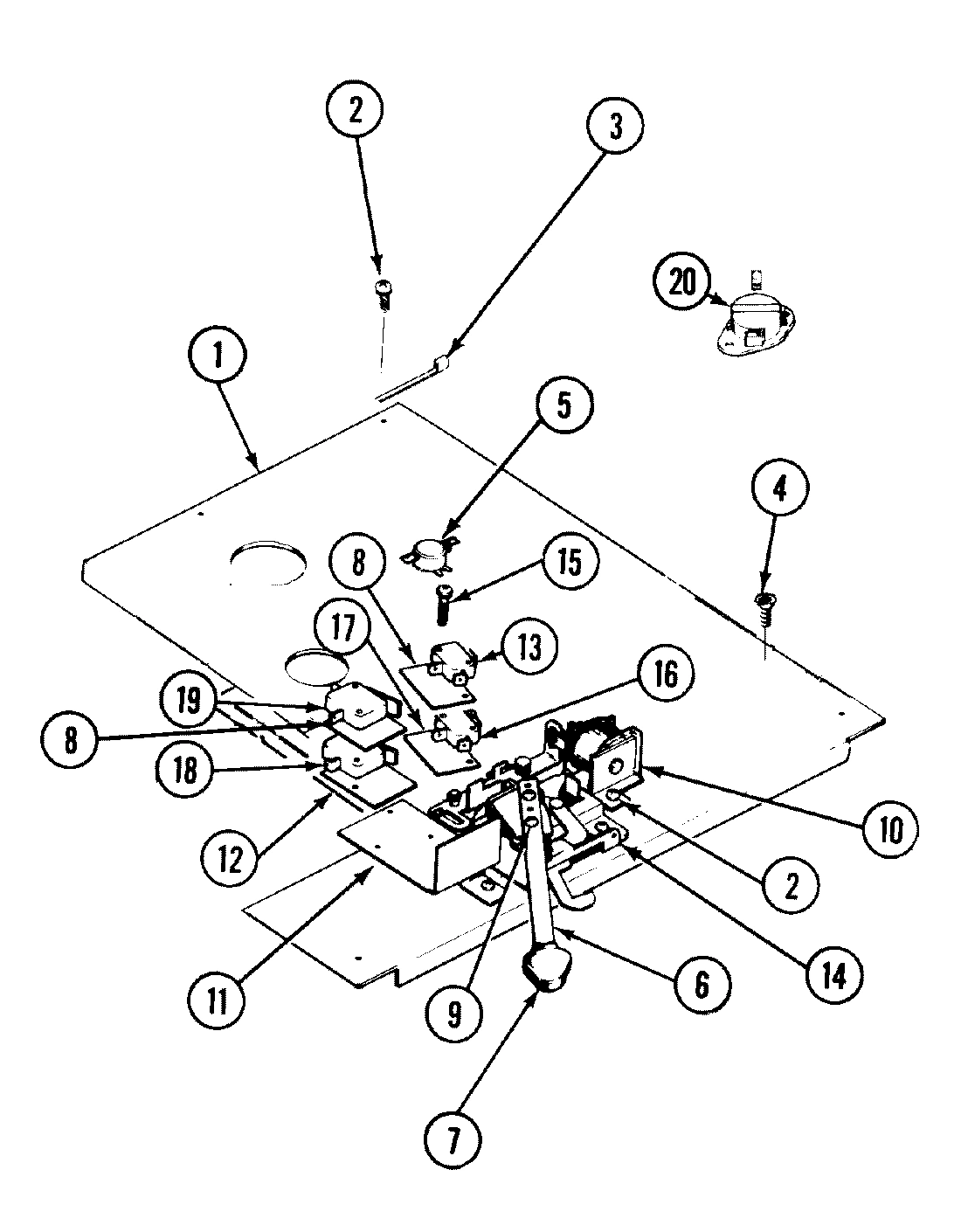

PANEL, TOP WPL 704668 Contact Us For Availability

1

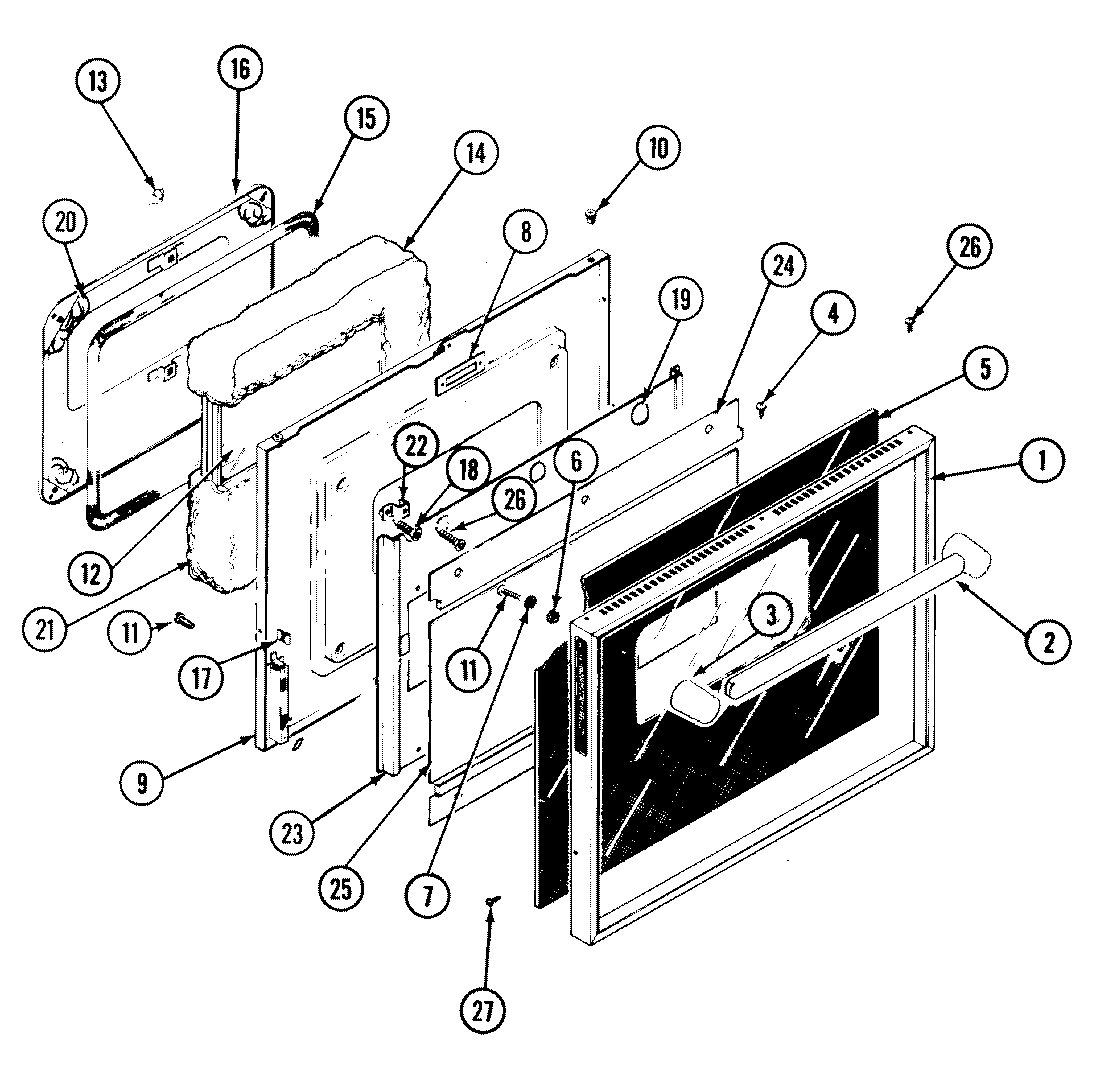

FRAME, OVEN DOOR (SS) WPL 705002 Contact Us For Availability

2

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.55

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

2

WPY04100021 Whirlpool Bake Element Backorder WPL WPY04100021 $107.95

2

CAP, END (LT) WPL 702388 Contact Us For Availability

2

FRAME, DRAWER (STLS) WPL Y04100471 Contact Us For Availability

2

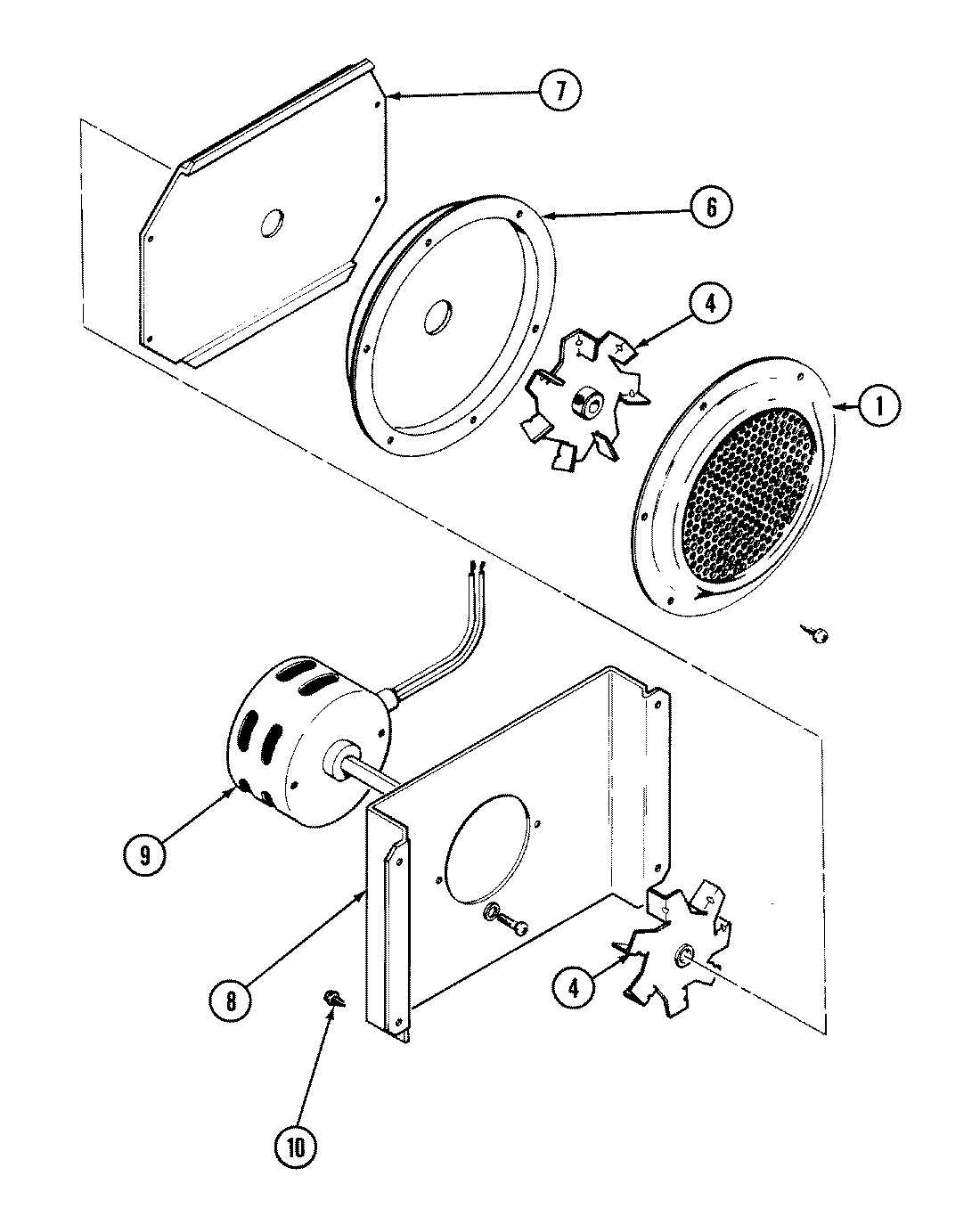

MOTOR, FAN WPL Y702549 Contact Us For Availability

2

HANDLE (WHT) WPL 704475 Contact Us For Availability

3

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.68

3

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

3

WASHER, LOCK WPL 715910 Contact Us For Availability

3

RAIL, ELEMENT SUPPORT WPL 04100475 Contact Us For Availability

3

CAP, END (RT) WPL Y702387 Contact Us For Availability

3

LINER, DOOR WPL Y702341 Contact Us For Availability

3

BLADE, FAN WPL Y702525 Contact Us For Availability

3

ANGLE, MOUNT WPL 712002 Contact Us For Availability

3

END CAP (WHT) WPL Y704454 Contact Us For Availability

4

W11120791 Whirlpool Range Surface Element Inf In Stock WPL W11120791 $46.34

4

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

4

WPY04100514 Whirlpool Bake Element Backorder WPL WPY04100514 $73.20

4

WHEEL, CONVECTION WPL 701711 Contact Us For Availability

4

TRIM, VENT (WHT) WPL Y04100311 Contact Us For Availability

4

PANEL, BASE (WHT) WPL 704480 Contact Us For Availability

4

CLOSURE, FRONT WPL 04100473 Contact Us For Availability

5

WP7403P899-60 Whirlpool Safety Switch Backorder WPL WP7403P899-60 $84.36

5

SCREW, SET WPL 701709 Contact Us For Availability

5

WIRE, GROUND WPL 702643 Contact Us For Availability

5

GASKET WPL Y04100462 Contact Us For Availability

5

KNOB, INFINITE (WHT) WPL 704481 Contact Us For Availability

5

SPACER, BASE DOOR WPL Y702896 Contact Us For Availability

5

NUT WPL 707161 Contact Us For Availability

5

GLASS, SCREENED (WHT) WPL 705078K Contact Us For Availability

6

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.43

6

PLATE, CONVECTION BACK WPL 701712 Contact Us For Availability

6

RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability

6

VENT TUBE WPL 04100461 Contact Us For Availability

6

SWITCH, SELECTOR WPL Y703673 Contact Us For Availability

6

PANEL, KICK WPL 703966 Contact Us For Availability

6

SCREW WPL 702731 Contact Us For Availability

6

LEVER, LATCH (WHT) WPL Y703848 Contact Us For Availability

6

WASHER WPL Y704230 Contact Us For Availability

7

COVER, MOTOR FRONT WPL 701713 Contact Us For Availability

7

RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability

7

BRACKET, MOUNTING WPL 04100476 Contact Us For Availability

7

KNOB, SELECT SWITCH (GRY)-NA WPL 704483 Contact Us For Availability

7

SLIDE, DRAWER WPL 703963 Contact Us For Availability

7

SUPPORT,TUBE WPL 704296 Contact Us For Availability

7

SPRING, KNOB WPL 701671 Contact Us For Availability

7

KNOB (WHT) WPL 704460 Contact Us For Availability

7

WASHER WPL Y700446 Contact Us For Availability

8

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

8

PLATE, MOTOR MOUNT WPL Y700601 Contact Us For Availability

8

LENS, LIGHT WPL Y704143 Contact Us For Availability

8

LIGHT, PILOT WPL Y04100477 Contact Us For Availability

8

THERMOSTAT WPL Y703674 Contact Us For Availability

8

BACK, INNER WPL Y704735 Contact Us For Availability

8

INSULATOR WPL 703264 Contact Us For Availability

8

PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability

9

7103P166-60 Whirlpool Nut Backorder WPL 7103P166-60 $7.16

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

9

MOTOR, CONVECT WPL Y704972 Contact Us For Availability

9

KNOB, THERMOSTAT (WHT) WPL Y704482 Contact Us For Availability

9

SCREW WPL 712066 Contact Us For Availability

9

PLATE, BACK WPL Y702345 Contact Us For Availability

9

SCREW WPL 707407 Contact Us For Availability

9

LINER, OVEN DOOR WELD WPL 712189 Contact Us For Availability

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.69

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.75

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.14

INSULATION-SIDES,TOP,BOTTOM WPL 702282 Contact Us For Availability

INSULATION-BACK WPL 702283 Contact Us For Availability

GUIDE, DRAWER WPL Y703962 Contact Us For Availability

COVER, REAR WPL 704294 Contact Us For Availability

SOLENOID WPL Y702526 Contact Us For Availability

NUT, PUSH IN WPL 701643 Contact Us For Availability

RETAINER, LENS WPL Y704144 Contact Us For Availability

ELEMENT, 2400W WPL Y04100413 Contact Us For Availability

CHANEL, DRAWER (LT) WPL 703967 Contact Us For Availability

CHANEL, DRAWER (RT) WPL 703968 Contact Us For Availability

SHIELD, SWITCH WPL 701706 Contact Us For Availability

SCREW WPL Y704231 Contact Us For Availability

W10823707 Whirlpool Range Radiant Surface Ele In Stock WPL W10823707 $130.67

WP7711P492-60 Whirlpool Clock Knob In Stock WPL WP7711P492-60 $7.53

RACK, OVEN WPL Y704660 Contact Us For Availability

COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability

BRACKET,STIFFENER WPL 702697 Contact Us For Availability

PIN, COTTER WPL Y701686 Contact Us For Availability

W10823704 Whirlpool Range Cooktop Radiant Sur In Stock WPL W10823704 $104.98

TUBE, VENT WPL 701738 Contact Us For Availability

LENS, PILOT LIGHT WPL Y702615 Contact Us For Availability

BRACKET WPL 704337 Contact Us For Availability

SWITCH, LATCH WPL Y703732 Contact Us For Availability

CLIP WPL 705404 Contact Us For Availability

74007134 Whirlpool Oven Spring Element Suppor Backorder WPL 74007134 $5.23

SHIELD, VENT WPL Y702632 Contact Us For Availability

CLOCK KIT, ELECTRONIC WPL 12200028 Contact Us For Availability

SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability

LATCH ASSY. WPL Y703357 Contact Us For Availability

INSULATION WPL 702293 Contact Us For Availability

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.55

WPY702338 Whirlpool Oven Seal In Stock WPL WPY702338 $91.19

SPACER WPL Y04100478 Contact Us For Availability

ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability

PANEL, BOTTOM & SIDE (RT) WPL Y702319 Contact Us For Availability

SCREW WPL 702807 Contact Us For Availability

CLIP, BULB WPL Y701541 Contact Us For Availability

WIRE, VIOLET WPL 04100467 Contact Us For Availability

WIRE, YELLOW WPL 04100468 Contact Us For Availability

HARNESS, HOTLIGHT WPL Y04100479 Contact Us For Availability

SCREW, HEX WPL Y705393 Contact Us For Availability

BRACKET, HAT WPL 702658 Contact Us For Availability

SWITCH, SOLENOID WPL Y702360 Contact Us For Availability

PLUG, OVEN DOOR WELD WPL 712011 Contact Us For Availability

RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability

BRACKET, RETAINING WPL 702616 Contact Us For Availability

PANEL, SIDE (RT) WPL 702300 Contact Us For Availability

WIRE, GREY WPL 703750 Contact Us For Availability

INSULATOR WPL Y702350 Contact Us For Availability

CLIP WPL 704487 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

LENS, TIMER----NA WPL 04100132 Contact Us For Availability

HINGE WPL Y703419 Contact Us For Availability

SWITCH, REAR (BOTTOM) WPL Y704752 Contact Us For Availability

LIGHT, OVEN PILOT (240V) WPL Y704222 Contact Us For Availability

STRAIN, RELIEF WPL Y702696 Contact Us For Availability

SWITCH, DOOR WPL 702806 Contact Us For Availability

BUMPER, BUTTON WPL Y704223 Contact Us For Availability

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $2.55

SCREW WPL 705341 Contact Us For Availability

BRACKET, CLOCK WPL 703667 Contact Us For Availability

INSULATION, TOP WPL 701660 Contact Us For Availability

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $34.37

SPACER WPL 702745 Contact Us For Availability

HARNESS (CONT) WPL 04100456 Contact Us For Availability

HARNESS, SUPPLY WPL 04100457 Contact Us For Availability

WIRE, ORANGE (RIGHT) WPL 703523 Contact Us For Availability

WIRE, ORANGE WPL 703749 Contact Us For Availability

WIRE, RESISTOR THERM. WPL 703752 Contact Us For Availability

WIRE, BROWN WPL 704243 Contact Us For Availability

WIRE, BLUE WPL 704244 Contact Us For Availability

MANUAL, USE & CARE WPL RRU4320UA Contact Us For Availability

LEVELER, LEG WPL Y04100573 Contact Us For Availability

INSULATION, BOTTOM WPL 702292 Contact Us For Availability

NUT, TEE WPL 715294 Contact Us For Availability

GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability

RAIL, SUPPORT ASSEMBLY WPL 712000 Contact Us For Availability

BRACKET, STAND-OFF WPL 701652 Contact Us For Availability

WASHER, FLAT WPL 801736 Contact Us For Availability

COVER, SENSOR HOLE WPL Y705342 Contact Us For Availability

BAFFLE, INNER WPL 704466 Contact Us For Availability

BAFFLE WPL 703782 Contact Us For Availability

24

CLIP, OVEN WPL Y702618 Contact Us For Availability

24

SCREW WPL 715870 Contact Us For Availability

24

RETAINER, GLASS WPL Y704819 Contact Us For Availability

25

CLIP----S WPL 708763 Contact Us For Availability

25

GLASS, BAFFLE WPL Y704820 Contact Us For Availability

26

WASHER, CONICAL WPL 702462 Contact Us For Availability

27

WASHER, FLAT WPL 712005 Contact Us For Availability

27

SCREW, FLAT WPL 704745 Contact Us For Availability

28

TRIM, SIDE WPL 702337 Contact Us For Availability

29

SWITCH, DOOR WPL 701666 Contact Us For Availability

30

GUSSETT (LT) WPL 702557 Contact Us For Availability

31

GUSSETT (RT) WPL 702556 Contact Us For Availability

32

SCREW WPL 704335 Contact Us For Availability

33

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

34

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $2.51

36

AIR DEFLECTOR WPL 04100481 Contact Us For Availability

36

STRAP, GROUND WPL Y702335 Contact Us For Availability

40

BRACKET, ANTI-TIP WPL Y705344 Contact Us For Availability
