Model Maytag SCE30600W ELECTRIC RANGE – Common Parts & Diagrams

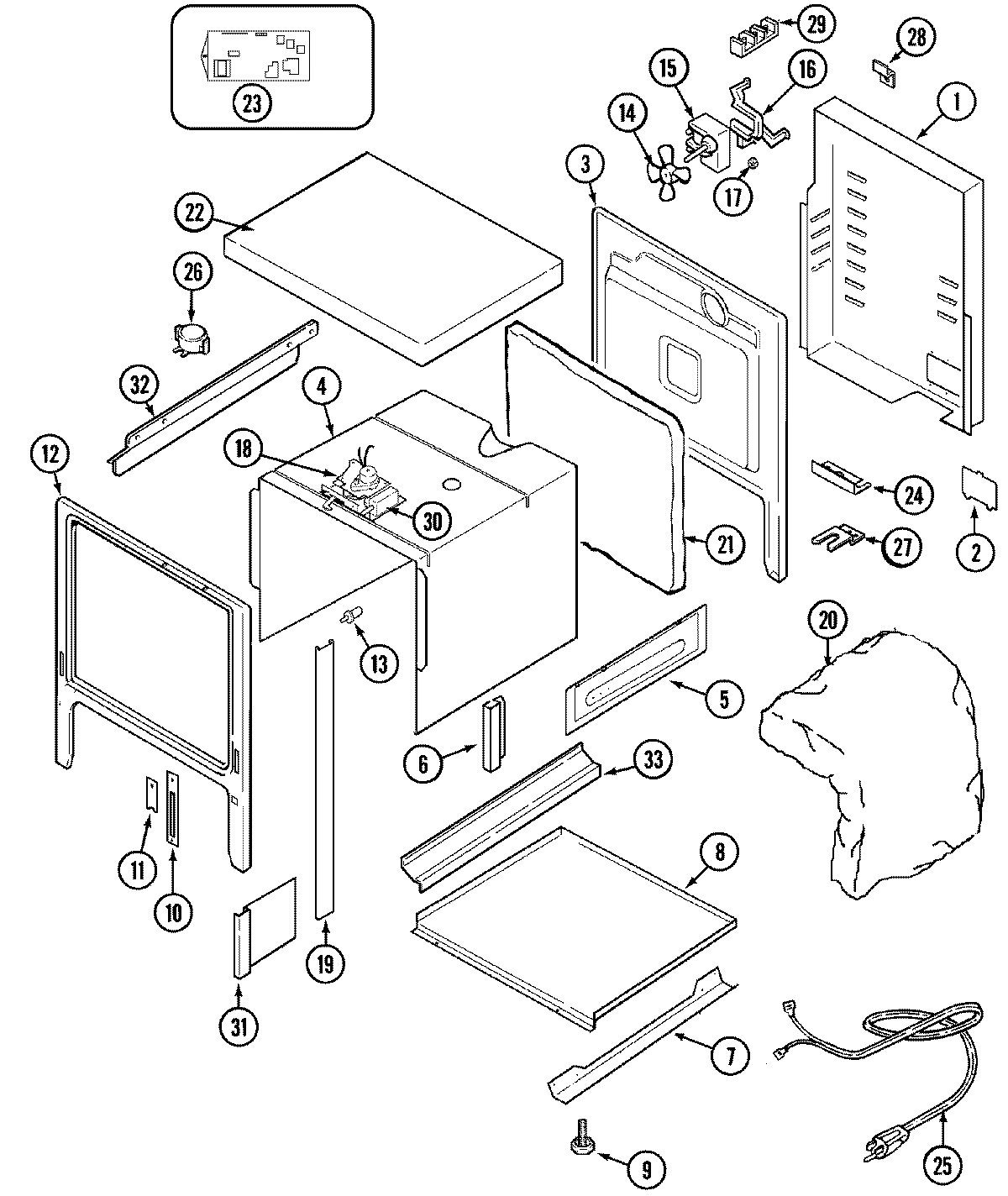

01 - BODY

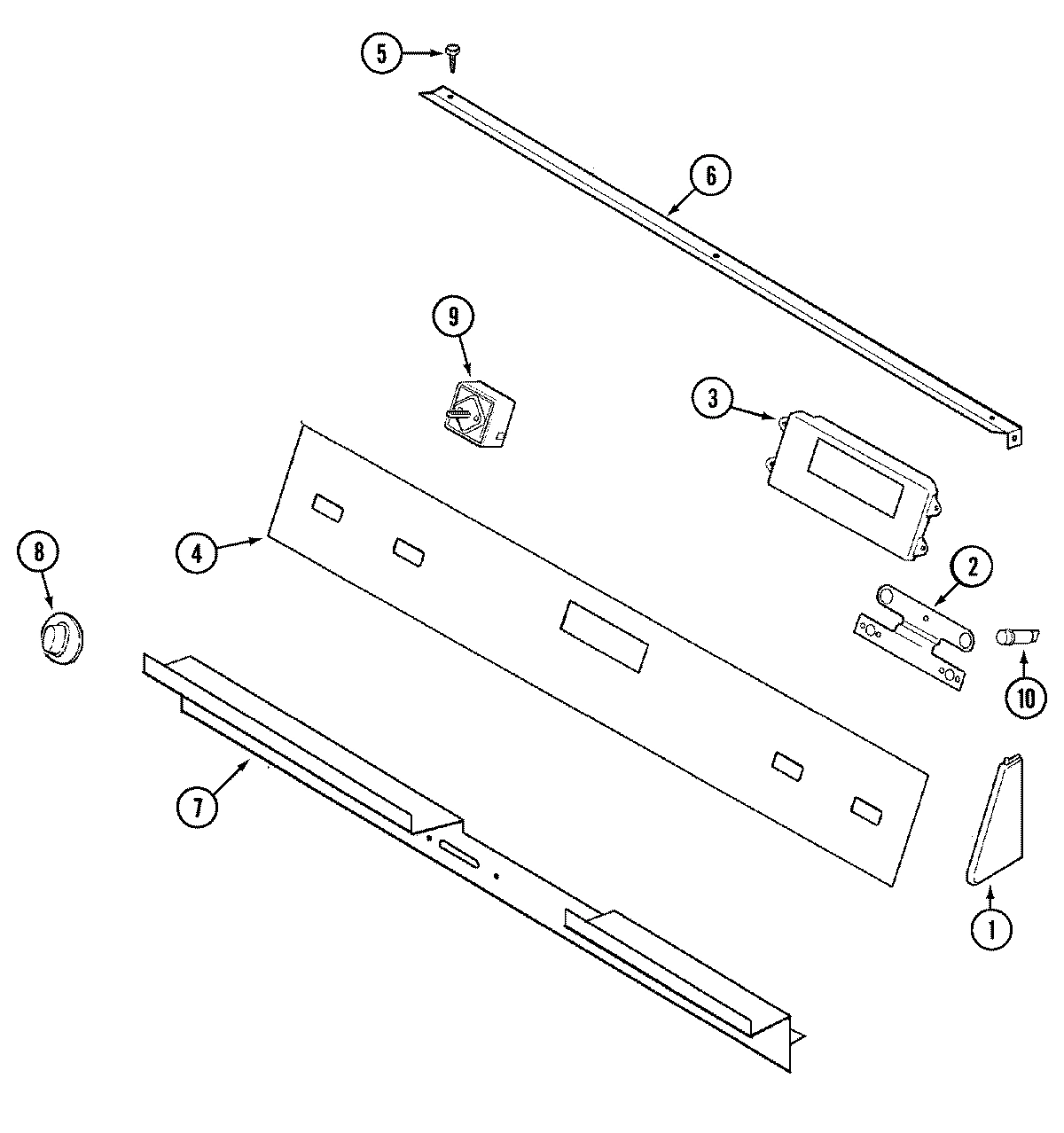

02 - CONTROL PANEL

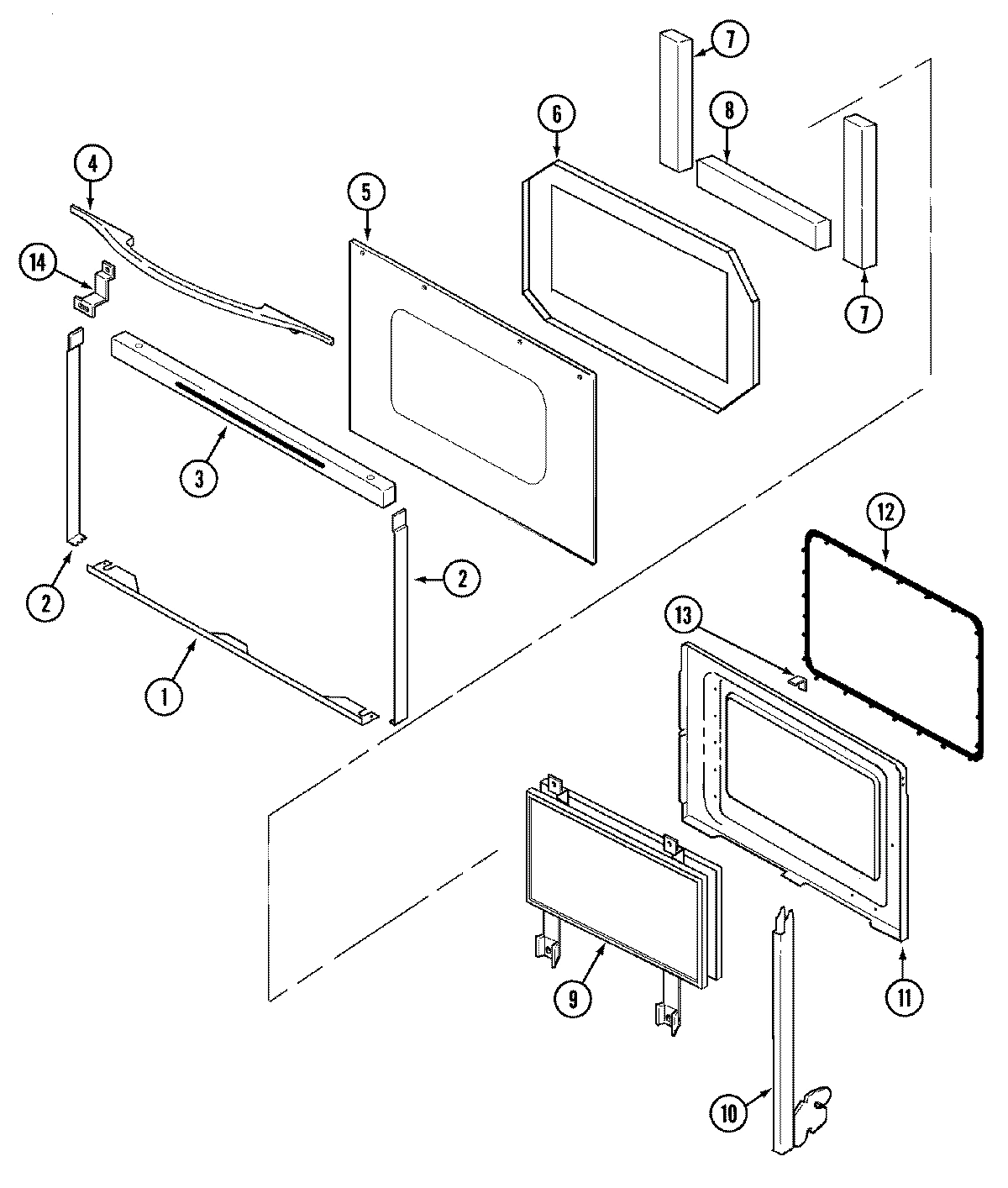

03 - DOOR

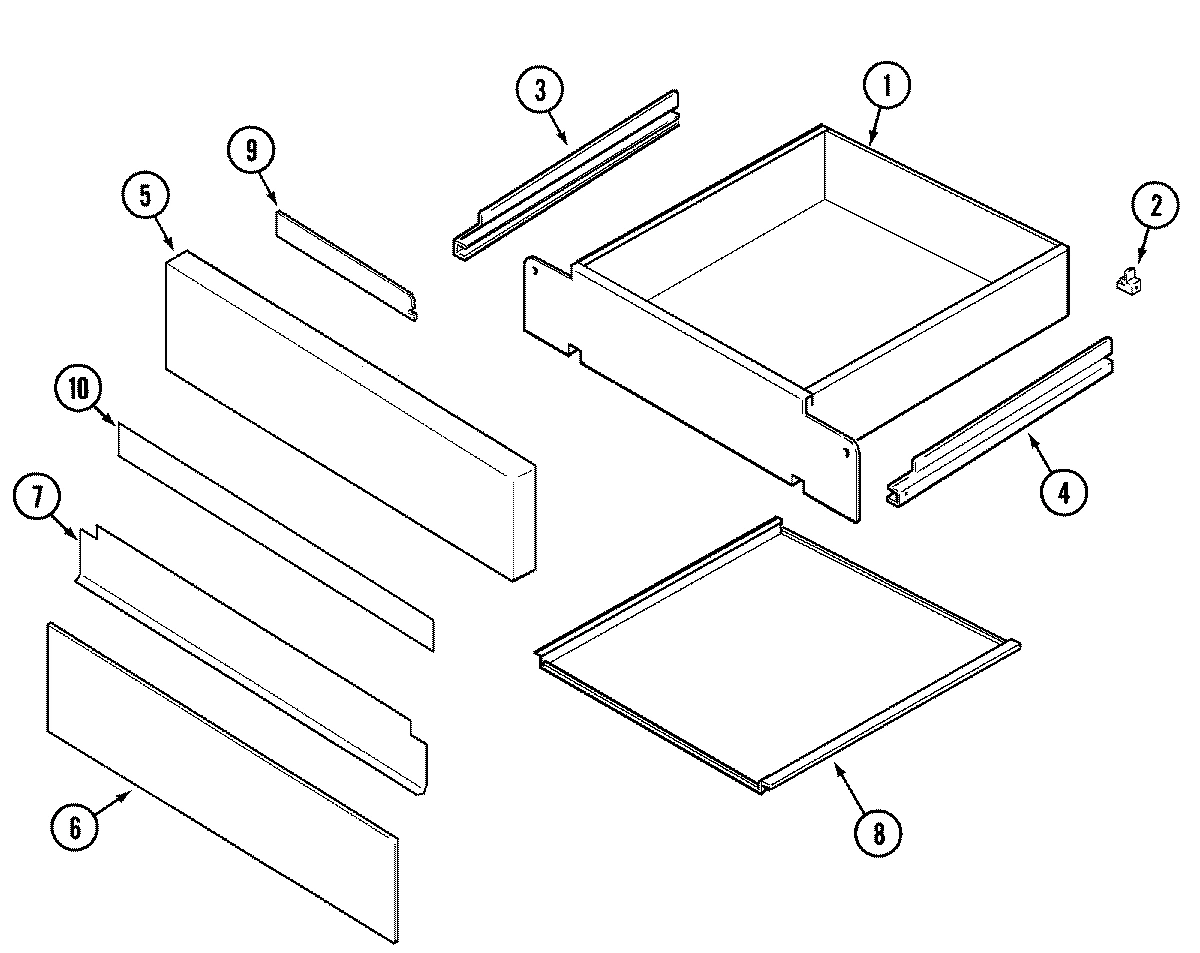

04 - DRAWER

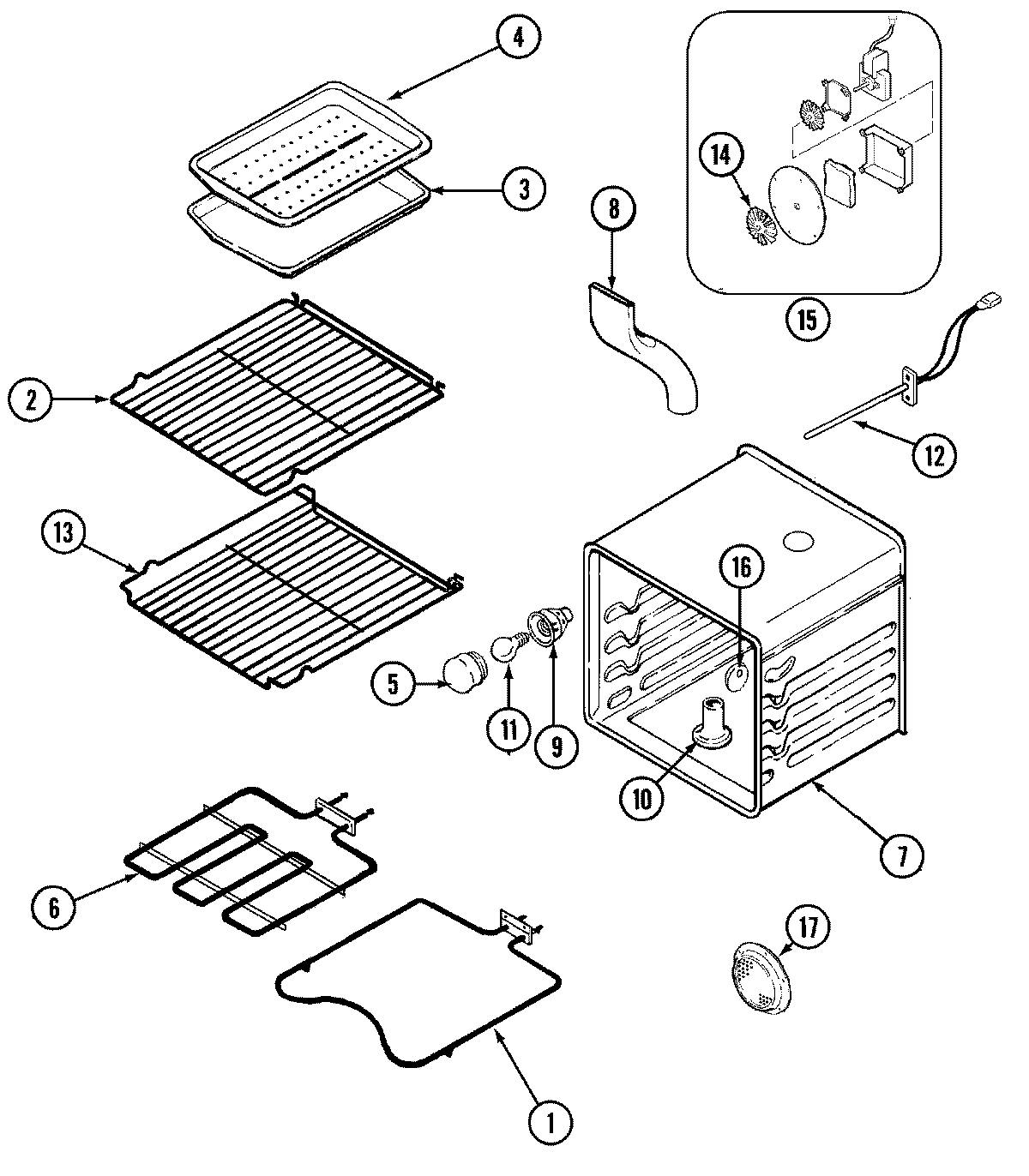

05 - OVEN

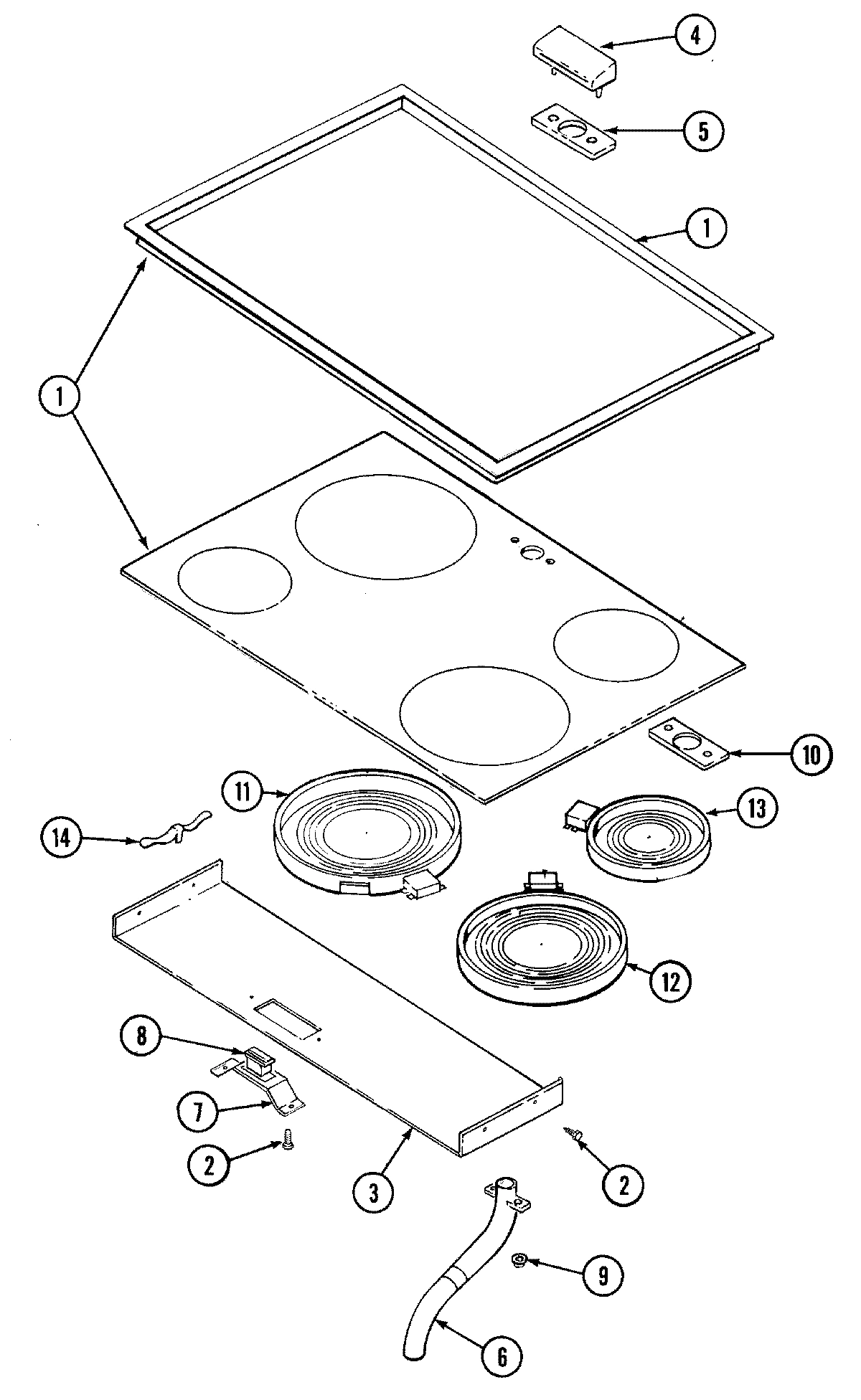

06 - TOP ASSEMBLY

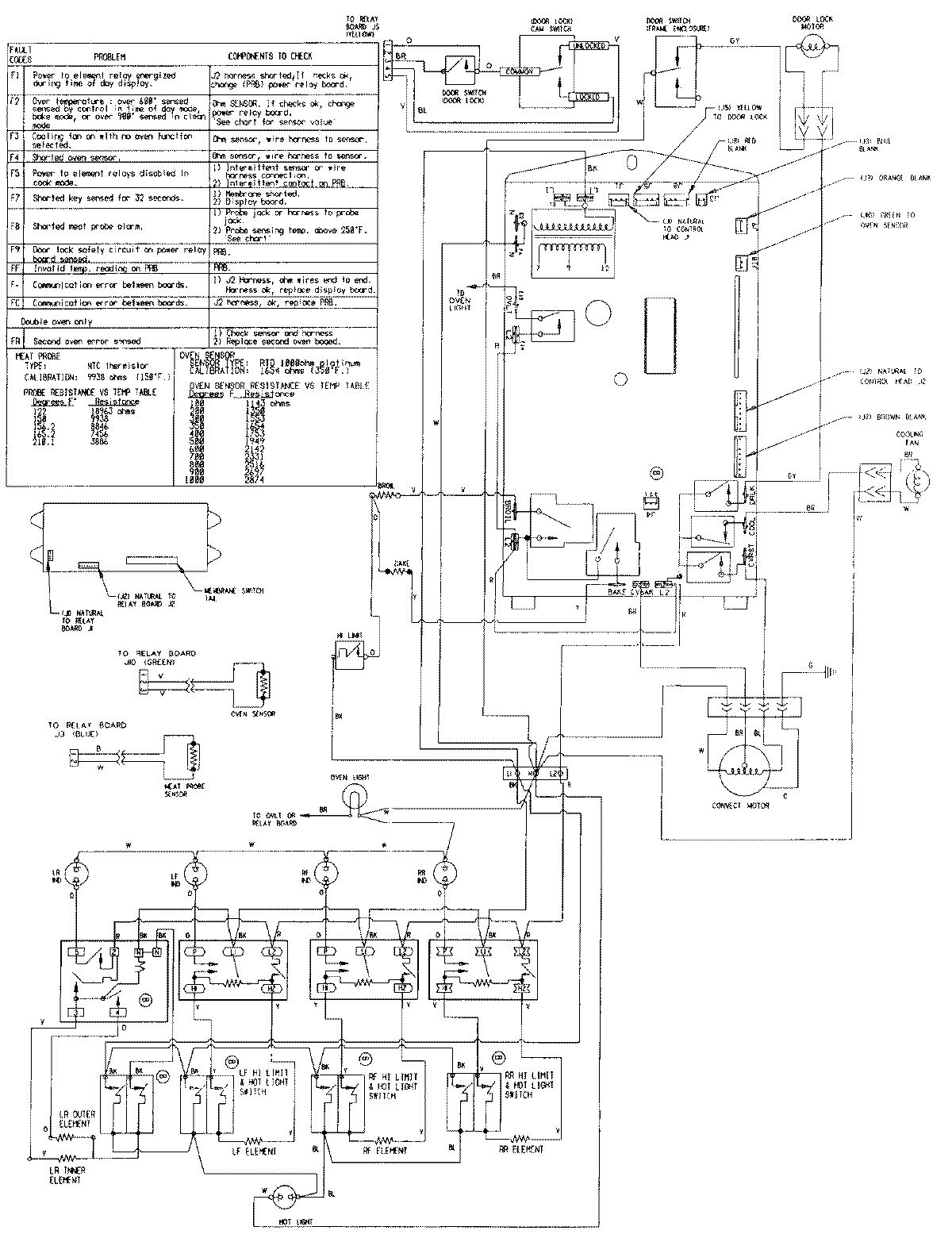

07 - WIRING INFORMATION
Common parts from model Maytag SCE30600W ELECTRIC RANGE
1
MAY 71002038 MAY 71002038 Contact Us For Availability
1
MAY 71002039 MAY 71002039 Contact Us For Availability
1
MAY 71002545 MAY 71002545 Contact Us For Availability
1
MAY 71003012 MAY 71003012 Contact Us For Availability
1
MAY 71003013 MAY 71003013 Contact Us For Availability
1
MAY 71002081 MAY 71002081 Contact Us For Availability
1
MAY 71002243 MAY 71002243 Contact Us For Availability
1
MAY 71002241 MAY 71002241 Contact Us For Availability
2
MAY 71002046 MAY 71002046 Contact Us For Availability
2
MAY 71002083 MAY 71002083 Contact Us For Availability
2
MAY 71002244 MAY 71002244 Contact Us For Availability
2
MAY 71002245 MAY 71002245 Contact Us For Availability
3
MAY 71002085 MAY 71002085 Contact Us For Availability
3
MAY 71002246 MAY 71002246 Contact Us For Availability
3
MAY 3401F012-19 MAY 3401F012-19 Contact Us For Availability
3
MAY 703164 MAY 703164 Contact Us For Availability
3
MAY 71002237 MAY 71002237 Contact Us For Availability
3
MAY 71003086 MAY 71003086 Contact Us For Availability
4
MAY 71002234 MAY 71002234 Contact Us For Availability
4
MAY 71002087 MAY 71002087 Contact Us For Availability
4
MAY 71002813 MAY 71002813 Contact Us For Availability
4
MAY 71002247 MAY 71002247 Contact Us For Availability
4
MAY 703165 MAY 703165 Contact Us For Availability
4
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
4
MAY Y04100311 MAY Y04100311 Contact Us For Availability
5
MAY 71001827 MAY 71001827 Contact Us For Availability
5
MAY 71002089 MAY 71002089 Contact Us For Availability
5
MAY 71002094 MAY 71002094 Contact Us For Availability
5
MAY 71001867 MAY 71001867 Contact Us For Availability
5
MAY Y04100462 MAY Y04100462 Contact Us For Availability
6
MAY 71002206 MAY 71002206 Contact Us For Availability
6
MAY 71002043 MAY 71002043 Contact Us For Availability
6
MAY 71002791 MAY 71002791 Contact Us For Availability
6
MAY 71002096 MAY 71002096 Contact Us For Availability
6
MAY 71002239 MAY 71002239 Contact Us For Availability
7
MAY 71002045 MAY 71002045 Contact Us For Availability
7
MAY 71003017 MAY 71003017 Contact Us For Availability
7
MAY 71001839 MAY 71001839 Contact Us For Availability
7
MAY 71002210 MAY 71002210 Contact Us For Availability
7
MAY 71002248 MAY 71002248 Contact Us For Availability
7
MAY 71001165 MAY 71001165 Contact Us For Availability
7
MAY 71001394 MAY 71001394 Contact Us For Availability
7
MAY 71001403 MAY 71001403 Contact Us For Availability
7
MAY 71003005 MAY 71003005 Contact Us For Availability
7
MAY 04100476 MAY 04100476 Contact Us For Availability
8
MAY 71002713 MAY 71002713 Contact Us For Availability
8
MAY 71002057 MAY 71002057 Contact Us For Availability
8
MAY 71002236 MAY 71002236 Contact Us For Availability
8
MAY 71002714 MAY 71002714 Contact Us For Availability
8
MAY 71001838 MAY 71001838 Contact Us For Availability
8
MAY 71002249 MAY 71002249 Contact Us For Availability
8
MAY Y04100477 MAY Y04100477 Contact Us For Availability
9
MAY Y04100573 MAY Y04100573 Contact Us For Availability
9
MAY 71002092 MAY 71002092 Contact Us For Availability
9
MAY 71001866 MAY 71001866 Contact Us For Availability
10
MAY 71002072 MAY 71002072 Contact Us For Availability
10
MAY 71001301 MAY 71001301 Contact Us For Availability
10
MAY 71002090 MAY 71002090 Contact Us For Availability
10
MAY 71002099 MAY 71002099 Contact Us For Availability
10
MAY 71002079 MAY 71002079 Contact Us For Availability
10
MAY Y04100478 MAY Y04100478 Contact Us For Availability
11
MAY 71002077 MAY 71002077 Contact Us For Availability
11
MAY 71002048 MAY 71002048 Contact Us For Availability
11
MAY 71002049 MAY 71002049 Contact Us For Availability
11
MAY 71002050 MAY 71002050 Contact Us For Availability
11
MAY 71002051 MAY 71002051 Contact Us For Availability
11
MAY 71002053 MAY 71002053 Contact Us For Availability
11
MAY 71002054 MAY 71002054 Contact Us For Availability
11
MAY 71002059 MAY 71002059 Contact Us For Availability
11
MAY 71002117 MAY 71002117 Contact Us For Availability
11
MAY 71003030 MAY 71003030 Contact Us For Availability
11
MAY 71003181 MAY 71003181 Contact Us For Availability
11
MAY 71003182 MAY 71003182 Contact Us For Availability
11
MAY 71003186 MAY 71003186 Contact Us For Availability
11
MAY Y04100479 MAY Y04100479 Contact Us For Availability
11
MAY 71001187 MAY 71001187 Contact Us For Availability
11
MAY 71002964 MAY 71002964 Contact Us For Availability
11
MAY 71001170 MAY 71001170 Contact Us For Availability
11
MAY Y707319 MAY Y707319 Contact Us For Availability
12
MAY 71001186 MAY 71001186 Contact Us For Availability
12
MAY 71003087 MAY 71003087 Contact Us For Availability
12
MAY 71002643 MAY 71002643 Contact Us For Availability
12
MAY 12001357 MAY 12001357 Contact Us For Availability
12
MAY 71001424 MAY 71001424 Contact Us For Availability
13
MAY 71001129 MAY 71001129 Contact Us For Availability
13
MAY 71001831 MAY 71001831 Contact Us For Availability
13
MAY 71001423 MAY 71001423 Contact Us For Availability
14
MAY 71001852 MAY 71001852 Contact Us For Availability
14
MAY 71002086 MAY 71002086 Contact Us For Availability
14
MAY 702643 MAY 702643 Contact Us For Availability
14
MAY 71001855 MAY 71001855 Contact Us For Availability
14
MAY 402013-1 MAY 402013-1 Contact Us For Availability
14
SPRING, ELEMENT SUPPORT MAY Y04100418 Contact Us For Availability
15
MAY 71001858 MAY 71001858 Contact Us For Availability
15
MAY 71001851 MAY 71001851 Contact Us For Availability
16
MAY 71001853 MAY 71001853 Contact Us For Availability
16
MAY 702929 MAY 702929 Contact Us For Availability
17
MAY 71001854 MAY 71001854 Contact Us For Availability
18
MAY 71001845 MAY 71001845 Contact Us For Availability
19
MAY 71002074 MAY 71002074 Contact Us For Availability
19
MAY 71002078 MAY 71002078 Contact Us For Availability
19
MAY 71002647 MAY 71002647 Contact Us For Availability
20
MAY 71001817 MAY 71001817 Contact Us For Availability
21
MAY 71002073 MAY 71002073 Contact Us For Availability
22
MAY 71001820 MAY 71001820 Contact Us For Availability
23
MAY 71002594 MAY 71002594 Contact Us For Availability
23
MAY 74004836 MAY 74004836 Contact Us For Availability
24
MAY 71002960 MAY 71002960 Contact Us For Availability
27
MAY 712092 MAY 712092 Contact Us For Availability
27
MAY Y705344 MAY Y705344 Contact Us For Availability
29
MAY Y702284 MAY Y702284 Contact Us For Availability
30
MAY 71002904 MAY 71002904 Contact Us For Availability
31
MAY 704827K MAY 704827K Contact Us For Availability
31
MAY 71002103 MAY 71002103 Contact Us For Availability
32
MAY 71002242 MAY 71002242 Contact Us For Availability
33
MAY 71002208 MAY 71002208 Contact Us For Availability
NI
MAY 15001758 MAY 15001758 Contact Us For Availability
× ![]()
