Model GE SCA1000HWW03 – Common Parts & Diagrams
CONTROL PANEL & DOOR PARTS
OVEN CAVITY PARTS

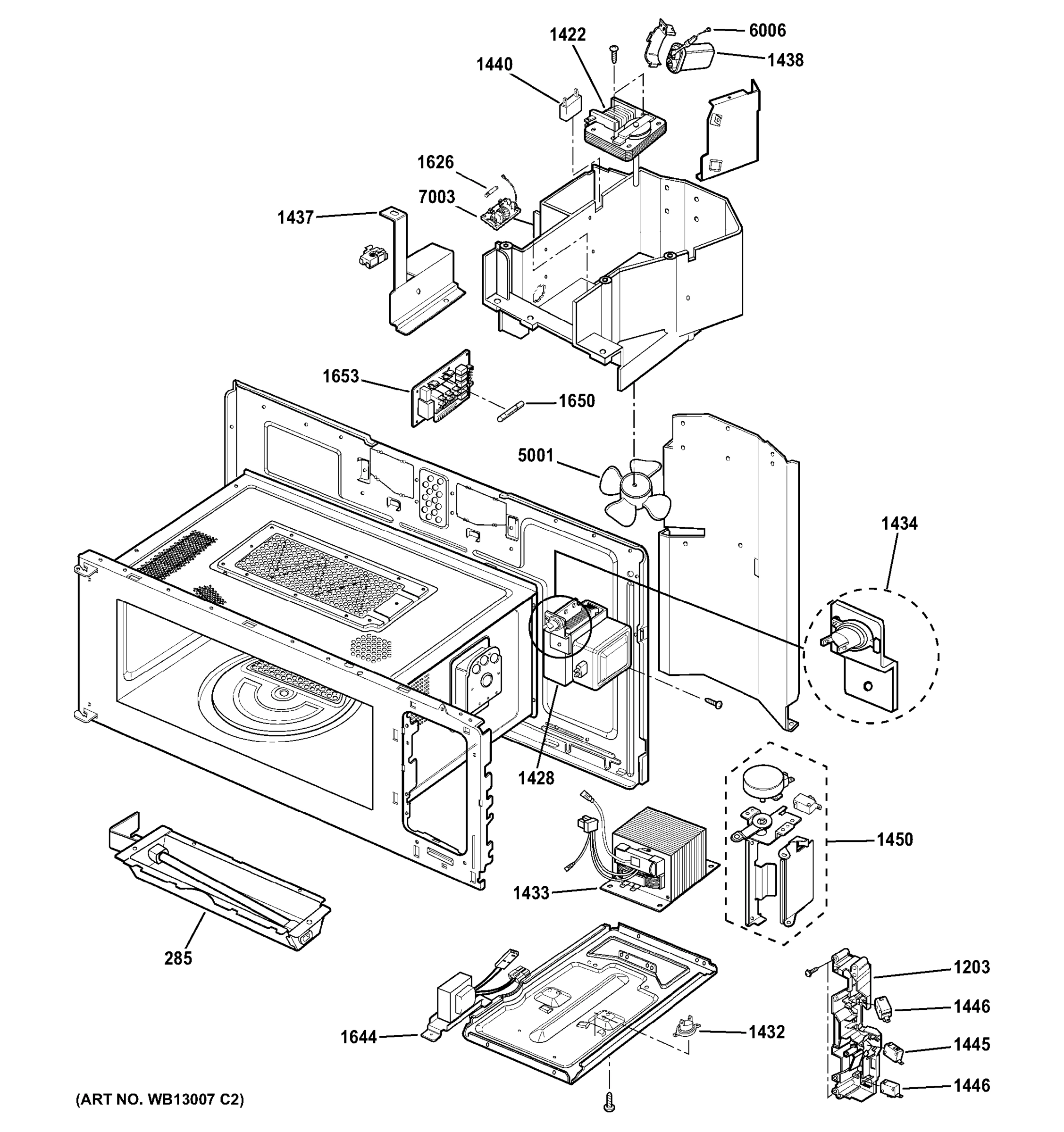

INTERIOR PARTS (1)

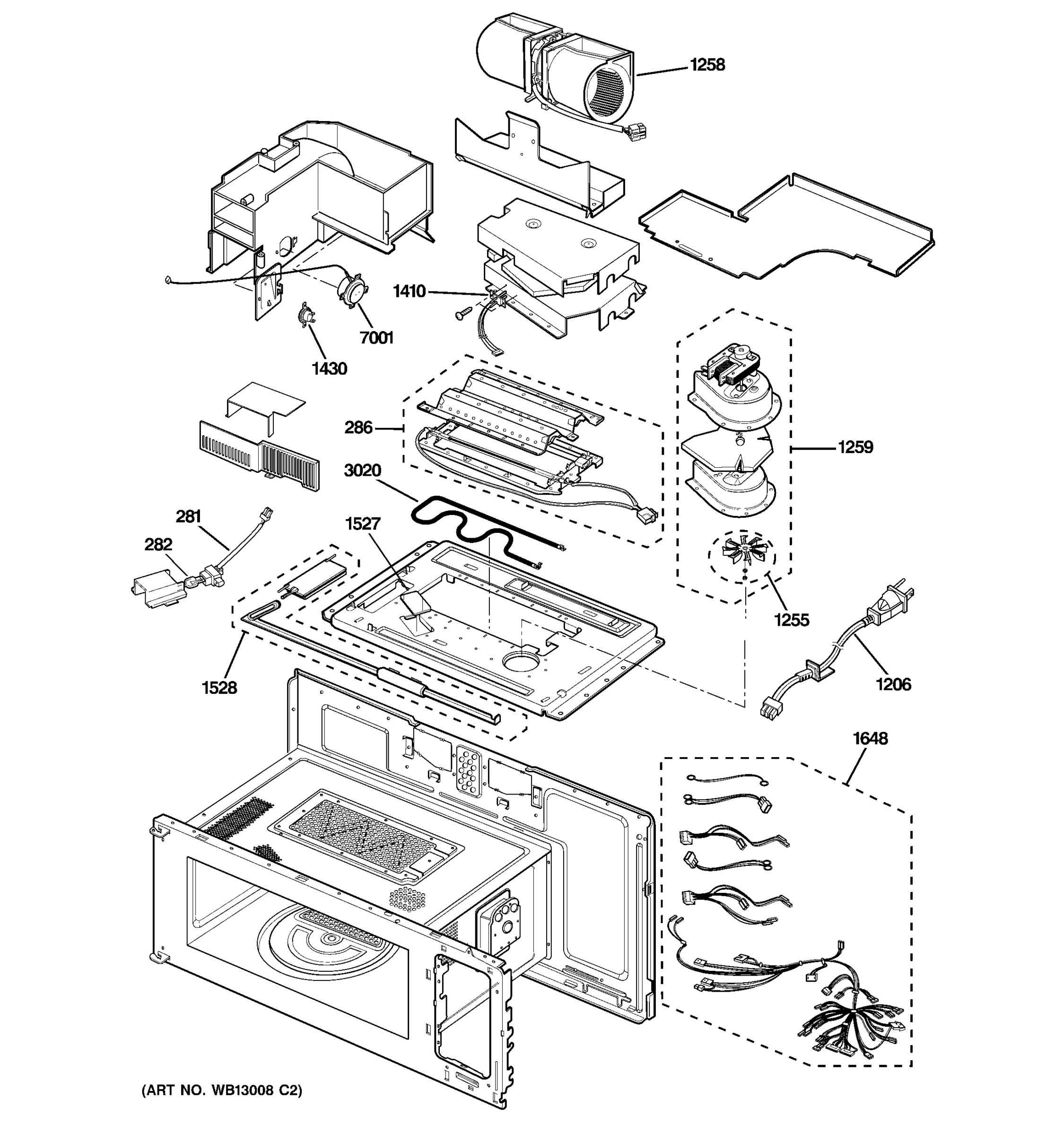

INTERIOR PARTS (2)

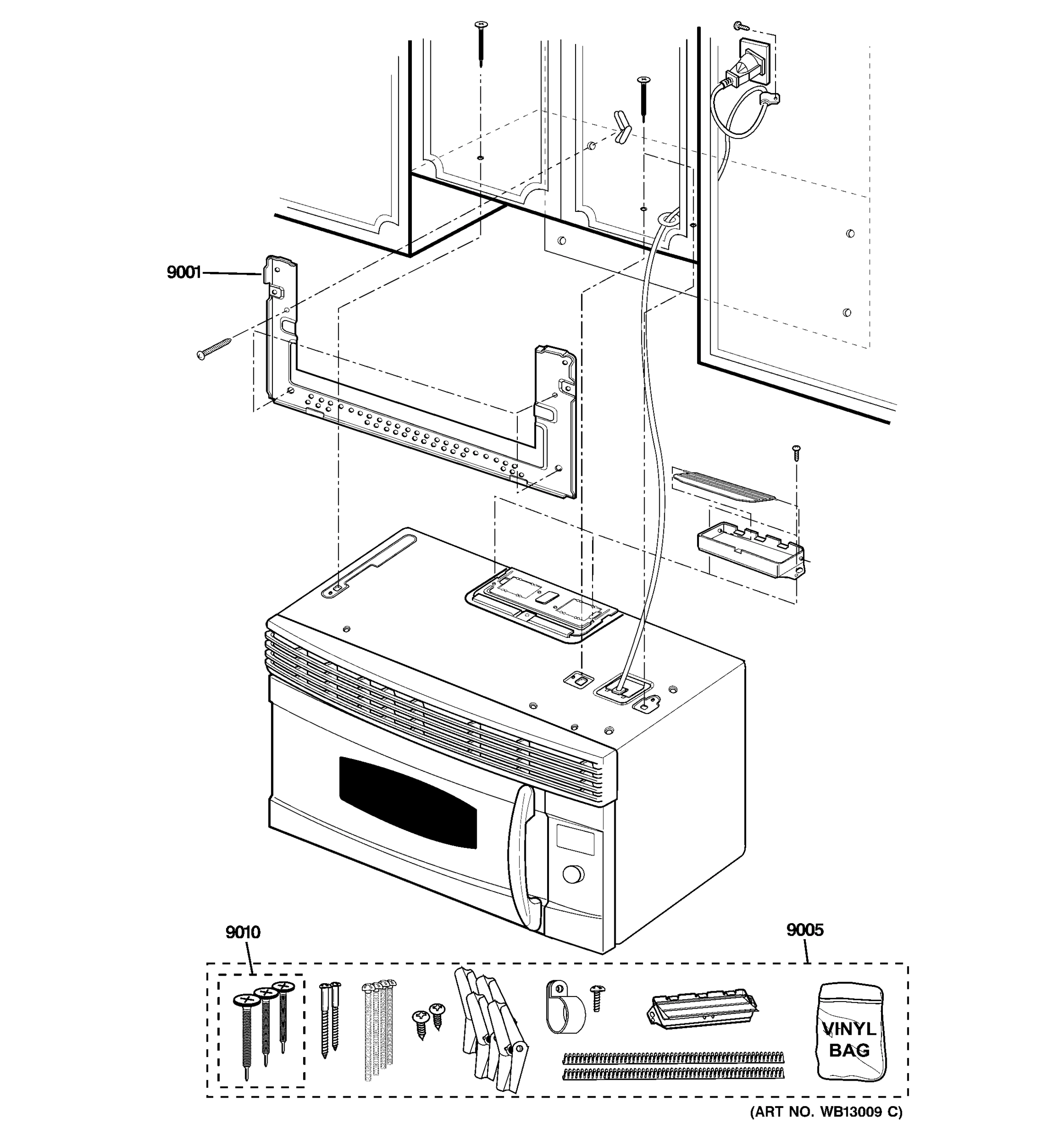

INSTALLATION PARTS
Common parts from model GE SCA1000HWW03
281
LAMP REFLECTOR ASM GEN WB36X10253 Contact Us For Availability
285
REFLECTOR ASSY GEN WB36X10180 Contact Us For Availability
286
REFLECTOR ASSY GEN WB36X10182 Contact Us For Availability
1203
LATCH BRACKET GEN WB06X10216 Contact Us For Availability
1218
GRILLE CLIPS GEN WB06X10320 Contact Us For Availability
1225
GRILLE ASSEMBLY WHT GEN WB07X10776 Contact Us For Availability
1242
HOLDER ASSEMBLY GEN WB06X10554 Contact Us For Availability
1259
BLOWER ASSY GEN WB38X10054 Contact Us For Availability
1428
MAGNETRON ASM GEN WB26X26221 Contact Us For Availability
1432
TCO BASE HOOD GEN WB21X10045 Contact Us For Availability
1434
MGT THERMO ASSY GEN WB21X10054 Contact Us For Availability
1438
CAPACITOR HIGH VOLT GEN WB27X10233 Contact Us For Availability
1450
DAMPER INLET ASM GEN WB06X10668 Contact Us For Availability
1472
MOTOR TURNTABLE ASM GEN WB26X10188 Contact Us For Availability
1475
WAVE GUIDE - MICA COVER GEN WB06X10311 Contact Us For Availability
1509
ROTATING RING ASM GEN WB06X10667 Contact Us For Availability
1527
GLASS OVEN LAMP GEN WB06X10317 Contact Us For Availability
1615
KEY PCB ASM GEN WB27X10775 Contact Us For Availability
1644
TRANSFORMER POWER GEN WB20X10023 Contact Us For Availability
1650
FUSE,12A GEN WB27X10471 Contact Us For Availability
1653
RELAY PCB GEN WB27X10777 Contact Us For Availability
1655
SMART BOARD GEN WB27X10776 Contact Us For Availability
1800
DOOR ASM WHT GEN WB56X10496 Contact Us For Availability
1801
DOOR HANDLE WHT GEN WB15X10143 Contact Us For Availability
1804
CHOKE COVER GEN WB55X10428 Contact Us For Availability
1805
DOOR GROSS SUB ASM WHT GEN WB55X10708 Contact Us For Availability
5001
FAN BLADE GEN WB38X10024 Contact Us For Availability
7001
SENSOR ASSY GEN WB24X10044 Contact Us For Availability
7003
FILTER ASSY NOISE GEN WB27X10519 Contact Us For Availability
9005
INSTALLATION KIT ASSY GEN WB64X10003 Contact Us For Availability
9010
MOUNTING BOLTS GEN WB01X10125 Contact Us For Availability
× ![]()
