Model Whirlpool SC8900EXQ0 – Common Parts & Diagrams
05 - MANIFOLD AND TUBING
03 - OPTIONAL WALL CAP ACCESSORIES

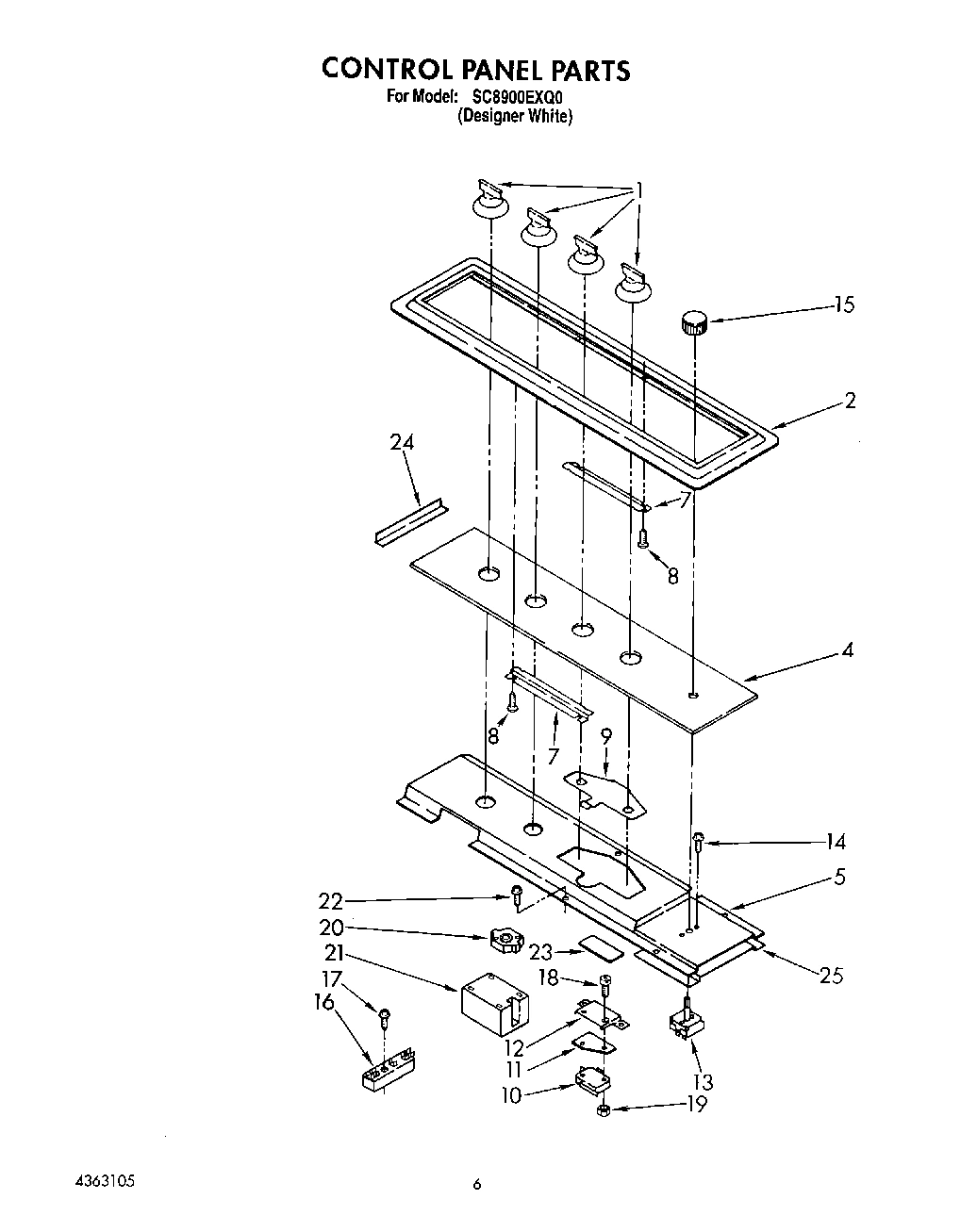

04 - CONTROL PANEL

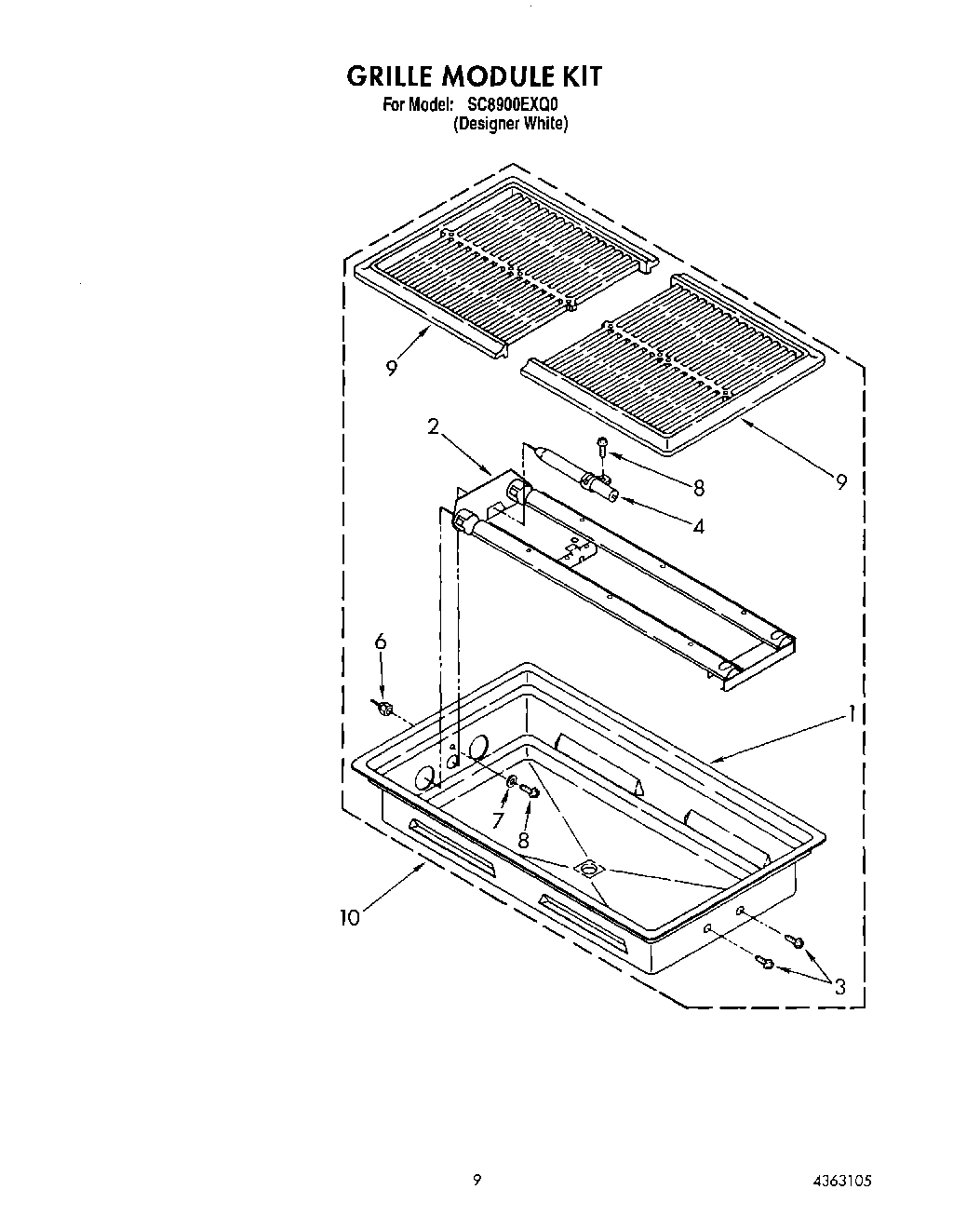

07 - GRILLE MODULE KIT

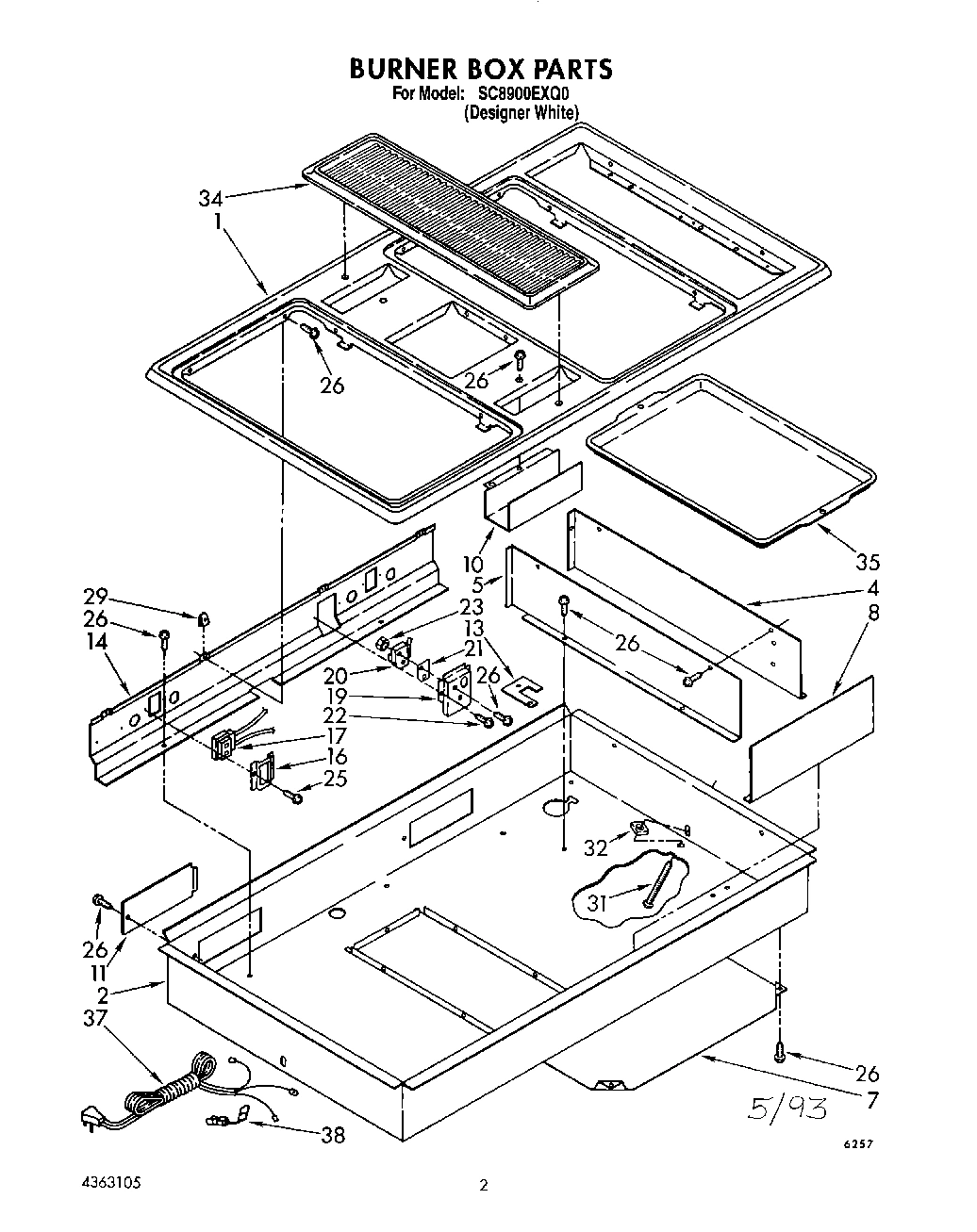

01 - BURNER BOX, LIT/OPTIONAL

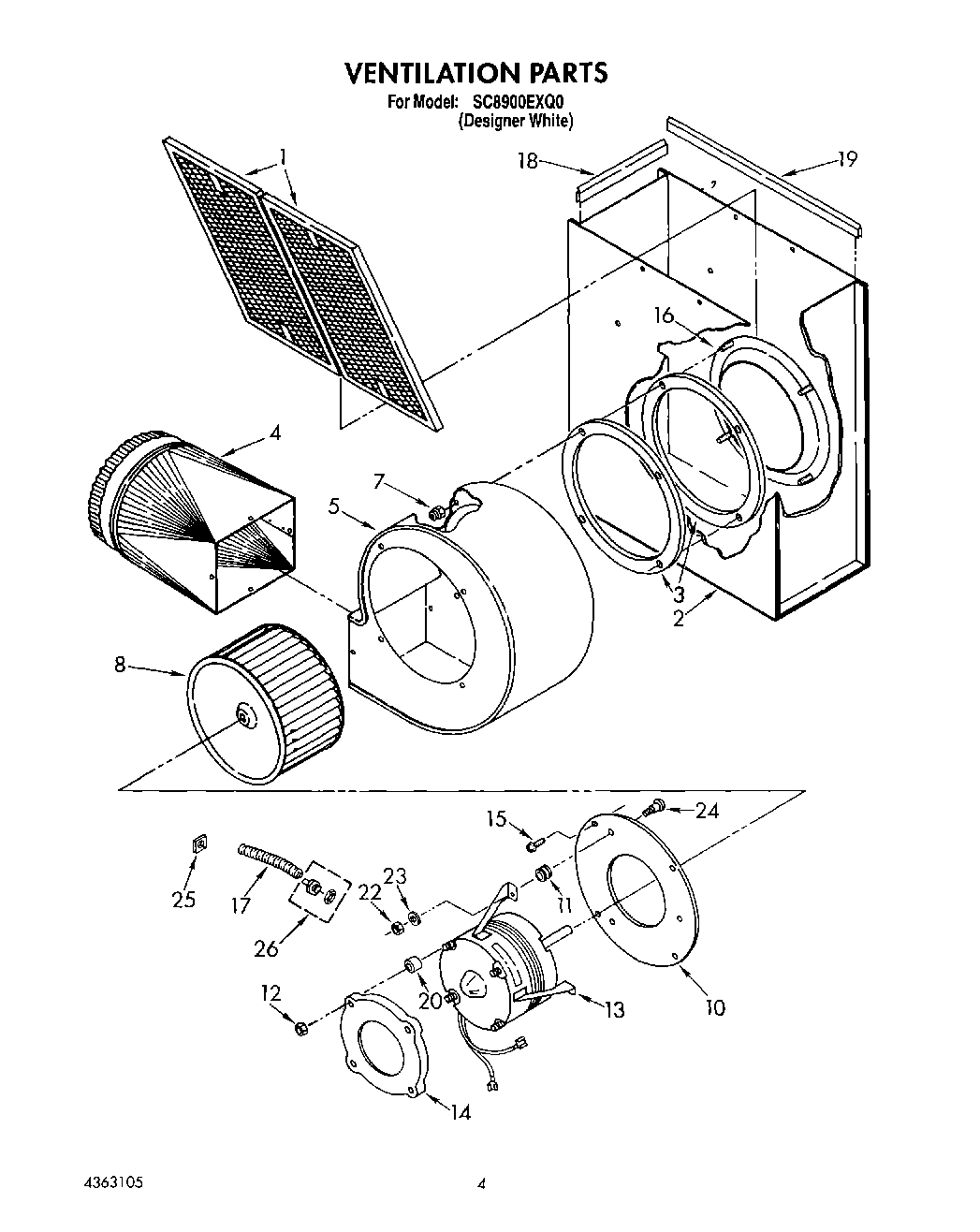

02 - VENTILATION

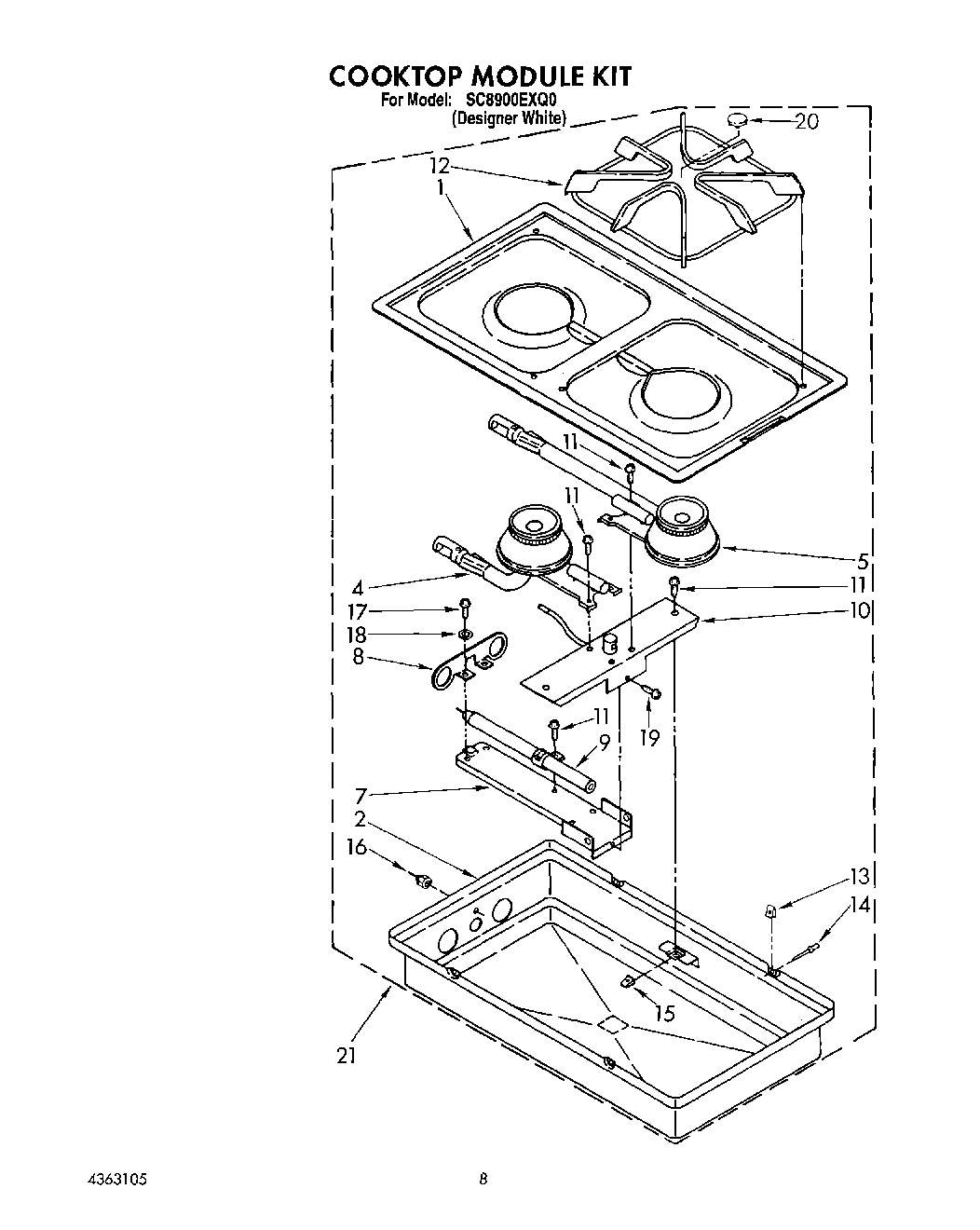

06 - COOKTOP MODULE KIT

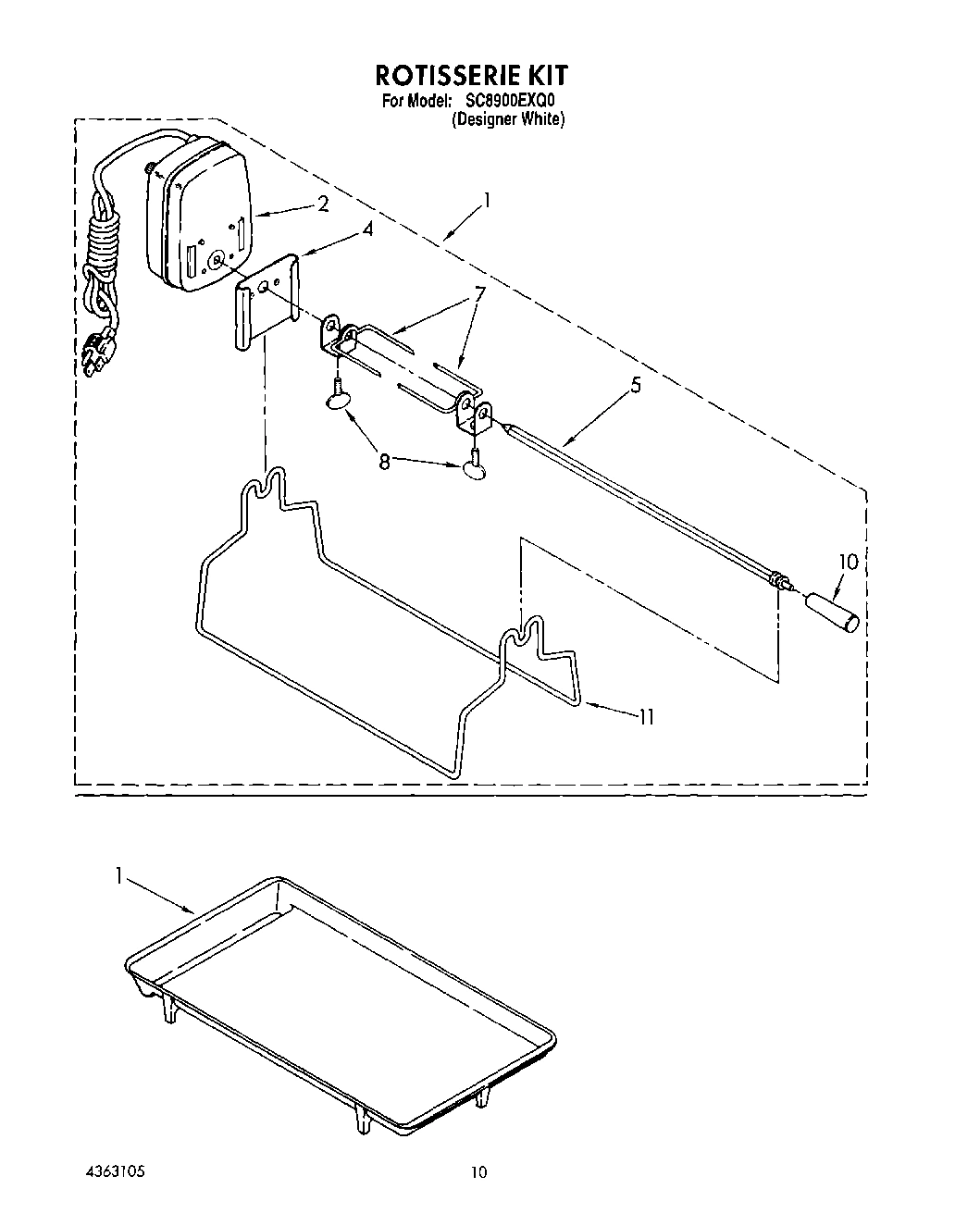

08 - ROTISSERIE KIT
Common parts from model Whirlpool SC8900EXQ0
Guide, Use & Care WPL LIT4320702 Contact Us For Availability
Instructions, Installation WPL LIT4320703 Contact Us For Availability
List, Repair Parts WPL LIT4363105 Contact Us For Availability
1
Vavle, Gas (Includes Tube Fitting And) WPL 786121 Contact Us For Availability
1
6`` Diameter Duct System Wall Cap WPL 786244 Contact Us For Availability
1
Knob, Valve (4) WPL 4321189 Contact Us For Availability
1
Pan, Grille WPL 4315615 Contact Us For Availability
1
Top, Main WPL 4321186 Contact Us For Availability
1
Filter Kit (Contains 2) WPL 786160 Contact Us For Availability
1
Module Top WPL 4321183 Contact Us For Availability
1
Kit, Rotisserie (Complete) WPL 786225 Contact Us For Availability
1A
Griddle WPL 786100 Contact Us For Availability
2
Pipe, Manifold WPL 786122 Contact Us For Availability
2
3 1/4 X 10`` Rectangular Duct System Wall Cap WPL 786247 Contact Us For Availability
2
Trim, Control Panel WPL 4321195 Contact Us For Availability
2
Burner, Grille WPL 786116 Contact Us For Availability
2
Box, Burner WPL 786136 Contact Us For Availability
2
Plenum WPL 4179323 Contact Us For Availability
2
Module Pan WPL 4362653 Contact Us For Availability
2
Motor, Rotisserie 60 Hz. WPL 4321290 Contact Us For Availability
3
Screw, Valve WPL 4179116 Contact Us For Availability
3
Gasket, Motor Mounting WPL 4179303 Contact Us For Availability
4
Regulator WPL 786123 Contact Us For Availability
4
Glass, Control Panel WPL 4321196 Contact Us For Availability
4
Electrode, Grille (Includes Clip) WPL 786205 Contact Us For Availability
4
Sheild, Switch WPL 786137 Contact Us For Availability
4
Transition 6`` WPL 4179340 Contact Us For Availability
4
Burner, Front (Short Venturi) WPL 786111 Contact Us For Availability
4
Bracket, Motor Mounting WPL 786166 Contact Us For Availability
5
R.F. Orifice & Tubing Assembly (Includes) WPL 786206 Contact Us For Availability
5
Shield, Valve & Switch WPL 4315453 Contact Us For Availability
5
Shield, Heat Control WPL 786138 Contact Us For Availability
5
Housing Blower WPL 4321055 Contact Us For Availability
5
Burner, Rear (Long Venturi) WPL 786112 Contact Us For Availability
5
Spit, Rotisserie WPL 4321288 Contact Us For Availability
7
R.R. Orifice & Tube Assembly (Includes) WPL 786207 Contact Us For Availability
7
Retainer, Glass (2) WPL 786134 Contact Us For Availability
7
Baffle, Bottom WPL 786139 Contact Us For Availability
7
Nut, Locking (4) WPL 786239 Contact Us For Availability
7
Support, Burner Base WPL 786113 Contact Us For Availability
7
Skewer (2) WPL 786163 Contact Us For Availability
8
L.F. Orifice & Tube Assembly (Includes) WPL 786208 Contact Us For Availability
8
Screw, 4-40 X 1/4 (4) WPL 786226 Contact Us For Availability
8
Shield, Front Heat WPL 786140 Contact Us For Availability
8
Wheel, Fan WPL 786155 Contact Us For Availability
8
Support, Venturi WPL 786114 Contact Us For Availability
8
Screw, Thumb (2) WPL 786162 Contact Us For Availability
9
Actuator, Switch WPL 786124 Contact Us For Availability
9
Grille (2) WPL 4314960 Contact Us For Availability
9
Connector, Electrode WPL 786117 Contact Us For Availability
10
L.R. Orifice & Tube Assembly (Includes) WPL 786209 Contact Us For Availability
10
Switch, Fan WPL 786366 Contact Us For Availability
10
Grille Module, Complete WPL 4363084 Contact Us For Availability
10
Shield, Sight WPL 786141 Contact Us For Availability
10
Plate, Motor Mounting WPL 4314921 Contact Us For Availability
10
Electrode, Cap & Bracket Asm. WPL 786279 Contact Us For Availability
10
Handle, Rotisserie WPL 4321289 Contact Us For Availability
11
Palnut (4) WPL 786275 Contact Us For Availability
11
Cover, Access (2) WPL 786142 Contact Us For Availability
11
Grommet, Motor Mounting (3) WPL 786234 Contact Us For Availability
11
Rack, Rotisserie WPL 786159 Contact Us For Availability
12
Bracket, Fan Switch WPL 786271 Contact Us For Availability
12
Grate, Top Burner WPL 4363092 Contact Us For Availability
13
Orifice Hood (R.F. and R.R.) WPL 786277 Contact Us For Availability
13
Orifice Hood (L.F. and L.R.) WPL 786276 Contact Us For Availability
13
Switch, Fan (Manual) WPL 4315285 Contact Us For Availability
13
Bracket, Manifold Support WPL 786143 Contact Us For Availability
13
Motor, 60 Hz. WPL 4315281 Contact Us For Availability
13
Clip, Top Mounting (4) WPL 786280 Contact Us For Availability
14
Orifice Pin WPL 786278 Contact Us For Availability
14
Screw, 6-32 X 3/16 (2) WPL 786245 Contact Us For Availability
14
Bracket, Orifice Mounting WPL 786144 Contact Us For Availability
14
Cover, Motor WPL 4314924 Contact Us For Availability
14
Pop Rivet (4) WPL 786281 Contact Us For Availability
15
Knob, Fan WPL 4321198 Contact Us For Availability
15
U-Clip (2) WPL 786282 Contact Us For Availability
16
Block, Terminal WPL 786132 Contact Us For Availability
16
Pin, Ground WPL 786204 Contact Us For Availability
16
Bracket, Plug Block Mounting (2) WPL 786145 Contact Us For Availability
16
Orifice WPL 4179324 Contact Us For Availability
17
Plug Block (R.H.) WPL 4314928 Contact Us For Availability
17
Plug Block (L.H.) WPL 4314929 Contact Us For Availability
17
Conduit WPL 786253 Contact Us For Availability
17
Screw, 8-32 X 3/16 WPL 786231 Contact Us For Availability
18
Lockwasher No.8 WPL 786283 Contact Us For Availability
18
Seal, Plenum End (2) WPL 786149 Contact Us For Availability
19
Bracket, Fan Switch WPL 786147 Contact Us For Availability
19
Seal, Plenum Side (2) WPL 786148 Contact Us For Availability
20
Switch, Spark (4) WPL 4363103 Contact Us For Availability
20
Switch, Fan WPL 4179158 Contact Us For Availability
20
Spacer, Motor Cover (4) WPL 4314926 Contact Us For Availability
20
Burner Cap WPL 4321258 Contact Us For Availability
21
Insulator, Switch WPL 786380 Contact Us For Availability
21
Module, Spark WPL 4320867 Contact Us For Availability
21
Module, Complete WPL 4363068 Contact Us For Availability
22
Screw, 4-40 X 5/8 (2) WPL 786259 Contact Us For Availability
22
Nut, No.10-24 (3) WPL 786439 Contact Us For Availability
23
Nut, 4-40 WPL 786260 Contact Us For Availability
23
Insulator, Switch WPL 786210 Contact Us For Availability
23
Washer (3) WPL 4314923 Contact Us For Availability
24
Foam Tape (4) WPL 4321199 Contact Us For Availability
24
Bolt, 10-24 X 3/4 (3) WPL 4321170 Contact Us For Availability
25
Bracket, Switch Mounting WPL 4363101 Contact Us For Availability
25
Bracket, Fuse Box WPL 4315575 Contact Us For Availability
26
Connector, Conduit WPL 4363102 Contact Us For Availability
29
U-Clip, Top Mounting (12) WPL 786264 Contact Us For Availability
31
Screw, Hold Down (2) WPL 786211 Contact Us For Availability
32
Nut, 1/4-20 (2) WPL 786222 Contact Us For Availability
34
Cover, Vent WPL 4321187 Contact Us For Availability
35
Pan, Grease WPL 786265 Contact Us For Availability
37
Cord, Power WPL 786217 Contact Us For Availability
38
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
38
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
38
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
38
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
38
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
38
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
38
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
38
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
38
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
38
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
38
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
38
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
38
Bushing, Power Cord WPL 786287 Contact Us For Availability
× ![]()
