Model Whirlpool SC8900EMH1 – Common Parts &amp; Diagrams

WP285432 Whirlpool Terminal Backorder WPL WP285432 $2.51

WP90028 Whirlpool Terminal Backorder WPL WP90028 $2.38

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

List, Repair Parts WPL LIT4314930 Contact Us For Availability

Guide, Use & Care WPL LIT786105 Contact Us For Availability

Instructions, Installation WPL LIT786202 Contact Us For Availability

Vent Installati WPL LIT786203 Contact Us For Availability

1

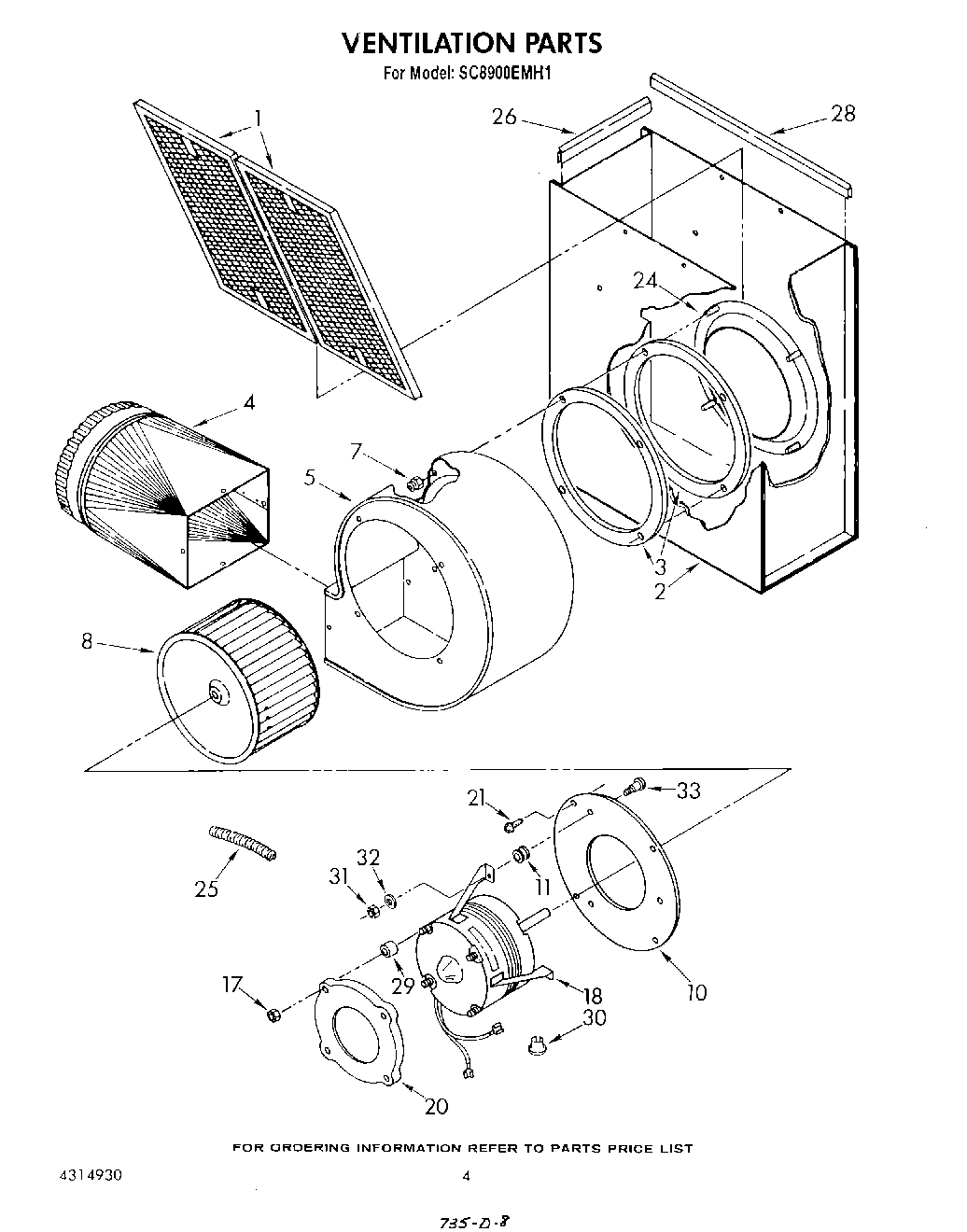

786235 Whirlpool Oven Grease Filter Pack of 2 Backorder WPL 786235 $16.31

1

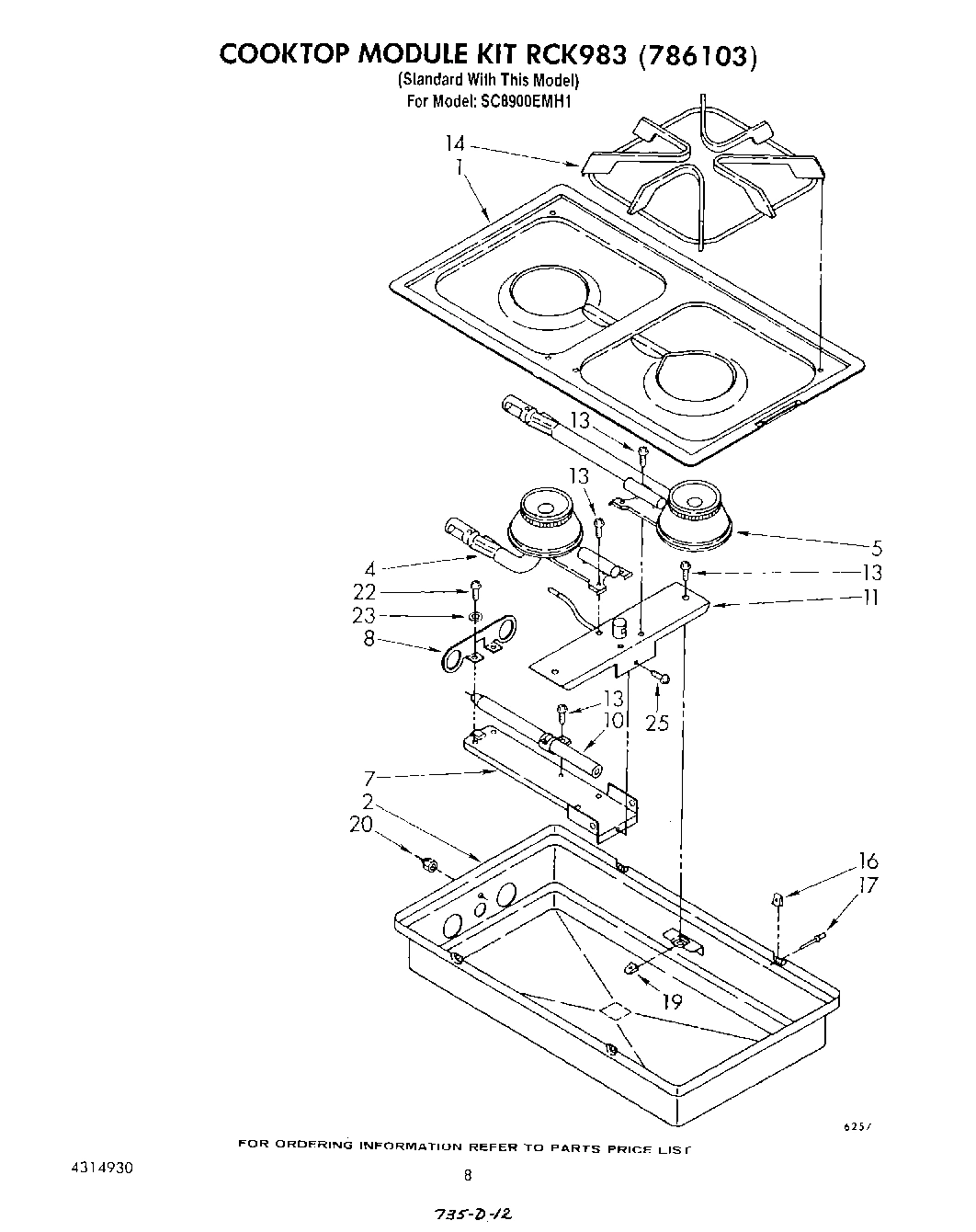

Top, Main WPL 786135 Contact Us For Availability

1

Vavle, Gas (Includes Tube Fitting) (4) WPL 786121 Contact Us For Availability

1

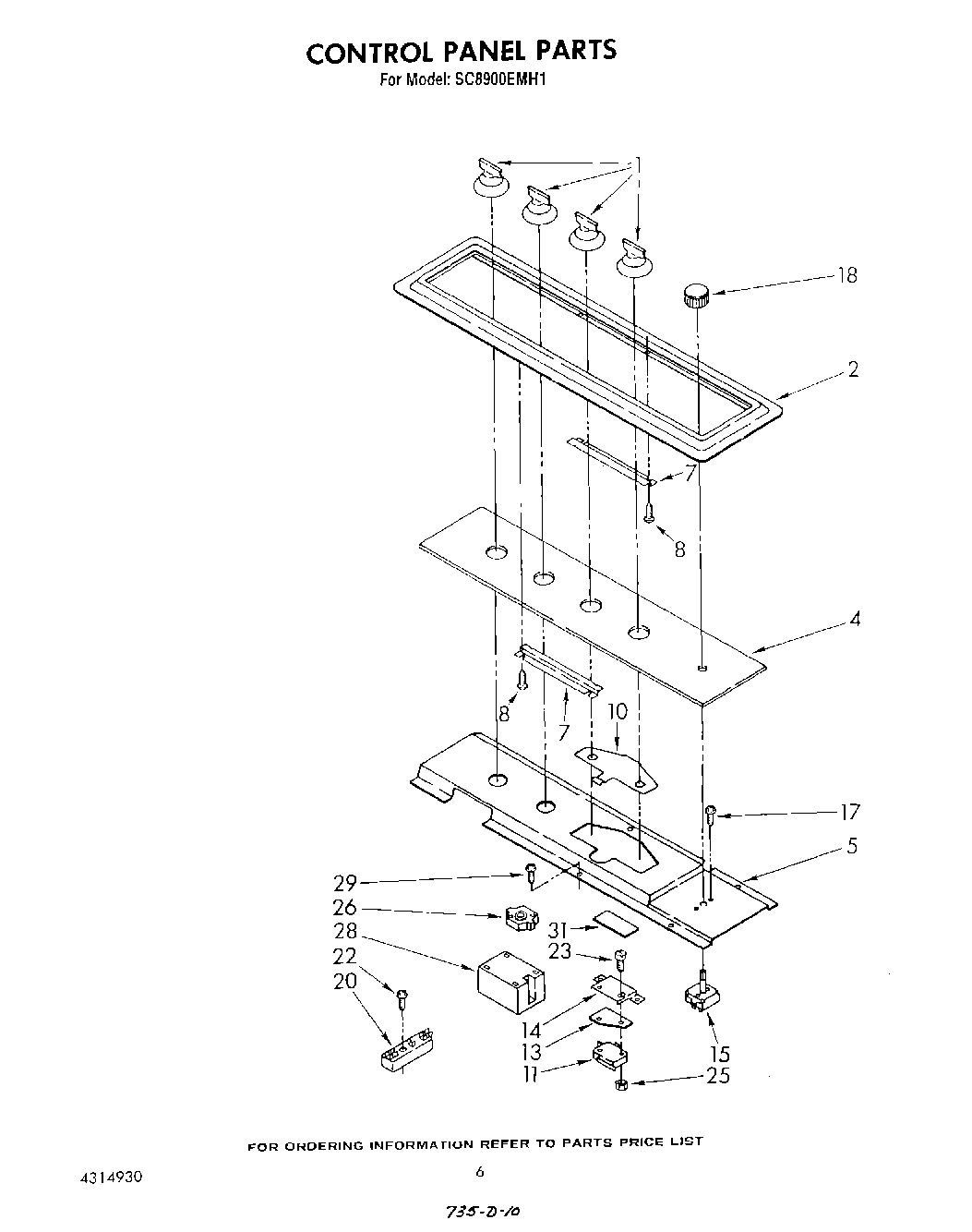

Knob, Valve (4) WPL 786268 Contact Us For Availability

1

Module Top WPL 786109 Contact Us For Availability

1

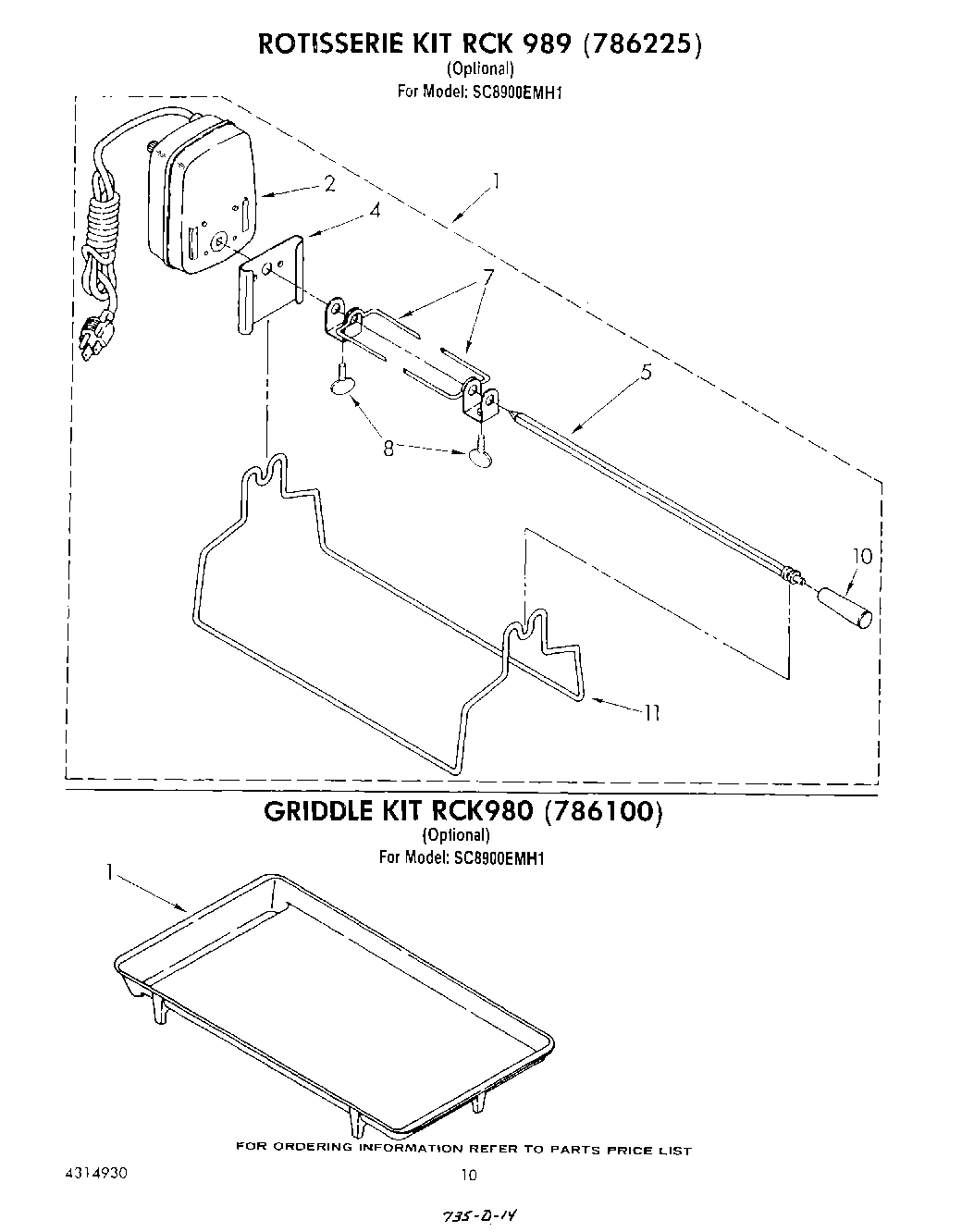

Kit, Rotisserie (Complete) WPL 786225 Contact Us For Availability

1

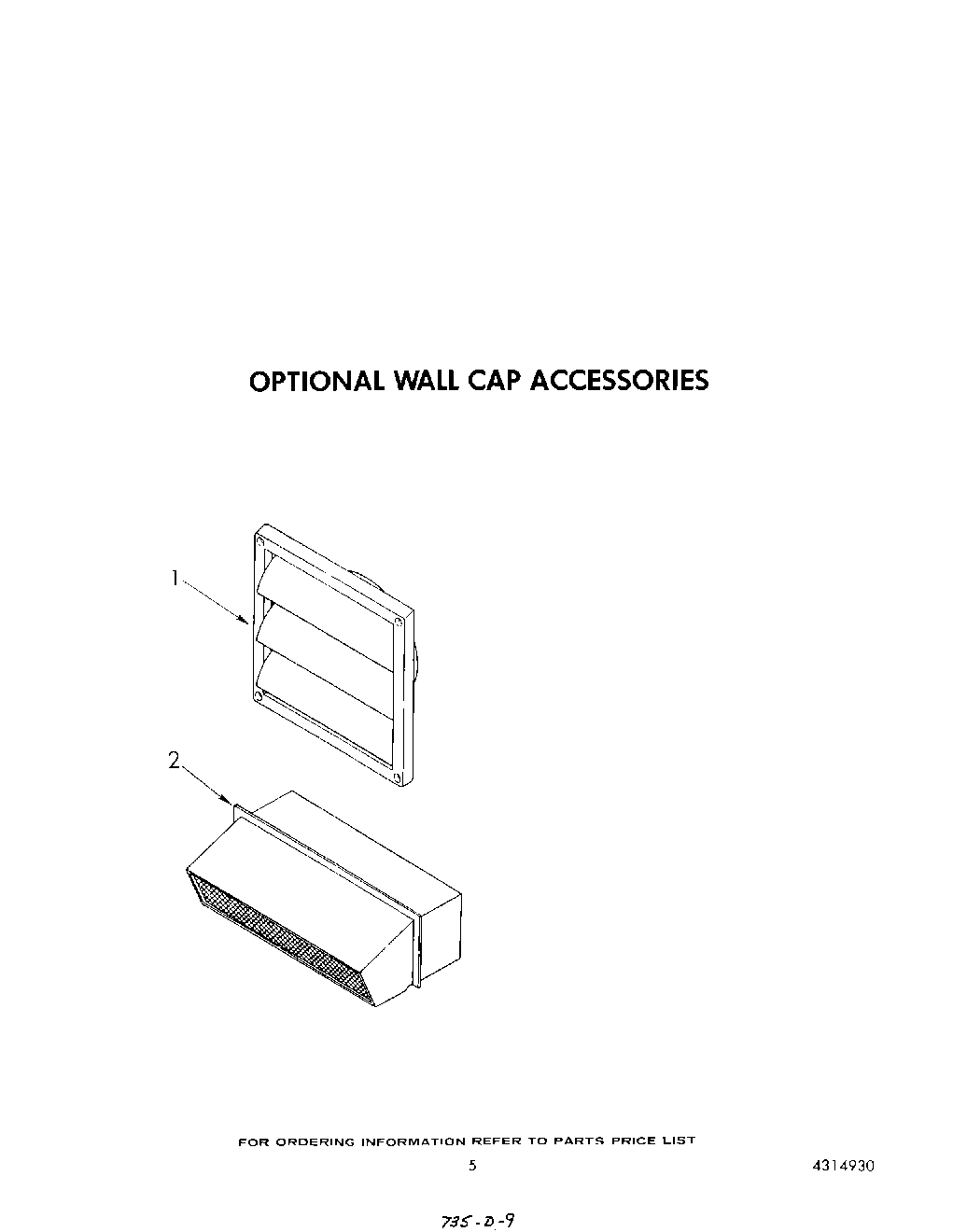

6`` Diameter Duct System Wall Cap WPL 786244 Contact Us For Availability

1A

Griddle WPL 786100 Contact Us For Availability

2

Box, Burner WPL 786136 Contact Us For Availability

2

Plenum WPL 4179323 Contact Us For Availability

2

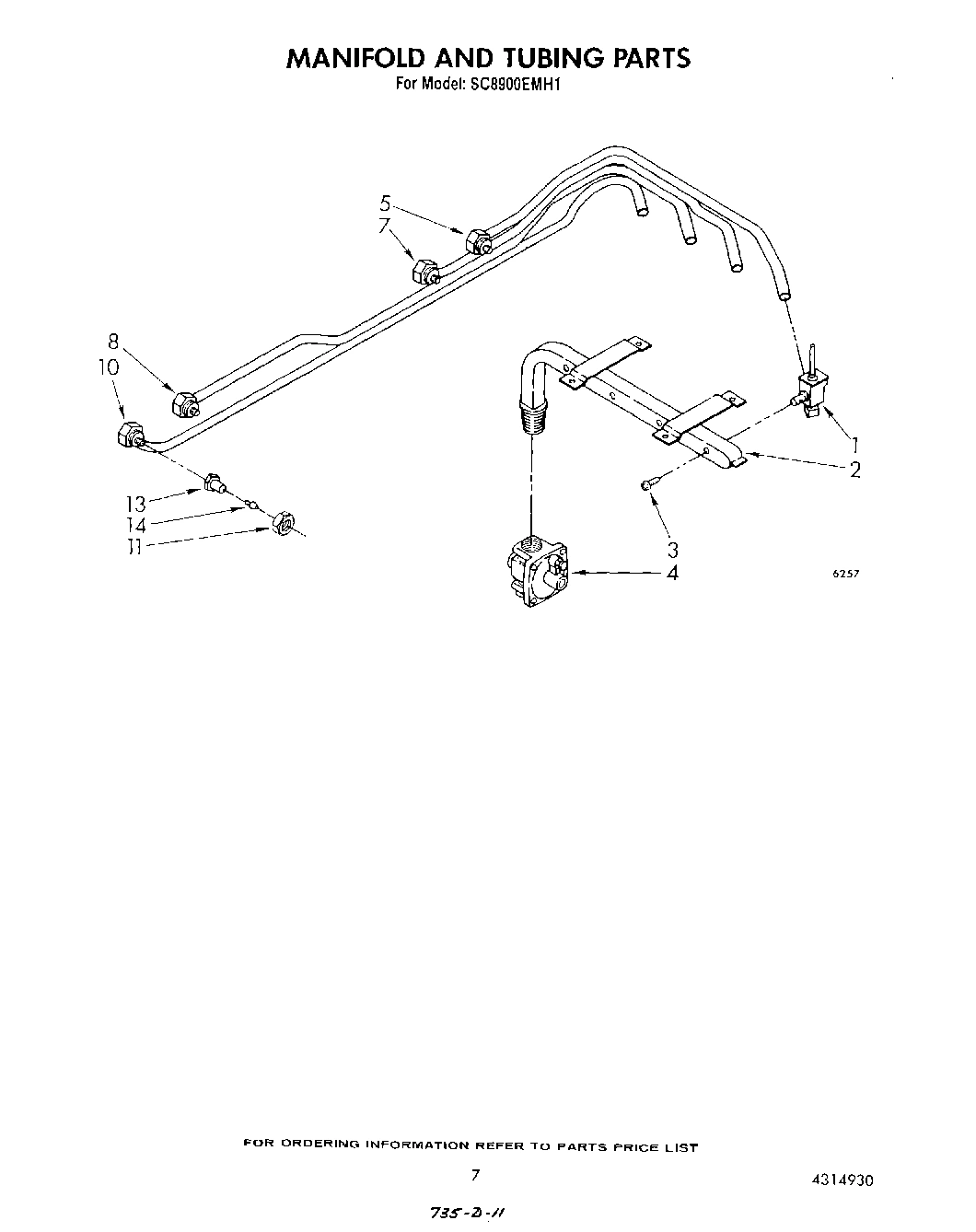

Pipe, Manifold WPL 786122 Contact Us For Availability

2

Trim, Control Panel WPL 4157918 Contact Us For Availability

2

Module Pan WPL 786110 Contact Us For Availability

2

Motor, Rotisserie 60 Hz. WPL 786165 Contact Us For Availability

2

3 1/4 X 10`` Rectangular Duct System Wall Cap WPL 786247 Contact Us For Availability

3

Gasket, Motor Mounting WPL 4179303 Contact Us For Availability

3

Screw, Valve (With Seal) WPL 61441 Contact Us For Availability

4

Sheild, Switch WPL 786137 Contact Us For Availability

4

Transition 6`` WPL 4179340 Contact Us For Availability

4

Regulator WPL 786123 Contact Us For Availability

4

Glass, Control Panel WPL 786270 Contact Us For Availability

4

Burner, Rear (Short Venturi) WPL 786111 Contact Us For Availability

4

Bracket, Motor Mounting WPL 786166 Contact Us For Availability

5

Support, Grille Burner WPL 786118 Contact Us For Availability

5

Shield, Heat Control WPL 786138 Contact Us For Availability

5

Scroll, Fan WPL 786154 Contact Us For Availability

5

R.F. Orifice & Tubing Assembly (Includes 7862 WPL 786206 Contact Us For Availability

5

Shield, Valve & Switch WPL 786125 Contact Us For Availability

5

Burner, Front (Long Venturi) WPL 786112 Contact Us For Availability

5

Spit, Rotisserie WPL 786164 Contact Us For Availability

7

Grille (2) WPL 4314960 Contact Us For Availability

7

Baffle, Bottom WPL 786139 Contact Us For Availability

7

Nut, Locking (4) WPL 786239 Contact Us For Availability

7

R.R. Orifice & Tube Assembly (Includes 786277 WPL 786207 Contact Us For Availability

7

Retainer, Glass (2) WPL 786134 Contact Us For Availability

7

Support, Burner Base WPL 786113 Contact Us For Availability

7

Skewer (2) WPL 786163 Contact Us For Availability

8

Shield, Front Heat WPL 786140 Contact Us For Availability

8

Wheel, Fan WPL 786155 Contact Us For Availability

8

L.F. Orifice & Tube Assembly (Includes 786276 WPL 786208 Contact Us For Availability

8

Screw, 4-40 X 1/4 (2) WPL 786226 Contact Us For Availability

8

Support, Venturi WPL 786114 Contact Us For Availability

8

Screw, Thumb (2) WPL 786162 Contact Us For Availability

Shield, Sight WPL 786141 Contact Us For Availability

Plate, Motor Mounting WPL 4314921 Contact Us For Availability

L.R. Orifice & Tube Assembly (Includes 786276 WPL 786209 Contact Us For Availability

Actuator, Switch WPL 786124 Contact Us For Availability

Connector, Electrode WPL 786117 Contact Us For Availability

Handle, Rotisserie WPL 786161 Contact Us For Availability

Cover, Access (2) WPL 786142 Contact Us For Availability

Grommet, Motor Mounting (8) WPL 786234 Contact Us For Availability

Palnut (4) WPL 786275 Contact Us For Availability

Switch, Fan WPL 786366 Contact Us For Availability

Electrode & Cap Assembly WPL 786279 Contact Us For Availability

Rack, Rotisserie WPL 786159 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Bracket, Manifold Support WPL 786143 Contact Us For Availability

Insulator, Switch WPL 786380 Contact Us For Availability

Orifice Hood (L.F. and L.R.) WPL 786276 Contact Us For Availability

Orifice Hood (R.F. and R.R.) WPL 786277 Contact Us For Availability

Bracket, Orifice Mounting WPL 786144 Contact Us For Availability

Orifice Pin WPL 786278 Contact Us For Availability

Bracket, Fan Switch WPL 786271 Contact Us For Availability

Grate, Top Burner WPL 786120 Contact Us For Availability

15

Switch, Fan (Manual) WPL 786190 Contact Us For Availability

16

Bracket, Plug Block Mounting (2) WPL 786145 Contact Us For Availability

16

Clip, Top Mounting (4) WPL 786280 Contact Us For Availability

WP488826 Whirlpool Nut Backorder WPL WP488826 $2.38

Plug Block (R.H.) WPL 4314928 Contact Us For Availability

Plug Block (L.H.) WPL 4314929 Contact Us For Availability

Screw, 6-32 X 3/16 (2) WPL 786245 Contact Us For Availability

Pop Rivet (4) WPL 786281 Contact Us For Availability

18

Motor, 60 Hz. WPL 4314920 Contact Us For Availability

18

Knob, Fan WPL 786269 Contact Us For Availability

19

Bracket, Fan Switch (Left Side) WPL 786129 Contact Us For Availability

19

Bracket, Fan Switch (Right Side) WPL 786147 Contact Us For Availability

19

U-Clip (2) WPL 786282 Contact Us For Availability

Pin, Ground WPL 786204 Contact Us For Availability

Switch, Fan WPL 4179158 Contact Us For Availability

Cover, Motor WPL 4314924 Contact Us For Availability

Block, Terminal WPL 786132 Contact Us For Availability

21

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

22

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

22

Screw, 8-32 X 3/16 WPL 786231 Contact Us For Availability

23

Lockwasher No.8 WPL 786283 Contact Us For Availability

23

Screw, 4-40 X 5/8 (2) WPL 786259 Contact Us For Availability

24

Orifice WPL 4179324 Contact Us For Availability

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

Nut, Keps 4-40 (2) WPL 786260 Contact Us For Availability

Conduit WPL 786253 Contact Us For Availability

26

Switch, Spark (4) WPL 786130 Contact Us For Availability

26

Seal, Plenum End (2) WPL 786149 Contact Us For Availability

28

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

28

Seal, Plenum Side (2) WPL 786148 Contact Us For Availability

28

Module, Spark WPL 786323 Contact Us For Availability

29

U-Clip, Top Mounting (12) WPL 786264 Contact Us For Availability

29

Spacer, Motor Cover (4) WPL 4314926 Contact Us For Availability

30

Bushing WPL 4314925 Contact Us For Availability

31

Nut, No.10-24 (3) WPL 786439 Contact Us For Availability

31

Screw, Hold Down (2) WPL 786211 Contact Us For Availability

31

Insulator, Switch WPL 786210 Contact Us For Availability

32

Nut, 1/4-20 (2) WPL 786222 Contact Us For Availability

32

Washer (3) WPL 4314923 Contact Us For Availability

33

Bolt, 10-24 X 3/4 (3) WPL 4314922 Contact Us For Availability

34

Cover, Vent WPL 4314959 Contact Us For Availability

35

Pan, Grease WPL 786265 Contact Us For Availability

37

Cord, Power WPL 786217 Contact Us For Availability

38

Bushing, Power Cord WPL 786287 Contact Us For Availability
