Model Whirlpool SC8900EMH0 – Common Parts & Diagrams
05 - CONTROL PANEL
03 - VENTILATION

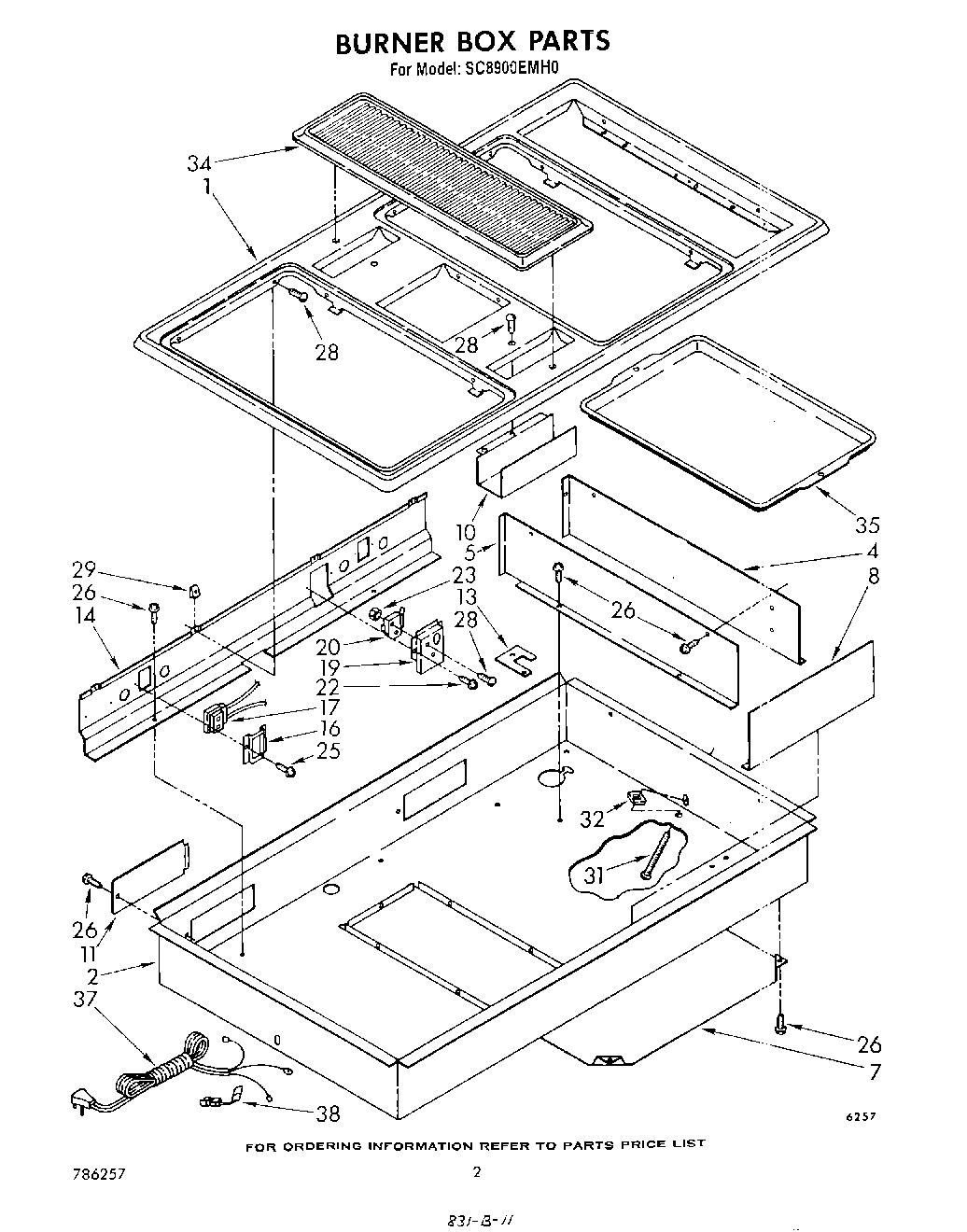

02 - BURNER BOX , LITERATURE AND OPTIONAL

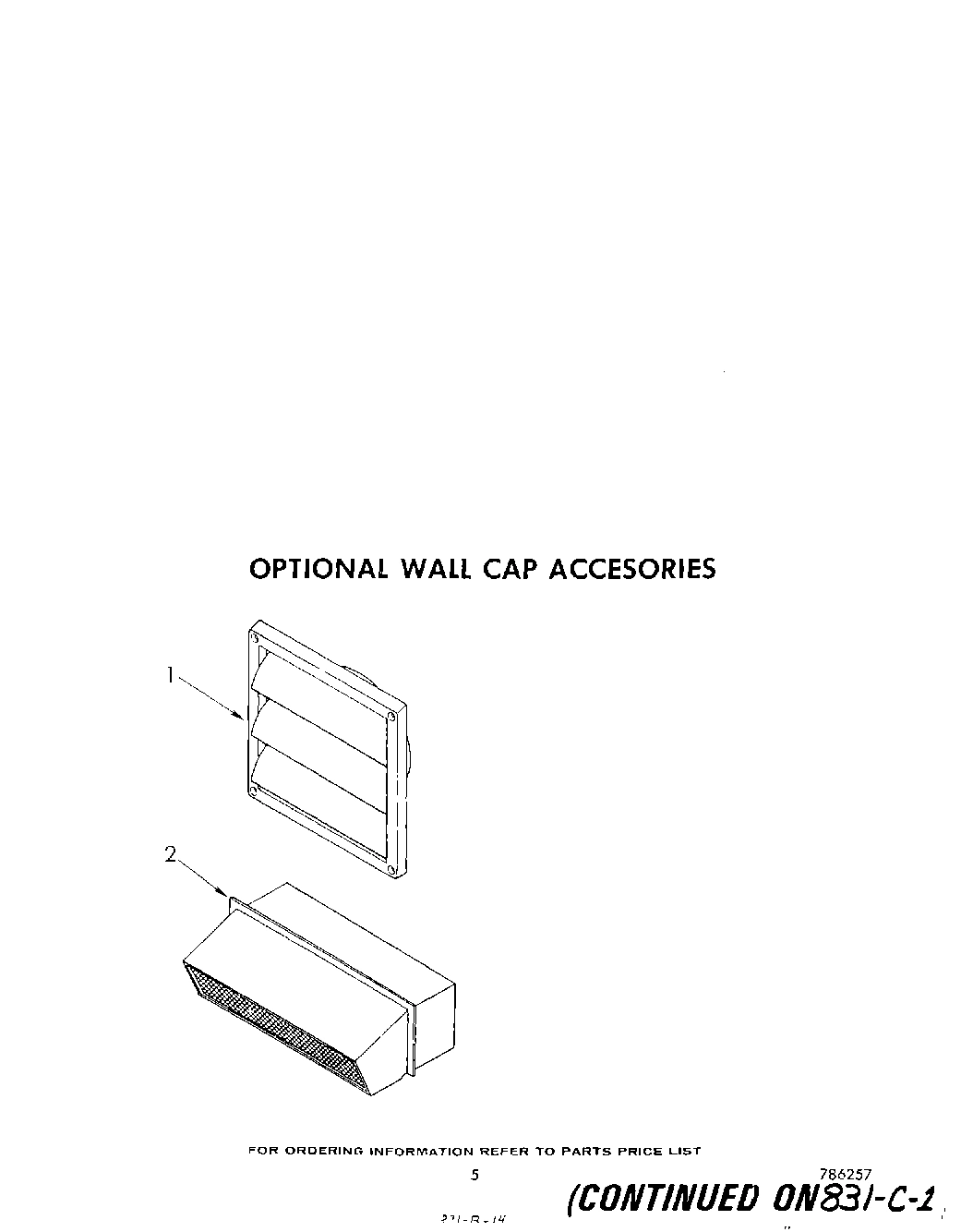

04 - LIT/OPTIONAL WALL CAP

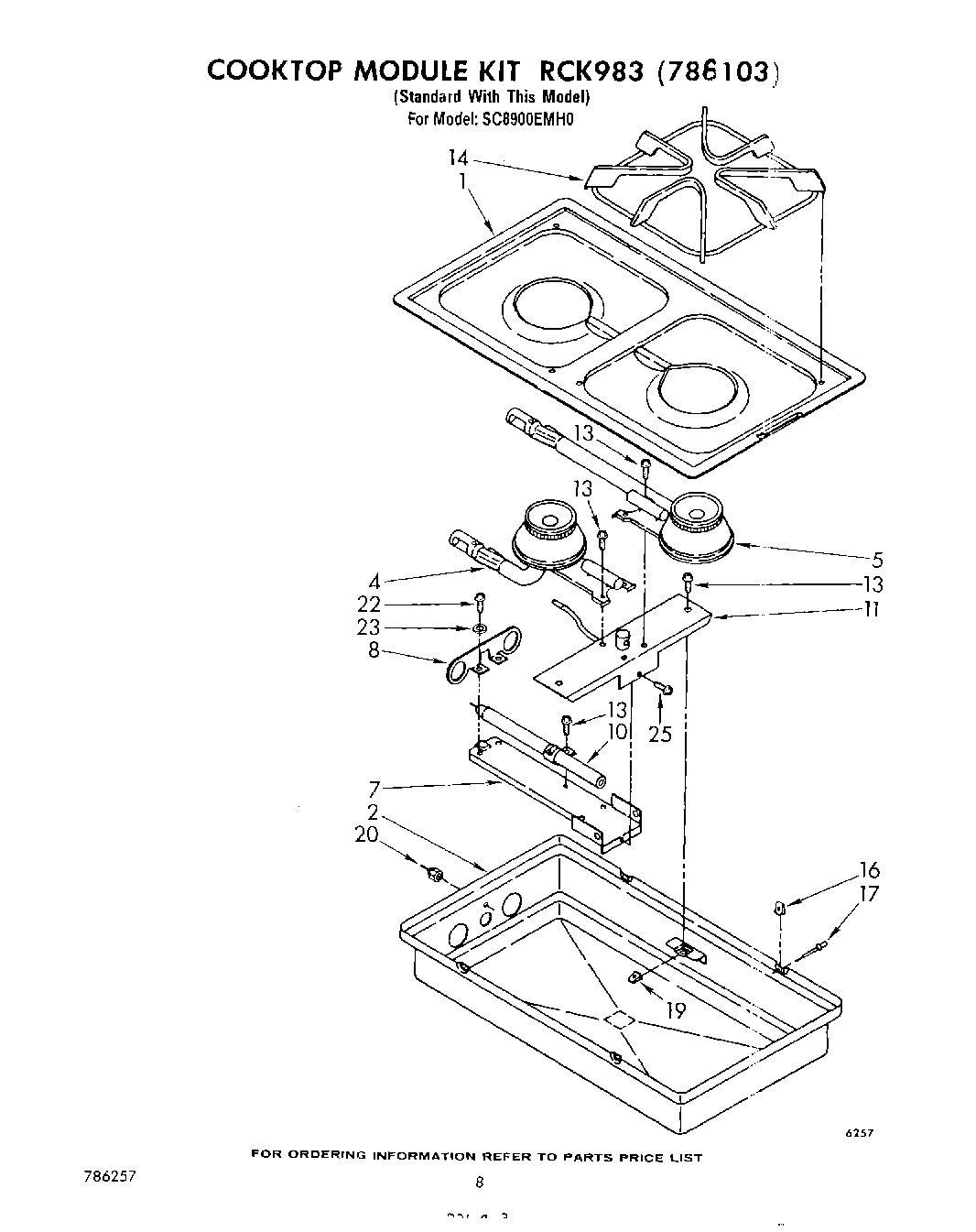

07 - COOKTOP MODULE RCK983

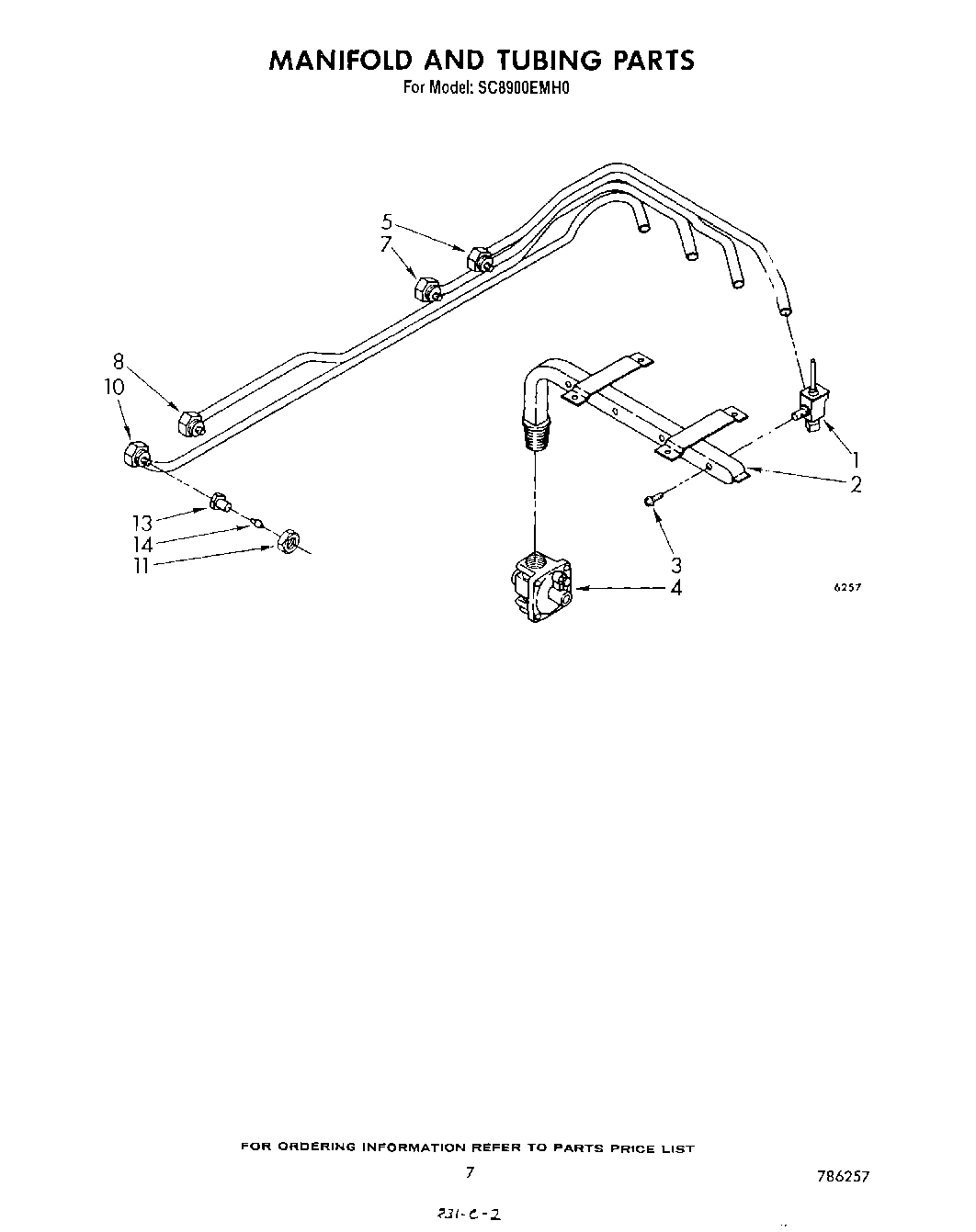

06 - MANIFOLD AND TUBING

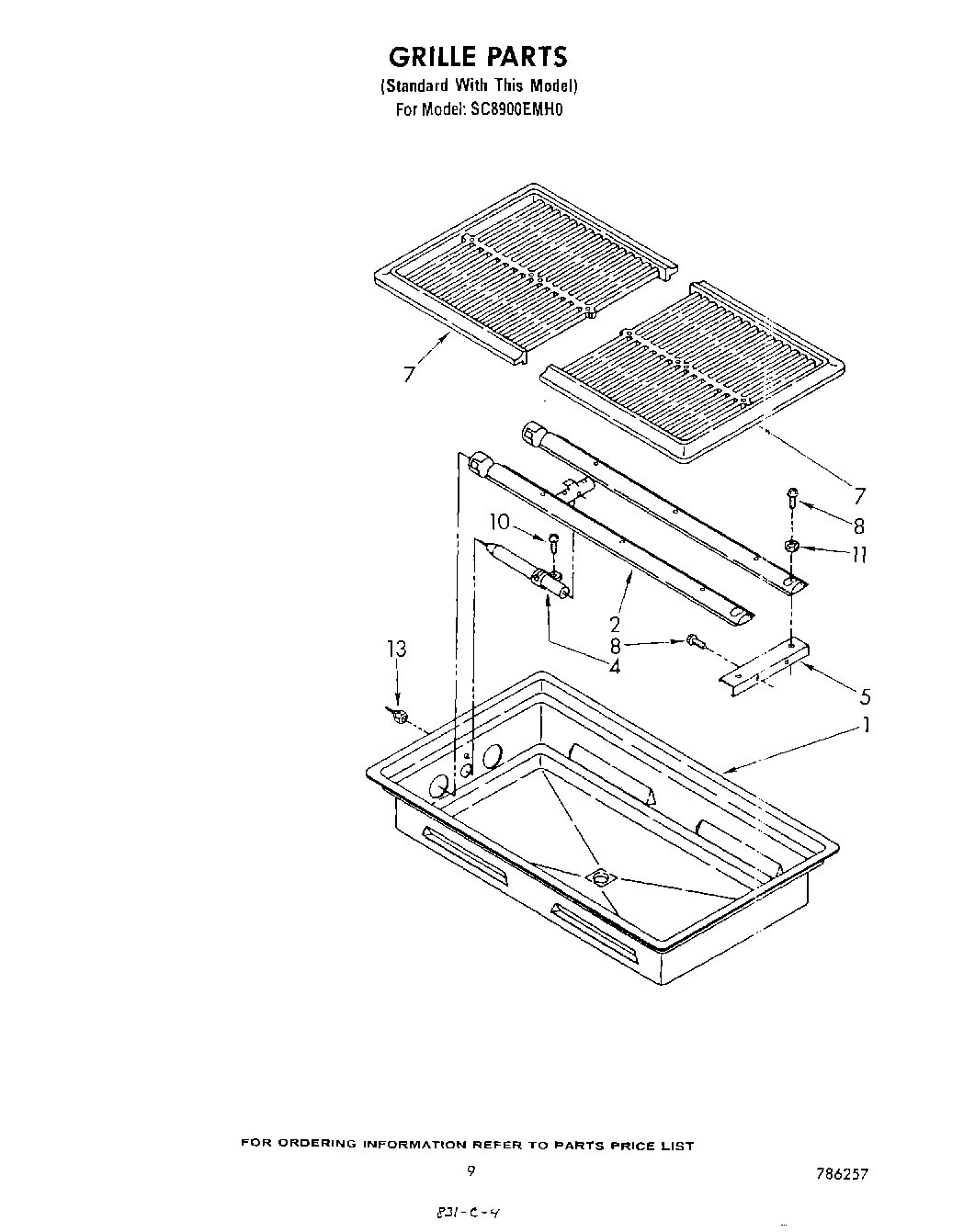

08 - GRILLE

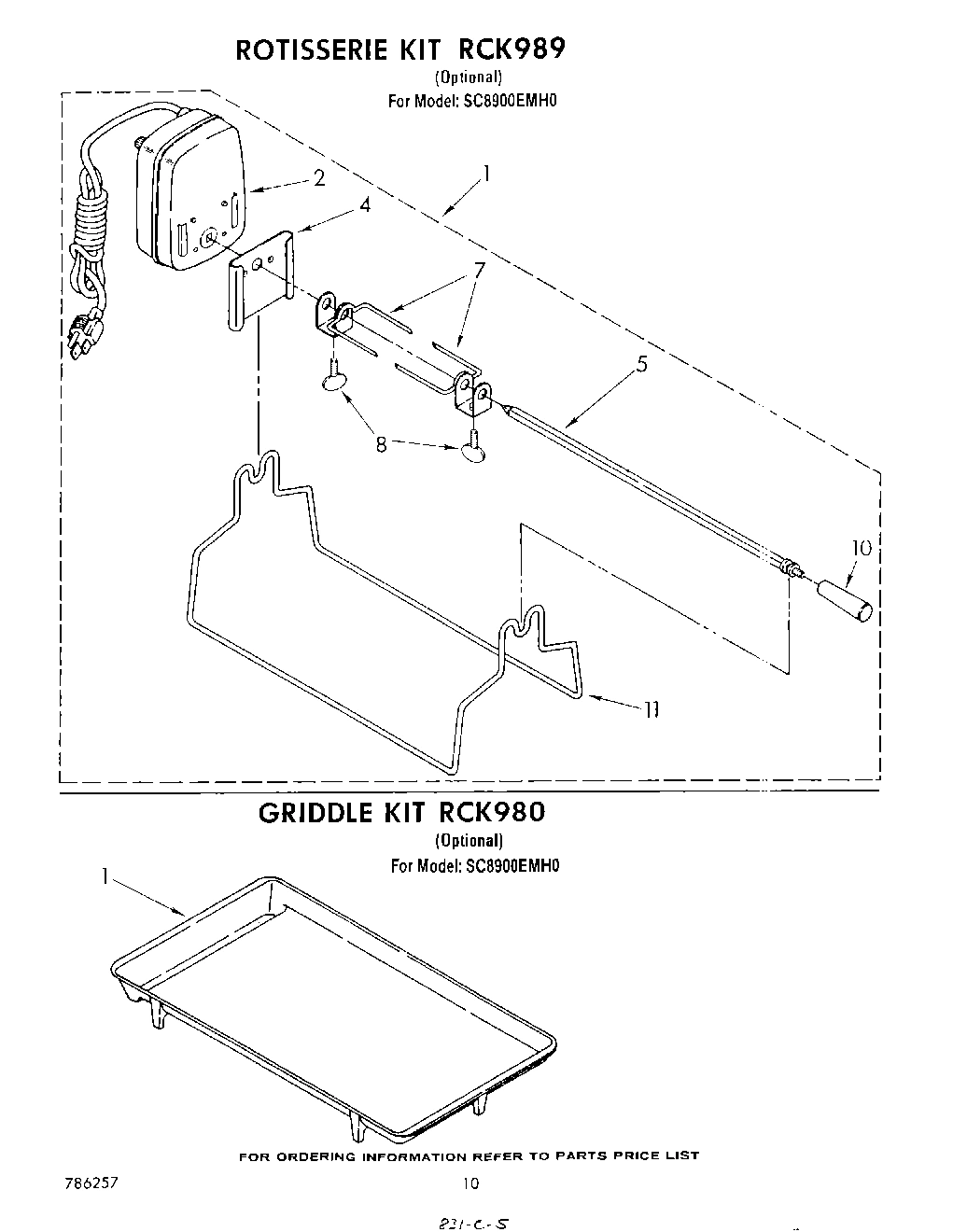

09 - ROTISSERIE RCK989 , GRIDDLE RCK980
Common parts from model Whirlpool SC8900EMH0
Guide, Use & Care WPL LIT786105 Contact Us For Availability
Instructions, Installation WPL LIT786201 Contact Us For Availability
Vent Installation Instructions WPL LIT786203 Contact Us For Availability
List, Repair Parts WPL LIT786257 Contact Us For Availability
1
Top, Main WPL 786135 Contact Us For Availability
1
6`` Diameter Duct System Wall Cap WPL 786244 Contact Us For Availability
1
Module Top WPL 786109 Contact Us For Availability
1
Vavle, Gas (Includes Tube Fitting) (4) WPL 786121 Contact Us For Availability
1
Pan, Grille WPL 786115 Contact Us For Availability
1
Kit, Rotisserie (Complete) WPL 786225 Contact Us For Availability
1A
Griddle WPL 786100 Contact Us For Availability
2
Plenum WPL 786158 Contact Us For Availability
2
Box, Burner WPL 786136 Contact Us For Availability
2
3 1/4 X 10`` Rectangular Duct System Wall Cap WPL 786247 Contact Us For Availability
2
Module Pan WPL 786110 Contact Us For Availability
2
Pipe, Manifold WPL 786122 Contact Us For Availability
2
Burner, Grille WPL 786116 Contact Us For Availability
2
Motor, Rotisserie 60 Hz. WPL 786165 Contact Us For Availability
3
Gasket, Motor Mounting WPL 4179303 Contact Us For Availability
3
Screw, Valve WPL 4179116 Contact Us For Availability
4
Transition 6`` WPL 786156 Contact Us For Availability
4
Sheild, Switch WPL 786137 Contact Us For Availability
4
Burner, Rear (Short Venturi) WPL 786111 Contact Us For Availability
4
Regulator WPL 786123 Contact Us For Availability
4
Electrode, Grille WPL 786205 Contact Us For Availability
4
Bracket, Motor Mounting WPL 786166 Contact Us For Availability
5
Shield, Valve & Switch WPL 786125 Contact Us For Availability
5
Scroll, Fan WPL 786154 Contact Us For Availability
5
Shield, Heat Control WPL 786138 Contact Us For Availability
5
Burner, Front (Long Venturi) WPL 786112 Contact Us For Availability
5
R.F. Orifice & Tube Assembly (Includes 786277 WPL 786206 Contact Us For Availability
5
Support, Grille Burner WPL 786118 Contact Us For Availability
5
Spit, Rotisserie WPL 786164 Contact Us For Availability
7
Retainer, Glass (2) WPL 786134 Contact Us For Availability
7
Nut, Locking (4) WPL 786239 Contact Us For Availability
7
Baffle, Bottom WPL 786139 Contact Us For Availability
7
Support, Burner Base WPL 786113 Contact Us For Availability
7
R.R. Orifice & Tube Assembly (Includes 786277 WPL 786207 Contact Us For Availability
7
Grille (2) WPL 786119 Contact Us For Availability
7
Skewer (2) WPL 786163 Contact Us For Availability
8
Screw, 4-40 X 1/4 (2) WPL 786226 Contact Us For Availability
8
Wheel, Fan WPL 786155 Contact Us For Availability
8
Shield, Front Heat WPL 786140 Contact Us For Availability
8
Support, Venturi WPL 786114 Contact Us For Availability
8
L.F. Orifice & Tube Assembly (Includes 786276 WPL 786208 Contact Us For Availability
8
Screw, Thumb (2) WPL 786162 Contact Us For Availability
10
Actuator, Switch WPL 786124 Contact Us For Availability
10
Plate, Motor Mounting WPL 786153 Contact Us For Availability
10
Shield, Sight WPL 786141 Contact Us For Availability
10
Connector, Electrode WPL 786117 Contact Us For Availability
10
Screw, 8-32 X 3/16 WPL 786231 Contact Us For Availability
10
L.R. Orifice & Tube Assembly (Includes 786276 WPL 786209 Contact Us For Availability
10
Handle, Rotisserie WPL 786161 Contact Us For Availability
11
Grommet, Motor Mounting (8) WPL 786234 Contact Us For Availability
11
Cover, Access (2) WPL 786142 Contact Us For Availability
11
Electrode & Cap Assembly WPL 786279 Contact Us For Availability
11
Lockwasher No.8 WPL 786283 Contact Us For Availability
11
Palnut (4) WPL 786275 Contact Us For Availability
11
Rack, Rotisserie WPL 786159 Contact Us For Availability
12
Insulator, Switch WPL 786128 Contact Us For Availability
13
Bracket, Manifold Support WPL 786143 Contact Us For Availability
13
Pin, Ground WPL 786204 Contact Us For Availability
13
Orifice Hood (L.F. and L.R.) WPL 786276 Contact Us For Availability
13
Orifice Hood (R.F. and R.R.) WPL 786277 Contact Us For Availability
14
Bracket, Fan Switch WPL 786271 Contact Us For Availability
14
Washer (4) WPL 786266 Contact Us For Availability
14
Bracket, Orifice Mounting WPL 786144 Contact Us For Availability
14
(STEEL) GRATE, TOP BURNER WPL 786120 Contact Us For Availability
14
Orifice Pin WPL 786278 Contact Us For Availability
15
Switch, Fan (Manual) WPL 786190 Contact Us For Availability
16
Bracket, Plug Block Mounting (2) WPL 786145 Contact Us For Availability
16
Clip, Top Mounting (4) WPL 786280 Contact Us For Availability
17
Screw, 6-32 X 3/16 (2) WPL 786245 Contact Us For Availability
17
Plug Block (2) WPL 786258 Contact Us For Availability
17
Pop Rivet (4) WPL 786281 Contact Us For Availability
18
Knob, Fan WPL 786269 Contact Us For Availability
18
Motor, 60 Hz. WPL 786152 Contact Us For Availability
19
Bracket, Fan Switch (Left Side) WPL 786129 Contact Us For Availability
19
Bracket, Fan Switch (Right Side) WPL 786147 Contact Us For Availability
19
U-Clip (2) WPL 786282 Contact Us For Availability
20
Switch, Fan WPL 786127 Contact Us For Availability
20
Block, Terminal WPL 786132 Contact Us For Availability
20
Cover, Motor WPL 786151 Contact Us For Availability
22
Screw, 4-40 X 5/8 (2) WPL 786259 Contact Us For Availability
23
Screw, 8-32F X 3/8 WPL 786232 Contact Us For Availability
23
Nut, 4-40 (2) WPL 786260 Contact Us For Availability
24
Orifice WPL 786157 Contact Us For Availability
25
Conduit WPL 786253 Contact Us For Availability
26
Switch, Spark (4) WPL 786130 Contact Us For Availability
26
Seal, Plenum End (2) WPL 786149 Contact Us For Availability
28
Module, Spark WPL 786273 Contact Us For Availability
28
Seal, Plenum Side (2) WPL 786148 Contact Us For Availability
29
U-Clip, Top Mounting (12) WPL 786264 Contact Us For Availability
31
Insulator, Switch WPL 786210 Contact Us For Availability
31
Screw, Hold Down (2) WPL 786211 Contact Us For Availability
32
Nut, 1/4-20 (2) WPL 786222 Contact Us For Availability
34
Cover, Vent WPL 786150 Contact Us For Availability
35
Pan, Grease WPL 786265 Contact Us For Availability
37
Cord, Power WPL 786217 Contact Us For Availability
38
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
38
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
38
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
38
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
38
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
38
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
38
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
38
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
38
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
38
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
38
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
38
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
38
Bushing, Power Cord WPL 786287 Contact Us For Availability
× ![]()
