Model Whirlpool SC8836EBB1 – Common Parts & Diagrams

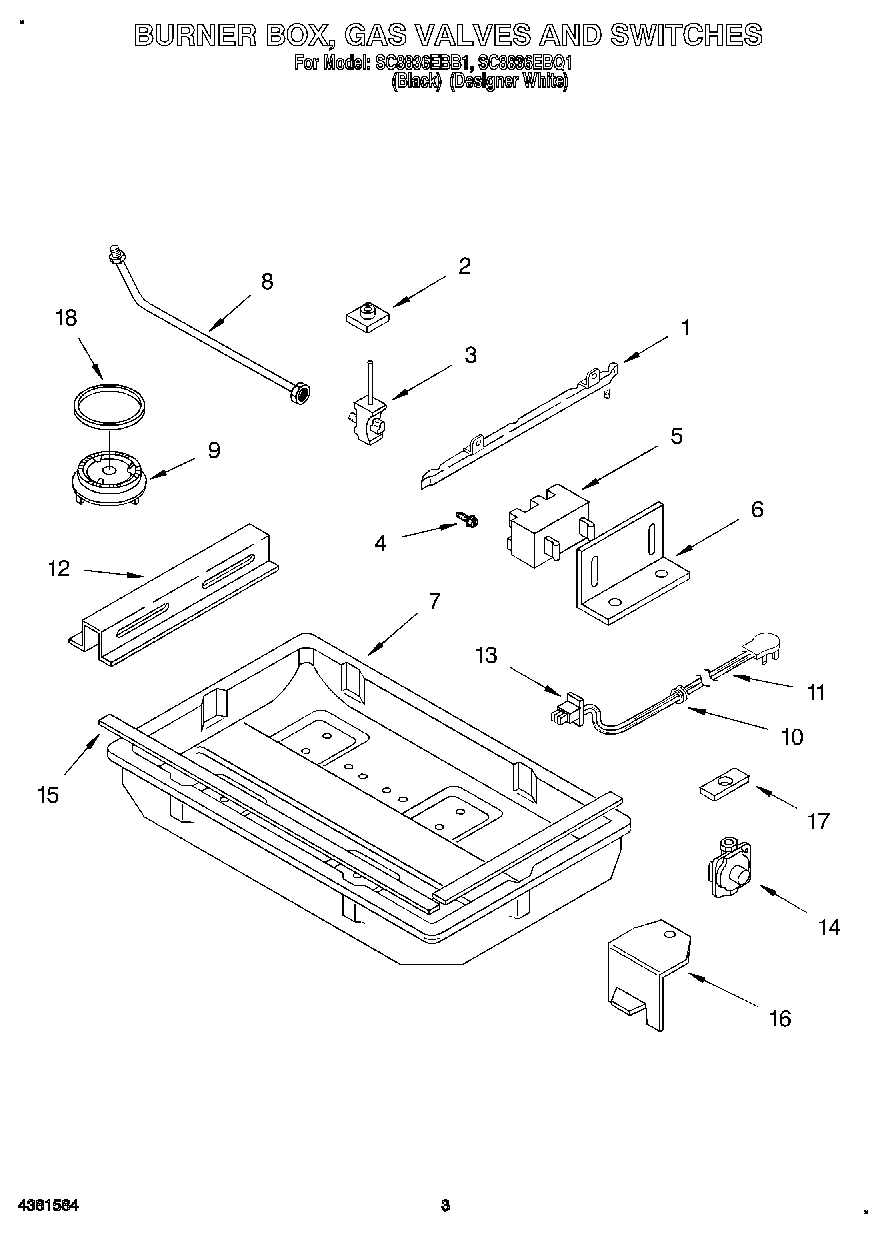

02 - BURNER BOX, GAS VALVES AND SWITCHES

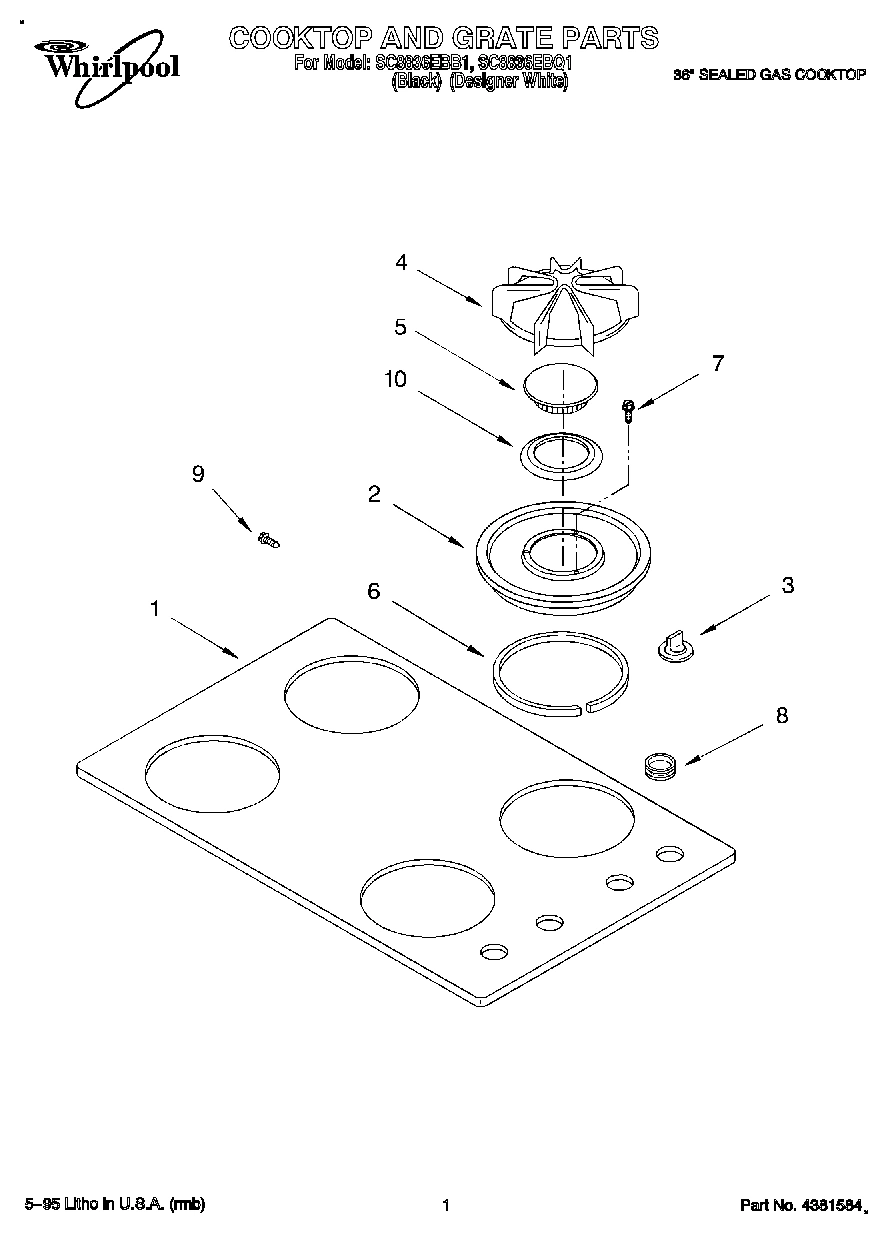

01 - COOKTOP AND GRATE
Common parts from model Whirlpool SC8836EBB1
Use & Care Guide WPL LIT4381501 Contact Us For Availability
Installation Instructions WPL LIT4381502 Contact Us For Availability
1
Pipe, Manifold WPL 4381537 Contact Us For Availability
1
Glass, Main Top (Black) WPL 4381529 Contact Us For Availability
1
Glass, Main Top (White) WPL 4381530 Contact Us For Availability
2
Bowl, Drip (4) (White) WPL 4381521 Contact Us For Availability
2
Bowl, Drip (4) (Black) WPL 4381522 Contact Us For Availability
3
Valve, Burner (4) WPL 4381540 Contact Us For Availability
3
Knob, Control (4) (White) WPL 4381523 Contact Us For Availability
4
Screw, Valve (8) WPL 4381541 Contact Us For Availability
4
Grate, Burner (4) (Black) WPL 4381525 Contact Us For Availability
4
Grate, Burner (4) (Grey) WPL 4381526 Contact Us For Availability
5
Cap, Burner (4) (Black) WPL 4381527 Contact Us For Availability
5
Cap, Burner (4) (Grey) WPL 4381528 Contact Us For Availability
6
Screw, Brkt. (2) WPL 880004 Contact Us For Availability
6
Bracket, Module WPL 4381543 Contact Us For Availability
6
Seal, Burner WPL 4381531 Contact Us For Availability
7
Burner Box WPL 4381546 Contact Us For Availability
7
Screw, Burner Mtg. (12) WPL 4381532 Contact Us For Availability
8
Tube, Burner (R.F. & R.R.) WPL 4381548 Contact Us For Availability
8
Tube, Burner (L.F. & L.R.) WPL 4381549 Contact Us For Availability
8
Grommet (4) WPL 4381533 Contact Us For Availability
9
Burner Assy. (4) WPL 4381550 Contact Us For Availability
10
Relief, Strain WPL 4381554 Contact Us For Availability
10
Ring, Trim (4) (Black) WPL 4381535 Contact Us For Availability
10
Ring, Trim (4) (White) WPL 4381536 Contact Us For Availability
11
Cord, Power WPL 4381555 Contact Us For Availability
12
Support (2) WPL 4381556 Contact Us For Availability
12
Screw, Supp. (8) WPL 4381557 Contact Us For Availability
13
Block, Terminal (Male) WPL 4381558 Contact Us For Availability
13
Block, Terminal (Female) WPL 4381559 Contact Us For Availability
14
Pressure Regulator WPL 4381560 Contact Us For Availability
15
Tape, Seal WPL 4381561 Contact Us For Availability
16
Bracket, Mtg. (2) WPL 4381562 Contact Us For Availability
17
Seal, Manifold WPL 4381563 Contact Us For Availability
18
Gas Conversion Kit (Natural Gas To LP Gas) WPL 4381503 Contact Us For Availability
18
Harness, Igniter WPL 4381539 Contact Us For Availability
18
Wires, Igniter (R.F. & R.R.) WPL 4381551 Contact Us For Availability
18
Wires, Igniter (L.F. & L.R.) WPL 4381552 Contact Us For Availability
18
Gasket, Burner WPL 4381564 Contact Us For Availability
18
Wires, Igniter (White Installation Tape) WPL 4381565 Contact Us For Availability
18
Wires, Igniter (Black Installation Tape) WPL 4381566 Contact Us For Availability
× ![]()
