Model Whirlpool SC8720EDB0 30`` GAS CONVERTIBLE DOWNDRAFT COOKTOP – Common Parts & Diagrams

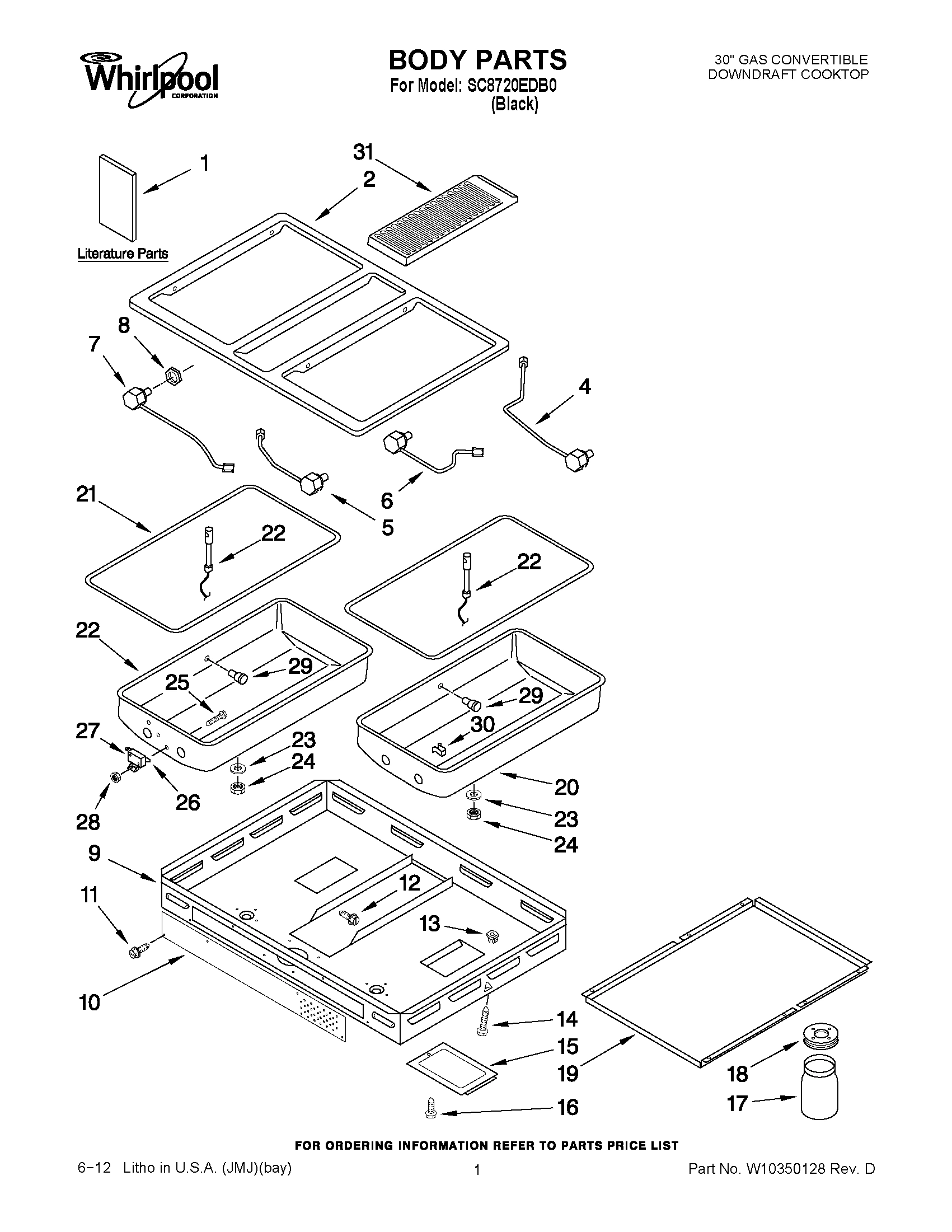

01 - BODY PARTS

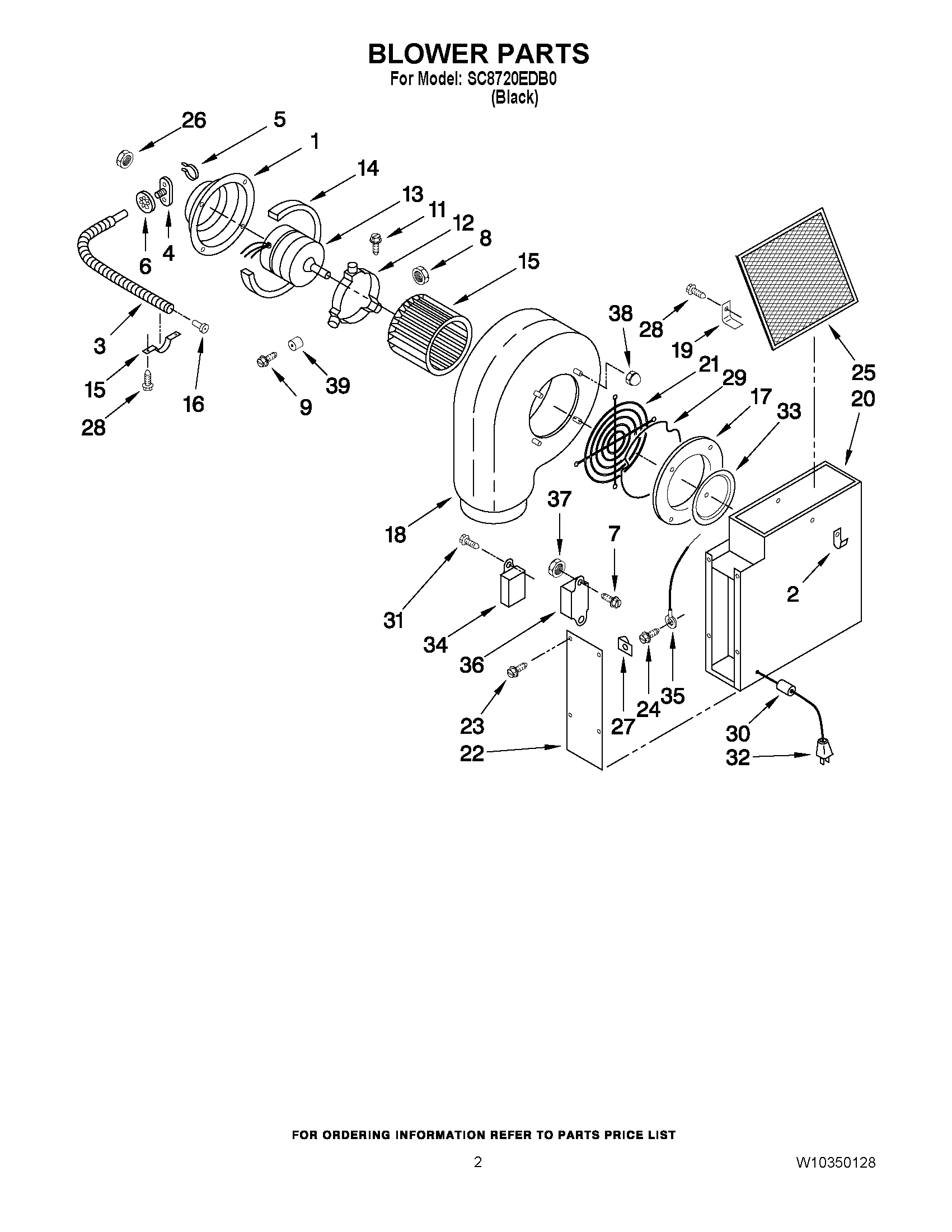

02 - BLOWER PARTS

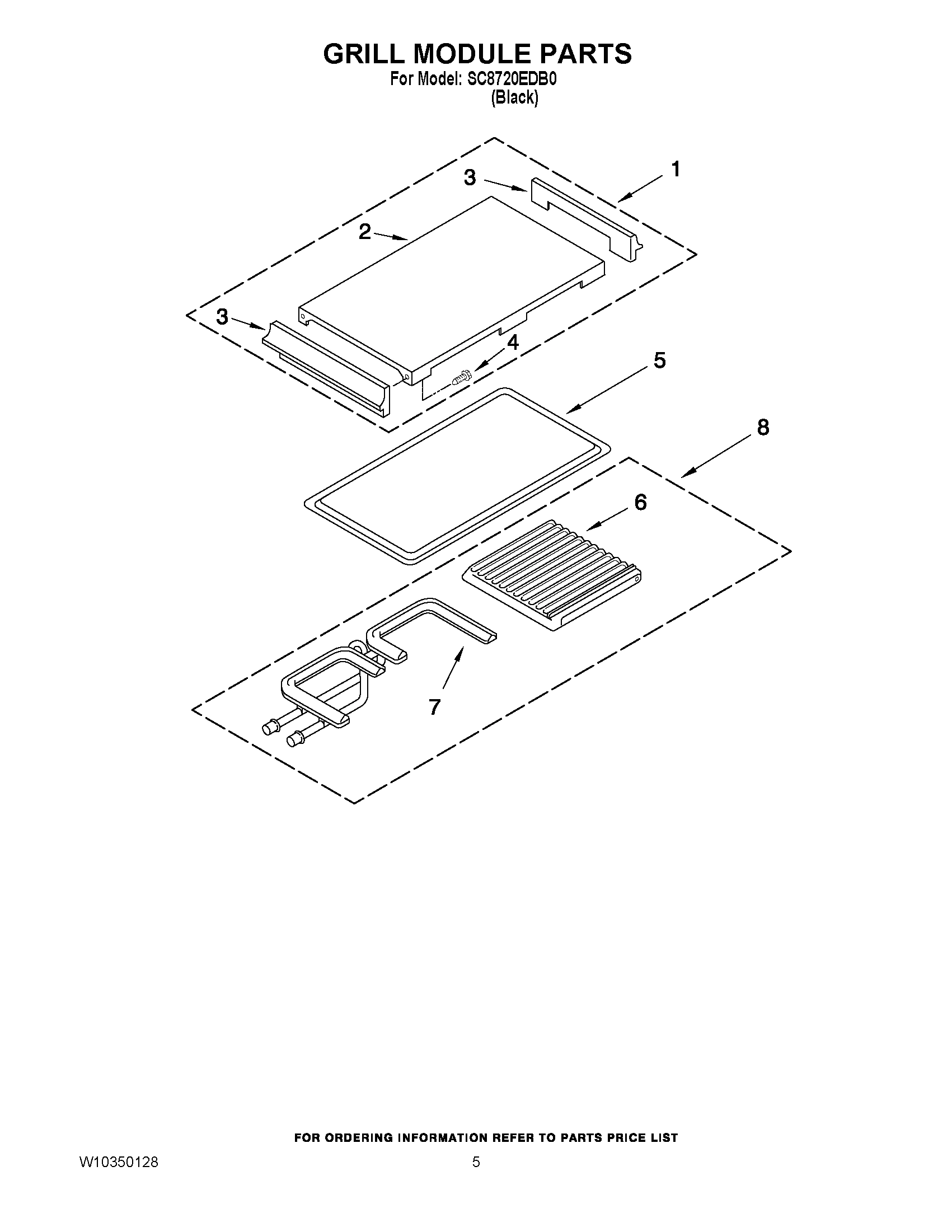

05 - GRILL MODULE PARTS

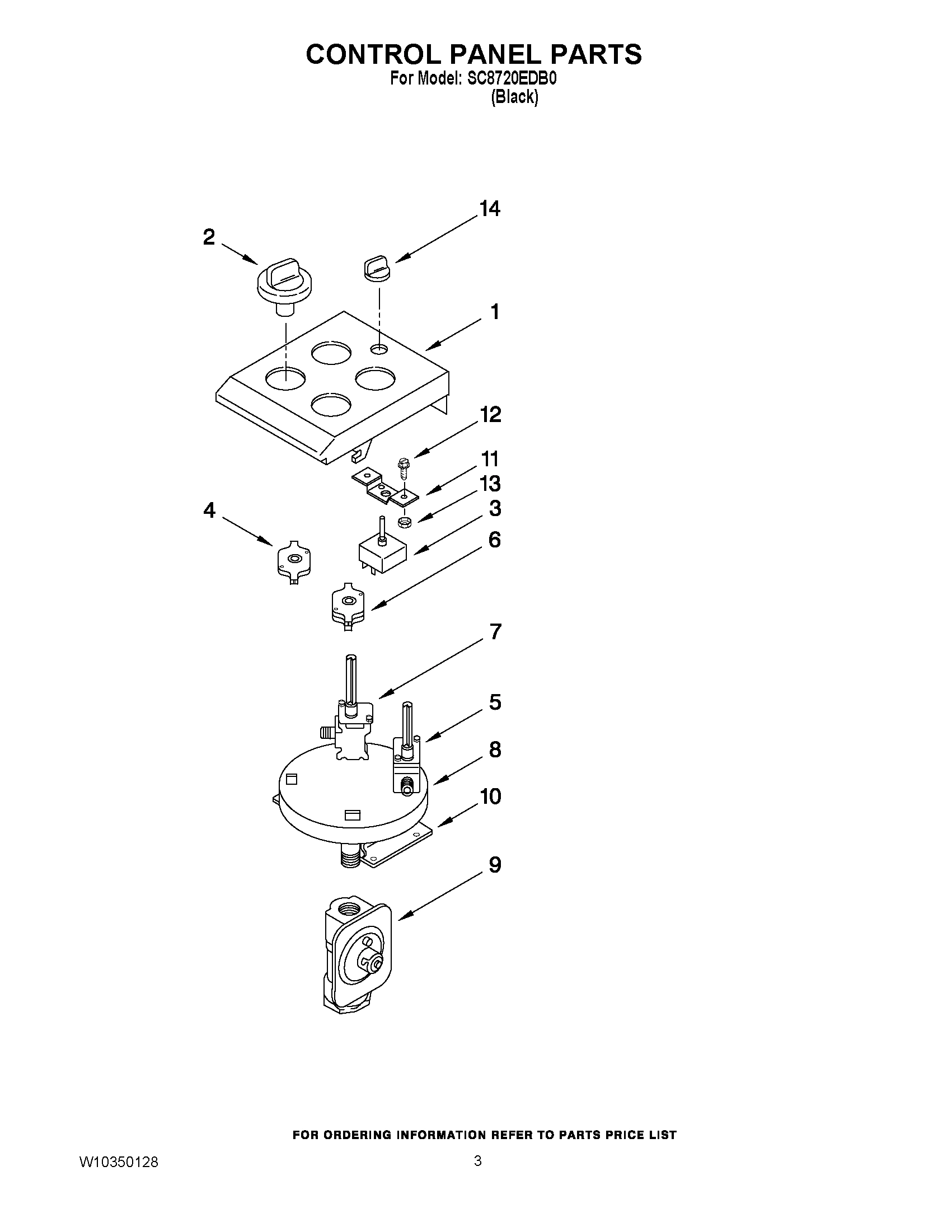

03 - CONTROL PANEL PARTS

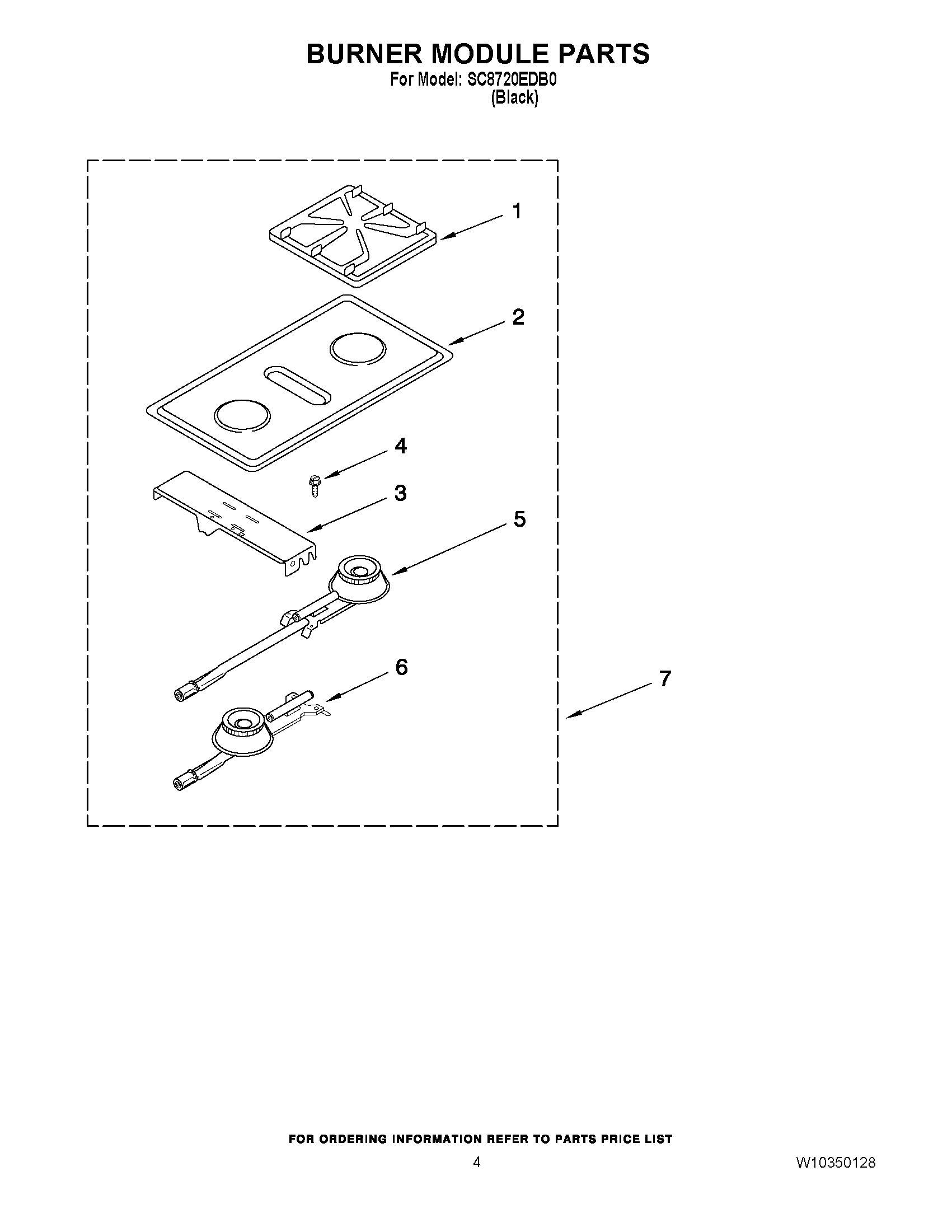

04 - BURNER MODULE PARTS
Common parts from model Whirlpool SC8720EDB0 30`` GAS CONVERTIBLE DOWNDRAFT COOKTOP
1
INSTALLATION INSTRUCTIONS WPL 8101P35060 Contact Us For Availability
1
DIAGRAM, WIRING WPL 8104P57660 Contact Us For Availability
1
CARD, FLOW TEST WPL 8106P06860 Contact Us For Availability
1
OWNERS MANUAL WPL 8111P46660 Contact Us For Availability
1
TIPS, SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
COVER, MOTOR WPL 4005F51280 Contact Us For Availability
1
COVER, GRILL (COMPLETE) (BLACK) WPL SCM50DB Contact Us For Availability
1
PANEL, CONTROL (BLACK) WPL 7770P00960 Contact Us For Availability
1
GRATE, BURNER (2) WPL 7518P03660 Contact Us For Availability
2
TOP, MAIN (BLACK) WPL 2001W13409 Contact Us For Availability
2
PANEL, COVER (BLACK) WPL 4005W50170 Contact Us For Availability
2
KNOB, CONTROL (4) (BLACK) WPL 7733P18460 Contact Us For Availability
2
PAN, AERATION (BLACK) WPL 3401W05509 Contact Us For Availability
2
PAN, AERATION (STANDOFF (4)) WPL 3824F0171X Contact Us For Availability
3
CONDUIT, METAL WPL 7434P01260 Contact Us For Availability
3
HANDLE (2) (BLACK) WPL 7701P17660 Contact Us For Availability
3
SWITCH, FAN WPL 7403P43760 Contact Us For Availability
3
BRACKET, BURNER WPL 3801F40380 Contact Us For Availability
4
TUBE, BURNER (RR) WPL 7506P15960 Contact Us For Availability
4
SCREW WPL 7101P42660 Contact Us For Availability
4
CONNECTOR, CONDUIT WPL 7417P02360 Contact Us For Availability
4
SCREW, HANDLE (4) WPL 7101P42860 Contact Us For Availability
4
SWITCH, VALVE (2) (RIGHT SIDE) WPL 7403P91660 Contact Us For Availability
5
TUBE, BURNER (RF) WPL 7506P16060 Contact Us For Availability
5
CLAMP, CABLE WPL 7111P02760 Contact Us For Availability
5
Griddle (Optional) WPL 4378931 Contact Us For Availability
5
BURNER, REAR (BLACK) WPL 7505P28460 Contact Us For Availability
6
TUBE, BURNER (LF) WPL 7506P16260 Contact Us For Availability
6
CLIP, CONDUIT WPL 7104P00860 Contact Us For Availability
6
GRATE, GRILL (2) WPL 12001178 Contact Us For Availability
6
SWITCH, VALVE (2) (LEFT SIDE) WPL 7403P91760 Contact Us For Availability
6
BURNER, FRONT (BLACK) WPL 7505P28360 Contact Us For Availability
7
TUBE, BURNER (LR) WPL 7506P16160 Contact Us For Availability
7
BURNER, GRILL WPL 7505P28960 Contact Us For Availability
7
VALVE (LEFT) (2) WPL 7502P37160 Contact Us For Availability
7
COMPLETE MODULE (BLACK) WPL SCM10DB Contact Us For Availability
8
NUT, TUBING (4) WPL 7103P16160 Contact Us For Availability
8
WASHER, TUBING (4) WPL 7109P05560 Contact Us For Availability
8
NUT, HEX WPL 7103P15860 Contact Us For Availability
8
NUT, BAND WPL 7103P02760 Contact Us For Availability
8
Module, Complete (Available in Black Only) WPL 4378986 Contact Us For Availability
8
MANIFOLD WPL 7513P48860 Contact Us For Availability
9
BOX, BURNER WPL 4011F36251 Contact Us For Availability
9
SCREW, BAND WPL 7101P32660 Contact Us For Availability
9
REGULATOR,PRESSURE WPL 7510P07560 Contact Us For Availability
10
COVER, FRONT WPL 4005F61451 Contact Us For Availability
10
BRACKET, MANIFOLD WPL 3801F62051 Contact Us For Availability
11
BRACKET, FAN SWTCH WPL 3801F43851 Contact Us For Availability
12
SCREW, SUPPORT (6) WPL 7101P47260 Contact Us For Availability
12
SCREW, BRACKET (2) WPL 7101P44760 Contact Us For Availability
12
BAND-MOTOR WPL 3415F00351 Contact Us For Availability
13
NUT, HOLD DOWN WPL 7103P15360 Contact Us For Availability
13
MOTOR, BLOWER WPL 7409P01060 Contact Us For Availability
13
PALNUT, FAN SWITCH WPL 7103P16460 Contact Us For Availability
14
SCREW, HOLD DOWN WPL 7101P43260 Contact Us For Availability
14
GASKET, FOAM WPL W10250511 Contact Us For Availability
14
KNOB, FAN (BLACK) WPL 7739P09560 Contact Us For Availability
15
COVER, ACCESS (RT) WPL 4005F50851 Contact Us For Availability
15
CLIP WPL 3415F00451 Contact Us For Availability
15
WHEEL, BLOWER WPL 7114P00560 Contact Us For Availability
16
SCREW, COVER (4) WPL 7101P44860 Contact Us For Availability
16
BUSHING, CONDUIT WPL 8007P03160 Contact Us For Availability
17
JAR, GREASE WPL 8312P12060 Contact Us For Availability
17
RING, INLET WPL 4026F00851 Contact Us For Availability
18
LID-JAR WPL 8312P15060 Contact Us For Availability
18
HOUSING, BLOWER WPL 2822W00180 Contact Us For Availability
19
BAFFLE, BOTTOM(LT) WPL 3601F26151 Contact Us For Availability
19
RETAINER, FILTER WPL 3804F18850 Contact Us For Availability
20
PAN, MODULE (LEFT) WPL 3401F03319 Contact Us For Availability
20
PAN, MODULE (RIGHT) WPL 3401F03419 Contact Us For Availability
20
PLENUM WPL 2801W03880 Contact Us For Availability
21
SEAL, PAN WPL 7212P05360 Contact Us For Availability
21
GUARD, BLOWER WPL 8312P15160 Contact Us For Availability
22
IGNITER, SPARK WPL 7432P08860 Contact Us For Availability
22
PLATE, COVER WPL 4005F64880 Contact Us For Availability
23
LOCKWASHER (2) WPL 7109P05460 Contact Us For Availability
25
SCREW, PAN WPL 7101P40560 Contact Us For Availability
25
FILTER, GREASE WPL 8312P12160 Contact Us For Availability
26
INSULATOR, SWITCH WPL 7414P02360 Contact Us For Availability
27
SWITCH, MICRO WPL 7403P62060 Contact Us For Availability
27
CLIP, COVER PLATE WPL 7104P00360 Contact Us For Availability
28
NUT, SWITCH (2) WPL 7103P15960 Contact Us For Availability
29
PIN, LOCATOR (3) WPL 7113P02060 Contact Us For Availability
29
SPRING, RETAINER WPL 8038P00360 Contact Us For Availability
30
CLIP, PAN (4) WPL 7104P01160 Contact Us For Availability
30
RELIEF, STRAIN WPL 8019P01860 Contact Us For Availability
31
COVER, VENT (BLACK) WPL 7772P00760 Contact Us For Availability
31
SCREW, RELAY (2) WPL 7101P46060 Contact Us For Availability
32
CORD, POWER WPL 7402P08960 Contact Us For Availability
33
RING, RESTRICTOR WPL 4026F00951 Contact Us For Availability
34
CLIP, ``J`` (2) WPL 7104P00660 Contact Us For Availability
34
RELAY WPL 7428P02960 Contact Us For Availability
35
WIRE, GROUND WPL 5112P29560 Contact Us For Availability
36
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
37
NUT, MTG. WPL 7103P16260 Contact Us For Availability
38
CAP, NUT (4) WPL 7103P19260 Contact Us For Availability
39
ISOLATOR, MOTOR WPL 8038P00260 Contact Us For Availability
NI
HARNESS, WIRE WPL 5170P42960 Contact Us For Availability
NI
LP CONVERSION KIT WPL 5700M47760 Contact Us For Availability
× ![]()
