Model Whirlpool SC8640EDQ0 – Common Parts & Diagrams

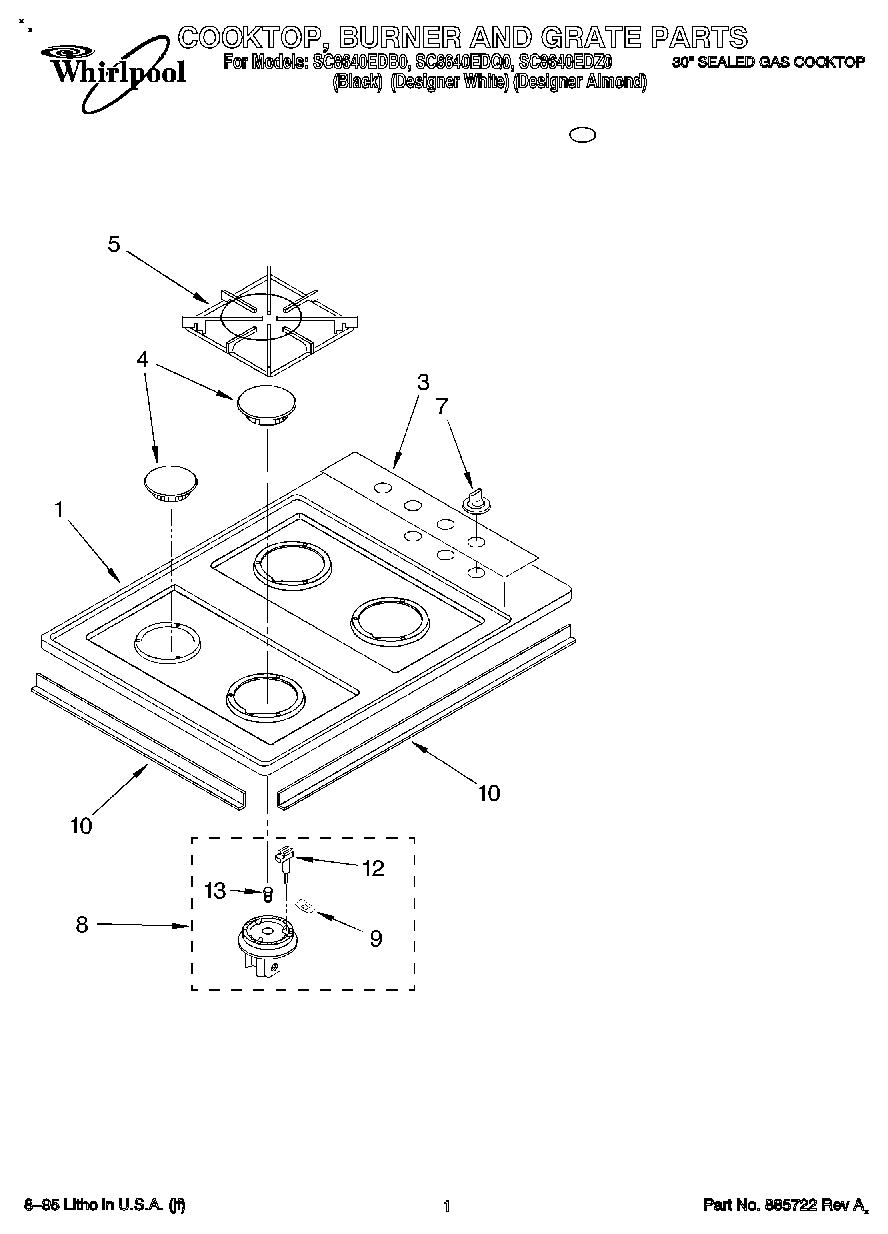

01 - COOKTOP, BURNER AND GRATE

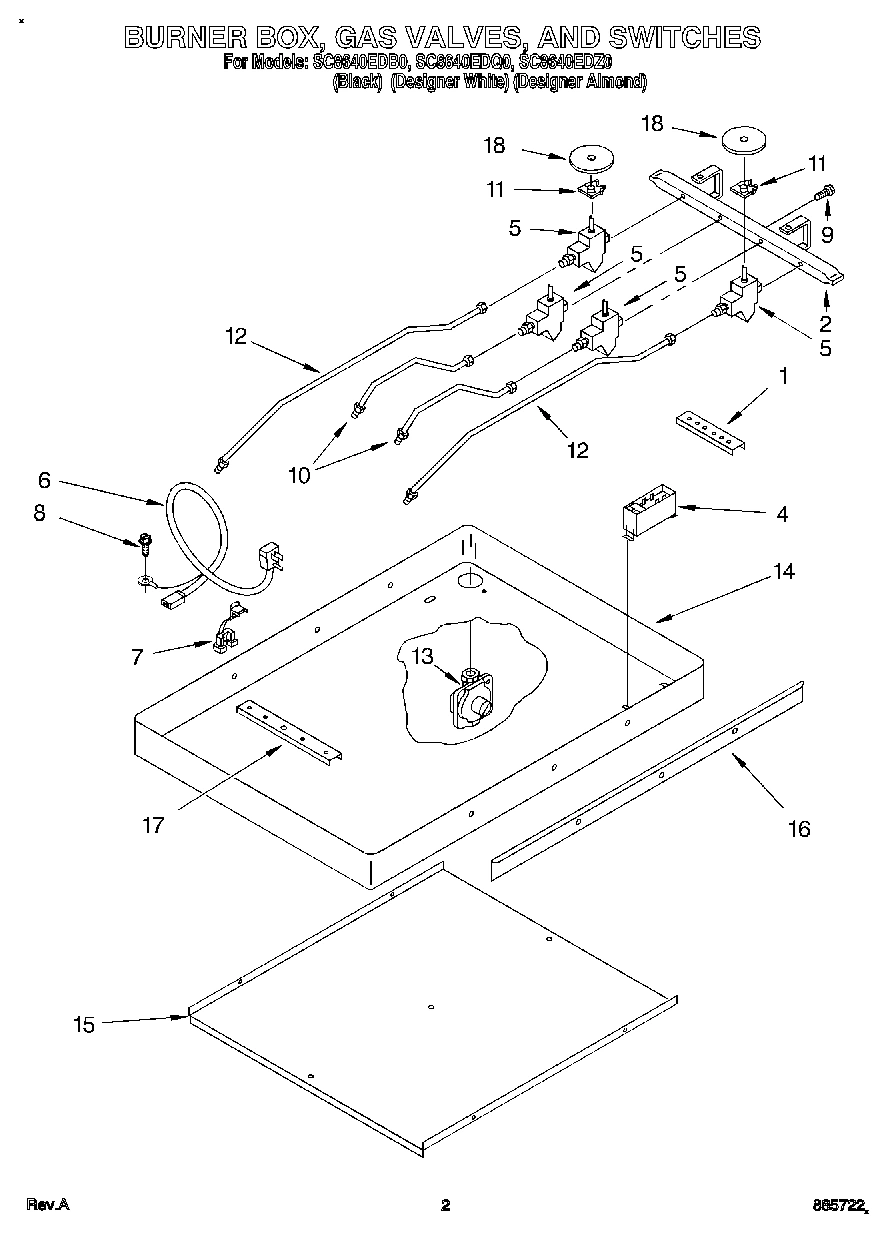

02 - BURNER BOX, GAS VALVES, AND SWITCHES
Common parts from model Whirlpool SC8640EDQ0
Hardware, Mounting WPL 3188310 Contact Us For Availability
Gas Conversion Kit (Natural Gas To LP Gas) WPL 4173631 Contact Us For Availability
Wiring Diagram WPL LIT3188950 Contact Us For Availability
Use And Care Guide WPL LIT3189403 Contact Us For Availability
Installation Instructions WPL LIT3189404 Contact Us For Availability
1
Screw WPL 3179557 Contact Us For Availability
1
Nut, Tinnerman (2) WPL 4167077 Contact Us For Availability
2
Pipe, Manifold WPL 3188111 Contact Us For Availability
3
Panel, Control (Black) WPL 3149333 Contact Us For Availability
3
Panel, Control (Almond) WPL 3188807 Contact Us For Availability
3
Panel, Control (White) WPL 3188808 Contact Us For Availability
4
(Cap, Burner Large (3)) (Black (Blk & Alm Mdl WPL 3185793 Contact Us For Availability
4
Cap, Burner Small (1) (Black (Blk & Alm Mdls) WPL 3185796 Contact Us For Availability
4
(Cap, Burner Large (3)) (Gray (Des. Wht Mdl)) WPL 3188974 Contact Us For Availability
4
Cap, Burner Small (1) (Gray (Des. Wht Mdl)) WPL 3188975 Contact Us For Availability
5
Grate (4) (Black (Blk & Alm Mdls)) WPL 3188809 Contact Us For Availability
5
Grate (4) (Gray (Des. Wht Mdl)) WPL 3188810 Contact Us For Availability
5
Valve, Burner (Small (1)) WPL 3188971 Contact Us For Availability
5
Valve, Burner (Large (3)) WPL 3188972 Contact Us For Availability
7
Knob, Control (4) (Almond) WPL 3187768 Contact Us For Availability
8
Burner Assembly (Large (3)) WPL 3188798 Contact Us For Availability
8
Burner Assembly (Small (1)) WPL 3188799 Contact Us For Availability
8
Burner Assembly (Screw) WPL 3189021 Contact Us For Availability
9
Nut, Speed WPL 3185805 Contact Us For Availability
9
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
10
Seal, Foam (2) (Right & Left Side) WPL 3188316 Contact Us For Availability
10
Seal, Foam (2) (Front & Back Side) WPL 3189208 Contact Us For Availability
10
Tubing, Burner RR & RF WPL 3189508 Contact Us For Availability
11
Switch, (4) Ignitor WPL 3188861 Contact Us For Availability
12
Electrode WPL 3185804 Contact Us For Availability
12
Tubing, Burner LR & LF WPL 3188313 Contact Us For Availability
13
Wire, Tie WPL 3179589 Contact Us For Availability
13
Orifice (Small (1) No.56) WPL 3185947 Contact Us For Availability
13
Orifice (Large (3) No.52) WPL 3185948 Contact Us For Availability
13
Harness, Wire Ignitor WPL 3188862 Contact Us For Availability
13
Harness, Wire Light switch WPL 3188863 Contact Us For Availability
13
Regulator, Pressure WPL 3177120 Contact Us For Availability
14
Box, Burner WPL 3187847 Contact Us For Availability
15
Screw WPL 3148442 Contact Us For Availability
15
Shield, Heat WPL 3189343 Contact Us For Availability
16
Screw WPL 3185647 Contact Us For Availability
16
Flange (2) WPL 3189180 Contact Us For Availability
17
Bracket, Mtg. (2) WPL 3188113 Contact Us For Availability
17
Screw WPL 3189496 Contact Us For Availability
× ![]()
