Model Whirlpool SC8630EXQ5 – Common Parts & Diagrams

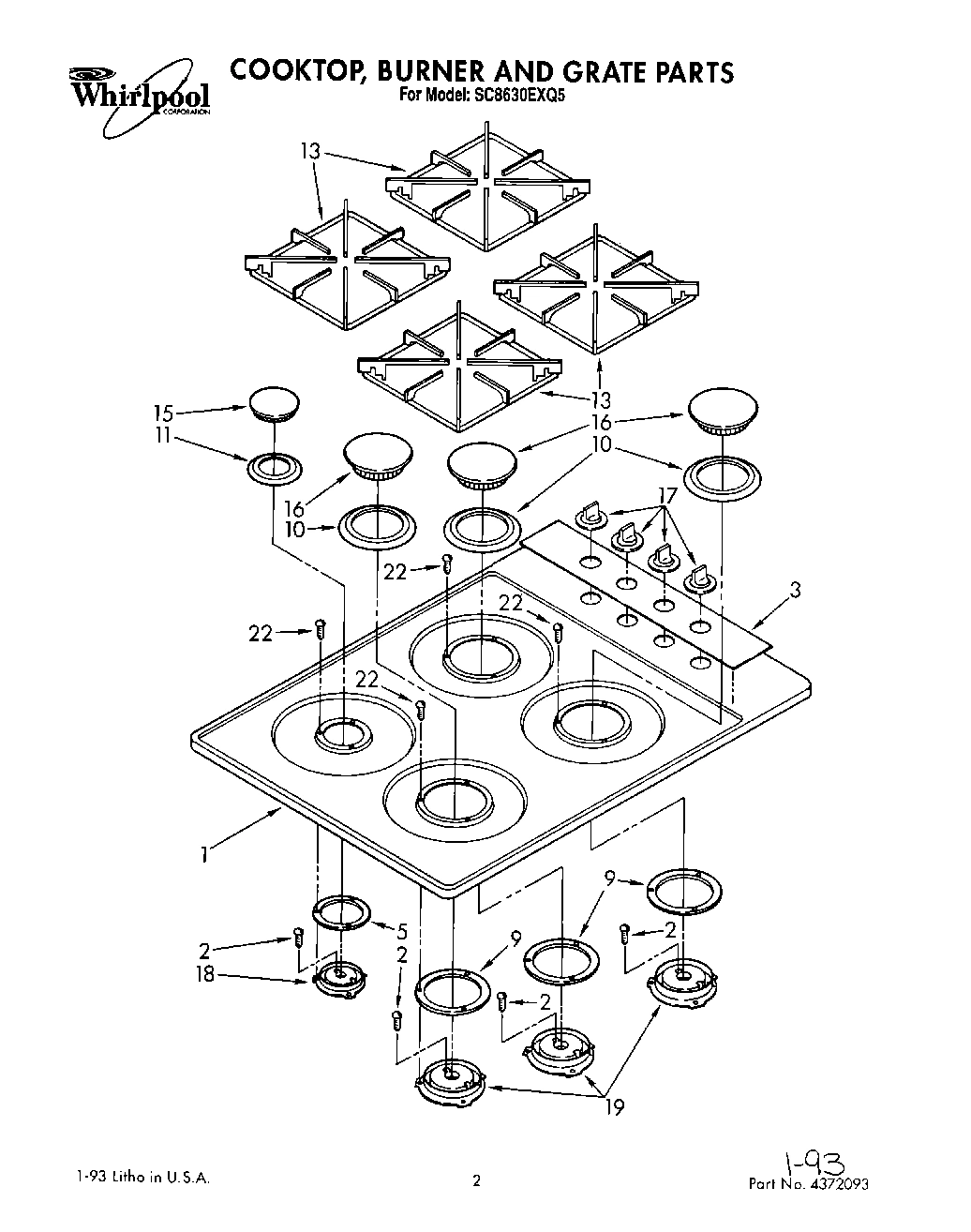

01 - COOKTOP, BURNER AND GRATE

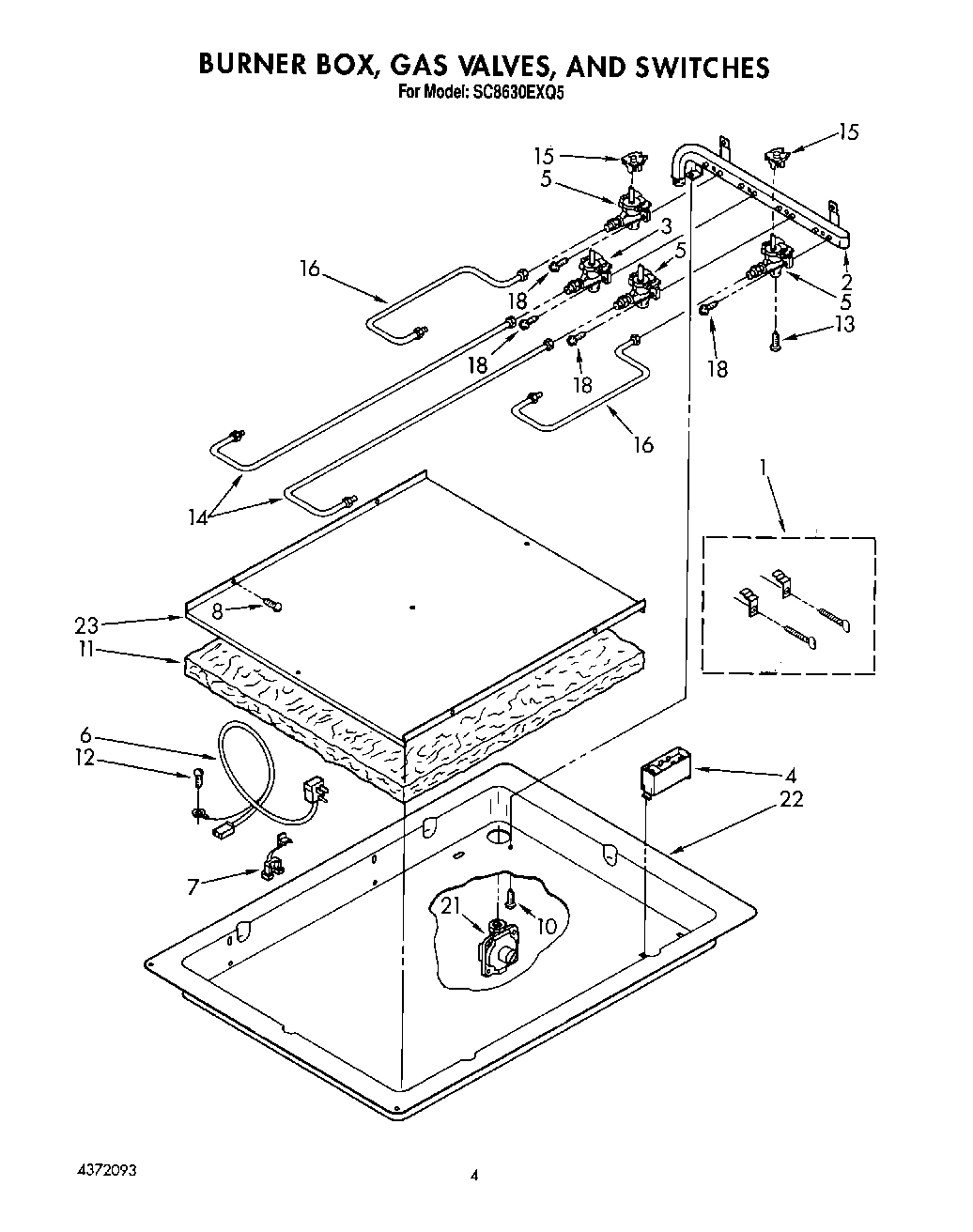

02 - BURNER BOX, GAS VALVES, AND SWITCHES
03 - COMPLETE SEALED GAS BURNER
Common parts from model Whirlpool SC8630EXQ5
Guide, Cooking WPL LIT3149508 Contact Us For Availability
List, Repair Parts WPL LIT4372093 Contact Us For Availability
Owners Manual WPL LIT816518 Contact Us For Availability
Installation Instructions WPL LIT816519 Contact Us For Availability
Wiring Diagram WPL LIT816981 Contact Us For Availability
1
Cooktop WPL 816558 Contact Us For Availability
1
Bracket, Mounting Kit (Cooktop To Burner Box) WPL 4371703 Contact Us For Availability
1
Sealed Gas Burner Kit (Includes Key Nos. 2,3, WPL 4175454 Contact Us For Availability
1
Sealed Gas Burner Kit (Includes Key Nos. 2,3, WPL 4175455 Contact Us For Availability
2
Pipe, Manifold WPL 4371636 Contact Us For Availability
2
Shutter, Air (Available In Kit Only) WPL ARI128660A Contact Us For Availability
3
Screw, Burner WPL 816568 Contact Us For Availability
3
Panel, Control WPL 4371689 Contact Us For Availability
3
Valve, Gas Burner (Small) WPL 4371967 Contact Us For Availability
4
Ignitor Module WPL 4371583 Contact Us For Availability
4
Clip, Ignitor WPL 816566 Contact Us For Availability
5
Seal, Burner (1) (Small Burner) WPL 816560 Contact Us For Availability
5
Valve, Gas Burner Large (3) WPL 4371968 Contact Us For Availability
5
Orifice, Burner (Large Burner) WPL 816567 Contact Us For Availability
5
Orifice, Burner (Small Burner) WPL 816570 Contact Us For Availability
6
Power Cord WPL 816540 Contact Us For Availability
6
Ignitor WPL 816565 Contact Us For Availability
7
Burner, Sealed (Complete) (Small Burner) WPL 816569 Contact Us For Availability
7
Burner, Sealed (Complete) (Large Burner) WPL 816564 Contact Us For Availability
7
Bushing, Cord WPL 816539 Contact Us For Availability
9
Seal, Burner (3) (Large Burner) WPL 816561 Contact Us For Availability
10
Ring, Trim (3) (Large Burner) WPL 4372077 Contact Us For Availability
10
Screw, Manifold To Burner Box (3) WPL 816666 Contact Us For Availability
11
Ring, Trim (1) (Small Burner) WPL 4372076 Contact Us For Availability
11
Insulation, Bottom WPL 816542 Contact Us For Availability
13
Grate WPL 4372078 Contact Us For Availability
13
Screw, (4) 8-36 x 3/8 WPL 816623 Contact Us For Availability
14
Tubing, Burner (LF & LR) WPL 816562 Contact Us For Availability
15
Cap, Burner (1) (Small Burner) WPL 4372074 Contact Us For Availability
15
Switch, Ignitor WPL 4371965 Contact Us For Availability
16
Cap, Burner (3) (Large Burner) WPL 4372075 Contact Us For Availability
16
Tubing, Burner WPL 816563 Contact Us For Availability
17
Knob, Control (4) WPL 4371688 Contact Us For Availability
18
Screw, Valve To Manifold Pipe (8) WPL 816555 Contact Us For Availability
21
Regulator, Pressure WPL 816547 Contact Us For Availability
22
Screw, Burner Mounting (12) WPL 816559 Contact Us For Availability
22
14`` Ignitor Wire WPL 816803 Contact Us For Availability
22
20`` Ignitor Wire WPL 816804 Contact Us For Availability
22
30`` Ignitor Wire WPL 816805 Contact Us For Availability
22
36`` Ignitor Wire WPL 816806 Contact Us For Availability
22
Hi-Voltage Wire WPL 816807 Contact Us For Availability
22
Ignition Harness WPL 816808 Contact Us For Availability
22
Box, Burner WPL 816538 Contact Us For Availability
23
Shield, Heat WPL 816543 Contact Us For Availability
× ![]()
