Model Whirlpool SC8630EXB1 – Common Parts & Diagrams
01 - SECTION

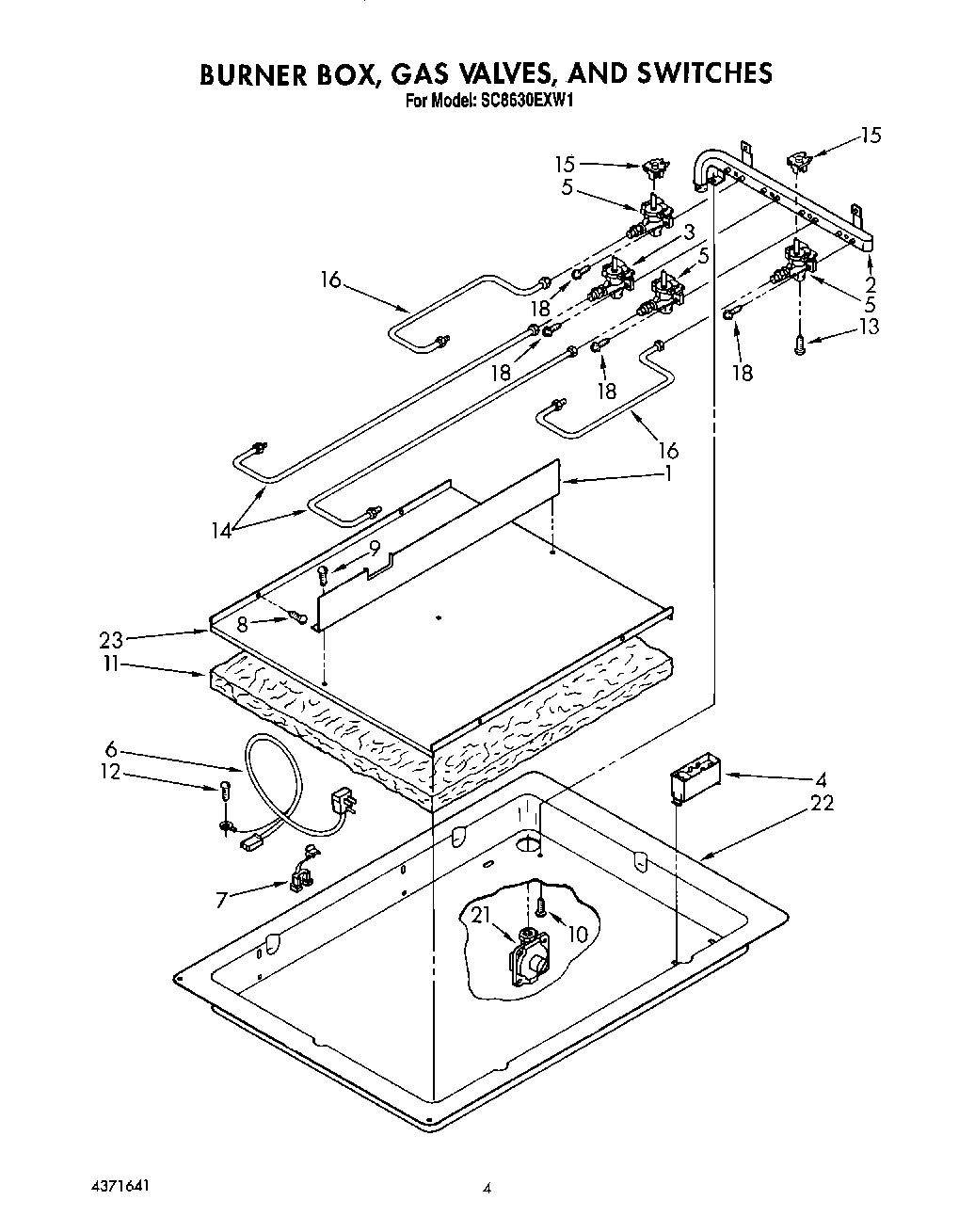

03 - BURNER BOX, GAS VALVES, AND SWITCHES
02 - COOKTOP, BURNER AND GRATE
04 - COMPLETE SEALED GAS BURNER
Common parts from model Whirlpool SC8630EXB1

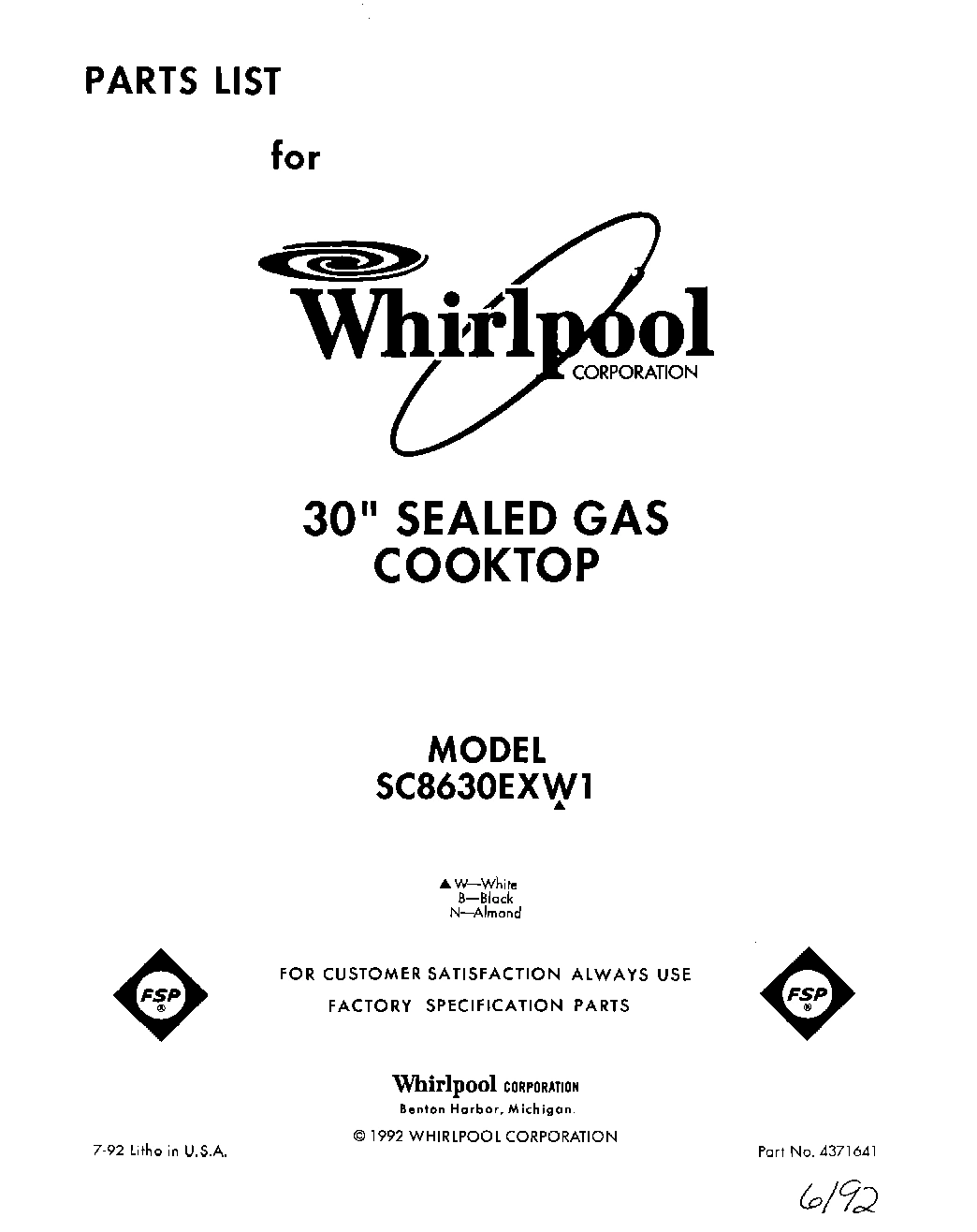

Guide, Cooking WPL LIT3149508 Contact Us For Availability
List, Repair Parts WPL LIT4371641 Contact Us For Availability
Owners Manual WPL LIT816518 Contact Us For Availability
Installation Instructions WPL LIT816519 Contact Us For Availability
Wiring Diagram WPL LIT816981 Contact Us For Availability
1
Support, Main Top WPL 816544 Contact Us For Availability
1
Cooktop (White) WPL 816558 Contact Us For Availability
1
Cooktop (Almond) WPL 816578 Contact Us For Availability
1
Cooktop (Black) WPL 816980 Contact Us For Availability
1
Burner, Gas (Complete) (Small) WPL 816569 Contact Us For Availability
1
Burner, Gas (Complete) (Large) WPL 816564 Contact Us For Availability
2
Pipe, Manifold WPL 4371636 Contact Us For Availability
2
Screw, Burner WPL 4371027 Contact Us For Availability
3
Valve, Gas Burner (Small) WPL 4371639 Contact Us For Availability
3
Panel, Control (Wh/Al Models) WPL 4371615 Contact Us For Availability
3
Panel, Control (Blk Models) WPL 4371637 Contact Us For Availability
3
Screw, Burner WPL 816568 Contact Us For Availability
4
Spark Module WPL 816541 Contact Us For Availability
4
Clip, Ignitor WPL 816566 Contact Us For Availability
5
Valve, Gas Burner (Large) WPL 4371640 Contact Us For Availability
5
Seal, Burner (Small) WPL 816560 Contact Us For Availability
5
Orifice, Burner (Use With Large Burner) WPL 816567 Contact Us For Availability
5
Orifice, Burner (Use With Small Burner) WPL 816570 Contact Us For Availability
6
Power Cord WPL 816540 Contact Us For Availability
6
Ignitor WPL 816565 Contact Us For Availability
7
Bushing, Cord WPL 816539 Contact Us For Availability
9
Screw, Support To Shield (3) WPL 816667 Contact Us For Availability
9
Seal, Burner (Large) WPL 816561 Contact Us For Availability
10
Screw, Manifold To Burner Box (3) WPL 816666 Contact Us For Availability
10
Ring, Trim (Large) WPL 816576 Contact Us For Availability
11
Insulation, Bottom WPL 816542 Contact Us For Availability
11
Ring, Trim (Small) WPL 816575 Contact Us For Availability
13
Screw, (4) 8-36 x 3/8 WPL 816623 Contact Us For Availability
13
Grate WPL 816573 Contact Us For Availability
14
Tubing, Burner (LF & LR) WPL 816562 Contact Us For Availability
15
Switch, Ignitor WPL 4371638 Contact Us For Availability
15
Cap, Burner (Small) WPL 816571 Contact Us For Availability
16
Tubing, Burner WPL 816563 Contact Us For Availability
16
Cap, Burner (Large) WPL 816572 Contact Us For Availability
17
Knob, Control (4) WPL 4371635 Contact Us For Availability
18
Screw, Valve To Manifold Pipe (8) (RF & RR) WPL 816555 Contact Us For Availability
20
Shutter, Burner Air (Use With Large Burner) WPL 816550 Contact Us For Availability
21
Regulator, Pressure WPL 816547 Contact Us For Availability
21
Shutter, Burner Air (Use With Small Burner) WPL 816551 Contact Us For Availability
22
Box, Burner WPL 816538 Contact Us For Availability
22
Bracket, Mounting Kit (Cooktop To Burner Box) WPL 4371703 Contact Us For Availability
22
Screw, Gas Burner Mounting (12) WPL 816718 Contact Us For Availability
22
14`` Ignitor Wire WPL 816803 Contact Us For Availability
22
20`` Ignitor Wire WPL 816804 Contact Us For Availability
22
30`` Ignitor Wire WPL 816805 Contact Us For Availability
22
36`` Ignitor Wire WPL 816806 Contact Us For Availability
22
Hi-Voltage Wire WPL 816807 Contact Us For Availability
22
Ignition Harness WPL 816808 Contact Us For Availability
23
Shield, Heat WPL 816543 Contact Us For Availability
× ![]()
