Model Whirlpool SC8630EWW1 – Common Parts & Diagrams

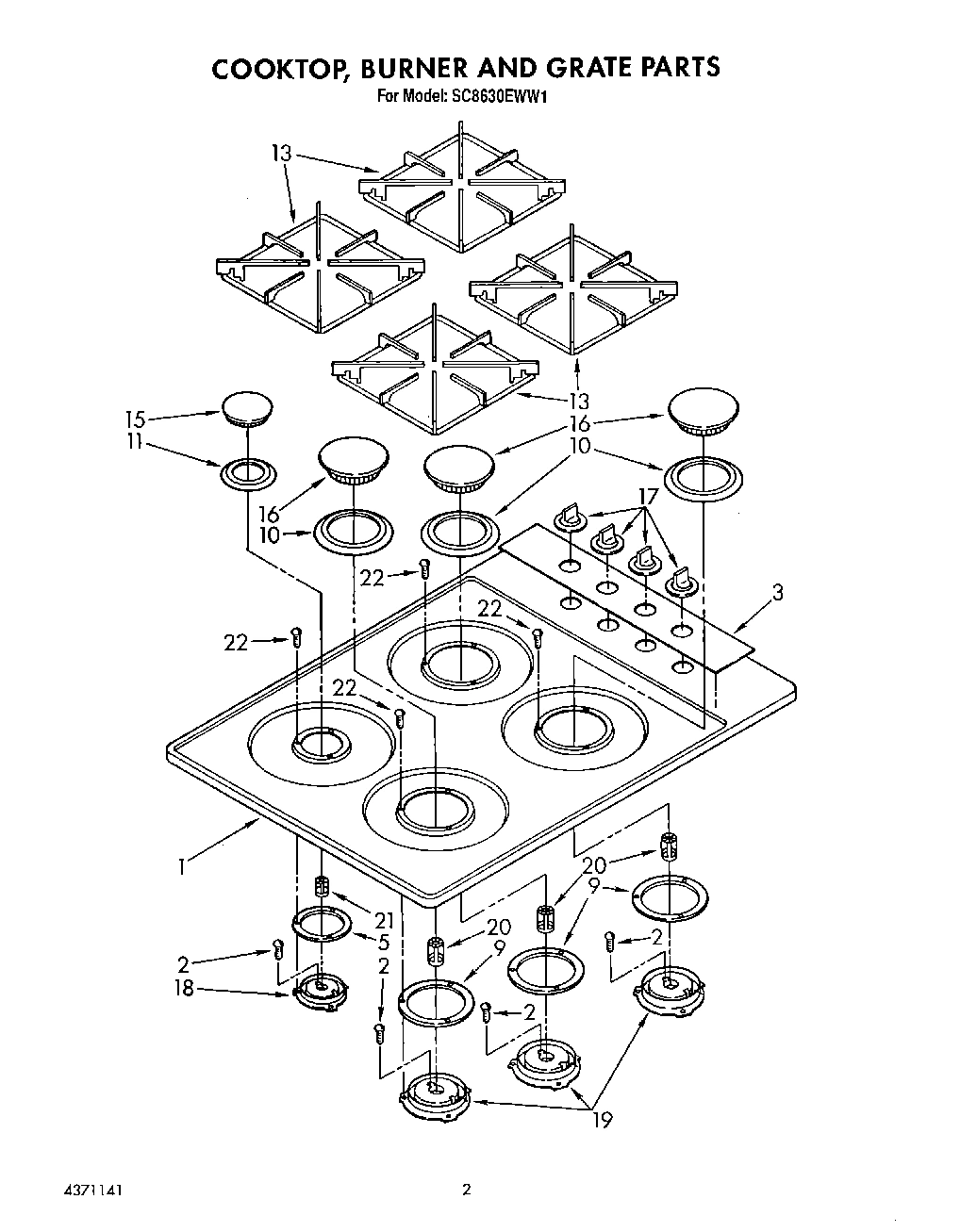

02 - COOKTOP, BURNER AND GRATE
01 - SECTION
03 - COMPLETE SEALED GAS BURNER
04 - BURNER BOX, GAS VALVES, AND SWITCHES
Common parts from model Whirlpool SC8630EWW1
Guide, Cooking WPL LIT3149508 Contact Us For Availability

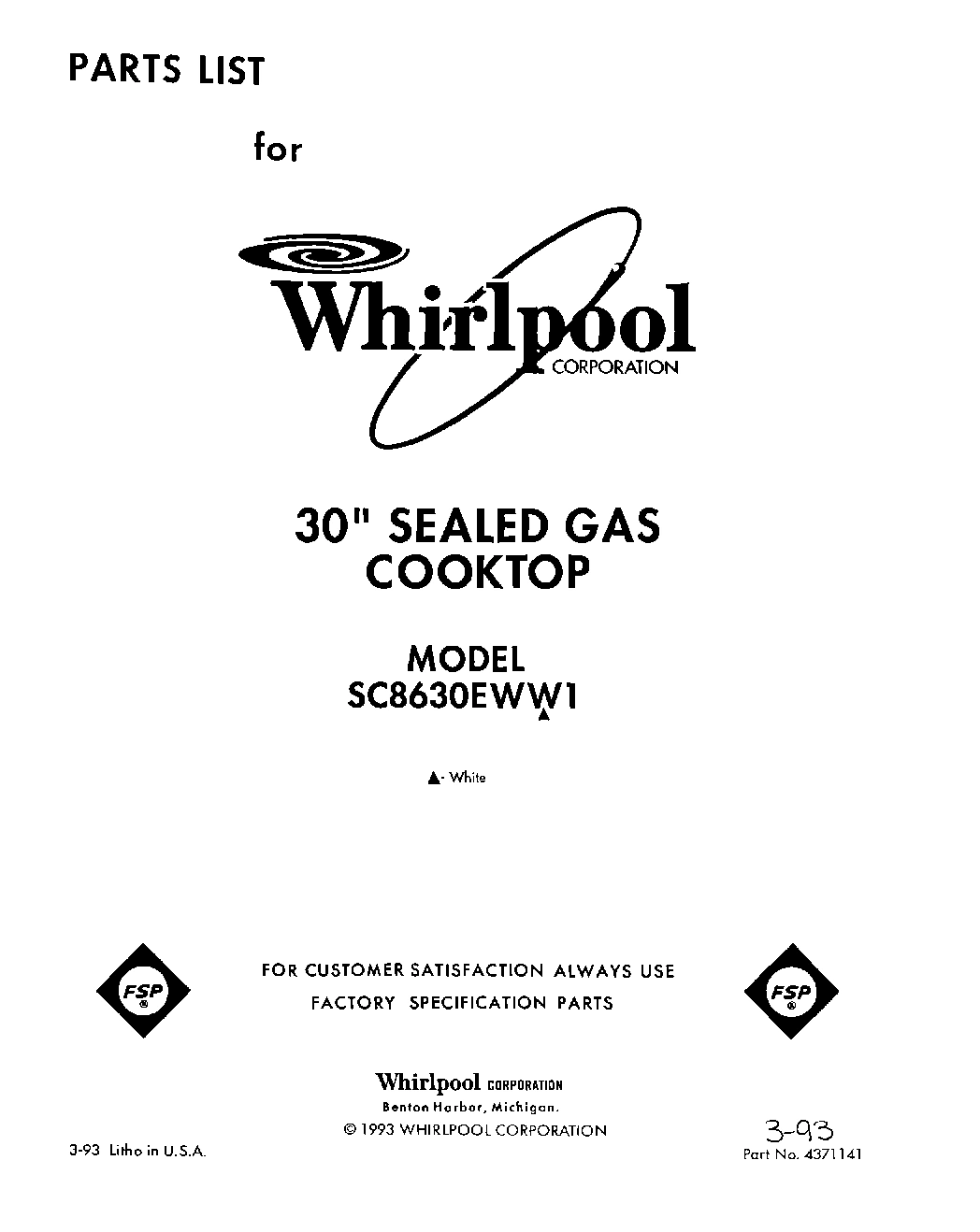

List, Repair Parts WPL LIT4371141 Contact Us For Availability
Owners Manual WPL LIT816518 Contact Us For Availability
Installation Instructions WPL LIT816519 Contact Us For Availability
1
Cooktop WPL 816558 Contact Us For Availability
1
Burner, Gas (Complete) (Small) WPL 816569 Contact Us For Availability
1
Burner, Gas (Complete) (Large) WPL 816564 Contact Us For Availability
1
Support, Main Top WPL 816544 Contact Us For Availability
2
Pipe, Manifold WPL 816554 Contact Us For Availability
3
Screw, Burner WPL 816568 Contact Us For Availability
3
Panel, Control WPL 816780 Contact Us For Availability
3
Valve, Gas Burner (Small W/Ignition Switch) WPL 816557 Contact Us For Availability
4
Clip, Ignitor WPL 816566 Contact Us For Availability
4
Spark Module WPL 816541 Contact Us For Availability
5
Seal, Burner (Small) WPL 816560 Contact Us For Availability
5
Orifice, Burner (Use With Large Burner) WPL 816567 Contact Us For Availability
5
Orifice, Burner (Use With Small Burner) WPL 816570 Contact Us For Availability
5
Valve, Gas Burner (Large W/Ignition Switch) WPL 816556 Contact Us For Availability
6
Ignitor WPL 816565 Contact Us For Availability
6
Power Cord WPL 816540 Contact Us For Availability
7
Bushing, Cord WPL 816539 Contact Us For Availability
9
Seal, Burner (Large) WPL 816561 Contact Us For Availability
9
Screw, Support To Shield (3) WPL 816667 Contact Us For Availability
10
Ring, Trim (Large) WPL 4372120 Contact Us For Availability
10
Screw, Manifold To Burner Box (3) WPL 816666 Contact Us For Availability
11
Ring, Trim (Small) WPL 4371139 Contact Us For Availability
11
Insulation, Bottom WPL 816542 Contact Us For Availability
13
Grate WPL 4371138 Contact Us For Availability
13
Screw, (4) 8-36 x 3/8 WPL 816623 Contact Us For Availability
14
Tubing, Burner (LF & LR) WPL 816562 Contact Us For Availability
15
Cap, Burner (Small) WPL 4372122 Contact Us For Availability
16
Cap, Burner (Large) WPL 4371137 Contact Us For Availability
16
Tubing, Burner (RF & RR) WPL 816563 Contact Us For Availability
17
Knob, Control (4) WPL 816549 Contact Us For Availability
18
Screw, Valve To Manifold Pipe (8) WPL 816555 Contact Us For Availability
20
Shutter, Burner Air (Use With Large Burner) WPL 816550 Contact Us For Availability
21
Shutter, Burner Air (Use With Small Burner) WPL 816551 Contact Us For Availability
21
Regulator, Pressure WPL 816547 Contact Us For Availability
22
Screw, Gas Burner Mounting (12) WPL 816559 Contact Us For Availability
22
14`` Ignitor Wire WPL 816803 Contact Us For Availability
22
20`` Ignitor Wire WPL 816804 Contact Us For Availability
22
30`` Ignitor Wire WPL 816805 Contact Us For Availability
22
36`` Ignitor Wire WPL 816806 Contact Us For Availability
22
Hi-Voltage Wire WPL 816807 Contact Us For Availability
22
Ignition Harness WPL 816808 Contact Us For Availability
22
Box, Burner WPL 816538 Contact Us For Availability
23
Shield, Heat WPL 816543 Contact Us For Availability
× ![]()
