Model Whirlpool SC8536EWW0 – Common Parts & Diagrams
02 - BURNER BOX
01 - SECTION

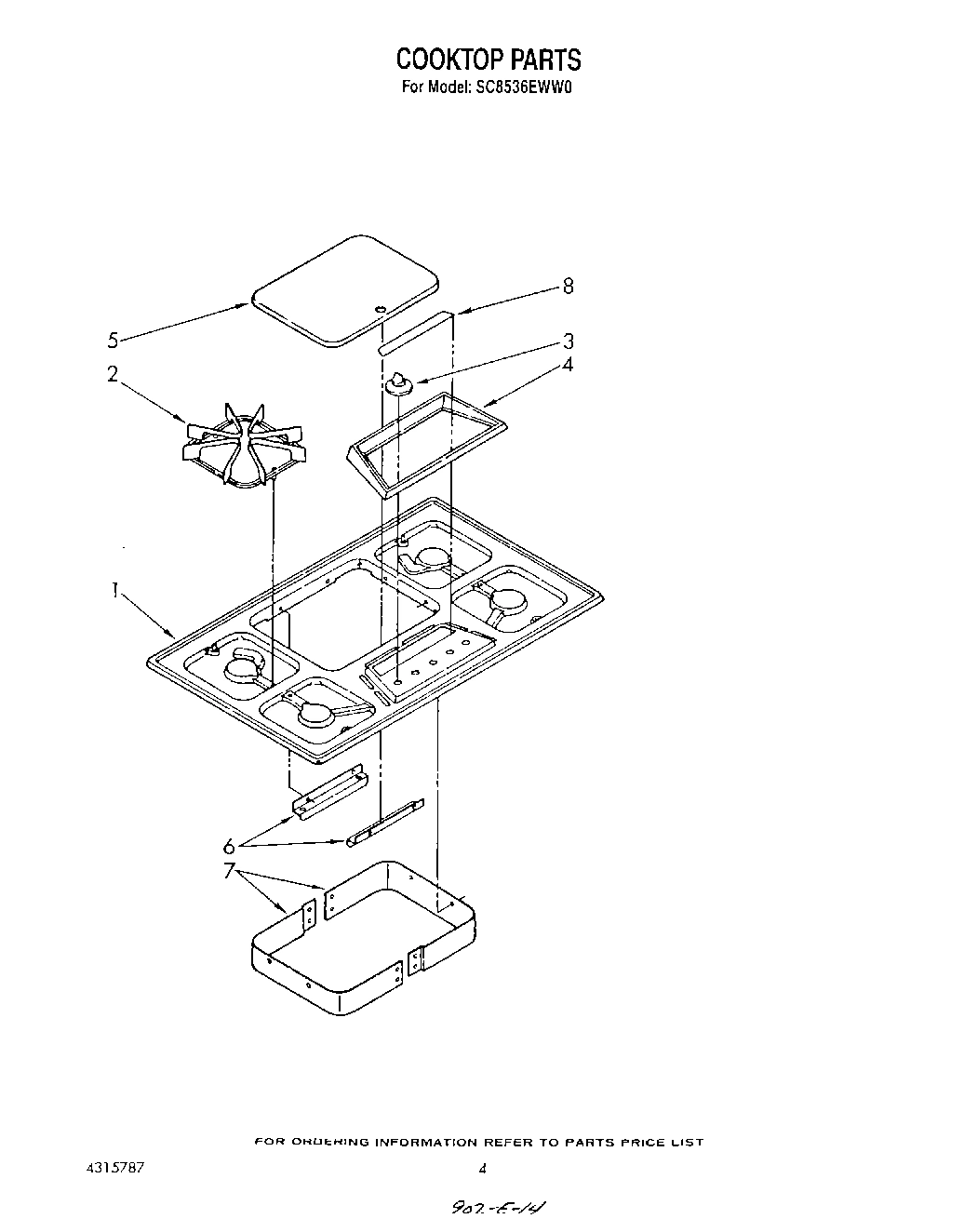

03 - COOKTOP
Common parts from model Whirlpool SC8536EWW0
Guide, Cooking WPL LIT786302 Contact Us For Availability
Instruction, Installation WPL LIT786737 Contact Us For Availability
Guide, Use & Care WPL LIT786774 Contact Us For Availability
1
Burner Box WPL 4315151 Contact Us For Availability
1
Cooktop (White) WPL 4320399 Contact Us For Availability
2
Casing, Burner Box WPL 4157477 Contact Us For Availability
2
Grate (4) WPL 4320398 Contact Us For Availability
3
Cover, Access WPL 4157478 Contact Us For Availability
3
Knob (5) WPL 4320692 Contact Us For Availability
4
Cover, Switch WPL 4315152 Contact Us For Availability
4
Trim, Cooktop WPL 4157496 Contact Us For Availability
5
Tube, Flash (2) WPL 4157480 Contact Us For Availability
5
Cover, White WPL 4320605 Contact Us For Availability
6
Cover, Access WPL 4157481 Contact Us For Availability
6
Screw, 8-18 X 1/4 (2) WPL 786232 Contact Us For Availability
6
Support, Griddle WPL 4157618 Contact Us For Availability
7
Plate, Module WPL 4315698 Contact Us For Availability
7
Baffle, Griddle (Left) WPL 4157830 Contact Us For Availability
7
Baffle, Griddle (Right) WPL 4157833 Contact Us For Availability
8
Pipe, Manifold WPL 4157614 Contact Us For Availability
8
Nameplate WPL 4320397 Contact Us For Availability
9
Electrode (2) WPL 4315589 Contact Us For Availability
10
Burner, Griddle WPL 4157615 Contact Us For Availability
11
Screw, 10-24 X 1/4 (2) WPL 4157126 Contact Us For Availability
11
Hinge (2) WPL 4157485 Contact Us For Availability
12
Tip, Rod WPL 4157486 Contact Us For Availability
13
Rod, Support WPL 4157497 Contact Us For Availability
14
Clamp, Rod WPL 4157539 Contact Us For Availability
16
Block, Disconnect WPL 4157489 Contact Us For Availability
17
Strain Relief WPL 786287 Contact Us For Availability
18
Module, Spark WPL 786323 Contact Us For Availability
19
Valve (4) WPL 4157490 Contact Us For Availability
20
Burner (Right Front) WPL 4157491 Contact Us For Availability
21
Burner (Left Front) WPL 4157492 Contact Us For Availability
22
Burner (Right Rear) WPL 4157493 Contact Us For Availability
23
Burner (Left Rear) WPL 4157494 Contact Us For Availability
25
Cord, Power WPL 4157487 Contact Us For Availability
26
Switch, Valve (4) WPL 786130 Contact Us For Availability
27
Pressure Regulator WPL 786123 Contact Us For Availability
28
Cap (2) WPL 4157536 Contact Us For Availability
29
Bracket (2) WPL 4320606 Contact Us For Availability
31
Baffle WPL 4157623 Contact Us For Availability
32
Switch WPL 4157435 Contact Us For Availability
33
Strap, Ground WPL 4157442 Contact Us For Availability
34
Electrode WPL 4157440 Contact Us For Availability
35
Valve, Griddle WPL 4157613 Contact Us For Availability
36
Extension, Valve WPL 4157616 Contact Us For Availability
39
Support, Burner WPL 4157619 Contact Us For Availability
40
Griddle WPL 4157610 Contact Us For Availability
41
Baffle, Burner WPL 4157624 Contact Us For Availability
42
Reflector WPL 4157831 Contact Us For Availability
43
Clamp, Cord WPL 4157298 Contact Us For Availability
× ![]()
