Model Whirlpool SC8430ERH3 – Common Parts & Diagrams

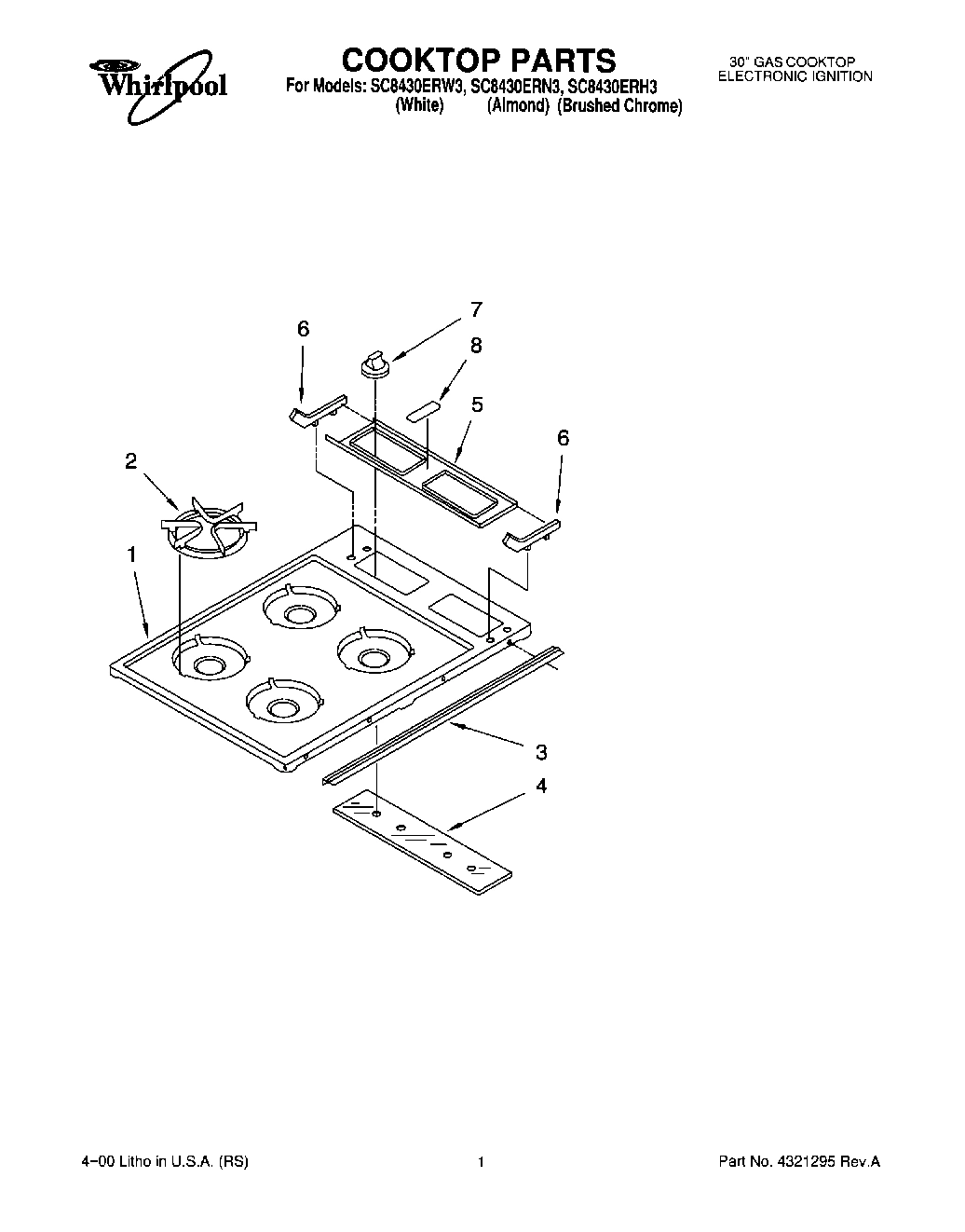

01 - COOKTOP
02 - BURNER BOX
Common parts from model Whirlpool SC8430ERH3
Insert, Use & Care Guide WPL LIT4362583 Contact Us For Availability
Installation Instructions WPL LIT4363391 Contact Us For Availability
Use & Care Guide WPL LIT4363793 Contact Us For Availability
Cooking Guide WPL LIT4363794 Contact Us For Availability
1
Cooktop (White) WPL 4157534 Contact Us For Availability
1
Cooktop (Almond) WPL 4157535 Contact Us For Availability
1
Cooktop (Brush Chrome) WPL 4157842 Contact Us For Availability
1
Plate, Hinge (2) WPL 4157583 Contact Us For Availability
2
Grate (4) WPL 4363252 Contact Us For Availability
2
Hinge, Cooktop (2) WPL 4157584 Contact Us For Availability
3
Handle WPL 4157588 Contact Us For Availability
3
Nut, Hinge (2) WPL 4157590 Contact Us For Availability
4
Glass, Control Panel WPL 4157516 Contact Us For Availability
4
Hinge, Cooktop (2) WPL 4363790 Contact Us For Availability
5
Panel, Control WPL 4157585 Contact Us For Availability
5
Module, Spark WPL 4363272 Contact Us For Availability
6
Endcap (Rear) WPL 4157586 Contact Us For Availability
6
Endcap (Front) WPL 4157587 Contact Us For Availability
6
Cord, Power WPL 4157603 Contact Us For Availability
7
Knob (4) WPL 4179178 Contact Us For Availability
7
Regulator, Pressure WPL 4321298 Contact Us For Availability
8
Nameplate WPL 4179125 Contact Us For Availability
8
Burner Box WPL 4315154 Contact Us For Availability
9
Bracket, Burner WPL 4157605 Contact Us For Availability
11
Support, Burner WPL 4315155 Contact Us For Availability
12
Bracket, Grounding WPL 786754 Contact Us For Availability
13
Clip, Speed WPL 4157515 Contact Us For Availability
14
Switch, Burner WPL 786322 Contact Us For Availability
15
Pipe, Manifold WPL 4362500 Contact Us For Availability
16
Valve, Burner (4) WPL 4363797 Contact Us For Availability
17
Actuator WPL 4157518 Contact Us For Availability
18
Cam WPL 4315271 Contact Us For Availability
19
Spring WPL 786391 Contact Us For Availability
20
Elbow WPL 4157520 Contact Us For Availability
21
Clamp, Rod WPL 4157521 Contact Us For Availability
22
Bumper (4) WPL 4157522 Contact Us For Availability
23
Burner, Left (2) WPL 4363792 Contact Us For Availability
24
Burner, Right (2) WPL 4363791 Contact Us For Availability
25
Clamp WPL 4157298 Contact Us For Availability
26
Shield, Bottom WPL 4157525 Contact Us For Availability
27
Box, Electrical WPL 4157526 Contact Us For Availability
28
Rod, Support WPL 4157597 Contact Us For Availability
29
Raceway WPL 4157602 Contact Us For Availability
30
Ignitor, Surface (Rear) WPL 4363795 Contact Us For Availability
30
Ignitor, Surface (Front) WPL 4363796 Contact Us For Availability
× ![]()
