Model Whirlpool SBE26FC ELECTRIC RANGE – Common Parts & Diagrams

1
BACKGUARD FRAME 8`` X 30`` FB
BACKGUARD FRAME 8`` X 30`` FB WPL Y0310654 Contact Us For Availability
View on Model
1
OVEN RACK
OVEN RACK WPL Y0088671 Contact Us For Availability
View on Model
1

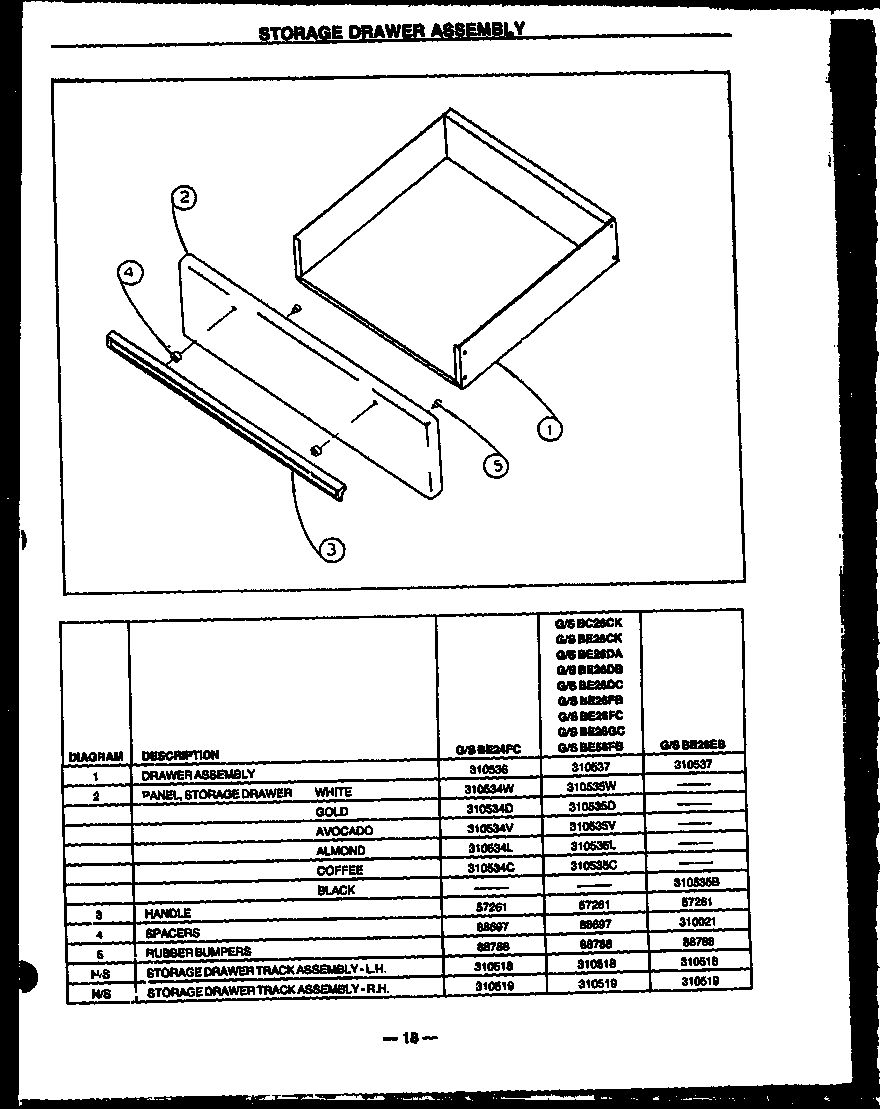

STORAGE DRAWER
STORAGE DRAWER WPL Y0310537 Contact Us For Availability
View on Model
1
PANEL, SIDE
PANEL, SIDE WPL 311003C Contact Us For Availability
View on Model
1
BODY SIDE HARVEST
BODY SIDE HARVEST WPL 311003D Contact Us For Availability
View on Model
1
PANEL,BODY SIDE (AL)
PANEL,BODY SIDE (AL) WPL 311003N Contact Us For Availability
View on Model
1
BODY SIDE AVOCADO
BODY SIDE AVOCADO WPL 311003V Contact Us For Availability
View on Model
1
PANEL, TEXTURE BODY
PANEL, TEXTURE BODY WPL 311003W Contact Us For Availability
View on Model
2
BASE-BKGD, 30`` W/HOLES
BASE-BKGD, 30`` W/HOLES WPL Y0086956 Contact Us For Availability
View on Model
2
HANDLE, DOOR (J)
HANDLE, DOOR (J) WPL Y0057315 Contact Us For Availability
View on Model
2
PANEL STORAGE DRAWER COFFEE
PANEL STORAGE DRAWER COFFEE WPL 310535C Contact Us For Availability
View on Model
2
PANEL, STORAGE DRAWER
PANEL, STORAGE DRAWER WPL 310535D Contact Us For Availability
View on Model
2
PANEL, STORAGE DRAWER
PANEL, STORAGE DRAWER WPL 310535L Contact Us For Availability
View on Model
2
PANEL STORAGE DRAWER AVOCADO
PANEL STORAGE DRAWER AVOCADO WPL 310535V Contact Us For Availability
View on Model
2
PANEL, STORAGE DRAWER
PANEL, STORAGE DRAWER WPL 310535W Contact Us For Availability
View on Model
2
OVEN SIDE LINER
OVEN SIDE LINER WPL 88813CX Contact Us For Availability
View on Model
2
LINER, OVEN SIDE
LINER, OVEN SIDE WPL 88897CG Contact Us For Availability
View on Model
3
GLASS, BACKGUARD
GLASS, BACKGUARD WPL 0310478 Contact Us For Availability
View on Model
3
SUB 88812, HANDLE OVEN DR {J}
SUB 88812, HANDLE OVEN DR {J} WPL Y0057261 Contact Us For Availability
View on Model
3
MAIN FRONT 30``
MAIN FRONT 30`` WPL 88751CG Contact Us For Availability
View on Model
4
BACKGUARD SUPPORT-RH
BACKGUARD SUPPORT-RH WPL Y0311038 Contact Us For Availability
View on Model
4
OVEN DOOR FRAME
OVEN DOOR FRAME WPL 86742 Contact Us For Availability
View on Model
4
HANDLE SPACER, PLASTIC (J)
HANDLE SPACER, PLASTIC (J) WPL Y0088697 Contact Us For Availability
View on Model
4
OVEN TOP LINER PORCELAIN
OVEN TOP LINER PORCELAIN WPL 310030E Contact Us For Availability
View on Model
4
OVEN TOP LINER CONTINUOUS CLEA
OVEN TOP LINER CONTINUOUS CLEA WPL 310031X Contact Us For Availability
View on Model
5
BACKGUARD SUPPORT-L.H.
BACKGUARD SUPPORT-L.H. WPL Y0311039 Contact Us For Availability
View on Model
5
BUMPER-RUBBER 1/4``
BUMPER-RUBBER 1/4`` WPL Y0088788 Contact Us For Availability
View on Model
5
GLASS,OVEN DR 29``X 14 13/16``
GLASS,OVEN DR 29``X 14 13/16`` WPL Y0088797 Contact Us For Availability
View on Model
5
OVEN BOTTOM LINER CONTINOUS CL
OVEN BOTTOM LINER CONTINOUS CL WPL 88818CX Contact Us For Availability
View on Model
5
LINER, OVEN BOTTOM
LINER, OVEN BOTTOM WPL 88898CG Contact Us For Availability
View on Model
6
KNOB, CLOCK
KNOB, CLOCK WPL Y0055020 Contact Us For Availability
View on Model
6
HOLD DOWN RING START AT CODE P
HOLD DOWN RING START AT CODE P WPL 88806 Contact Us For Availability
View on Model
6
RAIL, BASE
RAIL, BASE WPL 0088654 Contact Us For Availability
View on Model
7
TIMER
TIMER WPL Y0055042 Contact Us For Availability
View on Model
7
SUB 88647,WINDOW ASSY DOOR
SUB 88647,WINDOW ASSY DOOR WPL Y0088126 Contact Us For Availability
View on Model
7
TOE PANEL (J)
TOE PANEL (J) WPL 0052744 Contact Us For Availability
View on Model
8
CLOCK BRACKET
CLOCK BRACKET WPL Y0311034 Contact Us For Availability
View on Model
8
SUB 41966, INSULATION
SUB 41966, INSULATION WPL Y0088800 Contact Us For Availability
View on Model
8
SUPPORT ROD
SUPPORT ROD WPL 0087023 Contact Us For Availability
View on Model
9
CONNECTOR
CONNECTOR WPL Y0088643 Contact Us For Availability
View on Model
9
USE 07621903F
USE 07621903F WPL 0310664 Contact Us For Availability
View on Model
9
SUPPORT, FULL GLASS DR {J}
SUPPORT, FULL GLASS DR {J} WPL 0310321 Contact Us For Availability
View on Model
9
VERTICAL SUP. (J)
VERTICAL SUP. (J) WPL 0052742 Contact Us For Availability
View on Model
10
PANEL-RIGHT WITH KNOCKOUT SECT
PANEL-RIGHT WITH KNOCKOUT SECT WPL 311041 Contact Us For Availability
View on Model
10
BACKER, OVEN DOOR
BACKER, OVEN DOOR WPL 87717CG Contact Us For Availability
View on Model
10
OVEN DR BACKER, CONT CLN STRT
OVEN DR BACKER, CONT CLN STRT WPL 88070CX Contact Us For Availability
View on Model
10
SUPPORT, REAR, VERTICAL {J}
SUPPORT, REAR, VERTICAL {J} WPL 0056477 Contact Us For Availability
View on Model
11
SUPPORT, GLASS PANEL{J}
SUPPORT, GLASS PANEL{J} WPL 0088824 Contact Us For Availability
View on Model
11
SHIELD, SWITCH COVER
SHIELD, SWITCH COVER WPL 86935CG Contact Us For Availability
View on Model
12
MAIN BACK
MAIN BACK WPL Y0088752 Contact Us For Availability
View on Model
13
OVEN BACKLINER
OVEN BACKLINER WPL 311030E Contact Us For Availability
View on Model
13
OVEN BACKLINER
OVEN BACKLINER WPL 311031X Contact Us For Availability
View on Model
14
BURNER BOX
BURNER BOX WPL 56011CG Contact Us For Availability
View on Model
15
SUB 62362, LEG, LEVELING
SUB 62362, LEG, LEVELING WPL Y0088651 Contact Us For Availability
View on Model
16
COVER, REAR BURNER BOX
COVER, REAR BURNER BOX WPL 311014E Contact Us For Availability
View on Model
17
TUBE, OVEN VENT
TUBE, OVEN VENT WPL Y0056015 Contact Us For Availability
View on Model
18
WIRE CHANNEL
WIRE CHANNEL WPL 311011E Contact Us For Availability
View on Model
19
WIRE CHANNEL SUPPORT
WIRE CHANNEL SUPPORT WPL Y0088817 Contact Us For Availability
View on Model
20
BOTTOM WIRE COVER SUPPORT
BOTTOM WIRE COVER SUPPORT WPL Y0088832 Contact Us For Availability
View on Model
22
COVER WIRE
COVER WIRE WPL Y0088833 Contact Us For Availability
View on Model
23
SUPPORT, OVEN BOTTOM INSUL.
SUPPORT, OVEN BOTTOM INSUL. WPL Y0088820 Contact Us For Availability
View on Model
24
SHOULDER SCREW
SHOULDER SCREW WPL 0088779 Contact Us For Availability
View on Model
25
TRACK, LOWER L.H.
TRACK, LOWER L.H. WPL 0310522 Contact Us For Availability
View on Model
26
TRACK, LOWER R.H.
TRACK, LOWER R.H. WPL Y0310523 Contact Us For Availability
View on Model
27
SEE NOTE ROLLER
SEE NOTE ROLLER WPL Y00000000 Contact Us For Availability
View on Model
28
SOCKET, OVEN LIGHT
SOCKET, OVEN LIGHT WPL Y0088674 Contact Us For Availability
View on Model
31
TOP DOOR SEAL
TOP DOOR SEAL WPL 56069 Contact Us For Availability
View on Model
32
SEAL STRAP
SEAL STRAP WPL Y56090 Contact Us For Availability
View on Model
NI
SUNRAY LABEL
SUNRAY LABEL WPL 0310837 Contact Us For Availability
View on Model
NI
NAMEPLATE, GLENWOOD
NAMEPLATE, GLENWOOD WPL 0310838 Contact Us For Availability
View on Model
NI
SCREW
SCREW WPL 0055047 Contact Us For Availability
View on Model
NI
SWITCH, OVEN LIGHT
SWITCH, OVEN LIGHT WPL Y0310516 Contact Us For Availability
View on Model
NI
HINGE, OVEN DOOR
HINGE, OVEN DOOR WPL Y0086790 Contact Us For Availability
View on Model
NI
TRACK, UPPER L.H. (ELEC)
TRACK, UPPER L.H. (ELEC) WPL 0310518 Contact Us For Availability
View on Model
NI
TRACK, UPPER R.H. (ELEC)
TRACK, UPPER R.H. (ELEC) WPL 0310519 Contact Us For Availability
View on Model
NI
SNAP-IN TEE NUT
SNAP-IN TEE NUT WPL Y0088571 Contact Us For Availability
View on Model
NI
CAGE, OVEN LIGHT
CAGE, OVEN LIGHT WPL Y0088635 Contact Us For Availability
View on Model
