Model Whirlpool SBE26CK ELECTRIC RANGE – Common Parts & Diagrams

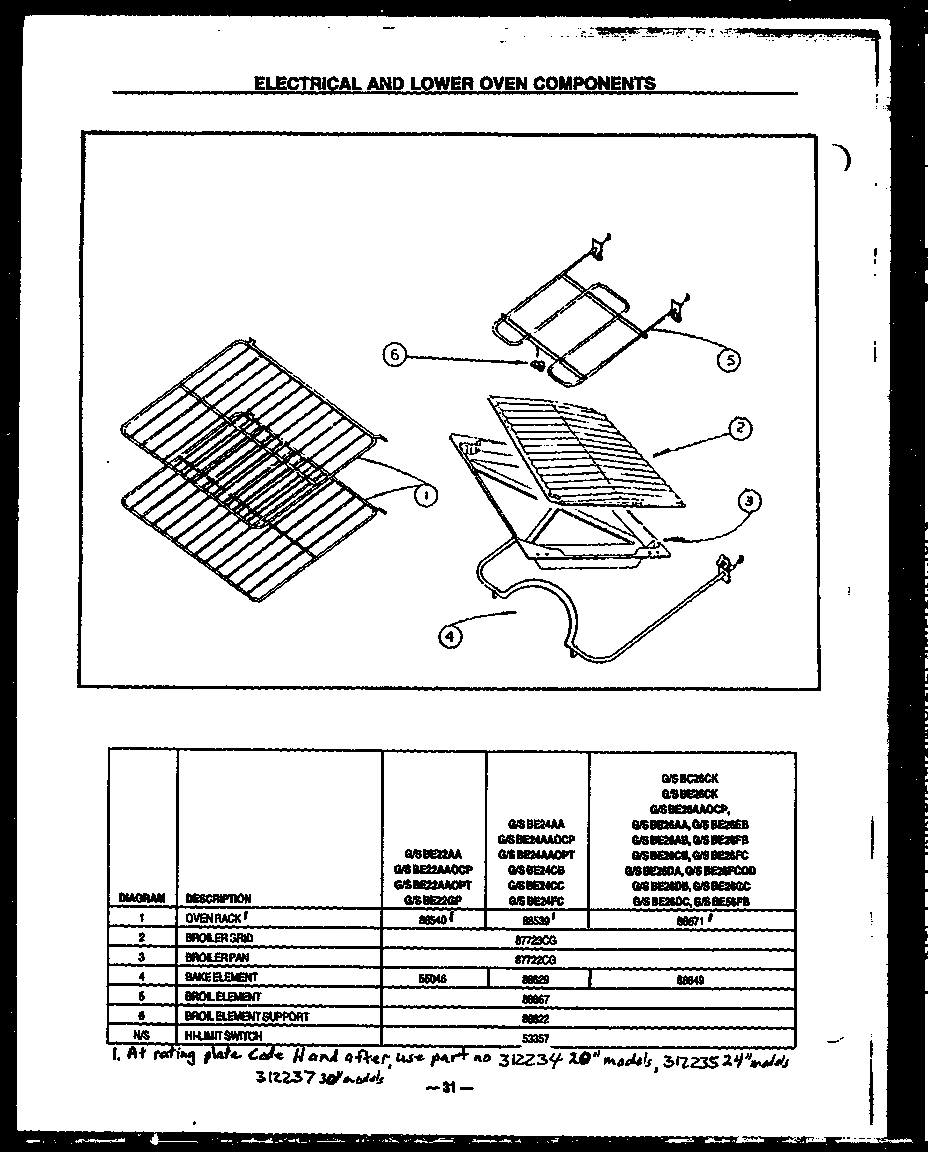

01 - ELECTRICAL AND LOWER OVEN COMPONENTS

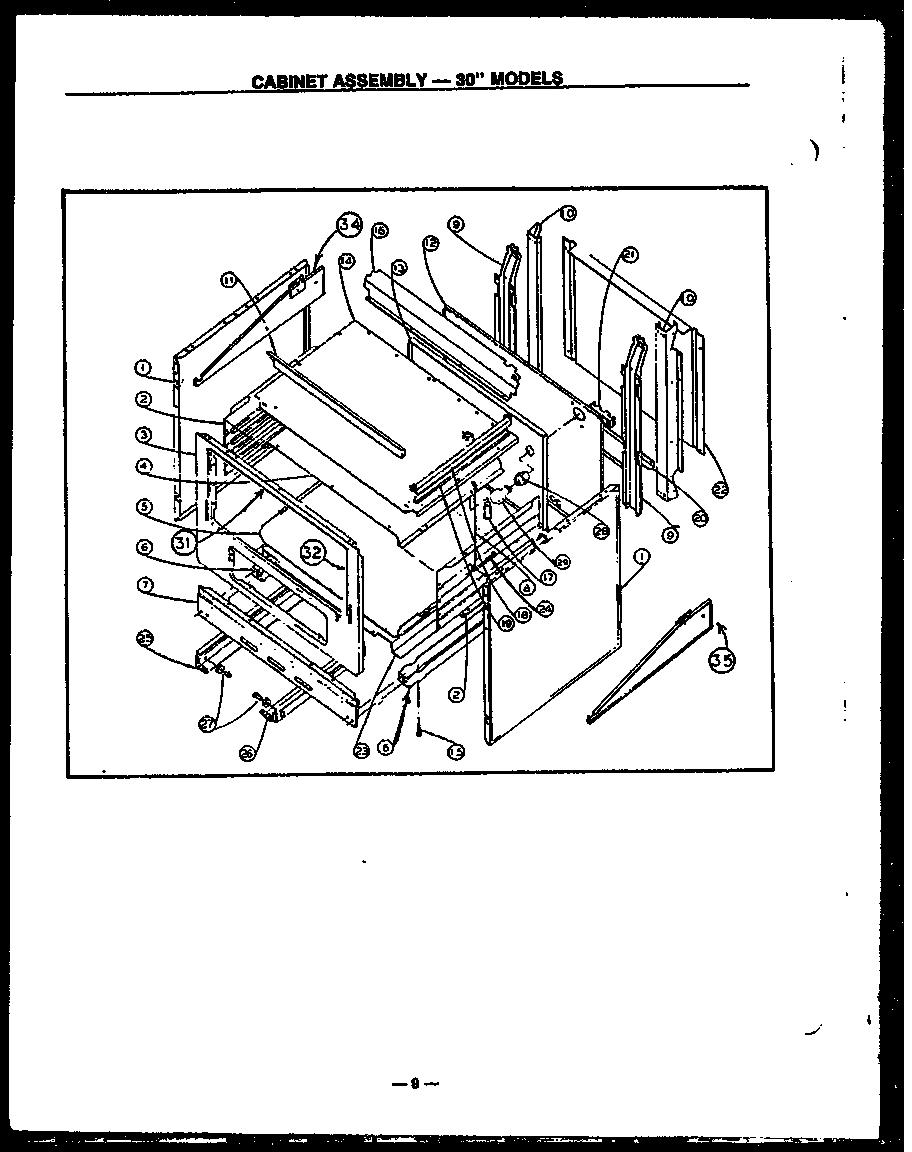

03 - Page 4

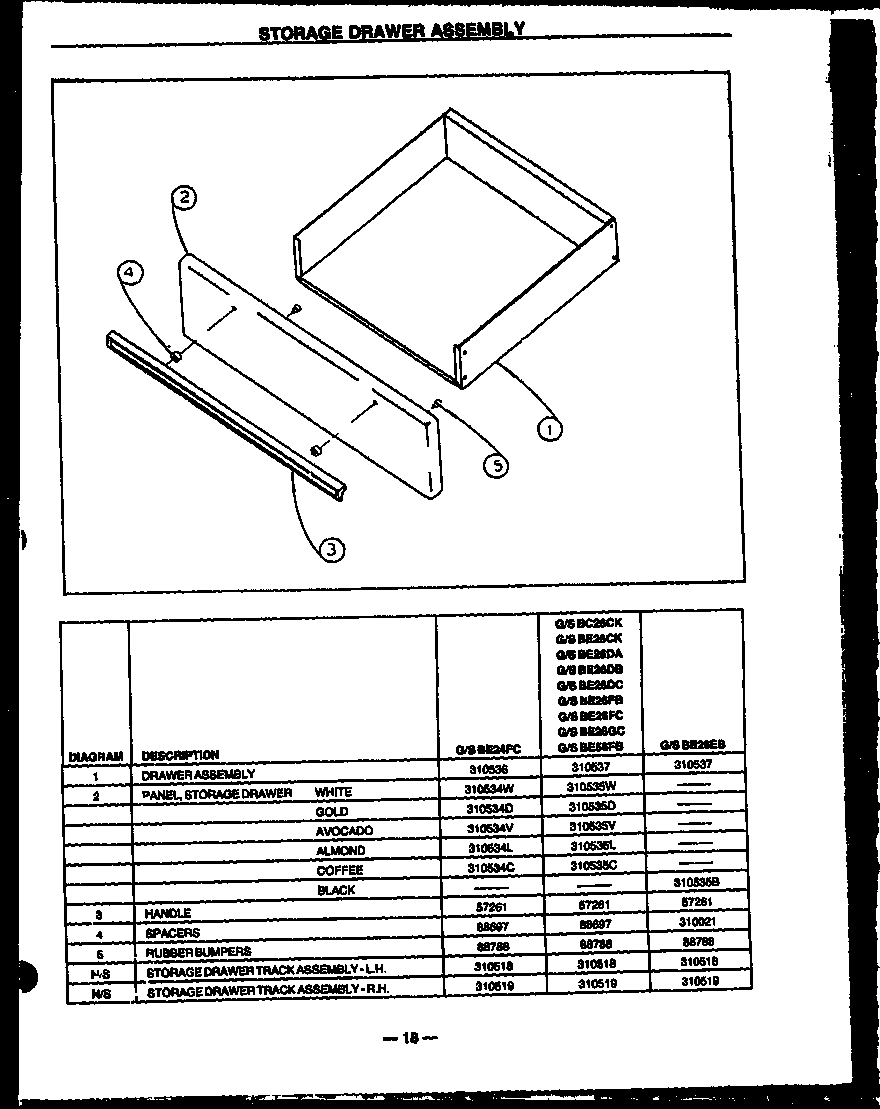

05 - STORAGE DRAWER ASSY

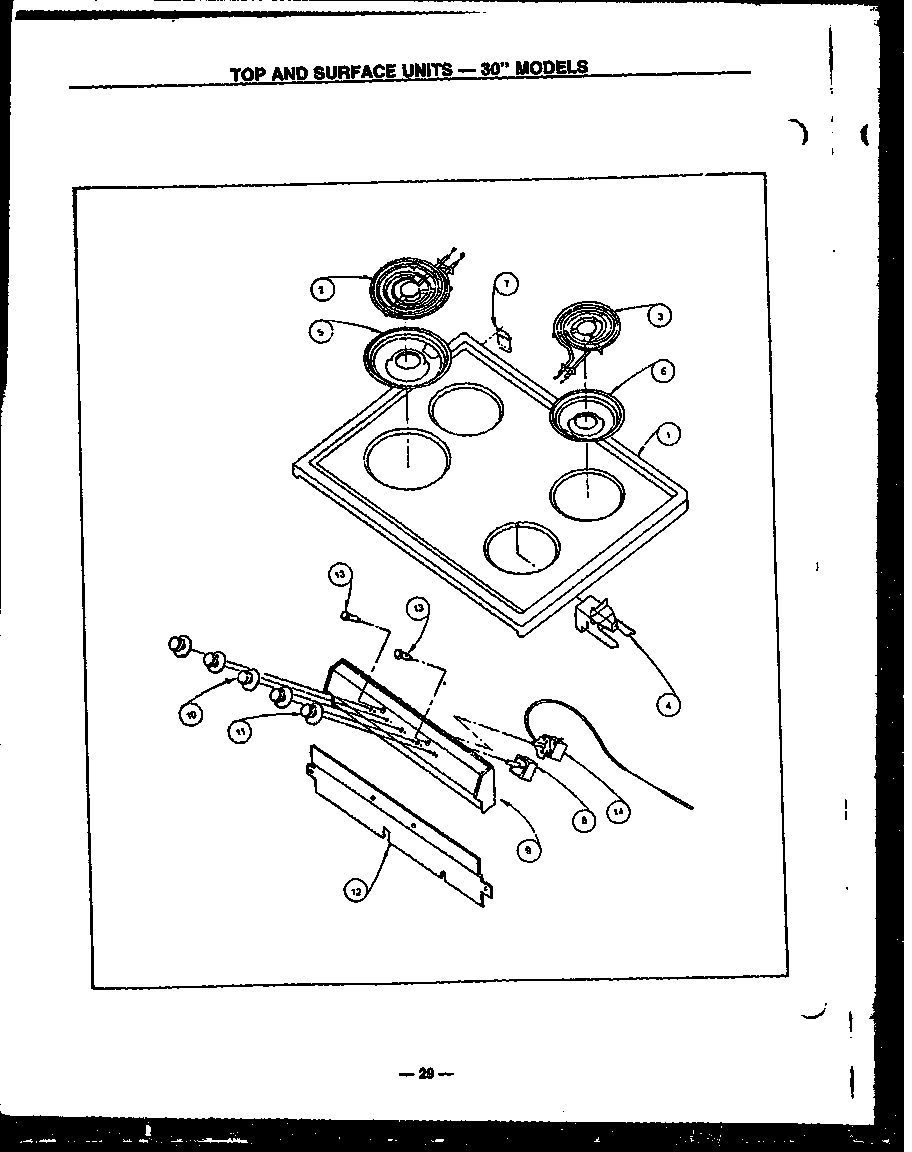

06 - TOP AN SURFACE UNITS-30`` MODELS

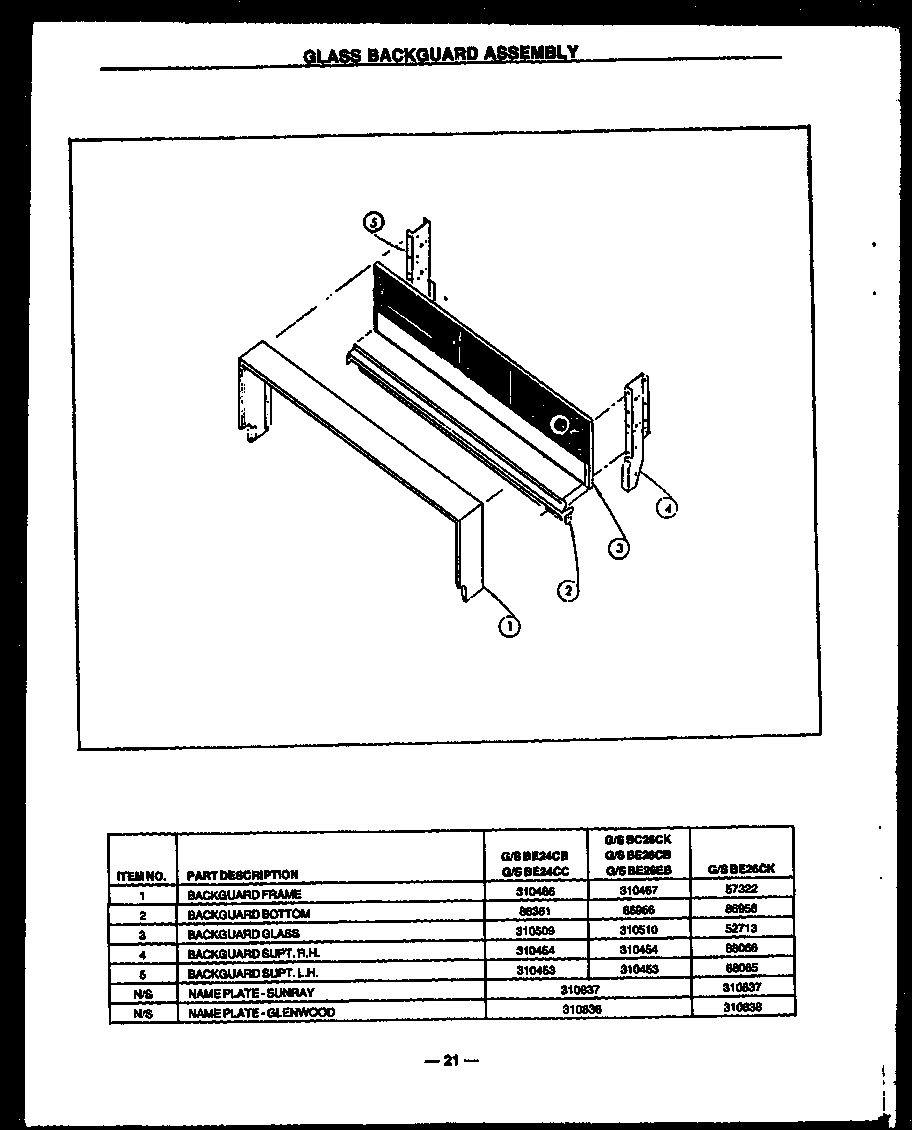

02 - GLASS BACKGUARD ASSY

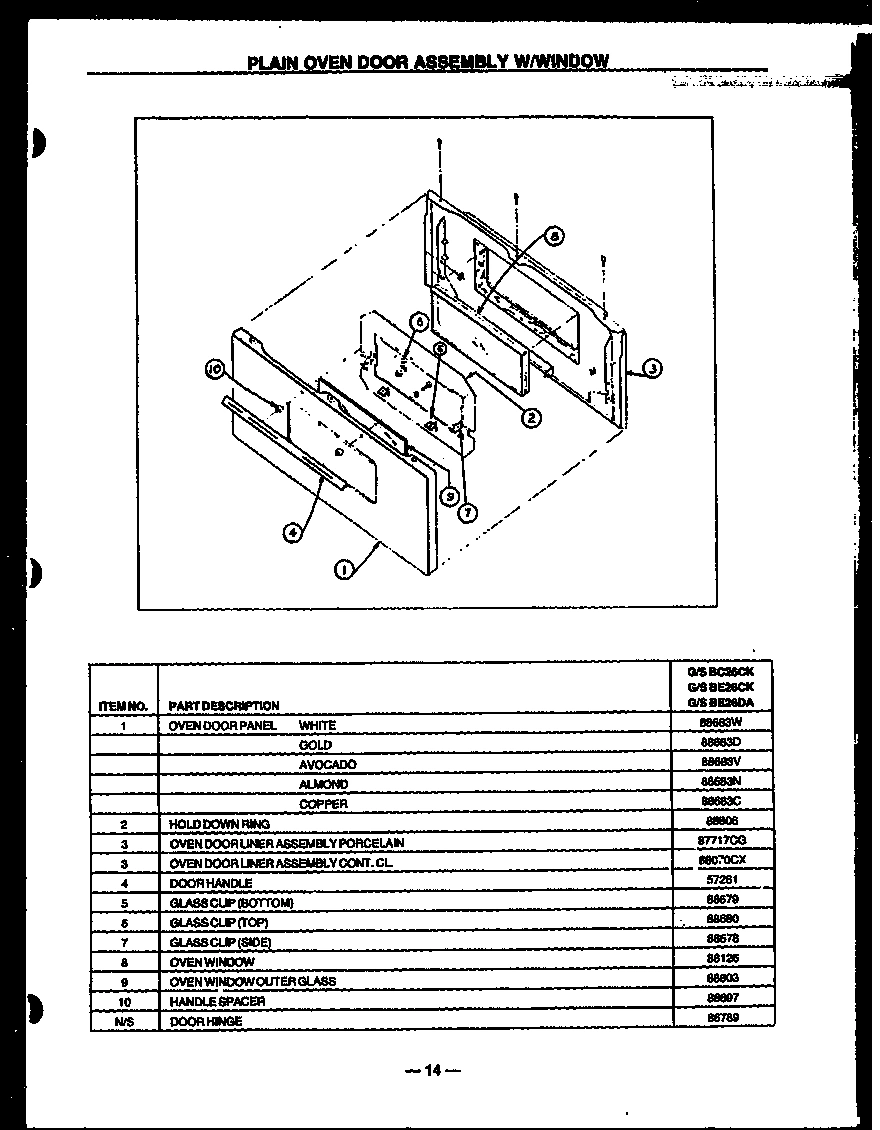

04 - PLAIN OVEN DOOR ASSY W/WINDOW
Common parts from model Whirlpool SBE26CK ELECTRIC RANGE
1
STORAGE DRAWER WPL Y0310537 Contact Us For Availability
1
BACKGUARD FRAME WPL 0057322 Contact Us For Availability
1
OVEN DOOR PNL. W/WINDOW WPL 088683W Contact Us For Availability
1
PANEL, OVEN DOOR ALMOND WPL 88683N Contact Us For Availability
1
OVEN DOOR PNL. W/WINDOW WPL Y088683C Contact Us For Availability
1
OVEN DOOR PNL. W/WINDOW WPL Y088683D Contact Us For Availability
1
OVEN DOOR PNL. W/WINDOW WPL Y088683V Contact Us For Availability
2
PANEL STORAGE DRAWER COFFEE WPL 310535C Contact Us For Availability
2
PANEL, STORAGE DRAWER WPL 310535D Contact Us For Availability
2
PANEL, STORAGE DRAWER WPL 310535L Contact Us For Availability
2
PANEL STORAGE DRAWER AVOCADO WPL 310535V Contact Us For Availability
2
PANEL, STORAGE DRAWER WPL 310535W Contact Us For Availability
2
BASE-BKGD, 30`` W/HOLES WPL Y0086956 Contact Us For Availability
2
HOLD DOWN RING START AT CODE P WPL 88806 Contact Us For Availability
3
BACKGUARD GLASS WPL Y0052713 Contact Us For Availability
3
BACKER, OVEN DOOR WPL 87717CG Contact Us For Availability
3
OVEN DR BACKER, CONT CLN STRT WPL 88070CX Contact Us For Availability
4
SUB 88812, HANDLE OVEN DR {J} WPL Y0057261 Contact Us For Availability
4
SUPPORT, BACKGUARD RH WPL 0088066 Contact Us For Availability
5
BUMPER-RUBBER 1/4`` WPL Y0088788 Contact Us For Availability
5
SUPPORT, BACKGUARD LH WPL 0088065 Contact Us For Availability
5
GLASS CLIP, BOTTOM WPL 0088679 Contact Us For Availability
6
GLASS CLIP, TOP WPL 0088680 Contact Us For Availability
7
GLASS CLIP, SIDE WPL 0088678 Contact Us For Availability
8
SUPPORT ROD WPL 0087023 Contact Us For Availability
8
SUB 88647,WINDOW ASSY DOOR WPL Y0088126 Contact Us For Availability
9
USE 0312089 WPL 0310431 Contact Us For Availability
9
GLASS-WINDOW,OV DR WPL Y0088803 Contact Us For Availability
10
SUPPORT, REAR, VERTICAL {J} WPL 0056477 Contact Us For Availability
10
HANDLE SPACER, PLASTIC (J) WPL Y0088697 Contact Us For Availability
11
KNOB, THERMOSTAT WPL Y0310527 Contact Us For Availability
12
SHIELD, SWITCH COVER WPL 86935CG Contact Us For Availability
14
BURNER BOX WPL Y0311059 Contact Us For Availability
14
THERMO-ELECT. WPL 0088758 Contact Us For Availability
16
COVER, REAR BURNER BOX WPL 311014E Contact Us For Availability
24
SHOULDER SCREW WPL 0088779 Contact Us For Availability
25
TRACK, LOWER L.H. WPL 0310522 Contact Us For Availability
26
TRACK, LOWER R.H. WPL Y0310523 Contact Us For Availability
27
SEE NOTE ROLLER WPL Y00000000 Contact Us For Availability
28
SOCKET, OVEN LIGHT WPL Y0088674 Contact Us For Availability
31
SEAL, OVEN DOOR WPL 0056089 Contact Us For Availability
NI
CAGE, OVEN LIGHT WPL Y0088635 Contact Us For Availability
NI
TRACK, UPPER L.H. (ELEC) WPL 0310518 Contact Us For Availability
NI
TRACK, UPPER R.H. (ELEC) WPL 0310519 Contact Us For Availability
NI
SCREW WPL 0055047 Contact Us For Availability
NI
CLOCK WPL 0310404 Contact Us For Availability
NI
SWITCH, OVEN LIGHT WPL Y0310516 Contact Us For Availability
NI
SUNRAY LABEL WPL 0310837 Contact Us For Availability
NI
NAMEPLATE, GLENWOOD WPL 0310838 Contact Us For Availability
NI
HINGE, OVEN DOOR WPL Y0086789 Contact Us For Availability
× ![]()
