Model Whirlpool SB160PEEQ9 COOKTOP – Common Parts & Diagrams
01 - OVEN
03 - BURNER

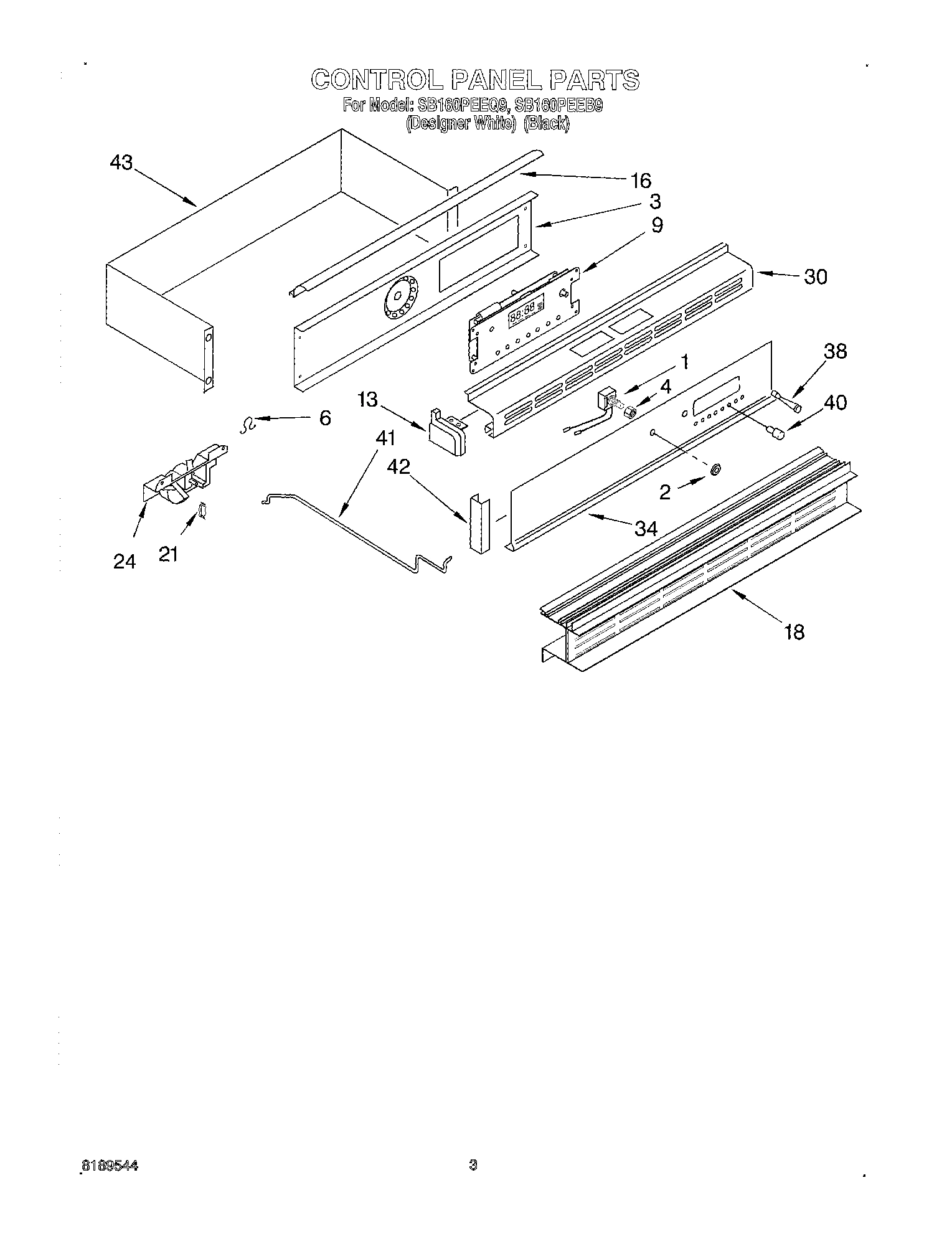

02 - CONTROL PANEL

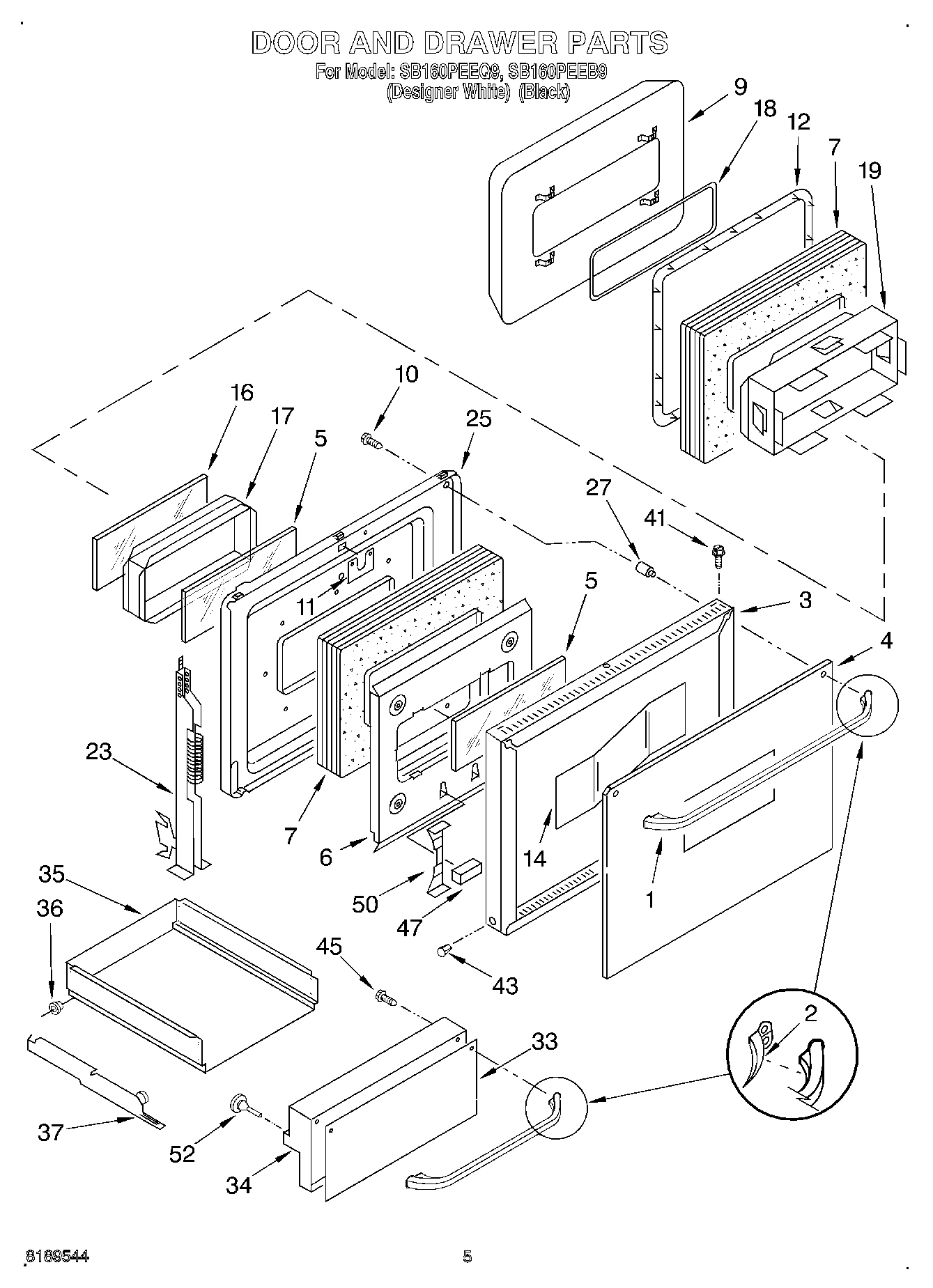

04 - DOOR AND DRAWER, LITERATURE
Common parts from model Whirlpool SB160PEEQ9 COOKTOP
Guide, Use & Care WPL LIT4372833 Contact Us For Availability
Installation Instructions WPL LIT4372908 Contact Us For Availability
Wiring Diagram WPL LIT8189717 Contact Us For Availability
1
Mixer, Broiler WPL 816870 Contact Us For Availability
1
Switch, Oven Light WPL 4372235 Contact Us For Availability
1
Handle, Door (Black) WPL 4372477 Contact Us For Availability
1
Handle, Door (White) WPL 4372558 Contact Us For Availability
2
Retainer-Oven Top WPL 8189553 Contact Us For Availability
2
Bezel, Switch (Black) WPL 4372472 Contact Us For Availability
2
Bezel, Switch (White) WPL 4372551 Contact Us For Availability
2
Endcap, Handle (White) WPL 4372952 Contact Us For Availability
2
Endcap, Handle (Black) WPL 4372953 Contact Us For Availability
3
Shield, Switch Rod WPL 816885 Contact Us For Availability
3
Igniter (Bake) WPL 4372534 Contact Us For Availability
3
Igniter (Broil) WPL 816824 Contact Us For Availability
3
Plate, Instrument Mtg. WPL 4372931 Contact Us For Availability
3
Frame, Oven Door WPL 4372961 Contact Us For Availability
4
Shield, Top And Sides WPL 8189575 Contact Us For Availability
4
Nut, Hex WPL 8189545 Contact Us For Availability
4
Glass, Outer (Black) WPL 4372478 Contact Us For Availability
4
Glass, Outer (White) WPL 4372938 Contact Us For Availability
5
Box, Flue WPL 816852 Contact Us For Availability
5
Glass, Inner (2) WPL 4372939 Contact Us For Availability
6
Insulation, Wrap WPL 8189560 Contact Us For Availability
6
Fitting, Elbow WPL 4372537 Contact Us For Availability
6
Fastener, Wire WPL 4372788 Contact Us For Availability
6
Shield, Heat WPL 4372940 Contact Us For Availability
7
Screw WPL 4371576 Contact Us For Availability
7
Shield, Oven Top WPL 8189552 Contact Us For Availability
7
Insulation, Door WPL 4372479 Contact Us For Availability
8
Insulation, Back WPL 8189559 Contact Us For Availability
8
Elbow, Mixer WPL 816820 Contact Us For Availability
9
Insulation, Bottom WPL 8189558 Contact Us For Availability
9
Clock/Oven Control WPL 4372856 Contact Us For Availability
9
Nut, No.6x32 (4) WPL 786753 Contact Us For Availability
9
Screw, No.6x32x1/2 WPL 816302 Contact Us For Availability
9
Baffle, Door WPL 4372790 Contact Us For Availability
10
Tubing, Mixer WPL 816902 Contact Us For Availability
10
Screw, Door Handle WPL 4372701 Contact Us For Availability
11
Bracket, Safety Valve WPL 4372514 Contact Us For Availability
11
Tubing, Safety Valve WPL 8189551 Contact Us For Availability
11
Plate, Strike WPL 8189581 Contact Us For Availability
12
Box, Burner WPL 8189554 Contact Us For Availability
12
Valve, Safety WPL 816904 Contact Us For Availability
12
Seal, Oven Door WPL 8189582 Contact Us For Availability
13
Bottom, Oven WPL 4372779 Contact Us For Availability
13
End Cap (White (Right)) WPL 4372718 Contact Us For Availability
13
End Cap White (Left Side Black) WPL 4372719 Contact Us For Availability
13
End Cap White (Right Side) WPL 816829 Contact Us For Availability
13
End Cap White (Left Side) WPL 816830 Contact Us For Availability
14
Retainer, Door WPL 816379 Contact Us For Availability
14
Foil, Door WPL 816831 Contact Us For Availability
15
Nut, Wing WPL 816873 Contact Us For Availability
16
Deflector, Heat (Black) WPL 4372700 Contact Us For Availability
16
Deflector, Heat (Screw, No.6x18x1/4 (3)) WPL 487010 Contact Us For Availability
16
Deflector, Heat (White) WPL 8189546 Contact Us For Availability
16
Glass, Inner Door WPL 4372944 Contact Us For Availability
17
Spacer, Glass WPL 4372945 Contact Us For Availability
18
Regulator WPL 816926 Contact Us For Availability
18
Trim, Center Vent (Black) WPL 4372713 Contact Us For Availability
18
Trim, Center Vent (White) WPL 816914 Contact Us For Availability
18
Seal, Rope WPL 4372542 Contact Us For Availability
19
Frame, Front WPL 8189566 Contact Us For Availability
19
Valve, Shut-Off WPL 4372475 Contact Us For Availability
19
Collar, Glass WPL 4372946 Contact Us For Availability
20
Insulation, Flue WPL 8189565 Contact Us For Availability
20
Cord, Power WPL 4372502 Contact Us For Availability
21
Shield, Flue Bottom WPL 4372483 Contact Us For Availability
21
Switch, Latch WPL 8189570 Contact Us For Availability
22
Shield, Flue Top WPL 8189556 Contact Us For Availability
23
Spring, Support WPL 4372501 Contact Us For Availability
23
Hinge, Oven Door WPL 4372962 Contact Us For Availability
24
Support, Oven Front (2) WPL 816893 Contact Us For Availability
24
Screw, No.10x24x1/2 (3) WPL 241428 Contact Us For Availability
24
Motor, Lock WPL 8189569 Contact Us For Availability
25
Clip, Oven Mtg. Adjustment (2) WPL 4372499 Contact Us For Availability
25
Liner, Door WPL 8189583 Contact Us For Availability
26
Switch, Thermo WPL 4372912 Contact Us For Availability
27
Spacer, Handle WPL 816720 Contact Us For Availability
28
Burner, Bake WPL 816825 Contact Us For Availability
30
Trim, Top (Black) WPL 4372529 Contact Us For Availability
30
Trim, Top (White) WPL 4372553 Contact Us For Availability
30
Trim, Top (Screw) WPL 4372720 Contact Us For Availability
31
Retainer, Lens WPL 816291 Contact Us For Availability
32
Lens, Oven Lamp WPL 4372021 Contact Us For Availability
32
Baffle, Bake WPL 8189550 Contact Us For Availability
33
Glass, Drawer Front (White) WPL 4372559 Contact Us For Availability
33
Glass, Drawer Front (Black) WPL 816842 Contact Us For Availability
34
Panel, Control (Black) WPL 4372901 Contact Us For Availability
34
Panel, Control (White) WPL 4372902 Contact Us For Availability
34
Panel, Drawer WPL 816844 Contact Us For Availability
35
Housing, Light WPL 4372613 Contact Us For Availability
35
Burner, Broiler WPL 4372539 Contact Us For Availability
35
Drawer, Utility WPL 4372948 Contact Us For Availability
36
Sensor WPL 4372932 Contact Us For Availability
36
Roller, Drawer WPL 4372949 Contact Us For Availability
37
Rail, Drawer (Right Hand) WPL 816896 Contact Us For Availability
37
Rail, Drawer (Left Hand) WPL 816897 Contact Us For Availability
38
Trim, Inner (Left Side) WPL 4372782 Contact Us For Availability
38
Trim, Inner (Right Side) WPL 4372783 Contact Us For Availability
38
Shield, Broiler WPL 4372789 Contact Us For Availability
38
Screw, No.10x24x5/8 WPL 816270 Contact Us For Availability
38
Shaft, Button WPL 4372907 Contact Us For Availability
39
Shield, Insulation (Base) WPL 4372957 Contact Us For Availability
40
Liner, Oven WPL 4372956 Contact Us For Availability
40
Baffle, Broiler WPL 816827 Contact Us For Availability
40
Button, Control (9) (Black) WPL 4372532 Contact Us For Availability
40
Button, Control (9) (White) WPL 4372555 Contact Us For Availability
41
Cover, Hinge WPL 4372639 Contact Us For Availability
41
Rod, Latch Support WPL 8189568 Contact Us For Availability
41
Screw, 8-18 x 3/8 WPL 4372954 Contact Us For Availability
42
Wrapper, Back WPL 8189571 Contact Us For Availability
42
Trim, Control Panel (2) (Black) WPL 4372697 Contact Us For Availability
42
Trim, Control Panel (2) (White) WPL 4372721 Contact Us For Availability
43
Shield, Controls WPL 816907 Contact Us For Availability
43
Screw, No.8x22x5/16 (8) WPL 313823 Contact Us For Availability
43
Plug, Button WPL 816505 Contact Us For Availability
45
Screw, Handle WPL 4372548 Contact Us For Availability
46
Shield, Body Sides WPL 816886 Contact Us For Availability
47
Spacer WPL 4372955 Contact Us For Availability
49
Trim, Outer Side (White) WPL 4372933 Contact Us For Availability
49
Trim, Outer Side (Black) WPL 4372934 Contact Us For Availability
50
Shield, Insulation WPL 816880 Contact Us For Availability
50
Bracket, Glass WPL 4372714 Contact Us For Availability
51
Rack, Oven WPL 4372521 Contact Us For Availability
52
Pan, Broiler WPL 4372786 Contact Us For Availability
52
Bumper, Drawer WPL 816608 Contact Us For Availability
53
Grid, Broiler Pan WPL 4372787 Contact Us For Availability
56
Blower WPL 8189573 Contact Us For Availability
58
Bracket, Thermostat WPL 4372523 Contact Us For Availability
61
Shield, Rear WPL 8189557 Contact Us For Availability
62
Adapter, Fluebox WPL 8189572 Contact Us For Availability
63
Channel, Hinge (2) WPL 4372634 Contact Us For Availability
64
Insulation, Bottom (Sides (2)) WPL 8189562 Contact Us For Availability
64
Insulation, Bottom (Front) WPL 8189563 Contact Us For Availability
65
Switch, Light WPL 4372841 Contact Us For Availability
66
Shield, Lower Oven WPL 816881 Contact Us For Availability
67
Shi WPL 8189555 Contact Us For Availability
68
WPL 4372705 WPL 4372705 Contact Us For Availability
68
WPL 4372715 WPL 4372715 Contact Us For Availability
68
WPL 816410 WPL 816410 Contact Us For Availability
69
WPL 816387 WPL 816387 Contact Us For Availability
69
WPL 816865 WPL 816865 Contact Us For Availability
69
WPL 816869 WPL 816869 Contact Us For Availability
69
WPL 8189574 WPL 8189574 Contact Us For Availability
× ![]()
