Model Whirlpool SB160PEDB0 – Common Parts & Diagrams
02 - CONTROL PANEL
04 - DOOR AND DRAWER, LITERATURE

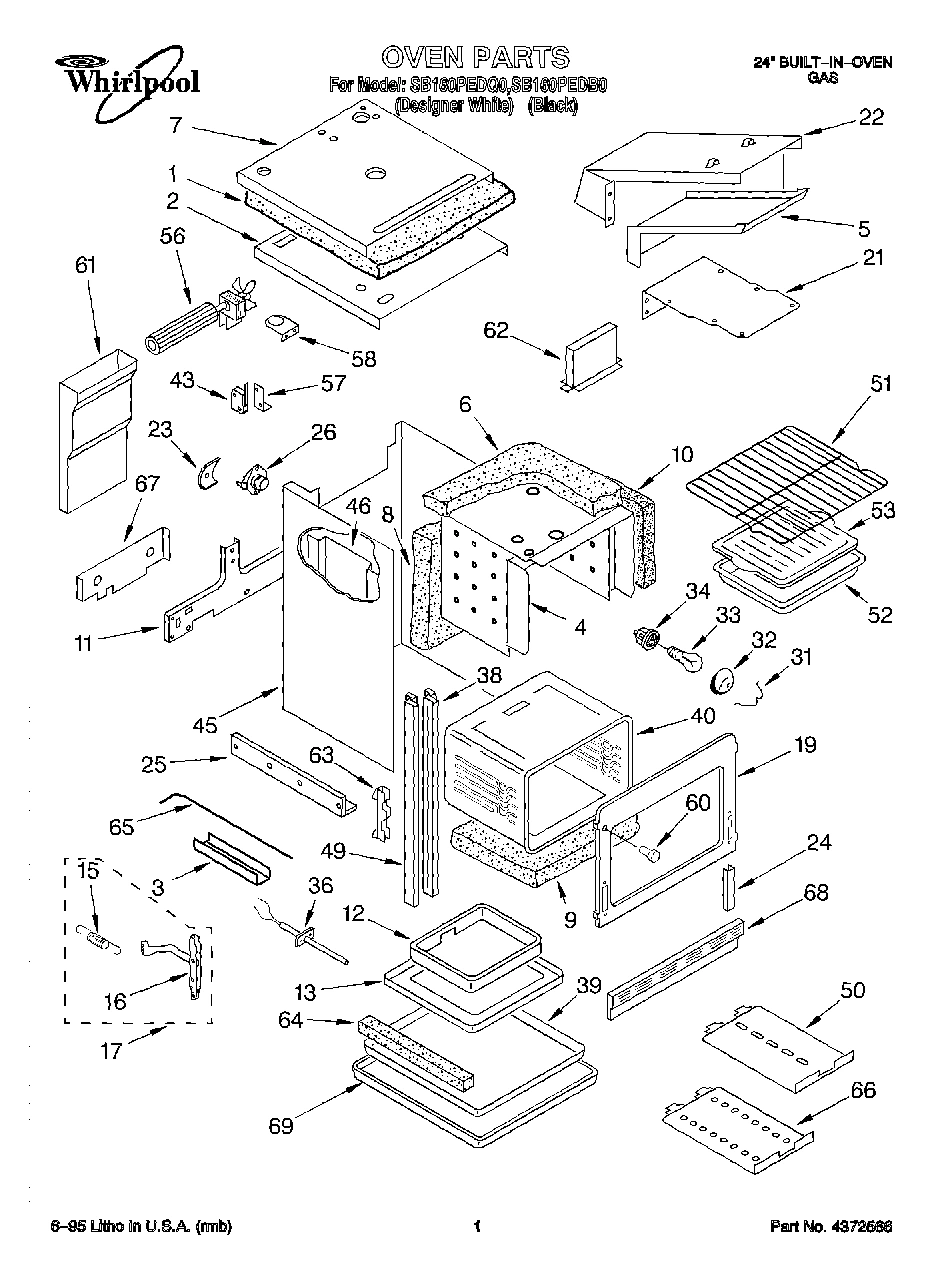

01 - OVEN

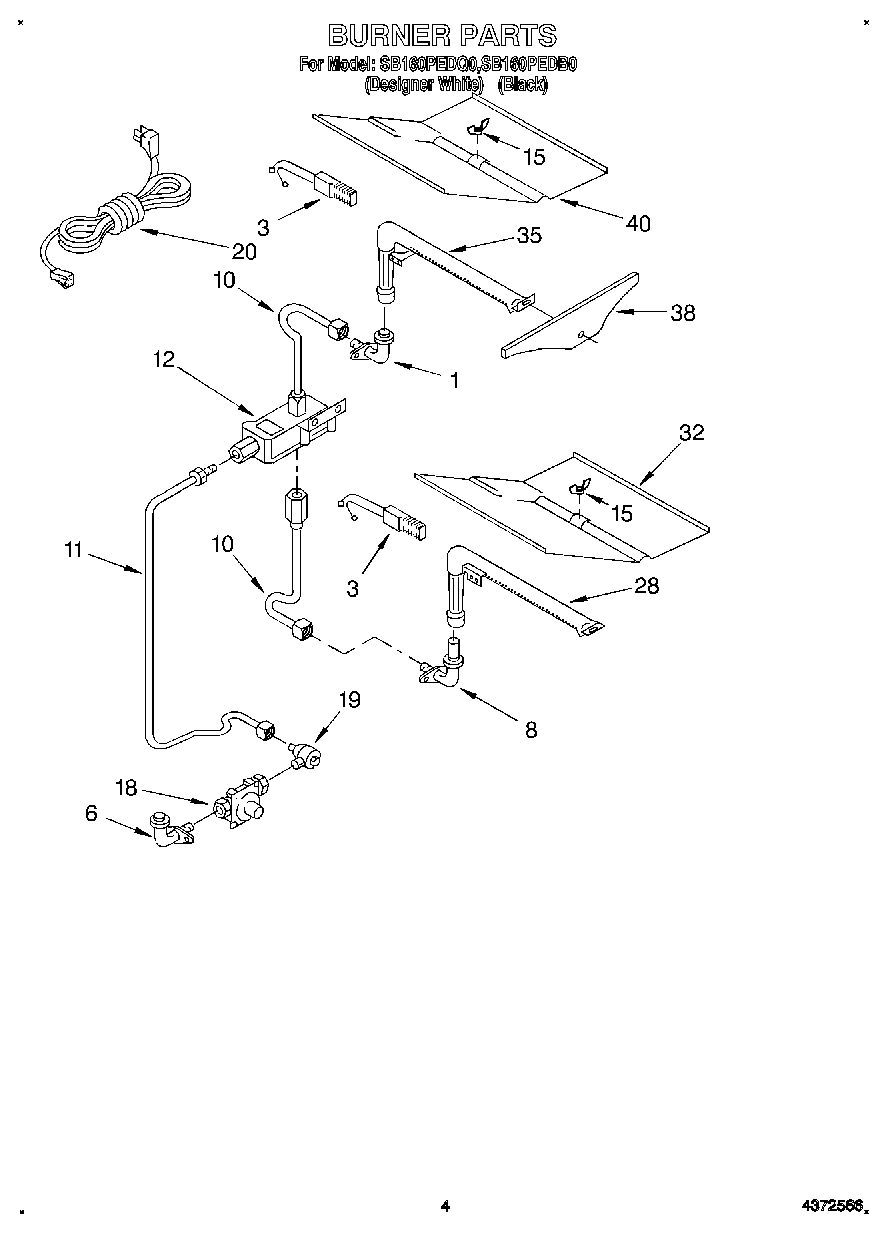

03 - BURNER
Common parts from model Whirlpool SB160PEDB0
Guide, Use & Care WPL LIT4363412 Contact Us For Availability
Installation Instructions WPL LIT4371010 Contact Us For Availability
Wiring Diagram WPL LIT4372536 Contact Us For Availability
1
Baffle, Door WPL 4372541 Contact Us For Availability
1
Insulation, Top WPL 816860 Contact Us For Availability
1
Mixer, Broiler WPL 816870 Contact Us For Availability
2
Bezel, Switch (White) WPL 4372551 Contact Us For Availability
2
Seal, Window WPL 4372542 Contact Us For Availability
2
Retainer-Oven Top WPL 816906 Contact Us For Availability
3
Plate, Instrument Mtg. WPL 4372166 Contact Us For Availability
3
Insulation, Door WPL 4372543 Contact Us For Availability
3
Shield, Switch Rod WPL 816885 Contact Us For Availability
3
Igniter (Bake) WPL 4372534 Contact Us For Availability
3
Igniter (Broiler Burner) WPL 4372535 Contact Us For Availability
3
Igniter (Screw, No.8x32x3/8 (2)) WPL 877919 Contact Us For Availability
4
Seal-Oven Door WPL 816838 Contact Us For Availability
4
Shield, Top And Sides WPL 816888 Contact Us For Availability
5
Box, Flue WPL 816852 Contact Us For Availability
6
Fastener, Wire WPL 816812 Contact Us For Availability
6
Liner, Door WPL 4372544 Contact Us For Availability
6
Insulation WPL 816861 Contact Us For Availability
6
Fitting, Elbow WPL 4372537 Contact Us For Availability
7
Screw, No.8x22x5/16 (10) WPL 313823 Contact Us For Availability
7
Shield, Oven Top WPL 816909 Contact Us For Availability
8
Base, Latch Motor WPL 816857 Contact Us For Availability
8
Insulation, Back WPL 816867 Contact Us For Availability
8
Elbow, Mixer WPL 816820 Contact Us For Availability
9
Nut, No.6x32 (4) WPL 786753 Contact Us For Availability
9
Screw, No.6x32x1/2 WPL 816302 Contact Us For Availability
9
Clock/Oven Control WPL 816874 Contact Us For Availability
9
Insulation, Bottom WPL 816864 Contact Us For Availability
10
Glass, Outer Door (Black) WPL 4372478 Contact Us For Availability
10
Glass, Outer Door (White) WPL 4372557 Contact Us For Availability
10
Insulation, Top & Sides WPL 816866 Contact Us For Availability
10
Tubing, Mixer WPL 816902 Contact Us For Availability
11
Bracket, Safety Valve WPL 4372514 Contact Us For Availability
11
Tubing, Safety Valve WPL 816903 Contact Us For Availability
12
Screw, No.8x18x1/2 (3) WPL 3149333 Contact Us For Availability
12
Frame, Door WPL 816840 Contact Us For Availability
12
Box, Burner WPL 816923 Contact Us For Availability
12
Valve, Safety WPL 816904 Contact Us For Availability
13
End Cap (Black RH) WPL 816829 Contact Us For Availability
13
End Cap (Black LH) WPL 816830 Contact Us For Availability
13
End Cap White (Right Side) WPL 816912 Contact Us For Availability
13
End Cap (White LH) WPL 816913 Contact Us For Availability
13
Handle, Door (Black) WPL 4372477 Contact Us For Availability
13
Handle, Door (White) WPL 4372558 Contact Us For Availability
13
Handle, Door (Screw, No.10x24x21/4 (2)) WPL 816359 Contact Us For Availability
13
Bottom, Oven WPL 4372163 Contact Us For Availability
15
Spring, Door (2) WPL 4372517 Contact Us For Availability
15
Nut, Wing WPL 816873 Contact Us For Availability
16
Deflector, Heat (Screw, No.6x18x1/4 (3)) WPL 487010 Contact Us For Availability
16
Deflector, Heat (Black) WPL 816850 Contact Us For Availability
16
Deflector, Heat (White) WPL 816917 Contact Us For Availability
16
Glass, Inner WPL 816377 Contact Us For Availability
16
Hinge, Door (2) WPL 4372518 Contact Us For Availability
17
Hinge Assembly WPL 4372516 Contact Us For Availability
18
Trim, Center Vent (Black) WPL 816847 Contact Us For Availability
18
Trim, Center Vent (White) WPL 816914 Contact Us For Availability
18
Regulator WPL 816926 Contact Us For Availability
19
Frame, Front WPL 4372162 Contact Us For Availability
19
Valve, Shut-Off WPL 4372475 Contact Us For Availability
20
Strike WPL 877507 Contact Us For Availability
20
Cord, Power WPL 4372502 Contact Us For Availability
21
Shield, Flue Bottom WPL 4372483 Contact Us For Availability
22
Shield, Flue Top WPL 816890 Contact Us For Availability
23
Glass, Inner Door WPL 816513 Contact Us For Availability
23
Spring, Support WPL 4372501 Contact Us For Availability
24
Motor, Lock WPL 816871 Contact Us For Availability
24
Support, Oven Front (2) WPL 816893 Contact Us For Availability
25
Stud, Latch WPL 4371168 Contact Us For Availability
25
Screw, No.6x32x1/2 (6) WPL 816325 Contact Us For Availability
25
Button, Plug WPL 816505 Contact Us For Availability
25
Clip, Oven Mtg. Adjustment (2) WPL 4372499 Contact Us For Availability
26
Switch, Thermo WPL 816894 Contact Us For Availability
27
Lever, Lock WPL 4371167 Contact Us For Availability
27
Spacer, Handle WPL 816720 Contact Us For Availability
28
Collar, Glass WPL 816509 Contact Us For Availability
28
Burner, Bake WPL 816825 Contact Us For Availability
29
Knob, Clock (Black) WPL 4372528 Contact Us For Availability
29
Knob, Clock (White) WPL 4372552 Contact Us For Availability
29
Panel, Airwash WPL 816508 Contact Us For Availability
30
Trim, Top (Black) WPL 4372529 Contact Us For Availability
30
Trim, Top (White) WPL 4372553 Contact Us For Availability
30
Screw, No.8x18x3/8 (4) WPL 816755 Contact Us For Availability
30
Drawer, Storage WPL 816841 Contact Us For Availability
31
Roller WPL 4372547 Contact Us For Availability
31
Retainer, Lens WPL 816291 Contact Us For Availability
32
Panel, Inner Door WPL 816844 Contact Us For Availability
32
Lens, Oven Lamp WPL 4372021 Contact Us For Availability
32
Baffle, Bake WPL 4372538 Contact Us For Availability
33
Panel, Glass (White) WPL 4372559 Contact Us For Availability
33
Panel, Glass (Black) WPL 816842 Contact Us For Availability
34
Panel, Control (Black) WPL 4372531 Contact Us For Availability
34
Panel, Control (White) WPL 4372554 Contact Us For Availability
34
Handle, Drawer (Black) WPL 816834 Contact Us For Availability
34
Handle, Drawer (White) WPL 816982 Contact Us For Availability
34
Socket, Lamp WPL 4372491 Contact Us For Availability
35
Spacer, Handle (White) WPL 4372282 Contact Us For Availability
35
Spacer, Handle (Black) WPL 816440 Contact Us For Availability
35
Burner, Broiler WPL 4372539 Contact Us For Availability
36
Track, Drawer (Right Side) WPL 816896 Contact Us For Availability
36
Track, Drawer (Left Side) WPL 816897 Contact Us For Availability
36
Sensor WPL 816877 Contact Us For Availability
38
Screw, No.10x24x5/8 WPL 816270 Contact Us For Availability
38
Trim, Inner (Right Side) WPL 816899 Contact Us For Availability
38
Trim, Inner (Left Side) WPL 816900 Contact Us For Availability
38
Shield, Broil Burner WPL 4372164 Contact Us For Availability
39
Housing, Latch WPL 4371174 Contact Us For Availability
39
Shield, Insulation (Base) WPL 816883 Contact Us For Availability
40
Screw, No.10x24x1/2 (4) WPL 241428 Contact Us For Availability
40
Button, Control (9) (Black) WPL 4372532 Contact Us For Availability
40
Button, Control (9) (White) WPL 4372555 Contact Us For Availability
40
Liner, Oven WPL 4372165 Contact Us For Availability
40
Baffle, Broiler WPL 816827 Contact Us For Availability
41
Rod, Latch Support WPL 4372533 Contact Us For Availability
42
Trim, Control Panel (2) (White) WPL 4372556 Contact Us For Availability
42
Trim, Control Panel (2) (Black) WPL 816898 Contact Us For Availability
43
Shield, Controls WPL 816907 Contact Us For Availability
43
Screw, No.4x40x1 (2) WPL 310211 Contact Us For Availability
43
Switch, Oven Light WPL 816895 Contact Us For Availability
45
Wrapper, Back And Sides WPL 816905 Contact Us For Availability
46
Shield, Body Sides WPL 816886 Contact Us For Availability
49
Trim, Outer Side (Black) WPL 816848 Contact Us For Availability
49
Trim, Outer Side (White) WPL 816915 Contact Us For Availability
50
Bottom, Oven WPL 816887 Contact Us For Availability
51
Rack, Oven WPL 4372521 Contact Us For Availability
52
Pan, Broiler WPL 816382 Contact Us For Availability
53
Grid, Broiler Pan WPL 4371169 Contact Us For Availability
56
Blower WPL 816813 Contact Us For Availability
57
Bracket, Switch Mounting WPL 4372522 Contact Us For Availability
58
Bracket, Thermostat WPL 4372523 Contact Us For Availability
60
Bumper (2) WPL 816608 Contact Us For Availability
61
Duct, Blower Motor WPL 816846 Contact Us For Availability
62
Adaptor, Fluebox WPL 816851 Contact Us For Availability
63
Channel, Hinge WPL 816388 Contact Us For Availability
64
WPL 816862 WPL 816862 Contact Us For Availability
64
WPL 816863 WPL 816863 Contact Us For Availability
65
WPL 816879 WPL 816879 Contact Us For Availability
66
WPL 816880 WPL 816880 Contact Us For Availability
67
WPL 4372524 WPL 4372524 Contact Us For Availability
68
WPL 4372503 WPL 4372503 Contact Us For Availability
68
WPL 816410 WPL 816410 Contact Us For Availability
68
WPL 816921 WPL 816921 Contact Us For Availability
69
WPL 4372495 WPL 4372495 Contact Us For Availability
69
WPL 816387 WPL 816387 Contact Us For Availability
69
WPL 816865 WPL 816865 Contact Us For Availability
69
WPL 816869 WPL 816869 Contact Us For Availability
× ![]()
