Model Whirlpool SB130PER5 – Common Parts & Diagrams
05 - CONTROL PANEL
01 - EXTERNAL OVEN

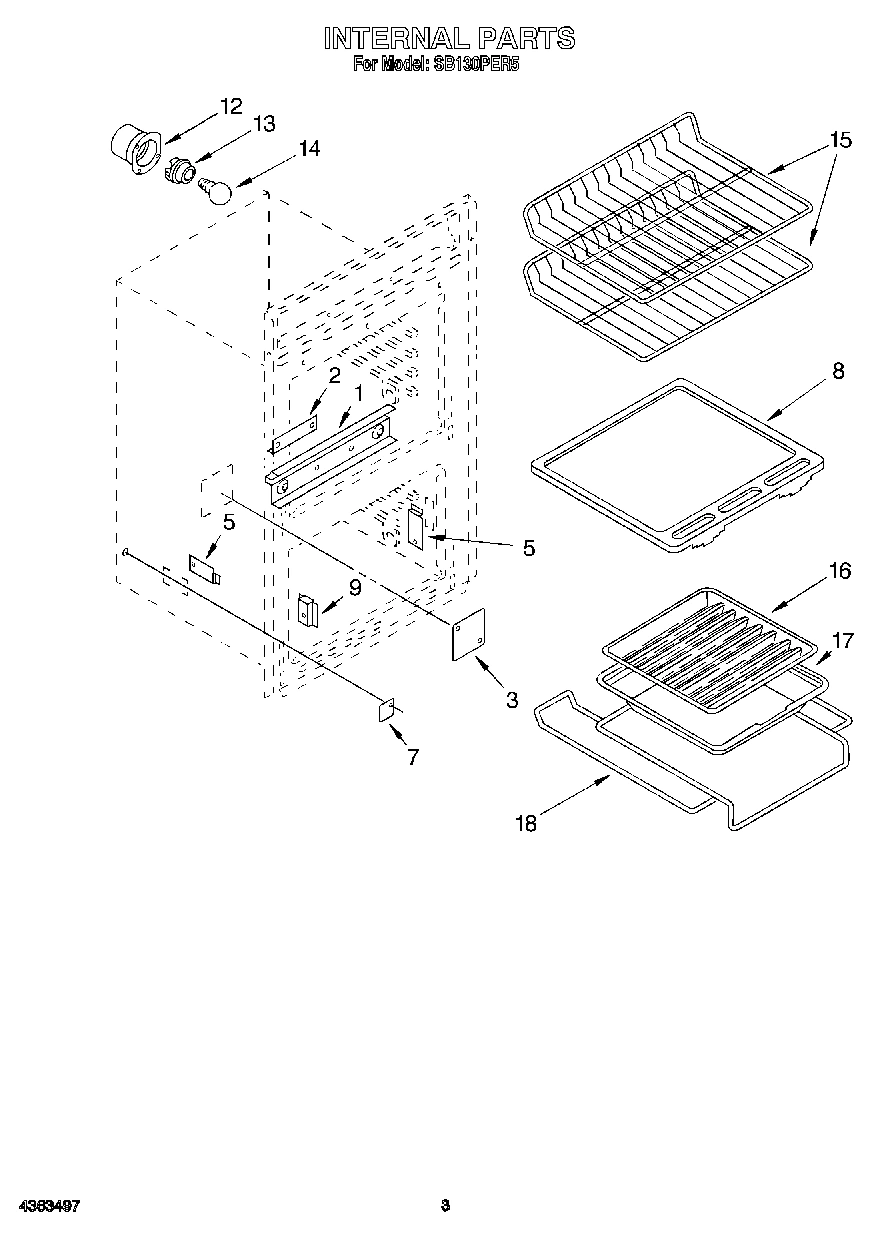

02 - INTERNAL

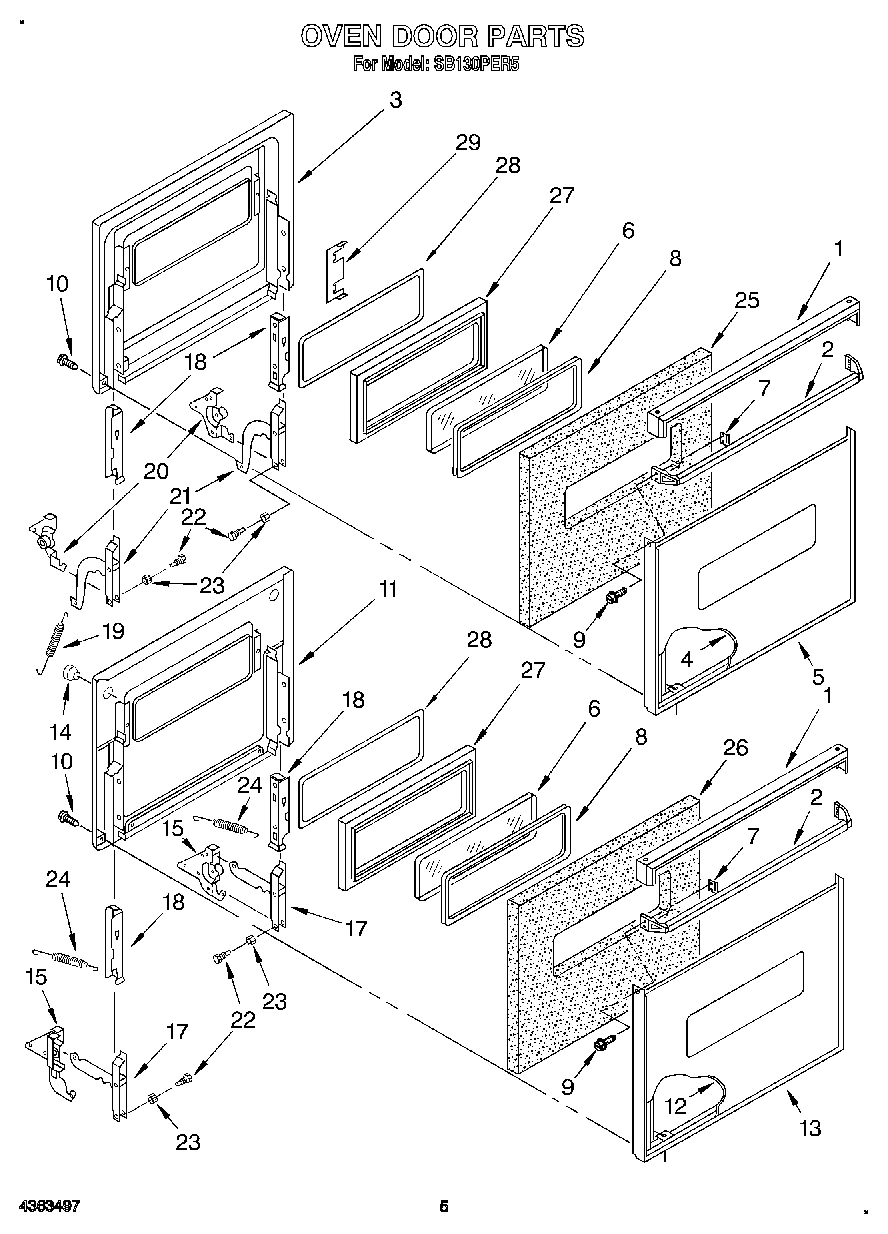

04 - OVEN DOOR, LIT/OPTIONAL

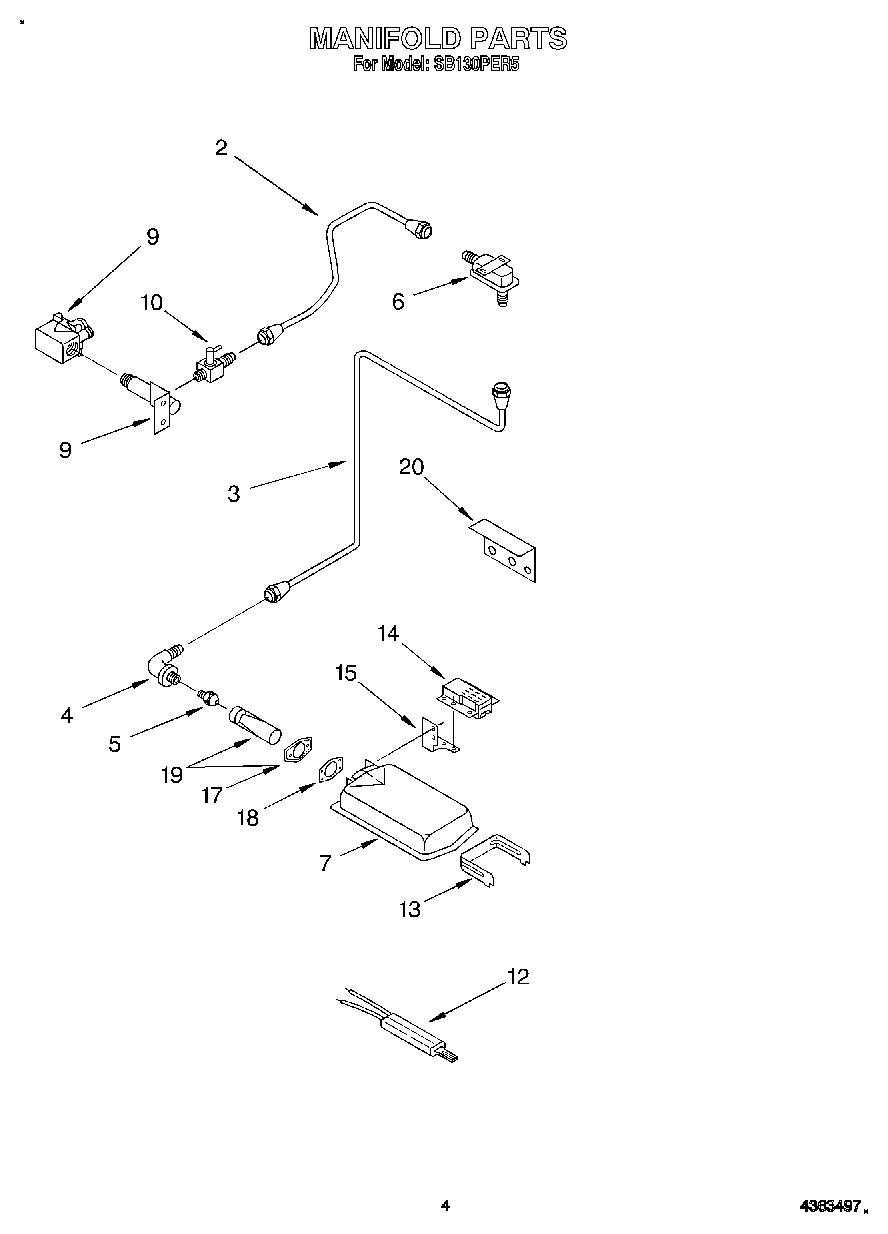

03 - MANIFOLD
Common parts from model Whirlpool SB130PER5
Guide, Use & Care WPL LIT4363083 Contact Us For Availability
Instructions, Installation WPL LIT4363390 Contact Us For Availability
Diagram, Wiring WPL LIT4363496 Contact Us For Availability
Guide, Cooking WPL LIT786302 Contact Us For Availability
1
Chassis (Not Serviceable) WPL ARI128639A Contact Us For Availability
1
Support, Channel WPL 4157252 Contact Us For Availability
1
Screw WPL 4157314 Contact Us For Availability
1
Frame, Top WPL 4157273 Contact Us For Availability
1
Inlet Pipe WPL 4362979 Contact Us For Availability
2
Trim, Chassis WPL 4363658 Contact Us For Availability
2
Support, Burner WPL 4157245 Contact Us For Availability
2
Handle WPL 4157274 Contact Us For Availability
2
Tubing 3/8`` (inlet To Gas Valve) WPL 4362978 Contact Us For Availability
3
Knob, Light Switch & Clock WPL 786434 Contact Us For Availability
3
Screw WPL 4157269 Contact Us For Availability
3
Plate, Cover WPL 4363498 Contact Us For Availability
3
Liner, Oven Door WPL 4363684 Contact Us For Availability
3
Tubing 3/8`` (Gas Valve To Orfice Fitting) WPL 4362980 Contact Us For Availability
4
Channel, Glass (2) WPL 4157288 Contact Us For Availability
4
Glass, Outer (Oven) WPL 4363681 Contact Us For Availability
4
Fitting, Orfice WPL 4157305 Contact Us For Availability
5
Glass, Control Panel WPL 4363096 Contact Us For Availability
5
Screw WPL 4157116 Contact Us For Availability
5
Panel, Side (2) WPL 4157248 Contact Us For Availability
5
Cover, Spring (3) WPL 4157272 Contact Us For Availability
5
Orifice (No.56 L.P. Gas) WPL 4157307 Contact Us For Availability
5
Frame, Bottom (Oven) WPL 4157277 Contact Us For Availability
5
Orifice (No.50 Nat. Gas) WPL 786308 Contact Us For Availability
6
Bracket WPL 4363097 Contact Us For Availability
6
Panel, Rear WPL 4157261 Contact Us For Availability
6
Window WPL 4363683 Contact Us For Availability
6
Valve, Electric WPL 4179135 Contact Us For Availability
7
Switch, Light WPL 4363678 Contact Us For Availability
7
Retainer, Insulation WPL 4179134 Contact Us For Availability
7
Cover, Oven Back WPL 4157257 Contact Us For Availability
7
Spacer Plate WPL 4157279 Contact Us For Availability
7
Ultra-Ray Burner WPL 4362744 Contact Us For Availability
8
Nut WPL 4157318 Contact Us For Availability
8
Timer WPL 4363095 Contact Us For Availability
8
Screw WPL 4157320 Contact Us For Availability
8
Panel, Top WPL 4157638 Contact Us For Availability
8
Bottom, Oven WPL 4315141 Contact Us For Availability
8
Gasket WPL 4363682 Contact Us For Availability
9
Indicator Light WPL 786433 Contact Us For Availability
9
Box, Orfice WPL 4157271 Contact Us For Availability
9
Screw WPL 4157281 Contact Us For Availability
9
Regulator, Pressure WPL 4363447 Contact Us For Availability
10
Screw WPL 4157316 Contact Us For Availability
10
Flueway WPL 4157631 Contact Us For Availability
10
Valve, Shut Off WPL 4362689 Contact Us For Availability
11
Cover, Flueway WPL 4157264 Contact Us For Availability
11
Liner, Broiler Door WPL 4363690 Contact Us For Availability
12
Switch, Selector WPL 4363337 Contact Us For Availability
12
Housing, Light WPL 786743 Contact Us For Availability
12
Glass, Outer (Broiler) WPL 4363689 Contact Us For Availability
13
Knob, Selector WPL 4363336 Contact Us For Availability
13
Leg, Leveling (4) WPL 4157246 Contact Us For Availability
13
Socket, Light WPL 4157297 Contact Us For Availability
13
Frame, Bottom (Broiler) WPL 4157284 Contact Us For Availability
13
Support WPL 4362981 Contact Us For Availability
14
Cord, Power WPL 4363657 Contact Us For Availability
14
Nut (4) WPL 786741 Contact Us For Availability
14
Bumper (2) WPL 4157285 Contact Us For Availability
14
Shield WPL 4157301 Contact Us For Availability
15
Clamp, Cord WPL 4157298 Contact Us For Availability
15
Shield, Wire (2) WPL 4179140 Contact Us For Availability
15
Rack, Oven WPL 4157230 Contact Us For Availability
15
Hinge (Left Hand) WPL 4363673 Contact Us For Availability
15
Hinge (Right Hand) WPL 4363674 Contact Us For Availability
15
Bracket WPL 4157472 Contact Us For Availability
15
Screw WPL 4363530 Contact Us For Availability
15
nut WPL 786753 Contact Us For Availability
16
Thermostat WPL 4363060 Contact Us For Availability
16
Cover, Light WPL 4157296 Contact Us For Availability
16
Grid, Broiler WPL 4362695 Contact Us For Availability
16
Glide, Hinge (4) WPL 4315548 Contact Us For Availability
17
Shield, Heat WPL 4157268 Contact Us For Availability
17
Pan, Broiler WPL 4363570 Contact Us For Availability
17
Arm, Hinge WPL 4363672 Contact Us For Availability
17
Flange, Mounting WPL 4362746 Contact Us For Availability
18
Bushing, Clock WPL 4315007 Contact Us For Availability
18
Cover, Orfice WPL 4157367 Contact Us For Availability
18
Rack, Broiler WPL 4363098 Contact Us For Availability
18
Socket, Hinge (Screw) WPL 4363526 Contact Us For Availability
18
Socket, Hinge (Left Hand) WPL 4363675 Contact Us For Availability
18
Socket, Hinge (Right Hand) WPL 4363676 Contact Us For Availability
18
Gasket, Venturi WPL 4362745 Contact Us For Availability
19
Bracket, Thermostat WPL 4321104 Contact Us For Availability
19
Spring, Oven Door WPL 4157236 Contact Us For Availability
19
Tube, Venturi WPL 4362747 Contact Us For Availability
20
Gasket, Oven Door WPL 4157231 Contact Us For Availability
20
Hinge, Fixed (Right Hand) WPL 4179161 Contact Us For Availability
20
Hinge, Fixed (Left Hand) WPL 4179162 Contact Us For Availability
20
Bracket, Ignition WPL 4363654 Contact Us For Availability
21
Channel (Right Hand) WPL 4179167 Contact Us For Availability
21
Channel (Left Hand) WPL 4179168 Contact Us For Availability
22
Bushing, Switch WPL 4157369 Contact Us For Availability
22
Screw (2) WPL 4157242 Contact Us For Availability
23
Spacer (2) WPL 4157243 Contact Us For Availability
24
Spring WPL 4157360 Contact Us For Availability
25
Insulation WPL 4363685 Contact Us For Availability
26
Insulation WPL 4363680 Contact Us For Availability
27
Spacer, Window WPL 4363686 Contact Us For Availability
28
Trim, Window WPL 4363687 Contact Us For Availability
29
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
29
Bracket, Glass Support WPL 4363688 Contact Us For Availability
× ![]()
