Model Whirlpool SB130PER3 – Common Parts & Diagrams
05 - OVENDOOR AND BROILER DOOR, LIT/OPTIONAL
03 - INTERNAL OVEN

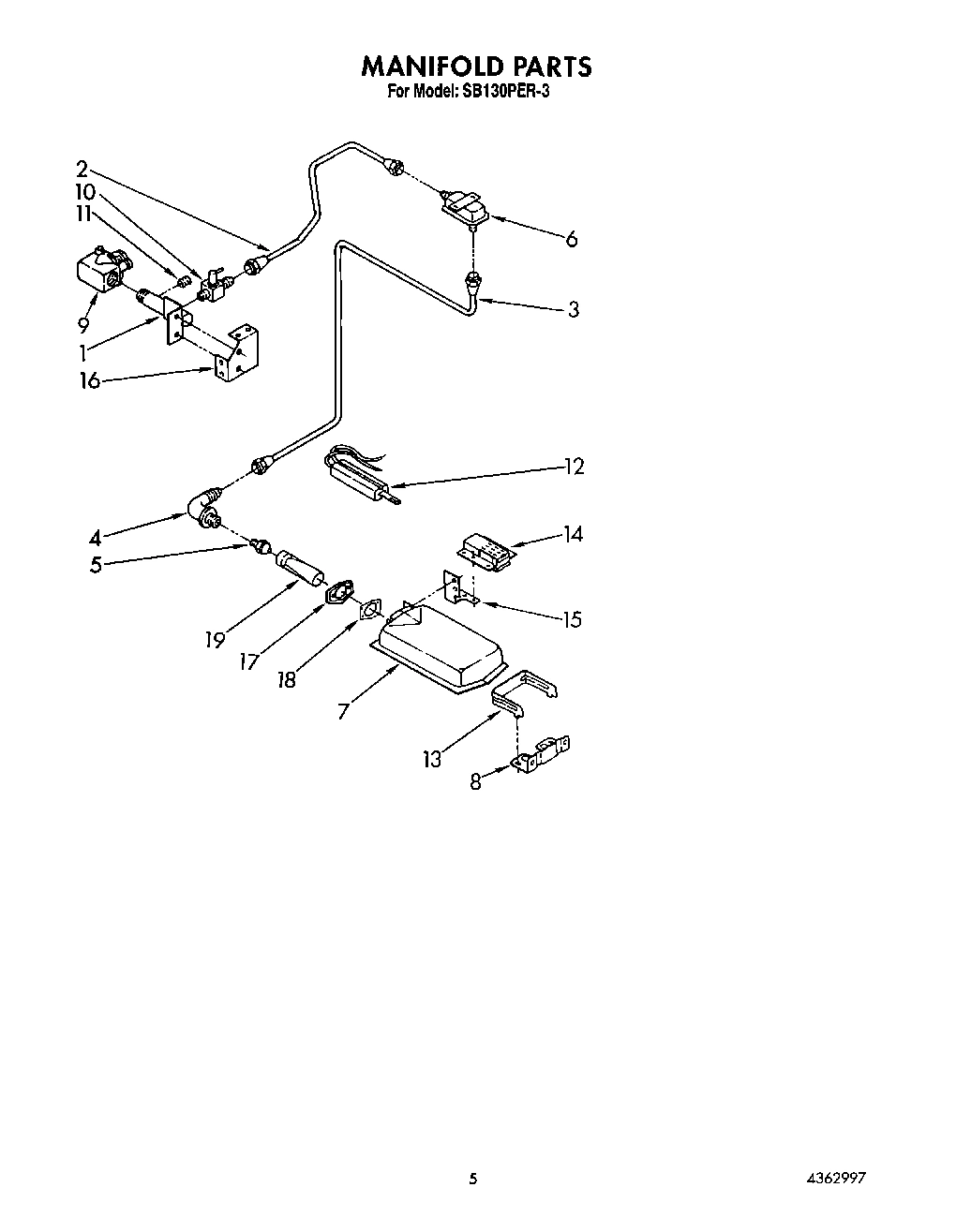

04 - MANIFOLD

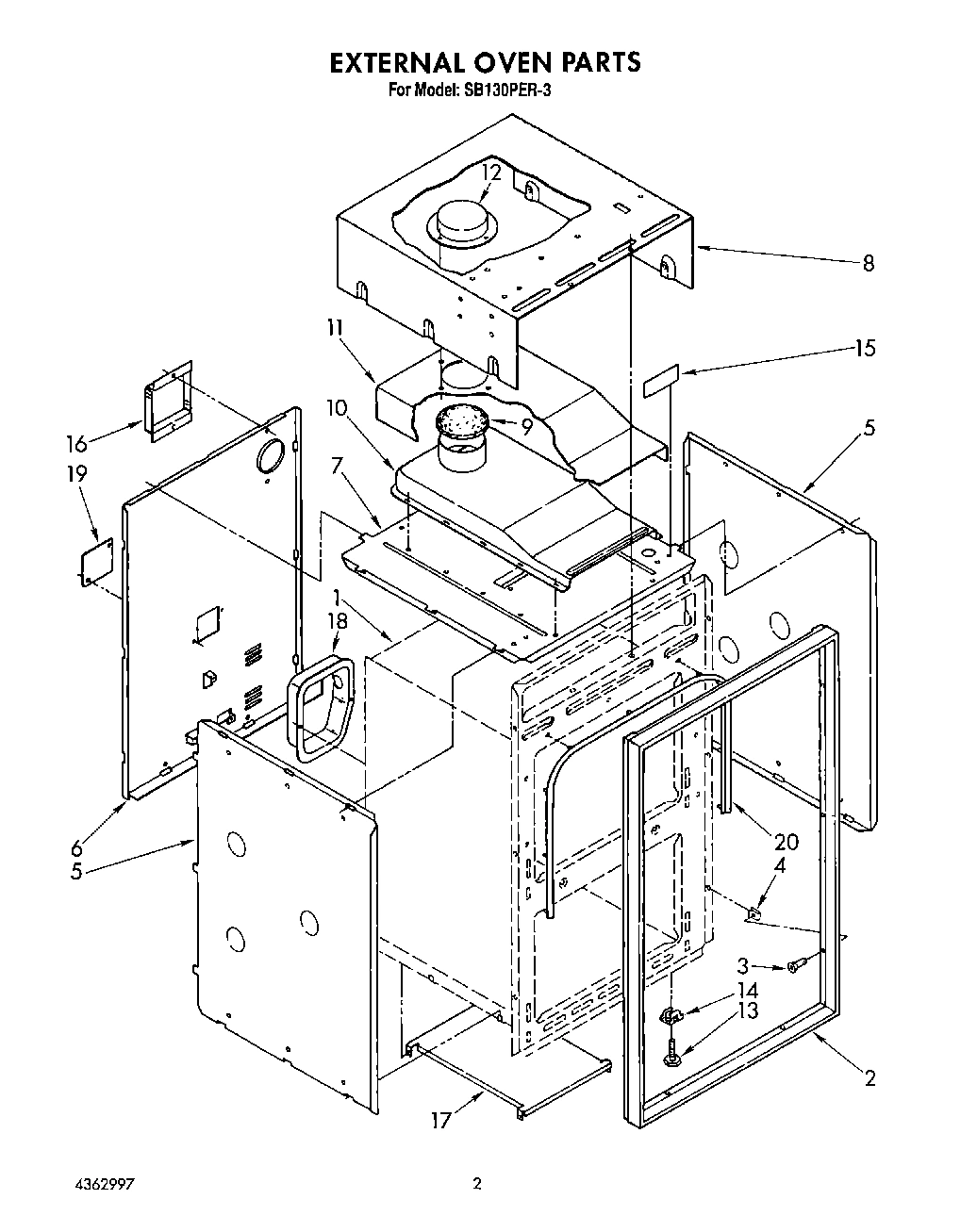

02 - EXTERNAL OVEN

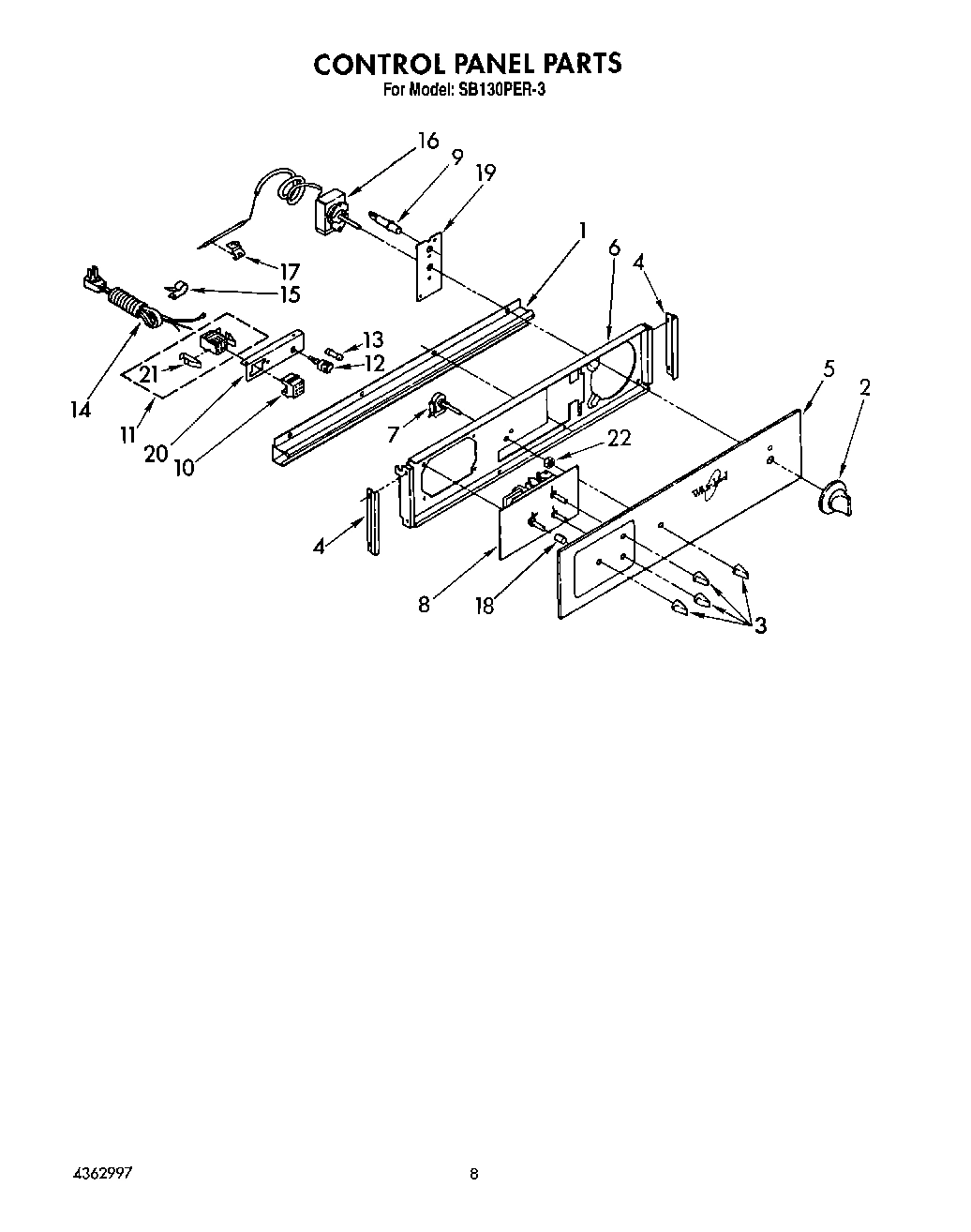

06 - CONTROL PANEL
Common parts from model Whirlpool SB130PER3
List, Repair Parts WPL LIT4362997 Contact Us For Availability
Guide, Cooking WPL LIT86302 Contact Us For Availability
1
Frame, Top WPL 4157273 Contact Us For Availability
1
Screw, 10-24 X 3/8 (2) WPL 4157314 Contact Us For Availability
1
Support, Channel WPL 4157252 Contact Us For Availability
1
Inlet Pipe WPL 4362979 Contact Us For Availability
1
Chassis (Not Serviceable) WPL ARI128637A Contact Us For Availability
1
Trim WPL 4157286 Contact Us For Availability
2
Handle WPL 4157274 Contact Us For Availability
2
Tubing 3/8`` (inlet To Gas Valve) WPL 4362978 Contact Us For Availability
2
Trim, Chassis WPL 4157244 Contact Us For Availability
2
Knob, Thermostat WPL 4157287 Contact Us For Availability
3
Liner, Oven Door WPL 4315143 Contact Us For Availability
3
Tubing 3/8`` (Gas Valve To Orfice Fitting) WPL 4362980 Contact Us For Availability
3
Screw (10) WPL 4157269 Contact Us For Availability
3
Knob, Light Switch & Clock WPL 786434 Contact Us For Availability
4
Glass, Outer (Oven) WPL 4157276 Contact Us For Availability
4
Plate, Cover WPL 4315145 Contact Us For Availability
4
Fitting, Orfice WPL 4157305 Contact Us For Availability
4
Channel, Glass (2) WPL 4157288 Contact Us For Availability
5
Frame, Bottom (Oven) WPL 4157277 Contact Us For Availability
5
Cover, Spring (3) WPL 4157272 Contact Us For Availability
5
Orfice (No.56 L.P. Gas) WPL 4157307 Contact Us For Availability
5
Orfice (No.48 Nat. Gas) WPL 4157306 Contact Us For Availability
5
Panel, Side (2) WPL 4157248 Contact Us For Availability
5
Glass, Control Panel WPL 4157289 Contact Us For Availability
6
Window Package WPL 4157278 Contact Us For Availability
6
Cover, Spring (1) WPL 4157253 Contact Us For Availability
6
Valve, Electric WPL 4157308 Contact Us For Availability
6
Panel, Rear WPL 4157261 Contact Us For Availability
6
Bracket WPL 4157290 Contact Us For Availability
7
Plate (2) WPL 4157279 Contact Us For Availability
7
Cover, Oven Back WPL 4157257 Contact Us For Availability
7
Ultra-Ray Burner WPL 4362744 Contact Us For Availability
7
Retainer, Insulation WPL 4179134 Contact Us For Availability
7
Switch, Light WPL 4362792 Contact Us For Availability
8
Gasket WPL 4157280 Contact Us For Availability
8
Support, Burner WPL 4157245 Contact Us For Availability
8
Bottom, Oven WPL 4315141 Contact Us For Availability
8
Nut, 6-32 (4) WPL 4157318 Contact Us For Availability
8
Panel, Top WPL 4157265 Contact Us For Availability
8
Screw, 6-18 X 3/8 (6) WPL 4157320 Contact Us For Availability
8
Timer WPL 4157292 Contact Us For Availability
9
Screw (4) WPL 4157281 Contact Us For Availability
9
Box, Orfice WPL 4157271 Contact Us For Availability
9
Regulator, Pressure WPL 4157311 Contact Us For Availability
9
Cover, Flue WPL 4157266 Contact Us For Availability
9
Indicator Light WPL 786433 Contact Us For Availability
10
Plug, Button (4) WPL 4157254 Contact Us For Availability
10
Valve, Shut Off WPL 4157312 Contact Us For Availability
10
Flueway WPL 4157263 Contact Us For Availability
10
Block, Disconnect WPL 4157293 Contact Us For Availability
11
Liner, Broiler Door WPL 4362982 Contact Us For Availability
11
Plug, Button (1) WPL 4157256 Contact Us For Availability
11
Plug, Pipe WPL 4157313 Contact Us For Availability
11
Cover, Flueway WPL 4157264 Contact Us For Availability
11
Block, Disconnect WPL 4157294 Contact Us For Availability
12
Glass, outer (Broiler) WPL 4157283 Contact Us For Availability
12
Housing, Light WPL 786743 Contact Us For Availability
12
Cap, Flue WPL 4157267 Contact Us For Availability
12
Holder, Fuse WPL 786584 Contact Us For Availability
13
Frame, Bottom (Broiler) WPL 4157284 Contact Us For Availability
13
Socket, Light WPL 4157297 Contact Us For Availability
13
Support WPL 4362981 Contact Us For Availability
13
Leg, Leveling (4) WPL 4157246 Contact Us For Availability
13
Fuse, 5 AMP WPL 786585 Contact Us For Availability
14
Bumper (2) WPL 4157285 Contact Us For Availability
14
Shield WPL 4157301 Contact Us For Availability
14
Nut (4) WPL 4157247 Contact Us For Availability
14
Cord, Power WPL 4157295 Contact Us For Availability
15
Hinge (Left Hand) WPL 4179163 Contact Us For Availability
15
Hinge (Right Hand) WPL 4179164 Contact Us For Availability
15
Rack, Oven WPL 4157230 Contact Us For Availability
15
Bracket WPL 4157472 Contact Us For Availability
15
Shield, Wire (2) WPL 4157140 Contact Us For Availability
15
Clamp, Cord WPL 4157298 Contact Us For Availability
16
Grid, Broiler WPL 4362695 Contact Us For Availability
16
Support, Inlet WPL 4157259 Contact Us For Availability
16
Cover, Light WPL 4157296 Contact Us For Availability
16
Thermostat WPL 4321103 Contact Us For Availability
17
Arm, Hinge (Right Hand) WPL 4179165 Contact Us For Availability
17
Arm, Hinge (Left Hand) WPL 4179166 Contact Us For Availability
17
Pan, Broiler WPL 4315109 Contact Us For Availability
17
Flange, Mounting WPL 4362746 Contact Us For Availability
17
Shield, Heat WPL 4157268 Contact Us For Availability
17
Clip, Thermo Bulb (2) WPL 786558 Contact Us For Availability
18
Socket, Hinge (Screw 10-25 x 1/4 (4)) WPL 4157126 Contact Us For Availability
18
Socket, Hinge (Right Hand) WPL 4157234 Contact Us For Availability
18
Socket, Hinge (Left Hand) WPL 4157235 Contact Us For Availability
18
Rack, Broiler WPL 4157239 Contact Us For Availability
18
Gasket, Venturi WPL 4362745 Contact Us For Availability
18
Cover, Orfice WPL 4517367 Contact Us For Availability
18
Bushing, Clock WPL 4315007 Contact Us For Availability
19
Spring, Oven Door (2) WPL 4157236 Contact Us For Availability
19
Plate, Cover WPL 4157249 Contact Us For Availability
19
Screw, 8-18 X 3/8 (2) WPL 4157116 Contact Us For Availability
19
Tube, Venturi WPL 4362747 Contact Us For Availability
19
Bracket, Thermostat WPL 4321104 Contact Us For Availability
20
Hinge, Fixed (Right Hand) WPL 4179161 Contact Us For Availability
20
Hinge, Fixed (Left Hand) WPL 4179162 Contact Us For Availability
20
Screw, 6-20 X 1/4 (1) WPL 4157316 Contact Us For Availability
20
Gasket, Oven Door WPL 4157231 Contact Us For Availability
20
Bracket, Fuse WPL 4157260 Contact Us For Availability
21
Channel (Right Hand) WPL 4179167 Contact Us For Availability
21
Channel (Left Hand) WPL 4179168 Contact Us For Availability
21
Clip (2) WPL 4157359 Contact Us For Availability
22
Screw (2) WPL 4157242 Contact Us For Availability
22
Bushing, Switch WPL 4157369 Contact Us For Availability
23
Spacer (2) WPL 4157243 Contact Us For Availability
24
Spring (2) WPL 4157360 Contact Us For Availability
25
Insulation WPL 4157362 Contact Us For Availability
26
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
26
Insulation WPL 4157361 Contact Us For Availability
× ![]()
