Model Whirlpool SB100PSR0 – Common Parts & Diagrams
05 - OVEN DOOR AND BROILER DOOR, LIT/OPTIONAL
02 - EXTERNAL OVEN

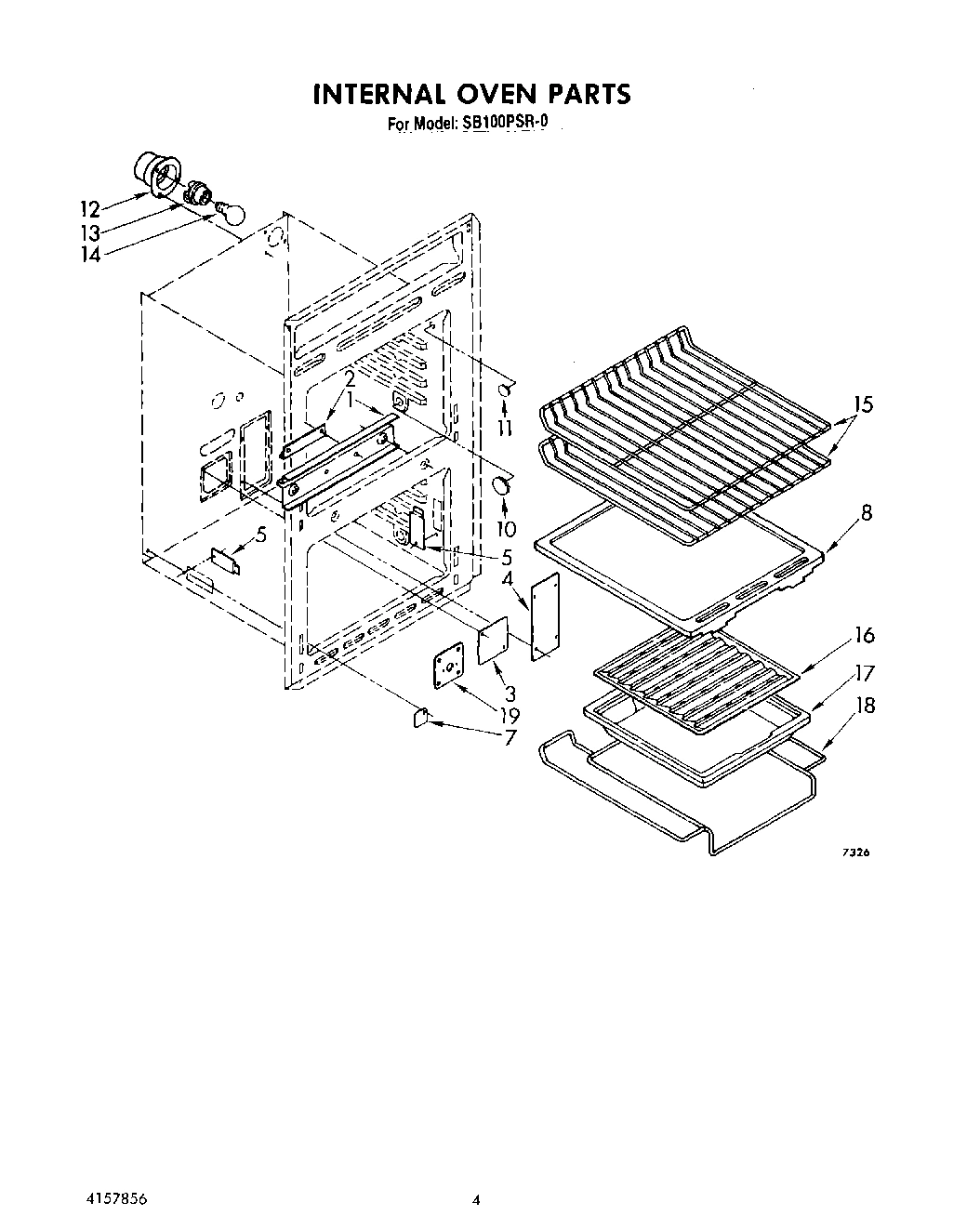

03 - INTERNAL OVEN

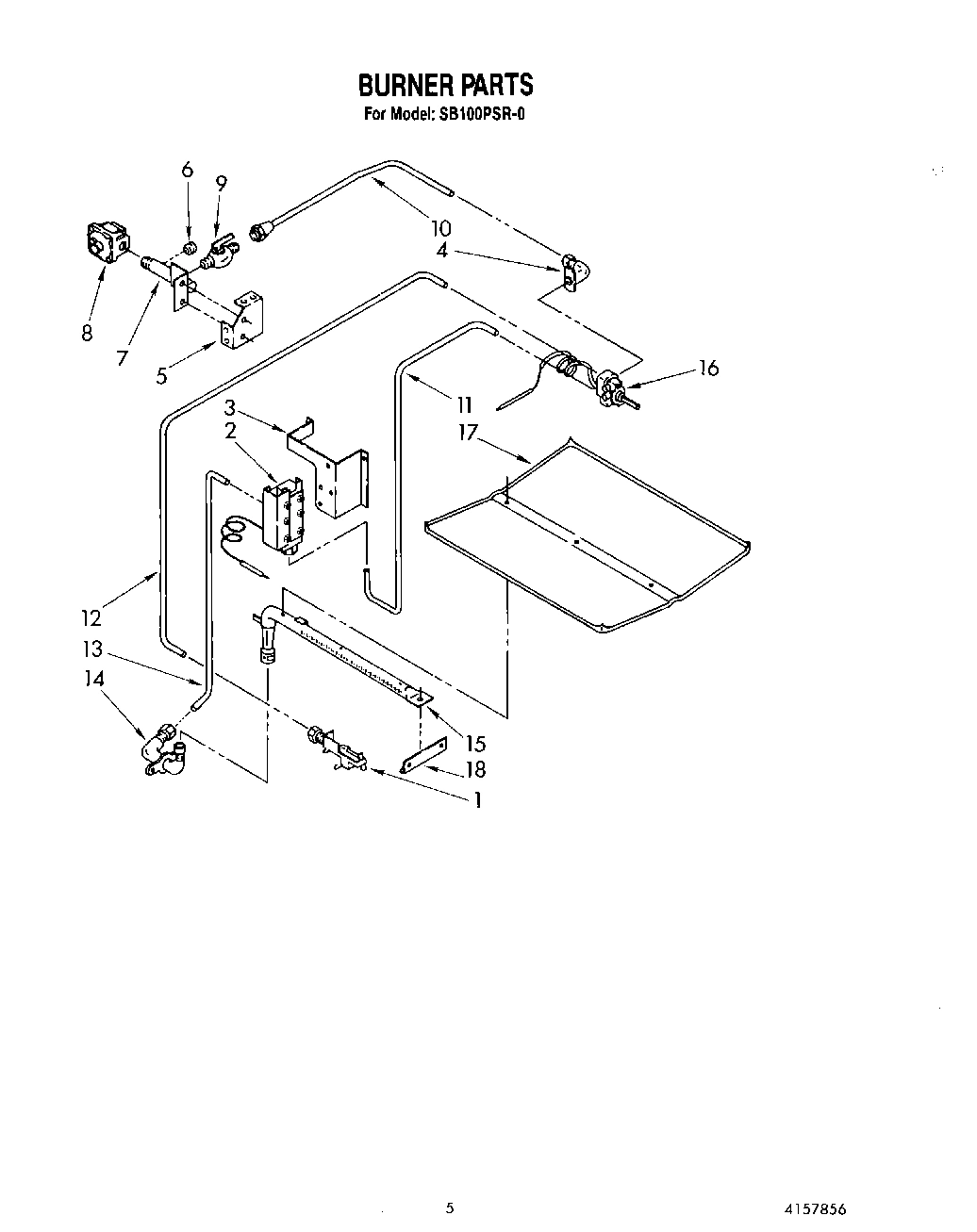

04 - BURNER

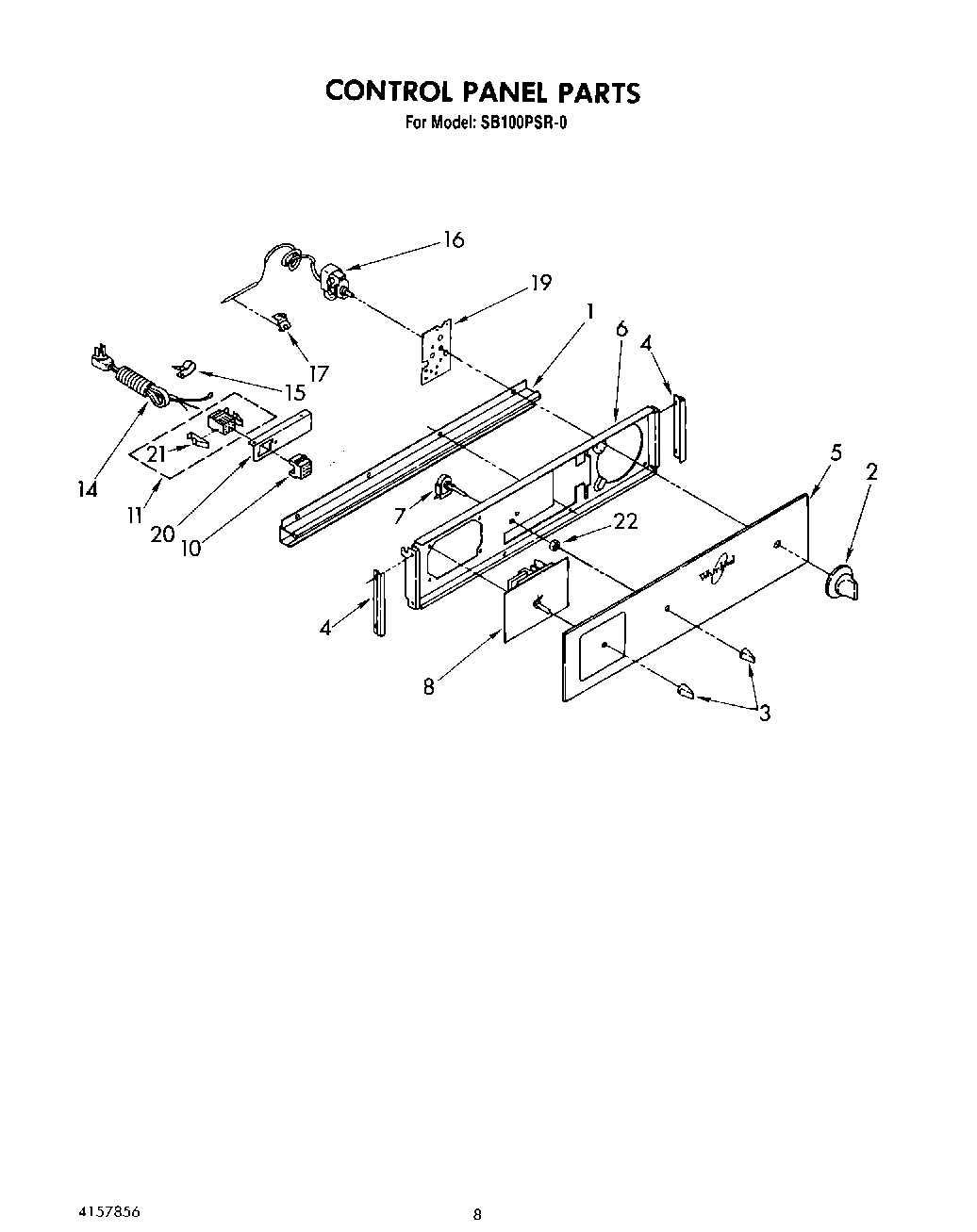

06 - CONTROL PANEL
Common parts from model Whirlpool SB100PSR0
Instructions, Installation WPL LIT786732 Contact Us For Availability
Guide, Use & Care WPL LIT786777 Contact Us For Availability
1
Frame, Top WPL 4157273 Contact Us For Availability
1
Screw, 10-24 X 3/8 (2) WPL 4157314 Contact Us For Availability
1
Chassis (Not Serviceable) WPL ARI128633A Contact Us For Availability
1
Support, Channel WPL 4157252 Contact Us For Availability
1
Pilot WPL 4157637 Contact Us For Availability
1
Trim WPL 4157649 Contact Us For Availability
2
Handle WPL 4157652 Contact Us For Availability
2
Trim, Chassis WPL 4157558 Contact Us For Availability
2
Valve, Gas WPL 4157573 Contact Us For Availability
2
Knob, Thermostat WPL 4157648 Contact Us For Availability
3
Liner, Oven Door WPL 4157653 Contact Us For Availability
3
Screw (10) WPL 4157269 Contact Us For Availability
3
Plate, Cover (2) WPL 4157249 Contact Us For Availability
3
Bracket, Valve WPL 4157639 Contact Us For Availability
3
Knob, Light Switch & Clock WPL 786434 Contact Us For Availability
4
Glass, Outer (Oven) WPL 4157276 Contact Us For Availability
4
Plate, Cover WPL 4157250 Contact Us For Availability
4
Fitting, Flange WPL 4157641 Contact Us For Availability
4
Channel, Glass (2) WPL 4157288 Contact Us For Availability
5
Frame, Bottom (Oven) WPL 4157277 Contact Us For Availability
5
Panel, Side (2) WPL 4157248 Contact Us For Availability
5
Cover, Spring (3) WPL 4157272 Contact Us For Availability
5
Bracket WPL 4157259 Contact Us For Availability
5
Glass, Control Panel WPL 4157650 Contact Us For Availability
6
Window Package WPL 4157278 Contact Us For Availability
6
Panel, Rear WPL 4157261 Contact Us For Availability
6
Pipe Plug, 1/4 WPL 4157313 Contact Us For Availability
6
Bracket WPL 4157290 Contact Us For Availability
7
Plate (2) WPL 4157279 Contact Us For Availability
7
Retainer, Insulation WPL 4157262 Contact Us For Availability
7
Cover, Oven Back WPL 4157257 Contact Us For Availability
7
Inlet Pipe WPL 4157302 Contact Us For Availability
7
Switch, Light WPL 4157291 Contact Us For Availability
8
Gasket WPL 4157280 Contact Us For Availability
8
Screw, 6-18 X 3/8 (6) WPL 4157320 Contact Us For Availability
8
Panel, Top WPL 4157638 Contact Us For Availability
8
Bottom, Oven WPL 4157255 Contact Us For Availability
8
Regulator, Pressure WPL 4157311 Contact Us For Availability
8
Nut, 6-32 (4) WPL 4157318 Contact Us For Availability
8
Timer WPL 4157557 Contact Us For Availability
9
Screw (4) WPL 4157281 Contact Us For Availability
9
Valve, Shut Off WPL 4157312 Contact Us For Availability
10
Flueway WPL 4157631 Contact Us For Availability
10
Plug, Button (4) WPL 4157254 Contact Us For Availability
10
Tubing (Inlet To Thermostat) WPL 4157642 Contact Us For Availability
10
Block, Disconnect WPL 4157293 Contact Us For Availability
11
Liner, Broiler Door WPL 4157655 Contact Us For Availability
11
Cover, Flueway WPL 4157632 Contact Us For Availability
11
Plug, Button (1) WPL 4157256 Contact Us For Availability
11
Tubing (Thermostat To Vavle) WPL 4157643 Contact Us For Availability
11
Block, Disconnect WPL 4157294 Contact Us For Availability
12
Glass, outer (Broiler) WPL 4157654 Contact Us For Availability
12
Housing, Light WPL 786743 Contact Us For Availability
12
Tubing (Thermostat To Pilot) WPL 4157644 Contact Us For Availability
13
Frame, Bottom (Broiler) WPL 4157284 Contact Us For Availability
13
Leg, Leveling (4) WPL 4157246 Contact Us For Availability
13
Socket, Light WPL 4157297 Contact Us For Availability
13
Tubing (Valve To Orfice) WPL 4157645 Contact Us For Availability
14
Bumper (2) WPL 4157285 Contact Us For Availability
14
Nut (4) WPL 4157247 Contact Us For Availability
14
Orfice, Broiler WPL 4157646 Contact Us For Availability
14
Cord, Power WPL 4157295 Contact Us For Availability
15
Hinge (Right Hand) WPL 4157228 Contact Us For Availability
15
Hinge (Left Hand) WPL 4157229 Contact Us For Availability
15
Shield, Wire (2) WPL 4157251 Contact Us For Availability
15
Rack, Oven WPL 4157230 Contact Us For Availability
15
Burner, Broiler WPL 4157647 Contact Us For Availability
15
Clamp, Cord WPL 4157298 Contact Us For Availability
16
Cover, Light WPL 4157296 Contact Us For Availability
16
Grid, Broiler WPL 786346 Contact Us For Availability
16
Thermostat WPL 4157640 Contact Us For Availability
17
Arm, Hinge (Right Hand) WPL 4157232 Contact Us For Availability
17
Arm, Hinge (Left Hand) WPL 4157233 Contact Us For Availability
17
Shield, Heat WPL 4157268 Contact Us For Availability
17
Pan, Broiler WPL 786345 Contact Us For Availability
17
Reflector WPL 4157872 Contact Us For Availability
17
Clip, Thermo Bulb (2) WPL 786558 Contact Us For Availability
18
Socket, Hinge (Screw, 10-24 X 1/4 (4)) WPL 4157126 Contact Us For Availability
18
Socket, Hinge (Right Hand) WPL 4157234 Contact Us For Availability
18
Socket, Hinge (Left Hand) WPL 4157235 Contact Us For Availability
18
Cover, Orfice WPL 4157367 Contact Us For Availability
18
Support, Burner WPL 4157636 Contact Us For Availability
18
Rack, Broiler WPL 4157239 Contact Us For Availability
19
Spring, Oven Door (2) WPL 4157236 Contact Us For Availability
19
Screw, 8-18 X 3/8 (2) WPL 4157116 Contact Us For Availability
19
Plate, Orfice WPL 4157863 Contact Us For Availability
19
Bracket, Thermostat WPL 4157633 Contact Us For Availability
20
Hinge, Fixed (Right Hand) WPL 4157237 Contact Us For Availability
20
Hinge, Fixed (Left Hand) WPL 4157238 Contact Us For Availability
20
Screw, 6-20 X 1/4 (1) WPL 4157316 Contact Us For Availability
20
Gasket, Oven Door WPL 4157231 Contact Us For Availability
20
Bracket, Fuse WPL 4157260 Contact Us For Availability
21
Channel (Right Hand) WPL 4157240 Contact Us For Availability
21
Channel (Left Hand) WPL 4157241 Contact Us For Availability
21
Brace, Tubing WPL 4157634 Contact Us For Availability
21
Clip (2) WPL 4157359 Contact Us For Availability
22
Screw (2) WPL 4157242 Contact Us For Availability
22
Bushing WPL 4157368 Contact Us For Availability
23
Spacer (2) WPL 4157243 Contact Us For Availability
24
Spring (2) WPL 4157360 Contact Us For Availability
25
Insulation WPL 4157362 Contact Us For Availability
26
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
26
Insulation WPL 4157656 Contact Us For Availability
× ![]()
