Model Whirlpool SB100PES3 – Common Parts & Diagrams

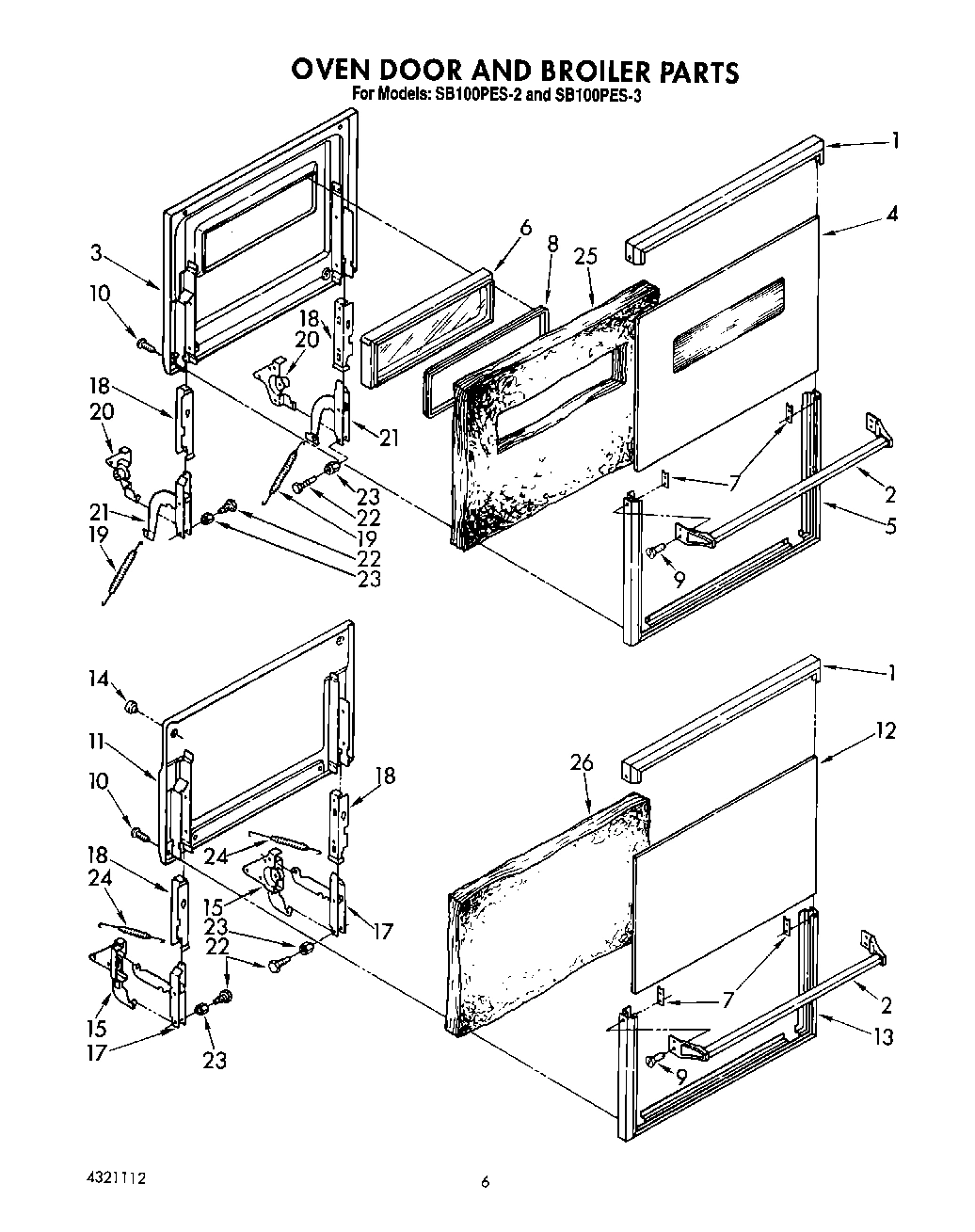

05 - OVEN DOOR AND BROILER, LIT/OPTIONAL

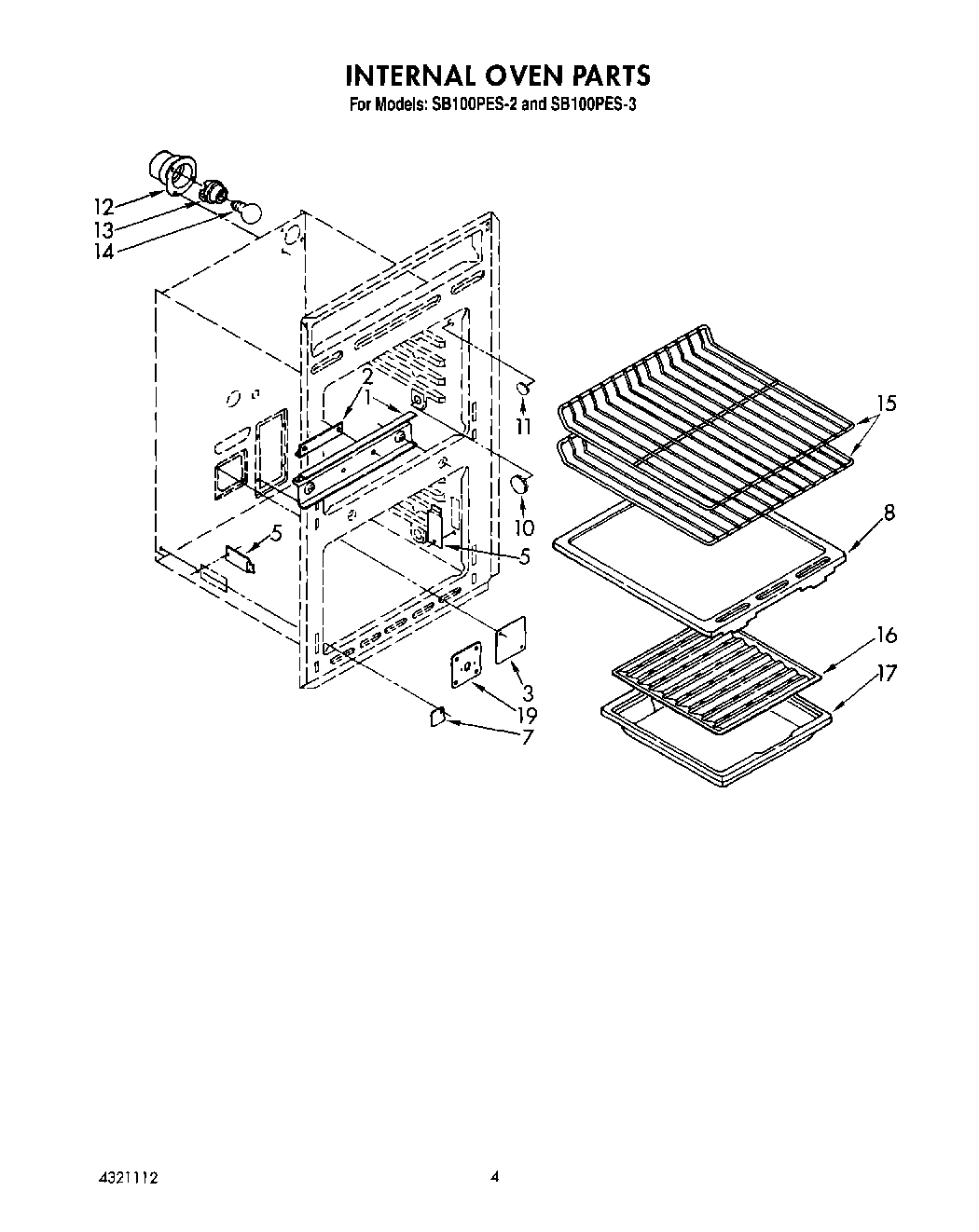

03 - INTERNAL OVEN

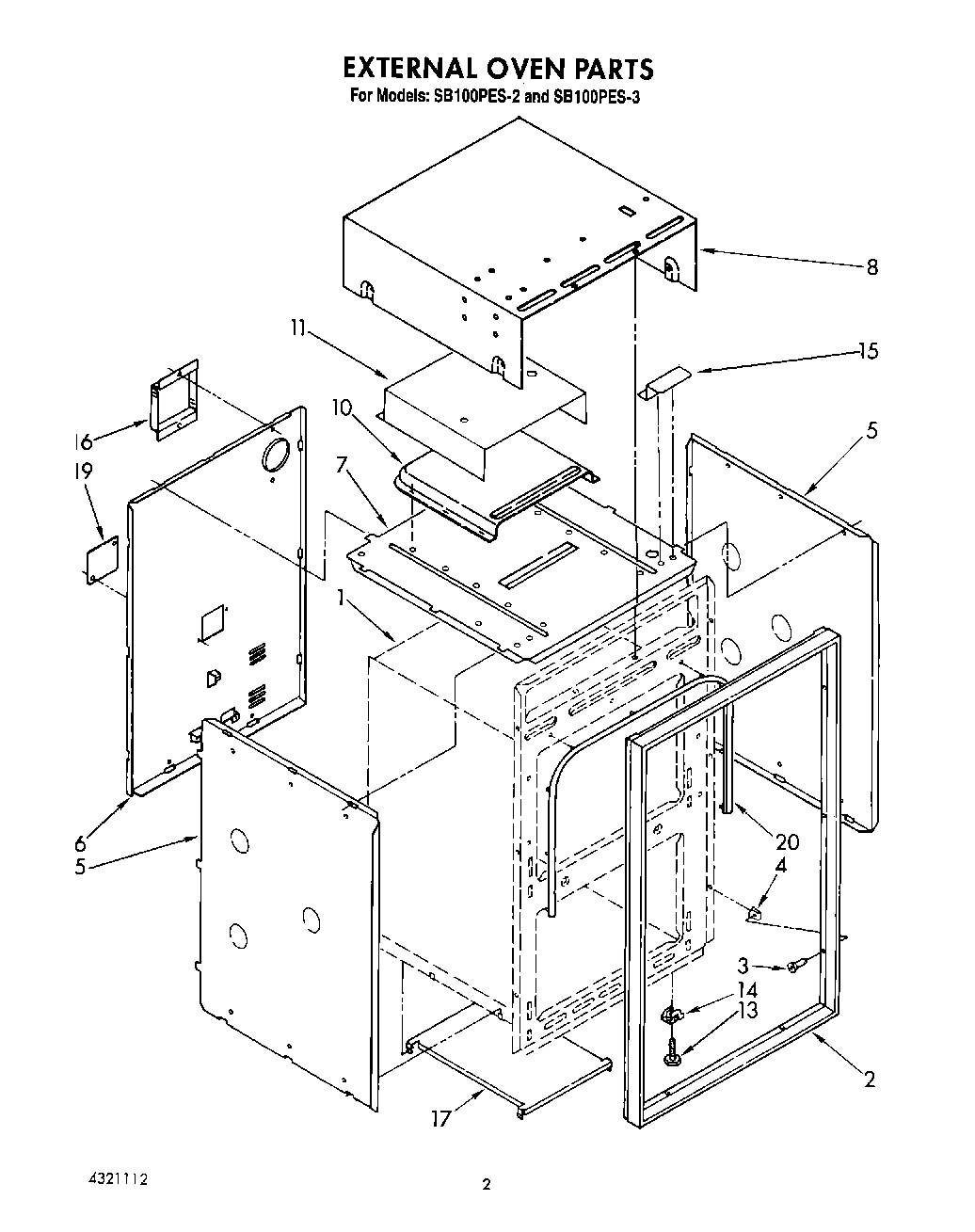

02 - EXTERNAL OVEN

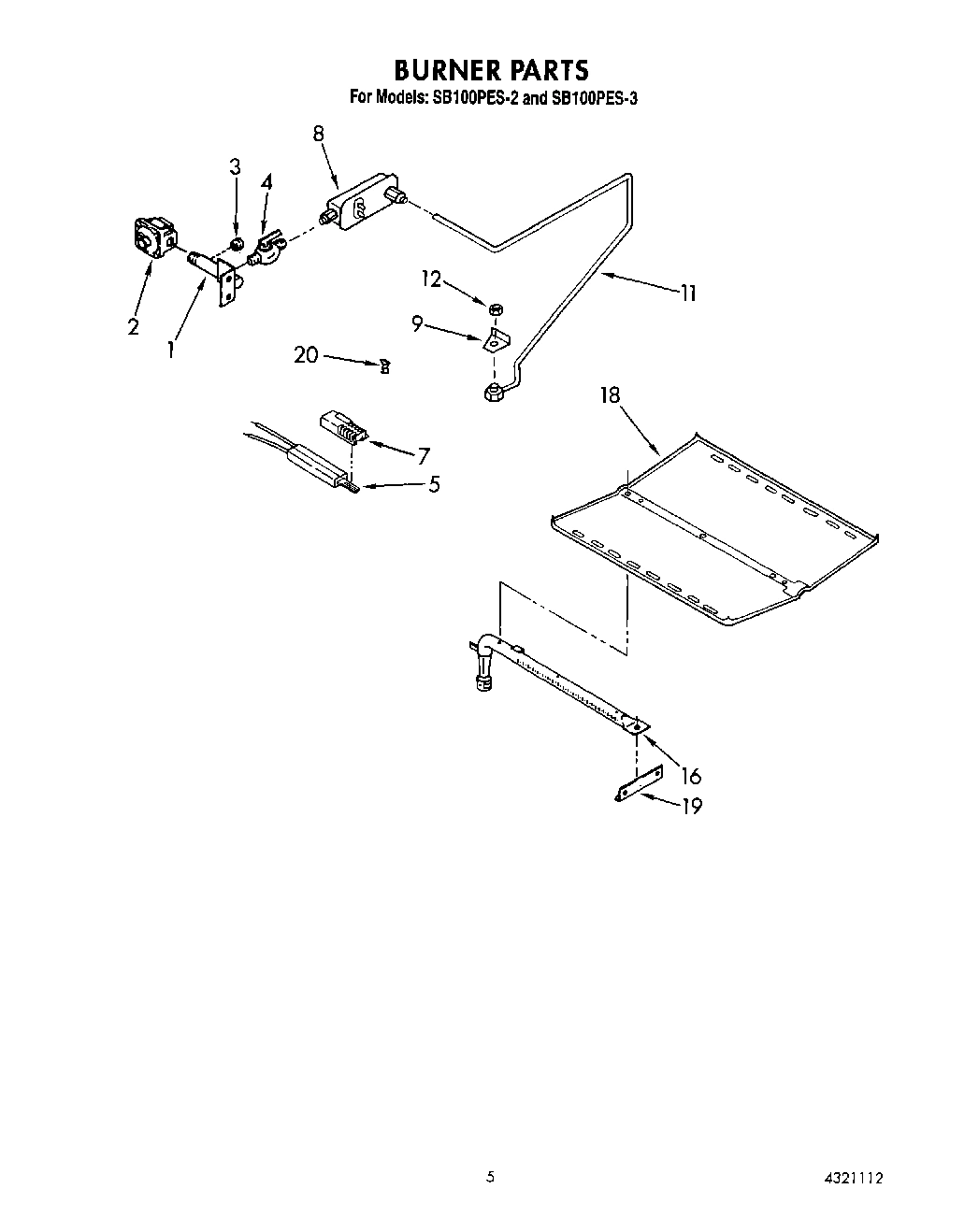

04 - BURNER

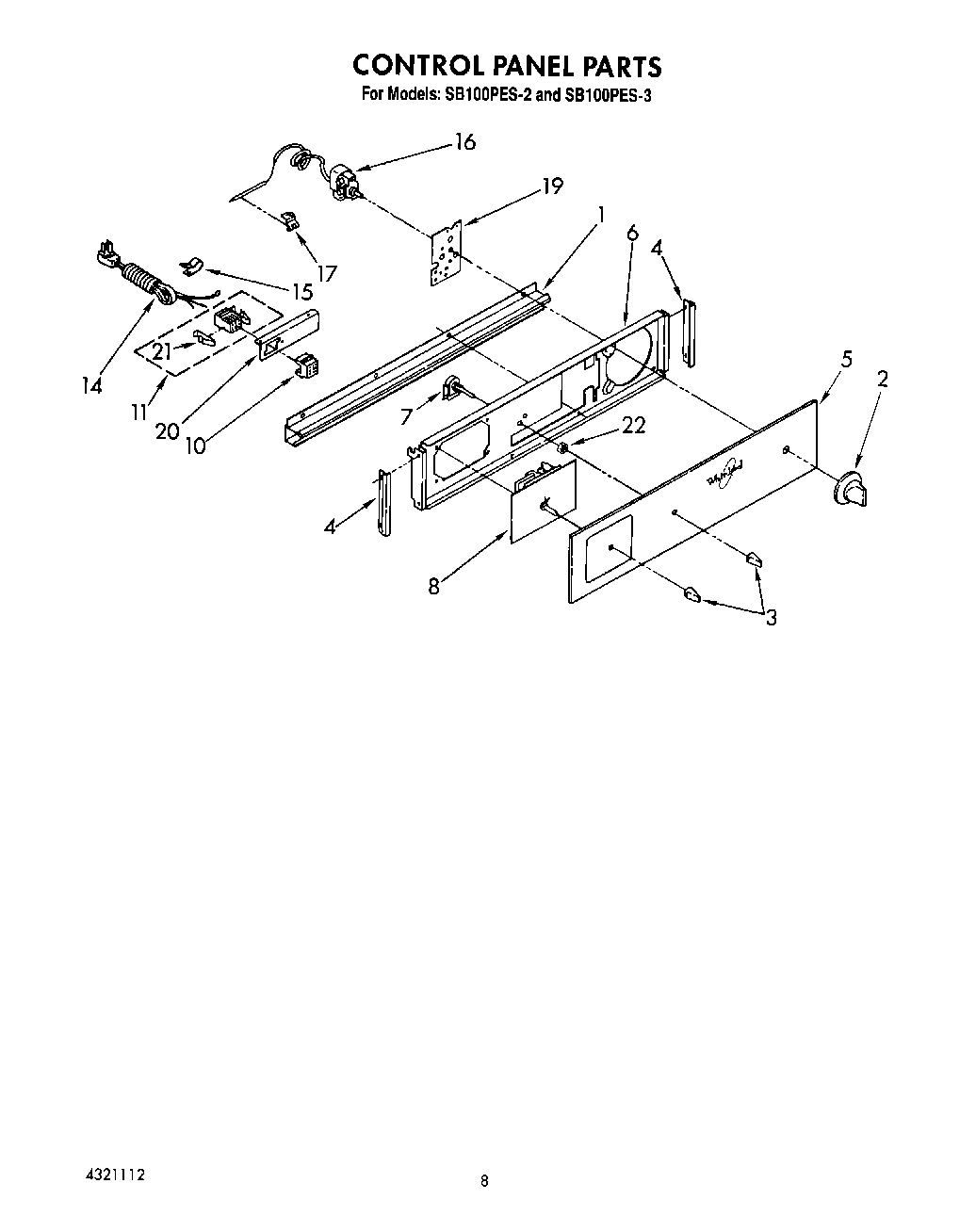

06 - CONTROL PANEL
Common parts from model Whirlpool SB100PES3
Instructions, Installation WPL LIT786732 Contact Us For Availability
Guide, Use & Care WPL LIT786777 Contact Us For Availability
1
Frame, Top WPL 4157273 Contact Us For Availability
1
Screw, 10-24 X 3/8 (2) WPL 4157314 Contact Us For Availability
1
Support, Channel WPL 4157252 Contact Us For Availability
1
Chassis (Not Serviceable) WPL ARI128631A Contact Us For Availability
1
Inlet Pipe WPL 4179137 Contact Us For Availability
1
Trim WPL 4157649 Contact Us For Availability
2
Handle WPL 4157652 Contact Us For Availability
2
Trim, Chassis WPL 4157558 Contact Us For Availability
2
Regulator, Pressure WPL 786313 Contact Us For Availability
2
Knob, Thermostat WPL 4179138 Contact Us For Availability
3
Liner, Oven Door WPL 4315143 Contact Us For Availability
3
Screw (10) WPL 4157269 Contact Us For Availability
3
Plug, Pipe WPL 4157313 Contact Us For Availability
3
Knob, Light Switch & Clock WPL 786434 Contact Us For Availability
4
Glass, Outer (Oven) WPL 4157276 Contact Us For Availability
4
Valve, Shut-Off WPL 786312 Contact Us For Availability
4
Channel, Glass (2) WPL 4157288 Contact Us For Availability
5
Frame, Bottom (Oven) WPL 4157277 Contact Us For Availability
5
Cover, Spring (4) WPL 4157272 Contact Us For Availability
5
Panel, Side (2) WPL 4157248 Contact Us For Availability
5
Glass, Control Panel WPL 4157650 Contact Us For Availability
6
Window Package WPL 4157278 Contact Us For Availability
6
Panel, Rear WPL 4157261 Contact Us For Availability
6
Bracket WPL 4157290 Contact Us For Availability
7
Plate (2) WPL 4157279 Contact Us For Availability
7
Cover, Oven Back WPL 4157257 Contact Us For Availability
7
Retainer, Insulation WPL 4179134 Contact Us For Availability
7
Ignitor Shield WPL 4179151 Contact Us For Availability
7
Switch, Light WPL 4157291 Contact Us For Availability
8
Gasket WPL 4157280 Contact Us For Availability
8
Bottom, Oven WPL 4315141 Contact Us For Availability
8
Screw, 6-18 X 3/8 (6) WPL 4157320 Contact Us For Availability
8
Panel, Top WPL 4157638 Contact Us For Availability
8
Valve, Electric WPL 4179135 Contact Us For Availability
8
Nut, 6-32 (4) WPL 4157318 Contact Us For Availability
8
Timer WPL 4314917 Contact Us For Availability
9
Screw (4) WPL 4157281 Contact Us For Availability
9
Bracket, Orifice WPL 4179160 Contact Us For Availability
10
Plug, Button (4) WPL 4157254 Contact Us For Availability
10
Flueway WPL 4157631 Contact Us For Availability
10
Block, Disconnect WPL 4157293 Contact Us For Availability
11
Liner, Broiler Door WPL 4315142 Contact Us For Availability
11
Plug, Button (1) WPL 4157256 Contact Us For Availability
11
Cover, Flueway WPL 4179136 Contact Us For Availability
11
Tubing (Gas Valve To Orifice) WPL 4179171 Contact Us For Availability
11
Block, Disconnect WPL 4157294 Contact Us For Availability
12
Glass, outer (Broiler) WPL 4157654 Contact Us For Availability
12
Housing, Light WPL 786743 Contact Us For Availability
12
Nut WPL 786741 Contact Us For Availability
13
Frame, Bottom (Broiler) WPL 4157284 Contact Us For Availability
13
Socket, Light WPL 4157297 Contact Us For Availability
13
Leg, Leveling (4) WPL 4157246 Contact Us For Availability
14
Bumper (2) WPL 4157285 Contact Us For Availability
14
Nut (4) WPL 4157247 Contact Us For Availability
14
Cord, Power WPL 4157295 Contact Us For Availability
15
Hinge (Left Hand) WPL 4179163 Contact Us For Availability
15
Hinge (Right Hand) WPL 4179164 Contact Us For Availability
15
Rack, Oven WPL 4157230 Contact Us For Availability
15
Shield, Wire (2) WPL 4179140 Contact Us For Availability
15
Clamp, Cord WPL 4157298 Contact Us For Availability
16
Grid, Broiler WPL 786346 Contact Us For Availability
16
Cover, Light WPL 4157296 Contact Us For Availability
16
Burner, Broiler WPL 4157647 Contact Us For Availability
16
Thermostat WPL 4321103 Contact Us For Availability
17
Arm, Hinge (Right Hand) WPL 4179165 Contact Us For Availability
17
Arm, Hinge (Left Hand) WPL 4179166 Contact Us For Availability
17
Pan, Broiler WPL 4315109 Contact Us For Availability
17
Shield, Heat WPL 4157268 Contact Us For Availability
17
Clip, Thermo Bulb (2) WPL 786558 Contact Us For Availability
18
Socket, Hinge (Screw, 10-24 X 1/4 (4)) WPL 4157126 Contact Us For Availability
18
Socket, Hinge (Right Hand) WPL 4157234 Contact Us For Availability
18
Socket, Hinge (Left Hand) WPL 4157235 Contact Us For Availability
18
Reflector WPL 4179139 Contact Us For Availability
19
Spring, Oven Door (2) WPL 4157236 Contact Us For Availability
19
Support, Burner WPL 4157636 Contact Us For Availability
19
Plate, Cover WPL 4157249 Contact Us For Availability
19
Screw, 8-18 X 3/8 (2) WPL 4157116 Contact Us For Availability
19
Plate, Orfice WPL 4179159 Contact Us For Availability
19
Bracket, Thermostat WPL 4321104 Contact Us For Availability
20
Hinge, Fixed (Right Hand) WPL 4179161 Contact Us For Availability
20
Hinge, Fixed (Left Hand) WPL 4179162 Contact Us For Availability
20
Screw, 6-20 X 1/4 (1) WPL 4157316 Contact Us For Availability
20
Gasket, Oven Door WPL 4157231 Contact Us For Availability
20
Bracket, Fuse WPL 4157260 Contact Us For Availability
21
Channel (Right Hand) WPL 4179167 Contact Us For Availability
21
Channel (Left Hand) WPL 4179168 Contact Us For Availability
21
Clip (2) WPL 4157359 Contact Us For Availability
22
Screw (2) WPL 4157242 Contact Us For Availability
22
Bushing WPL 4157369 Contact Us For Availability
23
Spacer (2) WPL 4157243 Contact Us For Availability
24
Spring (2) WPL 4157360 Contact Us For Availability
25
Insulation WPL 4157362 Contact Us For Availability
26
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
26
Insulation WPL 4157656 Contact Us For Availability
× ![]()
