Model Whirlpool SB100PEK1 – Common Parts & Diagrams

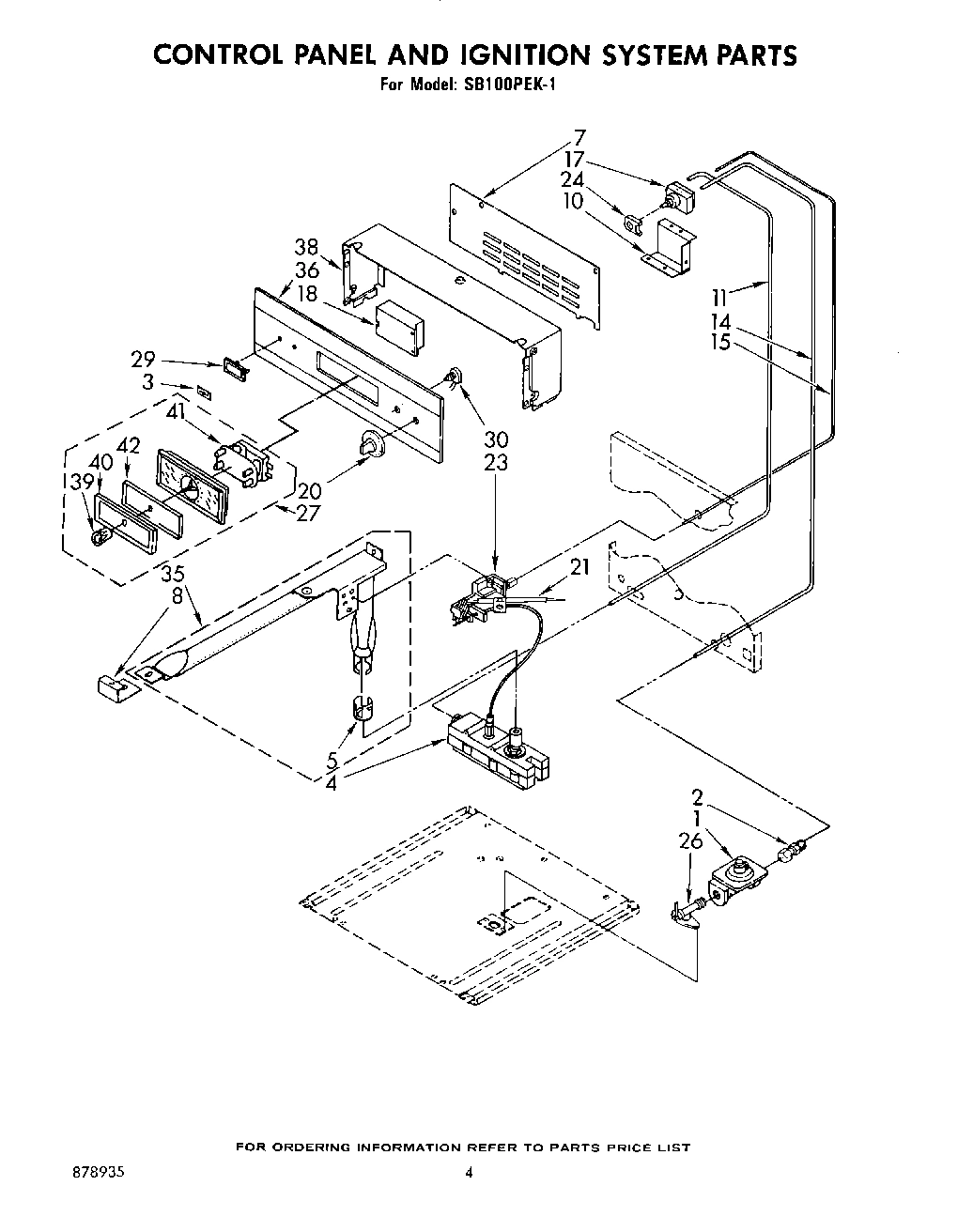

03 - CONTROL PANEL AND IGNITION SYSTEM

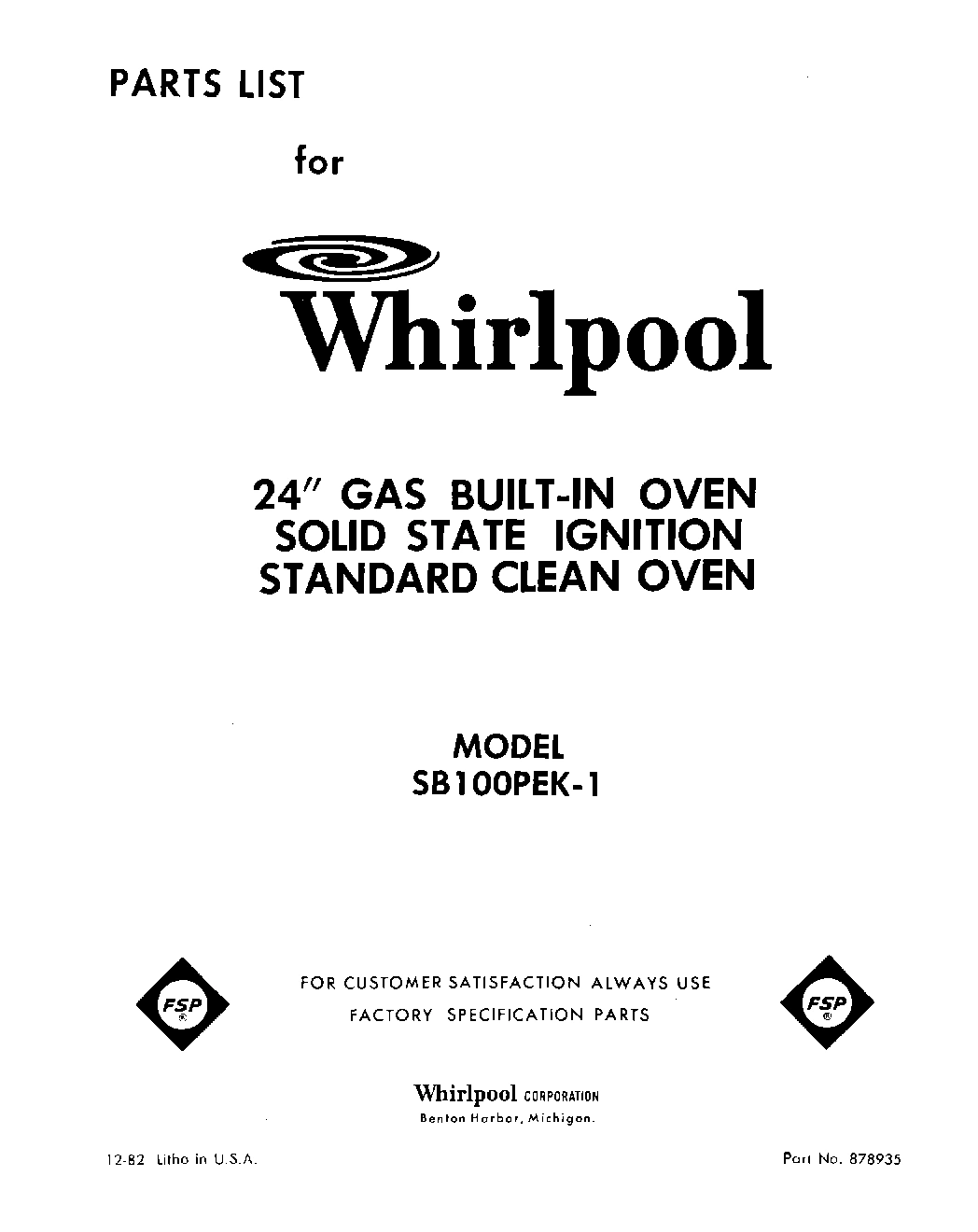

01 - SECTION

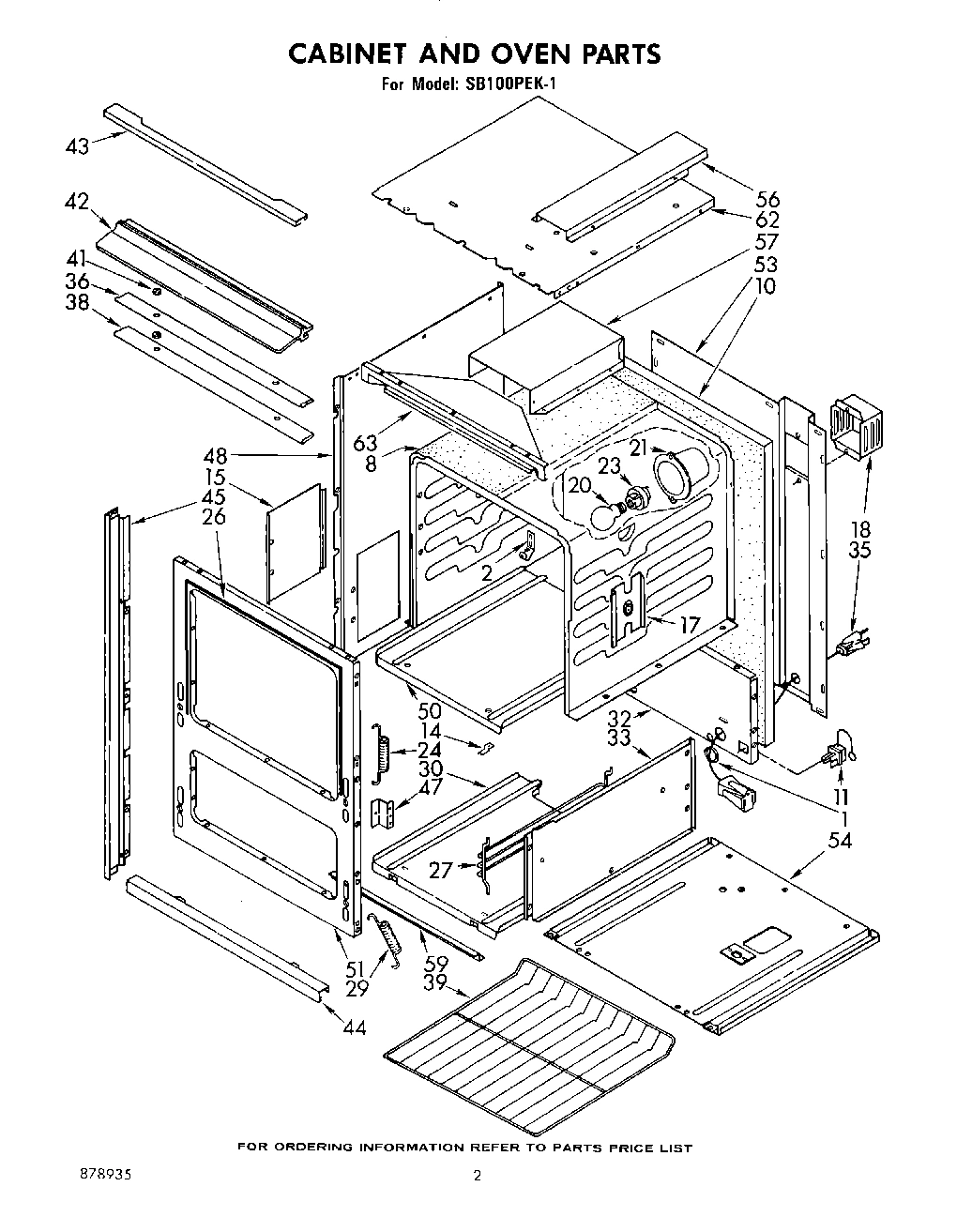

02 - CABINET AND OVEN

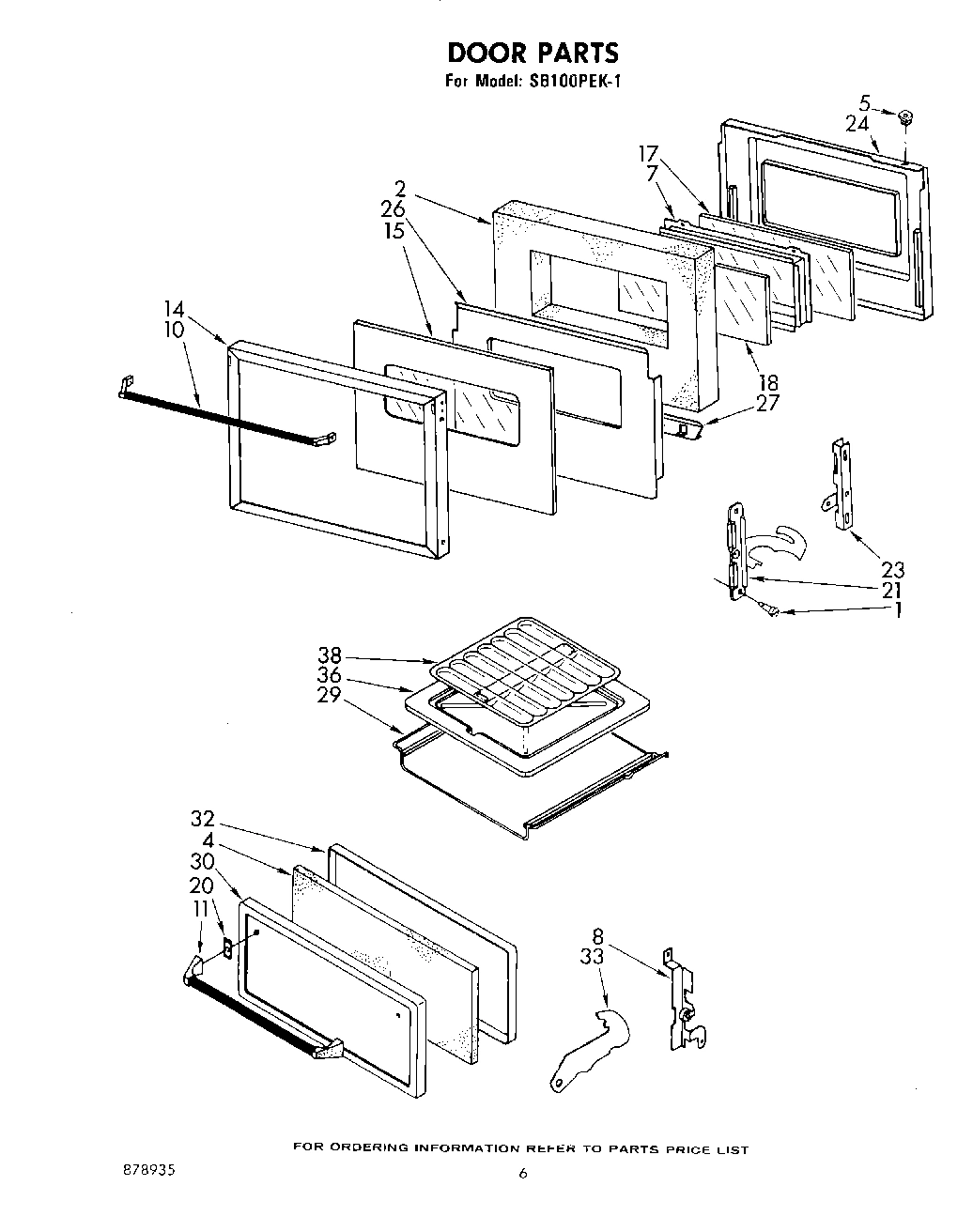

04 - DOOR
Common parts from model Whirlpool SB100PEK1
1
Regulator, Pressure WPL 878237 Contact Us For Availability
1
Bushing, Snap WPL 878078 Contact Us For Availability
1
Bolt, Shoulder 10-24 x 7/16 (2) WPL 878080 Contact Us For Availability
2
Fitting Flange 1/2 x 3/8 WPL 878609 Contact Us For Availability
3
Inlay, Nameplate WPL 878598 Contact Us For Availability
4
Valve, Oven Lighter Safety WPL 878614 Contact Us For Availability
4
Insulation, Broiler Door WPL 878306 Contact Us For Availability
5
Shutter, Oven Burner Air WPL 878102 Contact Us For Availability
7
Back, Control Box WPL 878616 Contact Us For Availability
7
Frame, Window WPL 878106 Contact Us For Availability
8
Support, Oven Burner (Front) WPL 878617 Contact Us For Availability
8
Support, Broiler Door Hinge (Left Side) WPL 878759 Contact Us For Availability
8
Support, Broiler Door Hinge (Right Side) WPL 878760 Contact Us For Availability
10
Support, Oven Control WPL 878757 Contact Us For Availability
10
Handle Door (Oven) WPL 878627 Contact Us For Availability
11
Tubing, Oven Control Safety Valve WPL 878876 Contact Us For Availability
11
Plug, Male Receptacle WPL 878613 Contact Us For Availability
11
Handle Door (Broiler) WPL 878762 Contact Us For Availability
14
Tubing, Regulator Oven Control WPL 878758 Contact Us For Availability
14
Clip, Oven Bottom Plate (2) WPL 878107 Contact Us For Availability
14
Frame, Door WPL 878628 Contact Us For Availability
15
Tubing, Control Pilot WPL 878624 Contact Us For Availability
15
Cover, Hinge WPL 878874 Contact Us For Availability
15
Glass, Oven Door Outside WPL 878629 Contact Us For Availability
17
Control, Oven WPL 878877 Contact Us For Availability
17
Shield, Insulation WPL 878875 Contact Us For Availability
17
Glass, Oven Door Inside WPL 878002 Contact Us For Availability
18
Control, Ignitor WPL 878006 Contact Us For Availability
18
Cover, Light Socket WPL 878623 Contact Us For Availability
18
Glass, Oven Door Center WPL 878141 Contact Us For Availability
20
Dial, Oven Control WPL 878648 Contact Us For Availability
20
Spacer, Door Handle (2) WPL 878763 Contact Us For Availability
21
Ignitor, Oven Burner WPL 878649 Contact Us For Availability
21
Box, Oven Light WPL 878625 Contact Us For Availability
21
Hinge, Oven Door (2) WPL 878167 Contact Us For Availability
23
Lighter, Oven Burner WPL 878160 Contact Us For Availability
23
Socket, Oven Light WPL 878124 Contact Us For Availability
23
Support, Oven Door (Left Side) WPL 878168 Contact Us For Availability
23
Support, Oven Door (Right Side) WPL 878169 Contact Us For Availability
24
Spring, Oven Door (2) WPL 878630 Contact Us For Availability
24
Lining, Oven Door WPL 878633 Contact Us For Availability
26
Valve, Cut Off WPL 878650 Contact Us For Availability
26
Seal, Oven Door (Side (2)) WPL 878004 Contact Us For Availability
26
Seal, Oven Door (Top (2)) WPL 878632 Contact Us For Availability
26
Baffle, Door WPL 878635 Contact Us For Availability
27
Clock, Regular WPL 878597 Contact Us For Availability
27
Runner, Broiler Rack (2) WPL 878765 Contact Us For Availability
27
Retainer, Insulation WPL 878636 Contact Us For Availability
29
Plate, Name WPL 878600 Contact Us For Availability
29
Spring, Broiler Door (2) WPL 878934 Contact Us For Availability
29
Rack, Broiler Pan WPL 878764 Contact Us For Availability
30
Switch, Oven Light WPL 878659 Contact Us For Availability
30
Bottom, Broiler Compartment WPL 878641 Contact Us For Availability
30
Panel, Broiler Door WPL 878767 Contact Us For Availability
32
Back, Broiler Compartment WPL 878770 Contact Us For Availability
32
Lining, Broiler Door WPL 878768 Contact Us For Availability
33
Side, Broiler (Left Side) WPL 878771 Contact Us For Availability
33
Side, Broiler (Right Side) WPL 878772 Contact Us For Availability
33
Hinge, Broiler Door (2) WPL 878933 Contact Us For Availability
35
Burner, Oven WPL 878783 Contact Us For Availability
35
Cord, Extension WPL 878654 Contact Us For Availability
36
Panel, Control WPL 878879 Contact Us For Availability
36
Louver, Vent Center WPL 878655 Contact Us For Availability
36
Pan, Broiler WPL 878173 Contact Us For Availability
38
Box, Control WPL 878682 Contact Us For Availability
38
Louver, Vent Bottom WPL 878656 Contact Us For Availability
38
Tray, Broiler Pan WPL 878174 Contact Us For Availability
39
Knob (1) WPL 307802 Contact Us For Availability
39
Rack, Oven (2) WPL 878657 Contact Us For Availability
40
Bezel WPL 258851 Contact Us For Availability
41
Motor WPL 256466 Contact Us For Availability
41
Spacer, Vent Grille (4) WPL 878658 Contact Us For Availability
42
Glass WPL 308441 Contact Us For Availability
42
Trim, Control Panel Bottom WPL 878663 Contact Us For Availability
43
Trim, Top WPL 878666 Contact Us For Availability
44
Trim, Bottom WPL 878667 Contact Us For Availability
45
Trim, Side (Left) WPL 878775 Contact Us For Availability
45
Trim, Side (Right) WPL 878776 Contact Us For Availability
47
Bracket, Oven Door Spring (2) WPL 878777 Contact Us For Availability
48
Panel, End (Left Side) WPL 878778 Contact Us For Availability
48
Panel, End (Right Side) WPL 878779 Contact Us For Availability
50
Plate, Oven Bottom WPL 878780 Contact Us For Availability
51
Front, Main WPL 878781 Contact Us For Availability
53
Back, Main WPL 878782 Contact Us For Availability
54
Base, Main WPL 878932 Contact Us For Availability
56
Cover, Wire (Top) WPL 878677 Contact Us For Availability
57
Box, Vent WPL 878679 Contact Us For Availability
59
Support, Bottom Plate WPL 878680 Contact Us For Availability
62
Cover, Insulation WPL 878681 Contact Us For Availability
63
Diagram, Wiring WPL 878059 Contact Us For Availability
63
Extension, Vent Box WPL 878784 Contact Us For Availability
63
Booklet, Use & Care WPL 87886 Contact Us For Availability
63
Instructions, Installation WPL 878884 Contact Us For Availability
63
List, Repair Parts WPL 878935 Contact Us For Availability
× ![]()
