Model Whirlpool SB100PEDB5 – Common Parts & Diagrams

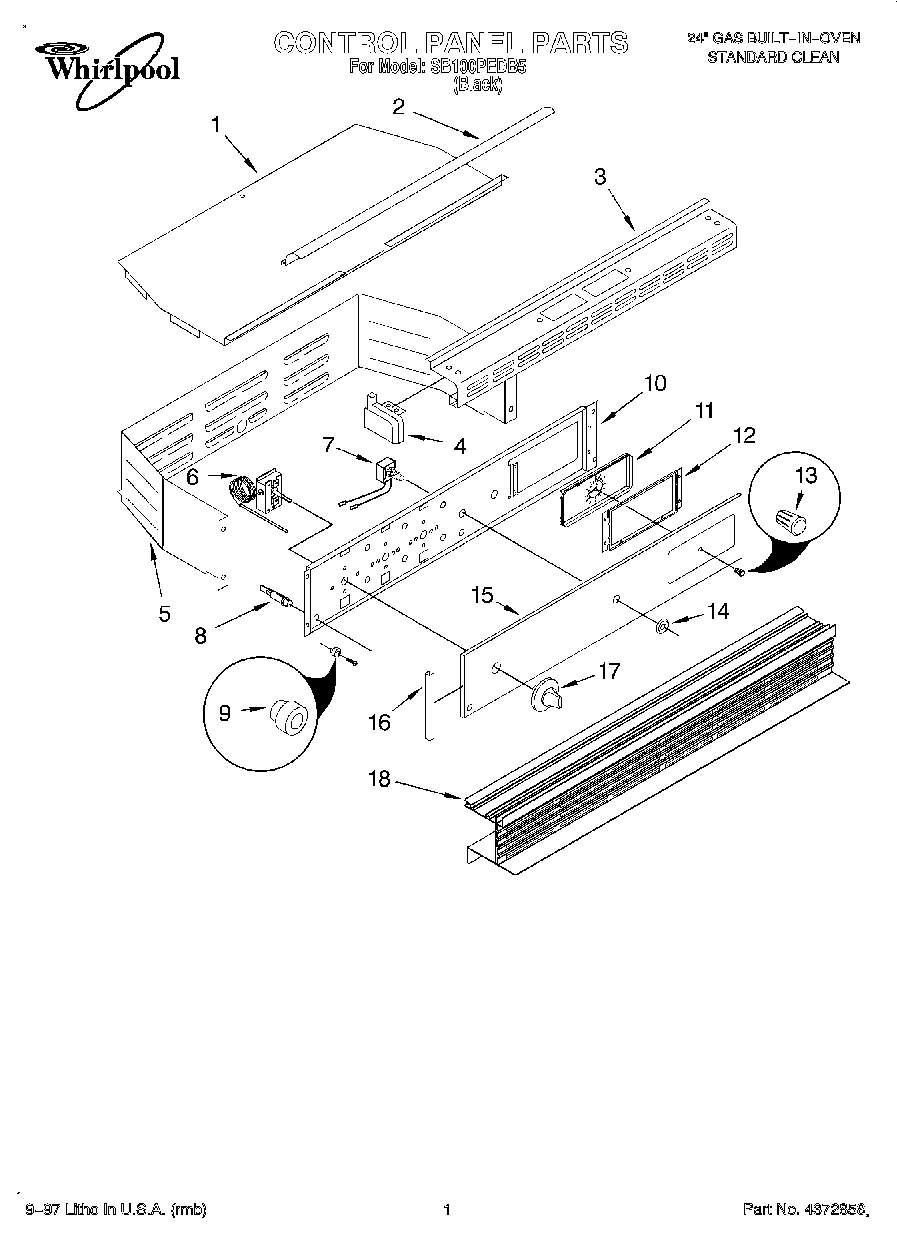

01 - CONTROL PANEL

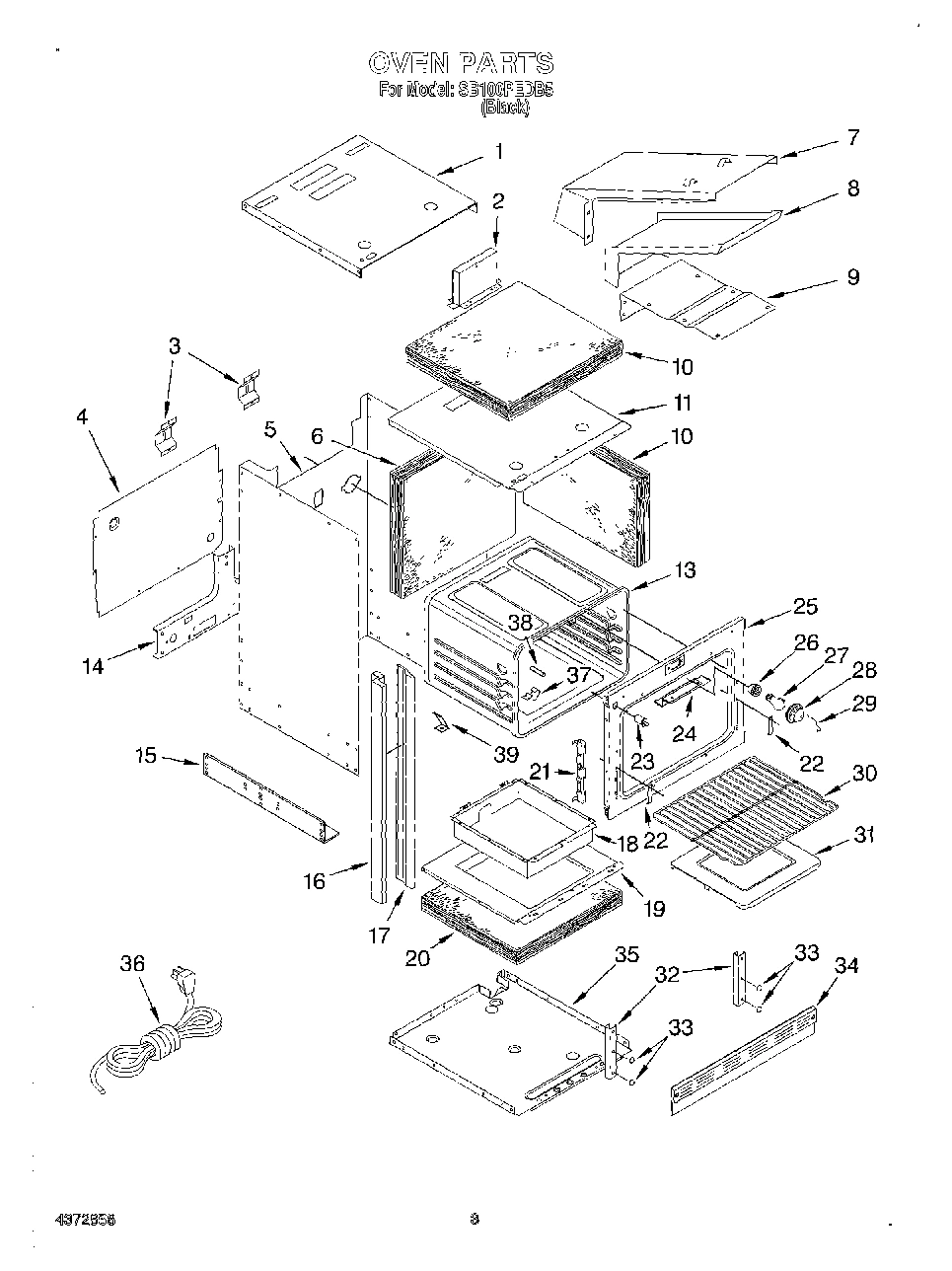

03 - OVEN

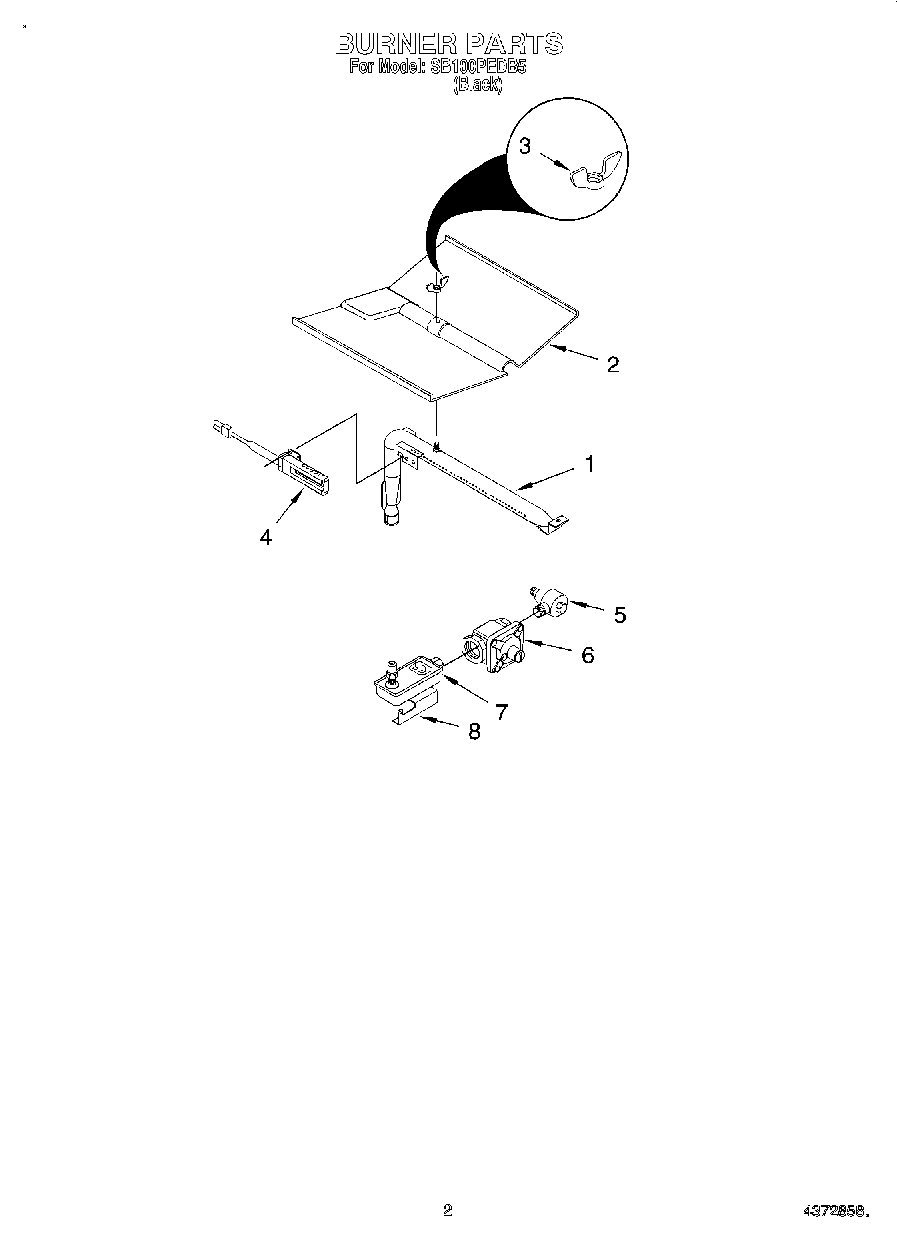

02 - BURNER

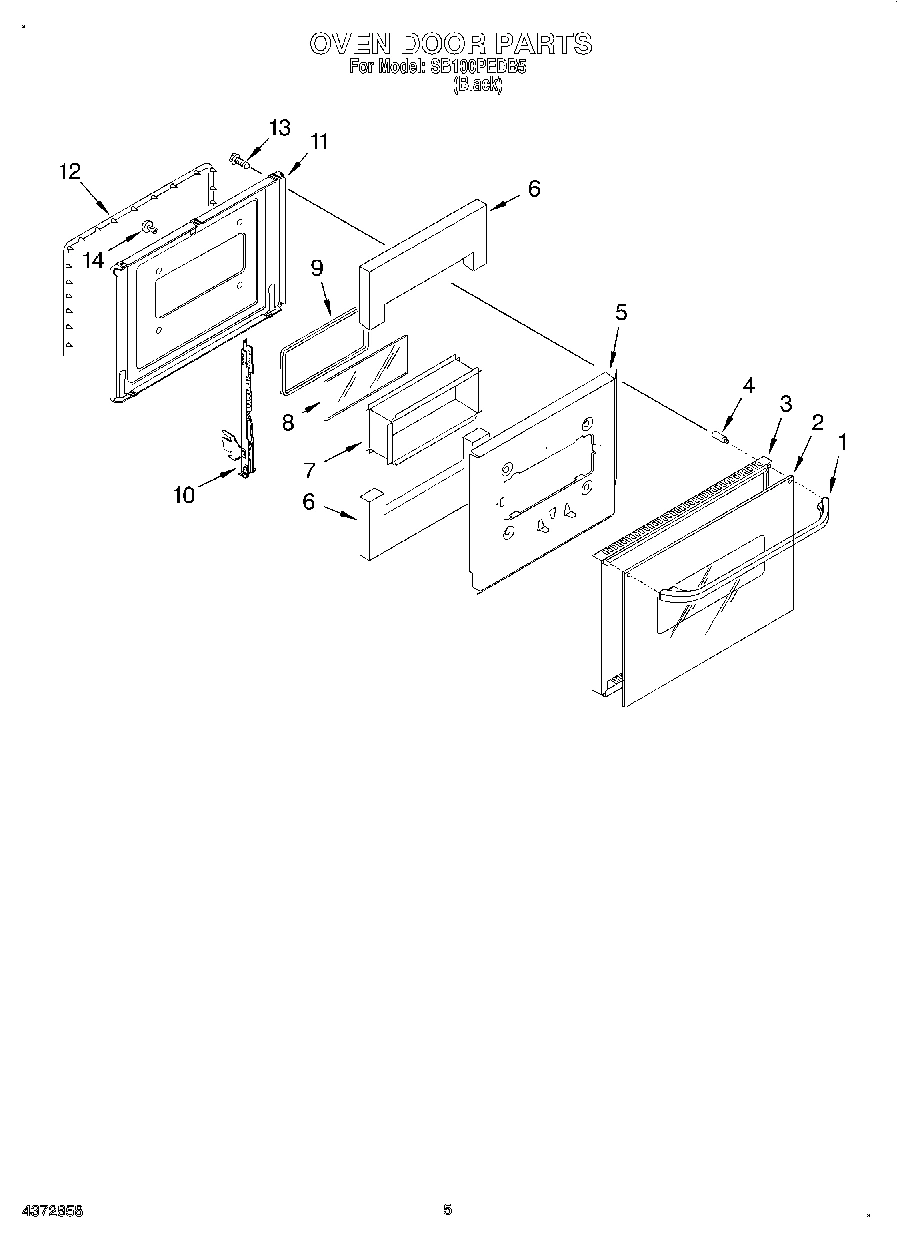

04 - OVEN DOOR

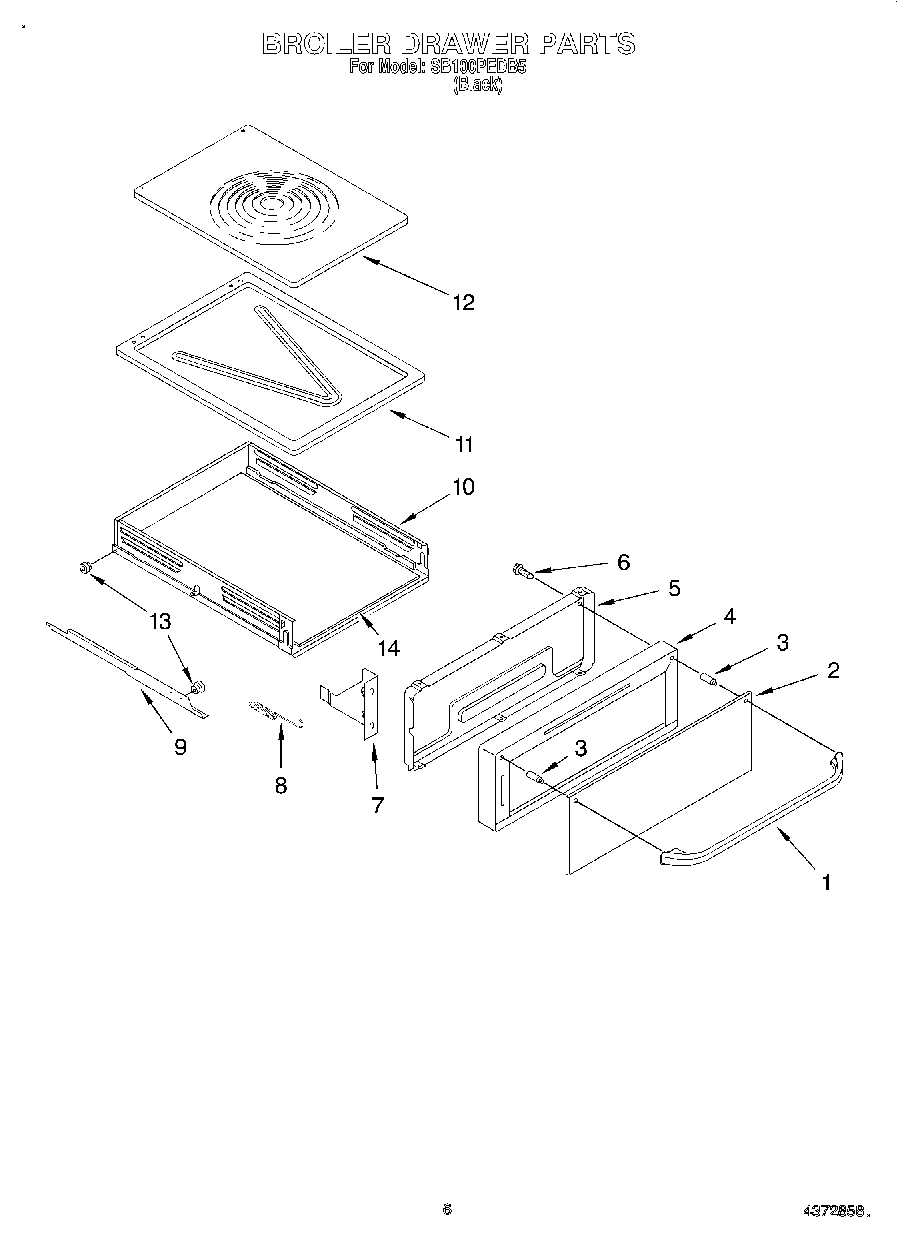

05 - BROILER DRAWER, LITERATURE
Common parts from model Whirlpool SB100PEDB5
Guide, Use & Care WPL LIT4363413 Contact Us For Availability
Instructions, Installation WPL LIT4372426 Contact Us For Availability
Diagram, Wiring WPL LIT4372706 Contact Us For Availability
1
Cover, Control WPL 4372507 Contact Us For Availability
1
Top, Wrapper WPL 816972 Contact Us For Availability
1
Burner, Bake/Broil WPL 816825 Contact Us For Availability
1
Handle, Drawer WPL 4372477 Contact Us For Availability
2
Deflector, Heat WPL 4372700 Contact Us For Availability
2
Adaptor, Flue WPL 816851 Contact Us For Availability
2
Baffle, Burner WPL 4372473 Contact Us For Availability
2
Glass, Outer Door WPL 4372478 Contact Us For Availability
2
Glass, Drawer WPL 816842 Contact Us For Availability
3
Trim, Top WPL 4372471 Contact Us For Availability
3
Spring, Oven WPL 4372501 Contact Us For Availability
3
Frame, Door WPL 816840 Contact Us For Availability
3
Spacer, Handle WPL 816941 Contact Us For Availability
4
Endcap (Right Hand) WPL 816829 Contact Us For Availability
4
Endcap (Left Hand) WPL 816830 Contact Us For Availability
4
Cover, Wire WPL 4372504 Contact Us For Availability
4
Spacer, Handle WPL 816720 Contact Us For Availability
4
Frame, Trim WPL 4372703 Contact Us For Availability
5
Shield, Control WPL 4372470 Contact Us For Availability
5
Wrapper, Cabinet WPL 4372704 Contact Us For Availability
5
Valve, Shut-Off WPL 4372475 Contact Us For Availability
5
Panel, Airwash WPL 816508 Contact Us For Availability
5
Liner, Drawer WPL 4372775 Contact Us For Availability
6
Thermostat WPL 4372699 Contact Us For Availability
6
Insulation, Back WPL 4372498 Contact Us For Availability
6
Regulator WPL 816926 Contact Us For Availability
6
Insulation, Door WPL 4372479 Contact Us For Availability
6
Screw, Handle WPL 4372701 Contact Us For Availability
7
Switch, Oven Light WPL 4372465 Contact Us For Availability
7
Shield, Flue Top WPL 816968 Contact Us For Availability
7
Valve, Safety WPL 816927 Contact Us For Availability
7
Retainer, Glass WPL 816934 Contact Us For Availability
7
Hinge, Broiler (Left Hand) WPL 4372488 Contact Us For Availability
7
Hinge, Broiler (Right Hand) WPL 4372489 Contact Us For Availability
8
Light, Indicator WPL 4372772 Contact Us For Availability
8
Flue WPL 816852 Contact Us For Availability
8
Bracket, Valve WPL 4372476 Contact Us For Availability
8
Glass, Inner WPL 816377 Contact Us For Availability
8
Spring, Broiler WPL 816942 Contact Us For Availability
9
Bumper, Rubber (4) WPL 816961 Contact Us For Availability
9
Shield, Flue Bottom WPL 4372483 Contact Us For Availability
9
Seal, Window WPL 816376 Contact Us For Availability
9
Track, Drawer (Right Hand) WPL 816896 Contact Us For Availability
9
Track, Drawer (Left Hand) WPL 816897 Contact Us For Availability
10
Plate, Control Mtg WPL 4372698 Contact Us For Availability
10
Insulation, Top & Sides WPL 816866 Contact Us For Availability
10
Hinge, Door WPL 816932 Contact Us For Availability
10
Drawer, Broiler WPL 4372774 Contact Us For Availability
11
Clock WPL 4372469 Contact Us For Availability
11
Shield, Insulation WPL 4372497 Contact Us For Availability
11
Liner, Door WPL 4372773 Contact Us For Availability
11
Pan, Broiler WPL 4372776 Contact Us For Availability
12
Spacer, Bracket WPL 4372861 Contact Us For Availability
12
Bracket, Clock WPL 816955 Contact Us For Availability
12
Seal, Door WPL 4372702 Contact Us For Availability
12
Insert, Broiler Pan WPL 4372777 Contact Us For Availability
13
Knob, Clock WPL 4372860 Contact Us For Availability
13
Liner, Oven WPL 4372781 Contact Us For Availability
13
Roller WPL 816845 Contact Us For Availability
14
Bezel, Switch WPL 4372472 Contact Us For Availability
14
Bracket, Safety Valve WPL 4372500 Contact Us For Availability
14
Button, Plug WPL 816505 Contact Us For Availability
14
Panel, Drawer Btm. WPL 4372778 Contact Us For Availability
15
Panel, Control WPL 4372467 Contact Us For Availability
15
Support, Side WPL 4372499 Contact Us For Availability
16
Trim, Control Pnl. WPL 4372697 Contact Us For Availability
16
Trim, Outer WPL 816848 Contact Us For Availability
17
Knob, Thermostat WPL 4372464 Contact Us For Availability
17
Trim, Inner (Left Side) WPL 4372782 Contact Us For Availability
17
Trim, Inner (Right Side) WPL 4372783 Contact Us For Availability
18
Trim, Center Vent WPL 4372695 Contact Us For Availability
18
Box, Oven Burner WPL 816923 Contact Us For Availability
19
Shield, Base WPL 816887 Contact Us For Availability
20
Insulation, Bottom WPL 816949 Contact Us For Availability
21
Channel, Hinge WPL 816388 Contact Us For Availability
22
Retainer, Door WPL 816379 Contact Us For Availability
23
Switch, Door WPL 4371452 Contact Us For Availability
24
Shield, Vent WPL 4372493 Contact Us For Availability
25
Frame, Front WPL 4372780 Contact Us For Availability
26
Socket, Lamp WPL 4372491 Contact Us For Availability
28
Lens, Light WPL 4372021 Contact Us For Availability
29
Retainer, Lens WPL 816647 Contact Us For Availability
30
Rack, Oven (2) WPL 4372485 Contact Us For Availability
31
Bottom, Oven WPL 4372779 Contact Us For Availability
32
Support, Front (2) WPL 816893 Contact Us For Availability
33
Spacer, Rubber WPL 4372492 Contact Us For Availability
34
Trim, Bottom WPL 4372705 Contact Us For Availability
35
Base, Wrapper WPL 4372495 Contact Us For Availability
36
Cord, Power WPL 4372502 Contact Us For Availability
37
Clip, Thermo Bulb WPL 4371741 Contact Us For Availability
38
Cover, Thermo Bulb WPL 4372505 Contact Us For Availability
39
Spacer, Oven (2) WPL 4371971 Contact Us For Availability
× ![]()
