Model Maytag SAND8LW COMMERCIAL MICROWAVE – Common Parts & Diagrams
01 - MISCELLAEOUS INFORMATION
02 - CAVITY
03 - BLOWER/CONTROL PANEL
04 - ELECTRICAL COMPONENTS/DOOR

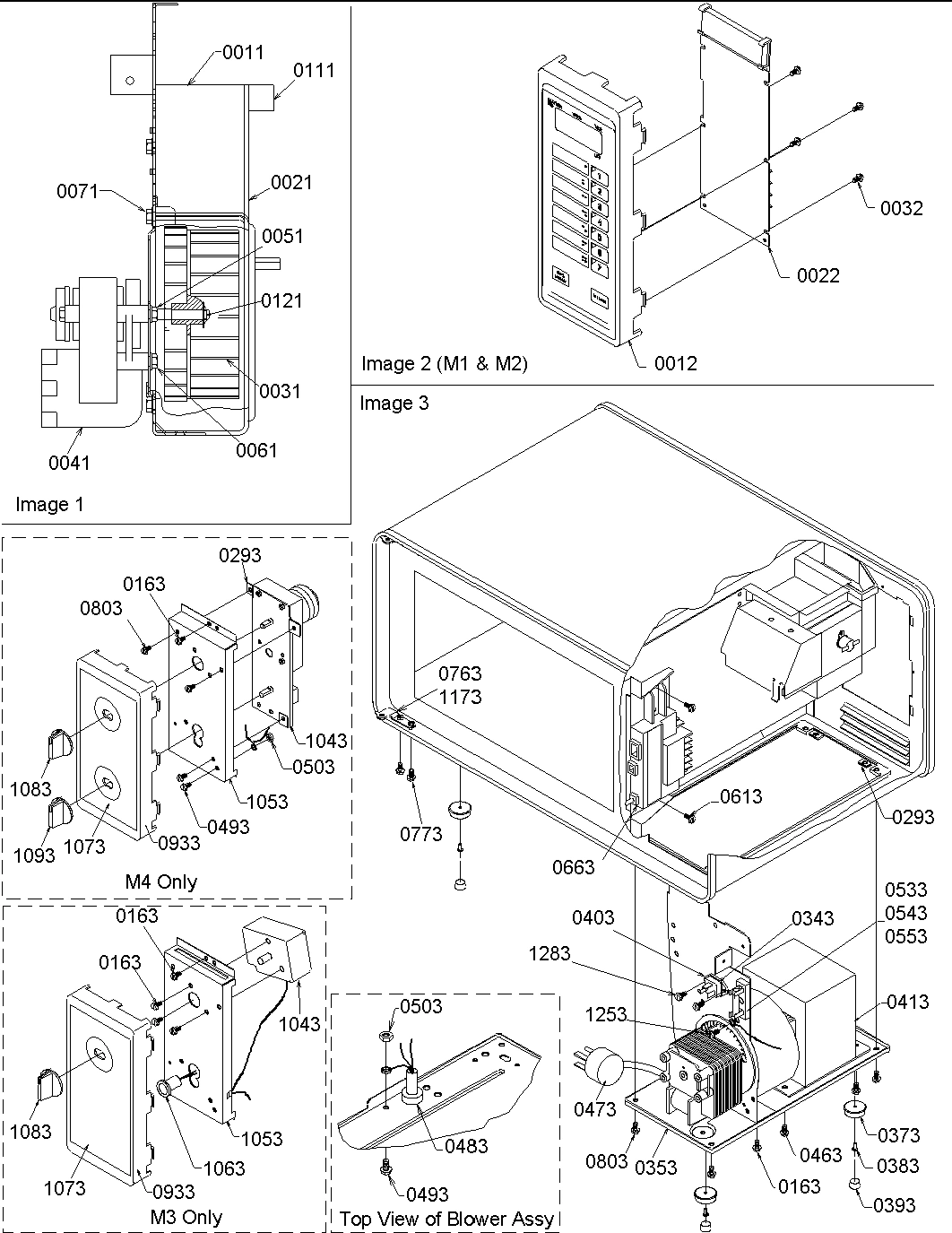

01 - Blower/Control Panel

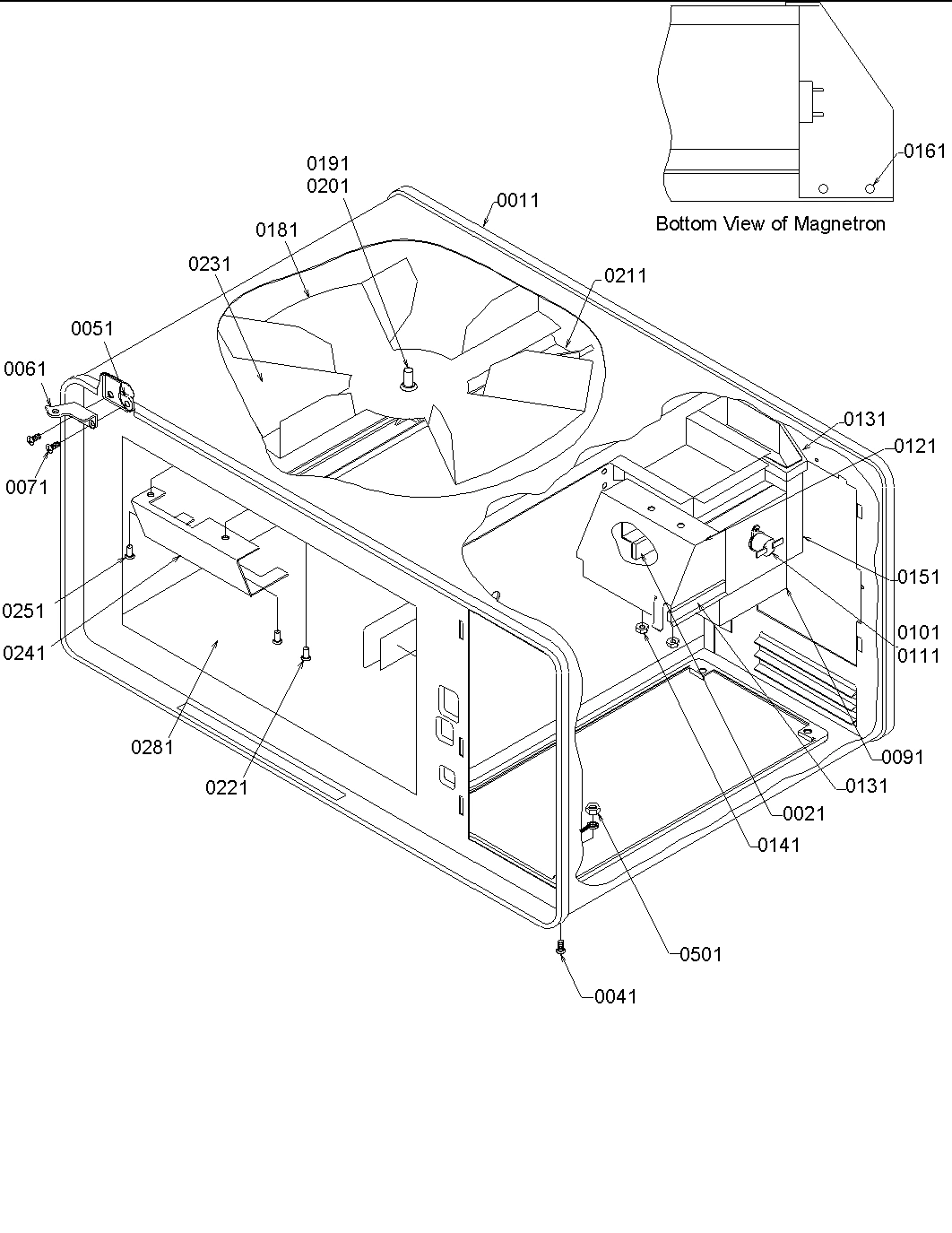

02 - Cavity

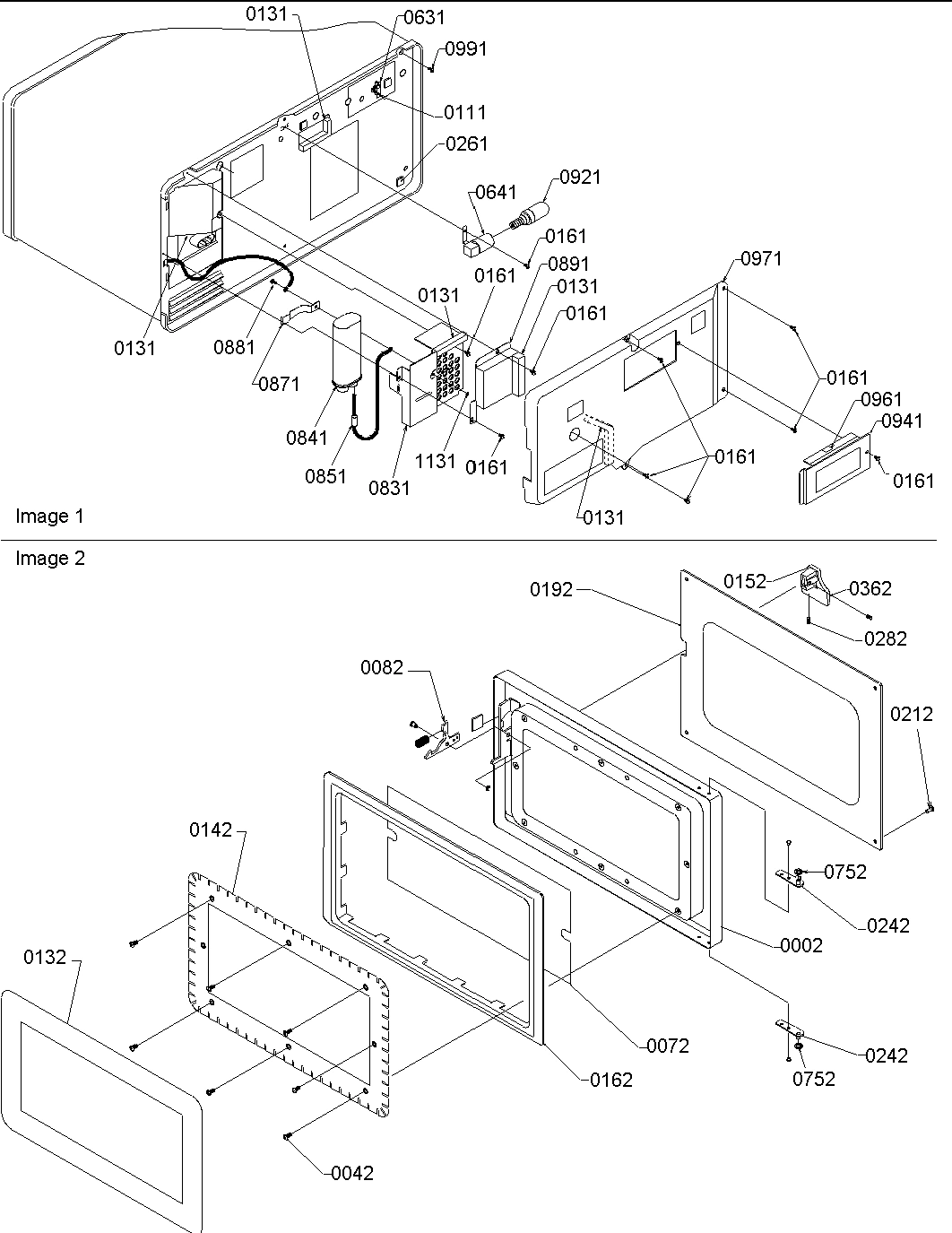

03 - Electrical Components/Door
Common parts from model Maytag SAND8LW COMMERCIAL MICROWAVE
2
DOOR BACK MAY R0163248 Contact Us For Availability
11
MAY M20D324 MAY M20D324 Contact Us For Availability
11
ASSY, CAVITY M77D180 MAY 4002004601 Contact Us For Availability
21
MAY M65D330 MAY M65D330 Contact Us For Availability
21
MAY A3030303 MAY A3030303 Contact Us For Availability
31
WHEEL BLWR W/CLIP INSERT x MAY 45278P01 Contact Us For Availability
41
MAY M12D100 MAY M12D100 Contact Us For Availability
41
RIVET-PLASTCx MAY 42192P01 Contact Us For Availability
51
MAY 45010P01 MAY 45010P01 Contact Us For Availability
61
BRKT TOP MAY 45009P01 Contact Us For Availability
61
SCREW MAY 5078-CC Contact Us For Availability
71
No.6 FLAT HD MACHINE SCREW MAY 5147-AA Contact Us For Availability
72
MAY M51D64 MAY M51D64 Contact Us For Availability
82
DOOR HOOK KIT MAY R0163249 Contact Us For Availability
91
MAY 10794401 MAY 10794401 Contact Us For Availability
101
PROTECTOR,THERMAL 180C 25 AMP MAY 1751802501 Contact Us For Availability
111
SCREW MAY M0251717 Contact Us For Availability
121
MAY 3000004301 MAY 3000004301 Contact Us For Availability
121
MAY M0118903 MAY M0118903 Contact Us For Availability
131
MAY A3030302 MAY A3030302 Contact Us For Availability
132
KIT, MIDDLE WINDOW MAY R0163294 Contact Us For Availability
141
MAY 5014-J MAY 5014-J Contact Us For Availability
142
DOOR PLATE,INNER MAY R0163246 Contact Us For Availability
151
REAR AIR DUCT 1400UTC MAY 45766P01 Contact Us For Availability
152
MAY M11D108 MAY M11D108 Contact Us For Availability
161
MAY M0216716 MAY M0216716 Contact Us For Availability
162
FILLER, DOOR MAY R0163247 Contact Us For Availability
181
KIT, STIRRER BLADE MAY 10825902 Contact Us For Availability
191
MAY 43406P01 MAY 43406P01 Contact Us For Availability
192
WINDOW MENUMSTR ASY UTC MAY 4180028602 Contact Us For Availability
201
BALL MAY 38321P01 Contact Us For Availability
211
KIT, STIRRER BAR MAY 46394P01 Contact Us For Availability
212
.187 DIA PUSH RIVET BLK MAY 5144-UU Contact Us For Availability
221
MAY 5524122001 MAY 5524122001 Contact Us For Availability
231
STIRRER COVER M45D50 MAY 3010017901 Contact Us For Availability
241
MAY 3010017601 MAY 3010017601 Contact Us For Availability
242
MAY M8D390 MAY M8D390 Contact Us For Availability
251
.20 DIA PUSH RIVET POLYPROPYLE MAY 5850613001 Contact Us For Availability
261
MAY 3010004101 MAY 3010004101 Contact Us For Availability
281
MAY M50D45 MAY M50D45 Contact Us For Availability
282
SET SCREW No.10 X .25 MAY 5051032202 Contact Us For Availability
293
MAY 42365P01 MAY 42365P01 Contact Us For Availability
353
MAY 10825106 MAY 10825106 Contact Us For Availability
362
MAY 10805826 MAY 10805826 Contact Us For Availability
373
MAY B5732506 MAY B5732506 Contact Us For Availability
383
MAY A4539625 MAY A4539625 Contact Us For Availability
393
MAY C8965402 MAY C8965402 Contact Us For Availability
403
MAY 10966602 MAY 10966602 Contact Us For Availability
413
MAY 10426604 MAY 10426604 Contact Us For Availability
463
No.10 T X 3/8`` SCREW MAY 5018-JJ Contact Us For Availability
473
MAY 1731300205 MAY 1731300205 Contact Us For Availability
483
MAY 5149-M MAY 5149-M Contact Us For Availability
493
SCREW, No.8 MACH MAY 5146-FF Contact Us For Availability
501
MAY M0282007 MAY M0282007 Contact Us For Availability
543
MAY A4539601 MAY A4539601 Contact Us For Availability
553
MAY M0805102 MAY M0805102 Contact Us For Availability
613
MAY M0211018 MAY M0211018 Contact Us For Availability
631
MAY B5795305 MAY B5795305 Contact Us For Availability
641
LAMP HOLDER 1435UTC MAY 45954P01 Contact Us For Availability
663
MAY R0163285 MAY R0163285 Contact Us For Availability
752
MAY 40370P01 MAY 40370P01 Contact Us For Availability
763
HINGE ASY MAY 45179P01 Contact Us For Availability
773
No.8-32 PAN HD MACH SCR (25) MAY 5149-C Contact Us For Availability
803
MAY M0238616 MAY M0238616 Contact Us For Availability
831
MAY 10824903 MAY 10824903 Contact Us For Availability
841
MAY D8547927 MAY D8547927 Contact Us For Availability
851
MAY B8383102 MAY B8383102 Contact Us For Availability
871
MAY 10822101 MAY 10822101 Contact Us For Availability
881
MAY M0253504 MAY M0253504 Contact Us For Availability
891
MAY 44756P02 MAY 44756P02 Contact Us For Availability
921
MAY 44865P01 MAY 44865P01 Contact Us For Availability
933
MAY R0157533 MAY R0157533 Contact Us For Availability
941
MAY 3010012808 MAY 3010012808 Contact Us For Availability
961
CLIP-DR M2D610 (25) MAY 38886P01 Contact Us For Availability
971
COVER-REAR MAY NLA Contact Us For Availability
971
MAY 3010010111 MAY 3010010111 Contact Us For Availability
991
MAY 5013-JJ MAY 5013-JJ Contact Us For Availability
1043
TIMER, 6 MINUTE MAY 2025206101 Contact Us For Availability
1053
MOUNTING PLATE M7X65 MAY 3000030001 Contact Us For Availability
1063
LAMP-INDICATOR M9D120 MAY 1341004275 Contact Us For Availability
1073
MAY 3131006904 MAY 3131006904 Contact Us For Availability
1083
MAY 42180P02 MAY 42180P02 Contact Us For Availability
1131
NUT K MAY M0282005 Contact Us For Availability
1173
MAY 45540P01 MAY 45540P01 Contact Us For Availability
1253
MAY M0216529 MAY M0216529 Contact Us For Availability
× ![]()
