Model Maytag SAND700 COMMERCIAL MICROWAVE – Common Parts & Diagrams
01 - Back Side Electrical Components
02 - Cavity Assembly

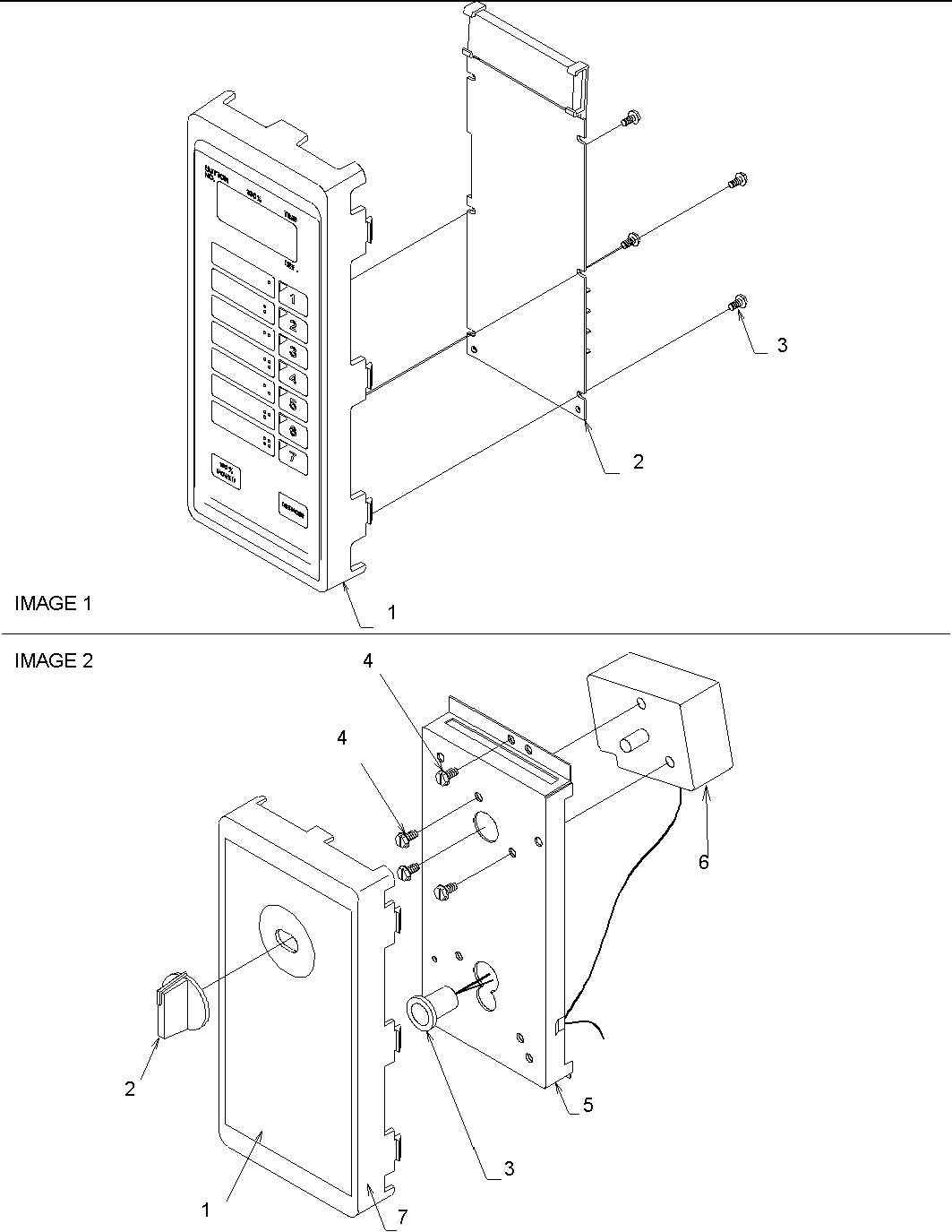

03 - Control Panel Assembly

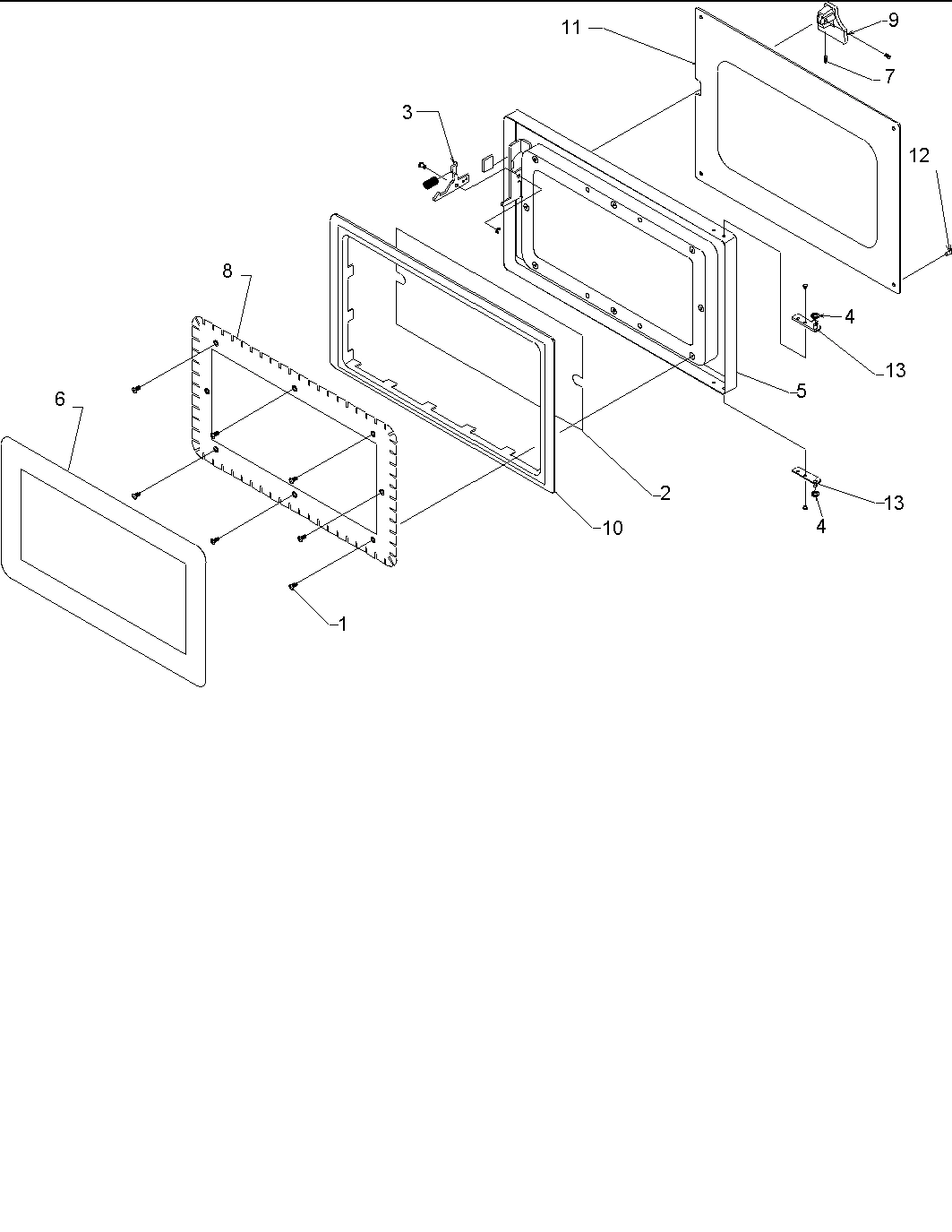

04 - Door Assembly

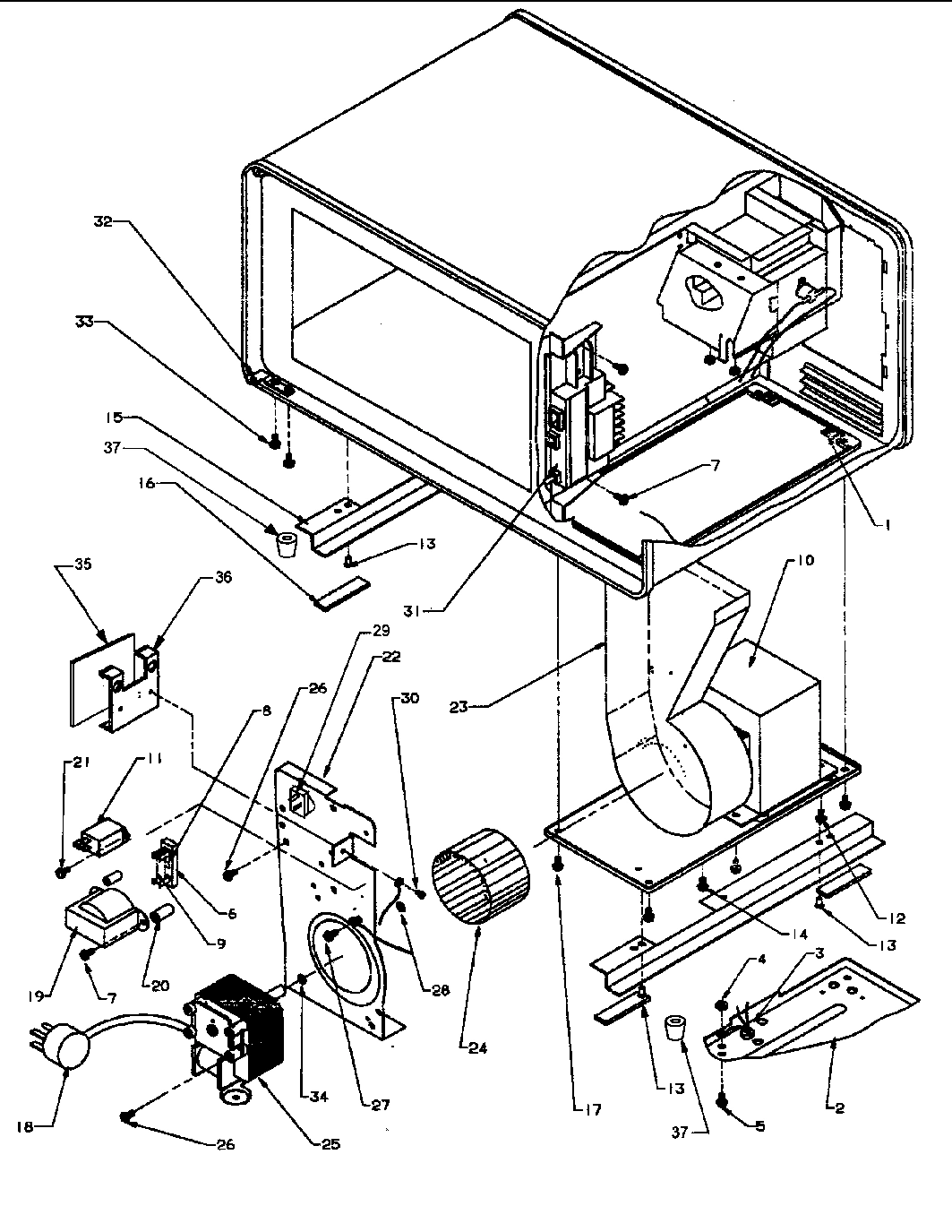

05 - Interior Components
Common parts from model Maytag SAND700 COMMERCIAL MICROWAVE
1
PROTECTOR THERMAL 25AMP CAVITY MAY 1751172501 Contact Us For Availability
1
ASSY, CAVITY M77D180 MAY M77D180 Contact Us For Availability
1
MAY 3131006904 MAY 3131006904 Contact Us For Availability
1
MAY 42365P01 MAY 42365P01 Contact Us For Availability
2
MAY 24642P01 MAY 24642P01 Contact Us For Availability
2
MAY 42180P02 MAY 42180P02 Contact Us For Availability
2
KIT, MIDDLE WINDOW MAY R0163294 Contact Us For Availability
2
PANEL, BOTTOM ACCESS MAY R0163292 Contact Us For Availability
3
MAY B5662304 MAY B5662304 Contact Us For Availability
3
LAMP-INDICATOR M9D120 MAY 1341004275 Contact Us For Availability
3
DOOR HOOK KIT MAY R0163249 Contact Us For Availability
4
MAY 5043-K MAY 5043-K Contact Us For Availability
4
RIVET-PLASTCx MAY 42192P01 Contact Us For Availability
4
MAY M0224416 MAY M0224416 Contact Us For Availability
4
MAY 40370P01 MAY 40370P01 Contact Us For Availability
5
SOCKET, LIGHT MAY 2040100901 Contact Us For Availability
5
MAY 45010P01 MAY 45010P01 Contact Us For Availability
5
MOUNTING PLATE M7X65 MAY 3000030001 Contact Us For Availability
5
DOOR BACK MAY R0163248 Contact Us For Availability
5
SCREW, No.8 MACH MAY 5146-FF Contact Us For Availability
6
MAY 44865P01 MAY 44865P01 Contact Us For Availability
6
BRKT TOP MAY 45009P01 Contact Us For Availability
6
TIMER, 6 MINUTE MAY 2025206101 Contact Us For Availability
6
MAY 10785101 MAY 10785101 Contact Us For Availability
6
FUSE BLOCK.250 TERM, RT ANGLE MAY 30929P01 Contact Us For Availability
7
No.6 FLAT HD MACHINE SCREW MAY 5147-AA Contact Us For Availability
7
MAY R0157533 MAY R0157533 Contact Us For Availability
7
SET SCREW No.10 X .25 MAY 5051032202 Contact Us For Availability
7
SCREW, SM MAY 5015-X Contact Us For Availability
8
MAY 3010010111 MAY 3010010111 Contact Us For Availability
8
MAY 10744601 MAY 10744601 Contact Us For Availability
8
DOOR PLATE,INNER MAY R0163246 Contact Us For Availability
8
MAY A4539601 MAY A4539601 Contact Us For Availability
9
MAY 10794401 MAY 10794401 Contact Us For Availability
9
MAY 12066802 MAY 12066802 Contact Us For Availability
9
MAY M0805102 MAY M0805102 Contact Us For Availability
10
CLIP-DR M2D610 (25) MAY 38886P01 Contact Us For Availability
10
PROTECTOR,THERMAL 180C 25 AMP MAY 1751802501 Contact Us For Availability
10
FILLER, DOOR MAY R0163247 Contact Us For Availability
10
MAY 10426604 MAY 10426604 Contact Us For Availability
11
MAY 35785P01 MAY 35785P01 Contact Us For Availability
11
MAY M20D377 MAY M20D377 Contact Us For Availability
11
WINDOW MENUMSTR ASY UTC MAY 4180028602 Contact Us For Availability
12
TAPE ALUM MAY 5150-S Contact Us For Availability
12
MAY 3000004301 MAY 3000004301 Contact Us For Availability
12
.187 DIA PUSH RIVET BLK MAY 5144-UU Contact Us For Availability
12
No.10 T X 3/8`` SCREW MAY 5018-JJ Contact Us For Availability
13
MAY 10839705 MAY 10839705 Contact Us For Availability
13
MAY 44756P02 MAY 44756P02 Contact Us For Availability
13
HINGE ASSY KIT MAY R0163250 Contact Us For Availability
13
MAY A4539618 MAY A4539618 Contact Us For Availability
14
MAY 5014-J MAY 5014-J Contact Us For Availability
15
MAY M20D258 MAY M20D258 Contact Us For Availability
15
REAR AIR DUCT 1400UTC MAY 45766P01 Contact Us For Availability
15
RAIL, SUPPORT MAY 10751404 Contact Us For Availability
16
MAY D8547927 MAY D8547927 Contact Us For Availability
16
KIT,STIRRER BLADE MAY 43404P02Q Contact Us For Availability
16
MAY C8870701 MAY C8870701 Contact Us For Availability
17
MAY 10822101 MAY 10822101 Contact Us For Availability
17
MAY M2D678 MAY M2D678 Contact Us For Availability
18
NUT K MAY 5043-M Contact Us For Availability
18
MAY M20D319 MAY M20D319 Contact Us For Availability
18
MAY 1731300205 MAY 1731300205 Contact Us For Availability
19
MAY B8383102 MAY B8383102 Contact Us For Availability
19
MAY 5524122001 MAY 5524122001 Contact Us For Availability
20
MAY 5013-JJ MAY 5013-JJ Contact Us For Availability
20
STIRRER COVER M45D50 MAY 3010017901 Contact Us For Availability
20
MAY 5019-TT MAY 5019-TT Contact Us For Availability
21
TIE-ELECT. MAY 5140-FF Contact Us For Availability
21
MAY 3010017601 MAY 3010017601 Contact Us For Availability
21
MAY M0211003 MAY M0211003 Contact Us For Availability
22
.20 DIA PUSH RIVET POLYPROPYLE MAY 5850613001 Contact Us For Availability
22
MAY M20D324 MAY M20D324 Contact Us For Availability
23
MAY M50D45 MAY M50D45 Contact Us For Availability
23
MAY M65D330 MAY M65D330 Contact Us For Availability
24
MAY M0275598 MAY M0275598 Contact Us For Availability
24
KIT, BLOWER WHEEL MAY R0163293 Contact Us For Availability
25
MAY M12D100 MAY M12D100 Contact Us For Availability
26
No.8 HI-LO X 3/8`` SCREW MAY 5145-W Contact Us For Availability
27
SCREW MAY 5078-CC Contact Us For Availability
28
MAY M0282007 MAY M0282007 Contact Us For Availability
30
No.6 F X 1/4`` SCREW (25) MAY 5043-W Contact Us For Availability
31
SVC INTERLOCK SWITCH ASY MAY 4002006801 Contact Us For Availability
32
HINGE ASY MAY 45179P01 Contact Us For Availability
33
No.8-32 PAN HD MACH SCR (25) MAY 5149-C Contact Us For Availability
34
MAY M0118903 MAY M0118903 Contact Us For Availability
37
KIT, FOOT MAY R0156901 Contact Us For Availability
× ![]()
