Model Maytag S968J-CHZW ELECTRIC RANGE – Common Parts & Diagrams

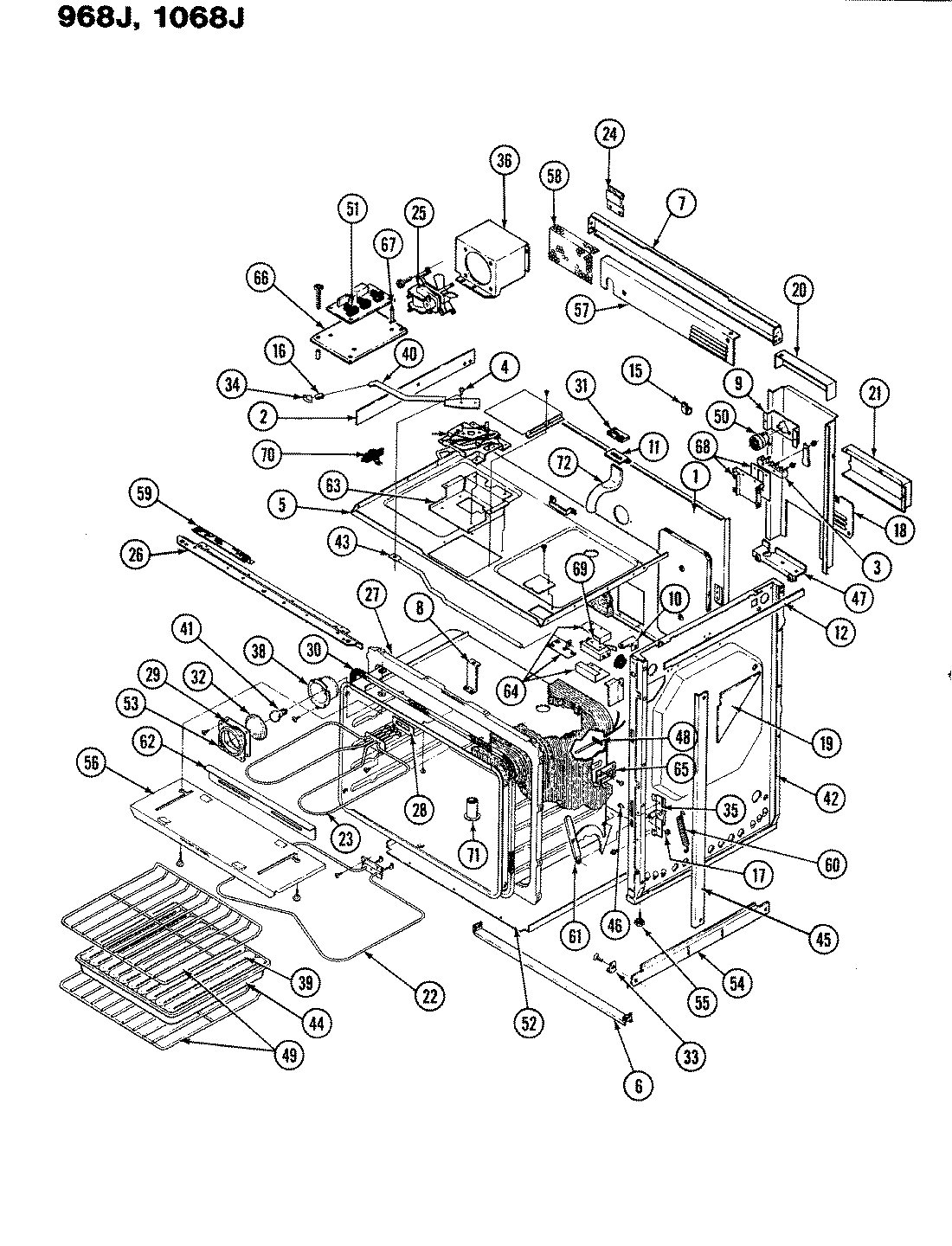

01 - BODY

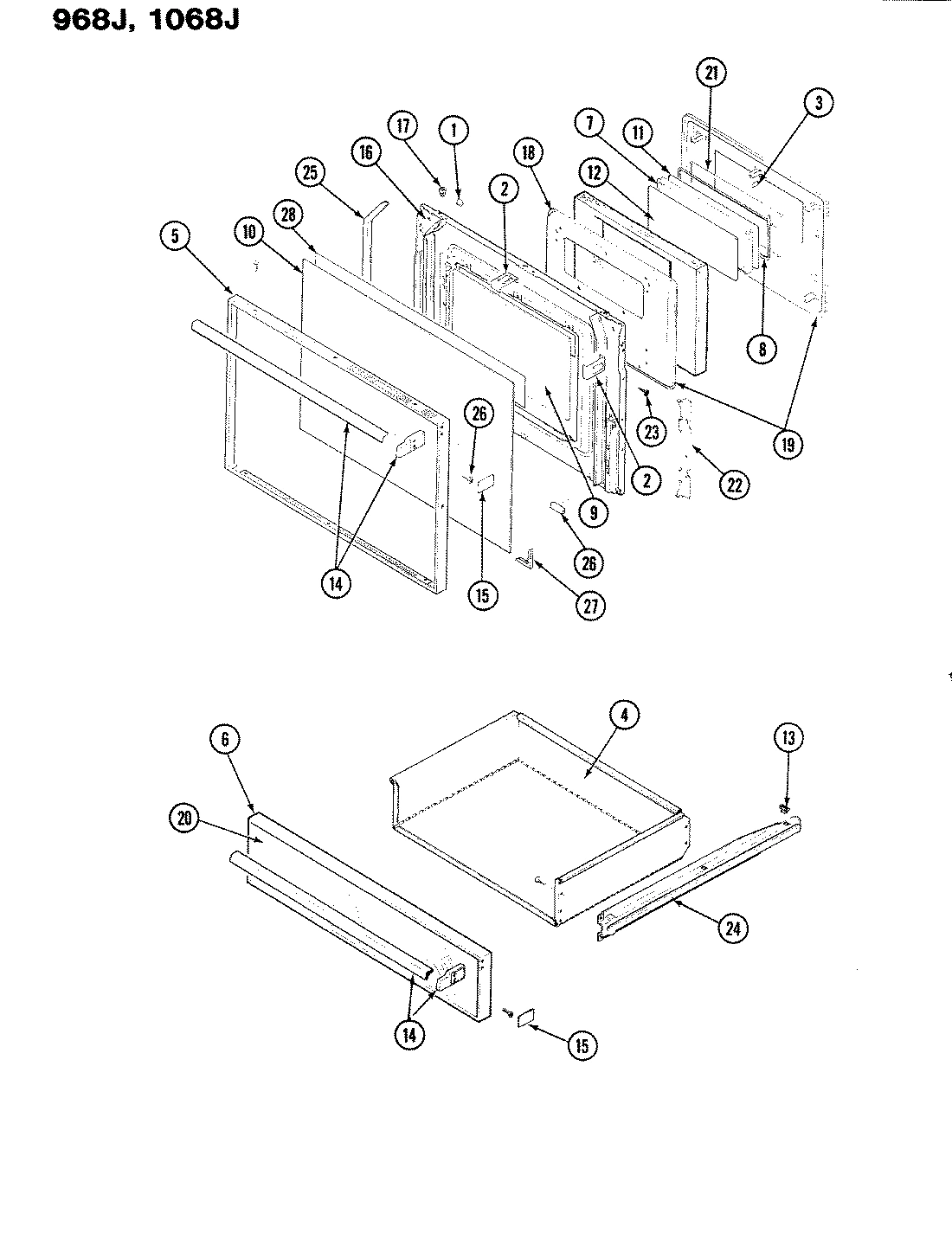

02 - DOOR
03 - TOP ASSEMBLY
Common parts from model Maytag S968J-CHZW ELECTRIC RANGE
1
MAY 8003P002-60 MAY 8003P002-60 Contact Us For Availability
1
MAY 8003P009-60 MAY 8003P009-60 Contact Us For Availability
1
MAY 7720P129-60 MAY 7720P129-60 Contact Us For Availability
2
CLIP, DOOR MAY 7112P034-60 Contact Us For Availability
2
MAY 7740P006-60 MAY 7740P006-60 Contact Us For Availability
3
MAY 7112P051-60 MAY 7112P051-60 Contact Us For Availability
3
MAY 3801F100-51 MAY 3801F100-51 Contact Us For Availability
4
MAY 3801F199-45 MAY 3801F199-45 Contact Us For Availability
5
MAY 7706P243-60 MAY 7706P243-60 Contact Us For Availability
5
MAY 3801F197-51 MAY 3801F197-51 Contact Us For Availability
5
MAY 7101P057-60 MAY 7101P057-60 Contact Us For Availability
6
NOT REQUIRED PART OR SEE NOTE FRAME, SERVICE MAY W10124350 Contact Us For Availability
6
MAY 7112P042-60 MAY 7112P042-60 Contact Us For Availability
7
MAY 7706P177-60 MAY 7706P177-60 Contact Us For Availability
7
MAY 7601P134-60 MAY 7601P134-60 Contact Us For Availability
7
MAY 7601P178-60 MAY 7601P178-60 Contact Us For Availability
8
MAY 7201P018-60 MAY 7201P018-60 Contact Us For Availability
8
MAY 7406P024-60 MAY 7406P024-60 Contact Us For Availability
9
MAY 7902P097-60 MAY 7902P097-60 Contact Us For Availability
9
MAY 5170P064-60 MAY 5170P064-60 Contact Us For Availability
9
MAY 5170P079-60 MAY 5170P079-60 Contact Us For Availability
9
MAY 5170P094-60 MAY 5170P094-60 Contact Us For Availability
9
MAY 7406P023-60 MAY 7406P023-60 Contact Us For Availability
10
MAY 3801F049-34 MAY 3801F049-34 Contact Us For Availability
10
MAY 7902P276-60 MAY 7902P276-60 Contact Us For Availability
10
MAY 7731P029-60 MAY 7731P029-60 Contact Us For Availability
11
MAY 3801F126-45 MAY 3801F126-45 Contact Us For Availability
11
MAY 7902P287-60 MAY 7902P287-60 Contact Us For Availability
11
MAY 7711P428-60 MAY 7711P428-60 Contact Us For Availability
11
MAY 7711P445-60 MAY 7711P445-60 Contact Us For Availability
12
MAY 7902S303-60 MAY 7902S303-60 Contact Us For Availability
12
MAY 7711P433-60 MAY 7711P433-60 Contact Us For Availability
12
MAY 7711P446-60 MAY 7711P446-60 Contact Us For Availability
13
MAY 3801F122-45 MAY 3801F122-45 Contact Us For Availability
13
MAY 7711P431-60 MAY 7711P431-60 Contact Us For Availability
14
MAY 3818F027-45 MAY 3818F027-45 Contact Us For Availability
14
MAY 8002P020-60 MAY 8002P020-60 Contact Us For Availability
14
MAY 7701P047-60 MAY 7701P047-60 Contact Us For Availability
15
MAY 7111P002-60 MAY 7111P002-60 Contact Us For Availability
15
MAY 7728P012-60 MAY 7728P012-60 Contact Us For Availability
15
MAY 7407P081-60 MAY 7407P081-60 Contact Us For Availability
16
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
16
MAY 2402W128-15 MAY 2402W128-15 Contact Us For Availability
16
MAY 2402W149-15 MAY 2402W149-15 Contact Us For Availability
16
MAY 2402W186-19 MAY 2402W186-19 Contact Us For Availability
16
MAY 7103P074-60 MAY 7103P074-60 Contact Us For Availability
16
MAY 7103P075-60 MAY 7103P075-60 Contact Us For Availability
16
MAY 7201P041-60 MAY 7201P041-60 Contact Us For Availability
17
MAY 7112P019-60 MAY 7112P019-60 Contact Us For Availability
17
MAY 3608F046-59 MAY 3608F046-59 Contact Us For Availability
17
MAY 7719P008-60 MAY 7719P008-60 Contact Us For Availability
17
MAY 7722P099-60 MAY 7722P099-60 Contact Us For Availability
18
MAY 4005F302-51 MAY 4005F302-51 Contact Us For Availability
18
MAY 2410F016-51 MAY 2410F016-51 Contact Us For Availability
18
MAY 8004P012-60 MAY 8004P012-60 Contact Us For Availability
19
MAY 4005F163-51 MAY 4005F163-51 Contact Us For Availability
19
MAY 2410A037-15 MAY 2410A037-15 Contact Us For Availability
19
MAY 8004P011-60 MAY 8004P011-60 Contact Us For Availability
20
MAY 4005F082-80 MAY 4005F082-80 Contact Us For Availability
21
MAY 4005F299-51 MAY 4005F299-51 Contact Us For Availability
21
MAY 3804F022-45 MAY 3804F022-45 Contact Us For Availability
21
MAY 7403P102-60 MAY 7403P102-60 Contact Us For Availability
22
MAY 7406P010-60 MAY 7406P010-60 Contact Us For Availability
22
MAY 7406P067-60 MAY 7406P067-60 Contact Us For Availability
22
MAY 3804F051-80 MAY 3804F051-80 Contact Us For Availability
22
MAY 2002F064-30 MAY 2002F064-30 Contact Us For Availability
23
MAY 7101P104-60 MAY 7101P104-60 Contact Us For Availability
23
MAY 7406P032-60 MAY 7406P032-60 Contact Us For Availability
23
MAY 7406P068-60 MAY 7406P068-60 Contact Us For Availability
23
MAY 7706P009-60 MAY 7706P009-60 Contact Us For Availability
23
MAY 7706P021-60 MAY 7706P021-60 Contact Us For Availability
23
MAY 7107P017-60 MAY 7107P017-60 Contact Us For Availability
23
MAY 04000008 MAY 04000008 Contact Us For Availability
23
MAY 04000009 MAY 04000009 Contact Us For Availability
24
MAY 7706P170-60 MAY 7706P170-60 Contact Us For Availability
24
MAY 3406F026-80 MAY 3406F026-80 Contact Us For Availability
24
MAY 7101P123-60 MAY 7101P123-60 Contact Us For Availability
25
MAY 7427P006-60 MAY 7427P006-60 Contact Us For Availability
25
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
26
MAY 4012F018-80 MAY 4012F018-80 Contact Us For Availability
26
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
27
MAY 8010P045-60 MAY 8010P045-60 Contact Us For Availability
27
MAY 2201F061-23 MAY 2201F061-23 Contact Us For Availability
28
MAY 7201P003-60 MAY 7201P003-60 Contact Us For Availability
28
MAY 7201P014-60 MAY 7201P014-60 Contact Us For Availability
28
MAY 4870F005-60 MAY 4870F005-60 Contact Us For Availability
28
MAY 8270P051-60 MAY 8270P051-60 Contact Us For Availability
29
MAY 7201P015-60 MAY 7201P015-60 Contact Us For Availability
30
MAY 7201P036-60 MAY 7201P036-60 Contact Us For Availability
31
MAY 7201P028-60 MAY 7201P028-60 Contact Us For Availability
32
MAY 7902P057-60 MAY 7902P057-60 Contact Us For Availability
32
MAY 8016P008-60 MAY 8016P008-60 Contact Us For Availability
34
MAY 7701P068-60 MAY 7701P068-60 Contact Us For Availability
35
MAY 3418A029-34 MAY 3418A029-34 Contact Us For Availability
35
MAY 3418A030-34 MAY 3418A030-34 Contact Us For Availability
35
MAY 7106P029-60 MAY 7106P029-60 Contact Us For Availability
36
MAY 4001F050-45 MAY 4001F050-45 Contact Us For Availability
37
MAY 4001F058-51 MAY 4001F058-51 Contact Us For Availability
38
MAY 4001F020-23 MAY 4001F020-23 Contact Us For Availability
38
MAY 7101P064-60 MAY 7101P064-60 Contact Us For Availability
39
MAY 3413F002-23 MAY 3413F002-23 Contact Us For Availability
40
MAY 8009P009-60 MAY 8009P009-60 Contact Us For Availability
41
MAY 7407P026-60 MAY 7407P026-60 Contact Us For Availability
42
MAY 4009W030-80 MAY 4009W030-80 Contact Us For Availability
43
MAY 7807P004-60 MAY 7807P004-60 Contact Us For Availability
44
MAY 2618F027-80 MAY 2618F027-80 Contact Us For Availability
44
MAY 2618F029-80 MAY 2618F029-80 Contact Us For Availability
44
MAY 3401F004-23 MAY 3401F004-23 Contact Us For Availability
47
PLATE, CONDUIT REINFORCEMENT MAY 3605F146-51 Contact Us For Availability
47
MAY 3605F156-51 MAY 3605F156-51 Contact Us For Availability
48
MAY 12500029 MAY 12500029 Contact Us For Availability
48
MAY W10127323 MAY W10127323 Contact Us For Availability
49
MAY 7801P030-60 MAY 7801P030-60 Contact Us For Availability
50
MAY 7408P002-60 MAY 7408P002-60 Contact Us For Availability
51
MAY 7428P009-60 MAY 7428P009-60 Contact Us For Availability
51
MAY 7101P084-60 MAY 7101P084-60 Contact Us For Availability
51
MAY 7428P004-60 MAY 7428P004-60 Contact Us For Availability
52
MAY 3804F093-80 MAY 3804F093-80 Contact Us For Availability
52
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
53
MAY 3804F010-50 MAY 3804F010-50 Contact Us For Availability
53
MAY 3804F012-45 MAY 3804F012-45 Contact Us For Availability
55
MAY 3604F073-80 MAY 3604F073-80 Contact Us For Availability
55
MAY Y7101P25460 MAY Y7101P25460 Contact Us For Availability
56
MAY 3604F092-45 MAY 3604F092-45 Contact Us For Availability
57
MAY 3604F187-80 MAY 3604F187-80 Contact Us For Availability
58
MAY 3604F007-80 MAY 3604F007-80 Contact Us For Availability
58
MAY 3604F186-80 MAY 3604F186-80 Contact Us For Availability
58
MAY 3604W002-70 MAY 3604W002-70 Contact Us For Availability
58
MAY 3604W155-70 MAY 3604W155-70 Contact Us For Availability
59
MAY 3604F074-80 MAY 3604F074-80 Contact Us For Availability
60
MAY 7803P057-60 MAY 7803P057-60 Contact Us For Availability
61
MAY 3420A034-34 MAY 3420A034-34 Contact Us For Availability
62
MAY 3807F176-15 MAY 3807F176-15 Contact Us For Availability
63
MAY 3807F195-45 MAY 3807F195-45 Contact Us For Availability
× ![]()
