Model Whirlpool S968J-CHZW ELECTRIC RANGE – Common Parts & Diagrams

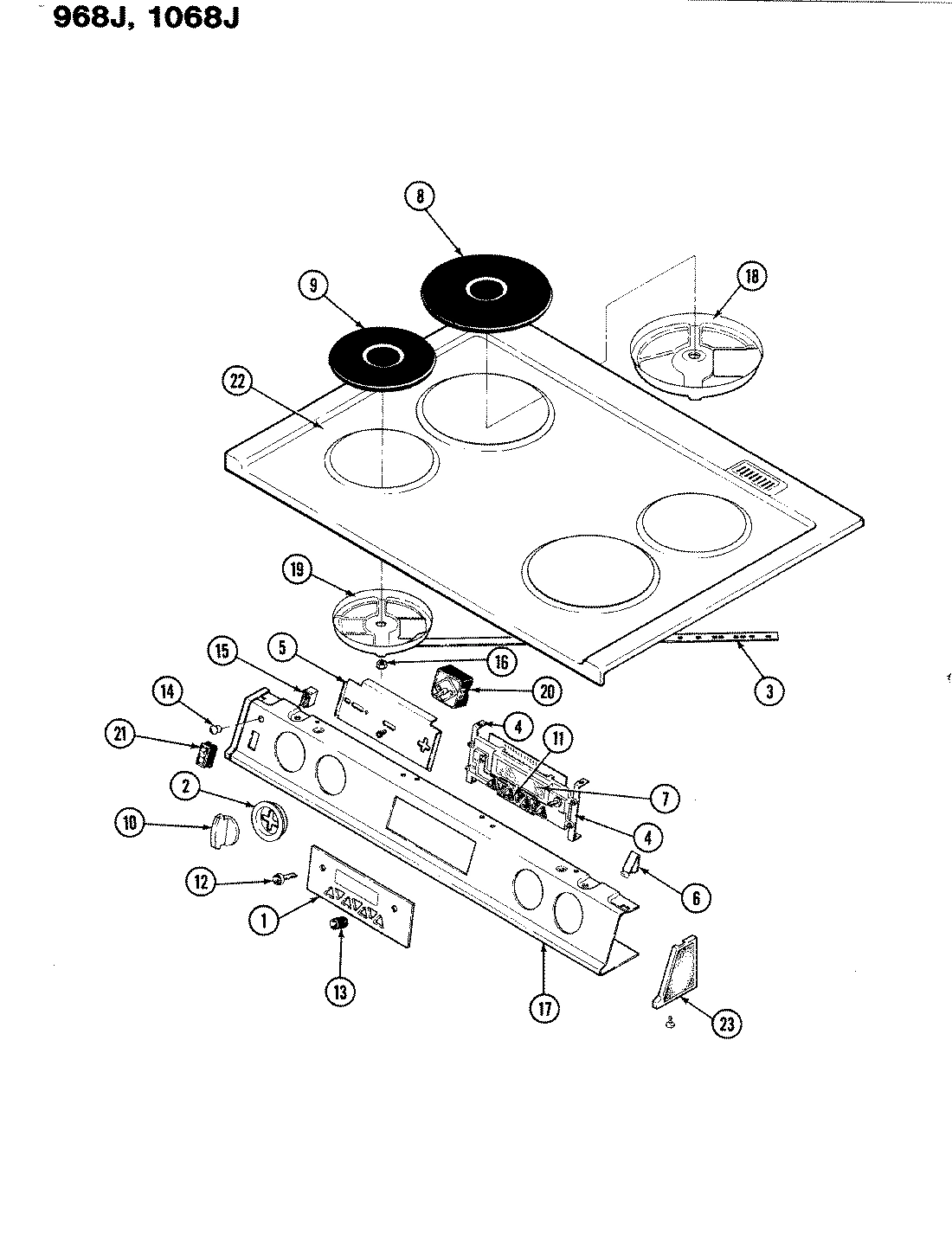

03 - TOP ASSEMBLY

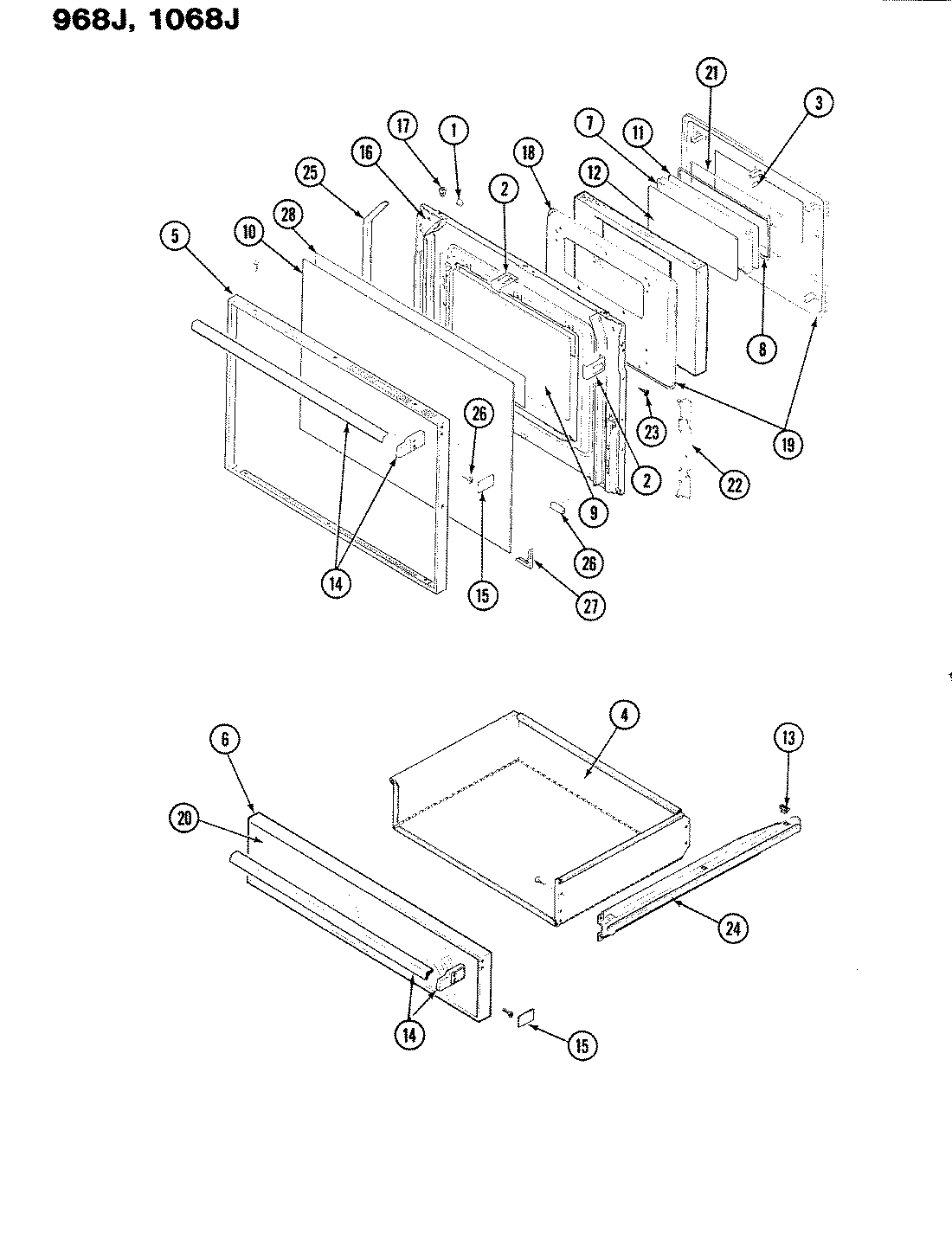

02 - DOOR

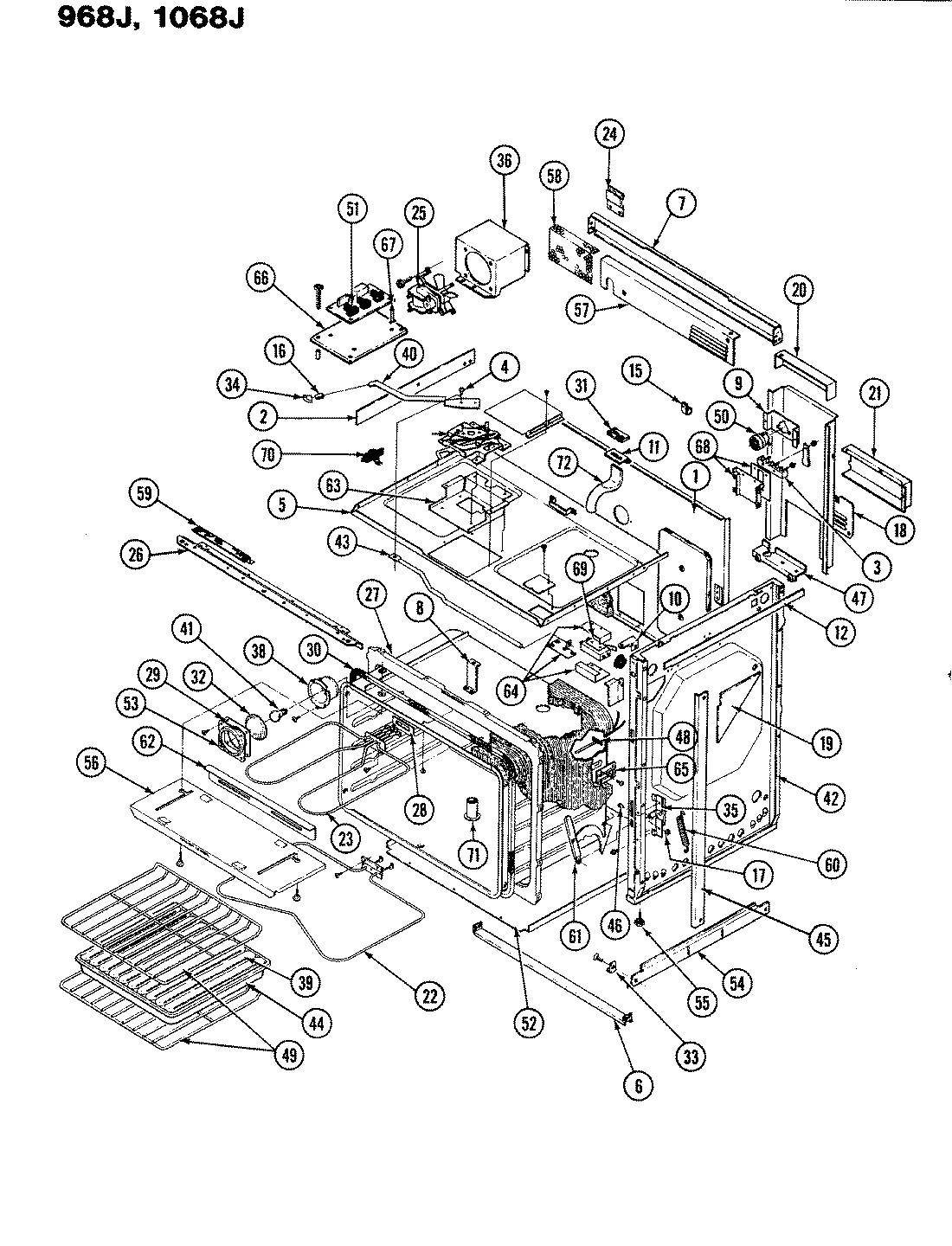

01 - BODY
Common parts from model Whirlpool S968J-CHZW ELECTRIC RANGE
1
BEZEL, CLOCK-BLACK WPL 7720P12960 Contact Us For Availability
1
BUMPER DOOR (ROUND) WPL 8003P00260 Contact Us For Availability
1
BUMPER, DOOR (SQUARE) WPL 8003P00960 Contact Us For Availability
1
BACK, MAIN WPL 4002F10880 Contact Us For Availability
2
BEZEL, KNOB WPL 7740P00660 Contact Us For Availability
2
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
2
BAFFLE, SIDE PANEL WPL 3601F10651 Contact Us For Availability
3
BRACKET WPL 3801F10051 Contact Us For Availability
3
CLIP, RETAINER WPL 7112P05160 Contact Us For Availability
3
BLOCK, TERMINAL WPL 7401P00260 Contact Us For Availability
4
BRACKET, CLOCK MTG WPL 3801F19945 Contact Us For Availability
4
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
4
BOLT WPL 7116P00360 Contact Us For Availability
5
BRACKET, SWITCH MOUNTING WPL 3801F19751 Contact Us For Availability
5
SCREW WPL 7101P05760 Contact Us For Availability
5
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
5
BOTTOM, BURNER BOX WPL 4011F15880 Contact Us For Availability
6
CLIP, TOP RETAINER WPL 7112P04260 Contact Us For Availability
7
CLOCK WPL 7601P13460 Contact Us For Availability
7
CLOCK, ELECTRONIC WPL 7601P17860 Contact Us For Availability
7
FRAME, WINDOW WPL 7706P17760 Contact Us For Availability
7
BRACE, MAIN TOP WPL 3802F07180 Contact Us For Availability
8
ELEMENT, SOLID DISC (8``) WPL 7406P02460 Contact Us For Availability
8
GASKET, WINDOW WPL 7201P01860 Contact Us For Availability
8
BRACKET, BURNER BOX WPL 3801F09345 Contact Us For Availability
9
WIRE HARNESS WPL 5170P06460 Contact Us For Availability
9
HARNESS, OVEN SENSOR WPL 5170P07960 Contact Us For Availability
9
WIRE HARNESS WPL 5170P09460 Contact Us For Availability
9
ELEMENT (6``) WPL 7406P02360 Contact Us For Availability
9
GLASS, INNER WPL 7902P09760 Contact Us For Availability
9
BRACKET WPL 3801F02451 Contact Us For Availability
10
KNOB, VALVE WPL 7731P02960 Contact Us For Availability
10
GLASS, DOOR WPL 7902P27660 Contact Us For Availability
10
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
10
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
11
BUTTON, CONTROL SEL (BLK) WPL 7711P42860 Contact Us For Availability
11
BUTTON, CONTROL SET WPL 7711P44560 Contact Us For Availability
11
GLASS, WINDOW INNER WPL 7902P28760 Contact Us For Availability
11
BRACKET, SEAL WPL 3801F12645 Contact Us For Availability
12
BUTTON, CLOCK SET WPL 7711P43360 Contact Us For Availability
12
KNOB, BUTTON CLOCK SET WPL 7711P44660 Contact Us For Availability
12
WINDOW PAK WPL 7902S30360 Contact Us For Availability
13
KNOB, CLOCK (BLK) WPL 7711P43160 Contact Us For Availability
13
BRACKET, VENT TUBE WPL 3801F12245 Contact Us For Availability
14
LENS, INDICATOR LIGHT WPL 7730P00860 Contact Us For Availability
14
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
14
CHANNEL, SWITCH WPL 3818F02745 Contact Us For Availability
14
CATCH ASSY. WPL 8002P02060 Contact Us For Availability
15
LIGHT, INDICATOR WPL 7407P08160 Contact Us For Availability
15
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
15
CLAMP, WIRE 3/4 WPL 7111P00260 Contact Us For Availability
16
NUT, SURFACE ELEMENT WPL 7103P07460 Contact Us For Availability
16
NUT, KEPS WPL 7103P07560 Contact Us For Availability
16
PAD, FOAM GASKET WPL 7201P04160 Contact Us For Availability
16
LINING WPL 2402W12815 Contact Us For Availability
16
LINING, OVEN DOOR WPL 2402W14915 Contact Us For Availability
16
LINING DOOR WPL 2402W18619 Contact Us For Availability
16
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
17
TRIM FRONT UPPER WPL 3608F04659 Contact Us For Availability
17
PLATE, NAME WPL 7719P00860 Contact Us For Availability
17
PANEL, MANIFOLD (BLK) WPL 7722P09960 Contact Us For Availability
17
NUT, SNAP WPL 7103P11460 Contact Us For Availability
17
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
18
SUPPORT, 8`` WPL 8004P01260 Contact Us For Availability
18
PAD, INNER WPL 2410F01651 Contact Us For Availability
18
COVER ACCESS WPL 4005F30251 Contact Us For Availability
19
SUPPORT, 6`` WPL 8004P01160 Contact Us For Availability
19
PAD, OVEN DOOR WPL 2410A03715 Contact Us For Availability
19
COVER, SWITCH WPL 4005F16351 Contact Us For Availability
20
SWITCH, INF. 250V WPL 7403P18160 Contact Us For Availability
20
COVER, HOUSING WPL 4005F08280 Contact Us For Availability
21
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
21
RETAINER WPL 3804F02245 Contact Us For Availability
21
COVER, REDUNDANT THERMO WPL 4005F29951 Contact Us For Availability
22
TOP, MAIN WPL 2002F06430 Contact Us For Availability
22
RETAINER, GLASS WPL 3804F05180 Contact Us For Availability
22
ELEMENT,BAKE WPL 7406P01060 Contact Us For Availability
22
ELEMENT, BAKE WPL 7406P06760 Contact Us For Availability
23
INSERT, TRIM-MANIFOLD END-RIGH WPL 04000008 Contact Us For Availability
23
INSERT, TRIM-MANIFOLD END-RIGH WPL 04000009 Contact Us For Availability
23
RIVET WPL 7107P01760 Contact Us For Availability
23
SCREW WPL 7101P10460 Contact Us For Availability
23
ELEMENT, BROIL WPL 7406P03260 Contact Us For Availability
23
ELEMENT, BROIL WPL 7406P06860 Contact Us For Availability
23
FILLER, STRIP WPL 7706P00960 Contact Us For Availability
23
EXTRUSION, TRIM WPL 7706P02160 Contact Us For Availability
24
RUNNER, INNER WPL 3406F02680 Contact Us For Availability
24
SCREW WPL 7101P12360 Contact Us For Availability
24
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
24
HINGE, MAIN TOP WPL 7706P17060 Contact Us For Availability
25
SEAL WPL 7208P00260 Contact Us For Availability
25
FAN ASSEMBLY WPL 7427P00660 Contact Us For Availability
26
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
26
FRONT,BURNER BOX BOTTOM WPL 4012F01880 Contact Us For Availability
26
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
27
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
27
FRONT, OVEN UPPER WPL 2201F06123 Contact Us For Availability
27
SCREW W/WASHER WPL 7101P12460 Contact Us For Availability
28
TAPE 29.5`` WPL 4870F00560 Contact Us For Availability
28
TAPE, 2`` X 16`` REFLECTIVE WPL 8270P05160 Contact Us For Availability
28
GASKET, ELEMENT WPL 7201P00360 Contact Us For Availability
28
GASKET, HOUSING WPL 7201P01460 Contact Us For Availability
29
GASKET, LAMP RETAINER WPL 7201P01560 Contact Us For Availability
30
GASKET, OVEN WPL 7201P03660 Contact Us For Availability
31
GASKET, VENT WPL 7201P02860 Contact Us For Availability
32
GLASS, LAMP GUARD WPL 7902P05760 Contact Us For Availability
32
GLIDE, OVEN DOOR HINGE WPL 8016P00860 Contact Us For Availability
34
HANDLE, LATCH (BLK) WPL 7701P06860 Contact Us For Availability
35
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
35
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
35
HINGE, DOOR WPL 7106P02960 Contact Us For Availability
36
HOUSING, FAN MOTOR WPL 4001F05045 Contact Us For Availability
37
HOUSING MAIN WIRE WPL 4001F05851 Contact Us For Availability
38
HOUSING, LAMP WPL 4001F02023 Contact Us For Availability
38
SCREW WPL 7101P06460 Contact Us For Availability
39
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
40
LEVER, DOOR LOCK WPL 8009P00960 Contact Us For Availability
41
BULB, OVEN WPL 7407P02660 Contact Us For Availability
42
LINING ASSY, INNER SIDE WPL 4009W03080 Contact Us For Availability
43
LINK, SWITCH WPL 7807P00460 Contact Us For Availability
44
PANEL, ANGLE SIDE WPL 2618F02780 Contact Us For Availability
44
PANEL, ANGLE SIDE WPL 2618F02980 Contact Us For Availability
44
PAN, BROIL WPL 3401F00423 Contact Us For Availability
46
PIN, HINGE WPL 7113P00260 Contact Us For Availability
47
PLATE, CONDUIT REINFORCEMENT WPL 3605F14651 Contact Us For Availability
47
PLATE,CONDUIT WPL 3605F15651 Contact Us For Availability
49
RACK, OVEN WPL 7801P03060 Contact Us For Availability
50
RECE WPL 7408P00260 Contact Us For Availability
51
WPL 7428P00460 WPL 7428P00460 Contact Us For Availability
51
WPL 7428P00960 WPL 7428P00960 Contact Us For Availability
52
WPL 3804F09380 WPL 3804F09380 Contact Us For Availability
53
WPL 3804F01050 WPL 3804F01050 Contact Us For Availability
53
WPL 3804F01245 WPL 3804F01245 Contact Us For Availability
55
WPL 3604F07380 WPL 3604F07380 Contact Us For Availability
55
WPL Y7101P25460 WPL Y7101P25460 Contact Us For Availability
56
WPL 3604F09245 WPL 3604F09245 Contact Us For Availability
57
WPL 3604F18780 WPL 3604F18780 Contact Us For Availability
58
WPL 3604F00780 WPL 3604F00780 Contact Us For Availability
58
WPL 3604F18680 WPL 3604F18680 Contact Us For Availability
58
WPL 3604W00270 WPL 3604W00270 Contact Us For Availability
58
WPL 3604W15570 WPL 3604W15570 Contact Us For Availability
59
WPL 3604F07480 WPL 3604F07480 Contact Us For Availability
60
WPL 7803P05760 WPL 7803P05760 Contact Us For Availability
61
WPL W10124350 WPL W10124350 Contact Us For Availability
61
WPL 3420A03434 WPL 3420A03434 Contact Us For Availability
62
WPL 3807F17615 WPL 3807F17615 Contact Us For Availability
63
WPL 3807F19545 WPL 3807F19545 Contact Us For Availability
64
WPL 3807F19345 WPL 3807F19345 Contact Us For Availability
64
WPL 7101P03160 WPL 7101P03160 Contact Us For Availability
65
WPL 7101P06160 WPL 7101P06160 Contact Us For Availability
65
WPL 3807F19480 WPL 3807F19480 Contact Us For Availability
65
WPL 3807F20545 WPL 3807F20545 Contact Us For Availability
66
WPL 3807F32445 WPL 3807F32445 Contact Us For Availability
67
WPL 7101P08460 WPL 7101P08460 Contact Us For Availability
× ![]()
