Model Whirlpool S8757W2 – Common Parts & Diagrams
03 - OVEN
10 - MODEL S8757-3

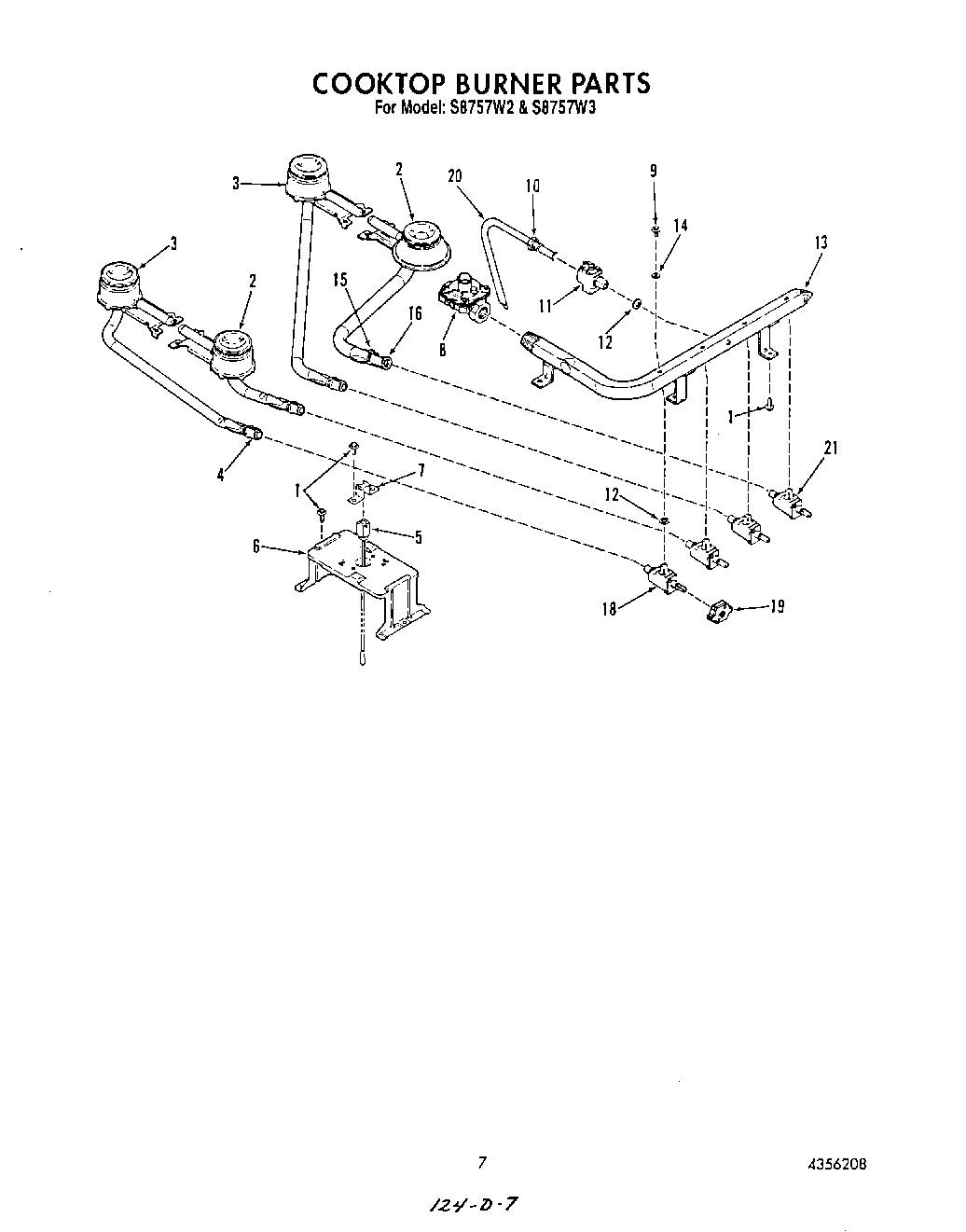

05 - COOKTOP BURNER

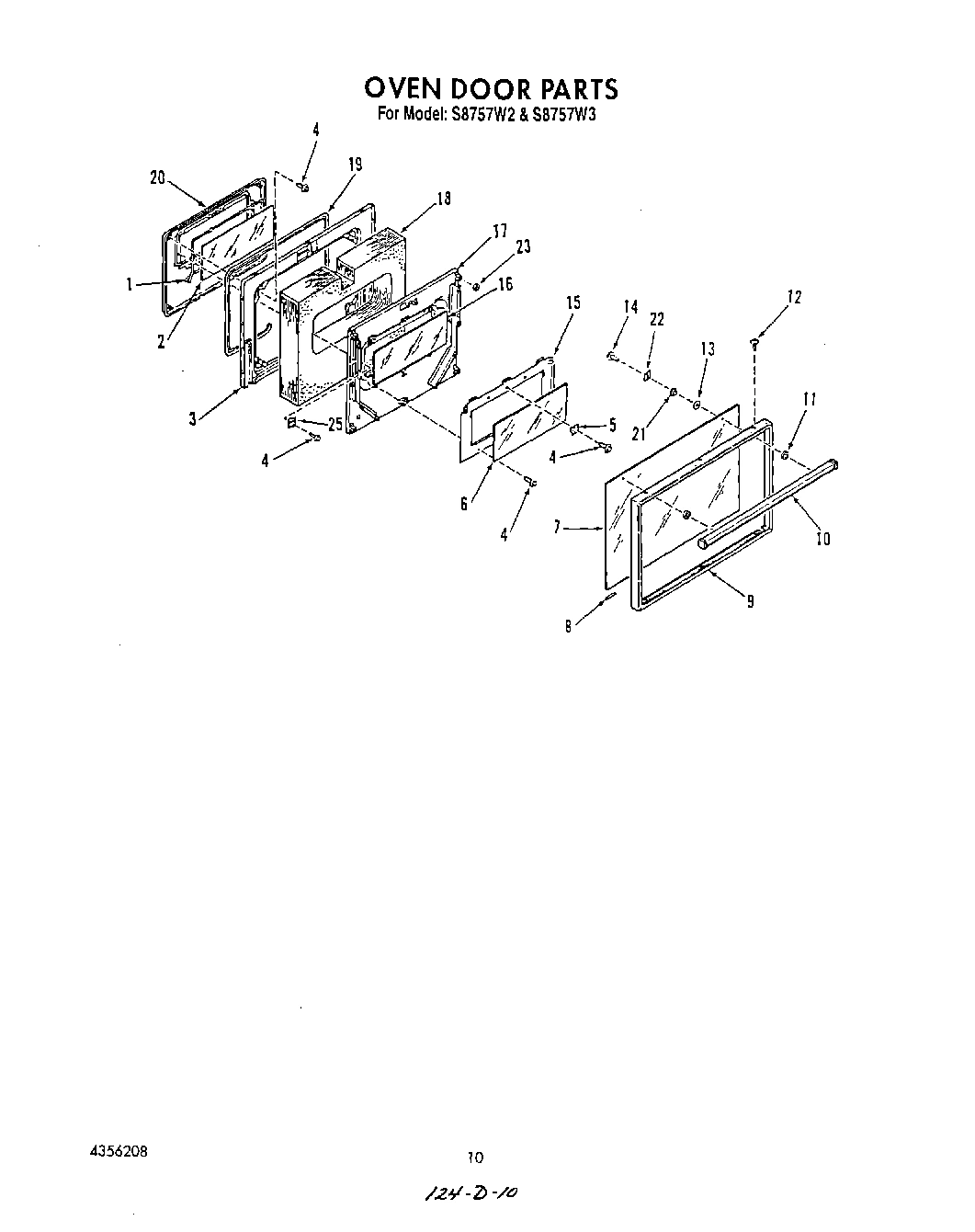

07 - OVEN DOOR
04 - DOOR LOCK

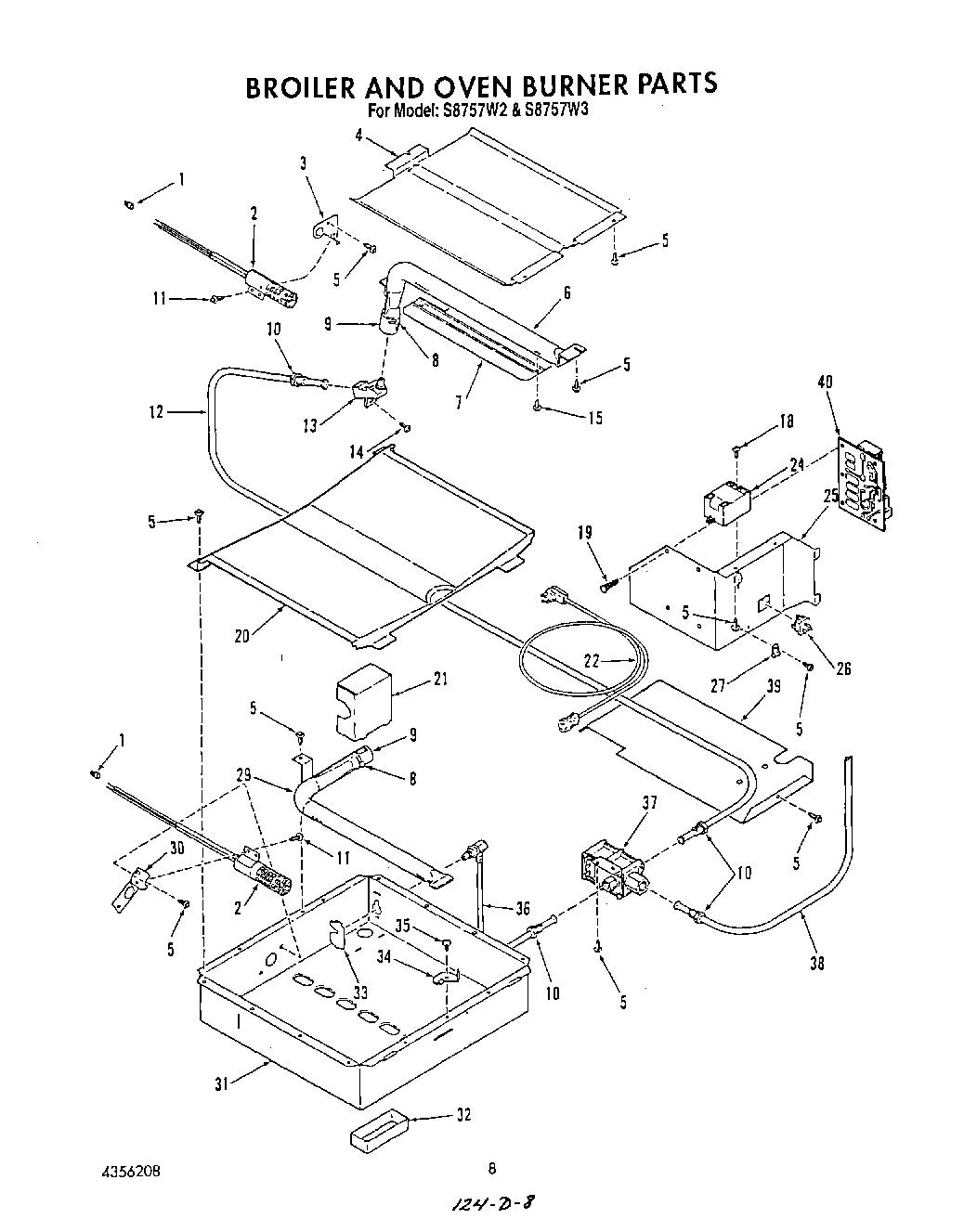

06 - BROILER AND OVEN BURNER

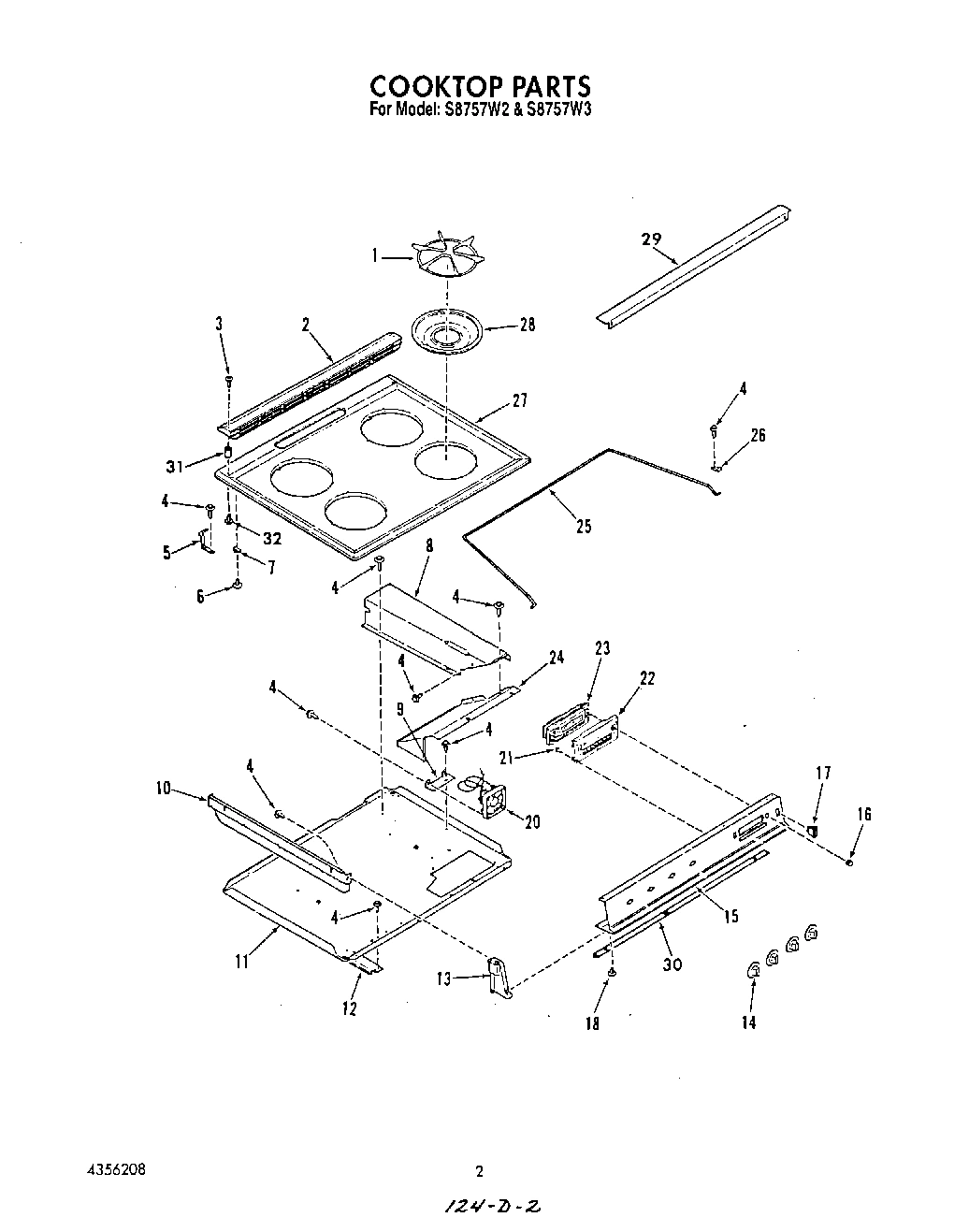

02 - COOKTOP , LITERATURE

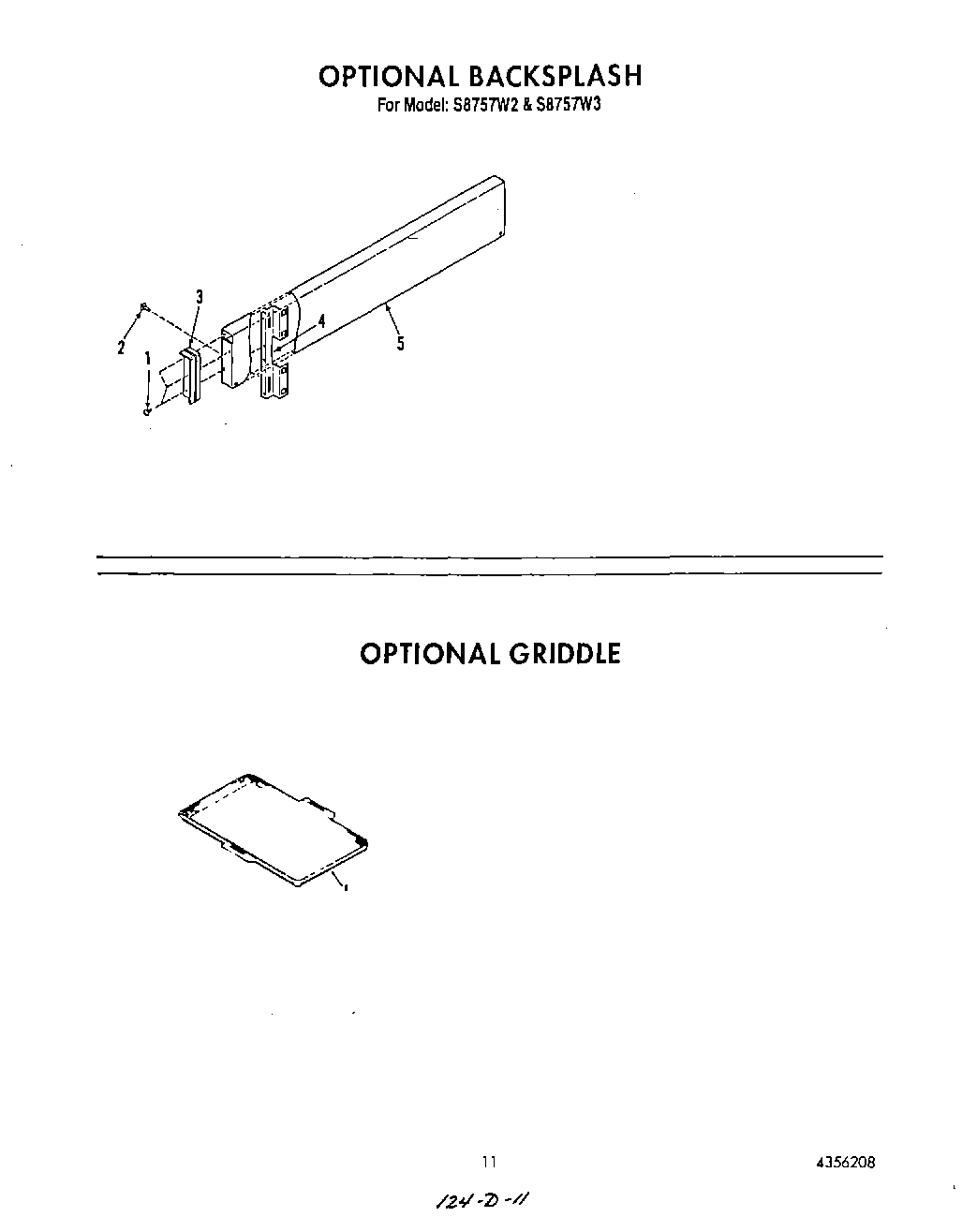

08 - OPTIONAL BACKSPLASH , OPTIONAL GRID
09 - MODEL S8757-2
Common parts from model Whirlpool S8757W2
xInstallation Instructions WPL 4343081 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI128621A Contact Us For Availability
1
Seal, Inner Glass WPL 4342634 Contact Us For Availability
1
Screw No.8-32x55/64 WPL 4350821 Contact Us For Availability
1
Grate, Burner (4) WPL 4336234 Contact Us For Availability
1
Wire Harness (Flag Terminal Faston Terminal) WPL 4325033 Contact Us For Availability
1
Wire Harness (3/16``) WPL 4325036 Contact Us For Availability
1
Set-On Griddle WPL 4336288 Contact Us For Availability
1
Wire Harness (Sensor) WPL 4336940 Contact Us For Availability
1
Screw WPL 4338182 Contact Us For Availability
1
Wire Harness (Motor Thermostat, (Mdl. S8757-2 WPL 4338529 Contact Us For Availability
1
Wire Harness- Clock/Oven Control WPL 4343045 Contact Us For Availability
2
Top Front Burner (Left) WPL 4342936 Contact Us For Availability
2
Top Front Burner (Right) WPL 4342965 Contact Us For Availability
2
Glass-Inner WPL 4337767 Contact Us For Availability
2
Lock Motor Asm. WPL 4338294 Contact Us For Availability
2
Igniter, Broiler, Oven Burner WPL 4338008 Contact Us For Availability
2
Vent Cover WPL 4336403 Contact Us For Availability
3
Top Rear Burner (Left) WPL 4342963 Contact Us For Availability
3
Top Rear Burner (Right) WPL 4342964 Contact Us For Availability
3
Lining, Door WPL 4336608 Contact Us For Availability
3
Screw, No.8-32 x 3/8 WPL 4324647 Contact Us For Availability
3
Bracket, Broiler Burner Igniter WPL 4335389 Contact Us For Availability
3
Screw No.6-32x1/2 WPL 4323701 Contact Us For Availability
3
Cap, End WPL 4336262 Contact Us For Availability
4
Air Shutter (3) WPL 4342896 Contact Us For Availability
4
Lock Lever Asm. WPL 4338225 Contact Us For Availability
4
Baffle-Broiler Burner WPL 4335391 Contact Us For Availability
4
Support WPL 4343079 Contact Us For Availability
5
Spark Igniter (Left) WPL 4336077 Contact Us For Availability
5
Spark Igniter (Right) WPL 4354844 Contact Us For Availability
5
Retainer, Glass WPL 4334791 Contact Us For Availability
5
Door Lock Plate WPL 4338210 Contact Us For Availability
5
Hinge (Right) WPL 4337342 Contact Us For Availability
5
Hinge (Left) WPL 4337343 Contact Us For Availability
5
Backsplash WPL 4343080 Contact Us For Availability
6
Trim, Side (Left) WPL 4336263 Contact Us For Availability
6
Trim, Side (Right) WPL 4336264 Contact Us For Availability
6
Burner Support Rt/Lt WPL 4336277 Contact Us For Availability
6
Glass, Intermediate WPL 4334821 Contact Us For Availability
6
Bracket, Switch WPL 4338145 Contact Us For Availability
6
Broiler Burner, (Inc`s 7,8,9,15) WPL 4336227 Contact Us For Availability
6
Screw, No.10-32 x 5/16 WPL 4326322 Contact Us For Availability
7
Side Body, Lt/Rt WPL 4343065 Contact Us For Availability
7
Bracket, Igniter WPL 4331307 Contact Us For Availability
7
Glass, Outer WPL 4336721 Contact Us For Availability
7
Baffle WPL 4335768 Contact Us For Availability
7
Bracket, Hinge WPL 4337447 Contact Us For Availability
8
Screw No.8x5/8 WPL 4331822 Contact Us For Availability
8
Regulator WPL 4334271 Contact Us For Availability
8
Cushion WPL 4324217 Contact Us For Availability
8
Adjustment Screw-Air Shutter WPL 4331502 Contact Us For Availability
8
Fan Duct WPL 4343120 Contact Us For Availability
9
Door Spring, Lt/Rt WPL 4342931 Contact Us For Availability
9
Screw, Mounting WPL 4331097 Contact Us For Availability
9
Frame, Door WPL 4338148 Contact Us For Availability
9
Lock Box WPL 4338068 Contact Us For Availability
9
Shutter, Air WPL 4331501 Contact Us For Availability
9
Bracket, Fan WPL 4338067 Contact Us For Availability
10
Door Hinge (Left) WPL 4336784 Contact Us For Availability
10
Door Hinge (Right) WPL 4336783 Contact Us For Availability
10
Nut, Inverted 3/8 WPL 4324278 Contact Us For Availability
10
Handle WPL 4336828 Contact Us For Availability
10
Actuator Pin WPL 4338149 Contact Us For Availability
10
Extension, Side WPL 4343121 Contact Us For Availability
11
Base W/Levelers, Lt/Rt WPL 4342828 Contact Us For Availability
11
Valve, Shut Off WPL 4335080 Contact Us For Availability
11
Spacer, Handle WPL 4323997 Contact Us For Availability
11
Spring WPL 4338171 Contact Us For Availability
11
Bottom, Burner Box WPL 4342823 Contact Us For Availability
12
Screw WPL 4336631 Contact Us For Availability
12
Seal WPL 4331665 Contact Us For Availability
12
Screw WPL 4337623 Contact Us For Availability
12
Screw WPL 4343068 Contact Us For Availability
12
Tubing 3/8``, Control Valve to Broiler Orific WPL 4326334 Contact Us For Availability
12
Support, Bottom (Left) WPL 4336361 Contact Us For Availability
12
Support, Bottom (Right) WPL 4338119 Contact Us For Availability
13
Lining, Storage Door WPL 4343067 Contact Us For Availability
13
Manifold Pipe WPL 4336270 Contact Us For Availability
13
Washer WPL 4336868 Contact Us For Availability
13
Micro Switch WPL 4337116 Contact Us For Availability
13
Fitting, Broiler Orifice WPL 4336710 Contact Us For Availability
13
End Cap (Left) WPL 4336266 Contact Us For Availability
13
End Cap (Right) WPL 4336267 Contact Us For Availability
14
Strike, Door WPL 4337419 Contact Us For Availability
14
Seal WPL 4331164 Contact Us For Availability
14
Screw, No.10-32 x 3/4 WPL 4342665 Contact Us For Availability
14
Insulator WPL 4335973 Contact Us For Availability
14
Screw, No.10-32 x 1/2 WPL 4323778 Contact Us For Availability
14
Knob, Gas Valve (4) WPL 4337754 Contact Us For Availability
15
Catch, Door WPL 4337418 Contact Us For Availability
15
Screw WPL 4328513 Contact Us For Availability
15
Mounting Plate WPL 4335753 Contact Us For Availability
15
Lock Spring WPL 4338207 Contact Us For Availability
15
Manifold Panel WPL 4337746 Contact Us For Availability
16
Leveler Leg (4) WPL 4334834 Contact Us For Availability
16
Air Shutter WPL 4343066 Contact Us For Availability
16
Glass, Center WPL 4338251 Contact Us For Availability
16
Knob, Clock WPL 4338513 Contact Us For Availability
17
Expansion Nut (4) WPL 4331381 Contact Us For Availability
17
Retainer, Insulation WPL 4338314 Contact Us For Availability
18
Compartment, Storage WPL 4335718 Contact Us For Availability
18
Screw No.10-32x1/2 WPL 4332521 Contact Us For Availability
18
Gas Valve-Lt Front Lt/Rt Rear WPL 4336999 Contact Us For Availability
18
Insulation WPL 4354947 Contact Us For Availability
18
Screw, No.6-20 x 3/8 WPL 4336048 Contact Us For Availability
19
Retainer, Lower Insulation WPL 4336507 Contact Us For Availability
19
Gasket, Door WPL 4342564 Contact Us For Availability
19
Spacer WPL 4337387 Contact Us For Availability
20
Insulation WPL 4354868 Contact Us For Availability
20
Plug, Door Lining WPL 4337448 Contact Us For Availability
20
Baffle, Burner WPL 4337456 Contact Us For Availability
20
Fan WPL 4337779 Contact Us For Availability
21
Wire Shield WPL 4336373 Contact Us For Availability
21
Gas Valve, Rt Front WPL 4337756 Contact Us For Availability
21
Spacer, Glass WPL 4336869 Contact Us For Availability
21
Shield, Orifice Fitting WPL 4336678 Contact Us For Availability
21
Screw WPL 4323476 Contact Us For Availability
22
Lens, Clock WPL 4342950 Contact Us For Availability
22
Bushing WPL 4334164 Contact Us For Availability
22
Retainer WPL 4342666 Contact Us For Availability
22
Power Cord WPL 4336833 Contact Us For Availability
23
Flue Deflector WPL 4336462 Contact Us For Availability
23
Washer, Felt WPL 4337618 Contact Us For Availability
23
Control, Clock, Oven (Model S8757-2) WPL 4338409 Contact Us For Availability
23
Control, Clock, Oven (Model S8757-3) WPL 4342969 Contact Us For Availability
24
Insulation, Top And Sides (1 Pc) WPL 4335963 Contact Us For Availability
24
Module, Spark Igniter WPL 4333260 Contact Us For Availability
24
Wire Cover WPL 4338070 Contact Us For Availability
25
Flue Box WPL 4335382 Contact Us For Availability
25
Retainer WPL 4331472 Contact Us For Availability
25
Mounting Bracket WPL 4337802 Contact Us For Availability
25
Support Rod WPL 4337663 Contact Us For Availability
26
Oven Cavity WPL 4337958 Contact Us For Availability
26
Disconnect Plug WPL 4324642 Contact Us For Availability
26
Clamp WPL 4338000 Contact Us For Availability
27
Cover WPL 4329206 Contact Us For Availability
27
Clip WPL 4323987 Contact Us For Availability
27
Cooktop (White) WPL 4337347 Contact Us For Availability
27
Cooktop (Almond) WPL 4337348 Contact Us For Availability
27
Cooktop (Chrome) WPL 4337750 Contact Us For Availability
28
Screw WPL 4324445 Contact Us For Availability
28
Aeration Pan WPL 4337751 Contact Us For Availability
29
Burner, Oven WPL 4337043 Contact Us For Availability
29
Filler Trim WPL 4337492 Contact Us For Availability
30
Front Frame WPL 4337743 Contact Us For Availability
30
Bracket, Igniter WPL 4331163 Contact Us For Availability
30
Barrier WPL 4338638 Contact Us For Availability
31
Sensor WPL 4337170 Contact Us For Availability
31
Bottom, Burner Box WPL 4335381 Contact Us For Availability
31
Spacer, Vent Cover WPL 4337069 Contact Us For Availability
32
Bracket, Catch WPL 4337417 Contact Us For Availability
32
Retainer, Orifice Insulation WPL 4336004 Contact Us For Availability
32
Screw No.6-32x5/16 WPL 4328072 Contact Us For Availability
32
Model S8757-2 WPL 4348184 Contact Us For Availability
32
Model S8757-2 WPL 4348187 Contact Us For Availability
32
Model S8757-3 WPL 4356206 Contact Us For Availability
32
Model S8757-3 WPL 4356207 Contact Us For Availability
33
Plate, Orifice Mounting WPL 4335704 Contact Us For Availability
34
Insulation WPL 4328778 Contact Us For Availability
34
Latch, Burner Box Bottom WPL 4335708 Contact Us For Availability
35
Panel, Front Storage Door WPL 4342632 Contact Us For Availability
35
Screw, Shoulder WPL 4335745 Contact Us For Availability
36
Handle, Storage Door WPL 4336754 Contact Us For Availability
36
Tubing 3/8``, with Orifice Fitting (Control V WPL 4336712 Contact Us For Availability
37
Insulation WPL 4354948 Contact Us For Availability
37
Control Valve WPL 4329526 Contact Us For Availability
38
Bottom, Oven WPL 4337461 Contact Us For Availability
38
Tubing 3/8`` (Control Valve to tee) WPL 4336493 Contact Us For Availability
39
Retainer, Lens WPL 4324482 Contact Us For Availability
39
Wire Shield WPL 4336506 Contact Us For Availability
40
Lens, Oven Light WPL 4324415 Contact Us For Availability
40
Relay, Circuit Board WPL 4338104 Contact Us For Availability
41
Gasket, Lens WPL 4324481 Contact Us For Availability
43
Support, Flue Deflector WPL 4337235 Contact Us For Availability
44
Oven Rack (2) WPL 4334809 Contact Us For Availability
47
Frame, Storage Door Panel WPL 4342576 Contact Us For Availability
48
Hinge, Door WPL 4337416 Contact Us For Availability
49
Shield, Flue Deflector WPL 4337489 Contact Us For Availability
50
Insulation, Flue WPL 4337789 Contact Us For Availability
51
Extension, Side Trim WPL 4336565 Contact Us For Availability
52
Stability Kit WPL 4343111 Contact Us For Availability
× ![]()
