Model LG S4NW09JLRDA.AT3GEUS – Common Parts & Diagrams

Common parts from model LG S4NW09JLRDA.AT3GEUS

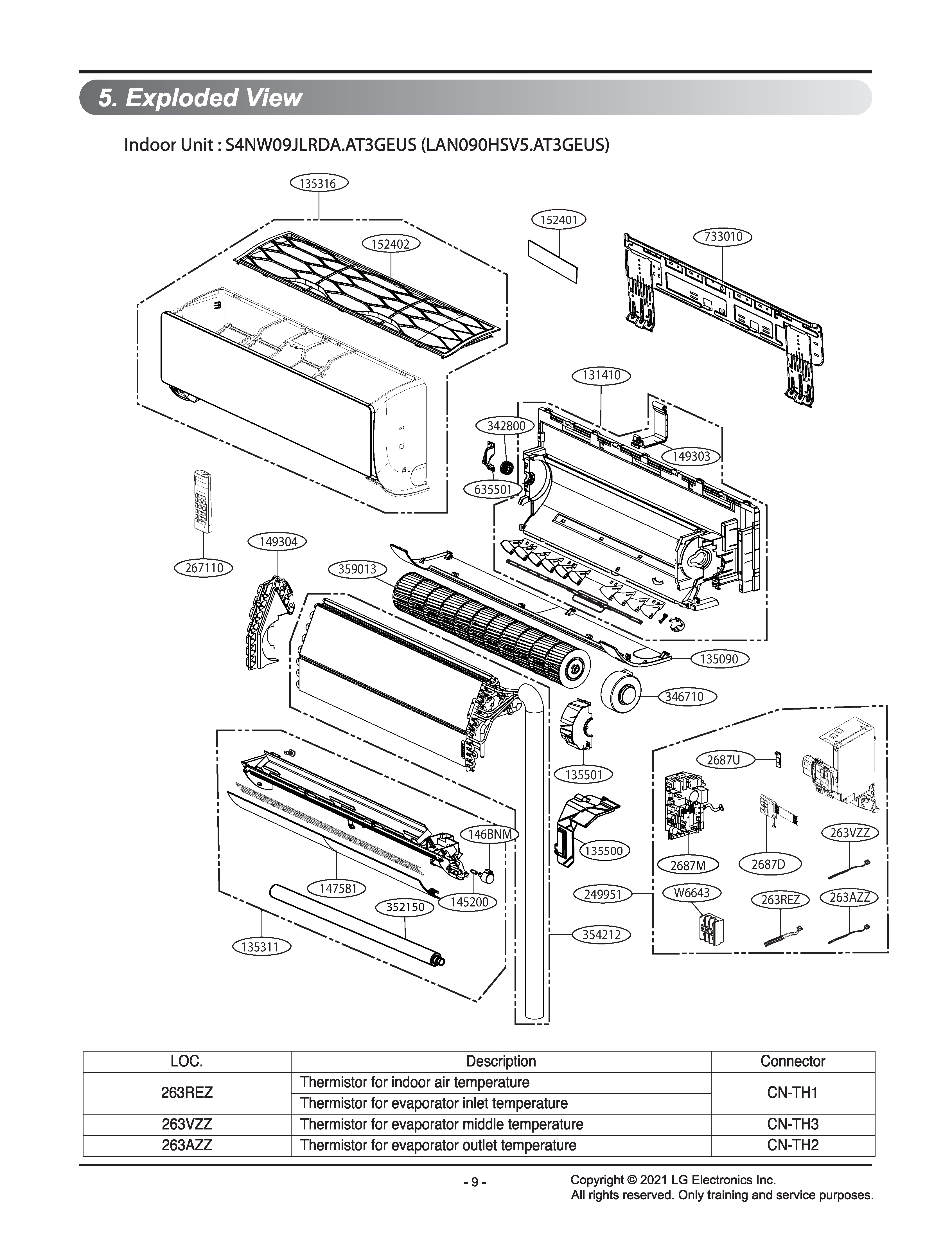

INDOOR UNIT

Print

• This Diagram
• All Diagrams

263AZZ

EBG61325801 LG Temperature Sensor Assembly Th Backorder LGE EBG61325801 View Details $12.28

View on Model

2687M

PCB Assembly,Main Backorder LGE EBR88276705 View Details $110.41

View on Model

2687U

EBR85871801 LG WiFi PCB Assembly Backorder LGE EBR85871801 View Details $82.70

View on Model

131410

CHASSIS ASSEMBLY Backorder LGE ABW74052440 View Details $75.08

View on Model

135090

ACW75797516 LG Decor Assembly Backorder LGE ACW75797516 View Details $110.41

View on Model

135311

Grille Assembly,Discharge(Indo Backorder LGE AEB76298802 View Details $112.21

View on Model

135316

Grille Assembly,Front(Indoor) LGE AEB75124749 Contact Us For Availability

View on Model

135500

MCK69584907 LG Cover Assembly Backorder LGE MCK69584907 View Details $10.91

View on Model

135500

Cover LGE MCK69584916 Contact Us For Availability

View on Model

135501

MCK68472703 LG Cover Backorder LGE MCK68472703 View Details $7.98

View on Model

135501

Cover LGE MCK68472709 Contact Us For Availability

View on Model

145200

Link LGE MFF60198903 Contact Us For Availability

View on Model

147581

MFH63023606 LG Horizontal Louver Backorder LGE MFH63023606 View Details $14.15

View on Model

149303

MEG56994610 LG Tubing Holder Backorder LGE MEG56994610 View Details $3.40

View on Model

149303

Holder,Tubing LGE MEG56994618 Contact Us For Availability

View on Model

149304

MEG64039001 LG Evaporator Holder Backorder LGE MEG64039001 View Details $7.98

View on Model

152401

MDJ61144754 LG Air Filter Backorder LGE MDJ61144754 View Details $14.15

View on Model

152402

Filter,Air LGE MDJ64984710 Contact Us For Availability

View on Model

249951

Case Assembly,Control(Indoor) LGE ABQ30136701 Contact Us For Availability

View on Model

267110

AKB74955602 LG Air Conditioner Remote Control Backorder LGE AKB74955602 View Details $40.02

View on Model

342800

Bearing Backorder LGE MAP64313505 View Details $5.27

View on Model

346710

EAU62983003 LG Indoor Assembly DC Motor Backorder LGE EAU62983003 View Details $125.28

View on Model

346710

EAU62983004 LG Indoor DC Motor Assembly Backorder LGE EAU62983004 View Details $110.41

View on Model

352150

AEM73493417 LG Assembly Drain Hose Backorder LGE AEM73493417 View Details $10.91

View on Model

354212

EVAPORATOR ASSEMBLY,FINAL Backorder LGE ADL75161224 View Details $301.68

View on Model

359013

ADP74133401 LG Fan Assembly Cross Flow Backorder LGE ADP74133401 View Details $45.05

View on Model

359013

Fan Assembly,Cross Flow Backorder LGE ADP74133406 View Details $39.47

View on Model

635501

MCK71152602 LG Bearing Cover Backorder LGE MCK71152602 View Details $3.40

View on Model

733010

AGU67813404 LG Installation Plate Assembly Backorder LGE AGU67813404 View Details $25.18

View on Model

733010

Plate Assembly,Installation Backorder LGE AGU76189104 View Details $22.29

View on Model

W6643

Connector,Terminal Block Backorder LGE EAG38884401 View Details $9.50

View on Model

×
