Model LG S3BERB.ALBEEUS Styler Steam Clothing Care System – Common Parts &amp; Diagrams

A095

MDS62912127 LG Gasket Backorder LGE MDS62912127 $14.79

A099

AGB73772501 LG Nozzle Assembly Backorder LGE AGB73772501 $26.26

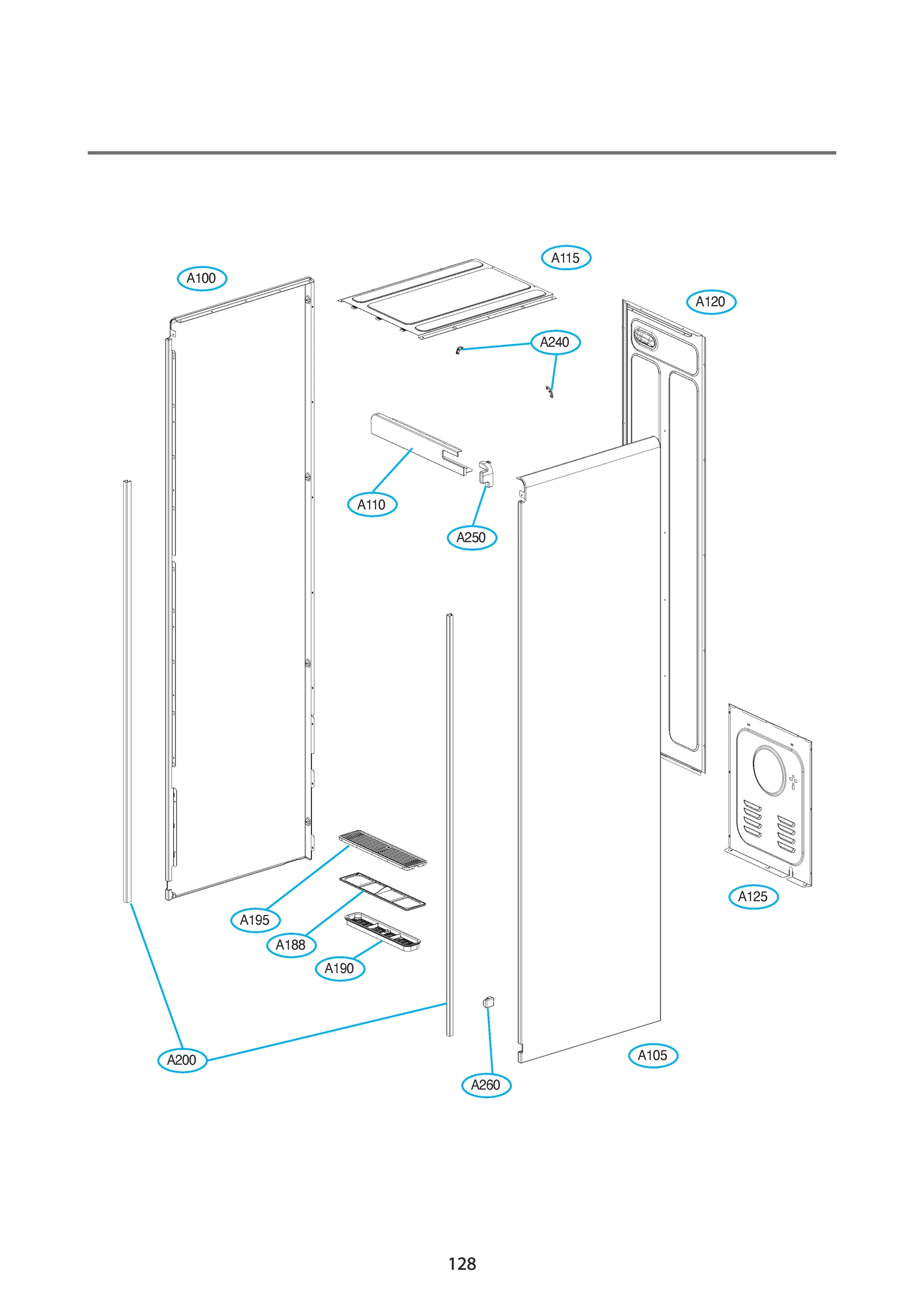

A100

ABJ74427605 LG Cabinet Assembly Backorder LGE ABJ74427605 $188.43

A105

ABJ74427706 LG Cabinet Assembly Backorder LGE ABJ74427706 $188.43

A110

ABA74988701 LG Bracket Assembly Backorder LGE ABA74988701 $49.19

A112

MCR68148801 LG Door Decor Backorder LGE MCR68148801 $20.35

A115

MCK67969401 LG Top Cover Backorder LGE MCK67969401 $49.19

A120

ACQ87264801 LG Cover Assembly Rear Backorder LGE ACQ87264801 $107.42

A125

MCK67969301 LG Rear Cover Backorder LGE MCK67969301 $41.23

A130

PCB Assembly,Main LGE EBR37099901 Contact Us For Availability

A130

PCB Assembly,Main LGE EBR79528102 Contact Us For Availability

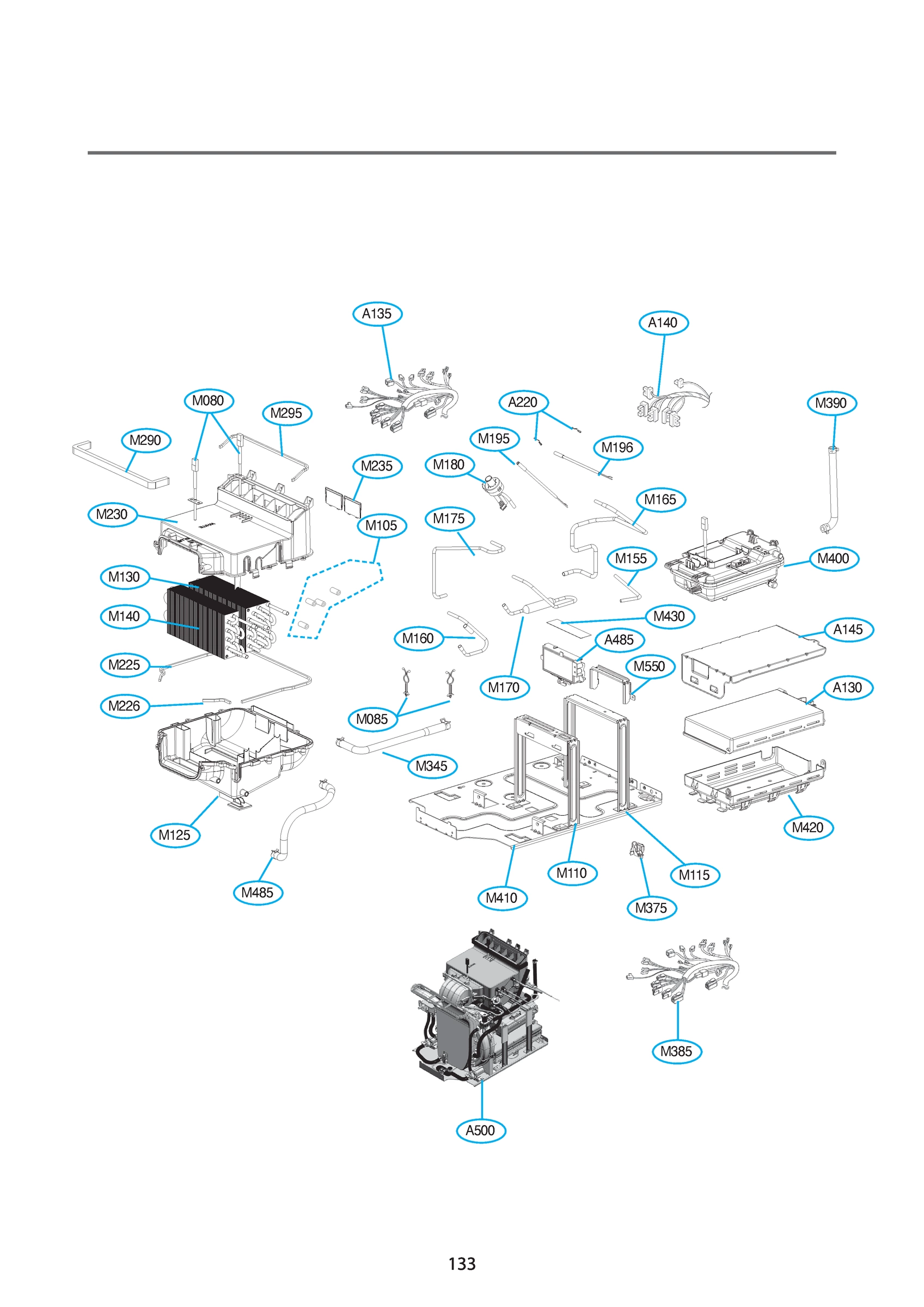

A135

EAD61028707 LG Multi Harness Backorder LGE EAD61028707 $153.83

A140

EAD61028504 LG Multi Harness Backorder LGE EAD61028504 $92.89

A145

MCK67986601 LG Protective Cover Backorder LGE MCK67986601 $33.69

A151

EAQ60660303 LG Incandescent Lamp Backorder LGE EAQ60660303 $63.62

A152

Lamp,Incandescent LGE EAQ60660311 Contact Us For Availability

A160

MCK62185601 LG Lamp Cover Backorder LGE MCK62185601 $33.69

A165

MJH62014301 LG Support Holder Backorder LGE MJH62014301 $6.19

A170

MCR62353101 LG Guard Decoration Backorder LGE MCR62353101 $26.26

A175

MDS62912101 LG Gasket Backorder LGE MDS62912101 $14.79

A183

MCK67969001 LG Lower Cover Backorder LGE MCK67969001 $26.26

A185

MDX63132402 LG Grille Backorder LGE MDX63132402 $20.35

A188

ADQ74073201 LG Filter Mesh Assembly Backorder LGE ADQ74073201 $41.23

A190

MCZ63191701 LG Duct Connector Backorder LGE MCZ63191701 $14.79

A195

MDX63113001 LG Grille Backorder LGE MDX63113001 $14.79

A200

MCR65328402 LG Side Decor Backorder LGE MCR65328402 $41.23

A210

MDS62133701 LG Gasket Backorder LGE MDS62133701 $14.79

A220

4930A20053B LG Sensor Holder Backorder LGE 4930A20053B $3.40

A225

MBL65896901 LG Cap Cover Backorder LGE MBL65896901 $9.86

A240

MBL65818001 LG Cap Cover Backorder LGE MBL65818001 $6.19

A250

MBL65817801 LG Cap Cover Backorder LGE MBL65817801 $6.19

A260

MBL65817901 LG Cover Cap Backorder LGE MBL65817901 $6.19

A320

MCK68025901 LG Protect Cover Assembly Backorder LGE MCK68025901 $14.79

A325

MBL66337401 LG Cap Cover Backorder LGE MBL66337401 $20.35

A330

MBL66337101 LG Cap Cover Assembly Backorder LGE MBL66337101 $20.35

A335

MBL66337201 LG Cap Cover Backorder LGE MBL66337201 $20.35

A341

3550JA3143A LG Cover Hinge Backorder LGE 3550JA3143A $6.19

A341

MCR68187501 LG Frame Decor Backorder LGE MCR68187501 $14.79

A345

Hinge LGE MEF62482403 Contact Us For Availability

A346

Hinge LGE MEF62482503 Contact Us For Availability

A360

MHS62222301 LG Slider Backorder LGE MHS62222301 $9.86

A370

MBL65778001 LG Cap Cover Backorder LGE MBL65778001 $33.69

A373

AEJ74219501 LG Holder Assembly Backorder LGE AEJ74219501 $26.26

A390

MEG63659001 LG Holder Backorder LGE MEG63659001 $9.86

A391

MEG63658901 LG Holder Backorder LGE MEG63658901 $14.79

A400

EBR78555615 LG Display PCB Assembly Backorder LGE EBR78555615 $258.35

A410

MCK68026001 LG Guide Cover Backorder LGE MCK68026001 $33.69

A420

MDS62912109 LG Gasket Backorder LGE MDS62912109 $20.35

A430

EAD40521498 LG Power Cord Assembly Backorder LGE EAD40521498 $63.62

A440

MDS64510903 LG Gasket Backorder LGE MDS64510903 $126.81

A445

MDS64510904 LG Gasket Assembly Backorder LGE MDS64510904 $91.26

A450

MCQ66706413 LG Damper Backorder LGE MCQ66706413 $6.19

A485

EAM62492305 LG Filter Assembly Backorder LGE EAM62492305 $117.30

A500

ACT74354602 LG Assembly Cycle Backorder LGE ACT74354602 $644.97

A500

Cycle Assembly LGE ACT74354685 Contact Us For Availability

A530

4J03500A LG Refrigerator Roller Backorder LGE 4J03500A $6.62

A540

AFC72755402 LG Washer Leveling Leg and Feet A Backorder LGE AFC72755402 $14.79

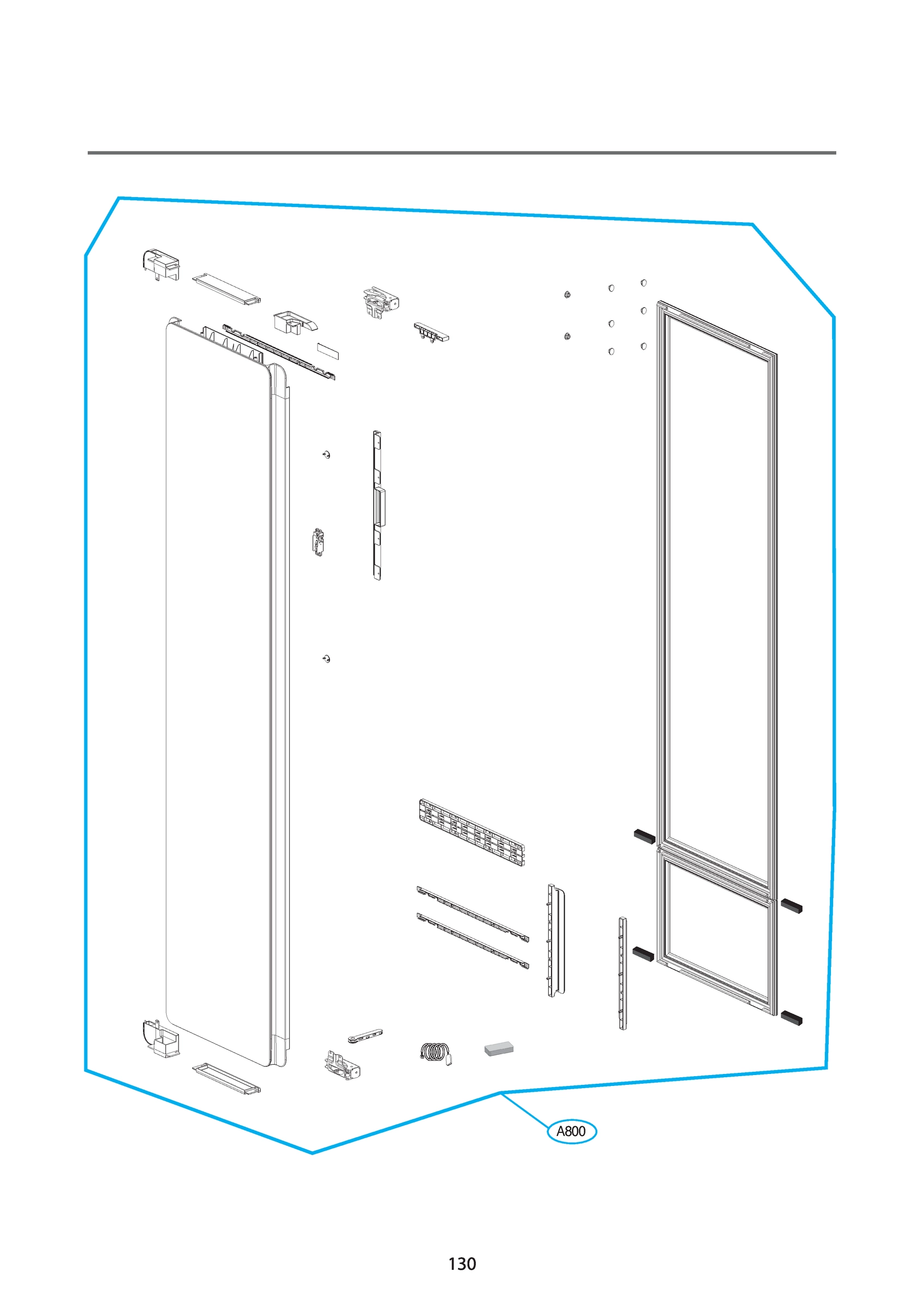

A800

Door,Parts Assembly,SVC LGE AGM30064908 Contact Us For Availability

A900

AEJ75520601 LG Holder Assembly Backorder LGE AEJ75520601 $9.86

A950

MEG66442101 LG Holder Backorder LGE MEG66442101 $9.86

A960

MDQ66459501 LG Body Frame Backorder LGE MDQ66459501 $9.86

B020

SENSOR ASSEMBLY Backorder LGE 6501ED4001G $20.35

B025

5016EA4002C LG NDFEB Magnet Backorder LGE 5016EA4002C $20.35

B030

AEN72911401 LG Bearing Housing Assembly Backorder LGE AEN72911401 $26.26

B035

MHJ61847501 LG Spin Shaft Backorder LGE MHJ61847501 $41.23

B036

4W50523A LG Ring C Backorder LGE 4W50523A $6.19

B037

4W50511A LG Washer Assembly Backorder LGE 4W50511A $6.19

B040

4036EA3003A LG Gasket Backorder LGE 4036EA3003A $6.19

B045

Shaft Assy,Parts Assembly,SVC Backorder LGE AGM30085201 $49.19

B080

MGN61841301 LG Idle Pulley Backorder LGE MGN61841301 $26.26

B082

4020FA3041B LG Common Nut Backorder LGE 4020FA3041B $6.19

B090

MAS61863901 LG Poly V Belt Backorder LGE MAS61863901 $26.26

B100

4681ER1007E LG Fan DC Motor Assembly Backorder LGE 4681ER1007E $117.30

B110

MGN61841401 LG Motor Pulley Backorder LGE MGN61841401 $20.35

B112

1NZZER3001A LG Common Nut Backorder LGE 1NZZER3001A $6.19

B115

MEG61963201 LG Refrigerator Holder Backorder LGE MEG61963201 $6.19

B120

MCR65328301 LG Frame Decor Backorder LGE MCR65328301 $49.19

B130

MDQ63759302 LG Body Frame Backorder LGE MDQ63759302 $14.79

B150

MEC62664901 LG Upper Hanger Backorder LGE MEC62664901 $20.35

B160

MEA63510001 LG Roller Support Guide Backorder LGE MEA63510001 $14.79

B180

AEJ72914601 LG Holder Assembly Backorder LGE AEJ72914601 $41.23

B190

MEG63678701 LG Holder Backorder LGE MEG63678701 $6.19

B210

AEE73189701 LG Hanger Assembly Backorder LGE AEE73189701 $131.67

B220

AEE73009503 LG HANGER Assembly Backorder LGE AEE73009503 $94.93

B220

AEE73009504 LG Hanger Assembly Backorder LGE AEE73009504 $126.81

B220

AEE73009506 LG Hanger Assembly Backorder LGE AEE73009506 $80.94

B240

MCK67970603 LG Lower Cover Backorder LGE MCK67970603 $49.19

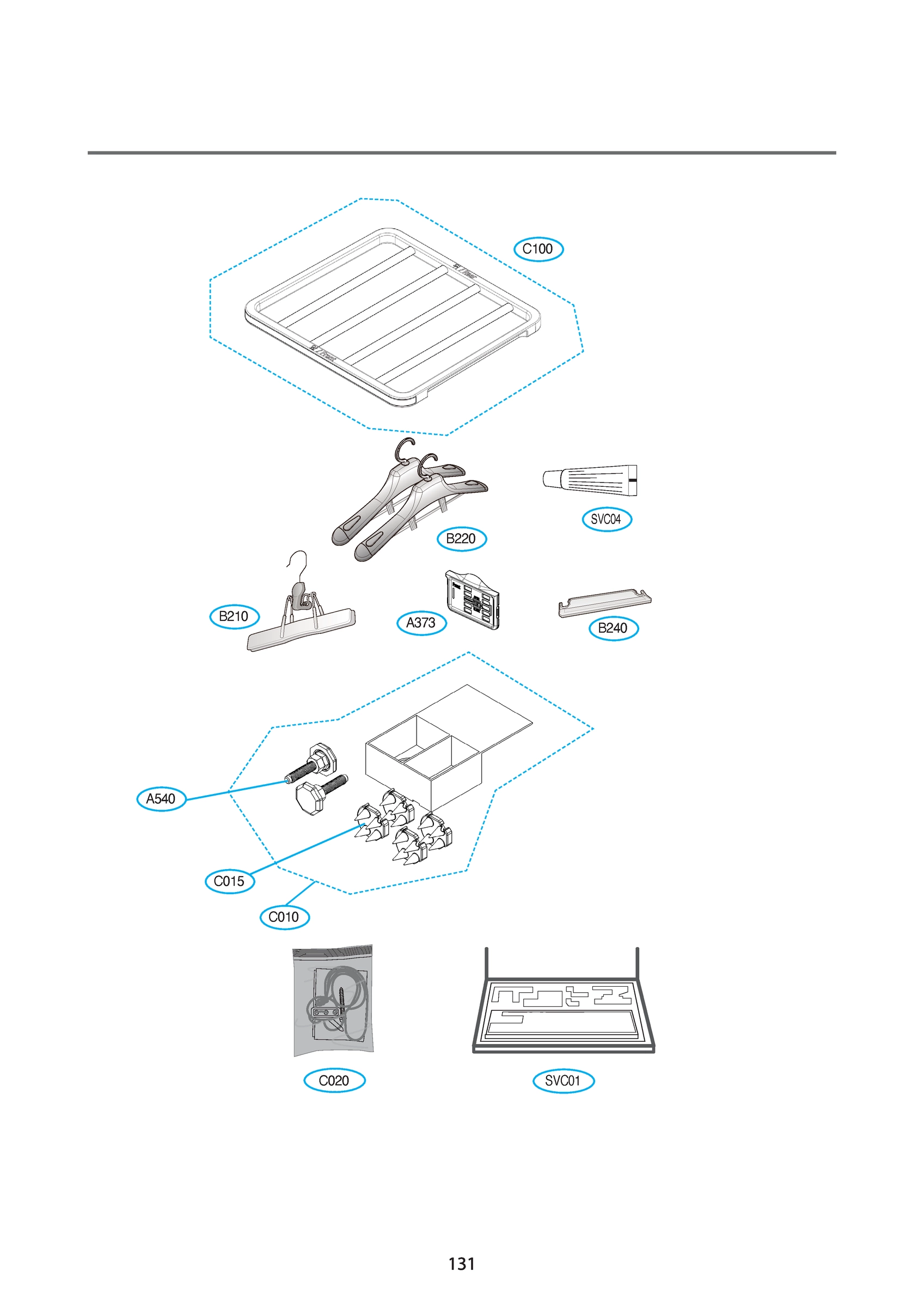

C010

AAA76464401 LG Accessory Assembly Backorder LGE AAA76464401 $63.62

C015

MFA63122901 LG Leg Assembly Backorder LGE MFA63122901 $9.86

C020

AAA75904804 LG Accessory Assembly Backorder LGE AAA75904804 $26.26

C100

AHT74073801 LG Steam Closet Clothing Care Sys Backorder LGE AHT74073801 $131.67

D110

MCR65328501 LG Decor Frame Backorder LGE MCR65328501 $63.62

D152

6601EA2001M LG Lid Switch Assembly Backorder LGE 6601EA2001M $26.26

D152

Switch Assembly,LID LGE 6601EA2001W Contact Us For Availability

D200

ACQ87474002 LG Cover Assembly Rear Backorder LGE ACQ87474002 $63.62

D300

AJL74012002 LG Styler Water Tank Assembly for Backorder LGE AJL74012002 $117.30

AJL74011902 LG Water Tank Assembly Backorder LGE AJL74011902 $126.81

TANK ASSEMBLY,WATER Backorder LGE AJL74011906 $91.26

Tank Assembly,Water LGE AJL74011915 Contact Us For Availability

Tank Assembly,Water LGE AJL74011905 Contact Us For Availability

Tank Assembly,Water LGE AJL74011916 Contact Us For Availability

E100

5016EA4001B LG Magnet NDFEB Backorder LGE 5016EA4001B $14.79

H001

EAD61069303 LG Multi Harness Backorder LGE EAD61069303 $53.62

M060

4681ED1004D LG Dishwasher DC Motor Assembly Backorder LGE 4681ED1004D $188.43

M080

6323ER2001A LG Thermistor Assembly Backorder LGE 6323ER2001A $26.26

M080

6323ER2001D LG Thermistor Assembly Backorder LGE 6323ER2001D $20.35

M085

4W40115B LG Holder Backorder LGE 4W40115B $6.19

M105

MCQ68026101 LG Damper Backorder LGE MCQ68026101 $6.19

M110

MDQ63776701 LG Body Frame Backorder LGE MDQ63776701 $20.35

M115

MDQ63736601 LG Body Frame Backorder LGE MDQ63736601 $20.35

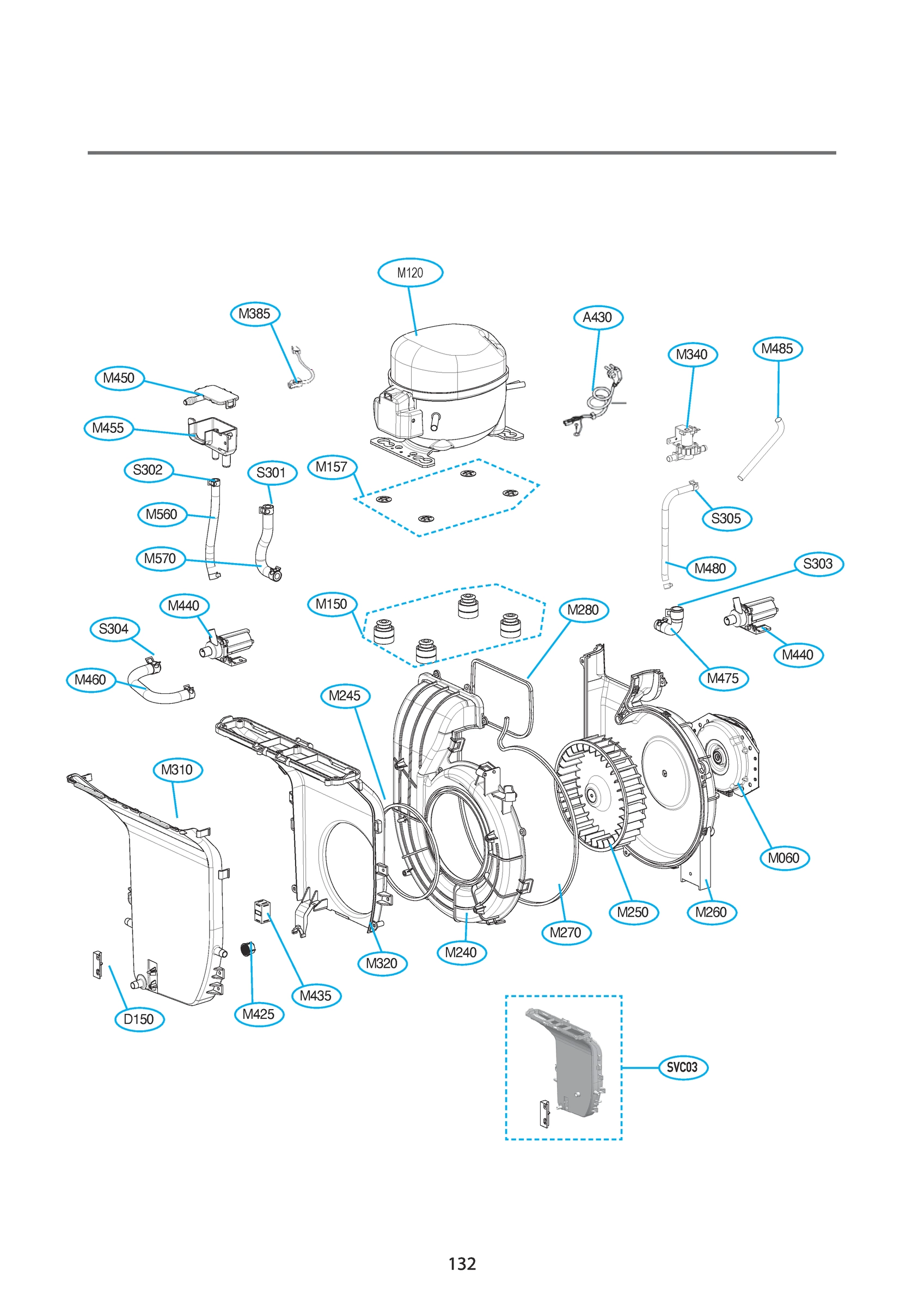

M120

TCA37511303 LG Compressor Set Assembly Backorder LGE TCA37511303 $381.73

M125

MCK68007401 LG Cover,Lower Backorder LGE MCK68007401 $41.23

M130

ACG73125305 LG Condenser Assembly Backorder LGE ACG73125305 $235.58

M130

Condenser Assembly Backorder LGE ACG73125307 $167.80

M140

ADL72941705 LG Evaporator Assembly Backorder LGE ADL72941705 $188.43

M140

EVAPORATOR ASSEMBLY Backorder LGE ADL72941707 $131.67

M150

5040JA3031A LG Refrigerator Compressor Damper Backorder LGE 5040JA3031A $6.62

M155

MGE62212601 LG Pipe Assembly Backorder LGE MGE62212601 $14.79

M155

Pipe Backorder LGE MGE62212603 $14.79

M157

4J03277A LG Refrigerator Compressor Stopper Backorder LGE 4J03277A $6.62

M160

MGE62212602 LG Pipe Backorder LGE MGE62212602 $33.69

M160

Pipe LGE MGE62212604 Contact Us For Availability

M165

MGE62131402 LG Pipe Backorder LGE MGE62131402 $72.49

M165

Pipe Backorder LGE MGE62131403 $82.70

M170

MGE62131602 LG Pipe Backorder LGE MGE62131602 $63.62

M170

Pipe LGE MGE62131603 Contact Us For Availability

M175

MGE62131502 LG Pipe Backorder LGE MGE62131502 $33.69

M175

Pipe LGE MGE62131503 Contact Us For Availability

M180

AJU72910202 LG Gas Valve Assembly Backorder LGE AJU72910202 $131.67

M195

EBG60806202 LG Thermistor Assembly Backorder LGE EBG60806202 $33.69

M196

EBG60806203 LG Thermistor Assembly Backorder LGE EBG60806203 $26.26

M225

MDS62912120 LG Gasket Backorder LGE MDS62912120 $9.86

M226

MDS62912121 LG Gasket Backorder LGE MDS62912121 $6.19

M230

MCK68007501 LG Top Cover Backorder LGE MCK68007501 $49.19

M235

MFD62041401 LG Inner Lid Backorder LGE MFD62041401 $6.19

M240

MEK62926601 LG Housing Blower Backorder LGE MEK62926601 $41.23

M245

MDS62912114 LG Gasket Backorder LGE MDS62912114 $9.86

M250

MER61841501 LG Blower Impeller Backorder LGE MER61841501 $20.35

M260

MEK62946801 LG Blower Housing Backorder LGE MEK62946801 $41.23

M270

MDS62912123 LG Gasket Backorder LGE MDS62912123 $6.19

M280

MDS62912122 LG Gasket Backorder LGE MDS62912122 $6.19

M290

3940EA3001U LG Damper Backorder LGE 3940EA3001U $14.79

M295

MDS62912124 LG Gasket Backorder LGE MDS62912124 $6.19

M345

MEJ61905003 LG Overflow Hose Backorder LGE MEJ61905003 $20.35

M375

MEG63618901 LG Holder Backorder LGE MEG63618901 $9.86

M385

EAD61029003 LG Multi Harness Backorder LGE EAD61029003 $26.26

M390

MEJ61904913 LG Hose Connector Backorder LGE MEJ61904913 $33.69

Generator Assembly Backorder LGE 3111ER1001G $188.43

3111ER1001J LG Generator Assembly Backorder LGE 3111ER1001J $212.13

ADZ73350106 LG Generator Assembly Backorder LGE ADZ73350106 $184.24

ADZ73350109 LG Generator Assembly Backorder LGE ADZ73350109 $212.13

M410

MDQ63776601 LG Lower Frame Backorder LGE MDQ63776601 $91.26

M420

MCK67986701 LG Protective Cover Backorder LGE MCK67986701 $33.69

M425

Filter LGE MDJ62664301 Contact Us For Availability

M430

3550ER2010G LG Safety Cover Backorder LGE 3550ER2010G $9.86

M435

ADS73089101 LG Float Assembly Backorder LGE ADS73089101 $20.35

M450

MCD61843001 LG Nozzle Connector Backorder LGE MCD61843001 $6.19

M455

MEG61870601 LG Holder Backorder LGE MEG61870601 $9.86

M475

MEJ61904812 LG Pump Hose Backorder LGE MEJ61904812 $14.79

M485

MEJ61904914 LG Hose Connector Backorder LGE MEJ61904914 $33.69

M550

MEB62154201 LG Handle Backorder LGE MEB62154201 $20.35

M560

MEJ61904808 LG Pump Hose Backorder LGE MEJ61904808 $14.79

M570

MEJ61904809 LG Pump Hose Backorder LGE MEJ61904809 $14.79

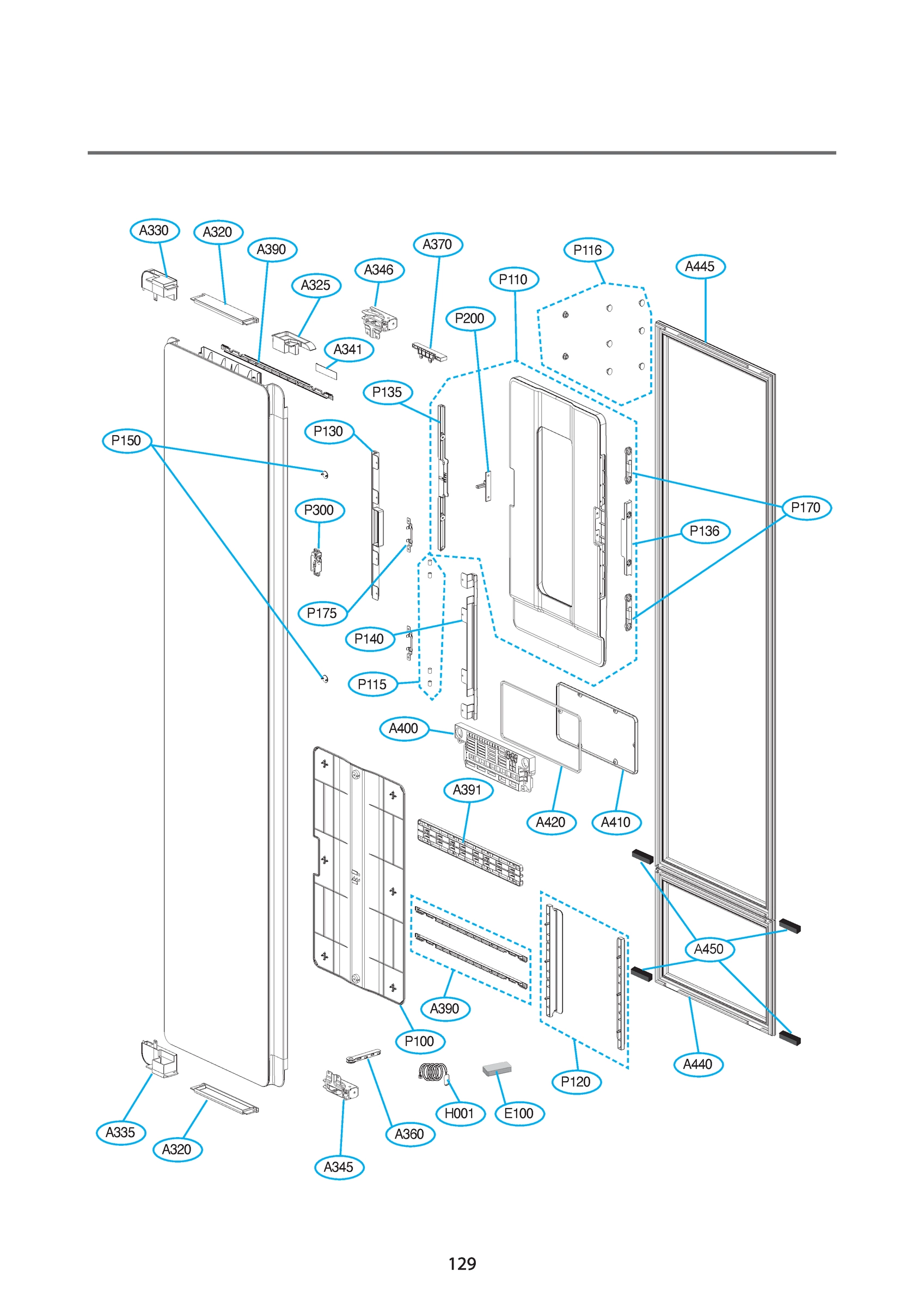

P100

MGJ64121501 LG Side Plate Backorder LGE MGJ64121501 $72.49

P110

ADC74585502 LG Door Panel Backorder LGE ADC74585502 $212.13

P115

4830ER4002A LG Bush Backorder LGE 4830ER4002A $6.19

P116

MBL64820202 LG Screw Cap Backorder LGE MBL64820202 $6.19

P120

MCK68026101 LG Guide Cover Backorder LGE MCK68026101 $9.86

P130

MBL65997001 LG Cover Cap Backorder LGE MBL65997001 $14.79

P135

MEG63818601 LG Lock Holder Backorder LGE MEG63818601 $9.86

P136

MEG64178801 LG Holder Lock Backorder LGE MEG64178801 $9.86

P140

MBL65997101 LG Cap,Cover Backorder LGE MBL65997101 $9.86

P150

MBL65478502 LG Screw Cap Backorder LGE MBL65478502 $6.19

P170

MEF63022001 LG Hinge Backorder LGE MEF63022001 $33.69

P175

MAZ64264101 LG Hinge Bracket Backorder LGE MAZ64264101 $14.79

P200

MFG63358601 LG Hook Locker Backorder LGE MFG63358601 $33.69

P300

AFK73529601 LG Locker Assembly Backorder LGE AFK73529601 $49.19

S301

4861FR3068A LG Washer Hose Clamp In Stock LGE 4861FR3068A $6.19

S302

4861FR3068R LG Clamp Backorder LGE 4861FR3068R $6.19

S303

4861FR3068T LG Clamp Backorder LGE 4861FR3068T $6.19

S304

4861FR3068F LG Clamp Backorder LGE 4861FR3068F $6.19

SVC01

CLS30860010 LG Closet Clothing Care System Bo Backorder LGE CLS30860010 $153.83

SVC03

Duct Assy,Parts Assembly,SVC Backorder LGE AGM30071001 $72.49

SVC04

383EEL9003B LG Parts Assembly Backorder LGE 383EEL9003B $41.23
