Model Maytag S136W-C ELECTRIC RANGE – Common Parts & Diagrams

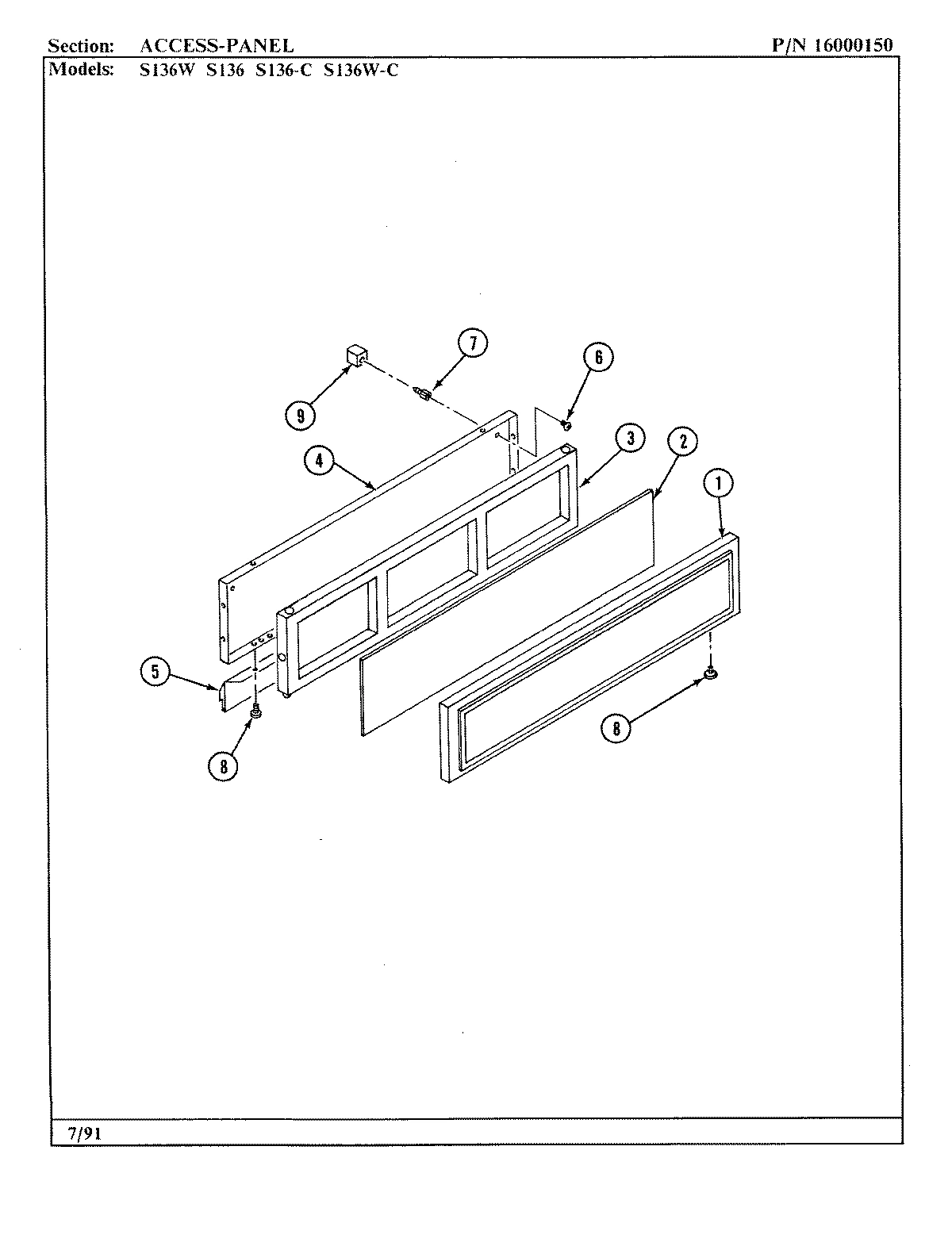

01 - ACCESS PANEL

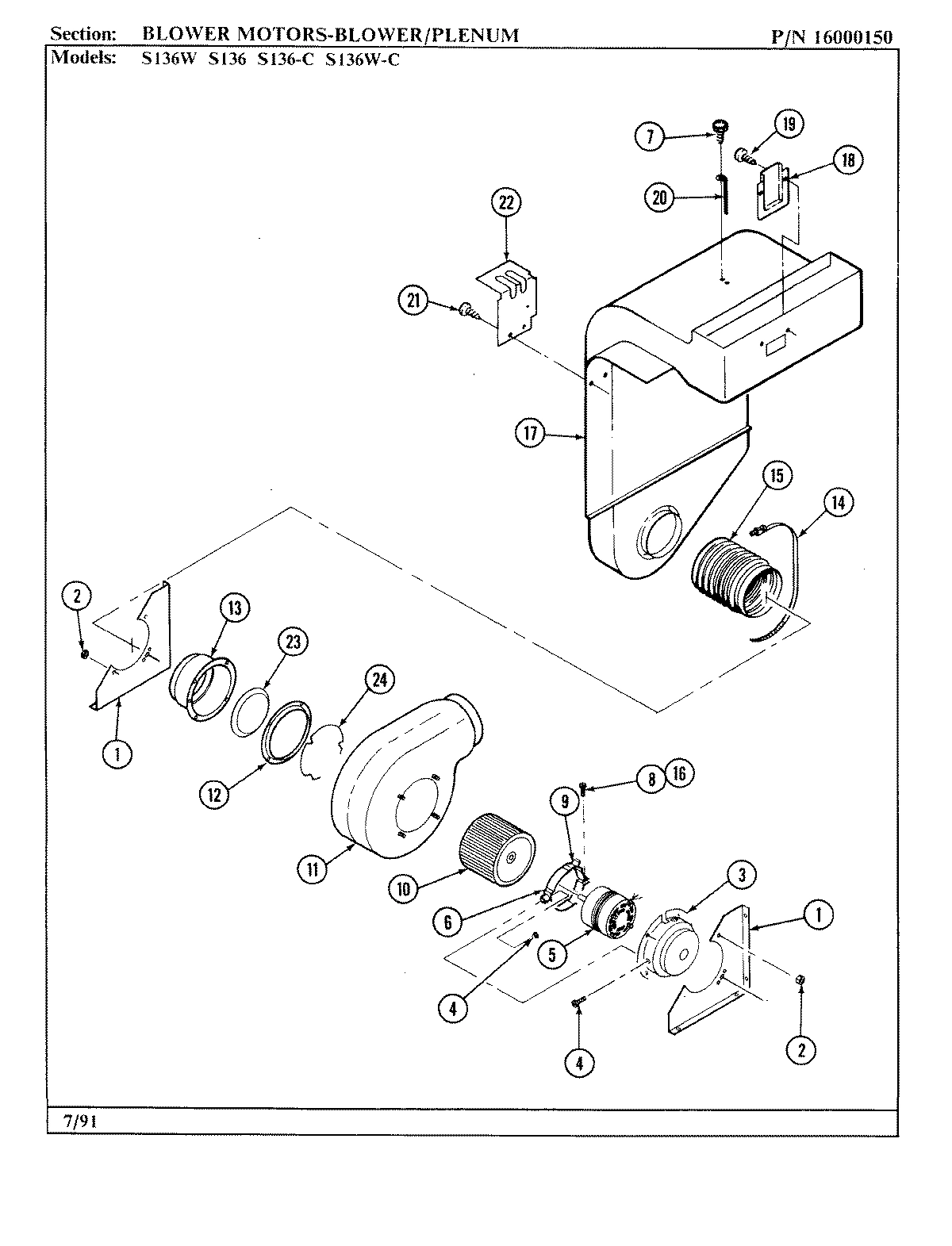

02 - BLOWER MOTOR

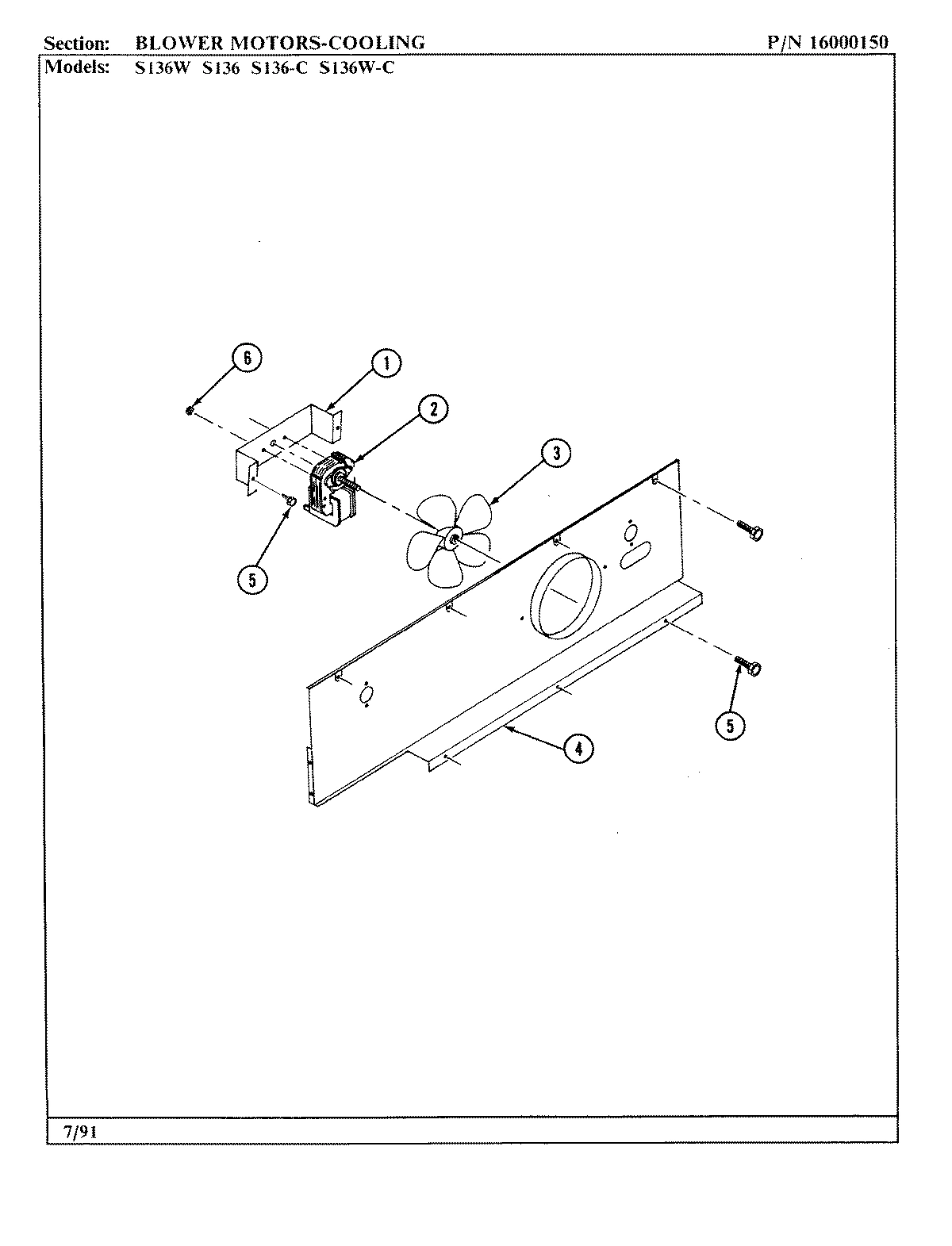

03 - BLOWER MOTOR (COOLING)

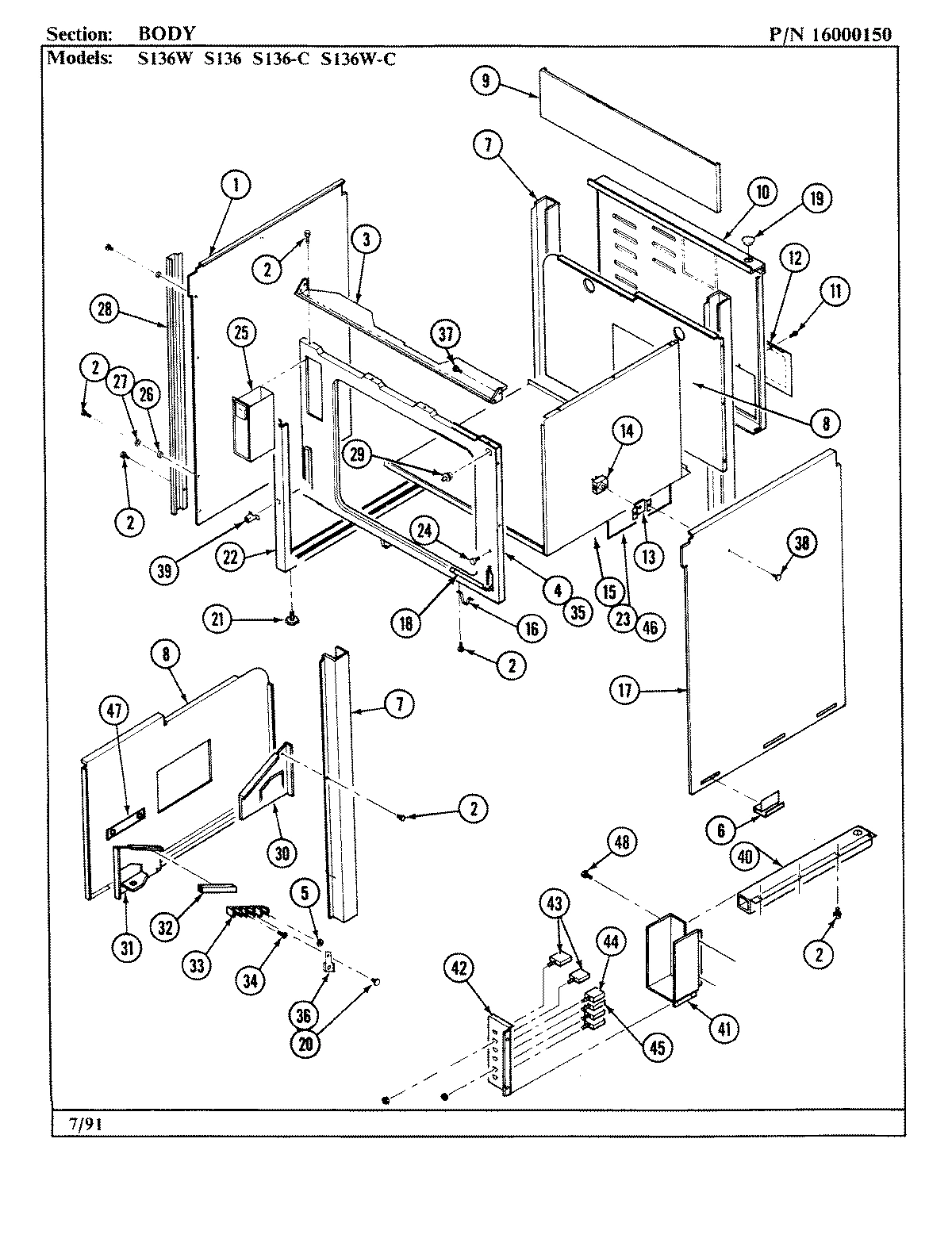

04 - BODY

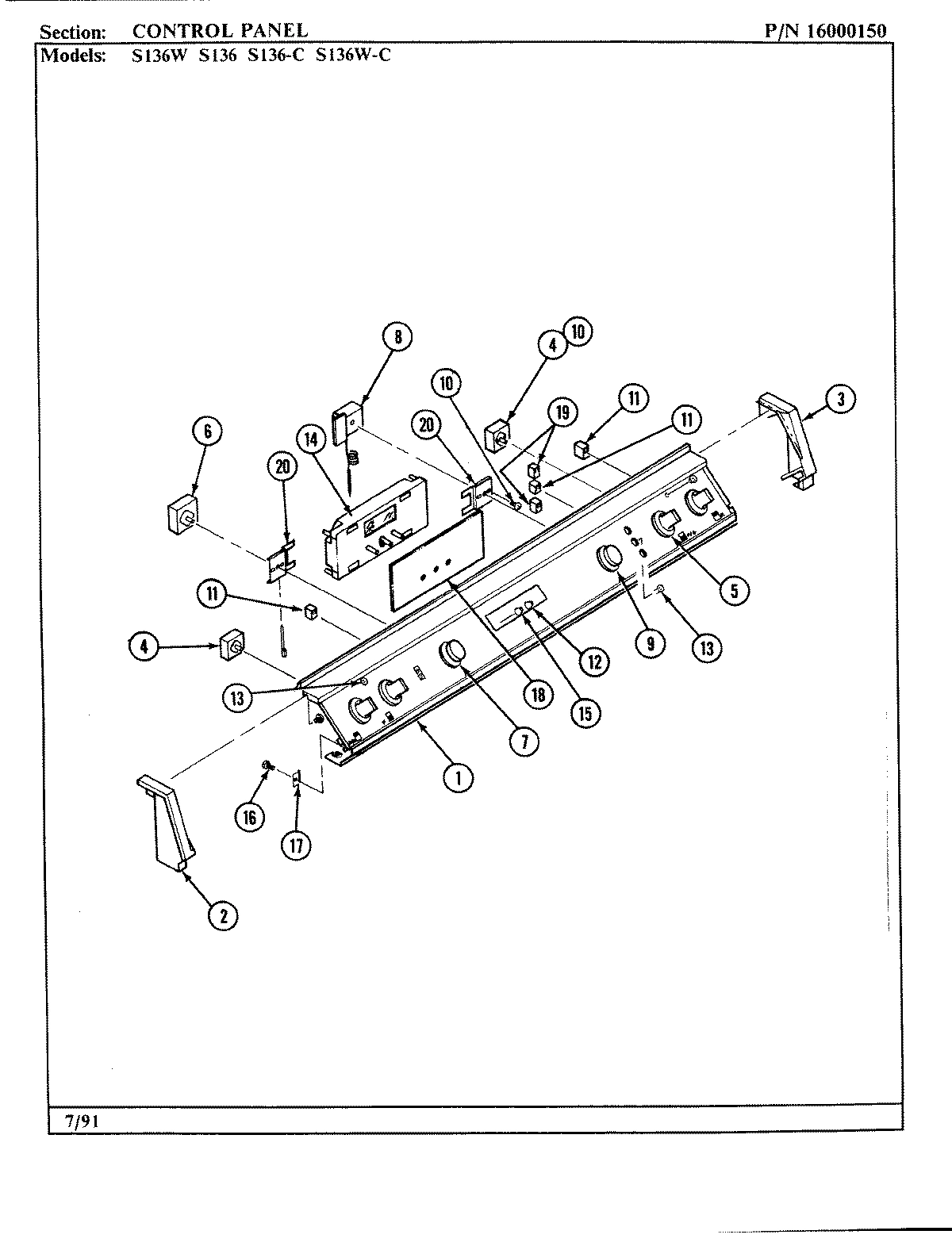

05 - CONTROL PANEL

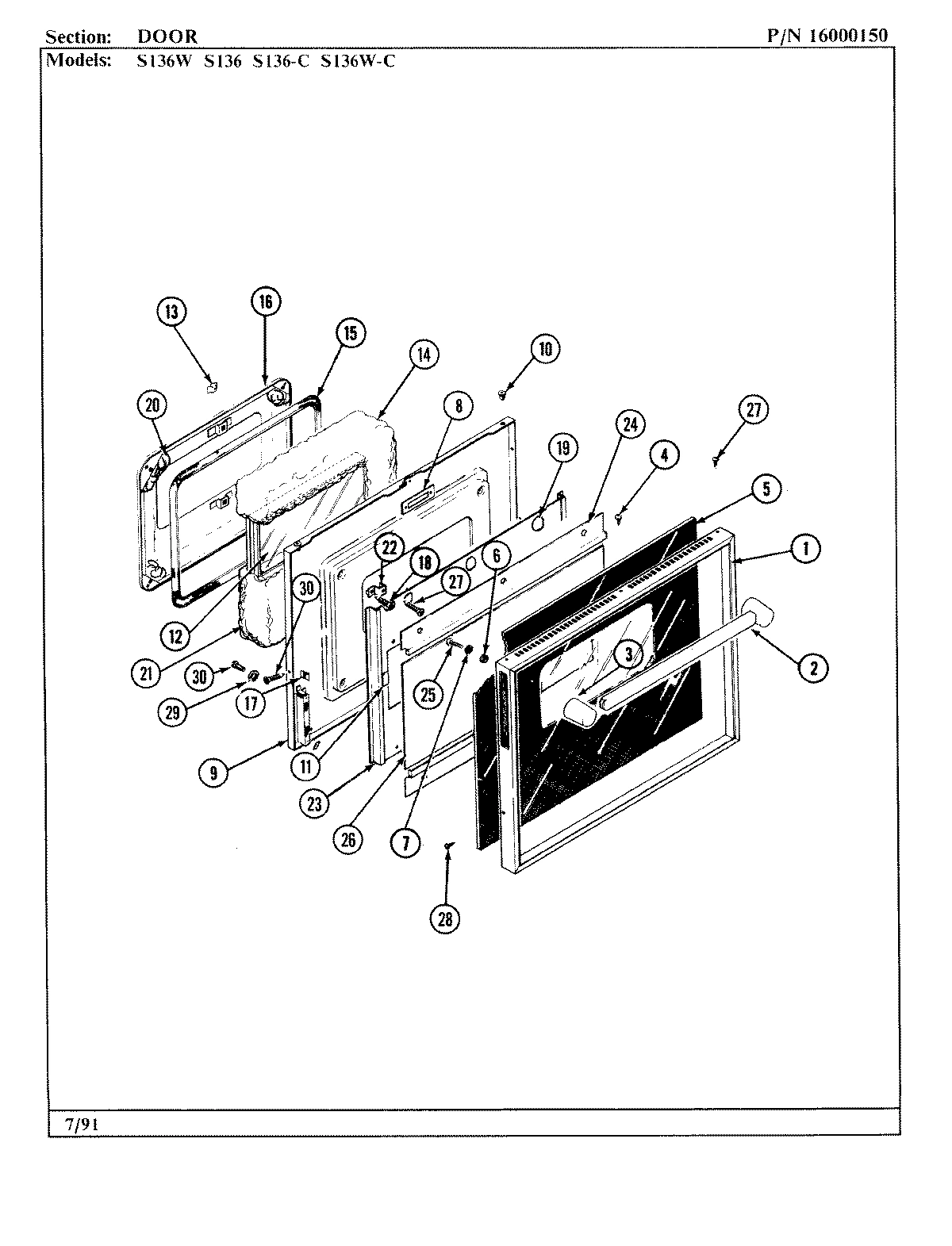

06 - DOOR

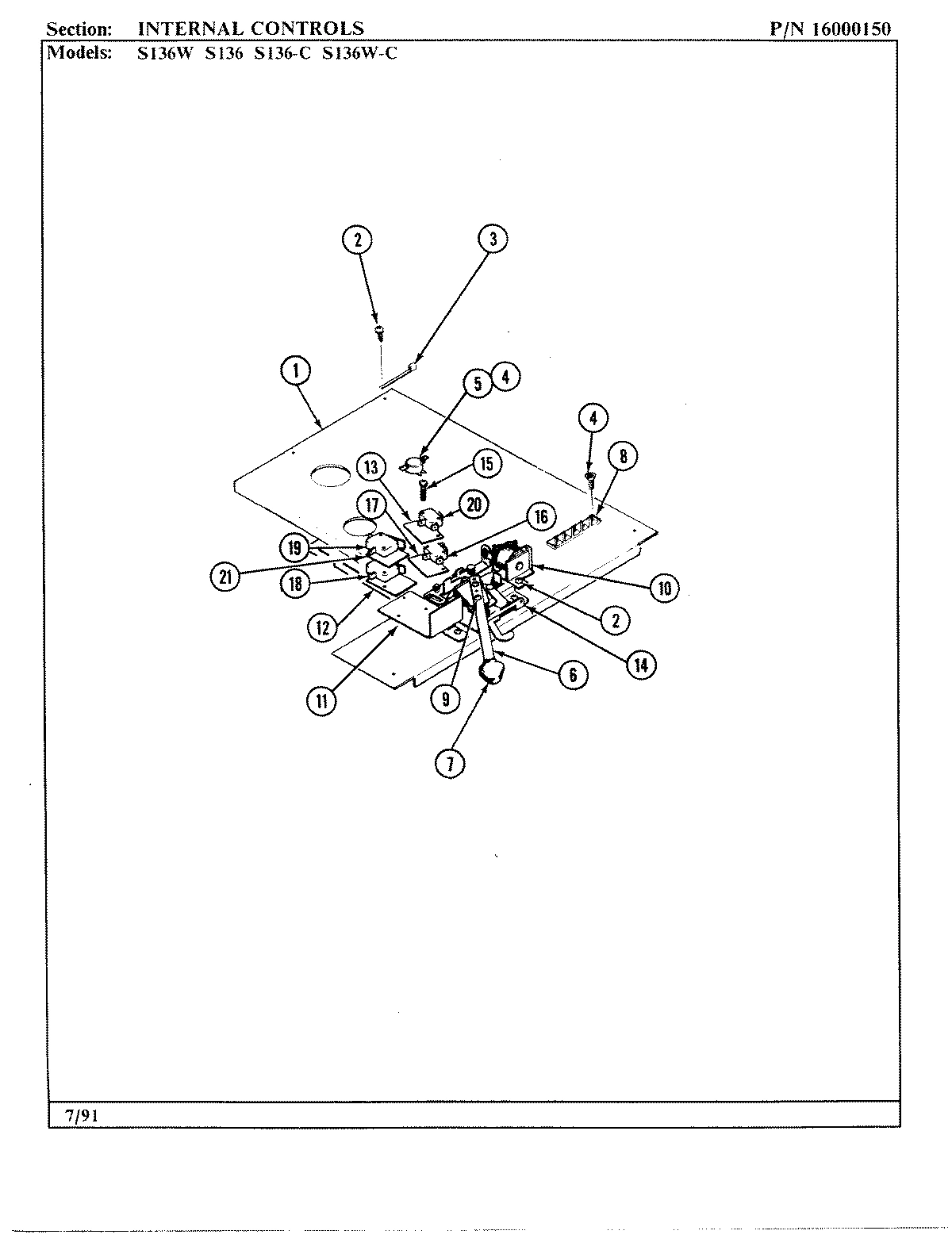

07 - INTERNAL CONTROLS

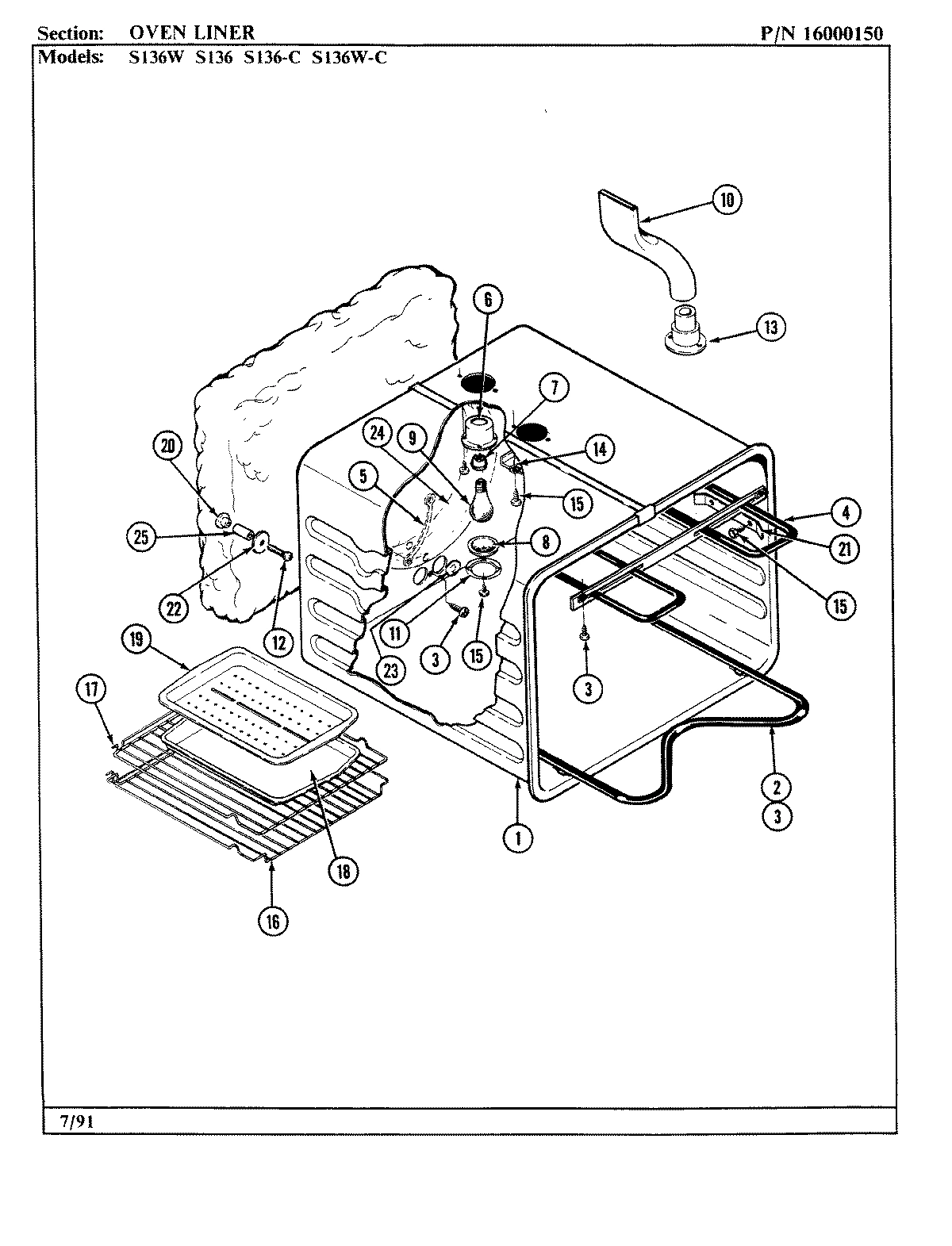

08 - LINER

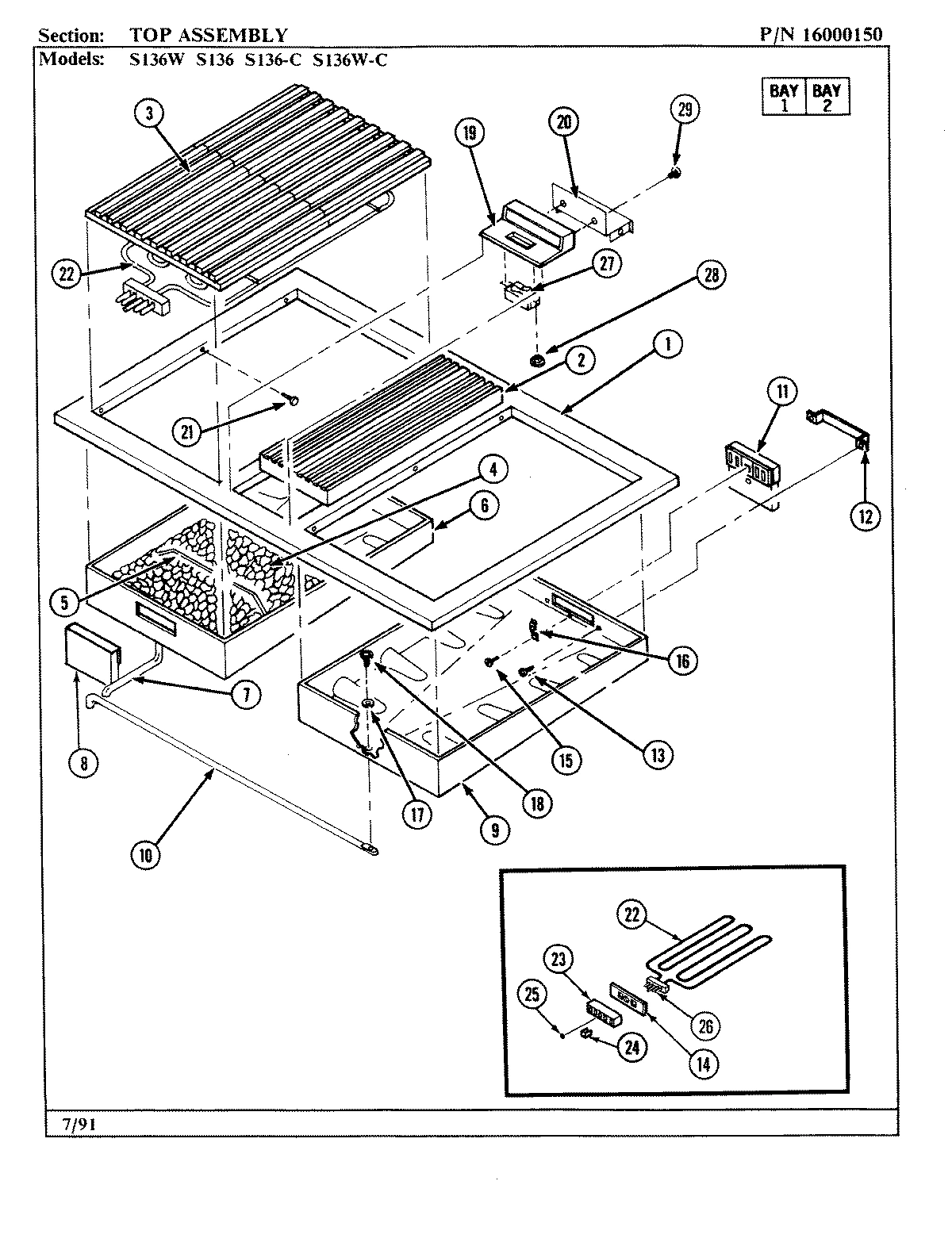

09 - TOP ASSEMBLY
Common parts from model Maytag S136W-C ELECTRIC RANGE
1
MAY Y702542 MAY Y702542 Contact Us For Availability
1
MAY Y702301 MAY Y702301 Contact Us For Availability
1
MAY 704476 MAY 704476 Contact Us For Availability
1
MAY 705001 MAY 705001 Contact Us For Availability
1
MAY 704669 MAY 704669 Contact Us For Availability
1
MAY 71001403 MAY 71001403 Contact Us For Availability
1
MAY 71001490 MAY 71001490 Contact Us For Availability
1
MAY 712584 MAY 712584 Contact Us For Availability
1
MAY 701853 MAY 701853 Contact Us For Availability
2
MAY Y702549 MAY Y702549 Contact Us For Availability
2
MAY 702388 MAY 702388 Contact Us For Availability
2
MAY 704475 MAY 704475 Contact Us For Availability
2
MAY Y704664 MAY Y704664 Contact Us For Availability
2
MAY 704479 MAY 704479 Contact Us For Availability
2
MAY 71001451 MAY 71001451 Contact Us For Availability
2
MAY Y04100631 MAY Y04100631 Contact Us For Availability
3
MAY Y702525 MAY Y702525 Contact Us For Availability
3
MAY 712002 MAY 712002 Contact Us For Availability
3
MAY Y702387 MAY Y702387 Contact Us For Availability
3
MAY 701678 MAY 701678 Contact Us For Availability
3
MAY Y704454 MAY Y704454 Contact Us For Availability
3
MAY 708764 MAY 708764 Contact Us For Availability
3
MAY 703905 MAY 703905 Contact Us For Availability
4
MAY 702329 MAY 702329 Contact Us For Availability
4
MAY Y704666 MAY Y704666 Contact Us For Availability
4
MAY 708929 MAY 708929 Contact Us For Availability
5
MAY 707161 MAY 707161 Contact Us For Availability
5
MAY Y04100034 MAY Y04100034 Contact Us For Availability
5
MAY Y702548 MAY Y702548 Contact Us For Availability
5
MAY 702643 MAY 702643 Contact Us For Availability
6
MAY 712228 MAY 712228 Contact Us For Availability
6
MAY 703838 MAY 703838 Contact Us For Availability
6
MAY Y702476 MAY Y702476 Contact Us For Availability
6
MAY Y704850 MAY Y704850 Contact Us For Availability
6
MAY Y704230 MAY Y704230 Contact Us For Availability
6
MAY Y703848 MAY Y703848 Contact Us For Availability
6
MAY 704142 MAY 704142 Contact Us For Availability
6
MAY 701955 MAY 701955 Contact Us For Availability
6
MAY Y712197 MAY Y712197 Contact Us For Availability
6
MAY Y712200 MAY Y712200 Contact Us For Availability
6
MAY Y712203 MAY Y712203 Contact Us For Availability
7
MAY 704296 MAY 704296 Contact Us For Availability
7
MAY Y700446 MAY Y700446 Contact Us For Availability
7
MAY 701671 MAY 701671 Contact Us For Availability
7
MAY 704460 MAY 704460 Contact Us For Availability
7
MAY Y704145 MAY Y704145 Contact Us For Availability
7
MAY Y702463 MAY Y702463 Contact Us For Availability
8
MAY Y703674 MAY Y703674 Contact Us For Availability
8
MAY Y704735 MAY Y704735 Contact Us For Availability
8
MAY Y712010 MAY Y712010 Contact Us For Availability
8
MAY 702746 MAY 702746 Contact Us For Availability
8
MAY Y702750 MAY Y702750 Contact Us For Availability
8
MAY Y704143 MAY Y704143 Contact Us For Availability
9
MAY Y712229 MAY Y712229 Contact Us For Availability
9
MAY Y702345 MAY Y702345 Contact Us For Availability
9
MAY Y704482 MAY Y704482 Contact Us For Availability
9
MAY 712567 MAY 712567 Contact Us For Availability
9
MAY Y707319 MAY Y707319 Contact Us For Availability
9
MAY Y712227 MAY Y712227 Contact Us For Availability
9
MAY Y701956 MAY Y701956 Contact Us For Availability
9
MAY Y712199 MAY Y712199 Contact Us For Availability
9
MAY Y712202 MAY Y712202 Contact Us For Availability
10
MAY 702307 MAY 702307 Contact Us For Availability
10
MAY 703619 MAY 703619 Contact Us For Availability
10
MAY 704428 MAY 704428 Contact Us For Availability
10
MAY 701643 MAY 701643 Contact Us For Availability
10
MAY 701662 MAY 701662 Contact Us For Availability
10
MAY Y702526 MAY Y702526 Contact Us For Availability
10
MAY 702730 MAY 702730 Contact Us For Availability
10
MAY Y702327 MAY Y702327 Contact Us For Availability
11
MAY 712008 MAY 712008 Contact Us For Availability
11
MAY Y702614 MAY Y702614 Contact Us For Availability
11
MAY 715938 MAY 715938 Contact Us For Availability
11
MAY 701706 MAY 701706 Contact Us For Availability
11
MAY Y704144 MAY Y704144 Contact Us For Availability
12
MAY Y704758 MAY Y704758 Contact Us For Availability
12
MAY 702333 MAY 702333 Contact Us For Availability
12
MAY Y704484 MAY Y704484 Contact Us For Availability
12
MAY 703804 MAY 703804 Contact Us For Availability
12
MAY 702697 MAY 702697 Contact Us For Availability
12
MAY Y701686 MAY Y701686 Contact Us For Availability
12
MAY 705170 MAY 705170 Contact Us For Availability
12
MAY Y702698 MAY Y702698 Contact Us For Availability
13
MAY Y702296 MAY Y702296 Contact Us For Availability
13
MAY 704337 MAY 704337 Contact Us For Availability
13
MAY Y705024 MAY Y705024 Contact Us For Availability
13
MAY 705404 MAY 705404 Contact Us For Availability
13
MAY 701738 MAY 701738 Contact Us For Availability
14
MAY Y702331 MAY Y702331 Contact Us For Availability
14
MAY 704355 MAY 704355 Contact Us For Availability
14
MAY Y04100133 MAY Y04100133 Contact Us For Availability
14
MAY Y703708 MAY Y703708 Contact Us For Availability
14
MAY 702293 MAY 702293 Contact Us For Availability
14
MAY Y703357 MAY Y703357 Contact Us For Availability
14
MAY Y702632 MAY Y702632 Contact Us For Availability
14
MAY Y700449 MAY Y700449 Contact Us For Availability
15
MAY Y702326 MAY Y702326 Contact Us For Availability
15
MAY 702336 MAY 702336 Contact Us For Availability
15
MAY Y702319 MAY Y702319 Contact Us For Availability
15
MAY Y704485 MAY Y704485 Contact Us For Availability
15
MAY 702807 MAY 702807 Contact Us For Availability
15
MAY Y703741 MAY Y703741 Contact Us For Availability
16
MAY Y702360 MAY Y702360 Contact Us For Availability
16
MAY 702658 MAY 702658 Contact Us For Availability
16
MAY Y705393 MAY Y705393 Contact Us For Availability
16
MAY 712011 MAY 712011 Contact Us For Availability
16
MAY Y704662 MAY Y704662 Contact Us For Availability
16
MAY Y702699 MAY Y702699 Contact Us For Availability
17
MAY 712007 MAY 712007 Contact Us For Availability
17
MAY 712025 MAY 712025 Contact Us For Availability
17
MAY 702300 MAY 702300 Contact Us For Availability
17
MAY 702616 MAY 702616 Contact Us For Availability
17
MAY 704487 MAY 704487 Contact Us For Availability
17
MAY 703750 MAY 703750 Contact Us For Availability
17
MAY Y702350 MAY Y702350 Contact Us For Availability
17
MAY Y704660 MAY Y704660 Contact Us For Availability
17
MAY 702747 MAY 702747 Contact Us For Availability
18
MAY 702748 MAY 702748 Contact Us For Availability
18
MAY Y702475 MAY Y702475 Contact Us For Availability
18
MAY 700906 MAY 700906 Contact Us For Availability
18
MAY Y703419 MAY Y703419 Contact Us For Availability
18
MAY 704608 MAY 704608 Contact Us For Availability
18
MAY Y704752 MAY Y704752 Contact Us For Availability
18
MAY 703164 MAY 703164 Contact Us For Availability
19
MAY Y704223 MAY Y704223 Contact Us For Availability
19
MAY Y702696 MAY Y702696 Contact Us For Availability
19
MAY Y704222 MAY Y704222 Contact Us For Availability
19
MAY 702806 MAY 702806 Contact Us For Availability
19
MAY 703165 MAY 703165 Contact Us For Availability
19
MAY 71001452 MAY 71001452 Contact Us For Availability
19
MAY Y04100548 MAY Y04100548 Contact Us For Availability
19
MAY Y704477 MAY Y704477 Contact Us For Availability
20
MAY Y712004 MAY Y712004 Contact Us For Availability
20
MAY Y702656 MAY Y702656 Contact Us For Availability
20
MAY 703523 MAY 703523 Contact Us For Availability
20
MAY 703667 MAY 703667 Contact Us For Availability
20
MAY 703749 MAY 703749 Contact Us For Availability
20
MAY 703752 MAY 703752 Contact Us For Availability
20
MAY 703833 MAY 703833 Contact Us For Availability
20
MAY 704243 MAY 704243 Contact Us For Availability
20
MAY 704244 MAY 704244 Contact Us For Availability
20
MAY 705296 MAY 705296 Contact Us For Availability
20
MAY 705297 MAY 705297 Contact Us For Availability
20
MAY 701660 MAY 701660 Contact Us For Availability
20
MAY Y703732 MAY Y703732 Contact Us For Availability
20
MAY 715294 MAY 715294 Contact Us For Availability
20
MAY Y704233 MAY Y704233 Contact Us For Availability
21
MAY Y04100573 MAY Y04100573 Contact Us For Availability
21
MAY Y707347 MAY Y707347 Contact Us For Availability
21
MAY Y708696 MAY Y708696 Contact Us For Availability
21
MAY 702292 MAY 702292 Contact Us For Availability
21
MAY 703264 MAY 703264 Contact Us For Availability
21
MAY 702282 MAY 702282 Contact Us For Availability
21
MAY 702283 MAY 702283 Contact Us For Availability
21
MAY Y701541 MAY Y701541 Contact Us For Availability
22
MAY 702183 MAY 702183 Contact Us For Availability
22
MAY 702735 MAY 702735 Contact Us For Availability
22
MAY Y702733 MAY Y702733 Contact Us For Availability
22
MAY Y715290 MAY Y715290 Contact Us For Availability
22
MAY 712000 MAY 712000 Contact Us For Availability
22
MAY 712092 MAY 712092 Contact Us For Availability
22
MAY 701652 MAY 701652 Contact Us For Availability
22
MAY 701736 MAY 701736 Contact Us For Availability
22
MAY 04100006 MAY 04100006 Contact Us For Availability
23
MAY Y704761 MAY Y704761 Contact Us For Availability
23
MAY 704466 MAY 704466 Contact Us For Availability
23
MAY 703782 MAY 703782 Contact Us For Availability
23
MAY 702593 MAY 702593 Contact Us For Availability
24
MAY Y700450 MAY Y700450 Contact Us For Availability
24
MAY 702751 MAY 702751 Contact Us For Availability
24
MAY Y700556 MAY Y700556 Contact Us For Availability
24
MAY Y704819 MAY Y704819 Contact Us For Availability
24
MAY 71001394 MAY 71001394 Contact Us For Availability
24
MAY 702592 MAY 702592 Contact Us For Availability
24
MAY 705343 MAY 705343 Contact Us For Availability
24
MAY 71001395 MAY 71001395 Contact Us For Availability
25
MAY 702745 MAY 702745 Contact Us For Availability
25
MAY Y712001 MAY Y712001 Contact Us For Availability
25
MAY Y702124 MAY Y702124 Contact Us For Availability
25
MAY Y704231 MAY Y704231 Contact Us For Availability
25
MAY Y702711 MAY Y702711 Contact Us For Availability
25
MAY Y702727 MAY Y702727 Contact Us For Availability
26
MAY 702462 MAY 702462 Contact Us For Availability
26
MAY Y704820 MAY Y704820 Contact Us For Availability
27
MAY 712005 MAY 712005 Contact Us For Availability
27
MAY 704478 MAY 704478 Contact Us For Availability
28
MAY 702337 MAY 702337 Contact Us For Availability
28
MAY 704745 MAY 704745 Contact Us For Availability
28
MAY Y04100035 MAY Y04100035 Contact Us For Availability
28
MAY Y705023 MAY Y705023 Contact Us For Availability
29
MAY 701666 MAY 701666 Contact Us For Availability
29
MAY Y708733 MAY Y708733 Contact Us For Availability
29
MAY Y703449 MAY Y703449 Contact Us For Availability
30
MAY 715870 MAY 715870 Contact Us For Availability
30
MAY 702557 MAY 702557 Contact Us For Availability
31
MAY 702556 MAY 702556 Contact Us For Availability
32
MAY 702898 MAY 702898 Contact Us For Availability
33
MAY Y702284 MAY Y702284 Contact Us For Availability
34
MAY Y703002 MAY Y703002 Contact Us For Availability
36
MAY 703648 MAY 703648 Contact Us For Availability
36
MAY Y702335 MAY Y702335 Contact Us For Availability
37
MAY 702731 MAY 702731 Contact Us For Availability
38
MAY 704335 MAY 704335 Contact Us For Availability
39
MAY 708763 MAY 708763 Contact Us For Availability
40
MAY 703492 MAY 703492 Contact Us For Availability
41
MAY 702523 MAY 702523 Contact Us For Availability
42
MAY 702524 MAY 702524 Contact Us For Availability
43
MAY Y702613 MAY Y702613 Contact Us For Availability
44
MAY 701774 MAY 701774 Contact Us For Availability
45
MAY Y715443 MAY Y715443 Contact Us For Availability
46
MAY 702743 MAY 702743 Contact Us For Availability
46
MAY 703834 MAY 703834 Contact Us For Availability
46
MAY 708939 MAY 708939 Contact Us For Availability
47
MAY Y702607 MAY Y702607 Contact Us For Availability
48
MAY 701996 MAY 701996 Contact Us For Availability
48
MAY 701997 MAY 701997 Contact Us For Availability
48
MAY 701998 MAY 701998 Contact Us For Availability
48
MAY 701999 MAY 701999 Contact Us For Availability
48
MAY 702000 MAY 702000 Contact Us For Availability
48
MAY 702001 MAY 702001 Contact Us For Availability
48
MAY Y705342 MAY Y705342 Contact Us For Availability
× ![]()
