Model Whirlpool S110 ELECTRIC RANGE – Common Parts &amp; Diagrams

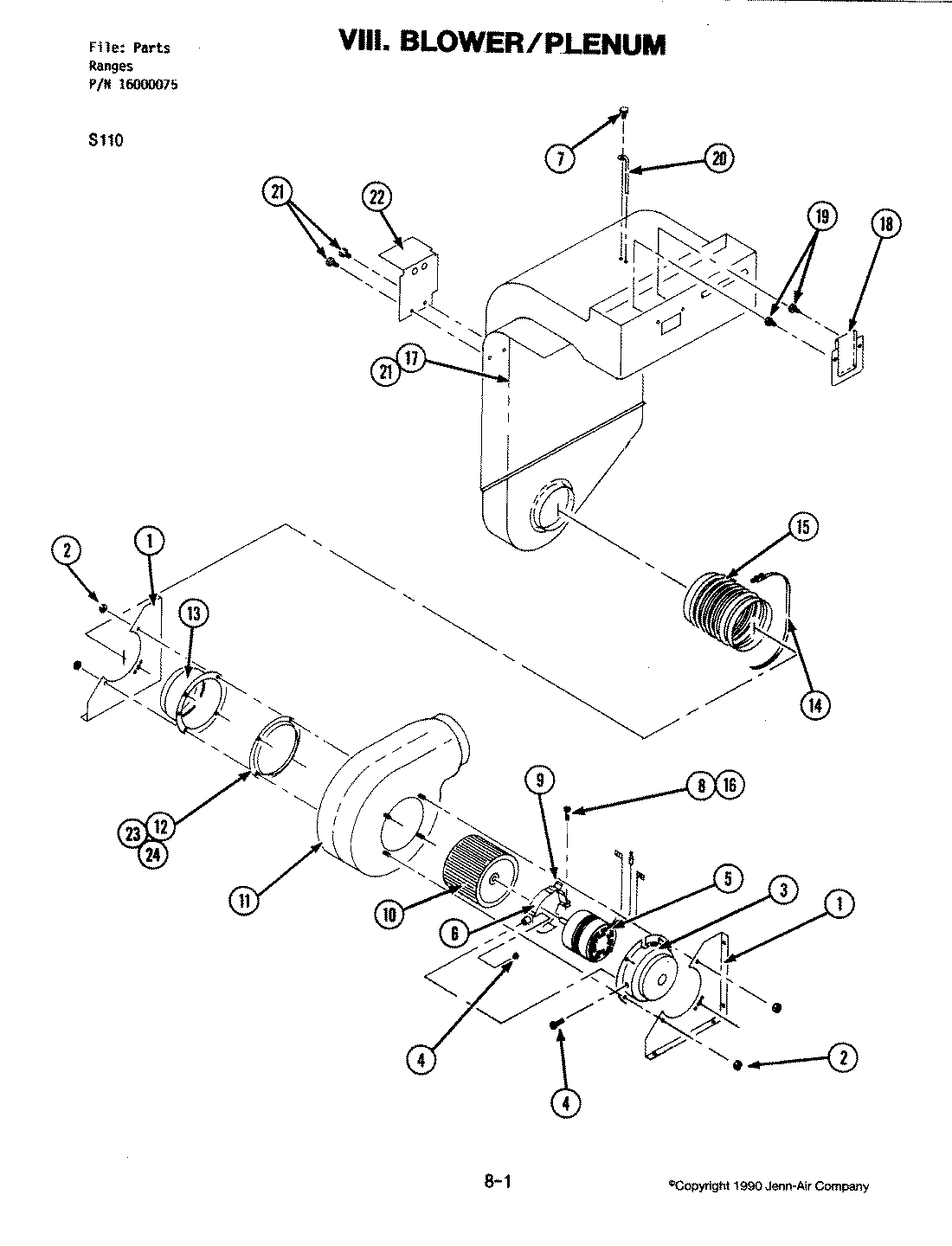

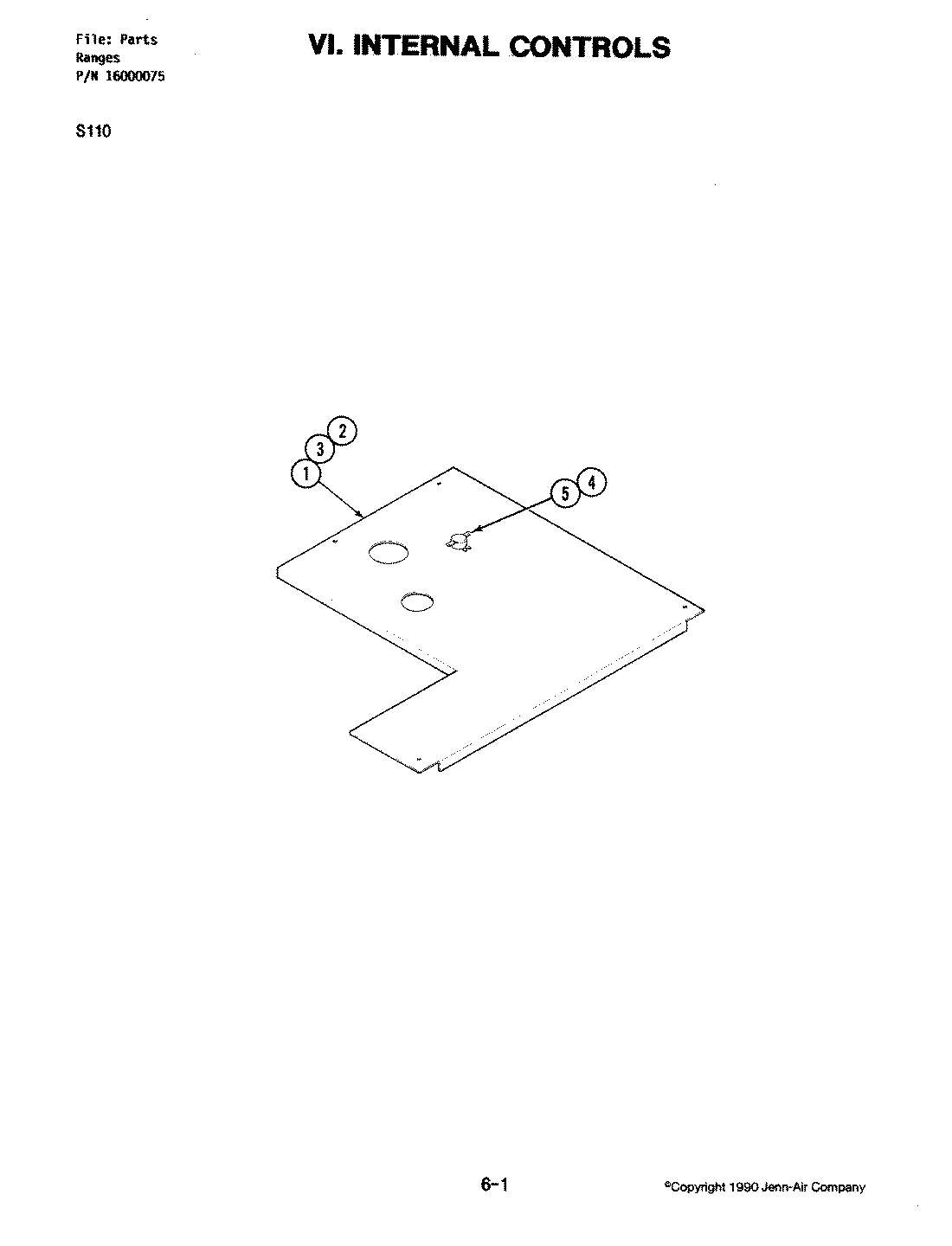

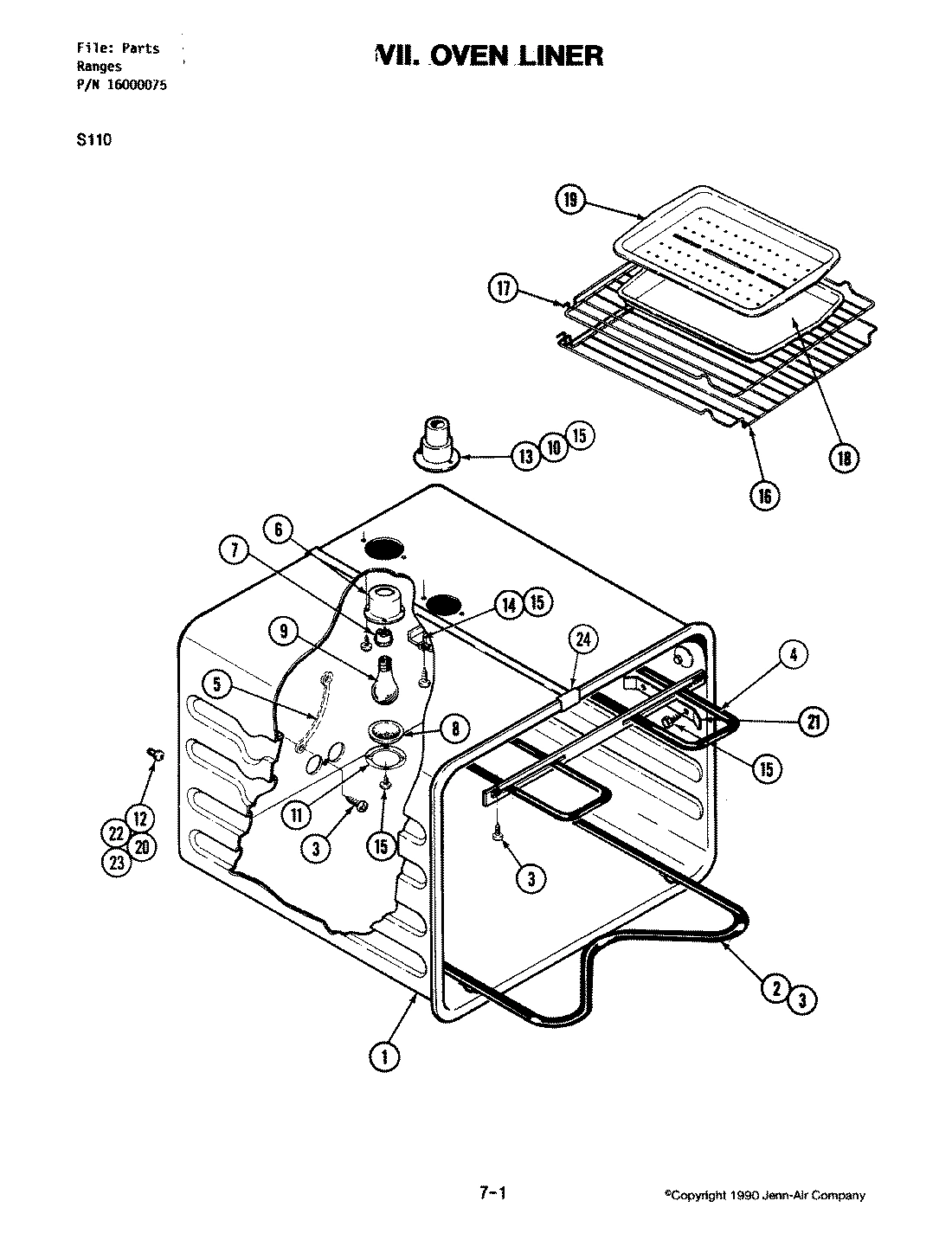

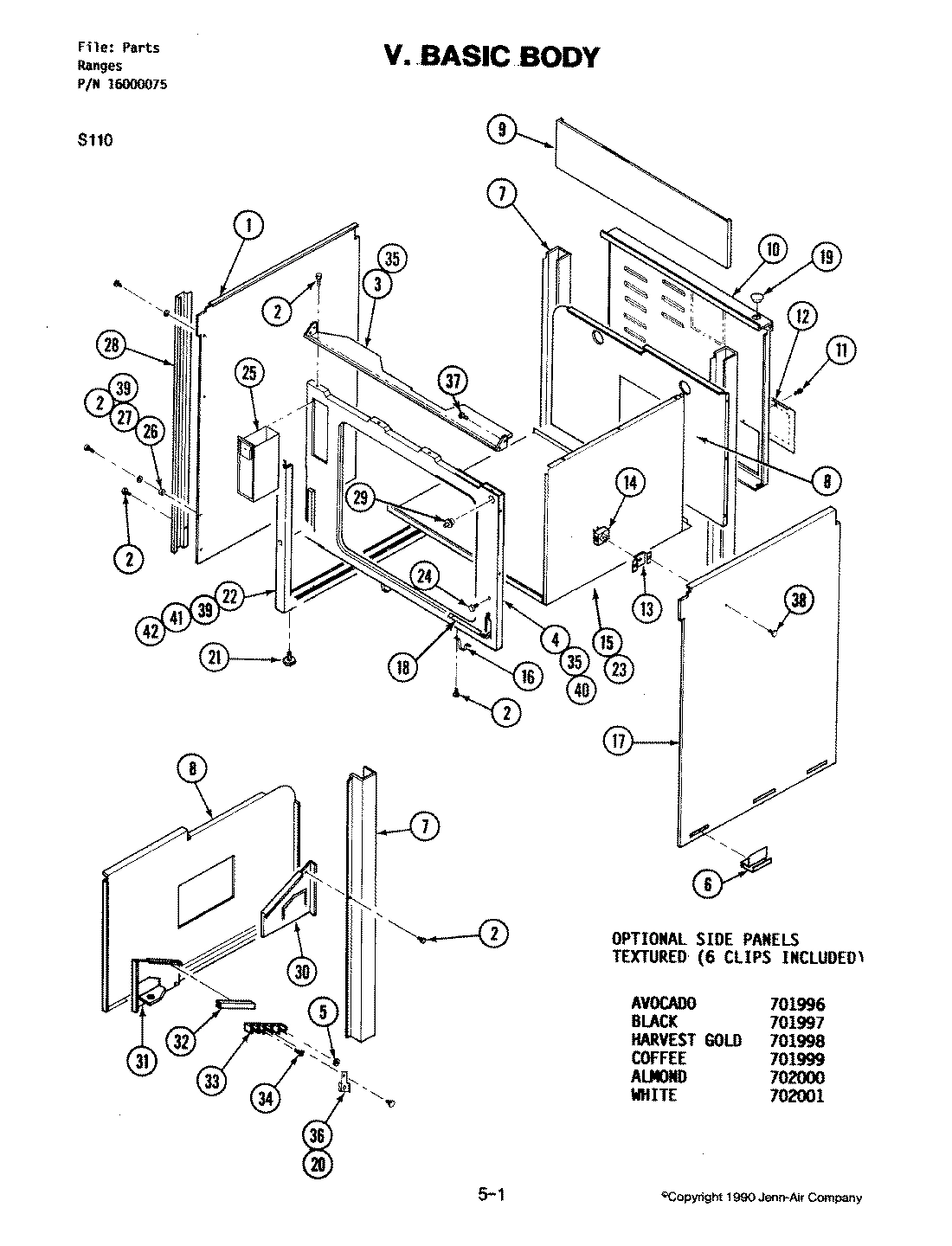

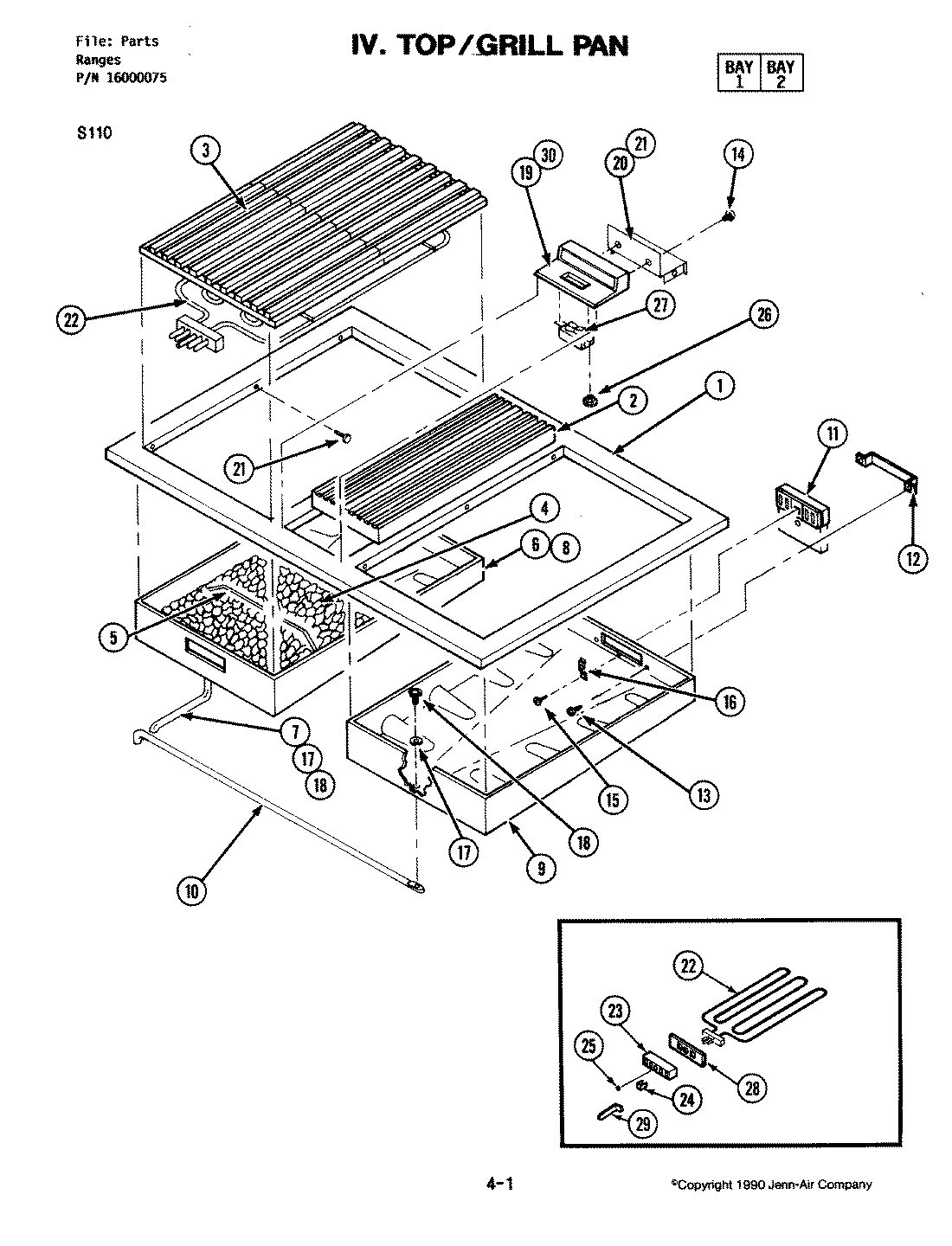

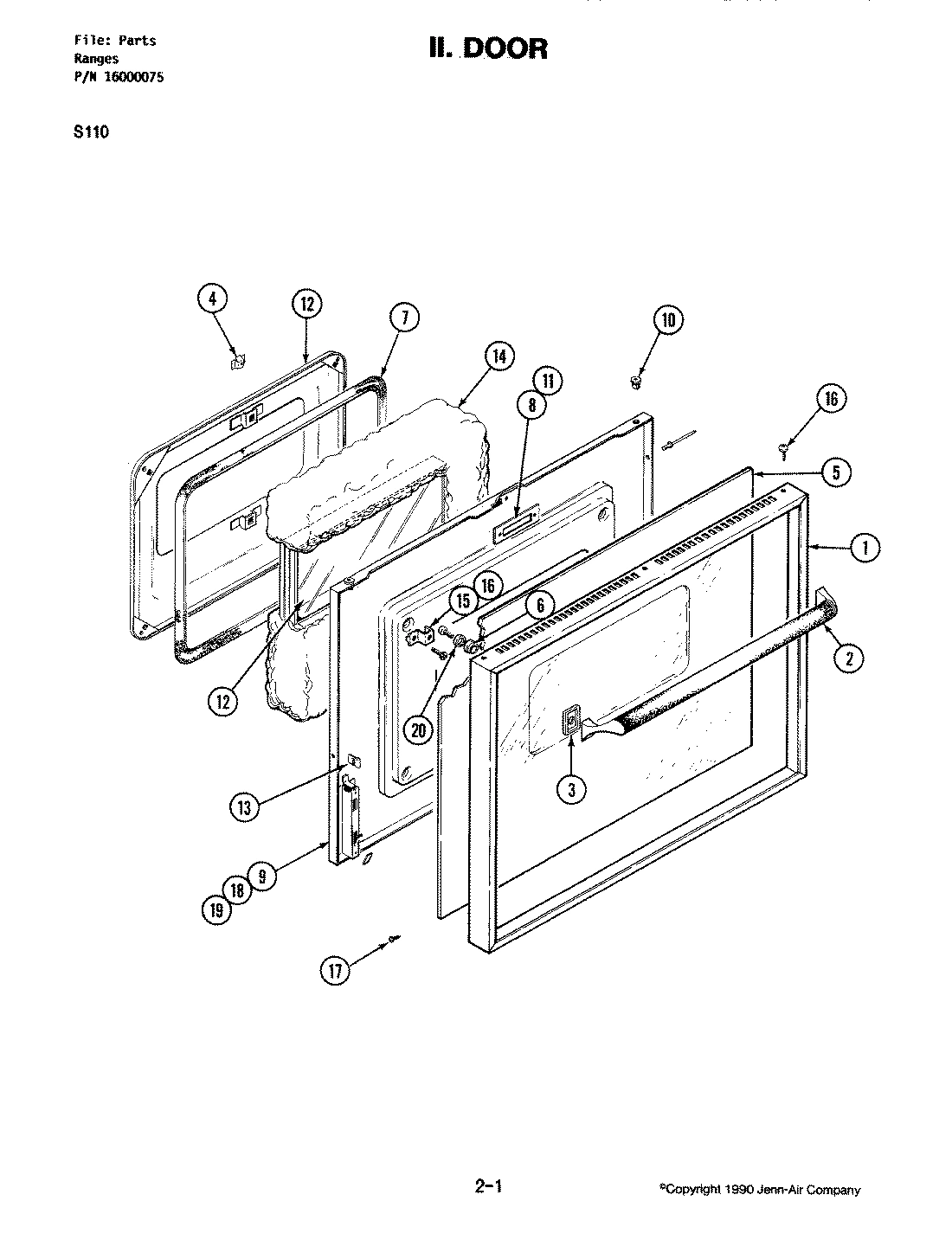

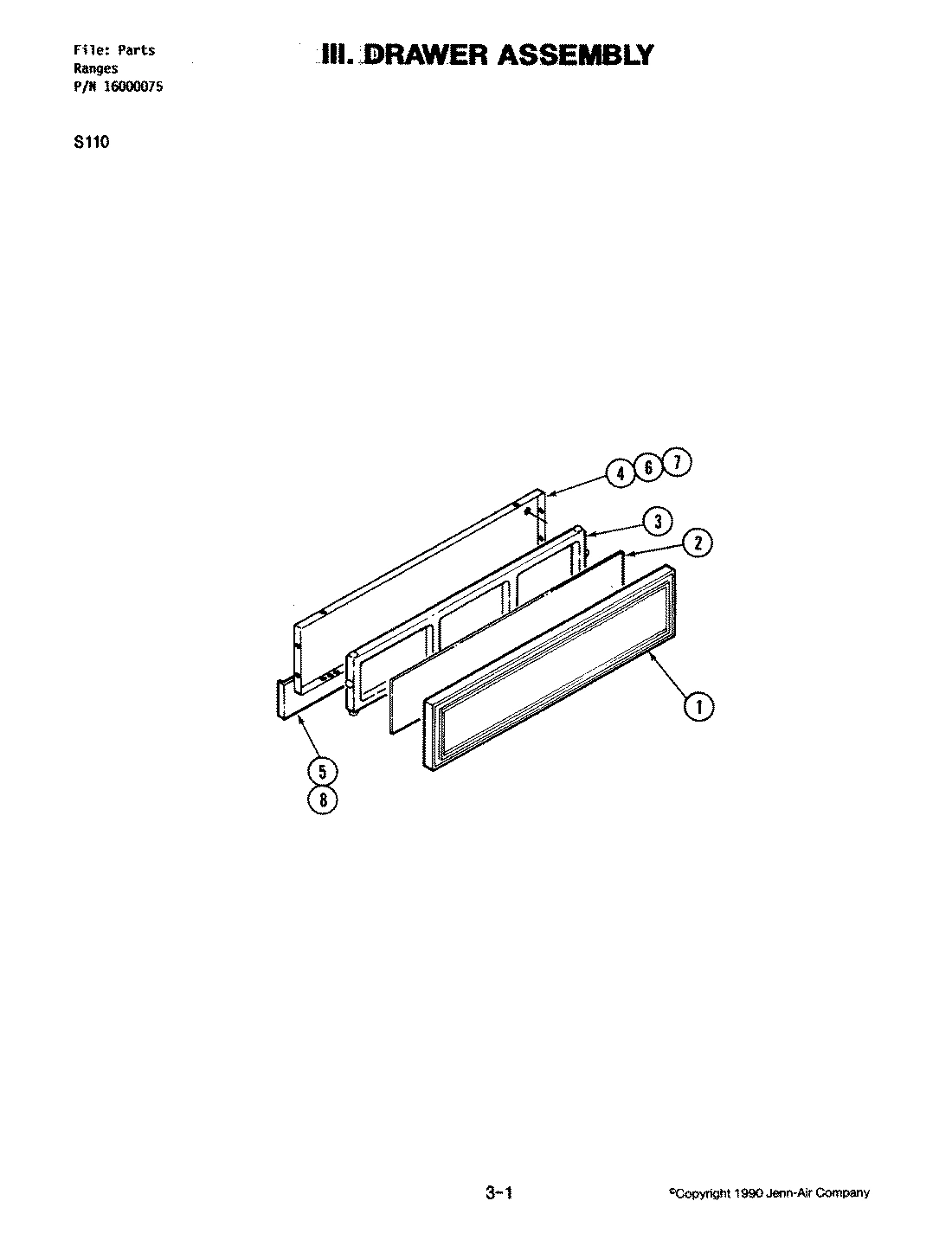

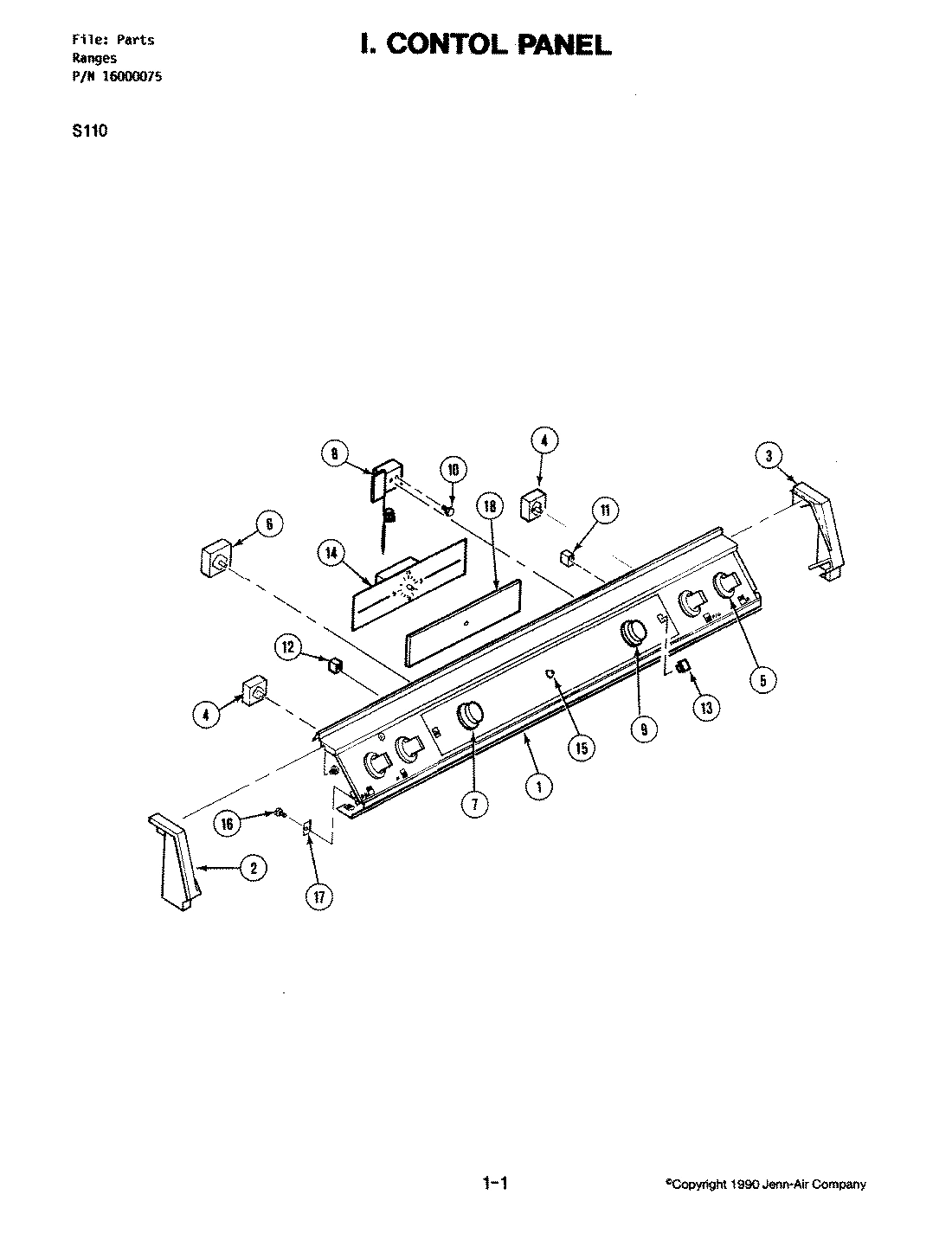

1

FRAME, OVEN DOOR (SS) WPL 705002 Contact Us For Availability

1

PANEL, TOP WPL 704669 Contact Us For Availability

1

TOP WPL 701853 Contact Us For Availability

1

PANEL, SIDE (LT) WPL Y702301 Contact Us For Availability

1

PANEL, CONTROL WPL 703447 Contact Us For Availability

1

LINER WPL 712584 Contact Us For Availability

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

2

WPY04100021 Whirlpool Bake Element Backorder WPL WPY04100021 $107.95

2

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $2.55

2

HANDLE, DOOR WPL Y703429 Contact Us For Availability

2

GRILL, AIR WPL 702568 Contact Us For Availability

2

CAP, END (LT) WPL 702388 Contact Us For Availability

3

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.68

3

PAD, MOUNTING WPL Y703430 Contact Us For Availability

3

GRATE WPL 707886 Contact Us For Availability

3

COVER, MOTOR WPL Y704760 Contact Us For Availability

3

ANGLE, MOUNT WPL 712002 Contact Us For Availability

3

CAP, END (RT) WPL Y702387 Contact Us For Availability

4

W11120795 Whirlpool Infinite Switch In Stock WPL W11120795 $56.53

4

WPY04100514 Whirlpool Bake Element Backorder WPL WPY04100514 $73.20

4

CLIP, RETAINER WPL Y700503 Contact Us For Availability

4

PLATE, ROCK WPL 708929 Contact Us For Availability

4

SCREW WPL 707407 Contact Us For Availability

4

CLOSURE, FRONT WPL 702329 Contact Us For Availability

4

WIRE, ORANGE WPL 703646 Contact Us For Availability

5

12200034 Whirlpool Infinite Switch Knob Kit ( Backorder WPL 12200034 $55.24

5

WP7403P899-60 Whirlpool Safety Switch Backorder WPL WP7403P899-60 $84.36

5

SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability

5

PANEL, KICK WPL Y702744 Contact Us For Availability

5

GLASS, SCREENED----NA WPL 703617K Contact Us For Availability

5

MOTOR WPL Y704759 Contact Us For Availability

5

FOAM, URETHANE WPL Y715957 Contact Us For Availability

5

NUT WPL 707161 Contact Us For Availability

5

WIRE, GROUND WPL 702643 Contact Us For Availability

6

BUSHING WPL Y703433 Contact Us For Availability

6

PAN, GRILL (LT) WPL 701955 Contact Us For Availability

6

WIRE, BROWN WPL Y712197 Contact Us For Availability

6

WIRE, YELLOW WPL Y712200 Contact Us For Availability

6

WIRE, VIOLET WPL Y712203 Contact Us For Availability

6

BAND, MOTOR WPL Y707393 Contact Us For Availability

6

CLIP, SPRING WPL Y702476 Contact Us For Availability

6

SWITCH, SELECTOR WPL 703451 Contact Us For Availability

6

RECEPTACLE, HOLDER WPL 704142 Contact Us For Availability

7

WPY702338 Whirlpool Oven Seal In Stock WPL WPY702338 $91.19

7

STUD, BALL WPL Y702633 Contact Us For Availability

7

TUBE, DRAIN (LEFT) WPL Y702463 Contact Us For Availability

7

SUPPORT,TUBE WPL 704296 Contact Us For Availability

7

KNOB, SELECTOR WPL 703500 Contact Us For Availability

7

RECEPTACLE, SNAP-IN WPL Y704145 Contact Us For Availability

8

PLATE, LATCH (LOWER) WPL 703275 Contact Us For Availability

8

SCREW WPL Y707402 Contact Us For Availability

8

BACK, INNER WPL Y704735 Contact Us For Availability

8

THERMOSTAT WPL 703450 Contact Us For Availability

8

LENS, LIGHT WPL Y704143 Contact Us For Availability

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

9

WP5708M007-60 Whirlpool Wire Harness Backorder WPL WP5708M007-60 $61.49

9

WP5708M008-60 Whirlpool Dishwasher Wire Harne Backorder WPL WP5708M008-60 $55.47

9

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $5.32

9

LINER WPL 712567 Contact Us For Availability

9

WIRE, BLUE WPL Y712227 Contact Us For Availability

9

PAN, GRILL (RT) WPL Y701956 Contact Us For Availability

9

WIRE, BROWN WPL Y712199 Contact Us For Availability

9

PLATE, BACK WPL Y702345 Contact Us For Availability

9

KNOB, THERMOSTAT WPL 703498 Contact Us For Availability

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.69

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $84.38

NUT, PUSH IN WPL 701643 Contact Us For Availability

TUBE, DRAIN (RIGHT) WPL Y702327 Contact Us For Availability

COVER, REAR (LOWER) WPL 702307 Contact Us For Availability

TUBE, VENT WPL 702290 Contact Us For Availability

WPY702434 Whirlpool Receptacle Backorder WPL WPY702434 $41.18

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability

LIGHT, INDICATOR 240V WPL Y702394 Contact Us For Availability

RETAINER, LENS WPL Y704144 Contact Us For Availability

PLUG WPL 712224 Contact Us For Availability

BRACKET WPL Y702698 Contact Us For Availability

RING, INLET WPL Y704758 Contact Us For Availability

COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

CLIP WPL 704487 Contact Us For Availability

ADAPTER, RESTRICTOR RING WPL Y702296 Contact Us For Availability

BRACKET WPL 704337 Contact Us For Availability

LENS, PILOT LIGHT WPL Y702351 Contact Us For Availability

TUBE, VENT WPL 701738 Contact Us For Availability

INSULATION, BOTTOM WPL 703612 Contact Us For Availability

SCREW WPL 703003 Contact Us For Availability

CLAMP, HOSE WPL Y702331 Contact Us For Availability

SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability

CLOCK----NA WPL Y703638 Contact Us For Availability

SHIELD, VENT WPL Y702632 Contact Us For Availability

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.55

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.63

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

STAND-OFF BRACKET (LOWER) WPL 703289 Contact Us For Availability

DUCT, FLEXIBLE WPL Y702326 Contact Us For Availability

ANGLE, OVEN SUPPORT WPL 702336 Contact Us For Availability

PANEL, BOTTOM & SIDE (RT) WPL Y702319 Contact Us For Availability

KNOB, CLOCK WPL Y712230 Contact Us For Availability

74004835 Whirlpool Clip In Stock WPL 74004835 $5.00

BRACKET, HAT WPL 702658 Contact Us For Availability

SCREW, HEX WPL Y702976 Contact Us For Availability

RACK, OVEN (OFFSET) WPL Y704662 Contact Us For Availability

RACK, OVEN WPL Y704660 Contact Us For Availability

SCREW, FLAT WPL 704745 Contact Us For Availability

WASHER, TEFLON WPL 702747 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability

PANEL, SIDE (RT) WPL 702300 Contact Us For Availability

BRACKET, RETAINING WPL 702616 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

WASHER WPL Y703449 Contact Us For Availability

NUT, DRAIN TUBE WPL 702748 Contact Us For Availability

COVER, VENT WPL Y702475 Contact Us For Availability

HINGE WPL 703711 Contact Us For Availability

HARNESS, CONTROL WPL 703452 Contact Us For Availability

HARNESS, SUPPLY WPL 703642 Contact Us For Availability

WIRE, ORANGE WPL 703644 Contact Us For Availability

LENS-CLOCK WPL 712257 Contact Us For Availability

BEZEL WPL 712258 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

SPACER, CORNER (LWR) WPL 703613 Contact Us For Availability

ESCUTCHEON WPL 715381 Contact Us For Availability

STRAIN, RELIEF WPL Y702696 Contact Us For Availability

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $2.55

PALNUT WPL Y703431 Contact Us For Availability

BRACKET, FILLER WPL 702581 Contact Us For Availability

STOP, FILTER WPL Y702656 Contact Us For Availability

NUT, TEE WPL 715294 Contact Us For Availability

W11117769 Whirlpool Refrigerator Leveler Backorder WPL W11117769 $6.97

INSULATION-SIDES,TOP,BOTTOM WPL 702282 Contact Us For Availability

INSULATION-BACK WPL 702283 Contact Us For Availability

CLIP, BULB WPL Y701541 Contact Us For Availability

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.75

WP71002111 Whirlpool Grease Filter In Stock WPL WP71002111 $11.42

ELEMENT WPL 700491 Contact Us For Availability

ENCLOSURE, SIDE (RIGHT) WPL 702183 Contact Us For Availability

CORD, RECEPTACLE MOTOR WPL 702735 Contact Us For Availability

CORD, POWER (MOTOR) WPL Y702733 Contact Us For Availability

RAIL, SUPPORT ASSEMBLY WPL 712000 Contact Us For Availability

WASHER WPL 701736 Contact Us For Availability

WPY708730 Whirlpool Terminal Block In Stock WPL WPY708730 $40.86

RING, RESTRICTOR WPL Y704761 Contact Us For Availability

BAFFLE, INNER WPL 704466 Contact Us For Availability

SCREW WPL 705341 Contact Us For Availability

CLIP, SHUNT WPL Y700450 Contact Us For Availability

CLIP, J WPL Y700556 Contact Us For Availability

SCREW WPL 715870 Contact Us For Availability

CLIP, OVEN WPL Y702618 Contact Us For Availability

25

Y708862 Whirlpool Speed Nut Backorder WPL Y708862 $10.83

26

PALNUT WPL Y705023 Contact Us For Availability

26

WASHER, CONICAL WPL 702462 Contact Us For Availability

27

SWITCH, FAN WPL 715397 Contact Us For Availability

27

WASHER, FLAT WPL 712005 Contact Us For Availability

28

INSULATOR WPL Y700449 Contact Us For Availability

28

TRIM, SIDE WPL 702337 Contact Us For Availability

29

Y708572 Whirlpool Spade Contact In Stock WPL Y708572 $5.22

29

SWITCH, DOOR WPL 701666 Contact Us For Availability

30

GUSSETT (LT) WPL 702557 Contact Us For Availability

31

GUSSETT (RT) WPL 702556 Contact Us For Availability

32

INSULATOR WPL 702898 Contact Us For Availability

33

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

34

WP67006908 Whirlpool Refrigerator Screw Backorder WPL WP67006908 $2.51

36

HARNESS, BACKSPLASH WPL 703648 Contact Us For Availability

36

STRAP, GROUND WPL Y702335 Contact Us For Availability

37

SCREW WPL 702731 Contact Us For Availability

38

SCREW WPL 704335 Contact Us For Availability

39

CLIP----S WPL 708763 Contact Us For Availability

40

PLATE, FRONT CLOSURE WPL 703677 Contact Us For Availability

41

SPACER WPL 702745 Contact Us For Availability

42

SCREW WPL 703001 Contact Us For Availability
