Model Whirlpool S1078H-KLVW GAS RANGE – Common Parts & Diagrams

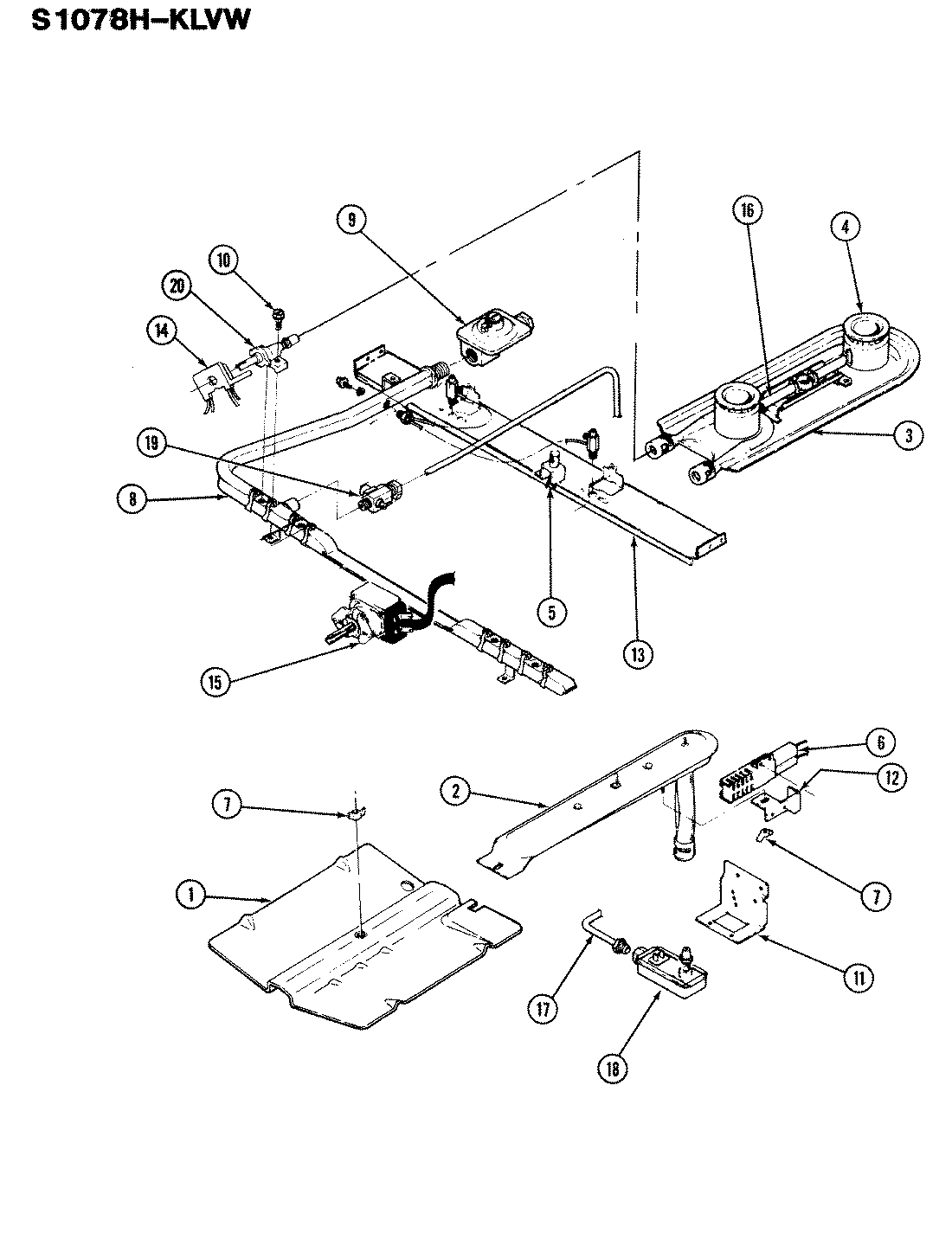

02 - CONTROL SYSTEM

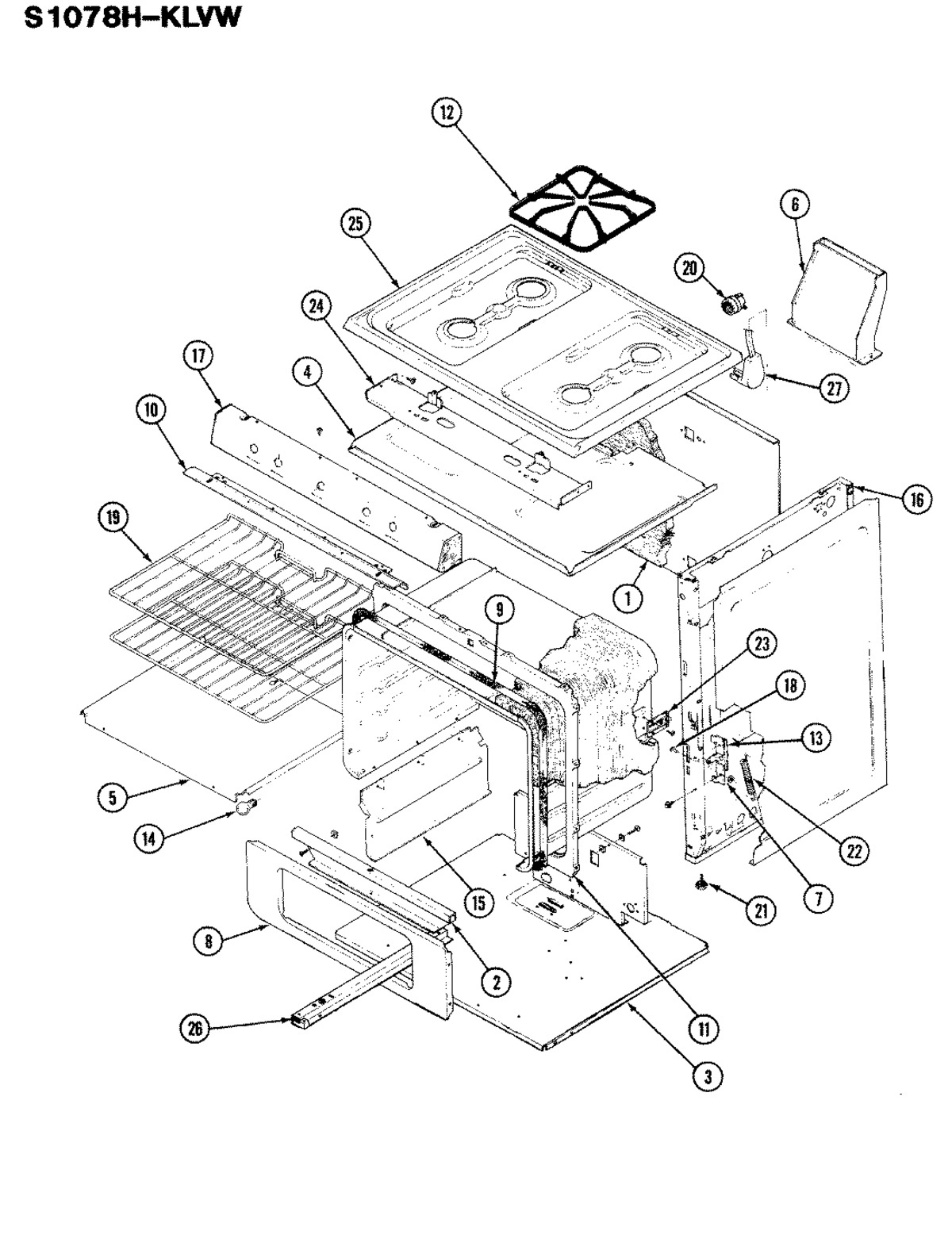

01 - BODY
Common parts from model Whirlpool S1078H-KLVW GAS RANGE
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
BACK, BROILER WPL 4002F07845 Contact Us For Availability
1
BACK, MAIN WPL 4002F09480 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
2
BLOCK, DISCONNECT WPL 7401P00660 Contact Us For Availability
2
BLOCK, DISCONNECT WPL 7401P01360 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
BAFFLE, OVN FRONT WPL 3601W12416 Contact Us For Availability
3
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
3
BOTTOM, BROILER WPL 4011F14980 Contact Us For Availability
4
COVER, WIRE WPL 4005F30451 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
4
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
5
BOTTOM, OVEN WPL 2205F01216 Contact Us For Availability
6
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
6
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
6
IGNITER BAKE WPL 7432P06260 Contact Us For Availability
6
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
6
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
6
BRACKET, TIE DOWN WPL 3801F10180 Contact Us For Availability
6
BRACKET, CLOCK MTG WPL 3801F11351 Contact Us For Availability
6
BOX, FLUE WPL 4006W02680 Contact Us For Availability
7
NUT, WING WPL 7103P03060 Contact Us For Availability
7
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
7
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
7
CLOCK WPL 7602P05160 Contact Us For Availability
7
FILLER, STRIP WPL 7706P00960 Contact Us For Availability
8
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
8
RACEWAY WIRE WPL 3830F00645 Contact Us For Availability
8
PIPE, MANIFOLD WPL 7513P04460 Contact Us For Availability
8
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
9
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
9
SEAL WPL 7212P00160 Contact Us For Availability
10
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
10
FRONT, BURNER BOX WPL 4012F01920 Contact Us For Availability
11
SUPPORT WPL 3807F12034 Contact Us For Availability
11
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
12
BRACKET, OVEN BURNER WPL 3801F00745 Contact Us For Availability
12
GRATE WPL 2003W00100 Contact Us For Availability
12
HINGE, MAIN TOP WPL 7706P17060 Contact Us For Availability
13
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
13
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
13
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
13
HOUSING, LAMP WPL 4001F01623 Contact Us For Availability
13
KNOB, VALVE WPL 7711P17360 Contact Us For Availability
13
KNOB, THERM WPL 7711P18560 Contact Us For Availability
13
KNOB, THERMOSTAT WPL 7731P01860 Contact Us For Availability
13
KNOB, VALVE WPL 7733P03860 Contact Us For Availability
14
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
14
BULB, OVEN WPL 7407P02660 Contact Us For Availability
15
THERMOSTAT WPL 7515P00860 Contact Us For Availability
15
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
16
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
16
PAN, BROIL WPL 3401F00423 Contact Us For Availability
16
LINING ASSY, INNER SIDE WPL 4009W02880 Contact Us For Availability
17
3/8 X 72 TUBING WPL Y0936102 Contact Us For Availability
17
PANEL, SIDE ANGLE WPL 2618F04580 Contact Us For Availability
17
TRIM ASSY, MANIFOLD WPL 7712A02360 Contact Us For Availability
18
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
18
PIN, HINGE WPL 7113P00260 Contact Us For Availability
18
PLATE, NAME WPL 7719P02160 Contact Us For Availability
19
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
19
RACK, OVEN WPL 7801P03060 Contact Us For Availability
20
VALVE WPL 7502P03160 Contact Us For Availability
20
VALVE, BURNER WPL 7502P11160 Contact Us For Availability
20
RECEPTACLE, LAMP WPL 7408P00260 Contact Us For Availability
21
SCREW, LEVELING WPL 7101P25560 Contact Us For Availability
22
SPRING WPL 7803P00260 Contact Us For Availability
23
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
24
SUPPORT, TOP BURNER WPL 3807F22180 Contact Us For Availability
24
SWITCH, ROCKER (BLK) WPL 7403P10260 Contact Us For Availability
25
TOP, MAIN STAINLESS WPL 2001F06530 Contact Us For Availability
26
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
26
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
26
TRIM, VENT COVER WPL 7724P01360 Contact Us For Availability
27
CORD, POWER WPL 7402P01460 Contact Us For Availability
× ![]()
