Model Whirlpool S1070EJ-KZ GAS RANGE – Common Parts & Diagrams
01 - BODY

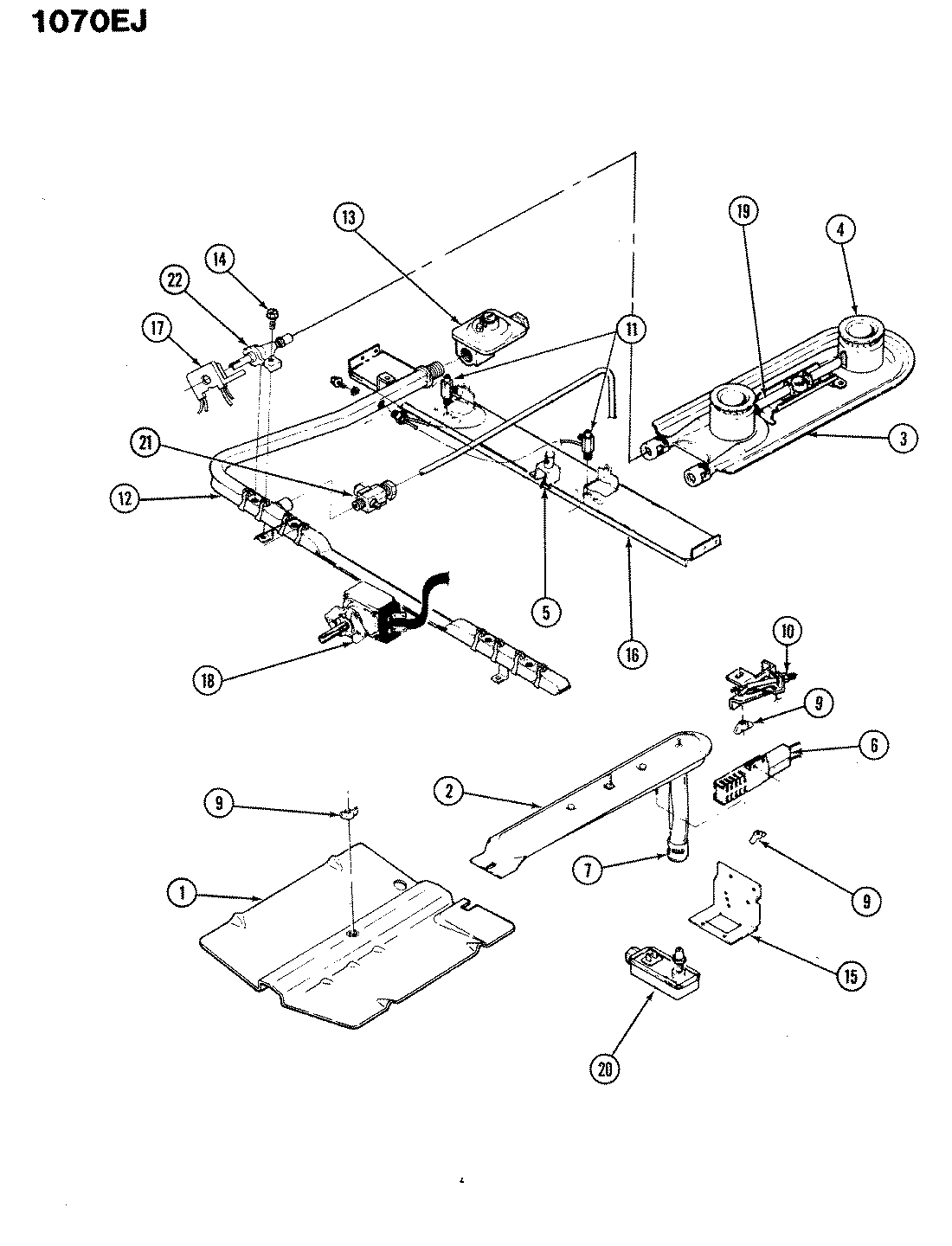

03 - CONTROL SYSTEM

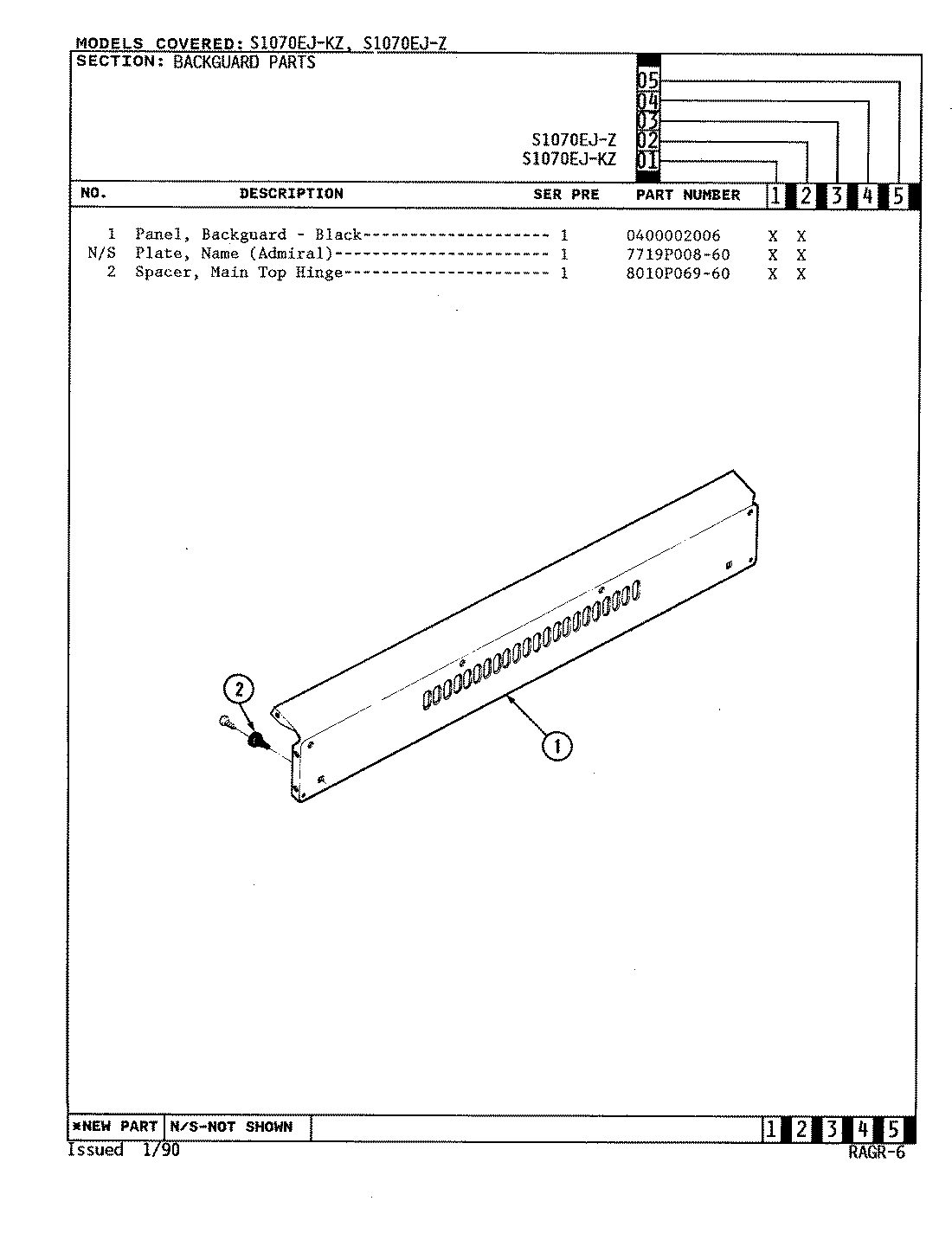

02 - CONTROL PANEL

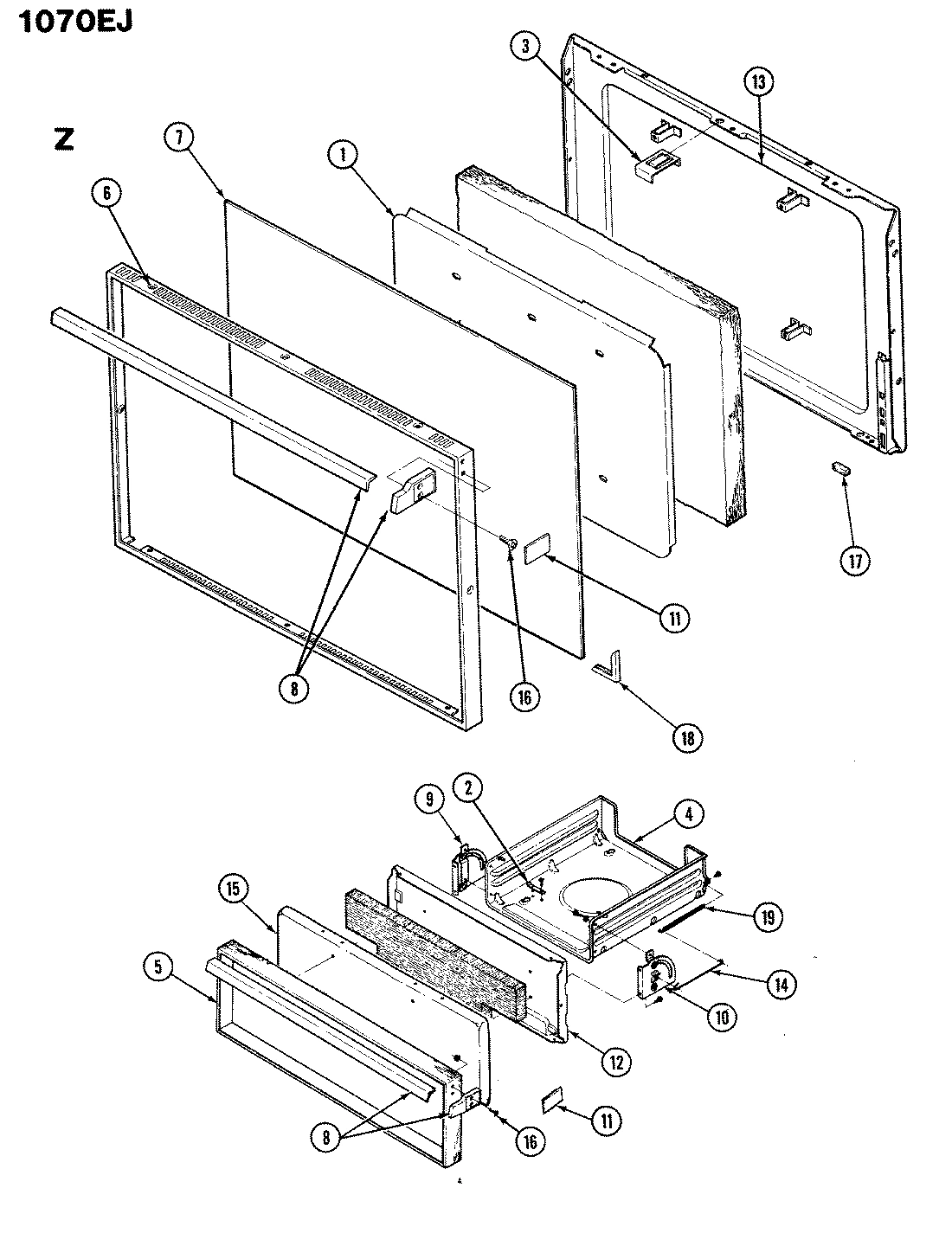

04 - DOOR
Common parts from model Whirlpool S1070EJ-KZ GAS RANGE
1
BACK, BROILER WPL 4002F07845 Contact Us For Availability
1
BACK, BROILER WPL 4002F12445 Contact Us For Availability
1
BAFFLE, OVEN BURNER WPL 3601F18145 Contact Us For Availability
1
PANEL BKG BLACK WPL 2601W30090 Contact Us For Availability
1
PLATE, NAME WPL 7719P00860 Contact Us For Availability
1
BAFFLE WPL 3601F02651 Contact Us For Availability
2
BACK, MAIN WPL 4002F09480 Contact Us For Availability
2
BURNER WPL 7505P10160 Contact Us For Availability
2
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
2
CATCH WPL 8002P00160 Contact Us For Availability
3
BAFFLE, OVEN FRT WPL 3601W12423 Contact Us For Availability
3
UNI-BURNER ASSY WPL 3412A00423 Contact Us For Availability
3
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
4
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
4
COVER, WIRE WPL 4005F30451 Contact Us For Availability
4
CAP, BURNER WPL 7504P00160 Contact Us For Availability
4
DRAWER, BROILER WPL 3407W00923 Contact Us For Availability
5
BOTTOM, BROILER WPL 04000018 Contact Us For Availability
5
IGNITER, TOP (LT) WPL 7432P00860 Contact Us For Availability
5
IGNITER, TOP BURNER WPL 7432P01560 Contact Us For Availability
5
FRAME, BRL DR WPL 7706P18260 Contact Us For Availability
6
BOTTOM, BURNER BOX WPL 4011F09580 Contact Us For Availability
6
KNOB, THERMOSTAT WPL 7711P31260 Contact Us For Availability
6
IGNITER, BAKE BURNER WPL 7432P05260 Contact Us For Availability
6
IGNITER BAKE WPL 7432P06260 Contact Us For Availability
6
FRAME, DOOR WPL 7706P24360 Contact Us For Availability
7
BOTTOM, OVEN WPL 2205F01223 Contact Us For Availability
7
MIXER, AIR WPL 3411F00134 Contact Us For Availability
7
MODULE, SPARK WPL 7431P00660 Contact Us For Availability
7
GLASS, DOOR WPL 7902P27560 Contact Us For Availability
8
BRACKET WPL 3801F02045 Contact Us For Availability
8
BRACKET WPL 3801F02145 Contact Us For Availability
8
BRACKET,CONTROL PANEL (R) WPL 3801F04734 Contact Us For Availability
8
BRACKET,CONTROL PANEL (L) WPL 3801F04934 Contact Us For Availability
8
BRACKET, TIE-DOWN WPL 3801F19851 Contact Us For Availability
8
BOX, FLUE WPL 4006W02680 Contact Us For Availability
8
HANDLE, DOOR WPL 7701P04760 Contact Us For Availability
9
COVER WPL 4005F00545 Contact Us For Availability
9
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
9
CLIP, HINGE PIN WPL 7112P01960 Contact Us For Availability
9
CLIP, TOP RETAINER WPL 7112P03060 Contact Us For Availability
9
NUT, WING WPL 7103P03060 Contact Us For Availability
9
HINGE, BROILER (LT) WPL 3418A06334 Contact Us For Availability
10
FRONT, OVEN LOWER WPL 2201F03423 Contact Us For Availability
10
HINGE, BROILER (RT) WPL 3418A06234 Contact Us For Availability
11
FRONT, OVEN UPPER WPL 2201F06023 Contact Us For Availability
11
INSERT, OVEN DOOR HANDLE WPL 7728P01260 Contact Us For Availability
12
FRONT, BURNER BOX WPL 4012F01980 Contact Us For Availability
12
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
12
RACEWAY WIRE WPL 3830F00645 Contact Us For Availability
12
PIPE, MANIFOLD----NA WPL 7513P04360 Contact Us For Availability
12
LINING, BROILER WPL 2404F02123 Contact Us For Availability
13
GRATE WPL 2003W00100 Contact Us For Availability
13
REGULATOR, PRESSURE WPL 7510P00260 Contact Us For Availability
13
LINING ASSY, OV DR WPL 2402W09023 Contact Us For Availability
14
INSERT, BROIL PAN WPL 3413F00223 Contact Us For Availability
14
HINGE ASSY. (LT) WPL 3418A02934 Contact Us For Availability
14
HINGE ASSY. (RT) WPL 3418A03034 Contact Us For Availability
14
KNOB, VALVE WPL 7711P13560 Contact Us For Availability
14
KNOB, THERMOSTAT WPL 7711P13760 Contact Us For Availability
14
SCREW, CONTROL VALVE WPL 7101P04360 Contact Us For Availability
14
LINK, BROILER WPL 7807P00160 Contact Us For Availability
15
LINING, BROILER SIDE WPL 4009F04545 Contact Us For Availability
15
SUPPORT WPL 3807F12034 Contact Us For Availability
15
PANEL, BROILER DRWR WPL 2403F01470 Contact Us For Availability
16
LINING, INNER SIDE WPL 04000019 Contact Us For Availability
16
PAN, BROIL WPL 3401F00423 Contact Us For Availability
16
SUPPORT, TOP BURNER WPL 3807F34751 Contact Us For Availability
16
SCREW WPL 7101P12360 Contact Us For Availability
17
PANEL, MANIFOLD BLACK WPL 2616F02490 Contact Us For Availability
17
SWITCH, BURNER WPL 7403P19060 Contact Us For Availability
17
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
18
PANEL, SIDE BLACK WPL 2618F05270 Contact Us For Availability
18
THERMOSTAT WPL 7515P00860 Contact Us For Availability
18
SPACER, GLASS CORNER WPL 8010P04560 Contact Us For Availability
19
PIN, HINGE WPL 7113P00260 Contact Us For Availability
19
TUBING, 3/8`` X 54.5`` WPL 3414F04944 Contact Us For Availability
19
TUBE, FLASH WPL 7506P00660 Contact Us For Availability
19
SPRING WPL 7803P01460 Contact Us For Availability
20
RETAINER WPL 3804F01050 Contact Us For Availability
20
RACK, OVEN WPL 7801P03060 Contact Us For Availability
20
VALVE, OVEN WPL 7501P01760 Contact Us For Availability
21
LEG, LEVELING WPL Y7101P25460 Contact Us For Availability
21
VALVE, SHUT OFF WPL 7502P00260 Contact Us For Availability
22
SEAL WPL 7212P00160 Contact Us For Availability
22
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
22
VALVE, TOP BURNER WPL 7502P10960 Contact Us For Availability
23
SPRING, OV DR WPL 7803P05560 Contact Us For Availability
24
STOP, OVEN DOOR WPL 3420A03334 Contact Us For Availability
25
SUPPORT, OVEN REAR WPL 3807F20545 Contact Us For Availability
27
TOP, MAIN - C WPL 2001F03630 Contact Us For Availability
28
TRACK, BROILER DWR RIGHT WPL 3404A01351 Contact Us For Availability
28
TRACK, BROILER DWR LEFT WPL 3404A01451 Contact Us For Availability
29
MANUAL, USE & CARE WPL 16000038 Contact Us For Availability
29
CORD, POWER WPL 7402P01460 Contact Us For Availability
× ![]()
