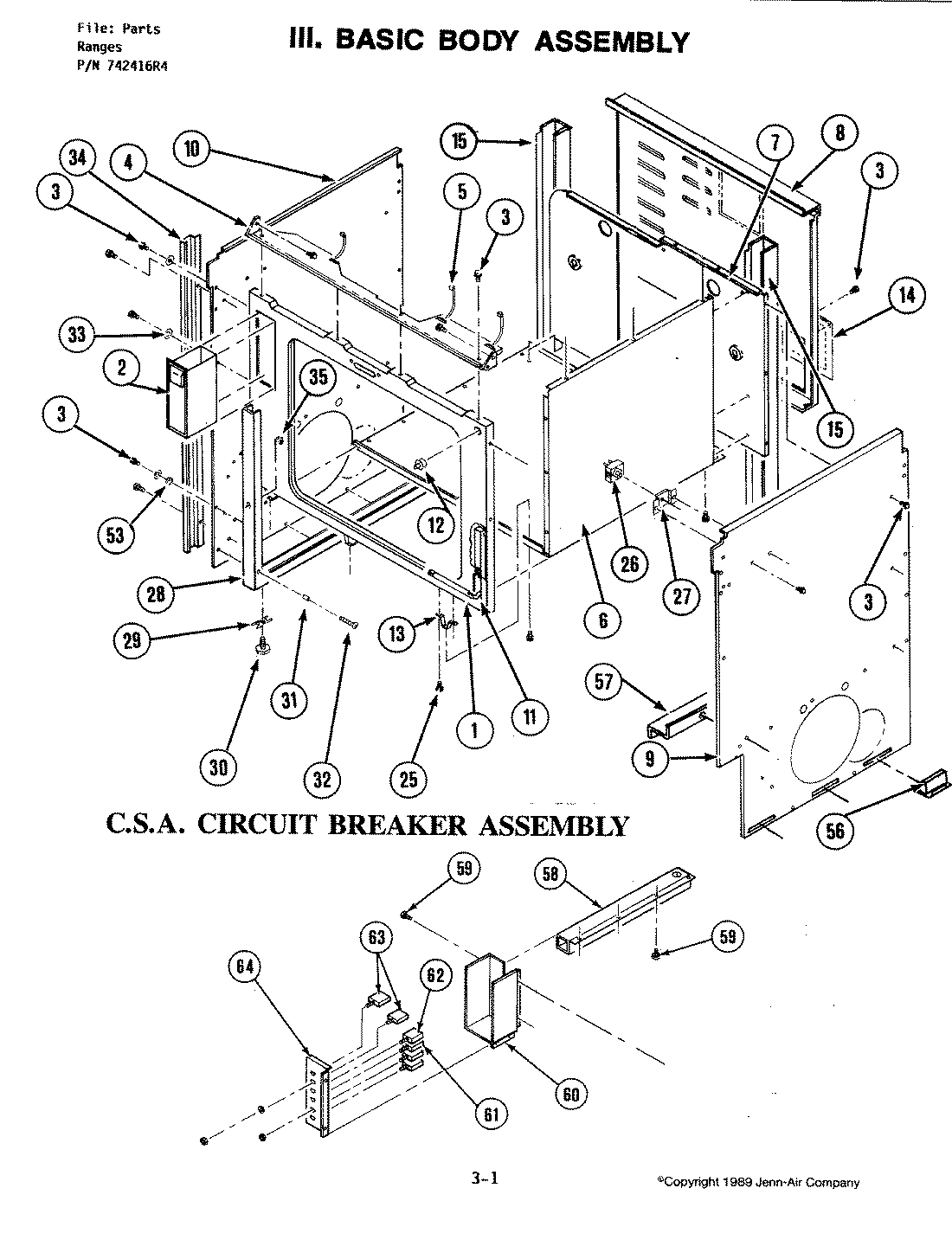

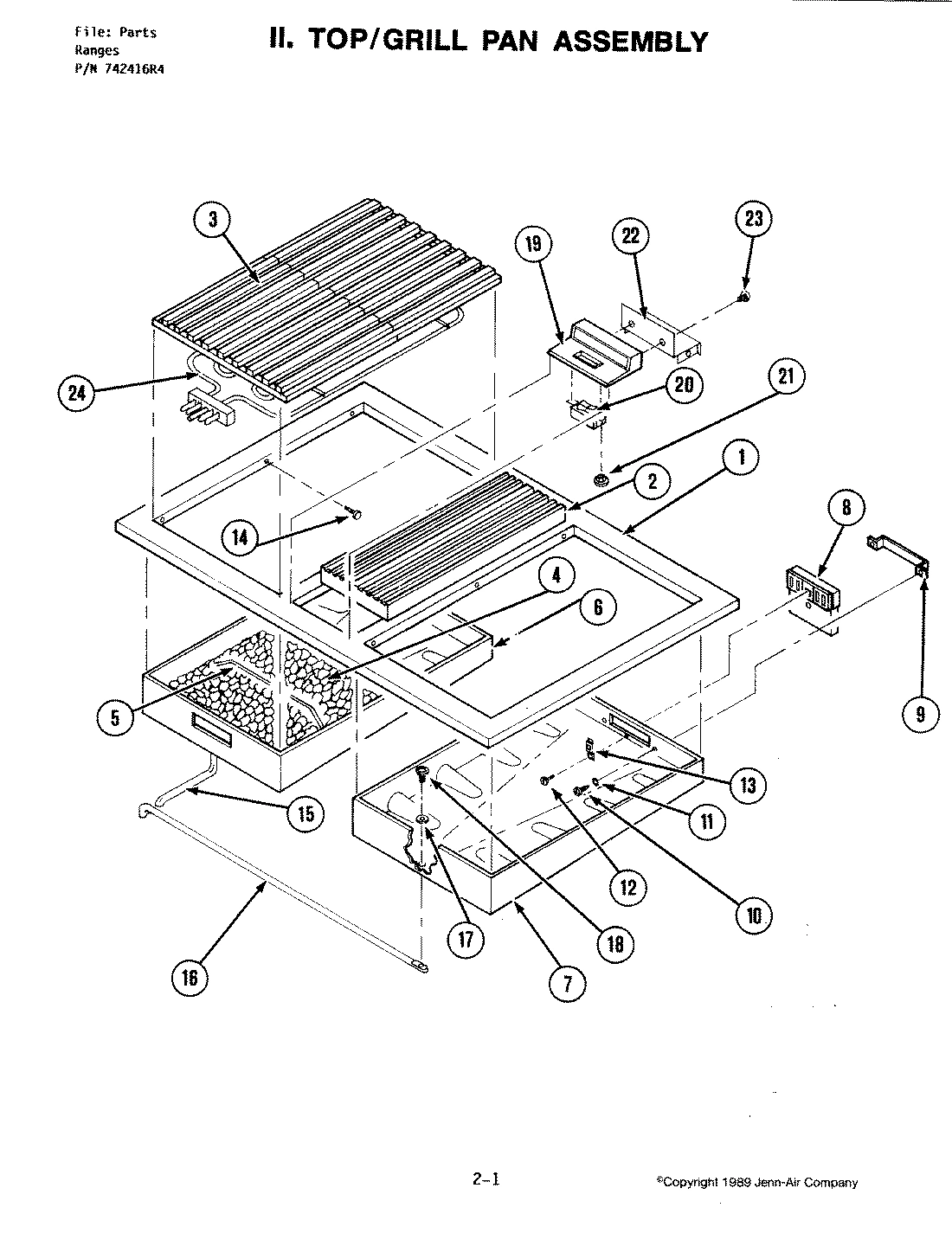

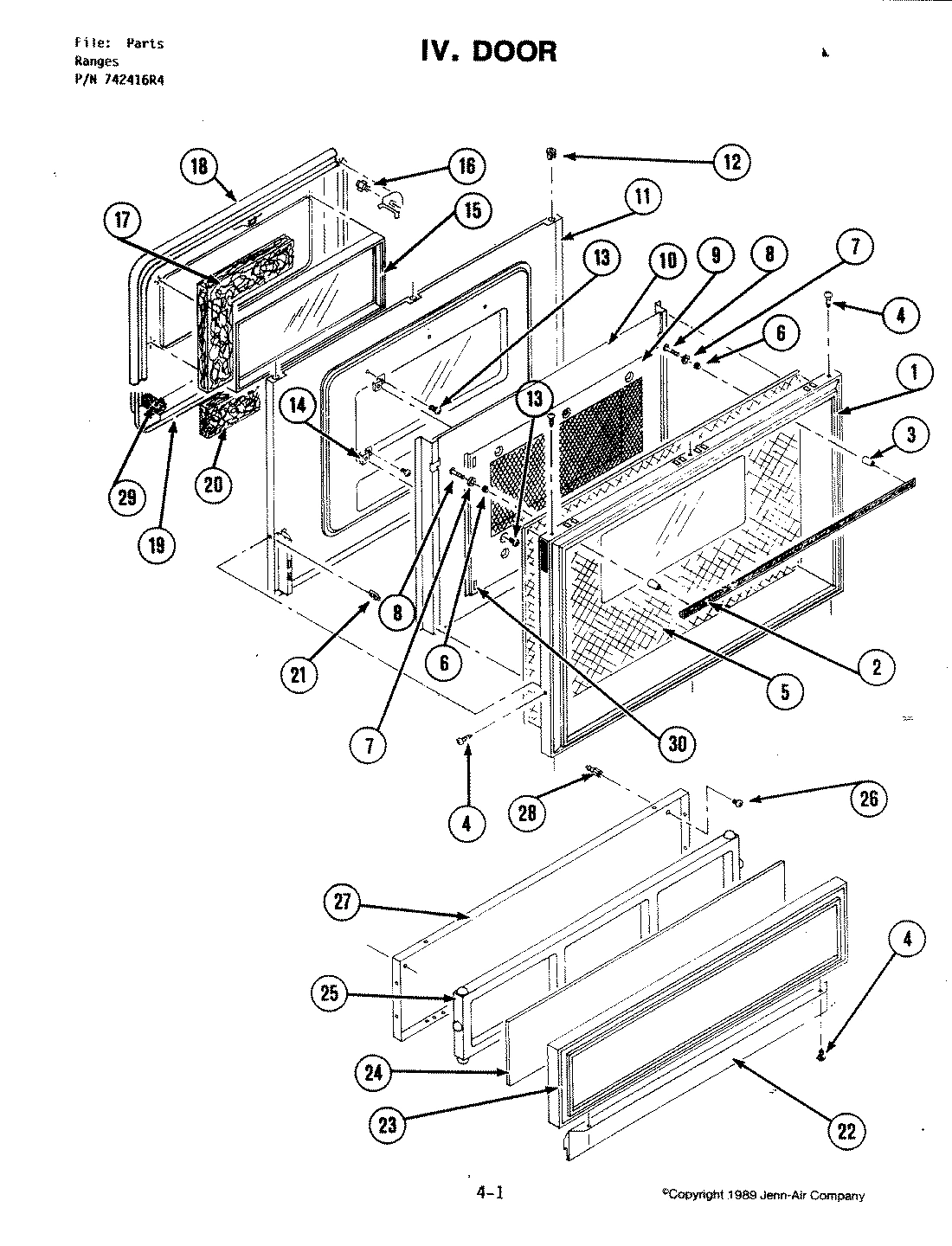

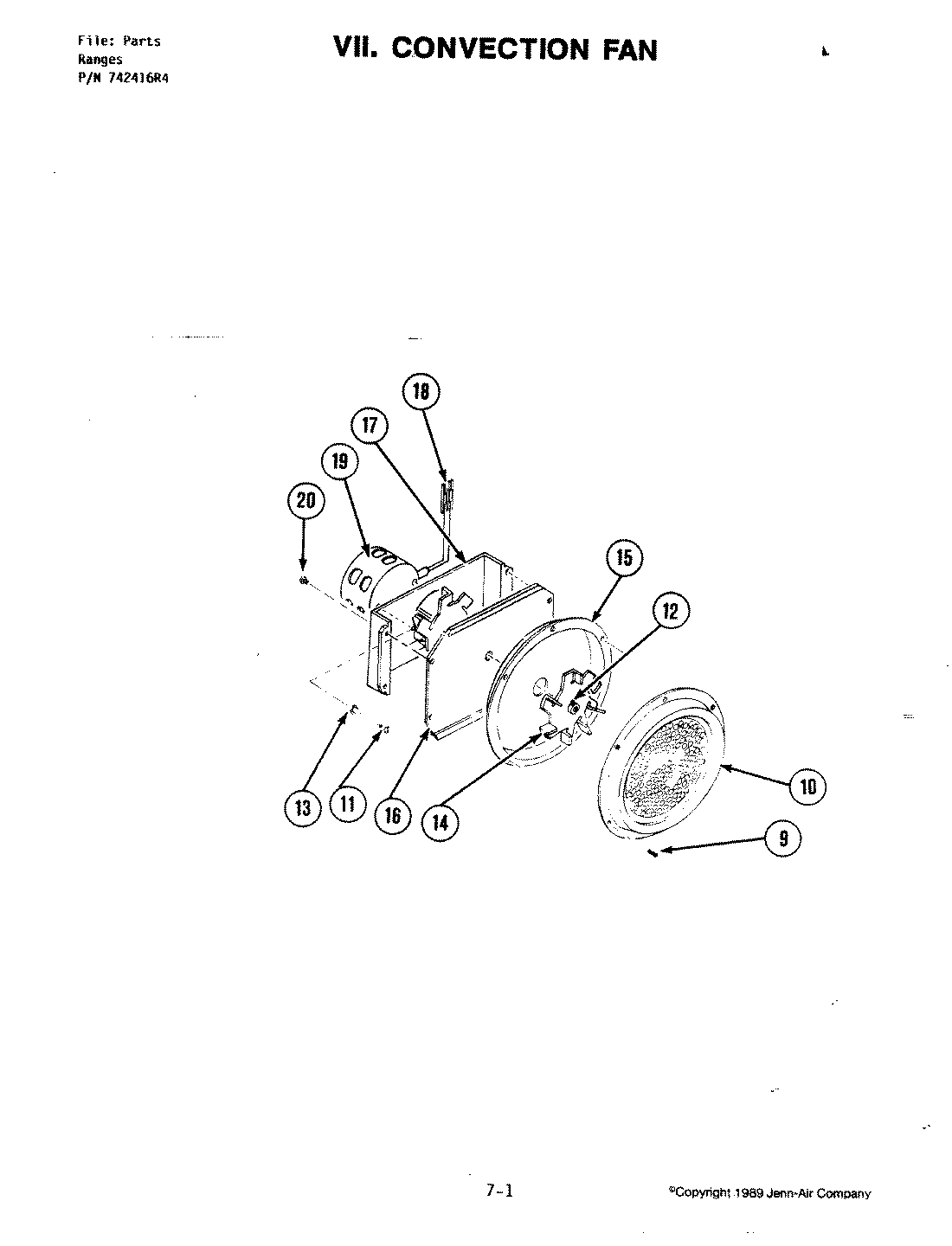

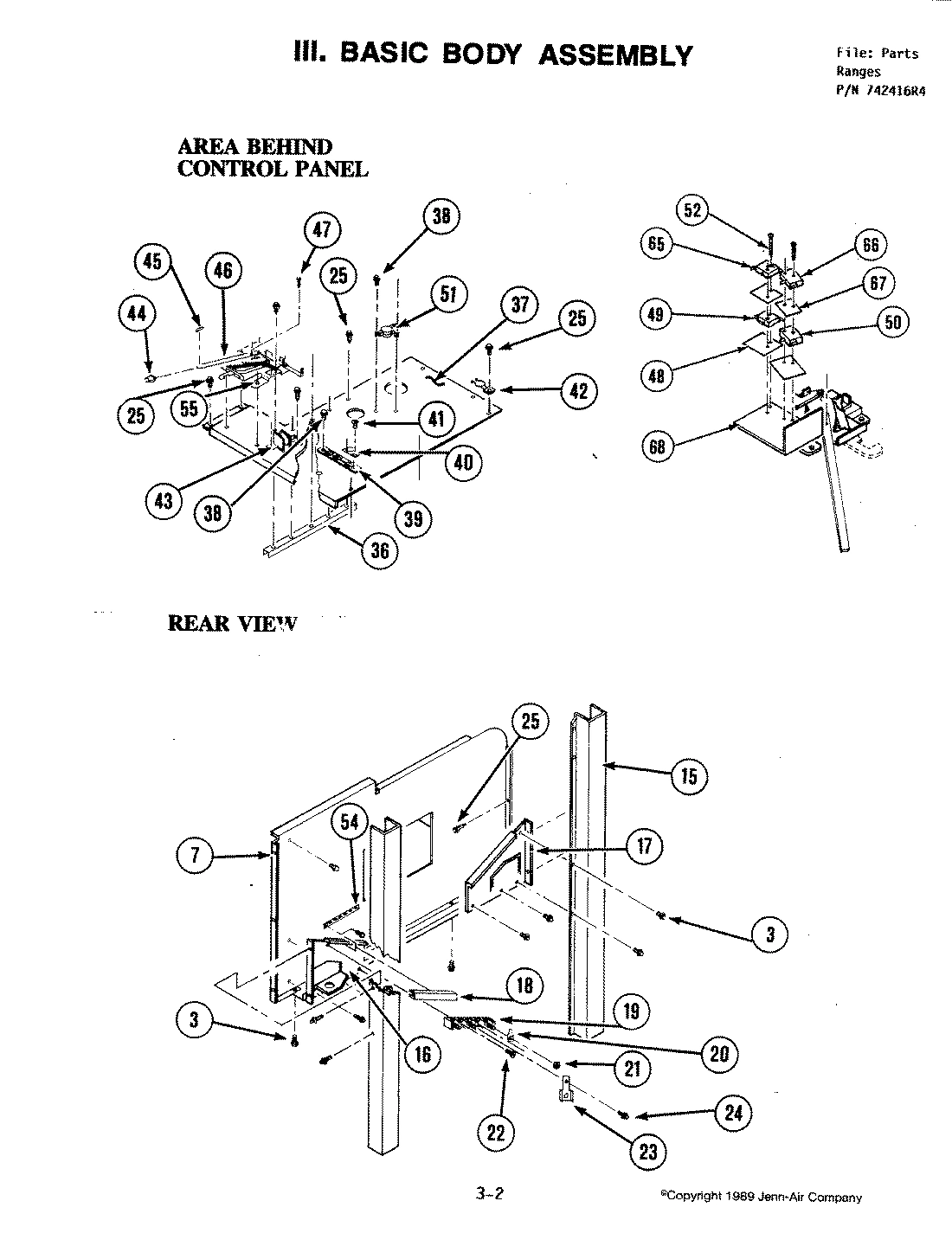

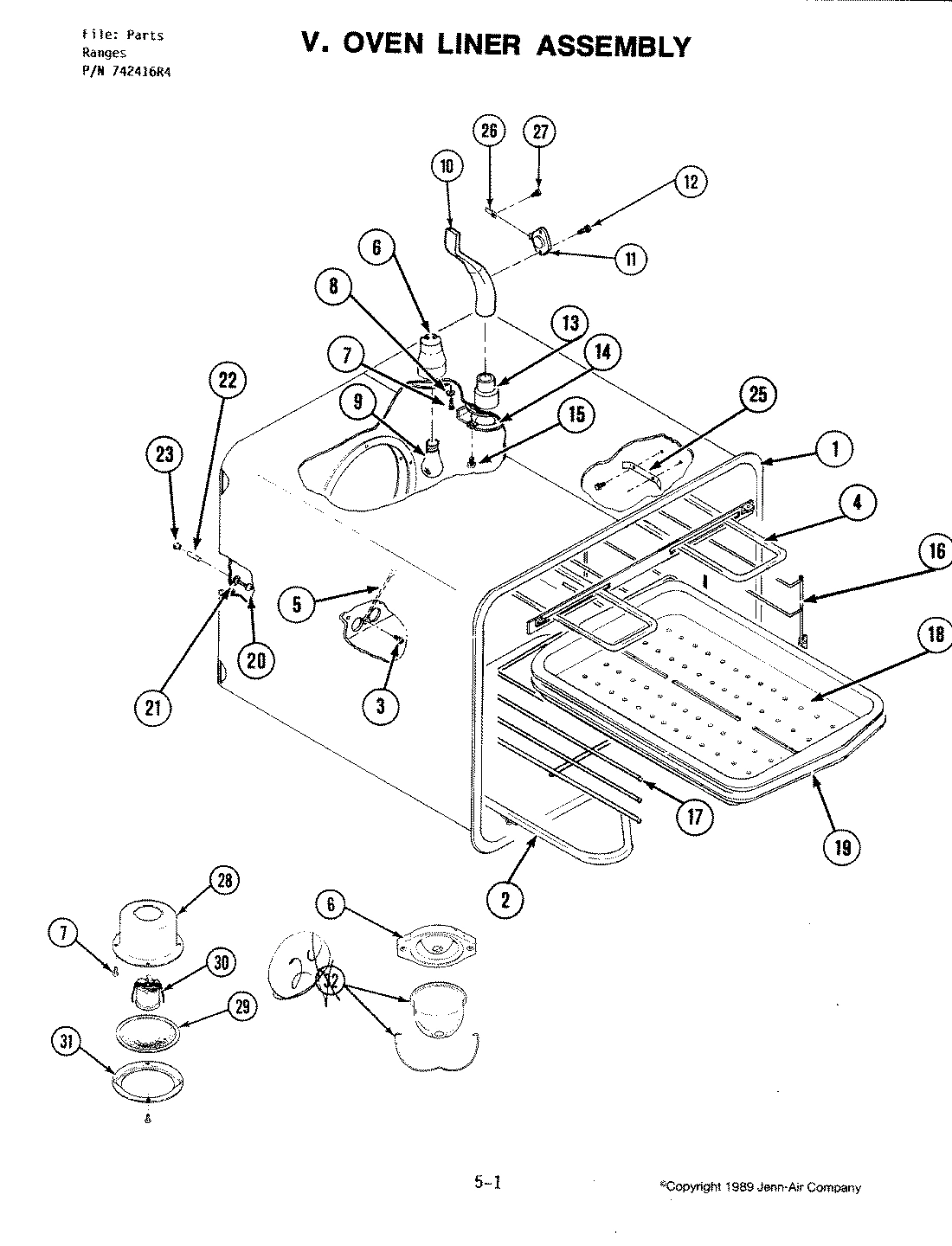

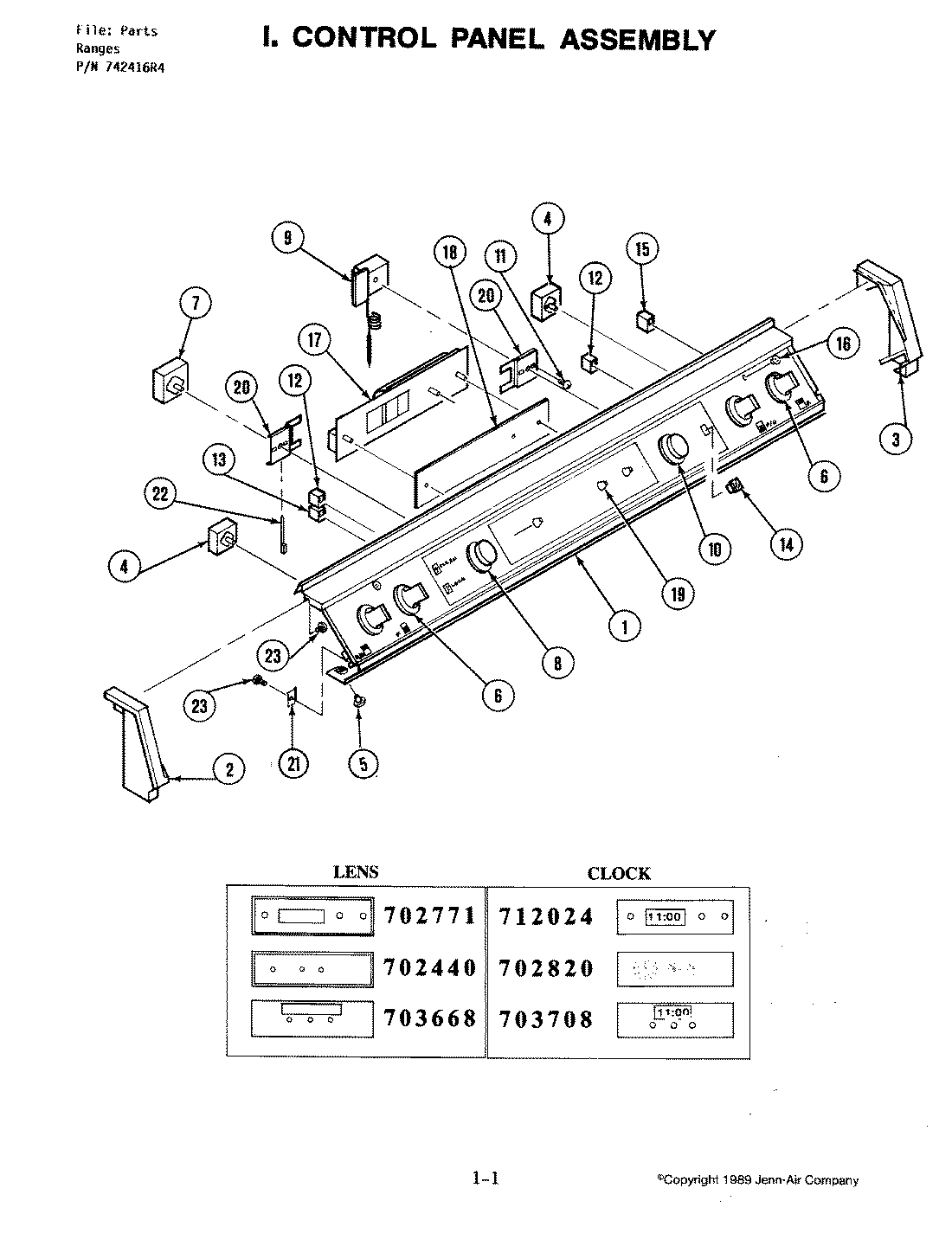

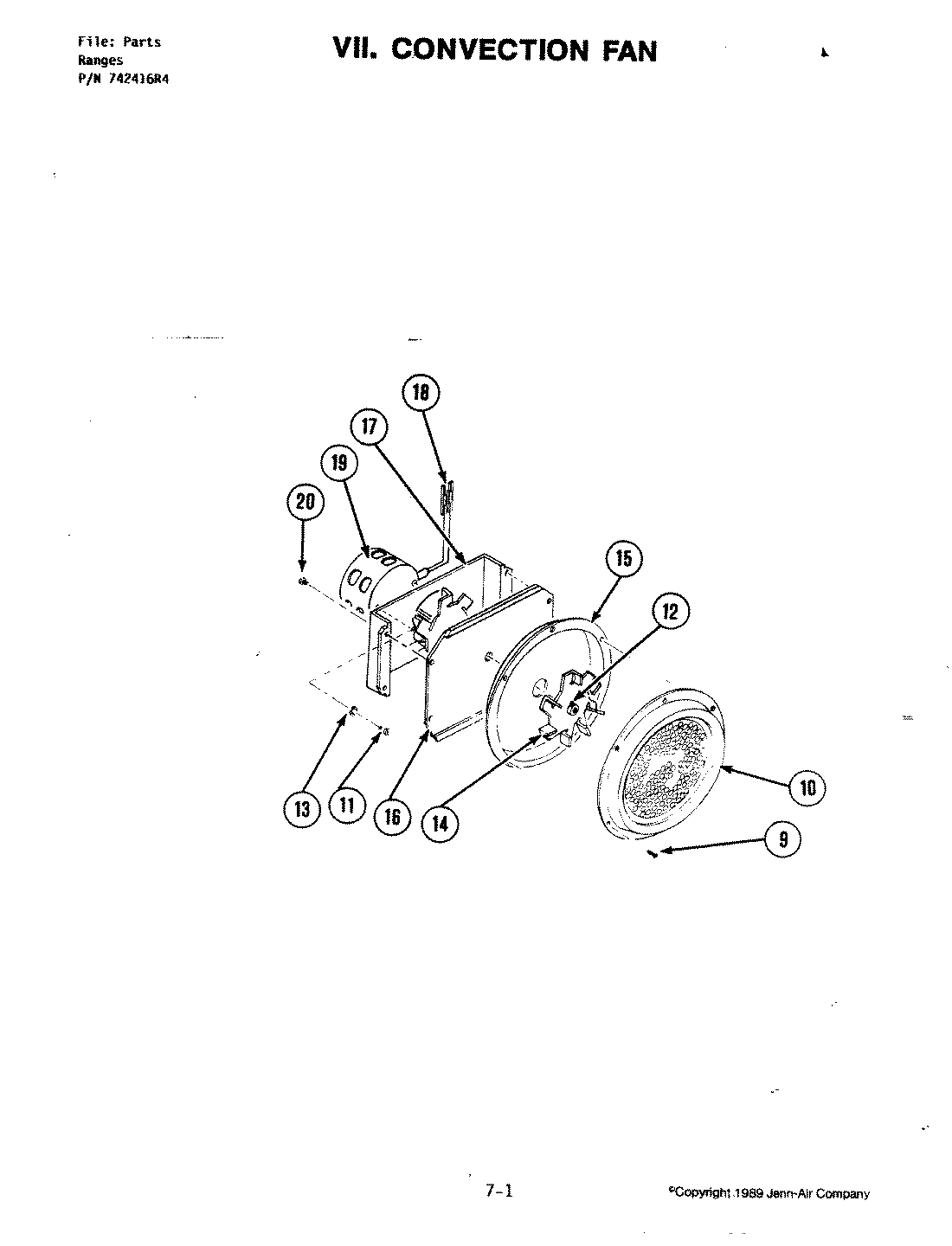

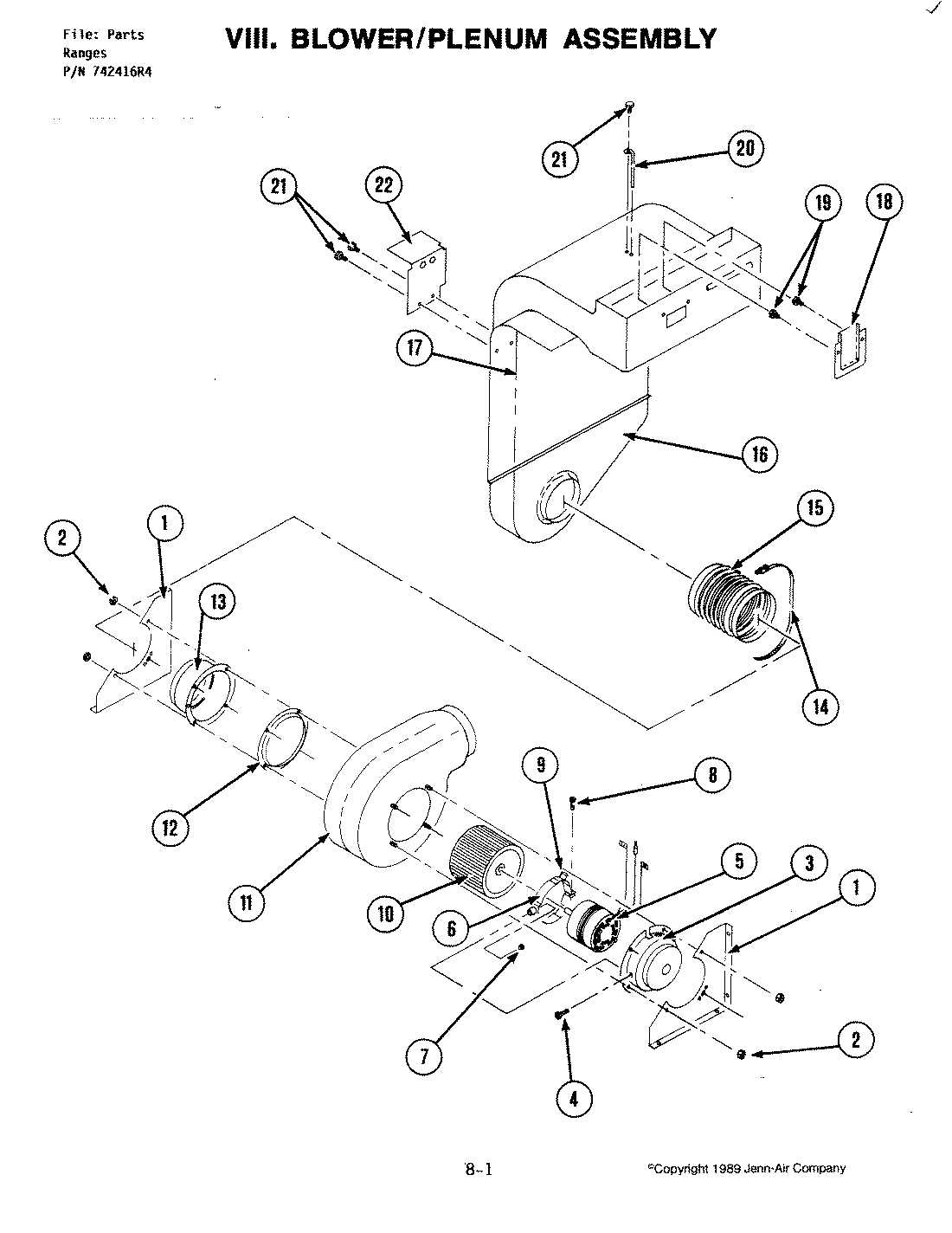

Model Whirlpool S105 ELECTRIC RANGE – Common Parts &amp; Diagrams

1

FRAME, OVEN DOOR WPL 702320 Contact Us For Availability

1

CLOSURE, FRONT WPL 702329 Contact Us For Availability

1

WELD, OVEN ASSY. WPL 712012 Contact Us For Availability

1

TOP WPL 701853 Contact Us For Availability

1

PANEL, CONTROL WPL 702890 Contact Us For Availability

1

BRACKET, MOUNTING MOTOR WPL Y702542 Contact Us For Availability

2

WPY04100019 Whirlpool Bake Element In Stock WPL WPY04100019 $79.86

2

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $2.55

2

HANDLE, DOOR WPL Y702322 Contact Us For Availability

2

CONTAINER,GREASE ASSEMBLY WPL Y712001 Contact Us For Availability

2

GRILL, AIR WPL 702568 Contact Us For Availability

2

CAP, END (LT) WPL 702388 Contact Us For Availability

2

MOTOR, FAN WPL Y702549 Contact Us For Availability

3

POST, MOUNTING WPL 701832 Contact Us For Availability

3

GRATE WPL 707886 Contact Us For Availability

3

CAP, END (RT) WPL Y702387 Contact Us For Availability

3

BLADE, FAN WPL Y702525 Contact Us For Availability

3

COVER, MOTOR WPL Y702734 Contact Us For Availability

4

700855K Whirlpool Oven Cooktop Burner Switch In Stock WPL 700855K $57.25

4

W11120791 Whirlpool Range Surface Element Inf In Stock WPL W11120791 $46.34

4

W11120795 Whirlpool Infinite Switch In Stock WPL W11120795 $56.53

4

WPY04100015 Whirlpool Bake Element Backorder WPL WPY04100015 $88.21

4

ANGLE, MOUNT WPL 712002 Contact Us For Availability

4

PLATE, ROCK WPL 708929 Contact Us For Availability

4

WIRE, BLACK WPL 712026 Contact Us For Availability

5

SUPPORT, ROCK PLATE WPL 700819 Contact Us For Availability

5

GLASS, SCREENED WPL Y702321 Contact Us For Availability

5

WIRE, GROUND WPL 702643 Contact Us For Availability

5

MOTOR WPL 702650 Contact Us For Availability

5

FOAM, URETHANE WPL Y715957 Contact Us For Availability

6

12200034 Whirlpool Infinite Switch Knob Kit ( Backorder WPL 12200034 $55.24

6

KNOB, INFINITE SWITCH WPL Y702442 Contact Us For Availability

6

PANEL, BOTTOM & SIDE (RT) WPL Y702319 Contact Us For Availability

6

BUSHING WPL 715939 Contact Us For Availability

6

RECEPTACLE, LIGHT WPL 715281 Contact Us For Availability

6

PAN, GRILL (LT) WPL 701955 Contact Us For Availability

6

WIRE,KIT WPL 712021 Contact Us For Availability

6

WIRE, YELLOW WPL Y712014 Contact Us For Availability

6

WIRE, RED WPL Y712015 Contact Us For Availability

6

WIRE, BLACK WPL Y712017 Contact Us For Availability

6

PLATE, BACK WPL Y702345 Contact Us For Availability

6

BAND, MOTOR WPL Y707393 Contact Us For Availability

7

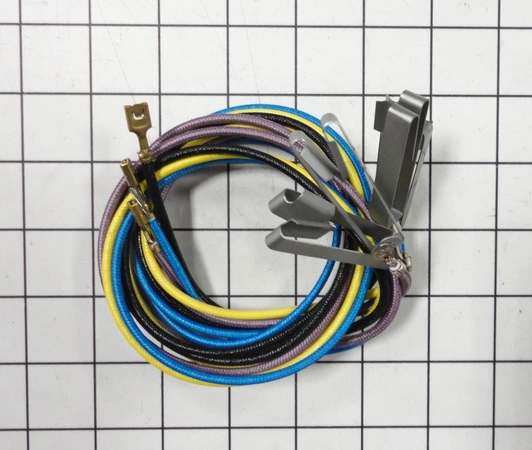

712022K Whirlpool K4+ RH/WR/CNT Backorder WPL 712022K $147.13

7

WP5708M005-60 Whirlpool Wire Harness Backorder WPL WP5708M005-60 $57.78

7

WP5708M007-60 Whirlpool Wire Harness Backorder WPL WP5708M007-60 $61.49

7

WP5708M008-60 Whirlpool Dishwasher Wire Harne Backorder WPL WP5708M008-60 $55.47

7

WP5708M081-60 Whirlpool Wire Harness Backorder WPL WP5708M081-60 $26.82

7

BACK, INNER WPL Y702306 Contact Us For Availability

7

SCREW WPL 707407 Contact Us For Availability

7

WASHER WPL Y700446 Contact Us For Availability

7

SCREW WPL 715485 Contact Us For Availability

7

PAN, GRILL (RT) WPL Y701956 Contact Us For Availability

7

SWITCH, SELECTOR WPL 702874 Contact Us For Availability

7

SWITCH, SELECTOR WPL 703271 Contact Us For Availability

8

12200031 Whirlpool Knob Kit In Stock WPL 12200031 $30.43

8

M0282005 Whirlpool Nut Backorder WPL M0282005 $4.43

8

WPY702434 Whirlpool Receptacle Backorder WPL WPY702434 $41.18

8

COVER, REAR (LOWER) WPL 702307 Contact Us For Availability

8

NUT WPL 707161 Contact Us For Availability

8

LOCKTITE (HANDLE) WPL 701149 Contact Us For Availability

8

SCREW WPL Y700570 Contact Us For Availability

8

KNOB, SELECTOR SWITCH WPL 702836 Contact Us For Availability

8

SCREW WPL Y707402 Contact Us For Availability

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

9

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $5.32

9

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.55

9

PANEL, SIDE (RT) WPL 702300 Contact Us For Availability

9

SCREW WPL 701526 Contact Us For Availability

9

PANEL, PERFORATED WPL 702323 Contact Us For Availability

9

BRACKET WPL Y702698 Contact Us For Availability

9

THERMOSTAT WPL 702645 Contact Us For Availability

9

THERMOSTAT WPL 703145 Contact Us For Availability

WPY703499 Whirlpool Dishwasher Thermostat Kno Backorder WPL WPY703499 $33.00

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $84.38

PANEL, SIDE (LT) WPL Y702301 Contact Us For Availability

BAFFLE-DOOR WPL 702305 Contact Us For Availability

TUBE, VENT WPL 702290 Contact Us For Availability

KNOB, THERMOSTAT WPL 702397 Contact Us For Availability

71002058 Whirlpool Screw 8-32 x 0.18 Backorder WPL 71002058 $4.69

HINGE, DOOR WPL 702112 Contact Us For Availability

HINGE WPL Y703419 Contact Us For Availability

HINGE, BRACKET WPL Y703487 Contact Us For Availability

LINER, OVEN DOOR WELD WPL 702189 Contact Us For Availability

LINER, OVEN DOOR WELD WPL 712009 Contact Us For Availability

WASHER WPL Y707664 Contact Us For Availability

SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.63

SWITCH, DOOR WPL 701666 Contact Us For Availability

NUT, PUSH-IN WPL 702657 Contact Us For Availability

LIGHT, INDICATOR 240V WPL Y702394 Contact Us For Availability

RING, INLET WPL Y702295 Contact Us For Availability

74004835 Whirlpool Clip In Stock WPL 74004835 $5.00

BRACKET, HAT WPL 702658 Contact Us For Availability

TUBE, VENT WPL 701738 Contact Us For Availability

ADAPTER, RESTRICTOR RING WPL Y702296 Contact Us For Availability

COVER, ACCESS(R.H) WPL 702333 Contact Us For Availability

BRACKET, STAND-OFF WPL 701652 Contact Us For Availability

SHIELD, VENT WPL Y702632 Contact Us For Availability

LENS, PILOT LIGHT WPL Y702351 Contact Us For Availability

CLAMP, HOSE WPL Y702331 Contact Us For Availability

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

SUPPORT, TUBE WPL 702302 Contact Us For Availability

TUBE, DRAIN (LEFT) WPL Y702463 Contact Us For Availability

DUCT, FLEXIBLE WPL Y702326 Contact Us For Availability

PLATE, BACK WPL 702891 Contact Us For Availability

GUSSETT (RT) WPL 702556 Contact Us For Availability

CLIP, RETAINER WPL Y700503 Contact Us For Availability

SUPPORT, RACK WPL 702701 Contact Us For Availability

TUBE, DRAIN (RIGHT) WPL Y702327 Contact Us For Availability

LENS, PILOT LIGHT WPL Y702615 Contact Us For Availability

PLENUM, LOWER ASSEMBLY WPL 712007 Contact Us For Availability

GUSSETT (LT) WPL 702557 Contact Us For Availability

INSULATION WPL 702293 Contact Us For Availability

RACK, OVEN WPL Y702339 Contact Us For Availability

WASHER, TEFLON WPL 702747 Contact Us For Availability

CLOCK WPL 702820 Contact Us For Availability

PLENUM, UPPER WPL 712025 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $31.46

WPY702338 Whirlpool Oven Seal In Stock WPL WPY702338 $91.19

INSULATOR WPL 702898 Contact Us For Availability

NUT, DRAIN TUBE WPL 702748 Contact Us For Availability

LENS, CLOCK WPL 702819 Contact Us For Availability

COVER, VENT WPL Y702475 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

PLUG, OVEN DOOR WELD WPL 712011 Contact Us For Availability

ESCUTCHEON WPL 715381 Contact Us For Availability

KNOB, CLOCK WPL Y702547 Contact Us For Availability

TERMINAL WPL Y702711 Contact Us For Availability

NOT REQUIRED PART OR SEE NOTE SCREW WPL W10124350 Contact Us For Availability

INSULATION, BOTTOM WPL 702292 Contact Us For Availability

SCREW WPL 701744 Contact Us For Availability

GROUND LUG WPL 715445 Contact Us For Availability

SWITCH, ROCKER WPL Y702546 Contact Us For Availability

BRACKET, CLOCK WPL 702617 Contact Us For Availability

STOP, FILTER WPL Y702656 Contact Us For Availability

7103P166-60 Whirlpool Nut Backorder WPL 7103P166-60 $7.16

CLIP WPL Y700834 Contact Us For Availability

WASHER WPL 701736 Contact Us For Availability

BRACKET, RETAINING WPL 702616 Contact Us For Availability

WP71002111 Whirlpool Grease Filter In Stock WPL WP71002111 $11.42

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

PANEL, KICK WPL Y702744 Contact Us For Availability

SPACER, OVEN WPL 701741 Contact Us For Availability

BRACKET, FILLER WPL 702581 Contact Us For Availability

ENCLOSURE, SIDE (RIGHT) WPL 702183 Contact Us For Availability

CORD, RECEPTACLE MOTOR WPL 702735 Contact Us For Availability

STRAIN, RELIEF WPL Y702696 Contact Us For Availability

CORD, POWER (MOTOR) WPL Y702733 Contact Us For Availability

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.68

STRAP, GROUND WPL Y702335 Contact Us For Availability

FRAME, DOOR WPL 702340 Contact Us For Availability

NUT, TEE WPL 715294 Contact Us For Availability

SCREW, HEX WPL Y702976 Contact Us For Availability

24

WP5700M426-60 Whirlpool Heating Element Backorder WPL WP5700M426-60 $174.65

24

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $2.55

24

PANEL, BASE WPL Y702342 Contact Us For Availability

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.75

SPACER, BASE DOOR WPL Y702896 Contact Us For Availability

INSULATION-SIDES,TOP,BOTTOM WPL 702282 Contact Us For Availability

INSULATION-BACK WPL 702283 Contact Us For Availability

CLIP, BULB WPL Y701745 Contact Us For Availability

CLIP, OVEN WPL Y702618 Contact Us For Availability

26

SWITCH, BROIL CYCLE WPL 701698 Contact Us For Availability

26

SCREW WPL 704335 Contact Us For Availability

26

SWITCH, BROIL CYCLE WPL 704355 Contact Us For Availability

27

BRACKET WPL 702729 Contact Us For Availability

27

BRACKET WPL 704337 Contact Us For Availability

27

LINER, DOOR WPL Y702341 Contact Us For Availability

28

RAIL, SUPPORT ASSEMBLY WPL 712000 Contact Us For Availability

28

STUD, BALL WPL Y702633 Contact Us For Availability

29

ANCHOR LEVEL WPL 700903 Contact Us For Availability

29

INSULATION-TOP & SIDES WPL 702279 Contact Us For Availability

30

W10840861 Whirlpool Spacer Backorder WPL W10840861 $5.75

30

W11117769 Whirlpool Refrigerator Leveler Backorder WPL W11117769 $6.97

30

PLATE, LATCH (UPPER) WPL Y712010 Contact Us For Availability

31

SPACER WPL 702745 Contact Us For Availability

32

W11772394 Whirlpool Screw In Stock WPL W11772394 $7.85

32

LIGHT LENS (KIT) WPL 712282 Contact Us For Availability

33

WASHER, CONICAL WPL 702462 Contact Us For Availability

34

TRIM, SIDE WPL 702337 Contact Us For Availability

34

TRIM, SIDE WPL 703486 Contact Us For Availability

35

CLIP----S WPL 708763 Contact Us For Availability

36

BRACKET,STIFFENER WPL 702697 Contact Us For Availability

37

PANEL, TOP WPL 702318 Contact Us For Availability

38

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

39

BLOCK, TERMINAL WPL Y701623 Contact Us For Availability

40

LIMIT, FAN WPL Y702750 Contact Us For Availability

41

WP59002061 Whirlpool Microwave Screw Backorder WPL WP59002061 $2.51

42

TIE, MOUNT CABLE WPL 702746 Contact Us For Availability

43

PIN, COTTER WPL Y701686 Contact Us For Availability

43

SOLENOID WPL Y702526 Contact Us For Availability

44

KNOB, LEVER WPL 701670 Contact Us For Availability

45

SPRING, KNOB WPL 701671 Contact Us For Availability

46

LATCH, LEVER WPL Y702299 Contact Us For Availability

48

INSULATOR WPL Y702350 Contact Us For Availability

49

SWITCH, SOLENOID WPL Y702360 Contact Us For Availability

50

SWITCH, SOLENOID MICRO WPL Y702359 Contact Us For Availability

51

WP7403P899-60 Whirlpool Safety Switch Backorder WPL WP7403P899-60 $84.36

52

WPL 702380 WPL 702380 Contact Us For Availability

53

WPL 712005 WPL 712005 Contact Us For Availability

54

WPL 702336 WPL 702336 Contact Us For Availability

54

WPL Y702607 WPL Y702607 Contact Us For Availability

55

WPL Y702332 WPL Y702332 Contact Us For Availability

56

WPL Y702476 WPL Y702476 Contact Us For Availability

WIRE HARN S125 WPL 702298 Contact Us For Availability

HARNESS, BACKSPLASH WPL 703648 Contact Us For Availability

WPL 712006 WPL 712006 Contact Us For Availability

WPL 702751 WPL 702751 Contact Us For Availability

WPL 702879 WPL 702879 Contact Us For Availability

58

WPL 702521 WPL 702521 Contact Us For Availability

60

WPL 702523 WPL 702523 Contact Us For Availability

61

WPL Y715443 WPL Y715443 Contact Us For Availability

62

WPL 701774 WPL 701774 Contact Us For Availability

63

WPL 702612 WPL 702612 Contact Us For Availability

63

WPL Y702613 WPL Y702613 Contact Us For Availability

64

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

64

WPL 702524 WPL 702524 Contact Us For Availability
