Model Whirlpool RY160LXTS3 30`` Drop-In Electric Range – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

Cleaner, Glass WPL W10355051 No Longer Available

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Insulation, Back WPL W10165725 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

Harness, Wire (Sensor) WPL 5171P54060 Contact Us For Availability

Harness, Wire (Coil RT) WPL 5171P55660 Contact Us For Availability

Harness, Wire (Coil LT) WPL 5171P56560 Contact Us For Availability

Harness, Wire (Coil Top) WPL 5171P57460 Contact Us For Availability

Harness, Wire (Main) WPL 5171P93460 Contact Us For Availability

Cable, Assy.(Flex) WPL 5706X57281 Contact Us For Availability

Screw, Ground WPL 7101P02760 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

Clip, Wire WPL 8019P01360 Contact Us For Availability

Parts Not Illustrated and Optional Parts (Not WPL ARI128524A Contact Us For Availability

REFINISHING MATERIAL WPL ARI128525A Contact Us For Availability

Insulation WPL ARI128526A Contact Us For Availability

ACCESSORY PARTS WPL ARI128527A Contact Us For Availability

WIRING HARNESS PARTS WPL ARI128528A Contact Us For Availability

1

Panel, Door (SS) WPL W10168887 Contact Us For Availability

1

Lens WPL 7730P01160 Contact Us For Availability

1

Rack, Oven (2) WPL 7801P05460 Contact Us For Availability

1

Installation Instructions WPL 8101P74660 Contact Us For Availability

1

Use & Care Guide WPL 8113P74960 Contact Us For Availability

1

Wiring Diagram WPL 8119P15460 Contact Us For Availability

2

Screw, Handle (2) WPL 7101P54460 Contact Us For Availability

2

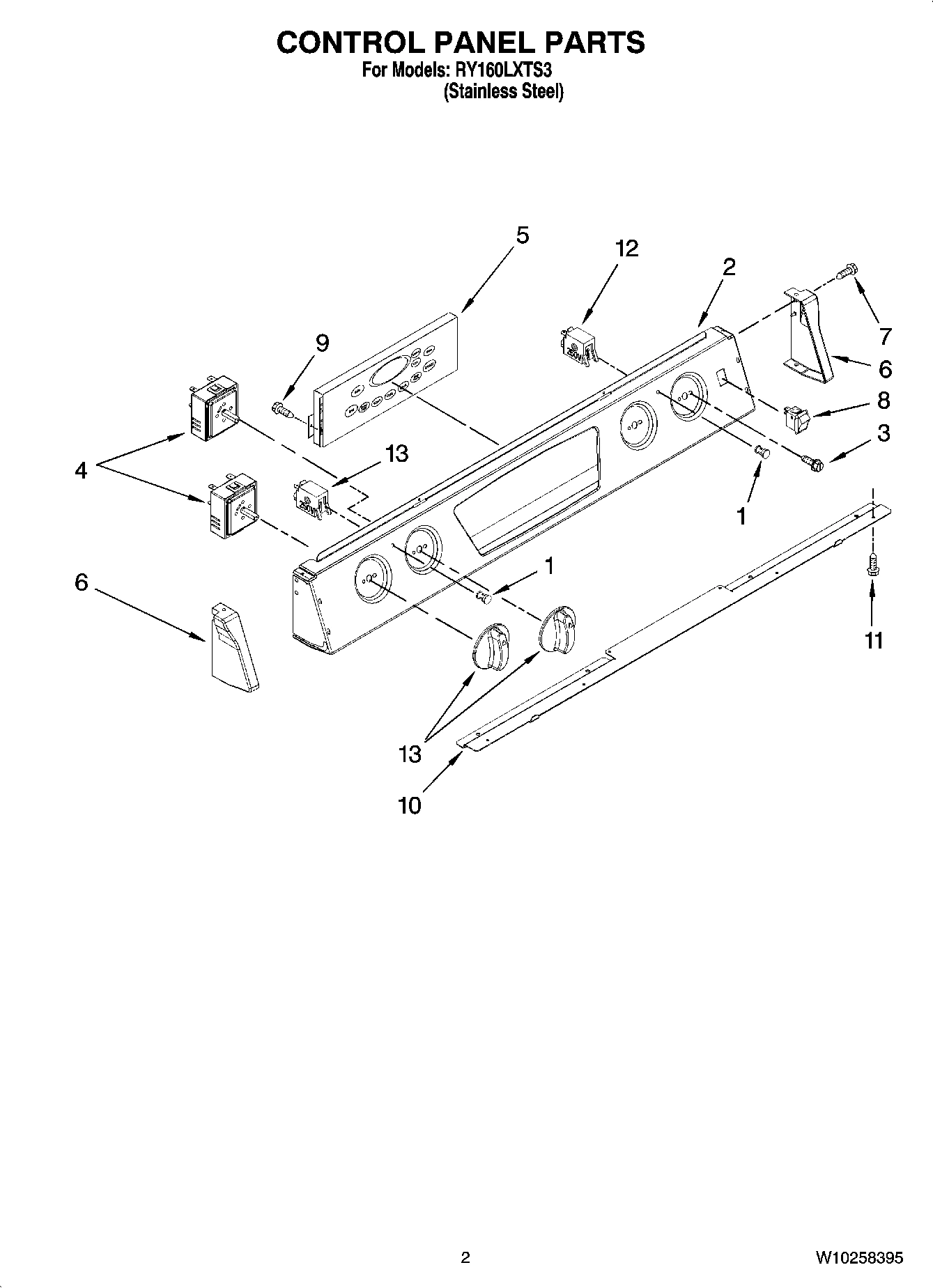

Panel, Control WPL W10168895 Contact Us For Availability

2

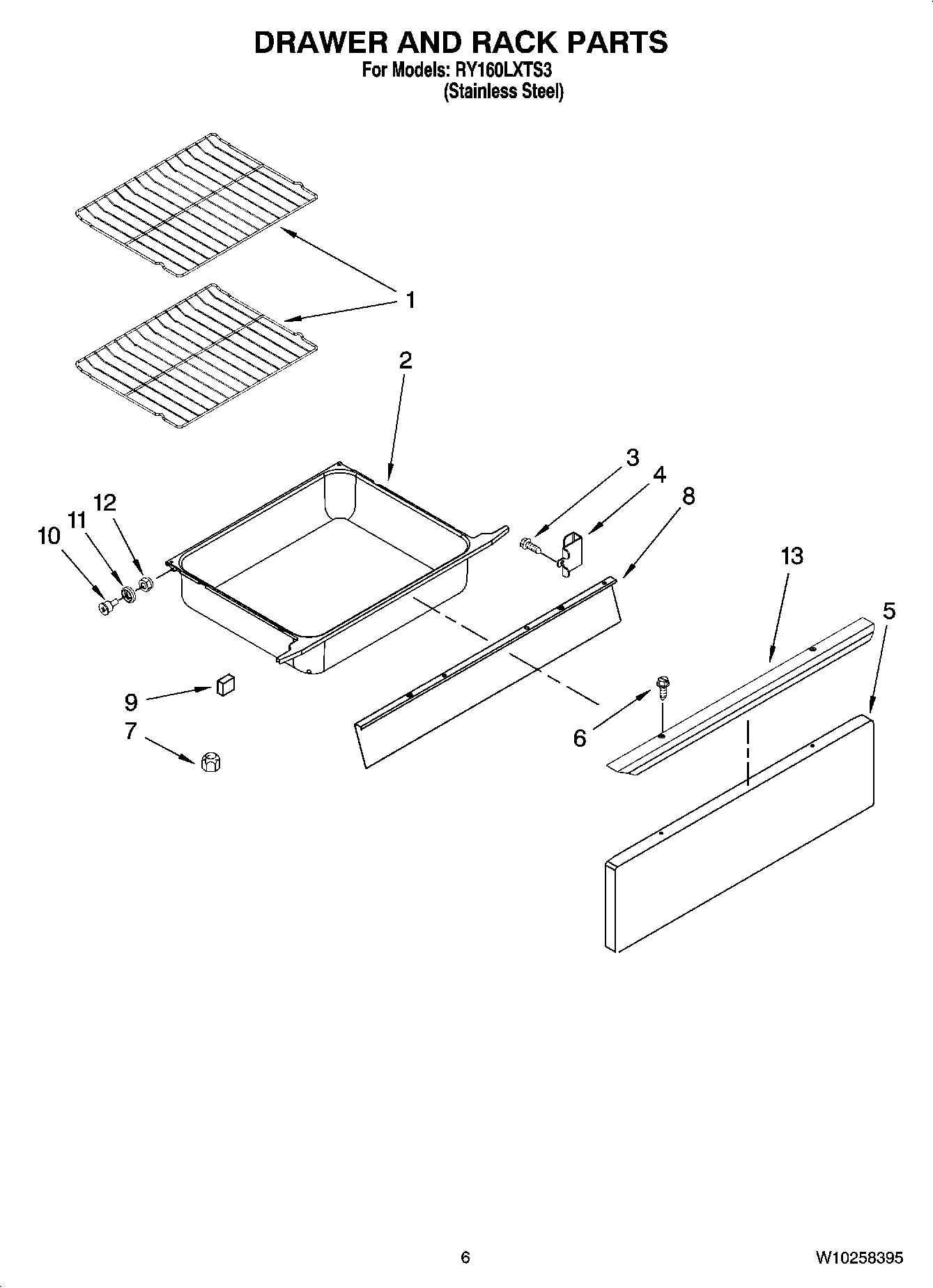

Drawer, Storage WPL 3405F03380 Contact Us For Availability

2

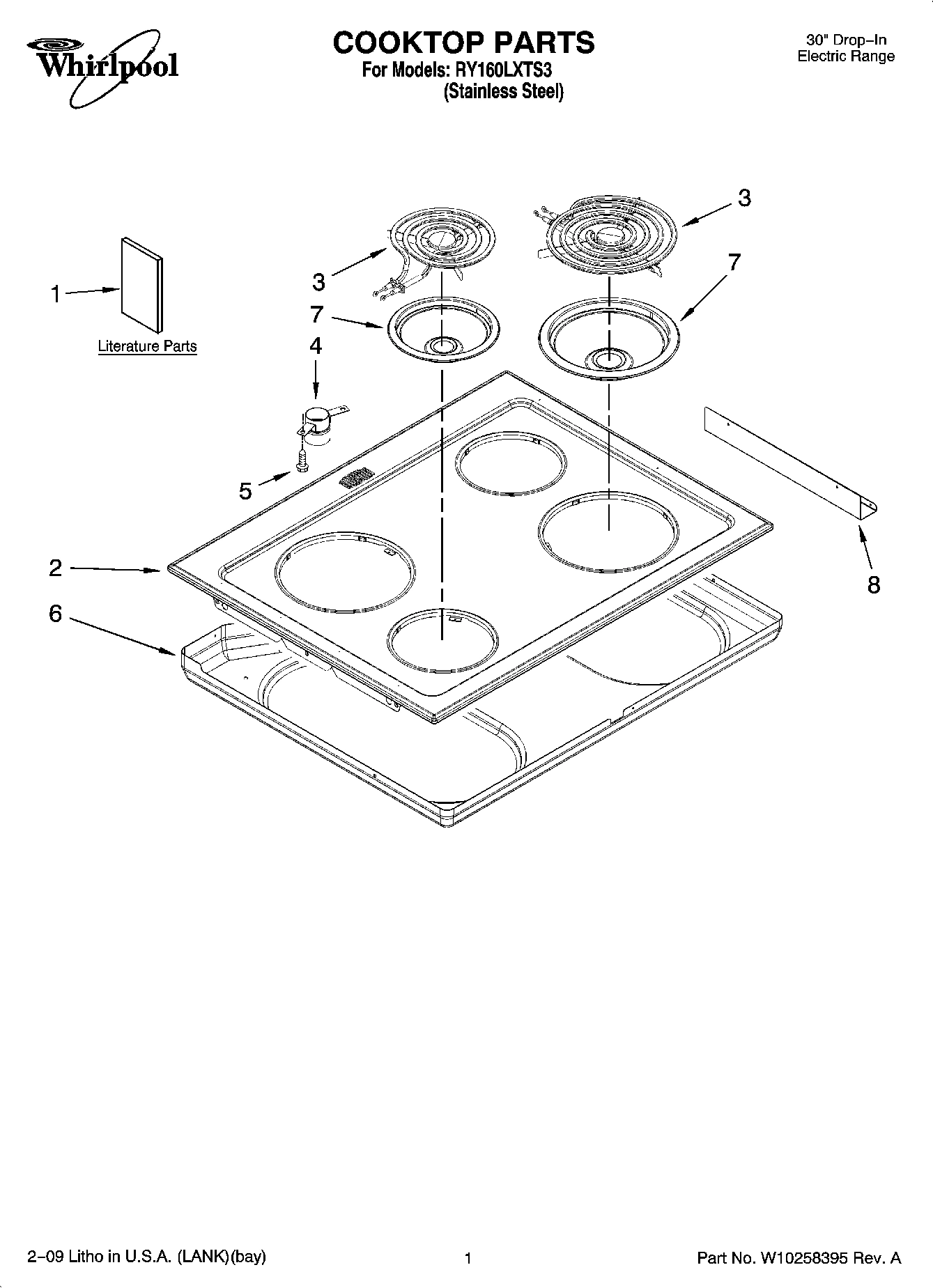

Cooktop WPL 2002W20009 Contact Us For Availability

3

WP9761346 Whirlpool Stove Surface Burner Elem In Stock WPL WP9761346 $56.70

3

WPW10345407 Whirlpool Surface Element In Stock WPL WPW10345407 $66.83

3

Baffel, Retainer WPL 3601F37351 Contact Us For Availability

3

Screw, Switch (10) WPL 7101P30960 Contact Us For Availability

3

Screw, Panel WPL 7101P07260 Contact Us For Availability

4

Switch, Infinte 6`` (LF/RR)(2) WPL 7403P23860 Contact Us For Availability

4

Switch, Infinte 8`` (RF/LR)(2) WPL 7403P23960 Contact Us For Availability

4

Bracket, Drawer WPL 3801F88751 Contact Us For Availability

4

Tube, Vent Upper WPL 8026P07460 Contact Us For Availability

5

W10769823-includeCORE Whirlpool W10769823 Ran Backorder WPL W10769823-includeCORE $199.23

5

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $2.51

5

Glass, Inner (2) WPL 7902P43660 Contact Us For Availability

5

Panel, Dwr (SS) WPL 7760P22960 Contact Us For Availability

6

Screw, Panel WPL 7101P38860 Contact Us For Availability

6

End Cap (Right Black) WPL 7726P40060 Contact Us For Availability

6

End Cap (Left Black) WPL 7726P40160 Contact Us For Availability

6

Bottom, Burner Box WPL 4011F37180 Contact Us For Availability

7

Nut, Lock WPL 7103P19060 Contact Us For Availability

7

Nut, Snap (4) WPL 7103P14160 Contact Us For Availability

7

Screw, End Cap WPL 7101P63360 Contact Us For Availability

7

Bowl, Drip (Chr 6``) WPL 7725P05360 Contact Us For Availability

7

Bowl, Drip (Chr 8``) WPL 7725P05460 Contact Us For Availability

8

Insulator, Cord WPL 7003P10160 Contact Us For Availability

8

Lining, Door WPL 2402W31219 Contact Us For Availability

8

Switch, Rocker WPL 7403P79860 Contact Us For Availability

8

Lining, Drawer WPL 2404F03051 Contact Us For Availability

8

Bracket, Burner Box WPL 3801F88151 Contact Us For Availability

9

Panel, Access WPL 4005F61251 Contact Us For Availability

9

Spacer, Rubber WPL 8010P13060 Contact Us For Availability

9

Bracket, Glass (2) WPL 3801F88651 Contact Us For Availability

9

Screw, Control WPL 7101P07760 Contact Us For Availability

BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability

Roller, Drawer WPL 8014P02260 Contact Us For Availability

Insulation, Door WPL 7002P24660 Contact Us For Availability

Support, Control Panel WPL 3807F60151 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

Fan, Cooling WPL 7427P21860 Contact Us For Availability

Shaft, Roller (2) WPL 7118P03260 Contact Us For Availability

Screw, Support (4) WPL 7101P33860 Contact Us For Availability

Block, Bare Wire WPL 7401P15760 Contact Us For Availability

Insulation, Foil WPL 7002P46360 Contact Us For Availability

Light, Indicator WPL 7407P13660 Contact Us For Availability

Nut WPL 7103P08260 Contact Us For Availability

Screw w/ Washer WPL 7101P12460 Contact Us For Availability

Insulation, Door WPL 7002P42760 Contact Us For Availability

Knob (4) WPL 7737P08260 Contact Us For Availability

Handle, Drawer WPL 7701P53560 Contact Us For Availability

14

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $71.80

14

Shield, Door WPL 3604F41851 Contact Us For Availability

15

Sensor, Oven WPL 7430P04260 Contact Us For Availability

15

Tape, White WPL 8270P13960 Contact Us For Availability

16

Tube, Vent Lower WPL 8026P09660 Contact Us For Availability

16

Glass, Coated WPL 7802P76860 Contact Us For Availability

17

Tube, Vent Upper WPL 8026P08560 Contact Us For Availability

17

Glass, Inner Clear WPL 7902P46860 Contact Us For Availability

18

Retainer, Glass WPL 3804F29345 Contact Us For Availability

19

Holder, Vent Tube WPL 3605F34551 Contact Us For Availability

19

Gasket, Window WPL 7201P14160 Contact Us For Availability

20

SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability

20

Tape, Protective WPL W10168886 Contact Us For Availability

21

Plate, Smoke Elm. WPL W10165724 Contact Us For Availability

21

Clip, Glass (2) WPL 7112P03460 Contact Us For Availability

22

Light Assembly WPL 7407P18260 Contact Us For Availability

22

Seal, Door WPL 7201P04660 Contact Us For Availability

23

Bracket, Pwr Supply WPL 3801F57451 Contact Us For Availability

23

Handle, Door WPL 7701P46260 Contact Us For Availability

24

BULB-OVEN WPL 7407P10360 Contact Us For Availability

24

Nameplate, Logo WPL 14272883 Contact Us For Availability

25

Trim, Side WPL 3608F13870 Contact Us For Availability

26

Screw, Shoulder (4) WPL 7101P50060 Contact Us For Availability

27

Element, Bake WPL 7406P43960 Contact Us For Availability

28

SUPPORT, OVEN (REAR) WPL 3807F73251 Contact Us For Availability

29

Screw WPL 7101P43460 Contact Us For Availability

30

Hinge (2) WPL 7106P14160 Contact Us For Availability

31

Screw, Hinge (4) WPL 7101P28260 Contact Us For Availability

32

Switch, Hi-Limit WPL 7450P03460 Contact Us For Availability

33

Screw, Lever (2) WPL 7101P37560 Contact Us For Availability

34

Extention, Shield WPL 3826F06451 Contact Us For Availability

35

Support, Element WPL 3807F49445 Contact Us For Availability

36

Leg, Leveling WPL 7101P66060 Contact Us For Availability

37

Pedestal, Bottom WPL 4020W03580 Contact Us For Availability

38

Pedestal, Front WPL 4020F03680 Contact Us For Availability

39

Support WPL 3807F64051 Contact Us For Availability

40

Runner, Drawer (2) WPL 3406F03251 Contact Us For Availability

44

Retainer, Bottom WPL 3804F23151 Contact Us For Availability
