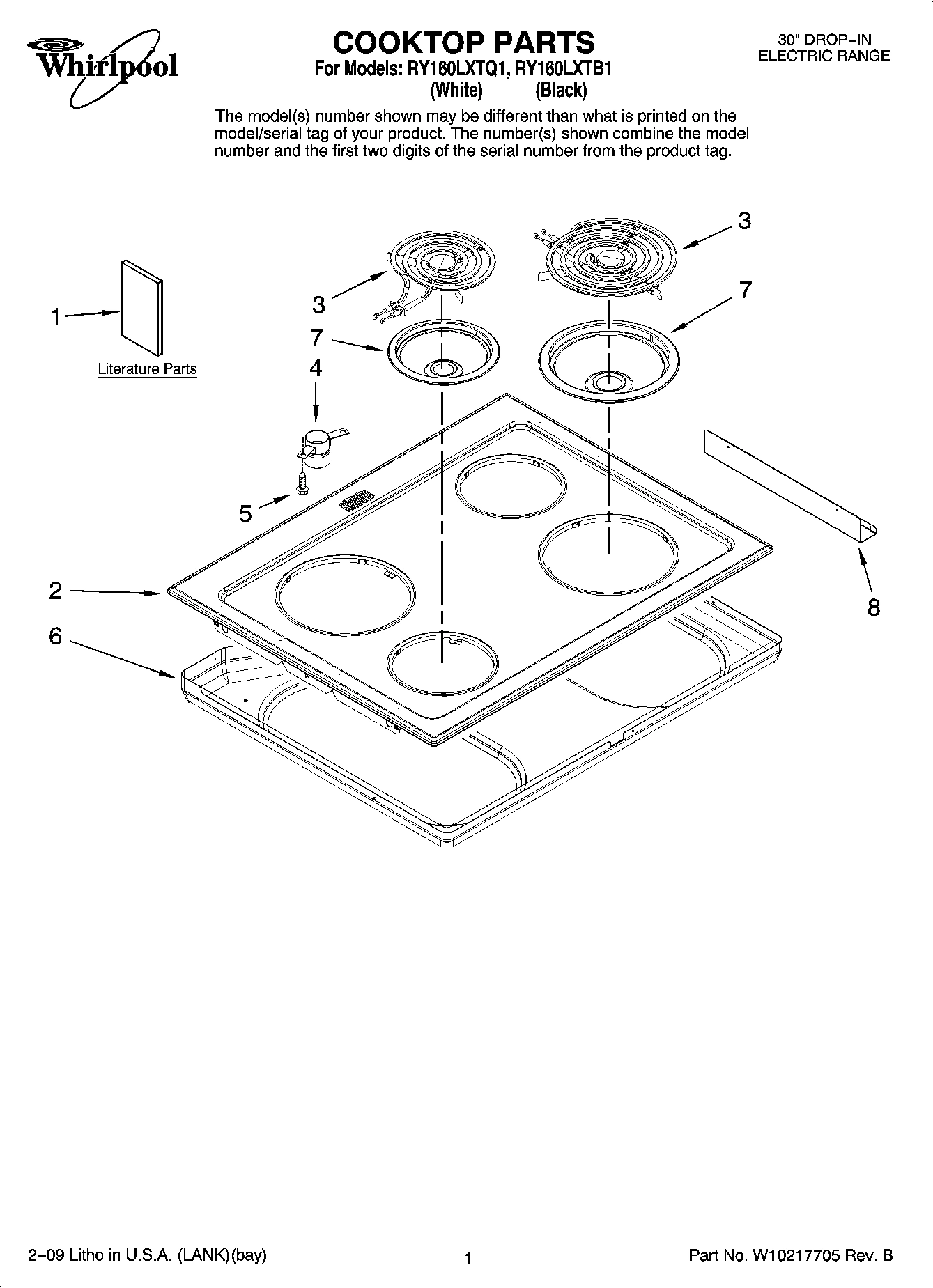

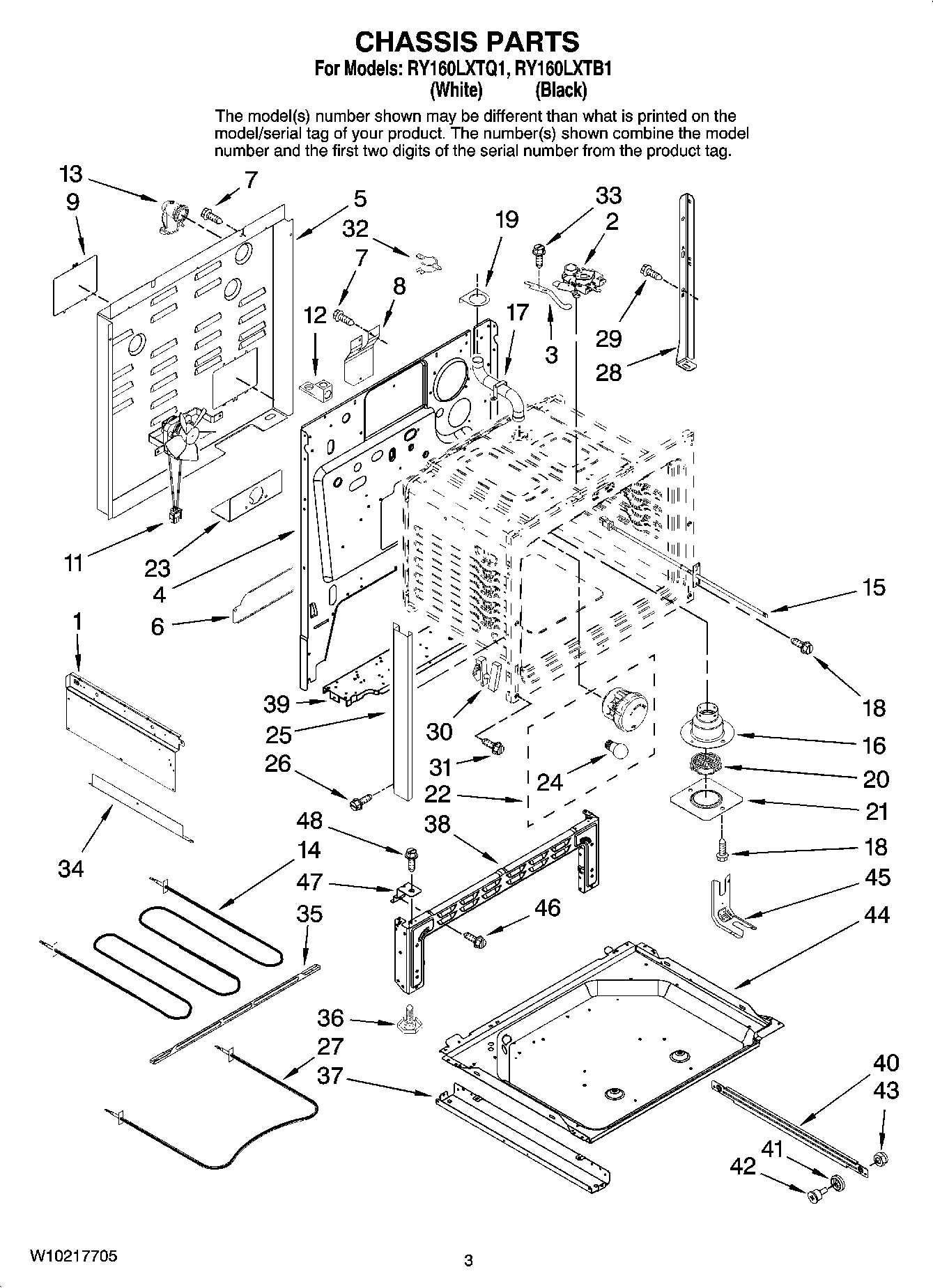

Model Whirlpool RY160LXTQ1 30`` DROP-IN ELECTRIC RANGE – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

5171P556-60 Whirlpool Wire Harness Backorder WPL 5171P556-60 $8.13

5700P822-60 Whirlpool Wire Harness Backorder WPL 5700P822-60 $79.31

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8019P013-60 Whirlpool Clip Backorder WPL 8019P013-60 $6.92

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W11447673 Whirlpool Range Tip Anchor In Stock WPL W11447673 $11.99

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

ACCESSORY PARTS (Foil, Aluminum Oven (18`` x WPL 241430 Contact Us For Availability

Insulation, Back WPL W10165725 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

Screw, Ground WPL 7101P02760 Contact Us For Availability

WIRING HARNESS PARTS (Harness, Wire (Sensor)) WPL 74010890 Contact Us For Availability

WIRING HARNESS PARTS (Harness, Wire (Coil LT) WPL 74010893 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

Following Parts Not Illustrated WPL ARI128499A Contact Us For Availability

REFINISHING MATERIAL WPL ARI128500A Contact Us For Availability

Insulation WPL ARI128501A Contact Us For Availability

ANTI-TIP K WPL ARI128502A Contact Us For Availability

WPL W10166773 WPL W10166773 Contact Us For Availability

1

WP3608F141-71 Whirlpool Door Trim Backorder WPL WP3608F141-71 $80.31

1

Lens WPL 7730P01160 Contact Us For Availability

1

Trim, Door Top (Black) WPL W10165729 Contact Us For Availability

1

Rack, Oven (2) WPL 7801P05460 Contact Us For Availability

2

WP74006515 Whirlpool Washer Screw In Stock WPL WP74006515 $2.51

2

Latch Assembly WPL 74010897 Contact Us For Availability

2

Panel, Control (Black) WPL W10165801 Contact Us For Availability

2

Panel, Control (White) WPL W10165802 Contact Us For Availability

2

Drawer, Storage WPL 74008333 Contact Us For Availability

3

3601F373-51 Whirlpool Baffle Backorder WPL 3601F373-51 $103.03

3

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $2.51

3

Screw, Switch (10) WPL 7101P30960 Contact Us For Availability

4

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

4

Switch, Infinite 6`` (LF/RR)(2) WPL 7403P23860 Contact Us For Availability

4

Switch, Infinite 8`` (RF/LR)(2) WPL 7403P23960 Contact Us For Availability

4

Bracket, Drawer WPL 74010896 Contact Us For Availability

5

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $86.34

5

W10769823-includeCORE Whirlpool W10769823 Ran Backorder WPL W10769823-includeCORE $199.23

5

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $2.51

5

Panel, Drawer (White) WPL 74003407 Contact Us For Availability

5

Panel, Drawer (Black) WPL 74003701 Contact Us For Availability

6

W10828565 Whirlpool Screw Backorder WPL W10828565 $3.02

6

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $2.64

6

End Cap (Left White) WPL 74004822 Contact Us For Availability

6

End Cap (Right Black) WPL 74010834 Contact Us For Availability

6

End Cap (Left Black) WPL 74010835 Contact Us For Availability

6

End Cap (Right White) WPL 74014821 Contact Us For Availability

7

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $4.58

7

WP98008545 Whirlpool Screw Backorder WPL WP98008545 $2.64

8

74008717 Whirlpool White Rocker Switch Backorder WPL 74008717 $30.85

8

Insulator, Cord WPL 74006364 Contact Us For Availability

8

Switch, Rocker (Black) WPL 74008718 Contact Us For Availability

8

Lining, Door WPL 74011456 Contact Us For Availability

8

Lining, Drawer WPL 2404F03051 Contact Us For Availability

9

3801F886-51 Whirlpool Mounting Bracket Backorder WPL 3801F886-51 $14.59

9

WP59002061 Whirlpool Microwave Screw In Stock WPL WP59002061 $2.51

9

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.21

9

Panel, Access WPL 74005264 Contact Us For Availability

10

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.00

10

Support, Control Panel WPL 74004785 Contact Us For Availability

10

Insulation, Door WPL 74003647 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

WPW10586440 Whirlpool Blower Fan Backorder WPL WPW10586440 $128.64

Shaft, Roller (2) WPL 74005231 Contact Us For Availability

Screw, Support (4) WPL 7101P33860 Contact Us For Availability

3801F831-45 Whirlpool Bracket Assembly Backorder WPL 3801F831-45 $10.76

3801F832-45 Whirlpool Bracket Backorder WPL 3801F832-45 $10.76

WPW10281322 Whirlpool Connector In Stock WPL WPW10281322 $5.40

Shield, Heat (Black) WPL 74001337 Contact Us For Availability

Shield, Heat (White) WPL 74001338 Contact Us For Availability

Nut WPL 7103P08260 Contact Us For Availability

13

WP74004153 Whirlpool Indicator Light In Stock WPL WP74004153 $3.70

13

Connector, Cable WPL 74004223 Contact Us For Availability

13

Tape, White WPL 74004224 Contact Us For Availability

WP3608F116-70 Whirlpool Door Trim Backorder WPL WP3608F116-70 $44.62

WP3608F116-71 Whirlpool Door Trim Backorder WPL WP3608F116-71 $44.69

WP3608F117-70 Whirlpool Door Trim Backorder WPL WP3608F117-70 $44.62

WP3608F117-71 Whirlpool Door Trim Backorder WPL WP3608F117-71 $44.62

WP74003611 Whirlpool Range White Knob Backorder WPL WP74003611 $10.19

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $68.38

Knob (4) (Black) WPL 74003612 Contact Us For Availability

15

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.43

15

Nameplate WPL 8303811 Contact Us For Availability

16

WP3807F708-71 Whirlpool Support Backorder WPL WP3807F708-71 $66.19

16

Tube, Vent Lower WPL W10165722 Contact Us For Availability

16

Trim, Door Bottom (Black) WPL 74009686 Contact Us For Availability

17

Tube, Vent Upper WPL 74010886 Contact Us For Availability

18

Seal, Door WPL 7201P04660 Contact Us For Availability

19

Holder, Vent Tube WPL 74010817 Contact Us For Availability

19

Glass, Door (Order Items 13 & 21 When Replaci WPL W10165730 Contact Us For Availability

19

Glass, Door (Order Items 13 & 21 When Replaci WPL W10165731 Contact Us For Availability

20

Smoke Eliminator WPL 74008597 Contact Us For Availability

20

Handle, Door (Black) WPL 74008318 Contact Us For Availability

20

Handle, Door (White) WPL 74008322 Contact Us For Availability

21

Plate, Smoke Elm. WPL W10165724 Contact Us For Availability

21

Tape, Foil WPL 74003664 Contact Us For Availability

22

WP7407P182-60 Whirlpool Lamp Backorder WPL WP7407P182-60 $37.04

23

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.71

24

BULB-OVEN WPL 7407P10360 Contact Us For Availability

25

WP3608F138-70 Whirlpool Side Trim Backorder WPL WP3608F138-70 $46.30

25

WP3608F138-71 Whirlpool Side Trim Assembly Backorder WPL WP3608F138-71 $28.80

27

WPW10310274 Whirlpool Bake Element In Stock WPL WPW10310274 $69.76

28

Support, Oven Rear WPL 74010884 Contact Us For Availability

29

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $2.51

30

74011142 Whirlpool Stove Range Oven Door Hing In Stock WPL 74011142 $69.65

31

Screw, Hinge (4) WPL 7101P28260 Contact Us For Availability

32

WP7450P034-60 Whirlpool Limit Switch Backorder WPL WP7450P034-60 $72.64

33

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $9.59

34

Extension, Shield WPL 74010820 Contact Us For Availability

35

Support, Element WPL 74003386 Contact Us For Availability

36

WP74010805 Whirlpool Screw Backorder WPL WP74010805 $3.70

37

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $40.61

38

Pedestal, Front WPL 74010882 Contact Us For Availability

39

Support WPL 74007129 Contact Us For Availability

40

Runner, Drawer (2) WPL 74003565 Contact Us For Availability

43

74005230 Whirlpool Oven Lock Nut (8-32) Backorder WPL 74005230 $9.59

44

3804F231-51 Whirlpool Retainer Backorder WPL 3804F231-51 $57.16

45

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.02

46

Screw w/ Washer WPL 7101P12460 Contact Us For Availability

47

Support, Oven Bottom WPL 74010812 Contact Us For Availability

48

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.51
