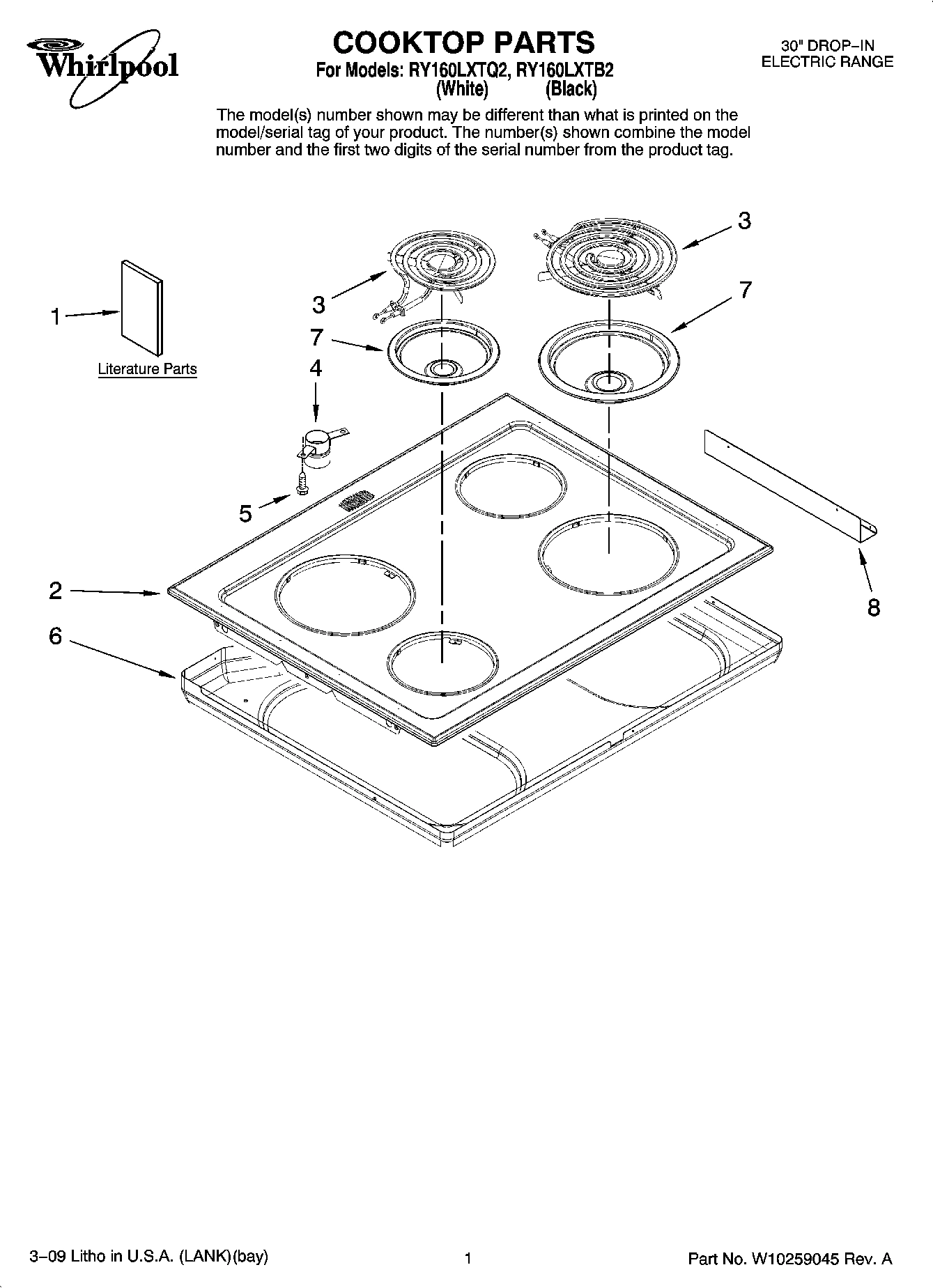

Model Whirlpool RY160LXTB2 30`` DROP-IN ELECTRIC RANGE – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W11447673 Whirlpool Range Tip Anchor In Stock WPL W11447673 $11.99

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Insulation, Back WPL W10165725 Contact Us For Availability

Insulation WPL ARI128487A Contact Us For Availability

ACCESSORY PARTS WPL ARI128488A Contact Us For Availability

ANTI-TIP KIT WPL ARI128489A Contact Us For Availability

WIRING HARNESS PARTS WPL ARI128490A Contact Us For Availability

Insulation, Oven Bottom WPL 7002P45660 Contact Us For Availability

Insulation, Wrap WPL 7002P47160 Contact Us For Availability

Insulation WPL ARI128484A Contact Us For Availability

1

WP3608F141-71 Whirlpool Door Trim Backorder WPL WP3608F141-71 $80.31

1

Installation Instructions WPL 8101P74660 Contact Us For Availability

1

Use & Care Guide WPL 8113P74960 Contact Us For Availability

1

Wiring Diagram WPL 8119P44860 Contact Us For Availability

1

BROCHURE, TIPS (SAFE COOKING) WPL 9762761 Contact Us For Availability

1

Panel, Shield (Left) WPL 2618F20151 Contact Us For Availability

1

Panel, Shield (Right) WPL 2618F20651 Contact Us For Availability

1

Lens WPL 7730P01160 Contact Us For Availability

1

Trim, Door Top (Black) WPL W10165729 Contact Us For Availability

1

Rack, Oven (2) WPL 7801P05460 Contact Us For Availability

2

Cooktop (Black) WPL 2002W20009 Contact Us For Availability

2

Cooktop (White) WPL 2002W20081 Contact Us For Availability

2

Latch Assembly WPL 8002P09360 Contact Us For Availability

2

Panel, Control (Black) WPL W10165801 Contact Us For Availability

2

Panel, Control (White) WPL W10165802 Contact Us For Availability

2

Screw, Handle (2) WPL 7101P68160 Contact Us For Availability

2

Drawer, Storage WPL 3405F03380 Contact Us For Availability

3

Element (LF/RR, 1250W) (2) WPL 7406P47560 Contact Us For Availability

3

Element (RF/LR, 2100W) (2) WPL 7406P47660 Contact Us For Availability

3

Lever, Latch (Black) WPL 8009P03160 Contact Us For Availability

3

Lever, Latch (Gray) WPL 8009P03560 Contact Us For Availability

3

Screw, Switch (10) WPL 7101P30960 Contact Us For Availability

3

Baffle, Retainer WPL 3601F37360 Contact Us For Availability

3

Screw, Panel WPL 7101P07260 Contact Us For Availability

4

Tube, Vent Upper WPL 8026P07460 Contact Us For Availability

4

Main Back WPL 3804F31351 Contact Us For Availability

4

Switch, Infinite 6`` (LF/RR)(2) WPL 7403P23860 Contact Us For Availability

4

Switch, Infinite 8`` (RF/LR)(2) WPL 7403P23960 Contact Us For Availability

4

Screw, 8AB x 1/2 WPL 7101P38860 Contact Us For Availability

4

Bracket, Drawer WPL 3801F88751 Contact Us For Availability

5

4005F810-51 Whirlpool Access Cover Backorder WPL 4005F810-51 $83.10

5

Glass, Inner (2) WPL 7902P43660 Contact Us For Availability

5

Panel, Drawer (Black) WPL 2416F05970 Contact Us For Availability

5

Panel, Drawer (White) WPL 2416F05971 Contact Us For Availability

6

Bottom, Burner Box WPL 4011F37180 Contact Us For Availability

6

Extension, Back WPL 3826F06651 Contact Us For Availability

6

End Cap (Right White) WPL 7726P33260 Contact Us For Availability

6

End Cap (Left White) WPL 7726P33360 Contact Us For Availability

6

End Cap (Right Black) WPL 7726P40060 Contact Us For Availability

6

End Cap (Left Black) WPL 7726P40160 Contact Us For Availability

6

Screw, Panel (White) WPL 7101P63660 Contact Us For Availability

6

Screw, Panel (Black) WPL 7101P63560 Contact Us For Availability

7

Bowl, Drip (Chr 6``) WPL 7725P05360 Contact Us For Availability

7

Bowl, Drip (Chr 8``) WPL 7725P05460 Contact Us For Availability

7

Screw, End Cap (Black) WPL 7101P63360 Contact Us For Availability

7

Nut, Snap (4) WPL 7103P14160 Contact Us For Availability

7

Nut, Lock WPL 7103P19060 Contact Us For Availability

8

Bracket, Burner Box WPL 3801F88151 Contact Us For Availability

8

Insulator, Cord WPL 7003P10160 Contact Us For Availability

8

Switch, Rocker (Black) WPL 7403P79860 Contact Us For Availability

8

Switch, Rocker (White) WPL 7403P79960 Contact Us For Availability

8

Lining, Door WPL 2402W31219 Contact Us For Availability

8

Lining, Drawer WPL 2404F03051 Contact Us For Availability

9

Panel, Access WPL 4005F31251 Contact Us For Availability

9

Screw, Control WPL 7101P07760 Contact Us For Availability

9

Spacer, Rubber WPL 8010P13060 Contact Us For Availability

9

Bracket, Glass (2) WPL 3801F88651 Contact Us For Availability

10

Roller Drawer (2) WPL 8014P02260 Contact Us For Availability

10

Support, Control Panel WPL 3807F60151 Contact Us For Availability

10

Insulation, Door WPL 7002P24660 Contact Us For Availability

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

Screw, Support (4) WPL 7101P33860 Contact Us For Availability

Fan, Cooling WPL 7427P09460 Contact Us For Availability

Shaft, Roller (2) WPL 7118P03260 Contact Us For Availability

Block, Bare Wire WPL 7401P15760 Contact Us For Availability

Shield, Vent (Black) WPL 3604W15670 Contact Us For Availability

SHIELD, VENT WHITE WPL 3604W15671 Contact Us For Availability

Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability

Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability

Nut WPL 7103P08260 Contact Us For Availability

13

Connector, Cable WPL 74017P0336 Contact Us For Availability

13

Light, Indicator WPL 7407P13660 Contact Us For Availability

13

Tape, White WPL 8270P13960 Contact Us For Availability

Element, Broil WPL 7406P21860 Contact Us For Availability

Knob (4) (White) WPL 7737P08060 Contact Us For Availability

Knob (4) (Black) WPL 7737P08260 Contact Us For Availability

Trim, Door Side (Black, Right) WPL 3608F11670 Contact Us For Availability

Trim, Door Side (White, Right) WPL 3608F11671 Contact Us For Availability

Trim, Door Side (Black, Left) WPL 3608F11770 Contact Us For Availability

Trim, Door Side (White, Left) WPL 3608F11771 Contact Us For Availability

15

Nameplate WPL 8303811 Contact Us For Availability

15

Sensor, Oven WPL 7430P04260 Contact Us For Availability

16

WP3807F708-71 Whirlpool Support Backorder WPL WP3807F708-71 $66.19

16

Tube, Vent Lower WPL W10165722 Contact Us For Availability

16

Trim, Door Bottom (Black) WPL 74009686 Contact Us For Availability

17

Tube, Vent Upper WPL 8026P08560 Contact Us For Availability

18

Seal, Door WPL 7201P15260 Contact Us For Availability

19

Holder, Vent Tube WPL 3605F34551 Contact Us For Availability

19

Glass, Door (Order Items 13 & 21 When Replaci WPL 7902P81460 Contact Us For Availability

19

Glass, Door (Order Items 13 & 21 When Replaci WPL 7902P81560 Contact Us For Availability

20

SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability

20

Handle, Door (Black) WPL 7701P46260 Contact Us For Availability

20

Handle, Door (White) WPL 7701P46360 Contact Us For Availability

21

Plate, Smoke Elm. WPL W10165724 Contact Us For Availability

21

Tape, Foil WPL 8270P13360 Contact Us For Availability

22

Light Assembly WPL 7407P18560 Contact Us For Availability

23

Bracket, Power Supply WPL 3801F57451 Contact Us For Availability

24

BULB-OVEN WPL 7407P10360 Contact Us For Availability

25

Trim, Side (Black) (2) WPL 3608F13870 Contact Us For Availability

25

Trim, Side (White) (2) WPL 3608F13871 Contact Us For Availability

26

Screw WPL 7101P50060 Contact Us For Availability

27

Element, Bake WPL 7406P43960 Contact Us For Availability

28

SUPPORT, OVEN (REAR) WPL 3807F73251 Contact Us For Availability

29

Screw WPL 7101P43460 Contact Us For Availability

30

Hinge (2) WPL 7106P14160 Contact Us For Availability

31

Screw, Hinge (4) WPL 7101P28260 Contact Us For Availability

32

Switch, Hi-Limit WPL 7450P03460 Contact Us For Availability

33

Screw, Lever (2) WPL 7101P37560 Contact Us For Availability

34

Extension, Shield WPL 3826F06451 Contact Us For Availability

35

Support, Element WPL 3807F49445 Contact Us For Availability

36

Leg, Leveling WPL 7101P66060 Contact Us For Availability

37

Pedestal, Bottom WPL 4020W03580 Contact Us For Availability

38

Pedestal, Front WPL 4020F03680 Contact Us For Availability

39

Support WPL 3807F64051 Contact Us For Availability

40

Runner, Drawer (2) WPL 3406F03251 Contact Us For Availability

44

Retainer, Bottom WPL 3804F23151 Contact Us For Availability

45

BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability

46

Screw w/ Washer WPL 7101P12460 Contact Us For Availability

47

SUPPORT, OVEN BOTTOM WPL 3807F72745 Contact Us For Availability
