Model Whirlpool RY160LXTB02 30`` DROP-IN ELECTRIC RANGE – Common Parts &amp; Diagrams

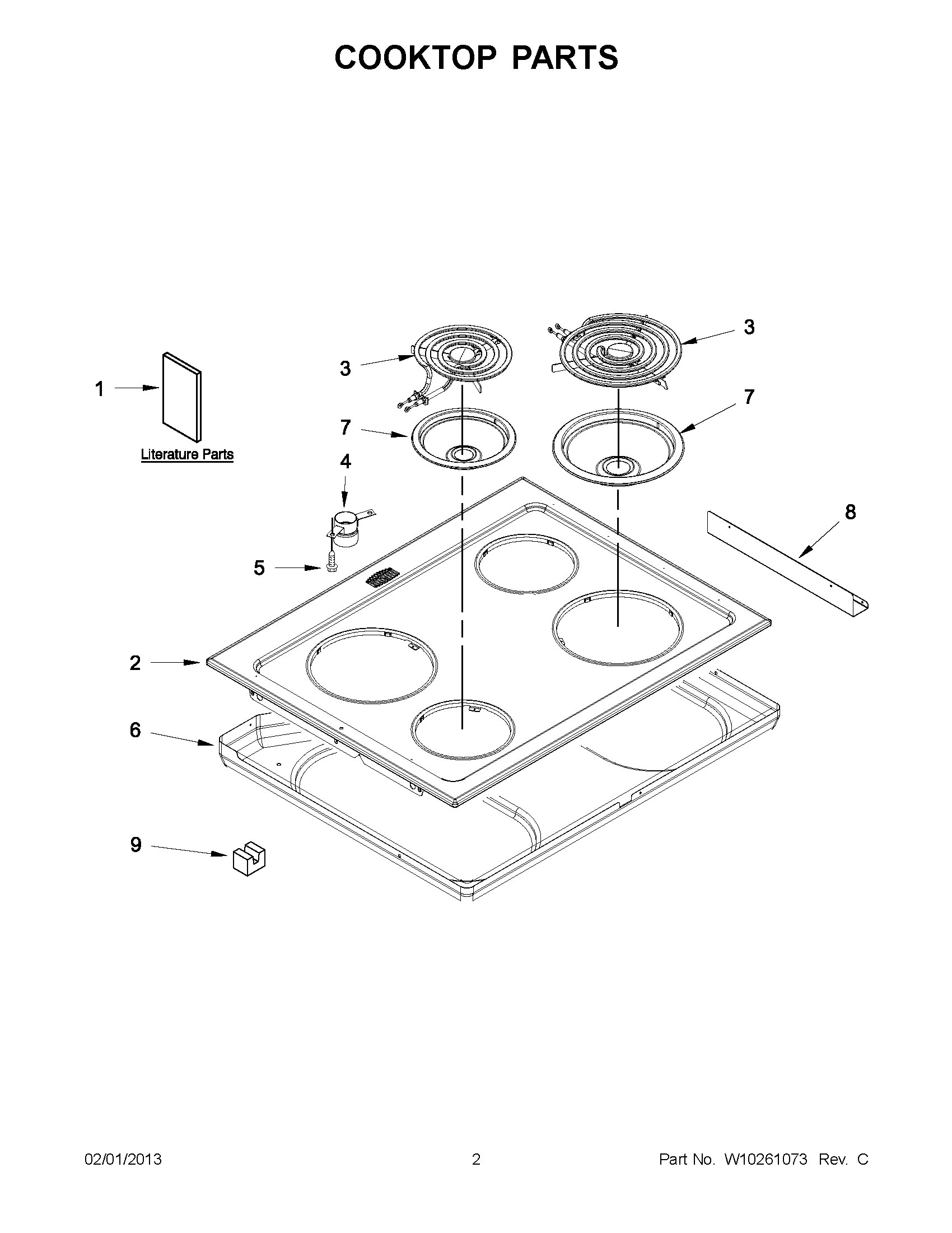

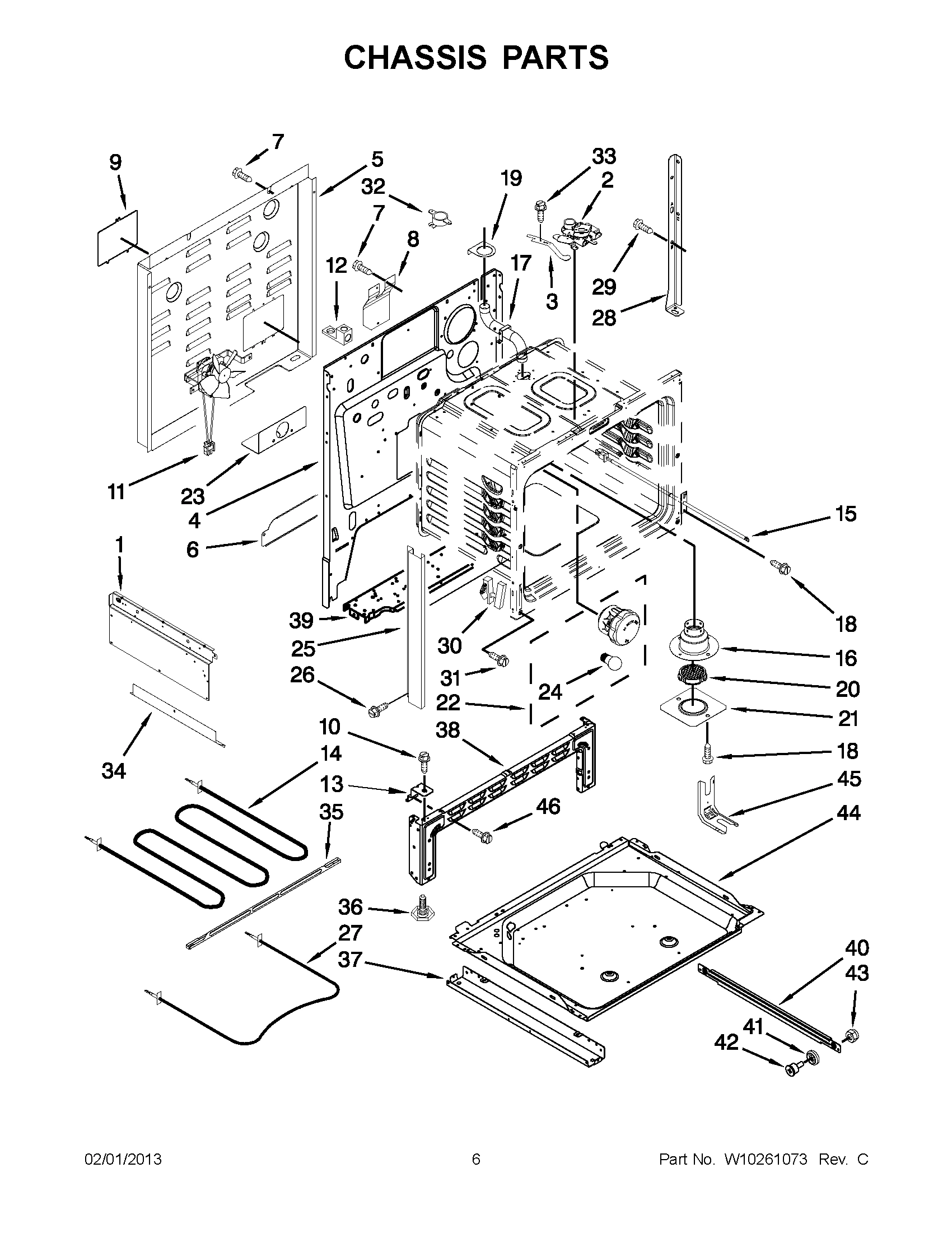

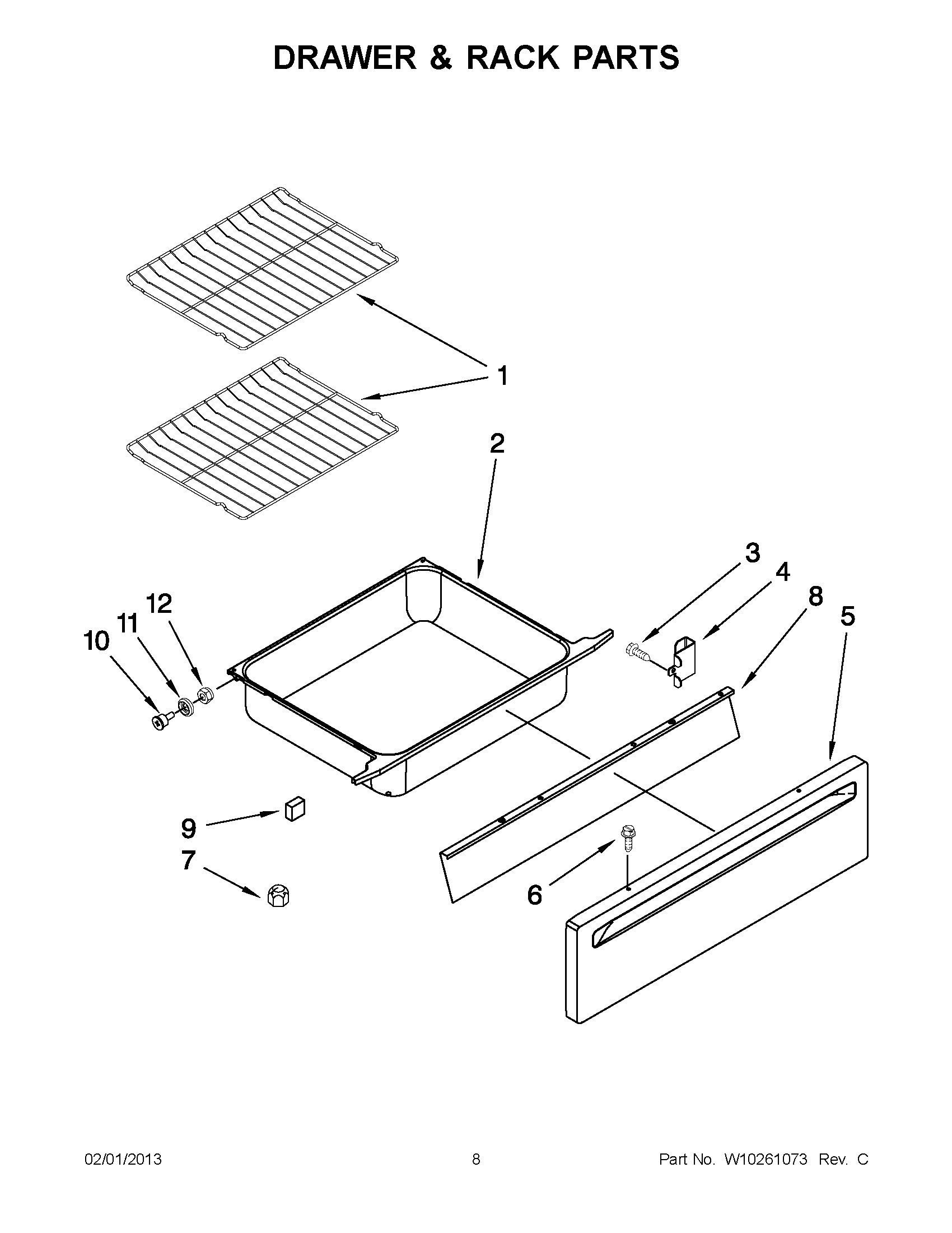

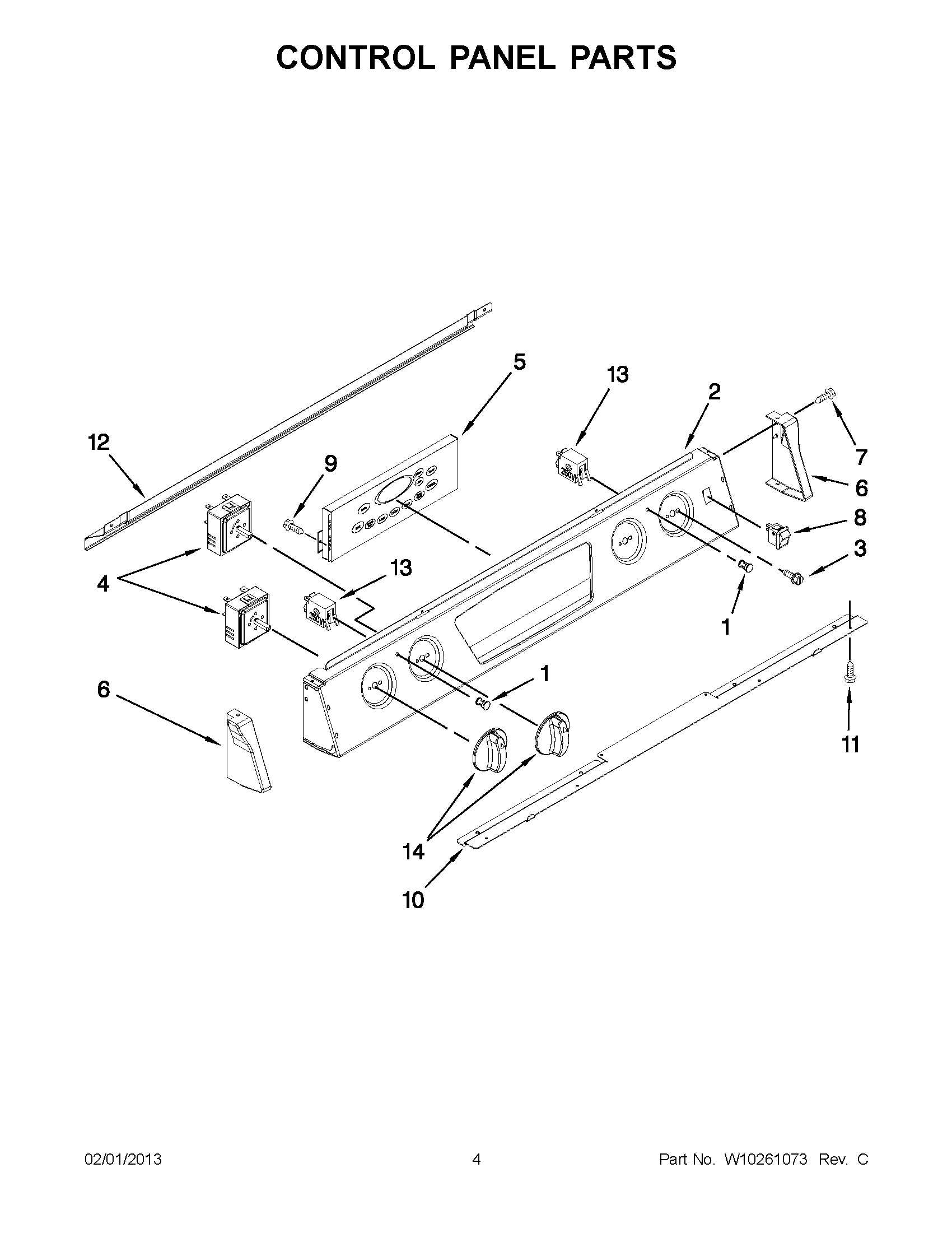

1

Wiring Diagram WPL 8119P44860 Contact Us For Availability

1

TIPS, SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability

1

INSTALL, INSTRUCT WPL W10430947 Contact Us For Availability

1

OWNERS MANUAL WPL W10432290 Contact Us For Availability

1

Panel, Shield (Left) WPL 2618F20151 Contact Us For Availability

1

Panel, Shield (Right) WPL 2618F20651 Contact Us For Availability

1

LENS, INDICATOR WPL 7730P01160 Contact Us For Availability

2

Cooktop (Black) WPL 2002W20009 Contact Us For Availability

2

Cooktop (White) WPL 2002W20081 Contact Us For Availability

2

ASSEMBLY, LATCH WPL 8002P09360 Contact Us For Availability

2

Panel, Control (Black) WPL W10165801 Contact Us For Availability

2

Panel, Control (White) WPL W10165802 Contact Us For Availability

2

Drawer, Storage WPL 3405F03380 Contact Us For Availability

3

WPW10345407 Whirlpool Surface Element In Stock WPL WPW10345407 $66.83

3

ELEMENT (2100W) (LEFT REAR & RIGHT FRONT) WPL W10345409 Contact Us For Availability

3

Lever, Latch (Black) WPL 8009P03160 Contact Us For Availability

3

LEVER, LATCH (GREY) WPL 8009P03560 Contact Us For Availability

3

Screw WPL 7101P30960 Contact Us For Availability

3

Screw WPL 7101P07260 Contact Us For Availability

4

Tube, Vent Upper WPL W10233479 Contact Us For Availability

4

BACK, MAIN WPL 3804F31351 Contact Us For Availability

4

SWITCH, INFINITE (LEFT REAR & RIGHT FRONT) WPL 7403P37260 Contact Us For Availability

4

SWITCH, INFINITE (LEFT FRONT & RIGHT REAR) WPL 7403P37360 Contact Us For Availability

4

Bracket, Drawer WPL 3801F88751 Contact Us For Availability

5

W10769823-includeCORE Whirlpool W10769823 Ran Backorder WPL W10769823-includeCORE $199.23

5

COVER, REAR WIRE WPL 4005F81051 Contact Us For Availability

5

Panel, Drawer (Black) WPL 2416F05970 Contact Us For Availability

5

Panel, Drawer (White) WPL 2416F05971 Contact Us For Availability

6

Bottom, Burner Box WPL 4011F37180 Contact Us For Availability

6

EXTENSION, MAIN BACK WPL 3826F06651 Contact Us For Availability

6

END CAP (WHITE (RIGHT HAND)) WPL 7726P33260 Contact Us For Availability

6

END CAP (WHITE (LEFT HAND)) WPL 7726P33360 Contact Us For Availability

6

END CAP (BLACK (RIGHT HAND)) WPL 7726P40060 Contact Us For Availability

6

END CAP (BLACK (LEFT HAND)) WPL 7726P40160 Contact Us For Availability

6

Screw, Panel (White) WPL 7101P63660 Contact Us For Availability

6

Screw, Panel (Black) WPL 7101P63560 Contact Us For Availability

7

BOWL, DRIP (SMALL) WPL 7725P05360 Contact Us For Availability

7

BOWL, DRIP (LARGE) WPL 7725P05460 Contact Us For Availability

7

SCREW WPL 7101P42660 Contact Us For Availability

7

Nut, Lock WPL 7103P19060 Contact Us For Availability

7

Screw, End Cap (Black) WPL 7101P63360 Contact Us For Availability

8

Bracket, Burner Box WPL 3801F88151 Contact Us For Availability

8

Insulator, Cord WPL 7003P10160 Contact Us For Availability

8

Switch, Rocker (Black) WPL 7403P79860 Contact Us For Availability

8

Switch, Rocker (White) WPL 7403P79960 Contact Us For Availability

8

LINING, DOOR WPL 2404F03051 Contact Us For Availability

9

BLOCK, ELEMENT SUPPORT WPL 8255P41260 Contact Us For Availability

9

Panel, Access WPL 4005F61251 Contact Us For Availability

9

Screw, Control WPL 7101P07760 Contact Us For Availability

9

Spacer, Rubber WPL 8010P13060 Contact Us For Availability

10

ROLLER, DRAWER WPL W10272883 Contact Us For Availability

10

Screw WPL 7101P50060 Contact Us For Availability

10

Support, Control Panel WPL 3807F60151 Contact Us For Availability

11

WPW10586440 Whirlpool Blower Fan Backorder WPL WPW10586440 $128.64

11

Screw WPL 7101P33860 Contact Us For Availability

11

Shaft, Roller WPL 7118P03260 Contact Us For Availability

BLOCK, BARE WIRE ADAPTER WPL 7401P15760 Contact Us For Availability

Shield, Vent (Black) WPL 3604W15670 Contact Us For Availability

SHIELD, VENT WHITE WPL 3604W15671 Contact Us For Availability

Nut, Lock WPL 7103P08260 Contact Us For Availability

13

SUPPORT, OVEN BOTTOM WPL 3807F72745 Contact Us For Availability

13

Light, Indicator WPL 7407P13660 Contact Us For Availability

14

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $71.80

14

KNOB (WHITE) WPL 7737P08060 Contact Us For Availability

14

KNOB (BLACK) WPL 7737P08260 Contact Us For Availability

15

W11178521 Whirlpool Dishwasher Nameplate In Stock WPL W11178521 $45.75

15

Sensor, Oven WPL 7430P04260 Contact Us For Availability

16

Tube, Vent Lower WPL 8026P09660 Contact Us For Availability

17

VENT TUBE WPL 8026P08560 Contact Us For Availability

18

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $69.03

19

Holder, Vent Tube WPL 3605F34551 Contact Us For Availability

20

SCREEN, SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability

21

PLATE, SMOKE ELIMINATOR WPL 3605F34445 Contact Us For Availability

22

ASSEMBLY, LIGHT WPL 7407P18260 Contact Us For Availability

23

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.71

24

BULB, LIGHT WPL 7407P10360 Contact Us For Availability

25

TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability

25

TRIM, SIDE (WHITE) WPL 3608F13871 Contact Us For Availability

26

SCREW WPL 7101P46060 Contact Us For Availability

27

WPW10310274 Whirlpool Bake Element In Stock WPL WPW10310274 $80.63

28

SUPPORT, OVEN (REAR) WPL 3807F73251 Contact Us For Availability

29

Screw WPL 7101P43460 Contact Us For Availability

30

HINGE, DOOR WPL 7106P14160 Contact Us For Availability

31

Screw WPL 7101P28260 Contact Us For Availability

32

Switch, Hi-Limit WPL 7450P03460 Contact Us For Availability

33

SCREW WPL 7101P37560 Contact Us For Availability

34

EXTENSION, HEAT SHIELD WPL 3826F06451 Contact Us For Availability

35

SUPPORT, BROIL ELEMENT WPL 3807F49445 Contact Us For Availability

36

Leg, Leveling WPL 7101P66060 Contact Us For Availability

37

Pedestal, Bottom WPL 4020W03580 Contact Us For Availability

38

PEDESTAL, BASE WPL W10271711 Contact Us For Availability

39

SUPPORT, REGULATOR VALVE WPL 3807F64051 Contact Us For Availability

40

RUNNER, DRAWER WPL W10182835 Contact Us For Availability

44

RETAINER, INSULATION WPL 3804F23151 Contact Us For Availability

45

BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability

46

Screw WPL 7101P12460 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

ACCESSORIES, SS CLEANER WPL W10355016 Contact Us For Availability

ACCESSORIES, KITCHEN & APPLIANCE CLEANER WPL W10355010 Contact Us For Availability

ACCESSORIES, ALUMINUM FOIL (18`` X 25`) WPL 241430 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

PAINT, BULK (1 QT. BISCUIT/BISQUE) WPL 4392900 Contact Us For Availability

WIRING HARNESS PARTS, HARNESS, SENSOR WPL 5171P54060 Contact Us For Availability

WIRING HARNESS PARTS, HARNESS, TOP RIGHT WPL 5171P55660 Contact Us For Availability

WIRING HARNESS PARTS, HARNESS, TOP LEFT WPL 5171P56560 Contact Us For Availability

WIRING HARNESS PARTS, HARNESS, MAIN WPL 5171P93460 Contact Us For Availability

WIRING HARNESS PARTS, SCREW, GROUND WPL 7101P02760 Contact Us For Availability

Insulation, Back WPL 7002P44560 Contact Us For Availability

Insulation, Oven Bottom WPL 7002P45660 Contact Us For Availability

INSULATION, OVEN WRAP WPL 7002P47160 Contact Us For Availability
