Model Whirlpool RWS214UD GAS COOK-TOP – Common Parts & Diagrams

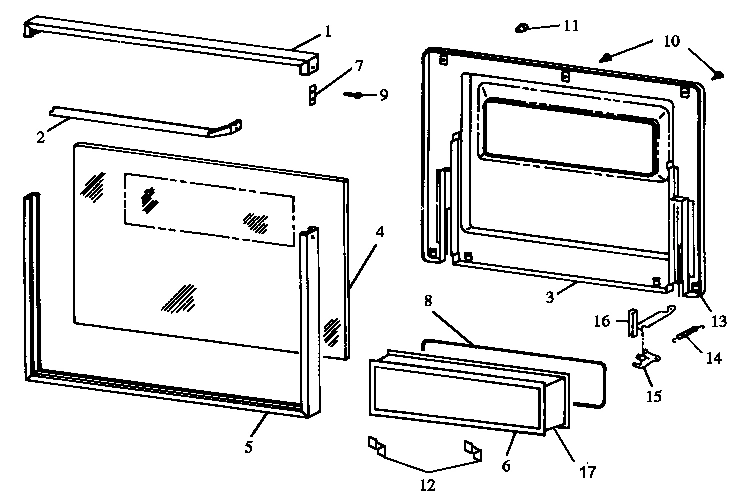

04 - GLASS BROILER DOOR (RWS-RXS)

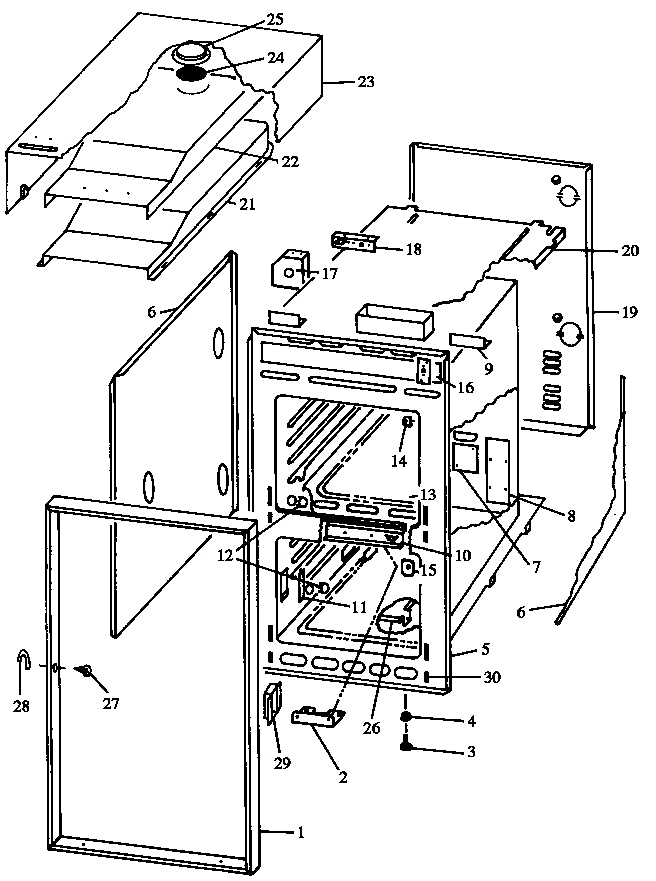

06 - MAIN BODY

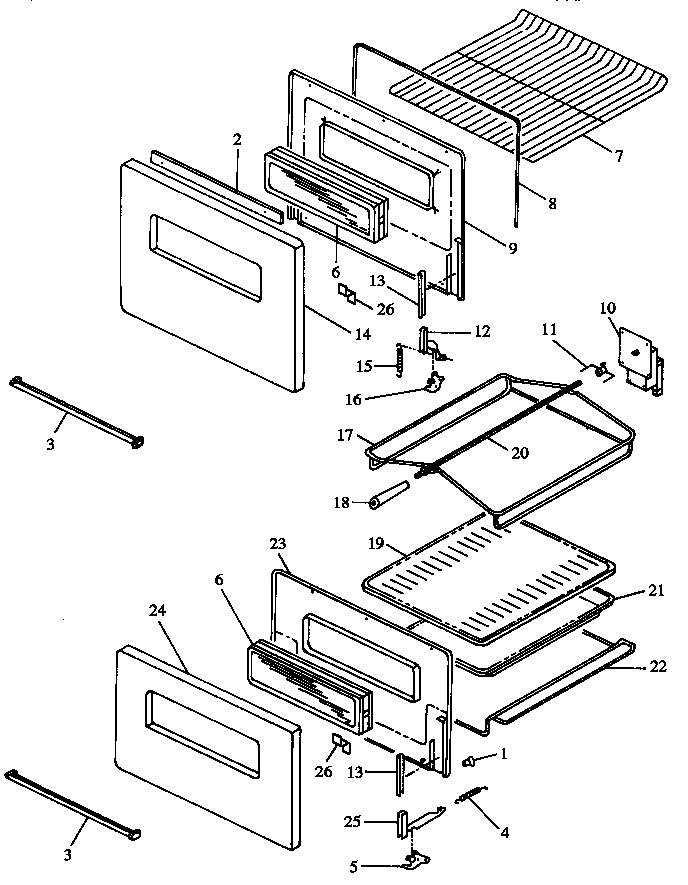

07 - OVEN AND BROILERS (RWS-RXS)

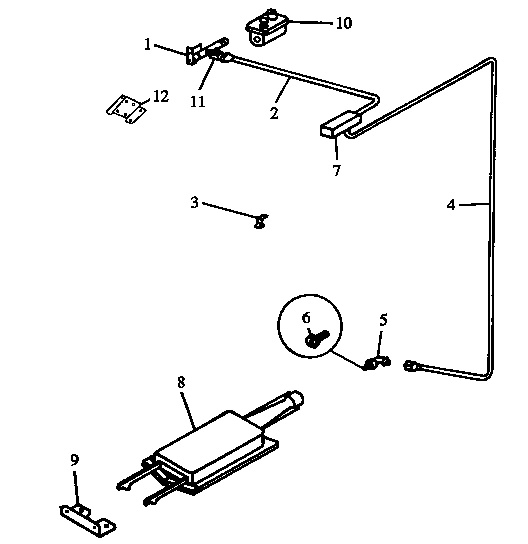

03 - GAS COMPONENTS

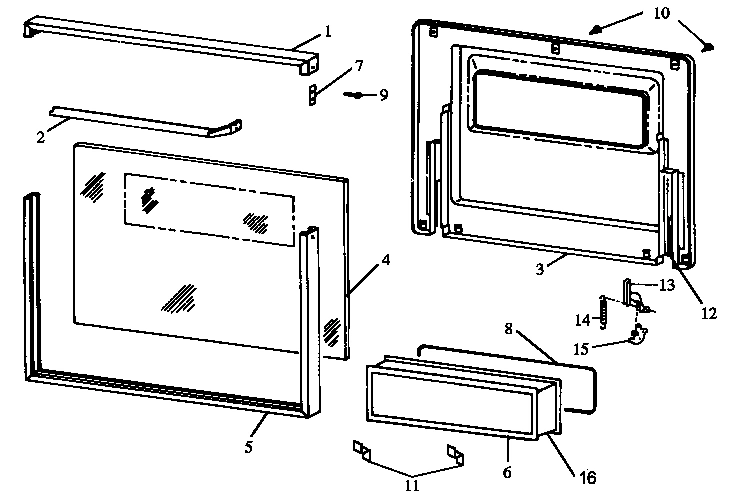

05 - GLASS OVEN DOOR (RWS-RXS)

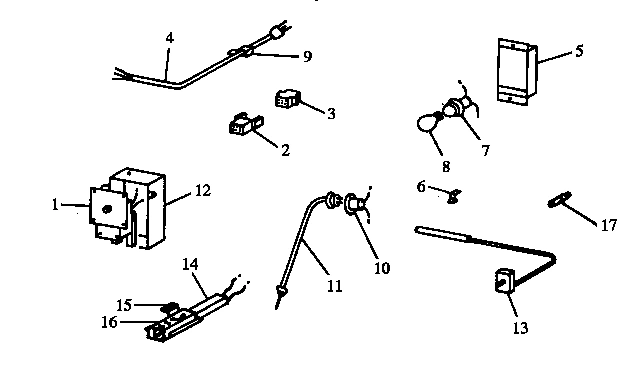

02 - ELECTRICAL COMPONENTS

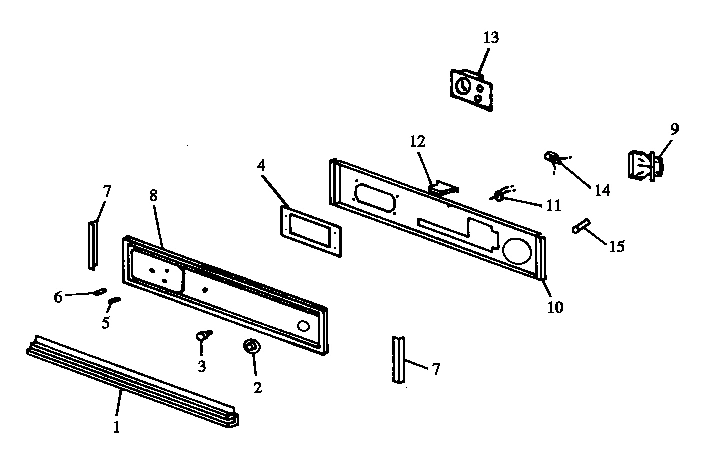

01 - CONTROL PANEL
Common parts from model Whirlpool RWS214UD GAS COOK-TOP
1
DOOR FRAME TOP WPL 0064406 Contact Us For Availability
1
BUMPER, RUBBER WPL 0011061 Contact Us For Availability
1
FRAME, OVEN (CHROME) WPL 0307164 Contact Us For Availability
1
TUBING INLET WPL 0304130 Contact Us For Availability
1
TRIM, FLUE-DEFLECTOR WPL Y0095531 Contact Us For Availability
2
HANDLE-22.780L FOR BLK GLASS D WPL 0072966 Contact Us For Availability
2
COUNTERWEIGHT OV DOOR W/WINDOW WPL 0076854 Contact Us For Availability
2
TUBING, GAS WPL 0304131 Contact Us For Availability
2
PLUG, DISCONNECT WPL 0069392 Contact Us For Availability
2
CONNECTOR, PLUG WPL 0306000 Contact Us For Availability
2
KNOB, OVEN CONTROL WPL Y0057451 Contact Us For Availability
3
LEVELING LEG WPL 0095648 Contact Us For Availability
3
HANDLE, OVEN DOOR WPL Y0079689 Contact Us For Availability
3
BACKER, OVEN DOOR WPL 77311CG Contact Us For Availability
3
RECEPTACLE, DISCONNECT WPL 0069393 Contact Us For Availability
3
CONNECTOR, RECEPTACLE WPL 0306072 Contact Us For Availability
4
GLASS, OUTER PANEL WPL Y0072970 Contact Us For Availability
4
NUT RETAINER WPL 0098548 Contact Us For Availability
4
DOOR SPRING, 16 INCH PLAIN WPL 0011204 Contact Us For Availability
4
TUBING BROIL BURNER TO GAS VAL WPL Y0304129 Contact Us For Availability
4
GLASS PANEL, OUTER WPL 0072971 Contact Us For Availability
4
CORD SUPPLY SET WPL 0069733 Contact Us For Availability
5
DOOR FRAME,BOTTOM WPL Y0064401 Contact Us For Availability
5
ORIFICE FITTING WPL Y0069371 Contact Us For Availability
5
DOOR FRAME BOTTOM WPL Y0064405 Contact Us For Availability
5
WIRE COVER BOX OVEN LIGHT WPL 0095600 Contact Us For Availability
5
KNOB LIGHT SWITCH WPL 0064412 Contact Us For Availability
6
WINDOW ASSY SUFFIX ``G`` WPL Y0076906 Contact Us For Availability
6
PANEL, SIDE WPL 0095916 Contact Us For Availability
6
OVEN WINDOW ASSY. WPL 0073879 Contact Us For Availability
6
CLIP SPRING THERMO BULB WPL Y0016319 Contact Us For Availability
6
ORIFICE ULTRA RAY BURNER 56 WPL Y0095632 Contact Us For Availability
6
ORIFICE ULTRA RAY BURNER 48 WPL Y0097242 Contact Us For Availability
6
KNOB, CLOCK WPL 307138B Contact Us For Availability
7
PLATE, HANDLE MTG. WPL Y0072962 Contact Us For Availability
7
COVER, PLATE WPL Y0308357 Contact Us For Availability
7
RACK, OVEN WPL 0090769 Contact Us For Availability
7
RACK, OVEN WPL 0095705 Contact Us For Availability
7
OV RACK 1/16`` UNDERSIZED WPL Y0090770 Contact Us For Availability
7
OV RACK 1/8`` OVERSIZED WPL Y0090771 Contact Us For Availability
7
OV RACK 1/16`` OVERSIZED WPL Y0090772 Contact Us For Availability
7
VALVE, GAS WPL Y0066544 Contact Us For Availability
7
SUB 90264 OVEN LIGHT SOCK. KIT WPL 0035884 Contact Us For Availability
7
CHANNEL CONTROL GLASS WPL 0064409 Contact Us For Availability
8
GASKET, OVEN WINDOW SUFFIX ``G`` WPL Y0076873 Contact Us For Availability
8
COVER, VALVE WPL 95901CG Contact Us For Availability
8
GASKET, OVEN DOOR WPL Y0308213 Contact Us For Availability
8
RXP OVEN BURNER WPL Y0091059 Contact Us For Availability
8
BULB, LIGHT WPL Y0042175 Contact Us For Availability
8
GLASS, CONTROL PANEL WPL 0057449 Contact Us For Availability
9
BURNER SUPPORT BRACKET UTRA RY WPL 0099887 Contact Us For Availability
9
SHIELD, WIRING WPL Y0061032 Contact Us For Availability
9
BACKER, OVEN DOOR, WITH WINDOW WPL 0077311 Contact Us For Availability
9
WIRE CLAMP, INSULATED WPL Y0074685 Contact Us For Availability
10
FRONT CROSS CHANNEL WPL Y0095787 Contact Us For Availability
10
PRESSURE REGULATOR WPL 0065450 Contact Us For Availability
10
PANEL, CONTROL MTG. WPL Y0306319 Contact Us For Availability
11
BRACKET, GLASS PACK WPL 0308106 Contact Us For Availability
11
SPRING COVER WPL Y0073888 Contact Us For Availability
11
MANUAL SHUT-OFF VALVE WPL 0074440 Contact Us For Availability
11
SUB 91198, KIT. LIGHT SW. WPL 0069734 Contact Us For Availability
11
SWITCH, OVEN LIGHT WPL Y0306829 Contact Us For Availability
12
SOCKET HINGE R H WPL Y0035096 Contact Us For Availability
12
SOCKET HINGE L H WPL Y0097109 Contact Us For Availability
12
PLUG BUTTON WPL 0020422 Contact Us For Availability
12
MTG CHANNEL, LH WPL Y0060910 Contact Us For Availability
12
MTG CHANNEL, RH WPL Y0060911 Contact Us For Availability
13
OVEN BOTTOM WPL 77299CG Contact Us For Availability
13
THERMOSTAT WPL Y0304806 Contact Us For Availability
13
THERMOSTAT WPL Y069738 Contact Us For Availability
13
CLOCK, AUTOMATIC WPL Y0057445 Contact Us For Availability
14
PLUG BUTTON (PROBE RECEPT) WPL 0035916 Contact Us For Availability
14
PANEL, DOOR (ALMOND) WPL 305927L Contact Us For Availability
14
NET-PANEL,DOOR(WHITE) WPL 305927W Contact Us For Availability
14
OVEN DOOR PANEL W/WIND GOLD WPL Y077318D Contact Us For Availability
15
HINGE ROLLER ASSY, LH WPL 0060914 Contact Us For Availability
15
HINGE ROLLER ASSY, RH WPL 0060915 Contact Us For Availability
15
HOLE COVER WPL Y0094645 Contact Us For Availability
15
DOOR SPRING, 24 INCH PLAIN WPL Y0016098 Contact Us For Availability
15
MOUNTING BRACKET, IGNITOR WPL Y0064674 Contact Us For Availability
15
INDICATOR LIGHT WPL Y0071820 Contact Us For Availability
16
FIXED HINGE, LH WPL 0060918 Contact Us For Availability
16
FIXED HINGE, RH WPL 0060919 Contact Us For Availability
16
SHIELD, IGNITOR WPL Y0064673 Contact Us For Availability
17
SUPPORT BRACKET WPL 0035238 Contact Us For Availability
18
BRACKET, MTG. WPL Y0069749 Contact Us For Availability
19
BACK, MAIN WPL 0077337 Contact Us For Availability
20
RETAINER, TOP INSUL. WPL 0060399 Contact Us For Availability
21
HORIZONTAL FLUEWAY WPL 0061089 Contact Us For Availability
21
HORIZONTAL FLUEWAY SUFFIX V WPL 0095584 Contact Us For Availability
22
FLUEWAY, INSUL. COVER WPL Y0060500 Contact Us For Availability
22
INSULATION COVER SUFFIX V WPL Y0095468 Contact Us For Availability
22
RACK, BROILER 1/8``OVER. WPL Y0087532 Contact Us For Availability
22
RACK, OVEN 17 31/32X 18 1/2`` WPL Y0306409 Contact Us For Availability
23
BACKER, BROILER DOOR WPL 77254CG Contact Us For Availability
23
HEAT SHIELD, TOP WPL 0061050 Contact Us For Availability
23
TOP HEAT SHIELD SUFFIX V WPL Y0095751 Contact Us For Availability
24
COVER, FLUE WPL 0035897 Contact Us For Availability
24
BROILER DOOR PANEL W/WIND GOLD WPL 077314D Contact Us For Availability
24
PANEL, DOOR (ALMOND) WPL 305929L Contact Us For Availability
24
PANEL, DOOR (WHITE) WPL 305929W Contact Us For Availability
25
CAP, FLUE COLLAR WPL 0035139 Contact Us For Availability
25
ASS`Y, MTG CHANNEL WPL 0307560 Contact Us For Availability
25
ASS`Y, MTG. CHANNEL WPL Y0307561 Contact Us For Availability
26
SHIELD, HEAT WPL 0095051 Contact Us For Availability
27
SCREW 6X3/8 PHIL FLT HD WPL Y0094296 Contact Us For Availability
28
NUT, SPEED No.6-32 WPL Y0097916 Contact Us For Availability
29
ORIFICE BOX WPL Y0073889 Contact Us For Availability
30
KIT, HINGE GLIDE WPL 0052792 Contact Us For Availability
NI
SCREW WPL 0071798 Contact Us For Availability
NI
SCREW No.8-18X3/8 HEX HD. WPL 0305423 Contact Us For Availability
NI
SCREW LATCH ARM MOUNTING WPL Y0078780 Contact Us For Availability
NI
INSULATION,WRAPPER WPL Y0095195 Contact Us For Availability
NI
BRKT., HEAT CONTROL WPL 0057446 Contact Us For Availability
NI
CLIP WPL 0045415 Contact Us For Availability
NI
SCREW No.8X11/4 PH F H WPL Y0041804 Contact Us For Availability
NI
SHOULDER SCREW WPL Y0060923 Contact Us For Availability
NI
PIPE PLUG, 1/4`` WPL Y0064657 Contact Us For Availability
NI
INSULATION,WRAPPER WPL Y0095196 Contact Us For Availability
NI
IGNITOR, BKT. WPL Y0063784 Contact Us For Availability
NI
WIRE CONNECTOR WPL Y0065084 Contact Us For Availability
NI
SCREW 6X1/4 PHIL PAN HD WPL 0092372 Contact Us For Availability
NI
SWITCH BUSHING ,METAL WPL Y0042012 Contact Us For Availability
NI
BUSHING, SHAFT,BLACK NYLON WPL Y0061484 Contact Us For Availability
× ![]()
