Model Whirlpool RV15EFRXW00 – Common Parts & Diagrams

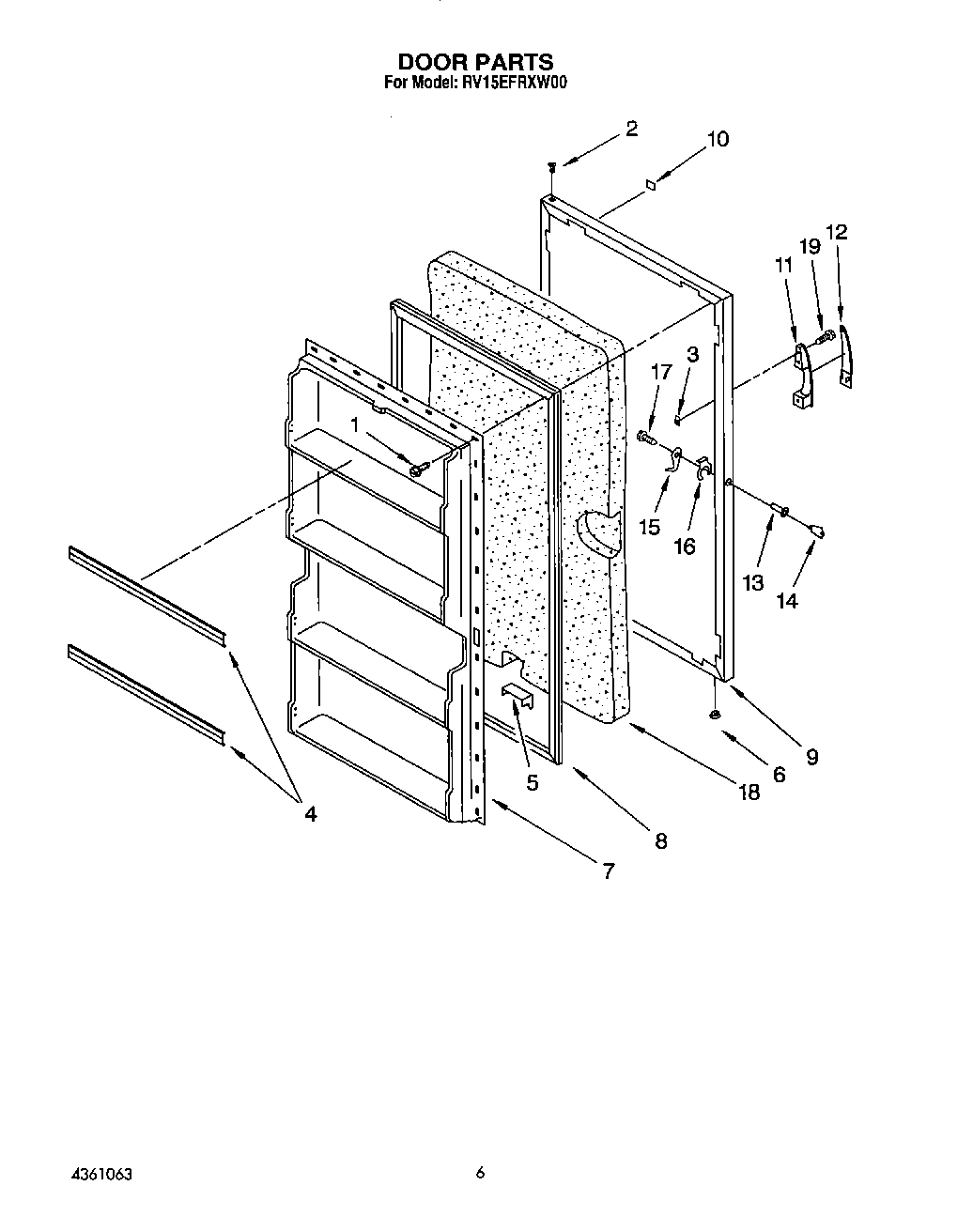

04 - DOOR

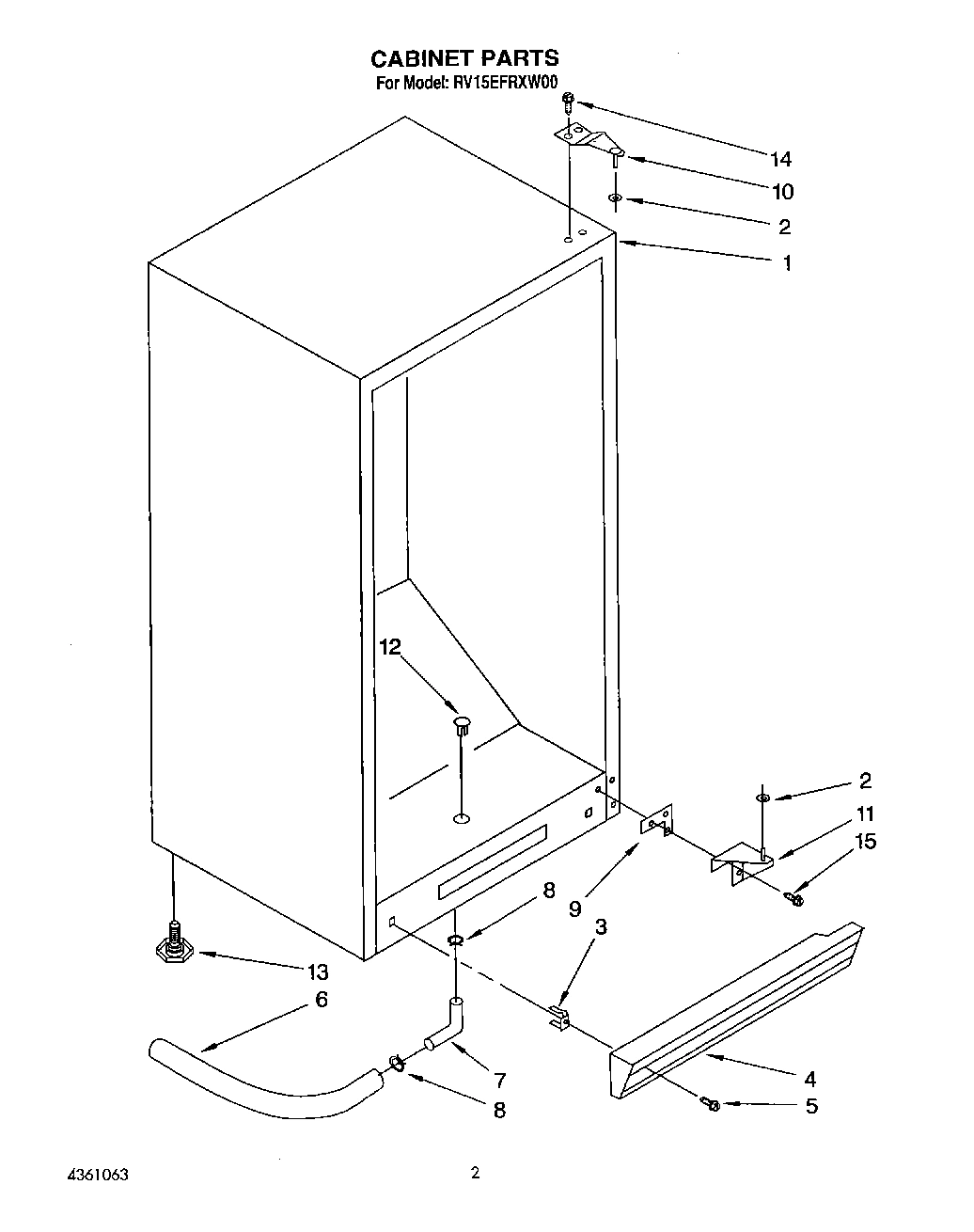

02 - CABINET

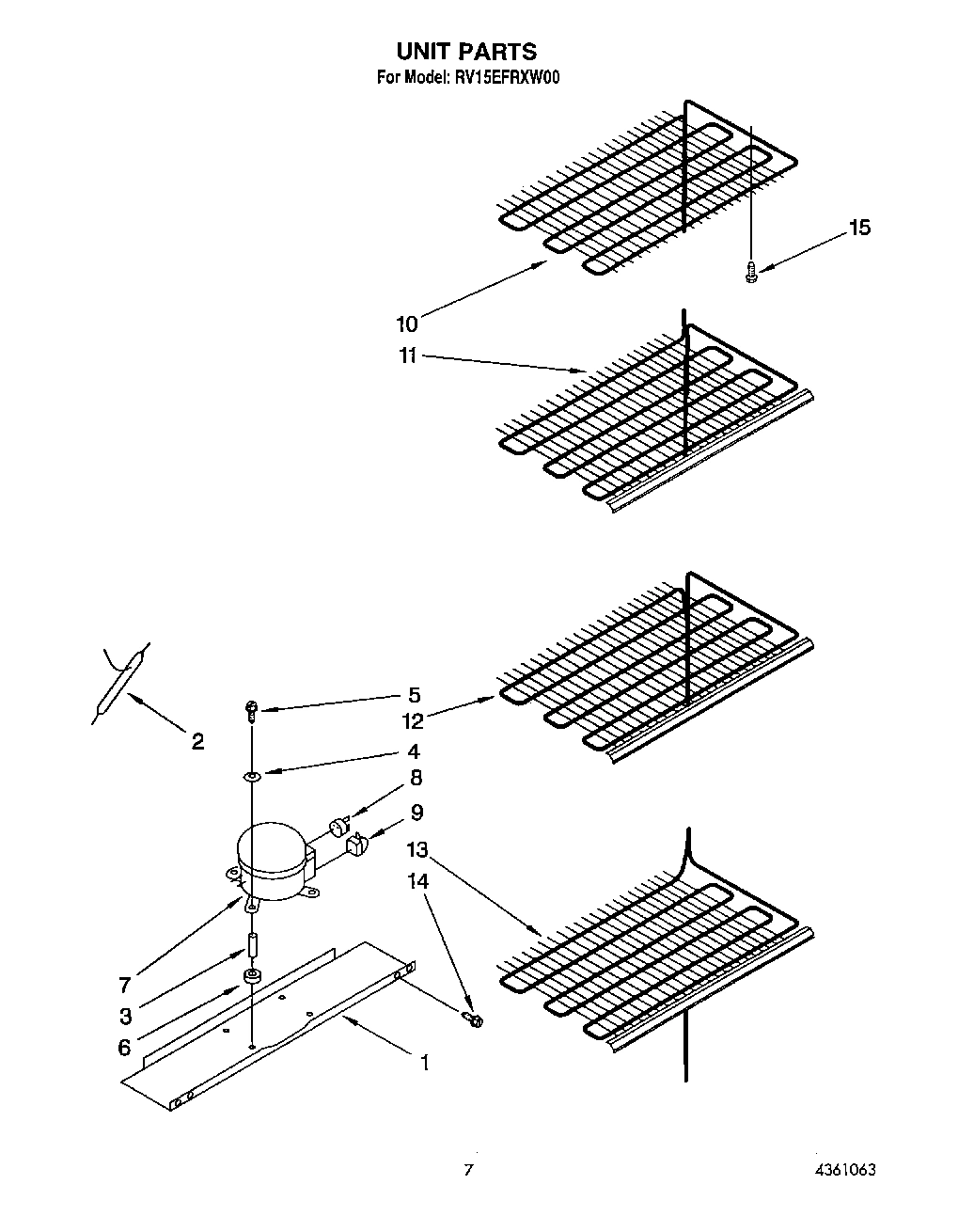

05 - UNIT

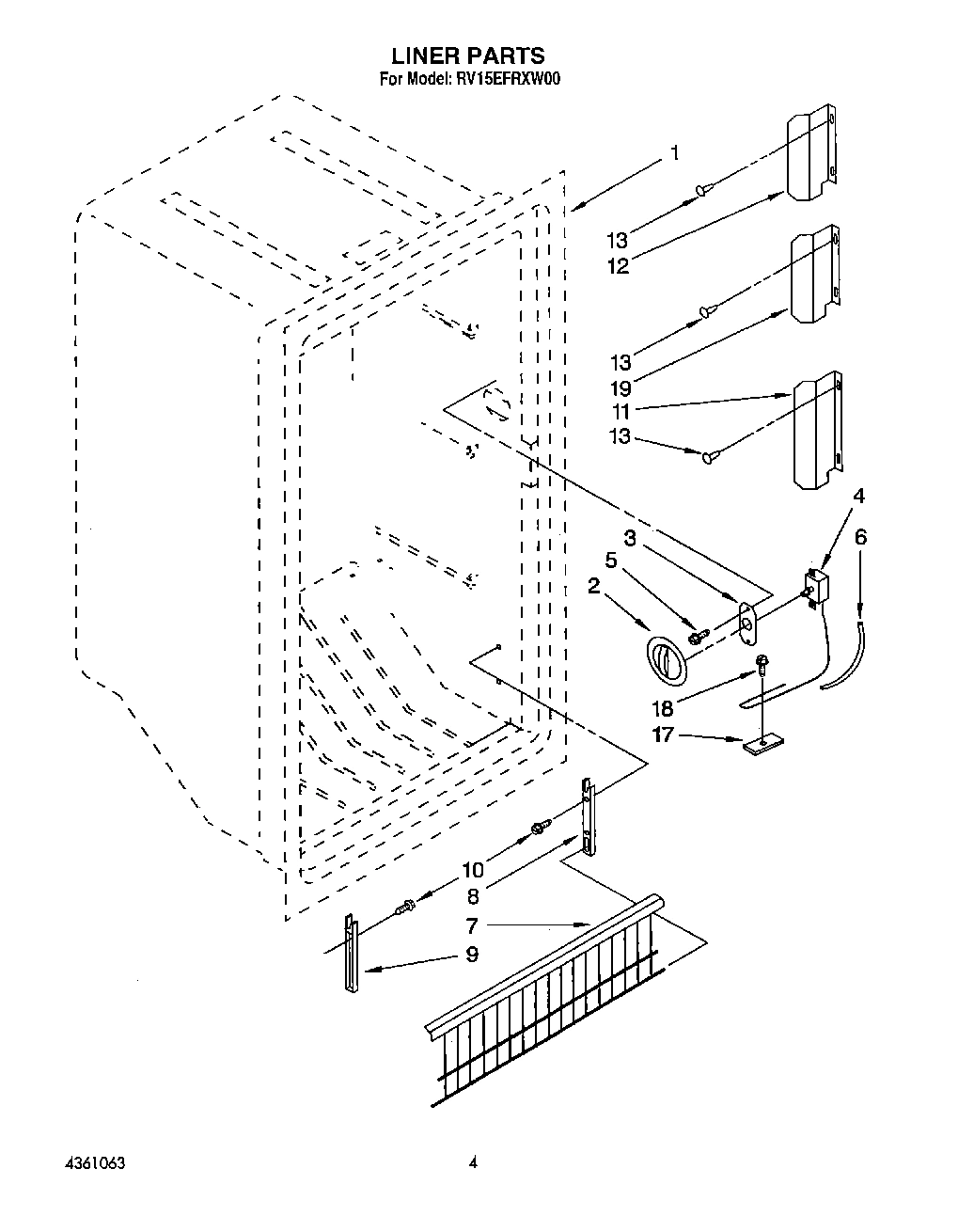

03 - LINER, LIT/OPTIONAL
Common parts from model Whirlpool RV15EFRXW00
Use & Care Guide WPL LIT4356900 Contact Us For Availability
Parts List WPL LIT4361063 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI128454A Contact Us For Availability
1
Compressor Mounting Pan WPL 4356837 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI128455A Contact Us For Availability
2
Control Knob WPL 4356802 Contact Us For Availability
4
Grille WPL 4356903 Contact Us For Availability
4
Washer WPL 4356847 Contact Us For Availability
4
Thermostat WPL 4356808 Contact Us For Availability
5
Compressor Mounting Screw WPL 4356852 Contact Us For Availability
5
Screw WPL 4356809 Contact Us For Availability
6
Drain Hose WPL 4356824 Contact Us For Availability
6
Compressor Grommet WPL 4356855 Contact Us For Availability
7
Tube, Drain WPL 4356825 Contact Us For Availability
7
Compressor WPL 4356856 Contact Us For Availability
7
Gate WPL 4356888 Contact Us For Availability
8
Hose Clamp WPL 4356827 Contact Us For Availability
8
Relay WPL 4356857 Contact Us For Availability
8
Support, Fence, (R.H.) WPL 4356889 Contact Us For Availability
9
Exterior Door (White) WPL 4356899 Contact Us For Availability
9
Shim, Bottom WPL 4356828 Contact Us For Availability
9
Overload WPL 4356858 Contact Us For Availability
10
Nameplate WPL 4356902 Contact Us For Availability
10
Top, Hinge WPL 4356833 Contact Us For Availability
10
Evaporator Top WPL 4356859 Contact Us For Availability
10
Screw WPL 4356891 Contact Us For Availability
11
Handle, Black WPL 4356913 Contact Us For Availability
11
Bottom, Hinge WPL 4356834 Contact Us For Availability
11
Evaporator Shelf (One) WPL 4356864 Contact Us For Availability
11
Tube, Cover Bottom WPL 4356867 Contact Us For Availability
12
Handle, Insert (Black) WPL 4356904 Contact Us For Availability
12
Drain Plug WPL 4356835 Contact Us For Availability
12
Evaporator Shelf (Two) WPL 4356865 Contact Us For Availability
12
Tube, Cover Top WPL 4356868 Contact Us For Availability
13
Evaporator Shelf (Three) WPL 4356866 Contact Us For Availability
13
Rivet, Plastic WPL 4356892 Contact Us For Availability
15
Lower, Hinge Screw WPL 4356822 Contact Us For Availability
15
Evaporator, Mounting Screw WPL 4356851 Contact Us For Availability
16
Spring, Clip Mounting WPL 4356842 Contact Us For Availability
18
Control Bulb Screw WPL 4356853 Contact Us For Availability
19
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
19
Screw, Handle WPL 302717 Contact Us For Availability
19
Screw Handle Lower WPL 488839 Contact Us For Availability
19
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
19
Tube, Cover Center WPL 4356897 Contact Us For Availability
19
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
× ![]()
