Model Whirlpool RV12EFRXW00 – Common Parts & Diagrams
02 - CABINET
04 - DOOR
03 - LINER, LIT/OPTIONAL

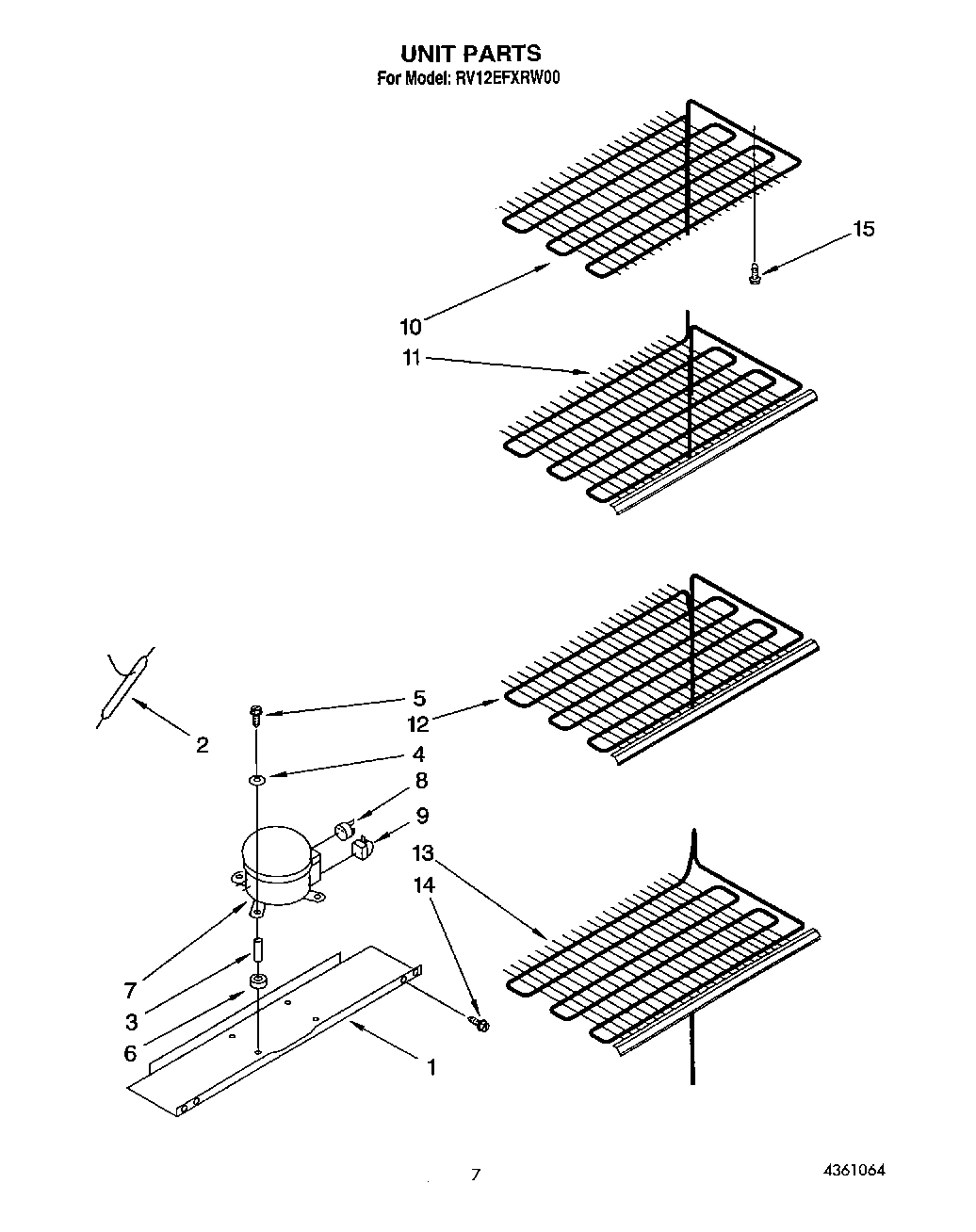

05 - UNIT
Common parts from model Whirlpool RV12EFRXW00
Use & Care Guide WPL LIT4356900 Contact Us For Availability
Parts List WPL LIT4361064 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI128427A Contact Us For Availability
1
Compressor Mounting Pan WPL 4356907 Contact Us For Availability
2
Control Knob WPL 4356802 Contact Us For Availability
3
Anchor, Screw WPL 4356812 Contact Us For Availability
4
Door Shelf Trim (4) WPL 4356877 Contact Us For Availability
4
Thermostat WPL 4356808 Contact Us For Availability
4
Washer WPL 4356847 Contact Us For Availability
5
Foam Block WPL 4356893 Contact Us For Availability
5
Screw WPL 4356809 Contact Us For Availability
5
Compressor Mounting Screw WPL 4356852 Contact Us For Availability
6
Compressor Grommet WPL 4356855 Contact Us For Availability
7
Interior Door WPL 4356878 Contact Us For Availability
7
Gate WPL 4356898 Contact Us For Availability
7
Compressor WPL 4356908 Contact Us For Availability
8
Door Gasket WPL 4356879 Contact Us For Availability
8
Support, Fence, (R.H.) WPL 4356889 Contact Us For Availability
8
Relay WPL 4356857 Contact Us For Availability
9
Shim, Bottom WPL 4356828 Contact Us For Availability
9
Exterior Door (White) WPL 4356905 Contact Us For Availability
9
Overload WPL 4356906 Contact Us For Availability
10
Top, Hinge WPL 4356833 Contact Us For Availability
10
Nameplate WPL 4356902 Contact Us For Availability
10
Screw WPL 4356891 Contact Us For Availability
10
Evaporator Top WPL 4356882 Contact Us For Availability
11
Bottom, Hinge WPL 4356834 Contact Us For Availability
11
Handle, Black WPL 4356913 Contact Us For Availability
11
Tube, Cover Bottom WPL 4356867 Contact Us For Availability
11
Evaporator Shelf (One) WPL 4356885 Contact Us For Availability
12
Drain Plug WPL 4356835 Contact Us For Availability
12
Handle, Insert (Black) WPL 4356904 Contact Us For Availability
12
Tube, Cover Top WPL 4356868 Contact Us For Availability
12
Evaporator Shelf (Two) WPL 4356886 Contact Us For Availability
13
Rivet, Plastic WPL 4356892 Contact Us For Availability
13
Evaporator Shelf (Three) WPL 4356887 Contact Us For Availability
15
Lower, Hinge Screw WPL 4356822 Contact Us For Availability
15
Evaporator, Mounting Screw WPL 4356851 Contact Us For Availability
16
Spring, Clip Mounting WPL 4356842 Contact Us For Availability
18
Control Bulb Screw WPL 4356853 Contact Us For Availability
19
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
19
Screw, Handle WPL 302717 Contact Us For Availability
19
Screw Handle Lower WPL 488839 Contact Us For Availability
19
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
19
Tube, Cover Center WPL 4356897 Contact Us For Availability
19
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
× ![]()
