Model Whirlpool RV1299RBW00 – Common Parts & Diagrams
01 - CABINET
03 - UNIT

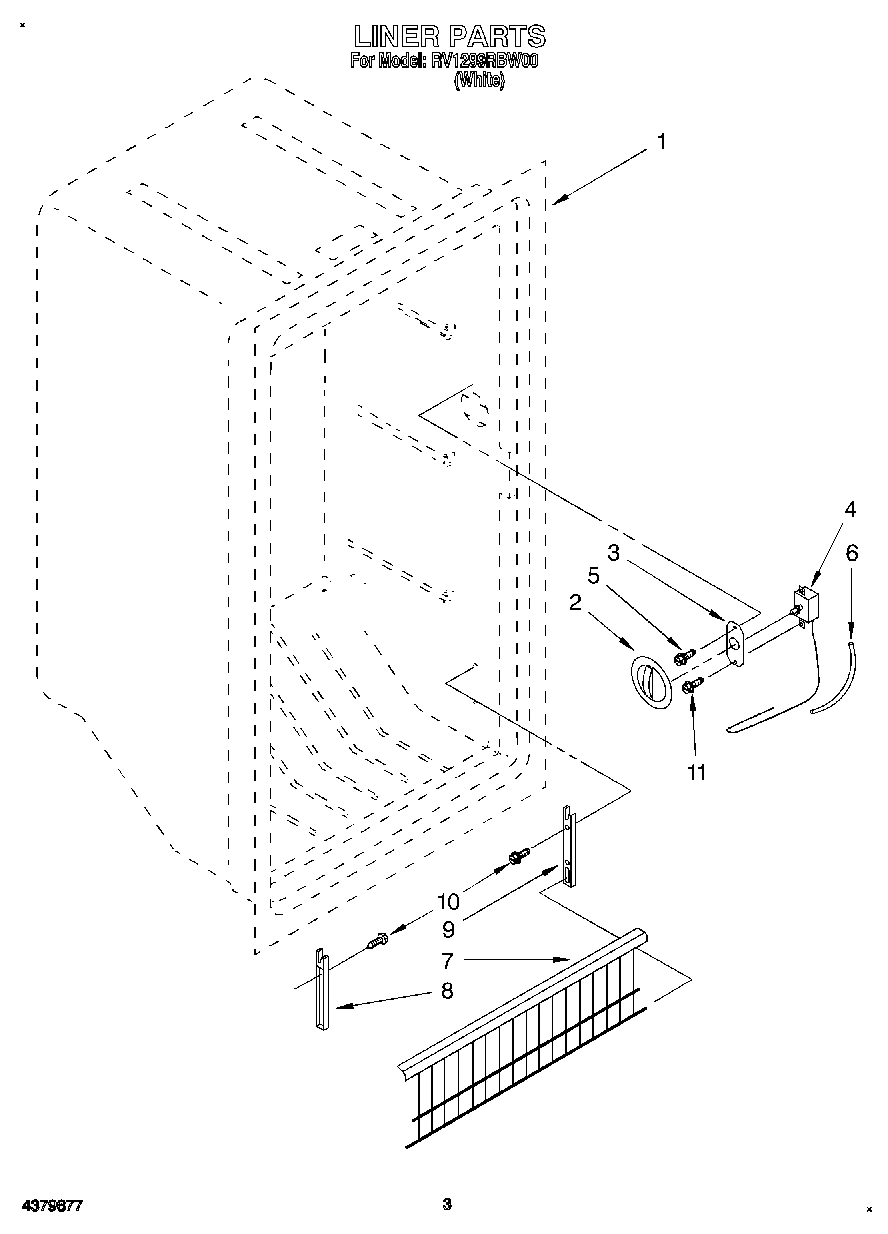

02 - LINER, LIT/OPTIONAL
Common parts from model Whirlpool RV1299RBW00
Use & Care Guide WPL LIT2165596 Contact Us For Availability
Wiring Diagram WPL LIT4357018 Contact Us For Availability
1
Compressor Mounting Pan WPL 4357056 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI128417A Contact Us For Availability
2
Control Knob WPL 4357040 Contact Us For Availability
4
Washer WPL 4356847 Contact Us For Availability
4
Thermostat WPL 4356808 Contact Us For Availability
5
Compressor Mounting Screw WPL 4357054 Contact Us For Availability
6
Compressor Grommet WPL 4356335 Contact Us For Availability
7
Tube, Drain WPL 4356825 Contact Us For Availability
7
Compressor WPL 4357053 Contact Us For Availability
7
Gate WPL 4356898 Contact Us For Availability
8
Hose Clamp WPL 4356827 Contact Us For Availability
8
Relay WPL 4356994 Contact Us For Availability
8
Support, Fence, (L.H.) WPL 4356889 Contact Us For Availability
9
Shim, Bottom WPL 4356828 Contact Us For Availability
9
Overload WPL 4357021 Contact Us For Availability
10
Top, Hinge WPL 4357052 Contact Us For Availability
10
Evaporator Top WPL 4356882 Contact Us For Availability
10
Screw WPL 4356891 Contact Us For Availability
11
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
11
Bottom, Hinge WPL 4357050 Contact Us For Availability
11
Evaporator Shelf WPL 4357008 Contact Us For Availability
12
Drain Plug WPL 4357019 Contact Us For Availability
12
Evaporator Shelf WPL 4356885 Contact Us For Availability
13
Evaporator Shelf WPL 4356887 Contact Us For Availability
15
Grommet, Drain WPL 4357044 Contact Us For Availability
15
Evaporator, Mounting Screw WPL 4356851 Contact Us For Availability
16
Power Cord WPL 4357058 Contact Us For Availability
16
Heat Exchanger WPL 4356999 Contact Us For Availability
17
Cover WPL 4356946 Contact Us For Availability
18
Cover Clip WPL 4356951 Contact Us For Availability
× ![]()
