Model Whirlpool RUD0800EB – Common Parts & Diagrams
01 - CONTROL PANEL
02 - DOOR AND TOE PANEL

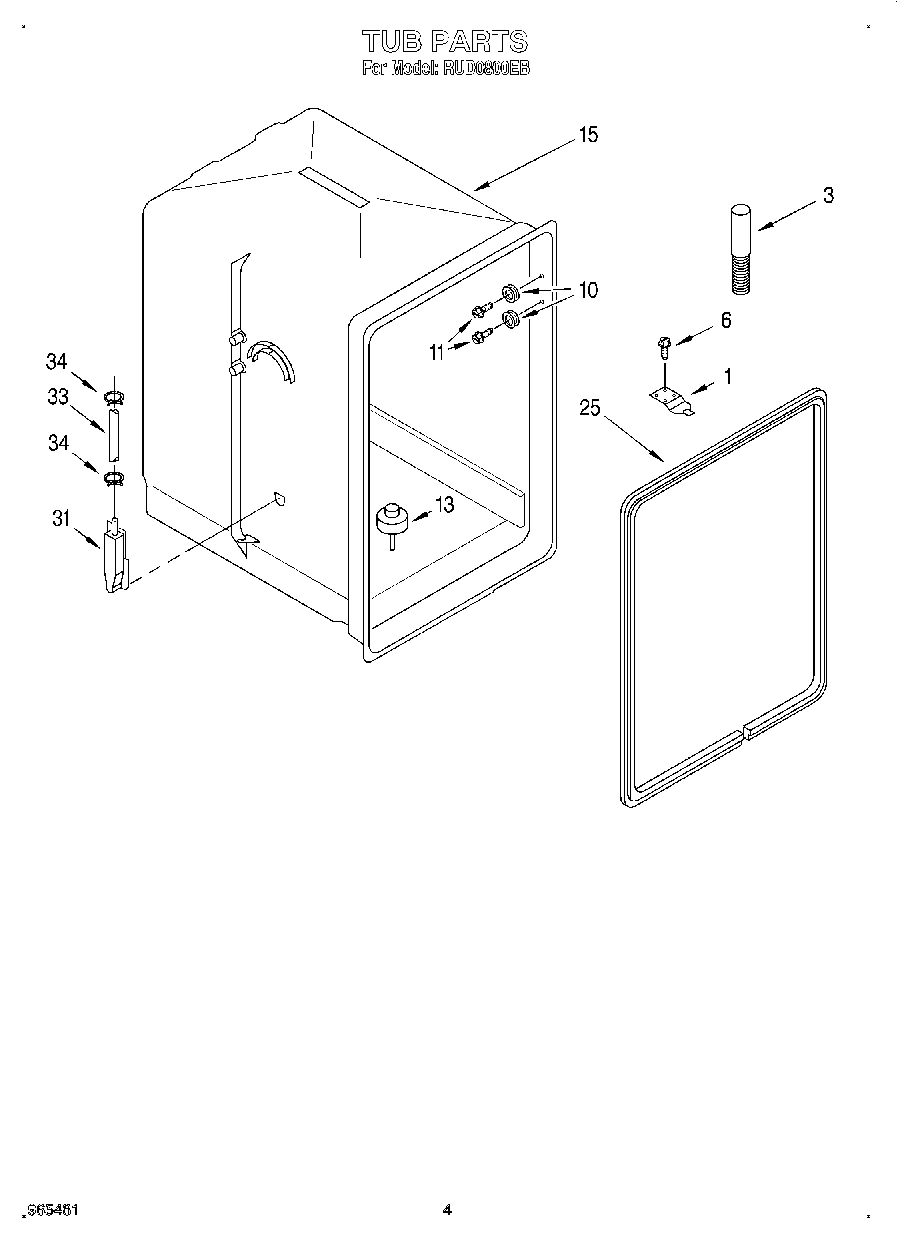

03 - TUB

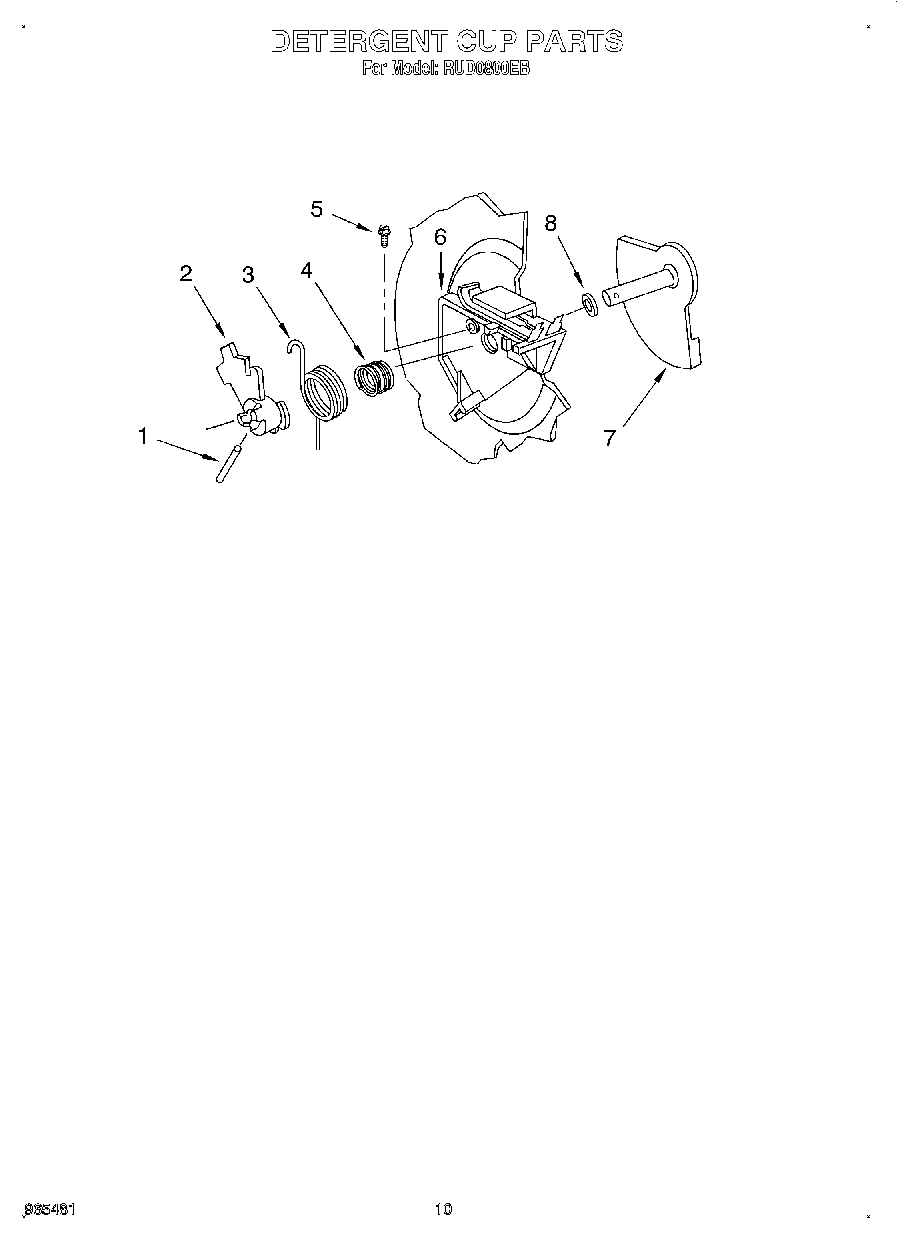

07 - DETERGENT CUP

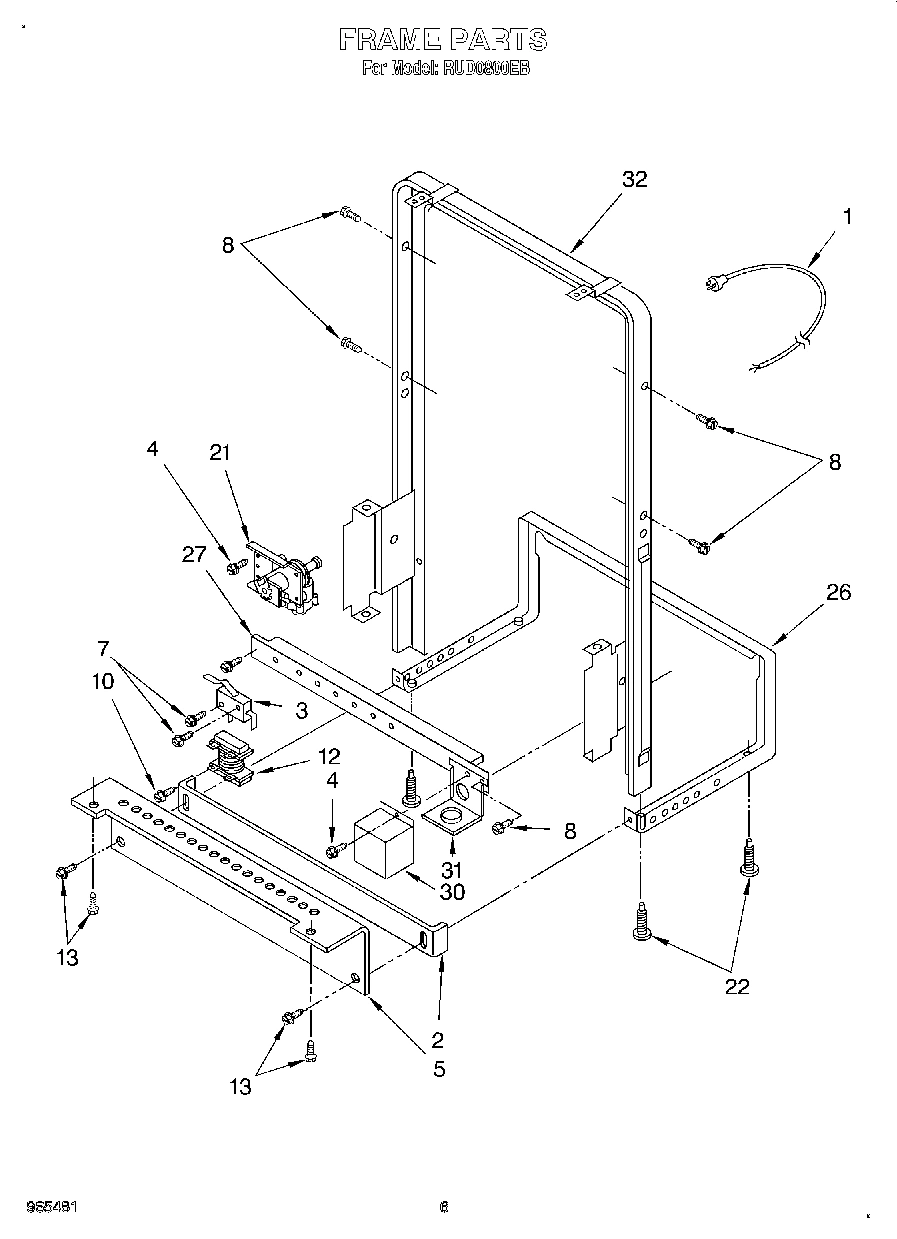

05 - FRAME, LIT/OPTIONAL

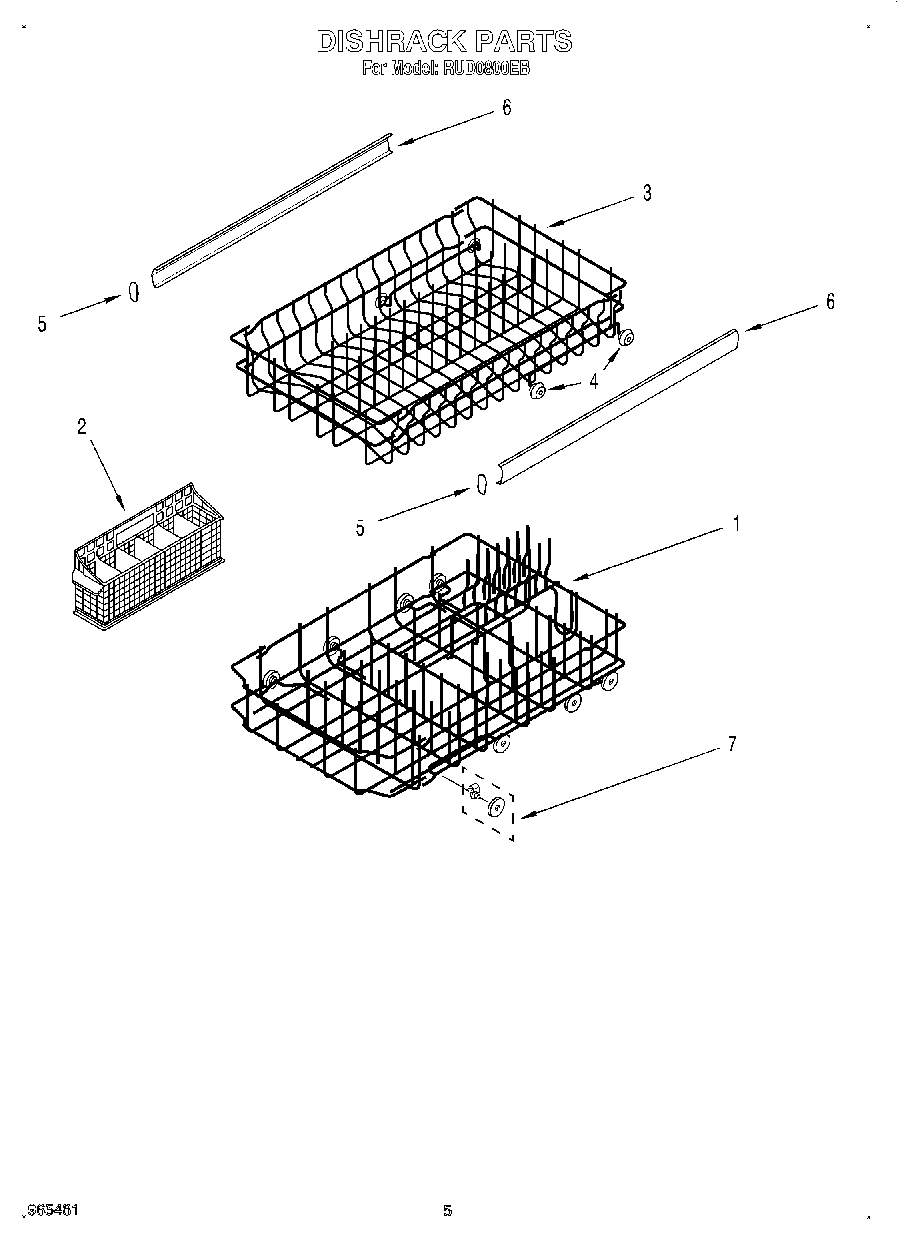

04 - DISHRACK

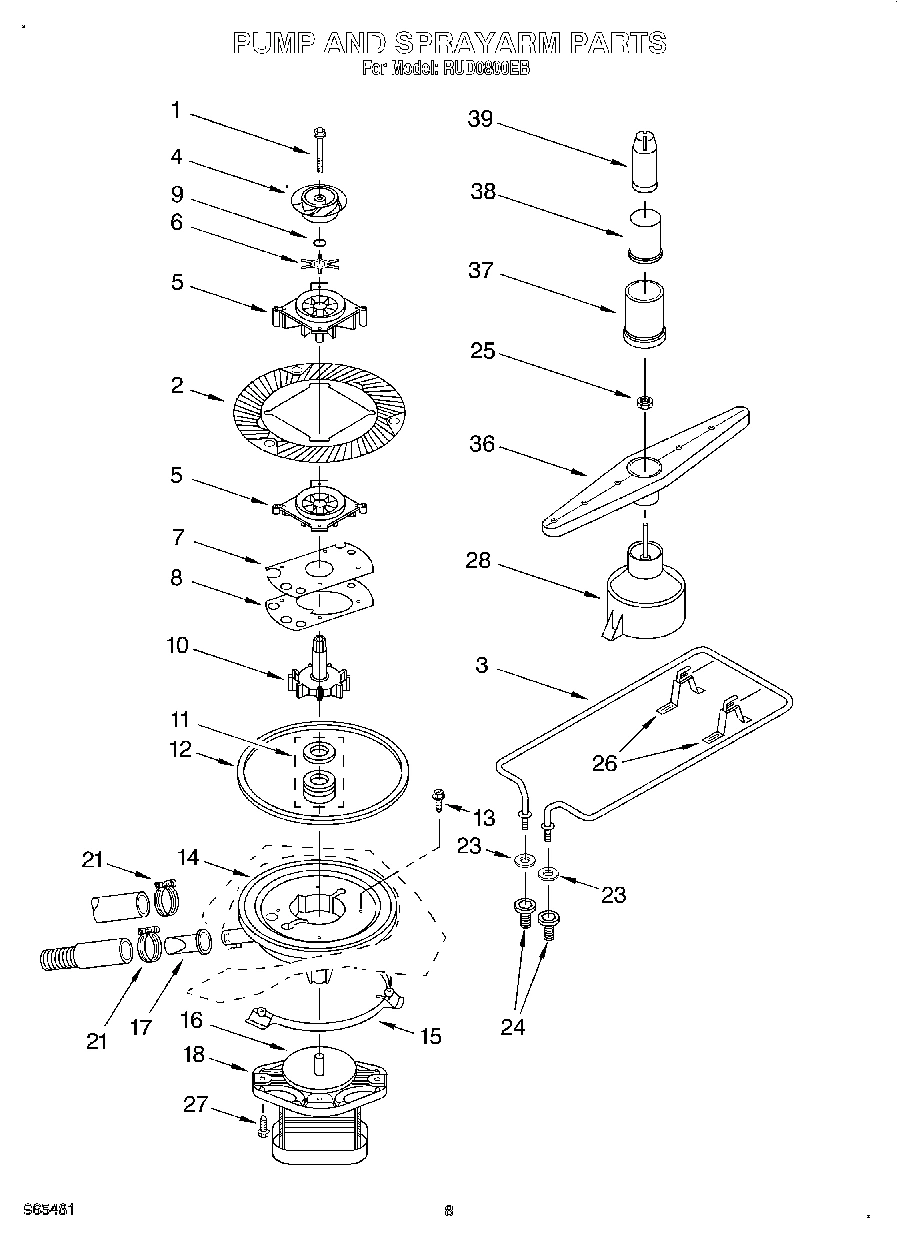

06 - PUMP AND SPRAYARM
Common parts from model Whirlpool RUD0800EB
Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability
Kit, Epoxy Patch (White) WPL 799640 Contact Us For Availability
Guide, Use & Care WPL LIT965480 Contact Us For Availability
Instructions, Installation WPL LIT965557 Contact Us For Availability
Guide, Energy WPL LIT965558 Contact Us For Availability
1
Strike, Door WPL 965523 Contact Us For Availability
1
Pin, Spiral WPL 965448 Contact Us For Availability
1
Power Cord (optional) WPL 965337 Contact Us For Availability
1
Dishrack, Lower (Includes Item 7) WPL 965550 Contact Us For Availability
1
Screw, No.10-32 x 2 1/4 WPL 4340235 Contact Us For Availability
2
Screw, 8 x 5/8 WPL 965488 Contact Us For Availability
2
Cam WPL 965473 Contact Us For Availability
2
Toeplate, Adjustable WPL 965518 Contact Us For Availability
2
Basket, Silverware WPL 965551 Contact Us For Availability
2
Plate, Strainer WPL 965547 Contact Us For Availability
3
Cover, Vent WPL 965505 Contact Us For Availability
3
Hose, Drain WPL 965524 Contact Us For Availability
3
Spring, Cam WPL 965201 Contact Us For Availability
3
Switch, Float WPL 965520 Contact Us For Availability
3
Dishrack, Upper (Includes Item 4) WPL 965552 Contact Us For Availability
3
Heater WPL 965534 Contact Us For Availability
4
Screw, Vent Cover WPL 965506 Contact Us For Availability
4
Spring, Cam Compression WPL 965202 Contact Us For Availability
4
Screw, 10-32 x 3/8 WPL 965510 Contact Us For Availability
4
Wheel Assembly, Upper Rack (4) WPL 965553 Contact Us For Availability
4
Upper Impeller WPL 965384 Contact Us For Availability
5
Gasket, Vent Cover WPL 965507 Contact Us For Availability
5
Screw WPL 965509 Contact Us For Availability
5
Toeplate WPL 965511 Contact Us For Availability
5
End Cap, Slide (4) WPL 965554 Contact Us For Availability
5
Spacer Plate WPL 965385 Contact Us For Availability
6
Handle, Door WPL 965562 Contact Us For Availability
6
Bi-Metal Assembly WPL 965476 Contact Us For Availability
6
Bracket, Float Switch WPL 965521 Contact Us For Availability
6
Slide, Rack (2) WPL 965555 Contact Us For Availability
6
Macerator WPL 965390 Contact Us For Availability
7
Lid, Dispenser WPL 965474 Contact Us For Availability
7
Screw, 10 x 5/8 WPL 965522 Contact Us For Availability
7
Wheel Assembly, Lower Rack (4) WPL 965556 Contact Us For Availability
7
Pump Plate WPL 4340510 Contact Us For Availability
8
Screw, 10-10 x 9/16 WPL 965477 Contact Us For Availability
8
Washer (See Illus. No. 11) WPL ARI128308A Contact Us For Availability
8
``O`` Ring WPL 965475 Contact Us For Availability
8
Pump Gasket WPL 4340487 Contact Us For Availability
9
O-Ring WPL 4340254 Contact Us For Availability
10
Roller, Tub WPL 965526 Contact Us For Availability
10
Screw, Relay WPL 4340129 Contact Us For Availability
10
Pump Seal Kit WPL 965396 Contact Us For Availability
11
Arm Assembly (R.H. & L.H.) WPL 965489 Contact Us For Availability
11
Screw, Roller (Includes Item 8) WPL 965527 Contact Us For Availability
11
Water Seal WPL 4340106 Contact Us For Availability
12
Relay, Motor WPL 965465 Contact Us For Availability
12
Gasket, Pump WPL 965535 Contact Us For Availability
13
Screw, 8A x 3/8 WPL 4340701 Contact Us For Availability
13
Seal, Baffle WPL 965490 Contact Us For Availability
13
Float WPL 965528 Contact Us For Availability
13
Screw, Pump Housing WPL 965536 Contact Us For Availability
14
Door, Inner WPL 965491 Contact Us For Availability
14
Housing, Pump WPL 965537 Contact Us For Availability
15
Nut, Arm Assembly WPL 965492 Contact Us For Availability
15
Tub & Gasket Assembly (Includes Item 25) WPL 965529 Contact Us For Availability
15
Clamp, Pump WPL 965538 Contact Us For Availability
16
Watershield Assembly WPL 4340897 Contact Us For Availability
17
Valve, Check WPL 965418 Contact Us For Availability
18
Spring, Door WPL 965493 Contact Us For Availability
18
Motor Assembly WPL 965539 Contact Us For Availability
19
Screw, Arm Assembly WPL 965494 Contact Us For Availability
19
Tool, Seal Installation WPL 4340107 Contact Us For Availability
20
Pad, Spring WPL 965181 Contact Us For Availability
21
Speednut, Baffle WPL 965495 Contact Us For Availability
21
Clamp, Hose WPL 965540 Contact Us For Availability
22
Levelers (4) WPL 965513 Contact Us For Availability
23
Harness, Wiring WPL 965496 Contact Us For Availability
23
Washer, Insulating WPL 965541 Contact Us For Availability
24
Panel, Door WPL 965497 Contact Us For Availability
24
Nut, Heater WPL 965542 Contact Us For Availability
25
Trim, Side Door WPL 965459 Contact Us For Availability
25
Gasket, Tub WPL 965530 Contact Us For Availability
25
Nut, Spray Arm WPL 965548 Contact Us For Availability
26
Frame, Rear WPL 965514 Contact Us For Availability
26
Bracket, Heater WPL 965549 Contact Us For Availability
27
Insert, Access Panel (White & Clear) WPL 965498 Contact Us For Availability
27
Brace, Front WPL 965519 Contact Us For Availability
27
Screw, Motor Mounting WPL 965543 Contact Us For Availability
28
Insert, Door Panel (White & Clear) WPL 965561 Contact Us For Availability
28
Diffuser WPL 965544 Contact Us For Availability
29
Trim, Access Panel - L.H. WPL 965500 Contact Us For Availability
30
Trim, Door Bottom WPL 965501 Contact Us For Availability
30
Cover, Junction Box WPL 965515 Contact Us For Availability
31
Trim, Access Panel Bottom WPL 965413 Contact Us For Availability
31
Inlet, Water WPL 965533 Contact Us For Availability
31
Bracket, Junction Box WPL 965516 Contact Us For Availability
32
Trim, Access Panel - R.H. WPL 965559 Contact Us For Availability
32
Frame Assy., Front WPL 965517 Contact Us For Availability
33
Panel, Access WPL 965502 Contact Us For Availability
33
Tubing, Inlet (Includes Item 34) WPL 965531 Contact Us For Availability
34
Clamp (2) WPL 965532 Contact Us For Availability
36
Sprayarm, Lower WPL 965545 Contact Us For Availability
37
Trim, Access Panel Top WPL 965339 Contact Us For Availability
37
Base, Tower WPL 965462 Contact Us For Availability
38
Plunger, Dispenser WPL 965503 Contact Us For Availability
38
Middle, Tower WPL 965463 Contact Us For Availability
39
Plug, Fill WPL 965504 Contact Us For Availability
39
Tip, Tower WPL 965546 Contact Us For Availability
40
Body Assembly WPL 4340284 Contact Us For Availability
41
Bi-Metal Assembly WPL 965427 Contact Us For Availability
42
Grommet, Dispenser WPL 4340168 Contact Us For Availability
42
Panel, Door & Access WPL 965499 Contact Us For Availability
× ![]()
