Model Whirlpool RTW2201AAW REFRIGERATOR – Common Parts & Diagrams

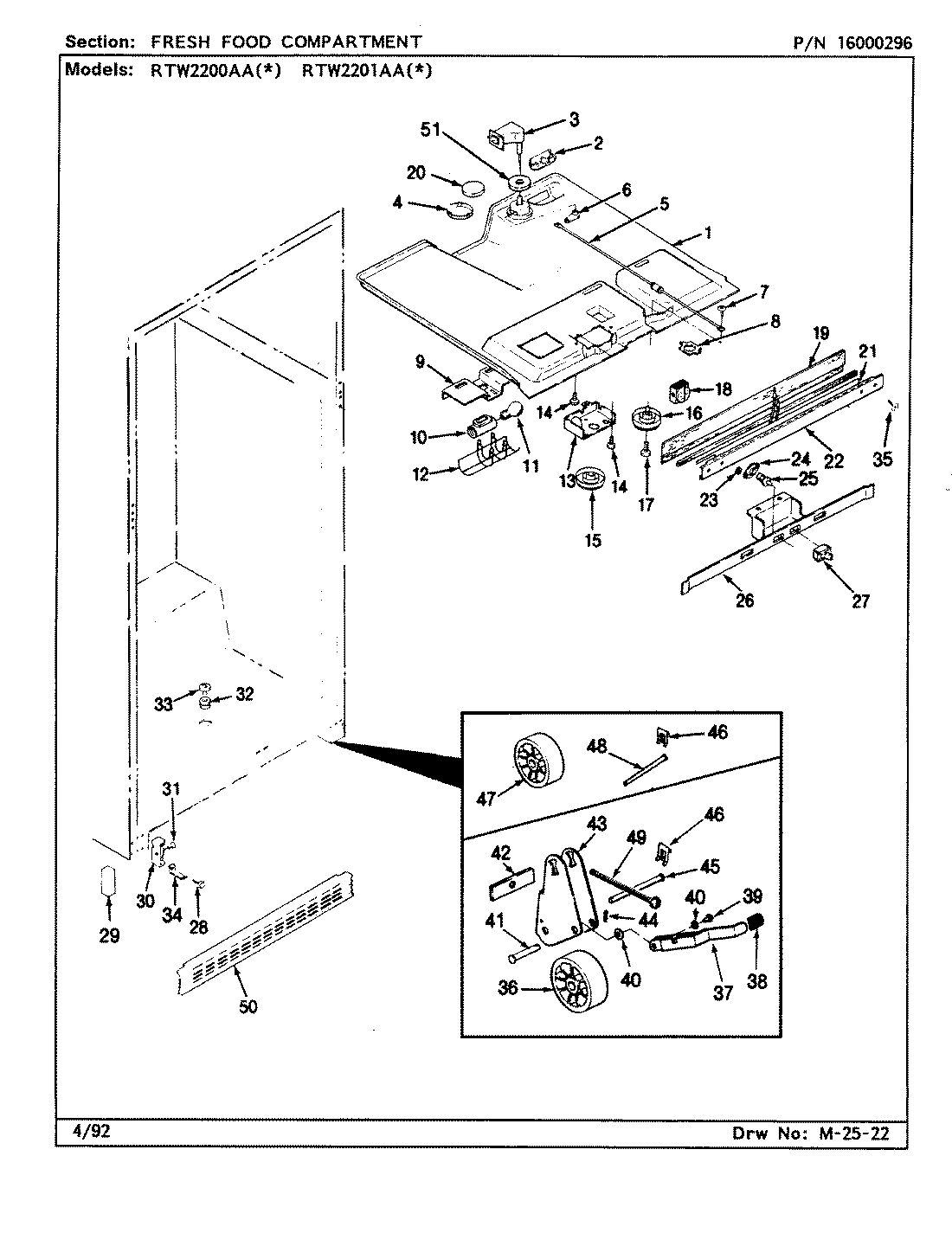

01 - FRESH FOOD COMPARTMENT
Common parts from model Whirlpool RTW2201AAW REFRIGERATOR
1
TOP, F.F. COMPARTMENT WPL 671111 Contact Us For Availability
2
DEFLECTOR WPL 601202 Contact Us For Availability
3
ORIFICE DAMPER ASSEMBLY WPL 675584 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
5
ROD FREEZER CONTROL WPL 674992 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
8
RIVET WPL 263979 Contact Us For Availability
8
BRACKET, LIGHT WPL 677031 Contact Us For Availability
9
SHIELD HEAT WPL 675011 Contact Us For Availability
10
HOLDER, LAMP WPL 673691 Contact Us For Availability
12
GUARD, LIGHT WPL 671901 Contact Us For Availability
12
RETAINER LIGHT----NA WPL 675411 Contact Us For Availability
13
COVER THERMOSTAT WPL 671691 Contact Us For Availability
14
ANCHOR WPL 603193 Contact Us For Availability
15
KNOB, CONTROL WPL 672451 Contact Us For Availability
16
KNOB CONTROL WPL 672441 Contact Us For Availability
17
SCREW WPL 405016103 Contact Us For Availability
17
WASHER, SPRING WPL 420092900 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
GROUND WIRE, CONTROL WPL 2967533 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 681192 Contact Us For Availability
19
INSULATION WPL 601403 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
21
HEATER MULLION WPL 675323 Contact Us For Availability
21
WIRE HARNESS MULLION WPL 691532 Contact Us For Availability
22
MULLION FRONT WPL 672476AM Contact Us For Availability
22
MULLION FRONT WPL 672476WW Contact Us For Availability
23
NUT, PUSH-ON WPL 431041505 Contact Us For Availability
24
GROUND PLATE WPL 673601 Contact Us For Availability
25
SWITCH, PLUN WPL 677241 Contact Us For Availability
25
WIRE HARNESS WPL 691541 Contact Us For Availability
26
SCREW WPL 400015103 Contact Us For Availability
26
SCREW, PANEL WPL 402020103 Contact Us For Availability
26
FACADE, CONTROL WPL 672531 Contact Us For Availability
27
SWITCH, MULLION WPL 673631 Contact Us For Availability
29
COVER HINGE WPL 671173 Contact Us For Availability
30
SCREW WPL 4000171 Contact Us For Availability
30
END CAP (R) WPL 678541 Contact Us For Availability
30
END CAP (L) WPL 678542 Contact Us For Availability
31
SCREW WPL 4000611 Contact Us For Availability
32
TUBE, DRAIN WPL 545317 Contact Us For Availability
33
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
34
CLIP, KICKPLATE WPL 672591 Contact Us For Availability
35
SCREW, TAPPING PLATE WPL 6527510 Contact Us For Availability
35
SCREW, CENTER HINGE WPL 6527521 Contact Us For Availability
36
WHEEL FRONT WPL 674551 Contact Us For Availability
37
LEVER, LOCK (LEFT) WPL 676811 Contact Us For Availability
37
LEVER, LOCK (RIGHT) WPL 676812 Contact Us For Availability
38
HANDLE, LOCK LEVER WPL 675281 Contact Us For Availability
39
SCREW WPL 4060461 Contact Us For Availability
40
WASHER WPL 420007400 Contact Us For Availability
41
AXLE WHEEL WPL 675291 Contact Us For Availability
42
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
43
BRACKET, WHEEL WPL 675301 Contact Us For Availability
44
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
46
CLIP WPL 602161 Contact Us For Availability
47
WHEEL, ROLLER WPL 674552 Contact Us For Availability
48
PIN, WHEEL WPL 298352 Contact Us For Availability
49
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
49
SCREW, WHEEL ADJUSTMENT WPL 4060831 Contact Us For Availability
50
GRILL, KICKPLATE WPL 670234 Contact Us For Availability
51
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
× ![]()
