Model Whirlpool RTW2200CAL REFRIGERATOR – Common Parts & Diagrams
04 - ICE & WATER DISPENSER
08 - UNIT COMPARTMENT & SYSTEM

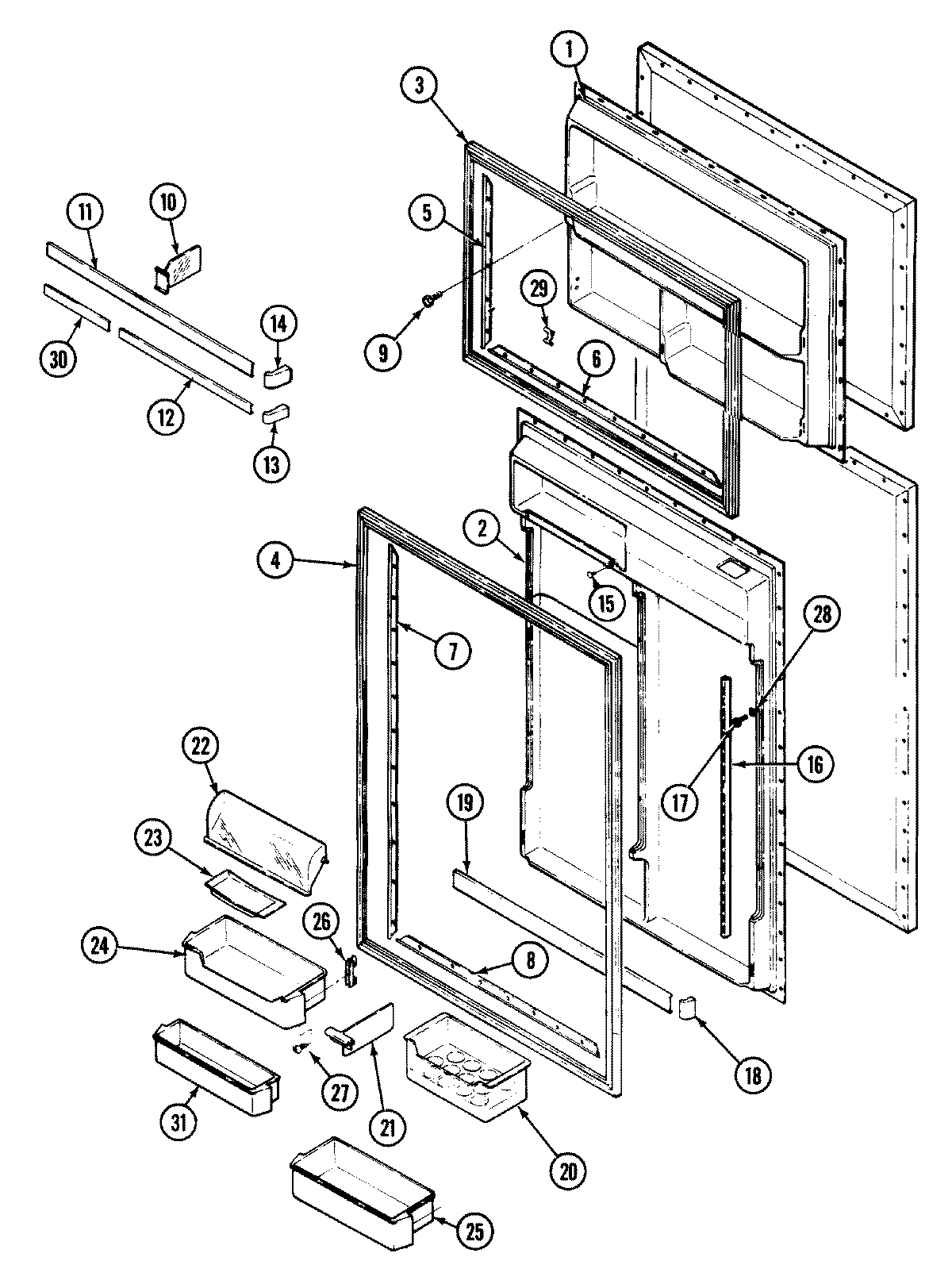

01 - DOOR (INNER)

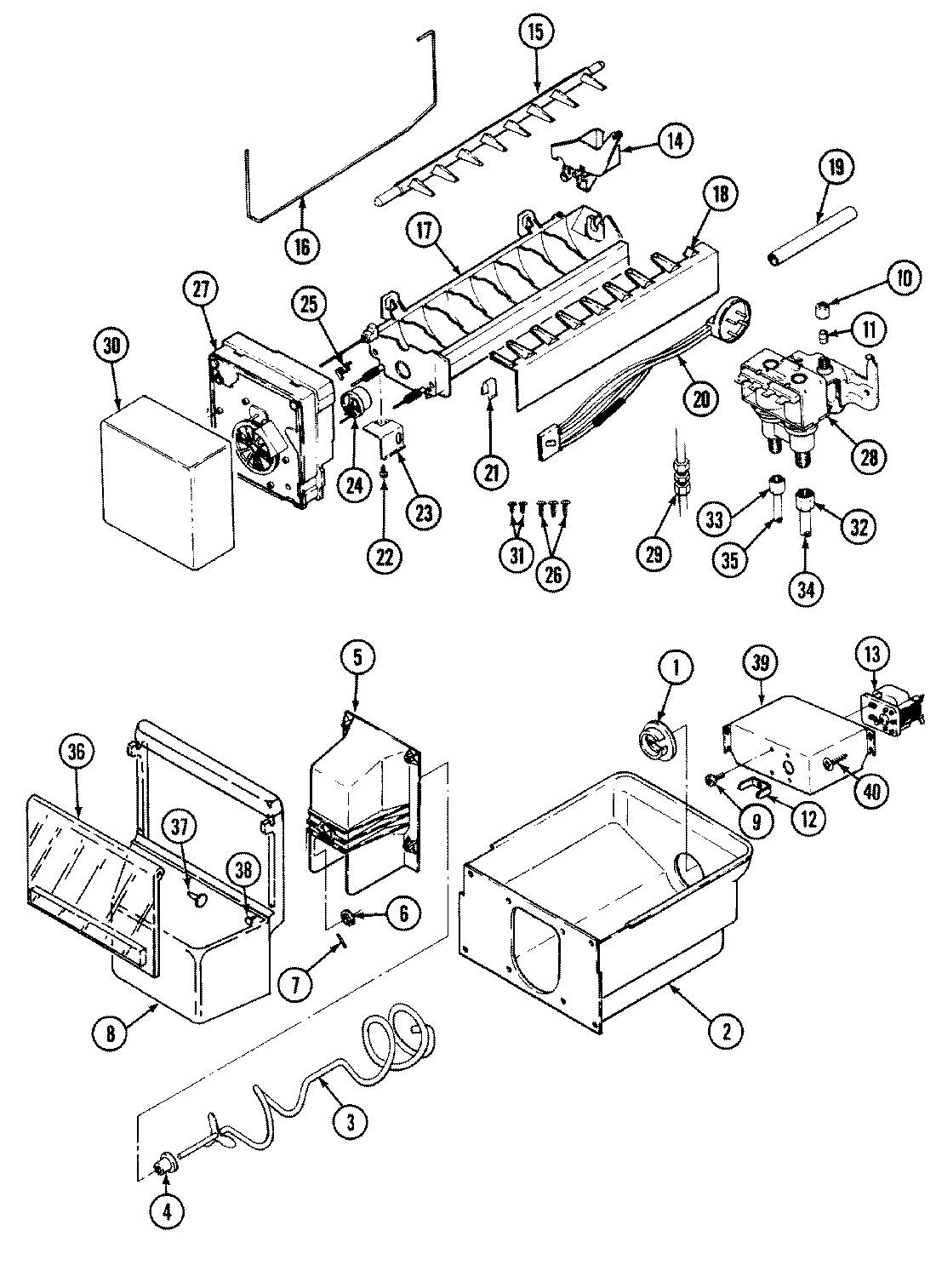

05 - ICE MAKER & BIN

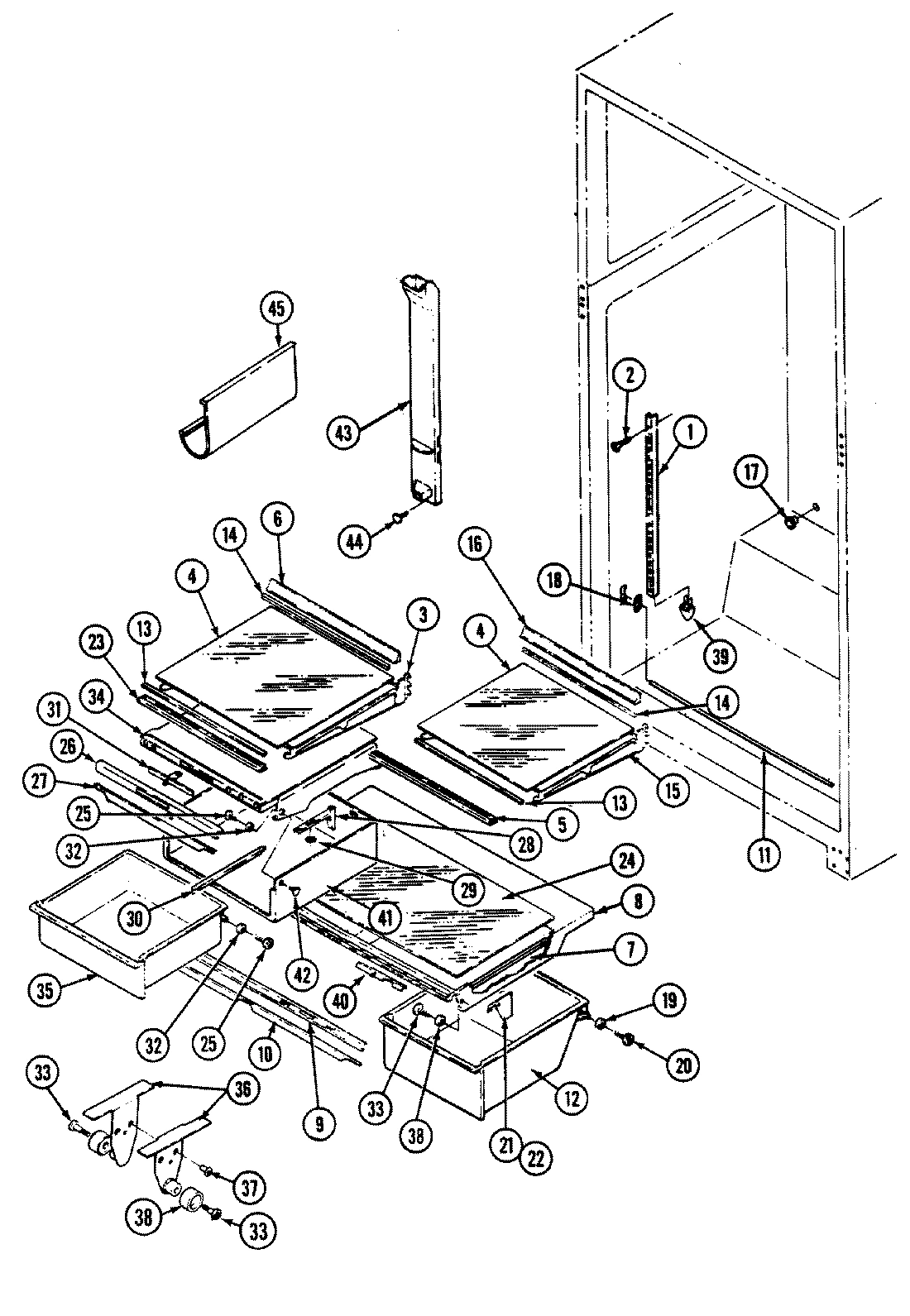

07 - SHELVES & ACCESSORIES

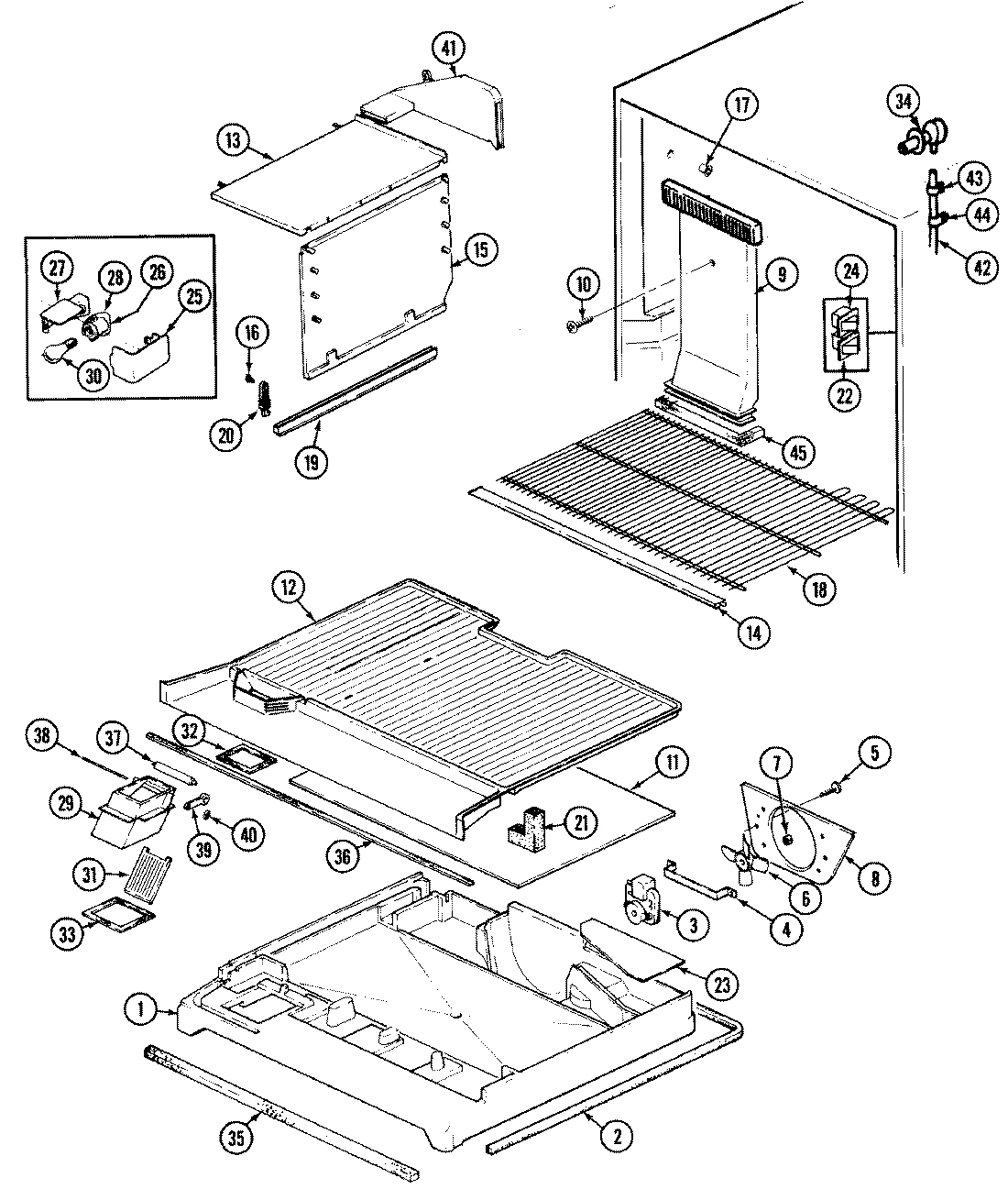

02 - FREEZER COMPARTMENT

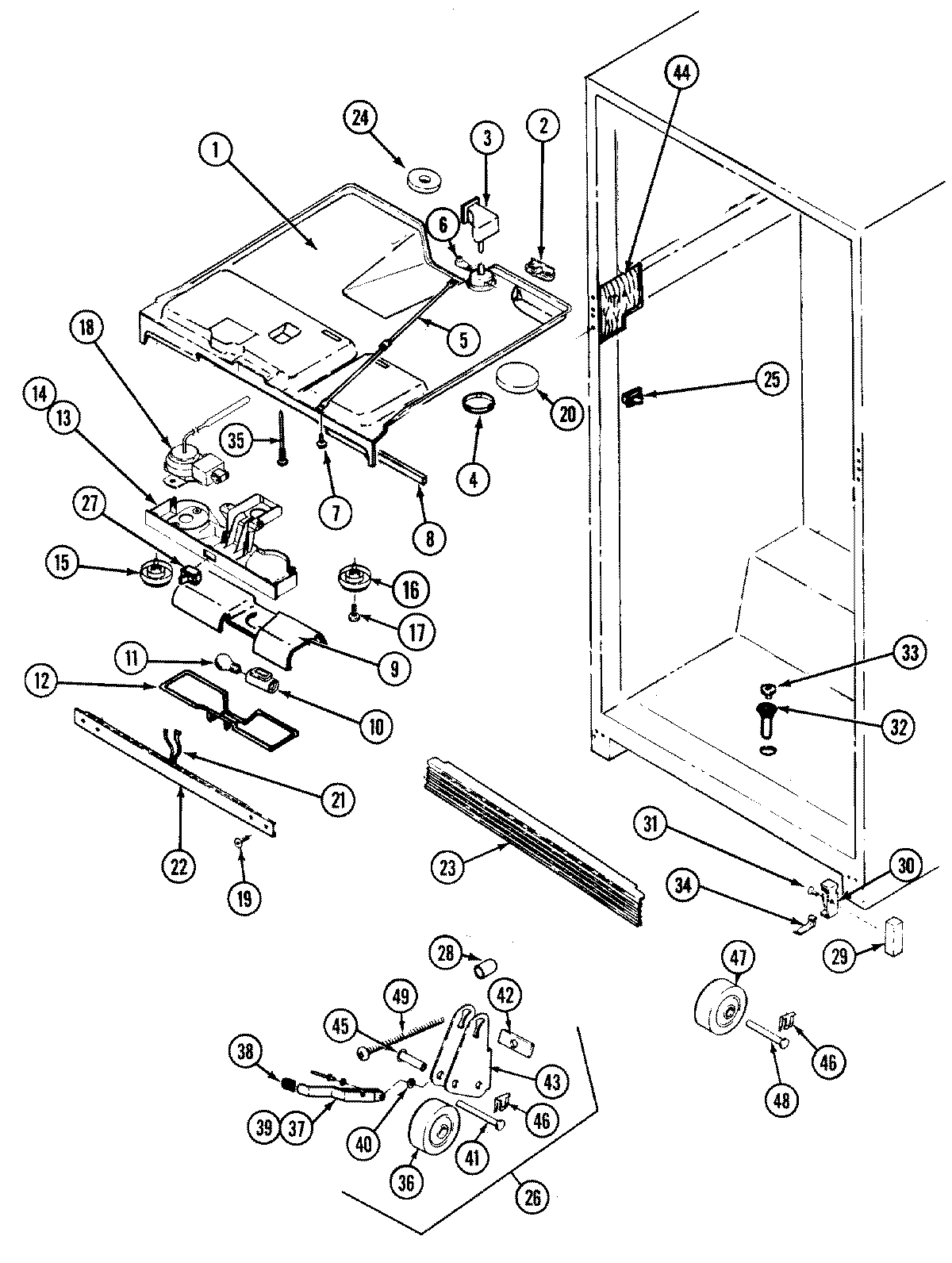

03 - FRESH FOOD COMPARTMENT

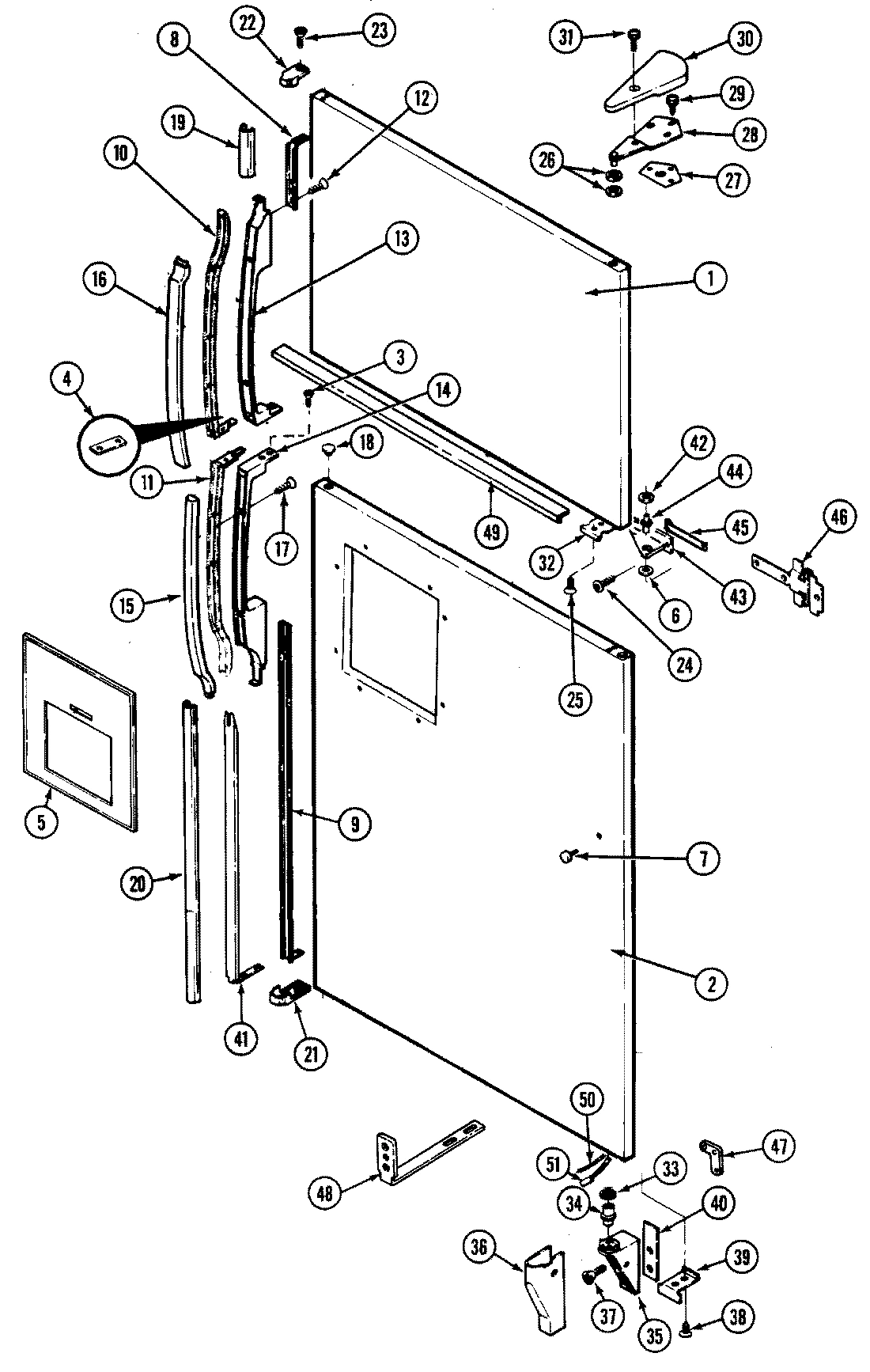

06 - OUTER DOOR
Common parts from model Whirlpool RTW2200CAL REFRIGERATOR
1
KIT, FOUNTAIN WPL 12000062 Contact Us For Availability
1
INSULATION, FOUNTAIN WPL 696832 Contact Us For Availability
1
INSULATION FOUNTAIN WPL 698401 Contact Us For Availability
1
WIRE HARNESS, COMPRESSOR WPL 690621 Contact Us For Availability
1
LINER, FRZ. DOOR WPL 694711 Contact Us For Availability
1
RING, DRIVE WPL 700272 Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
TOP, F.F. COMPARTMENT WPL 694111 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 72342104AM Contact Us For Availability
2
LINER, FOUNTAIN WPL 696864 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
LINER, F.F. DOOR WPL 694571 Contact Us For Availability
2
BIN WPL 678311 Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694144 Contact Us For Availability
2
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
2
PANEL, F.F. DOOR (ALM) WPL 723426AM Contact Us For Availability
3
SCREW WPL 6527573 Contact Us For Availability
3
CLIP WPL 527782 Contact Us For Availability
3
GASKET, DOOR WPL 7002115 Contact Us For Availability
3
AUGER WPL 678331 Contact Us For Availability
3
FRAME, MEAT SHELF WPL 672694 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
ORIFICE ASSY., DAMPER WPL 698111 Contact Us For Availability
4
GRILL,FOUNTAIN WPL 672231 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
GASKET, DOOR WPL 7002116 Contact Us For Availability
4
BEARING WPL 671722 Contact Us For Availability
4
SHELF, GLASS WPL 6726716 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
SHIM, HANDLE WPL 679341 Contact Us For Availability
5
PAD, ACTUATOR WPL 696823 Contact Us For Availability
5
OVERLOAD WPL 691057 Contact Us For Availability
5
RETAINER, GASKET (SIDE) WPL 697503 Contact Us For Availability
5
ICE DAM WPL 678321 Contact Us For Availability
5
SCREW WPL 40001536 Contact Us For Availability
5
ROD, FRZ. CONTROL WPL 694184 Contact Us For Availability
5
SCREW WPL 40500435 Contact Us For Availability
5
ESCUTCHEON WPL 699076 Contact Us For Availability
6
SWITCH, CRUSHER WPL 554401 Contact Us For Availability
6
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
6
WASHER, THRUST WPL 678342 Contact Us For Availability
6
TRIM, CANTILEVER WPL 6730942 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
6
WASHER WPL 542337 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
RETAINER, GASKET (SIDE) WPL 697508 Contact Us For Availability
7
PIN, COTTER WPL 492007703 Contact Us For Availability
7
SEAL, CRISPER SHELF (SIDE) WPL 697794 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability
8
BRACKET, ACTUATOR SWITCH WPL 700441 Contact Us For Availability
8
SCREW WPL 41501335 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
RETAINER, TOP & BOTTOM SEAL WPL 697506 Contact Us For Availability
8
FRONT, ICE BIN WPL 6987514 Contact Us For Availability
8
SHELF, CRISPER WPL 700432 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
8
MAGNET WPL 694133 Contact Us For Availability
8
SHIM, TRIM LOCK (FRZ.) WPL 679273 Contact Us For Availability
9
SCREW WPL 4140011 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
SCREW WPL 652755 Contact Us For Availability
9
SLEEVE, SENSOR ARM WPL 675562 Contact Us For Availability
9
TRIM, CRISPER SHELF WPL 6720437 Contact Us For Availability
9
TUNNEL FREEZER WPL 671154 Contact Us For Availability
9
SHIELD, HEAT WPL 698491 Contact Us For Availability
9
SHIM, TRIM LOCK (F.F.) WPL 679275 Contact Us For Availability
10
SCREW WPL 6527574 Contact Us For Availability
10
SLIDE, SELECTOR (ALM) WPL 696816 Contact Us For Availability
10
WASHER WPL 199134 Contact Us For Availability
10
ORGANIZER, SHELF WPL 671958 Contact Us For Availability
10
SEAL, CRISPER SHELF WPL 6979810 Contact Us For Availability
10
SCREW WPL 40001531 Contact Us For Availability
10
SOCKET, LIGHT WPL 694251 Contact Us For Availability
10
FRAME, FRZ. HANDLE WPL 679214 Contact Us For Availability
11
GUARD, CHIP WPL 700232 Contact Us For Availability
11
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
TRIM, DOOR SHELF WPL 6771828 Contact Us For Availability
11
SLEEVE, BRASS WPL 694311 Contact Us For Availability
11
RAIL, SUPPORT WPL 687564 Contact Us For Availability
11
COVER, EVAPORATOR WPL 6640312 Contact Us For Availability
11
BULB, LIGHT WPL 319561 Contact Us For Availability
11
FRAME, F.F. HANDLE WPL 679211 Contact Us For Availability
12
BRACKET, FOUNTAIN (ALM) WPL 7002210 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
TRIM, DOOR SHELF WPL 6771831 Contact Us For Availability
12
YOKE, ICE DISPENSER WPL 630522 Contact Us For Availability
12
PAN, CRISPER WPL 6992819 Contact Us For Availability
12
PAN, CRISPER WPL 6992820 Contact Us For Availability
12
SEAL WPL 689463 Contact Us For Availability
12
BOTTOM, FRZ. WPL 693992 Contact Us For Availability
12
GUARD, LIGHT WPL 694261 Contact Us For Availability
12
SCREW WPL 6527565 Contact Us For Availability
13
BOARD, PC (115V) WPL 697513 Contact Us For Availability
13
ENDCAP, SHELF TRIM (WHT) WPL 672132 Contact Us For Availability
13
MOTOR, AUGER WPL 651861 Contact Us For Availability
13
WIRE HARNESS WPL 677011 Contact Us For Availability
13
GASKET, TRIM FRONT WPL 672653 Contact Us For Availability
13
SHELF, FRZ. (PLASTIC) WPL 671424 Contact Us For Availability
13
COVER, CONTROL WPL 697902 Contact Us For Availability
14
SOCKET, LIGHT (W/NUT) WPL 672931 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675607 Contact Us For Availability
14
ENDCAP, SHELF TRIM WPL 672083 Contact Us For Availability
14
INLET, WATER WPL 951001 Contact Us For Availability
14
GASKET TRIM MOUNTING REAR WPL 672663 Contact Us For Availability
14
TRIM, FRZ. SHELF FRONT WPL 6717660 Contact Us For Availability
14
SCREW WPL 40501635 Contact Us For Availability
14
HANDLE, DOOR WPL 679231 Contact Us For Availability
15
BULB, LIGHT WPL 631791 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
15
EJECTOR, ICE WPL 951011 Contact Us For Availability
15
FRAME, SPLIT SHELF WPL 672704 Contact Us For Availability
15
DIVIDER, SHELF WPL 674193 Contact Us For Availability
15
KNOB, TEMPERATURE CONTROL WPL 694173 Contact Us For Availability
15
INSERT, HANDLE (WHT) WPL 679255 Contact Us For Availability
16
SWITCH, LIGHT WPL 698323 Contact Us For Availability
16
TRAY, EVAPORATOR WPL 691183 Contact Us For Availability
16
RAIL, P.O. SHELF WPL 673171 Contact Us For Availability
16
ARM, SENSOR WPL 701421 Contact Us For Availability
16
TRIM, CANTILEVER WPL 6730939 Contact Us For Availability
16
SCREW WPL 4060081 Contact Us For Availability
16
KNOB, FREEZER CONTROL WPL 694174 Contact Us For Availability
16
INSERT, HANDLE (ALM) WPL 679256 Contact Us For Availability
17
SWITCH, SAFETY WPL 699041 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
SCREW WPL 40002728 Contact Us For Availability
17
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
17
GROMMET, CRISPER SHELF WPL 671631 Contact Us For Availability
17
CUP, SHELF WPL 603131 Contact Us For Availability
17
CUP, SHELF WPL 674661 Contact Us For Availability
17
SCREW WPL 6527538 Contact Us For Availability
17
SCREW WPL 6527544 Contact Us For Availability
18
SEAL, ICE CHUTE WPL 5207727 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
18
ENDCAP, SHELF TRIM WPL 672112 Contact Us For Availability
18
STRIPPER, ICE WPL 951021 Contact Us For Availability
18
CUP, U-RAIL SUPPORT WPL 687571 Contact Us For Availability
18
SHELF WPL 676966 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 686013 Contact Us For Availability
18
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
18
PLUG BUTTON (ALM) WPL 694804 Contact Us For Availability
19
SCREW WPL 41504135 Contact Us For Availability
19
SWITCH WPL 554403 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 6771829 Contact Us For Availability
19
TUBE, WATER ENTRY WPL 676662 Contact Us For Availability
19
CLIP, FILL TUBE WPL 678771 Contact Us For Availability
19
SUPPORT, DIVIDER WPL 676481 Contact Us For Availability
19
SCREW WPL 6527567 Contact Us For Availability
19
TRIM, EXT. WPL 6793216 Contact Us For Availability
20
HEATER, FOUNTAIN (UPPER) WPL 698551 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
TRAY, EGG WPL 672152 Contact Us For Availability
20
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
20
GUIDE, DIVIDER WPL 676573 Contact Us For Availability
20
DISC, CRANK COVER WPL 690371 Contact Us For Availability
20
TRIM, EXT. WPL 6793218 Contact Us For Availability
21
HEATER, FOUNTAIN WPL 697971 Contact Us For Availability
21
COVER, UNIT COMPARTMENT WPL 691383 Contact Us For Availability
21
SCREW WPL 998645 Contact Us For Availability
21
ORGANIZER, P.O. SHELF WPL 670276 Contact Us For Availability
21
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
21
SUPPORT, CRISPER SHELF (LT) WPL 678951 Contact Us For Availability
21
SUPPORT, CRISPER SHELF (RT) WPL 678952 Contact Us For Availability
21
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
21
HEATER, DIVIDER CHANNEL WPL 696173 Contact Us For Availability
21
END CAP, F.F. HANDLE WPL 679301 Contact Us For Availability
22
RETAINER, TUBE WPL 699411 Contact Us For Availability
22
WIRE HARNESS TIMER WPL 678641 Contact Us For Availability
22
TIMER, DEFROST WPL 695434 Contact Us For Availability
22
DOOR, DAIRY WPL 699187 Contact Us For Availability
22
SCREW, BRACKET WPL 951081 Contact Us For Availability
22
SCREW WPL 6527528 Contact Us For Availability
22
SWITCH, INTERLOCK WPL 680581 Contact Us For Availability
22
CHANNEL, MULLION DIVIDER (WHT) WPL 694203WW Contact Us For Availability
22
WIRE HARNESS, MULLION WPL 701183 Contact Us For Availability
22
END CAP, FRZ. HANDLE WPL 679291 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TRAY, BUTTER WPL 299362 Contact Us For Availability
23
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
23
TRIM, SHELF FRONT WPL 6778335 Contact Us For Availability
23
COVER, PLENUM WPL 664806 Contact Us For Availability
23
GRILL, KICKPLATE WPL 6702313 Contact Us For Availability
23
SCREW WPL 6527522 Contact Us For Availability
23
SCREW (No.12 X 5/8``) WPL 6527526 Contact Us For Availability
24
STRIKE, DOOR WPL 696751 Contact Us For Availability
24
EVAPORATOR WPL 698228 Contact Us For Availability
24
SHELF, PICK-OFF WPL 6987224 Contact Us For Availability
24
THERMOSTAT WPL 950921 Contact Us For Availability
24
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
24
GLASS, CRIPSER SHELF WPL 6748914 Contact Us For Availability
24
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
24
SCREW WPL 6527562 Contact Us For Availability
25
DOOR, ICE WPL 689572 Contact Us For Availability
25
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
25
SHELF, PICK-OFF WPL 6987222 Contact Us For Availability
25
SHELF, PICK-OFF WPL 6987223 Contact Us For Availability
25
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
25
SCREW WPL 652756 Contact Us For Availability
25
SWITCH, LIGHT WPL 669871 Contact Us For Availability
25
SHIELD, LIGHT WPL 672401 Contact Us For Availability
26
RETAINER WPL 685661 Contact Us For Availability
26
RIVET WPL 263979 Contact Us For Availability
26
HOOK, P.O. SHELF (LT.-LT.SHF) WPL 670435 Contact Us For Availability
26
HOOK, P.O. SHELF (RT.-RT.SHF.) WPL 670436 Contact Us For Availability
26
HOOK, P O SHELF WPL 670437 Contact Us For Availability
26
HOOK, P.O. SHELF WPL 670438 Contact Us For Availability
26
TRIM, MEAT PAN SUPPORT WPL 670718 Contact Us For Availability
26
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
26
WHEEL ASSY. (LEFT) WPL 723193 Contact Us For Availability
26
WHEEL ASSY. (RIGHT) WPL 723194 Contact Us For Availability
26
WASHER WPL 542332 Contact Us For Availability
26
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
27
SCREW WPL 40511635 Contact Us For Availability
27
HEATER, DEFROST WPL 6010636 Contact Us For Availability
27
RIVET WPL 5992017 Contact Us For Availability
27
ICEMAKER WPL 951091 Contact Us For Availability
27
SEAL, MEAT PAN WPL 676772 Contact Us For Availability
27
DEFLECTOR, LIGHT WPL 673611 Contact Us For Availability
27
SWITCH, HEATER WPL 673632 Contact Us For Availability
27
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
28
SHIELD, DEFROST HEATER WPL 601096 Contact Us For Availability
28
GROMMET, PICK-OFF WPL 671441 Contact Us For Availability
28
ACTUATOR, MEAT PAN WPL 6707212 Contact Us For Availability
28
SCREW WPL 400017103 Contact Us For Availability
28
BASE, LIGHT WPL 672412 Contact Us For Availability
28
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
28
HINGE, UPPER WPL 5370920 Contact Us For Availability
29
INSULATION, ICE DOOR WPL 685571 Contact Us For Availability
29
CLIP WPL 689351 Contact Us For Availability
29
RETAINER, SHELF TRIM WPL 652451 Contact Us For Availability
29
VALVE, WATER WPL 698251 Contact Us For Availability
29
NUT WPL 431019511 Contact Us For Availability
29
TUNNEL, ICE WPL 696251 Contact Us For Availability
29
COVER, END CAP (ALM) WPL 671175 Contact Us For Availability
29
SCREW WPL 6527552 Contact Us For Availability
30
SPRING, ICE DOOR WPL 698681 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208533 Contact Us For Availability
30
SCREW WPL 4000171 Contact Us For Availability
30
TRIM, DOOR SHELF WPL 6771835 Contact Us For Availability
30
SCREW WPL 951061 Contact Us For Availability
30
COVER, ICE MAKER WPL 683282 Contact Us For Availability
30
SCREW WPL 951051 Contact Us For Availability
30
LINKAGE, MEAT PAN WPL 670734 Contact Us For Availability
30
END CAP, KICKPLATE (RT-ALM) WPL 678545 Contact Us For Availability
30
END CAP, KICKPLATE (LT-ALM) WPL 678546 Contact Us For Availability
30
COVER, UPPER HINGE (ALM) WPL 695183 Contact Us For Availability
31
SPRING, EXTENSION WPL 673391 Contact Us For Availability
31
HEAT EXCHANGER WPL 650134 Contact Us For Availability
31
WIRE TIE WPL 662231 Contact Us For Availability
31
SHELF, PICK-OFF WPL 6987225 Contact Us For Availability
31
SCREW WPL 4010181 Contact Us For Availability
31
SLIDE, CONTROL WPL 670742 Contact Us For Availability
31
DOOR, ICE TUNNEL WPL 676472 Contact Us For Availability
31
SCREW WPL 4140131 Contact Us For Availability
31
SCREW WPL 4080621 Contact Us For Availability
32
FOIL, FONTAIN FRONT WPL 698541 Contact Us For Availability
32
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
32
SEAL, FOAM TRY WPL 6632512 Contact Us For Availability
32
TUBE, DRAIN WPL 545317 Contact Us For Availability
33
SOLENOID (115V) WPL 678833 Contact Us For Availability
33
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
33
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
33
SCREW WPL 6527534 Contact Us For Availability
33
SEAL WPL 6632535 Contact Us For Availability
33
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
33
WASHER, DOOR SPACER WPL 674833 Contact Us For Availability
34
SCREW WPL 4060331 Contact Us For Availability
34
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
34
RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability
34
WIRE HARNESS, MAIN WPL 692891 Contact Us For Availability
34
TUBING, VALVE TO TANK (5/16``) WPL 6718713 Contact Us For Availability
34
SUPPORT, MEAT PAN----NA WPL 6764914 Contact Us For Availability
34
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
34
CLIP, KICKPLATE WPL 672591 Contact Us For Availability
34
PIN, HINGE WPL 700601 Contact Us For Availability
35
LINK, SOLENOID WPL 696881 Contact Us For Availability
35
SCREW WPL 4000161 Contact Us For Availability
35
PAN, MEAT WPL 6992816 Contact Us For Availability
35
SEAL, MULLION TRAY WPL 695623 Contact Us For Availability
35
SCREW WPL 6527578 Contact Us For Availability
35
HINGE, LOWER (ZINC) WPL 695163 Contact Us For Availability
36
BRACKET, DEFROST TIMER WPL 673922 Contact Us For Availability
36
DOOR, DISP. FRONT WPL 6992013 Contact Us For Availability
36
BRACKET, CENTER ROLLER WPL 674642 Contact Us For Availability
36
WHEEL WPL 698122 Contact Us For Availability
36
SCREW WPL 6527556 Contact Us For Availability
36
COVER, LOWER HINGE (ALM) WPL 689783 Contact Us For Availability
37
PIN, SPRING WPL 672913 Contact Us For Availability
37
CORD, POWER WPL 528903 Contact Us For Availability
37
PIN, ICE DOOR WPL 679061 Contact Us For Availability
37
RIVET WPL 263976 Contact Us For Availability
37
WEIGHT DAMPER DOOR WPL 671741 Contact Us For Availability
37
E RING WPL 672821 Contact Us For Availability
37
LEVER, LOCK (LEFT) WPL 676811 Contact Us For Availability
37
LEVER, LOCK (RIGHT) WPL 676812 Contact Us For Availability
37
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
38
SCREW WPL 4000271 Contact Us For Availability
38
COIL, WATER WPL 676151 Contact Us For Availability
38
COVER, HEAT EXCHANGER WPL 681861 Contact Us For Availability
38
BUMPER, DOOR WPL 282726 Contact Us For Availability
38
ROLLER, CRISPER PAN WPL 674231 Contact Us For Availability
38
SHAFT ICE DOOR WPL 672892 Contact Us For Availability
38
HANDLE, LOCK LEVER WPL 675281 Contact Us For Availability
38
SCREW WPL 6527548 Contact Us For Availability
39
TUBING WPL 6718724 Contact Us For Availability
39
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
39
SCREW WPL 406026103 Contact Us For Availability
39
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
39
ARM DAMPER DOOR WPL 671841 Contact Us For Availability
39
SCREW WPL 4060461 Contact Us For Availability
39
STOP, DOOR WPL 692562 Contact Us For Availability
40
NUT, WIRE WPL 271165 Contact Us For Availability
40
WIRE HARNESS WPL 698021 Contact Us For Availability
40
WIRE HARNESS, FOUNTAIN WPL 699021 Contact Us For Availability
40
WIRE HARNESS, FOUNTAIN WPL 699031 Contact Us For Availability
40
PAN, DRAIN WPL 682361 Contact Us For Availability
40
BOX, AUGER MOTOR WPL 673471 Contact Us For Availability
40
SLIDE, CONTROL WPL 674912 Contact Us For Availability
40
NUT, PUSH ON WPL 431015511 Contact Us For Availability
40
WASHER WPL 420007400 Contact Us For Availability
40
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
41
MANUAL, USE & CARE WPL 1084341 Contact Us For Availability
41
MANUAL, USE & CARE WPL 1088721 Contact Us For Availability
41
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
41
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
41
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
41
SCREW WPL 4000211 Contact Us For Availability
41
HOUSING, MEAT PAN WPL 6706911 Contact Us For Availability
41
DUCT, AIR WPL 670613 Contact Us For Availability
41
PIN, WHEEL WPL 649651 Contact Us For Availability
41
SUPPORT, SHIM WPL 679332 Contact Us For Availability
42
TUBING, VALVE TO GROMMET WPL 675797 Contact Us For Availability
42
PLUG BUTTON WPL 676883 Contact Us For Availability
42
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
42
WASHER WPL 674836 Contact Us For Availability
43
TUNNEL, AIR (MEAT) WPL 695741 Contact Us For Availability
43
CLAMP, SPRING WPL 603334 Contact Us For Availability
43
BRACKET, WHEEL WPL 675301 Contact Us For Availability
44
SCREW WPL 6527550 Contact Us For Availability
44
CLAMP, TUBING WPL 535168 Contact Us For Availability
44
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
44
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
44
PIN, CENTER HINGE WPL 695171 Contact Us For Availability
45
HOLDER, WINE BOTTLE WPL 673085 Contact Us For Availability
45
SEAL, AIR TUNNEL----NA WPL 6632534 Contact Us For Availability
45
SHIM, CENTER HINGE WPL 696051 Contact Us For Availability
46
CLIP WPL 602161 Contact Us For Availability
46
SCREW WPL 6527561 Contact Us For Availability
46
TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability
47
WHEEL WPL 698121 Contact Us For Availability
47
SCREW WPL 6527559 Contact Us For Availability
47
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
48
PIN, WHEEL WPL 298352 Contact Us For Availability
48
SCREW WPL 4140121 Contact Us For Availability
48
SCREW (No.10 X 1/2``) WPL 6527566 Contact Us For Availability
48
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
49
SCREW WPL 6527564 Contact Us For Availability
49
TRIM, DOOR TOP WPL 692653 Contact Us For Availability
50
NUT, COMPRESSION (5/16``) WPL 695832 Contact Us For Availability
50
TUBING, PLASTIC WPL 6718718 Contact Us For Availability
50
UNION, REDUCING (5/16``-5/16``) WPL 689481 Contact Us For Availability
51
INSULATION, ICE DOOR WPL 695401 Contact Us For Availability
51
WIRE HARNESS, DOOR WPL 698031 Contact Us For Availability
NI
SCREW WPL 40002636 Contact Us For Availability
× ![]()
Login and Registration Form
